mp-17450-2/Cs3NiF7/anharm

Space group: P4/mbm (127)
Link: Materials Project
Download: mp-17450-2.tar.gz

Harmonic properties

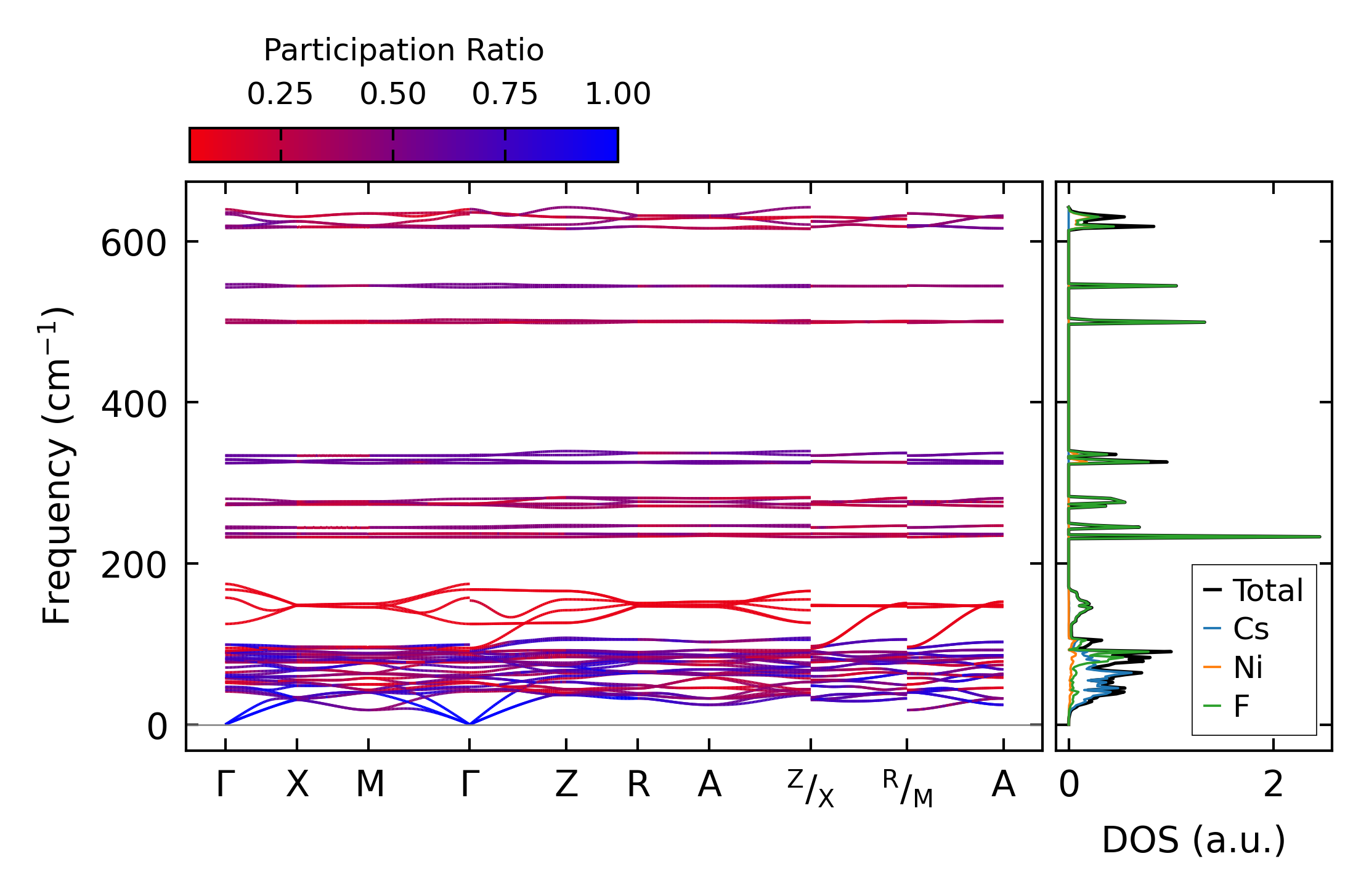

../../_images/fig_bandos_pr13921.png — (a) Phonon dispersion with participation ratio and DOS

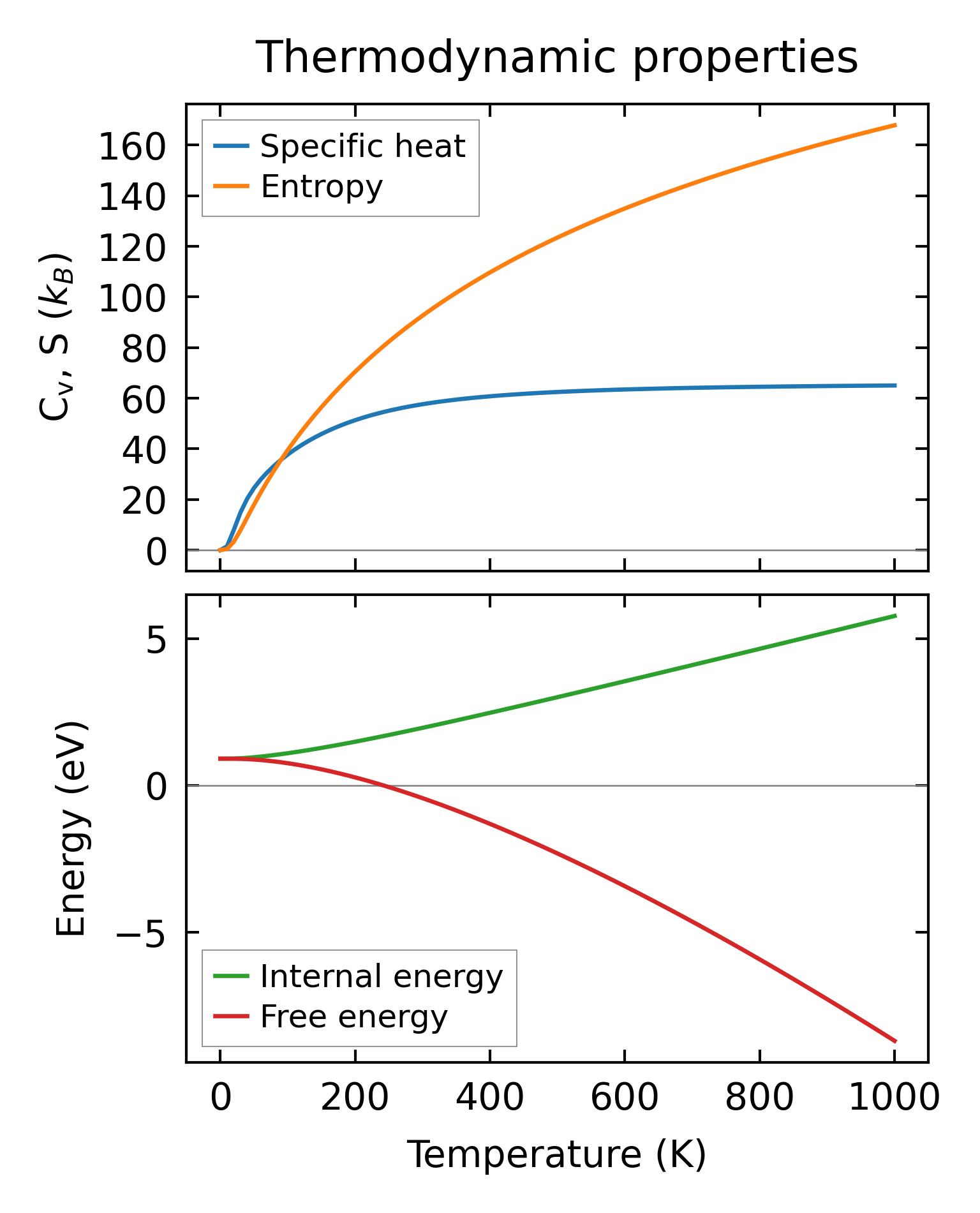

../../_images/fig_thermo13921.png — (b) Thermodynamic properties

Grüneisen parameters

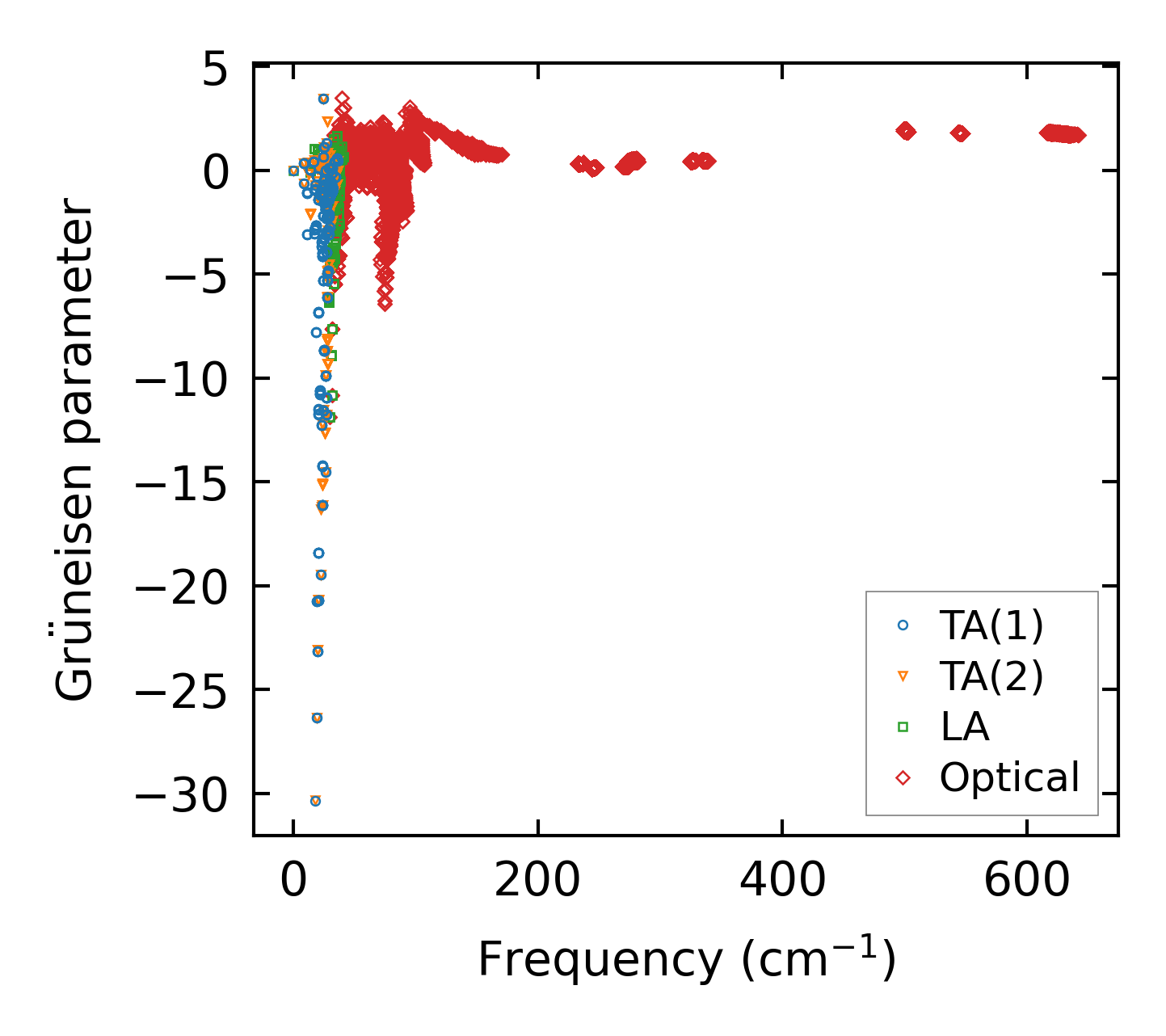

../../_images/fig_gru_all5885.png — (a) Grüneisen parameters

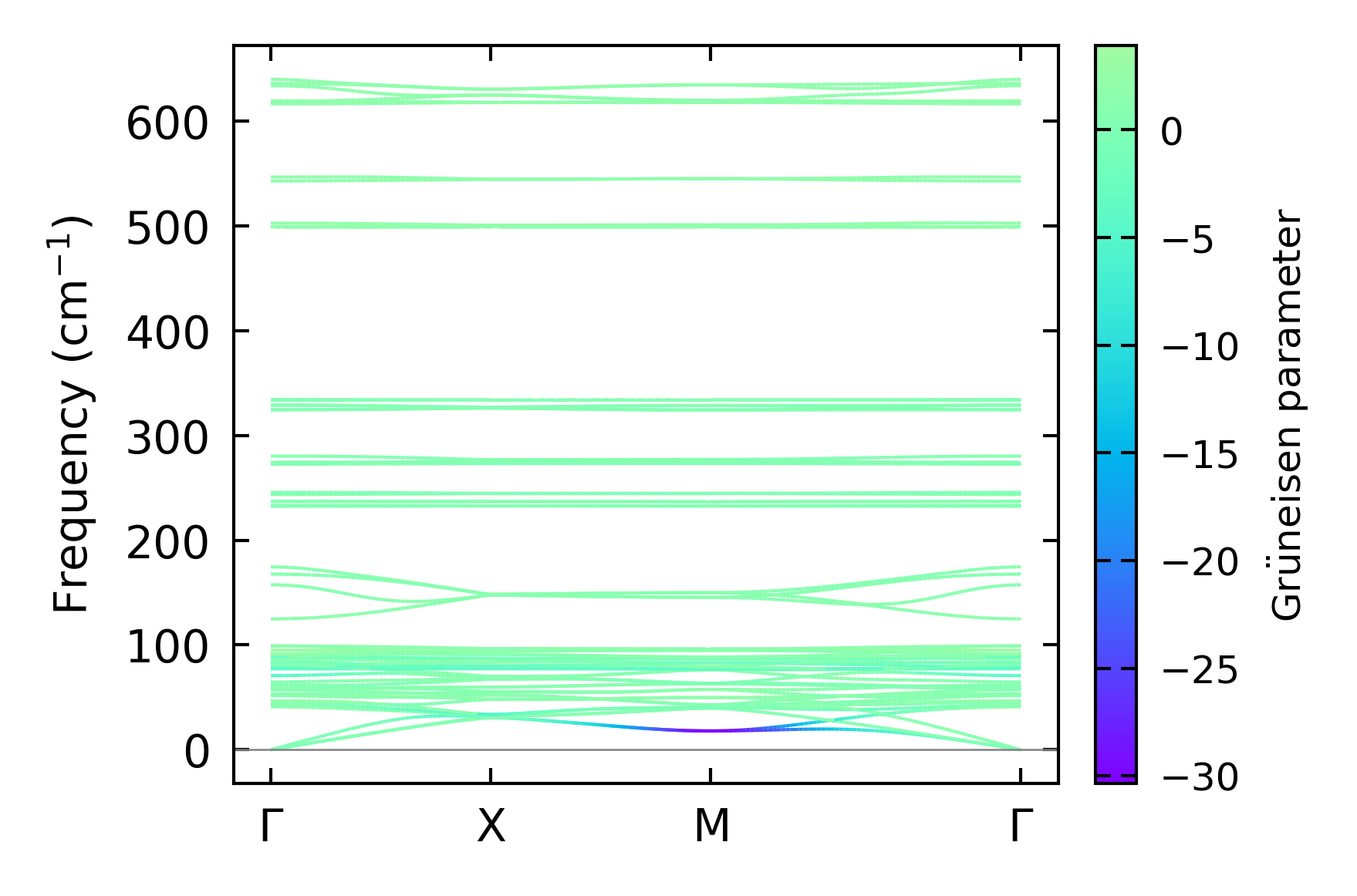

../../_images/fig_gruneisen5885.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x11, supercell: 1x1x2

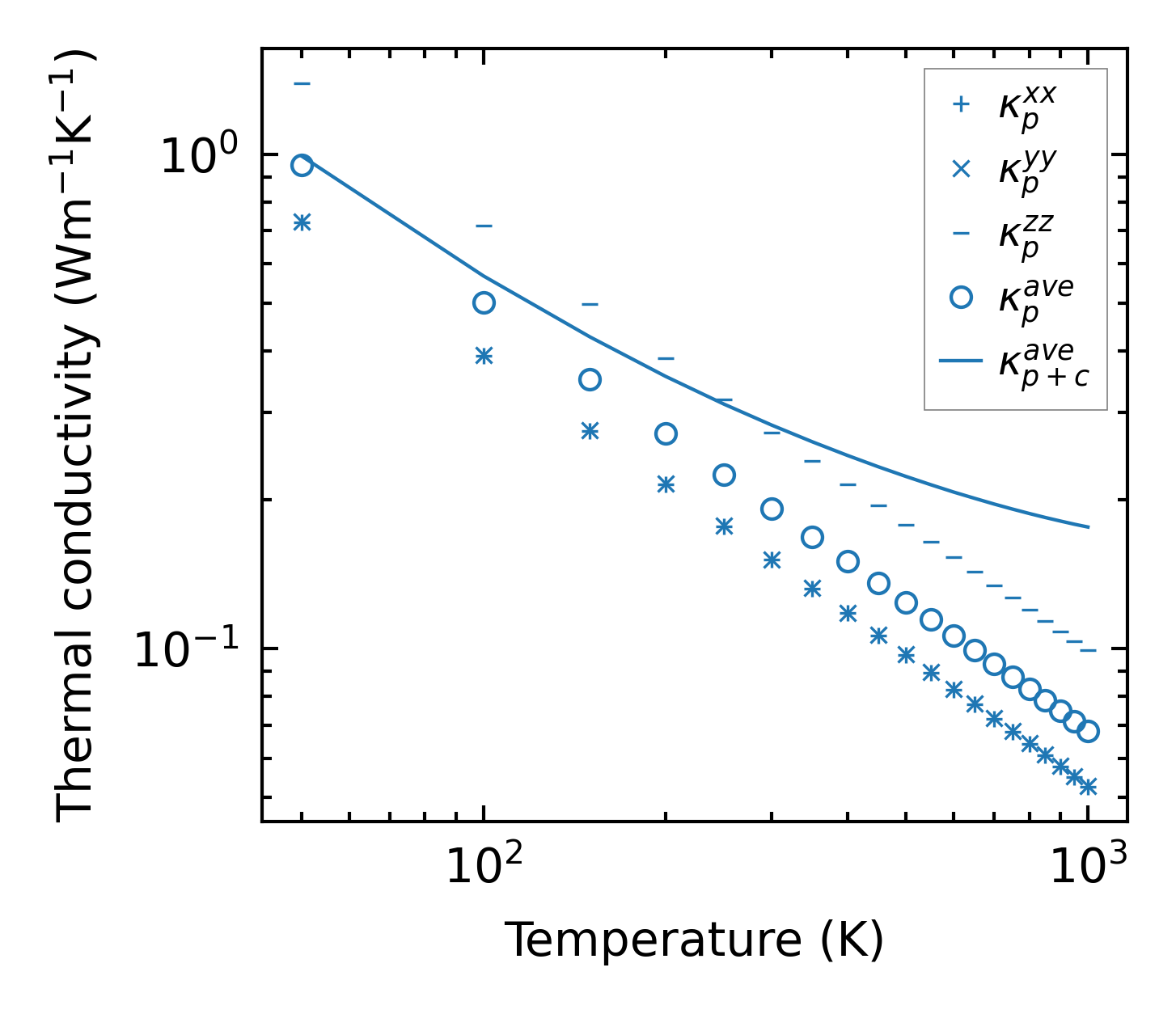

../../_images/fig_kappa11075.png — (a) Temperature-dependent lattice thermal conductivity

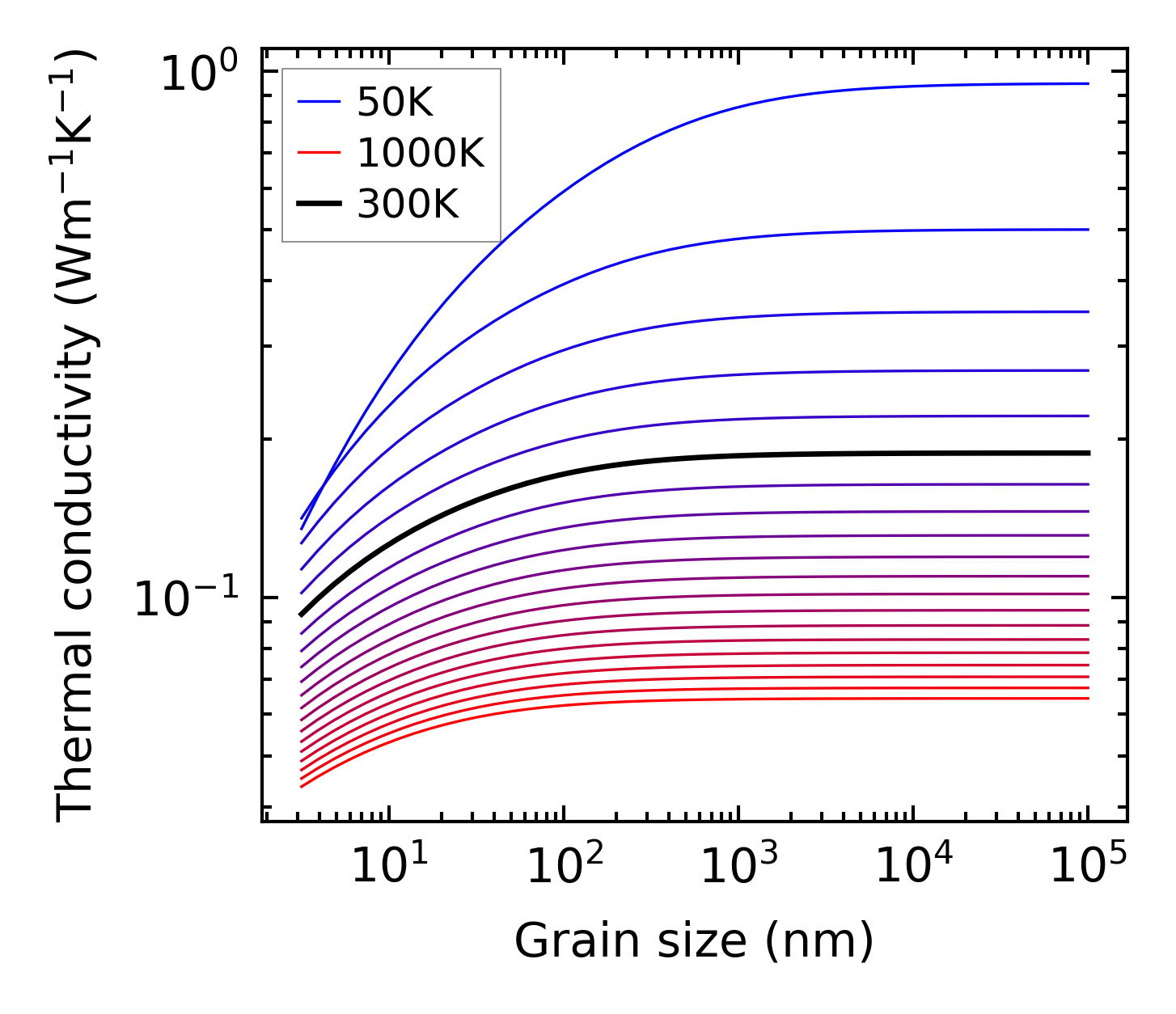

../../_images/fig_kappa_vs_grain_size5961.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

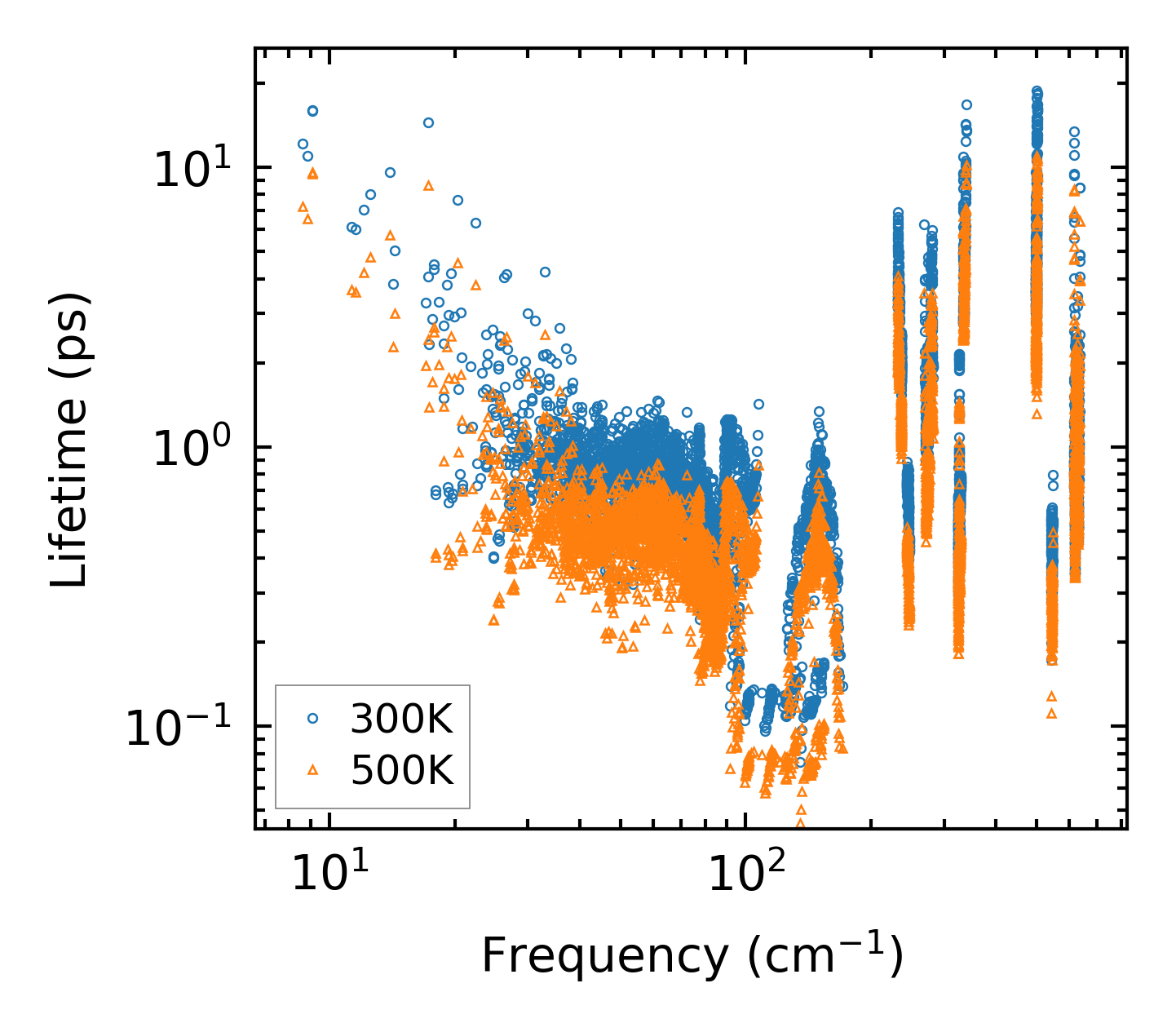

../../_images/fig_lifetime5828.png — (a) Phonon lifetime due to phonon-phonon scattering

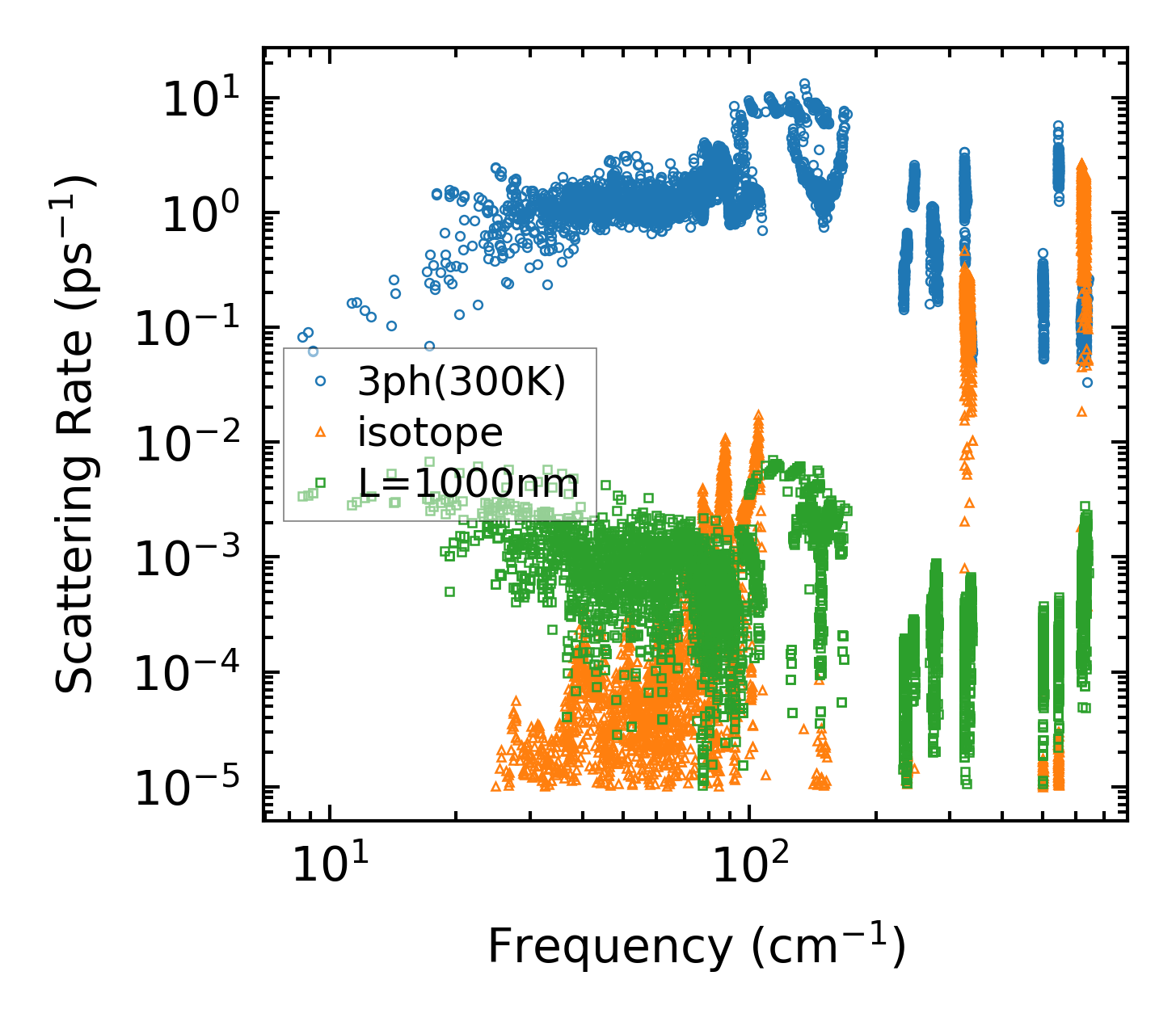

../../_images/fig_scat_rates5827.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

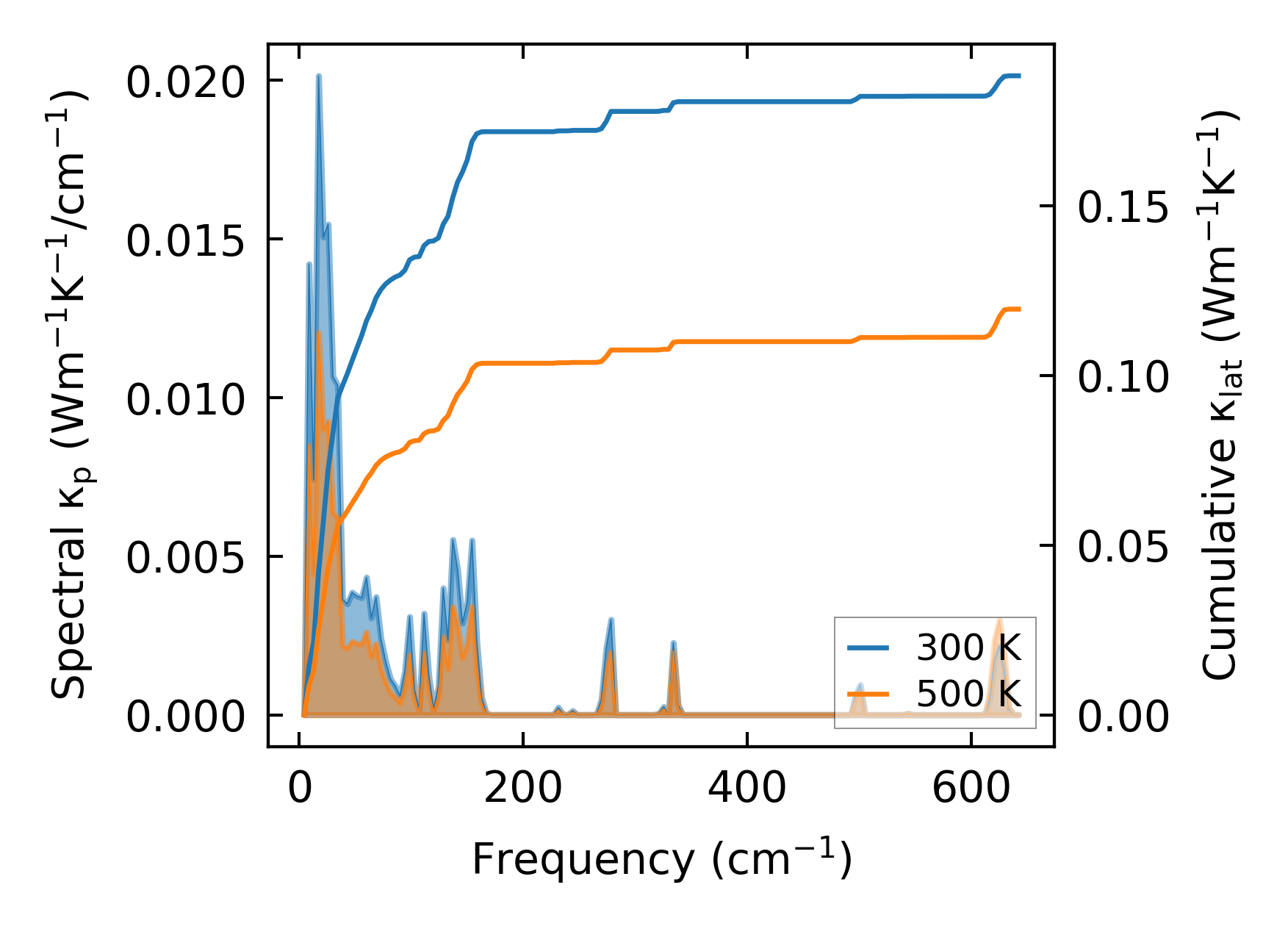

../../_images/fig_cumu_frequency5828.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

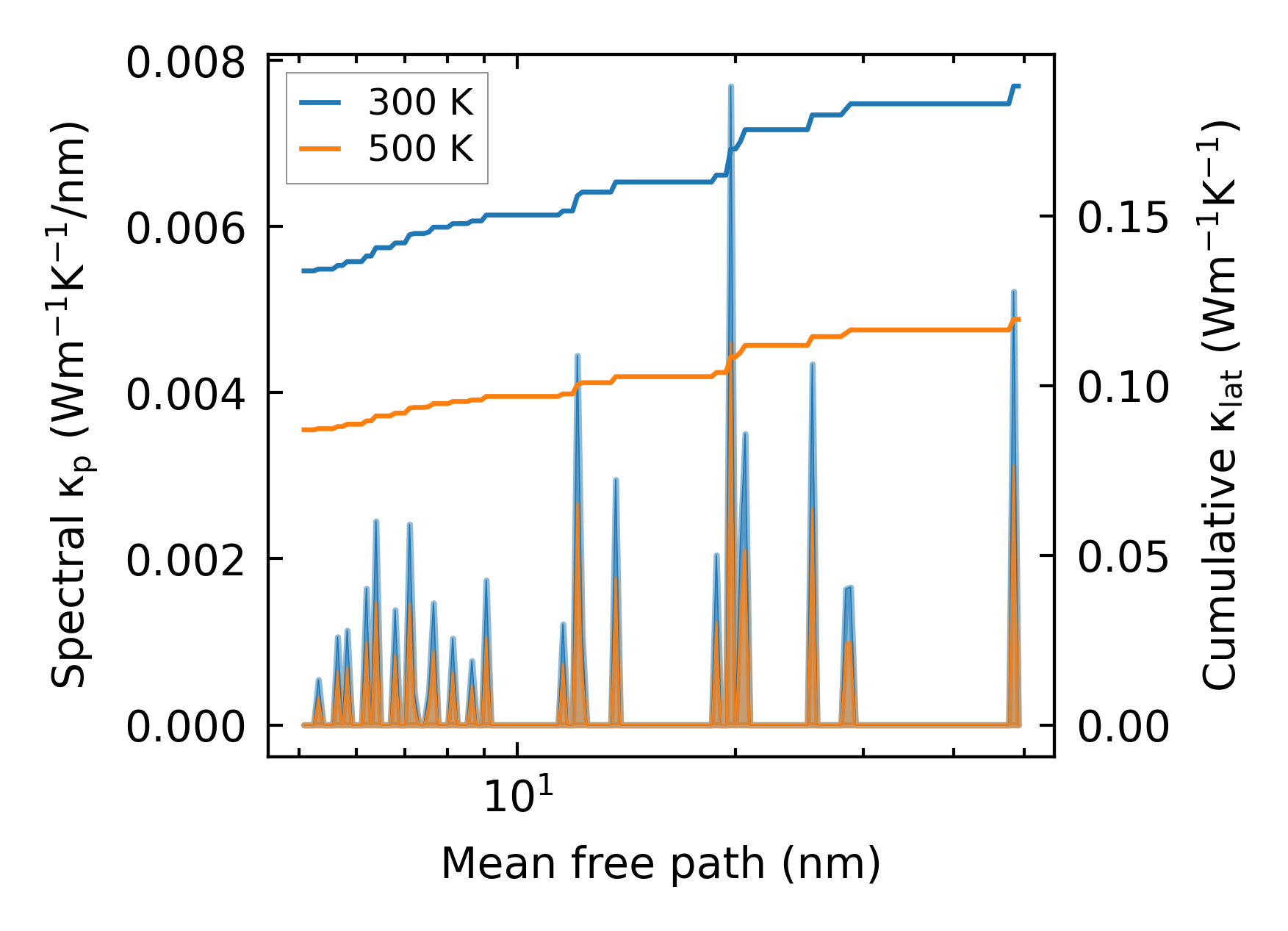

../../_images/fig_cumu_mfp5827.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

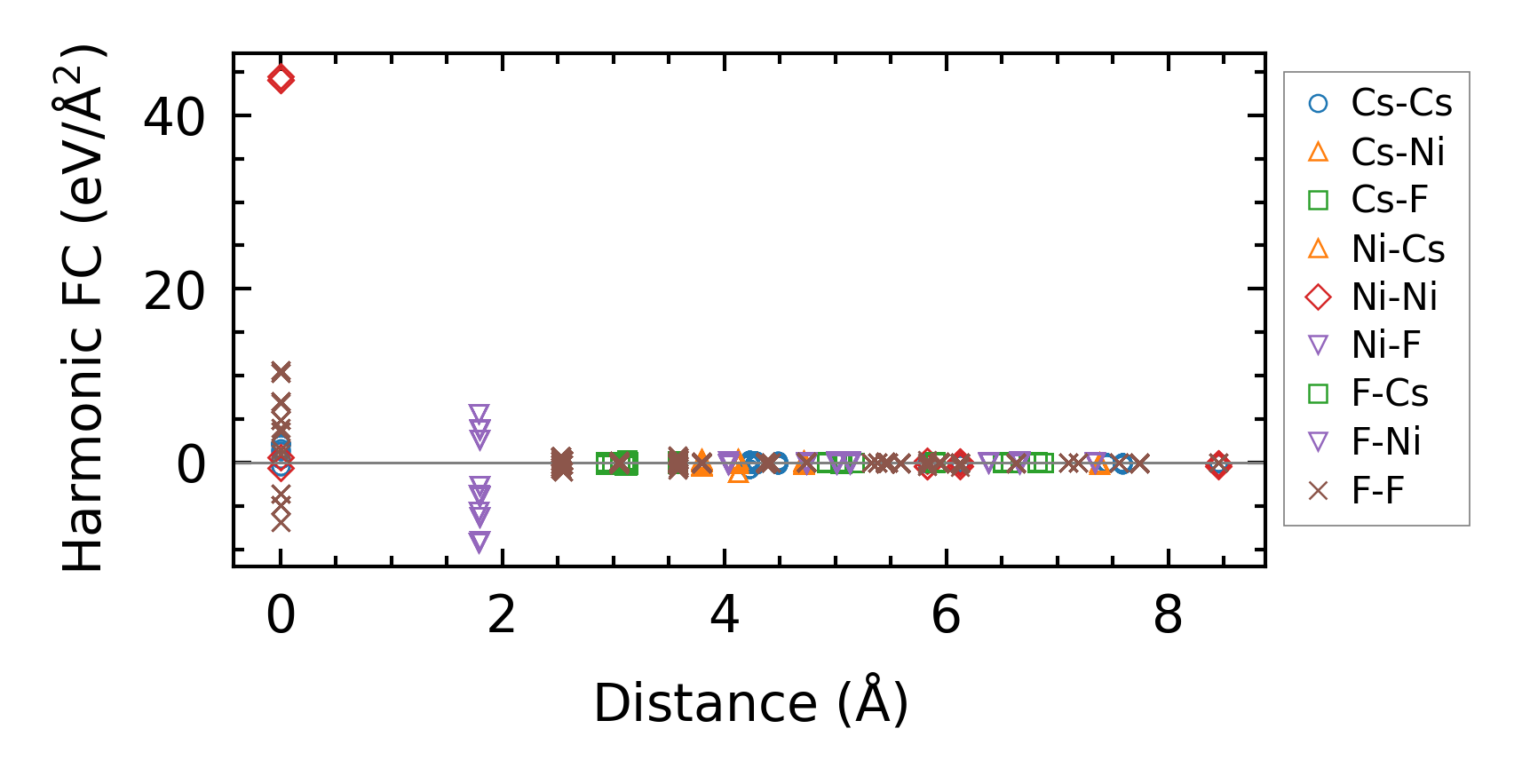

../../_images/fig_fc213549.png — (a) Force constants w.r.t atomic distance

Summary

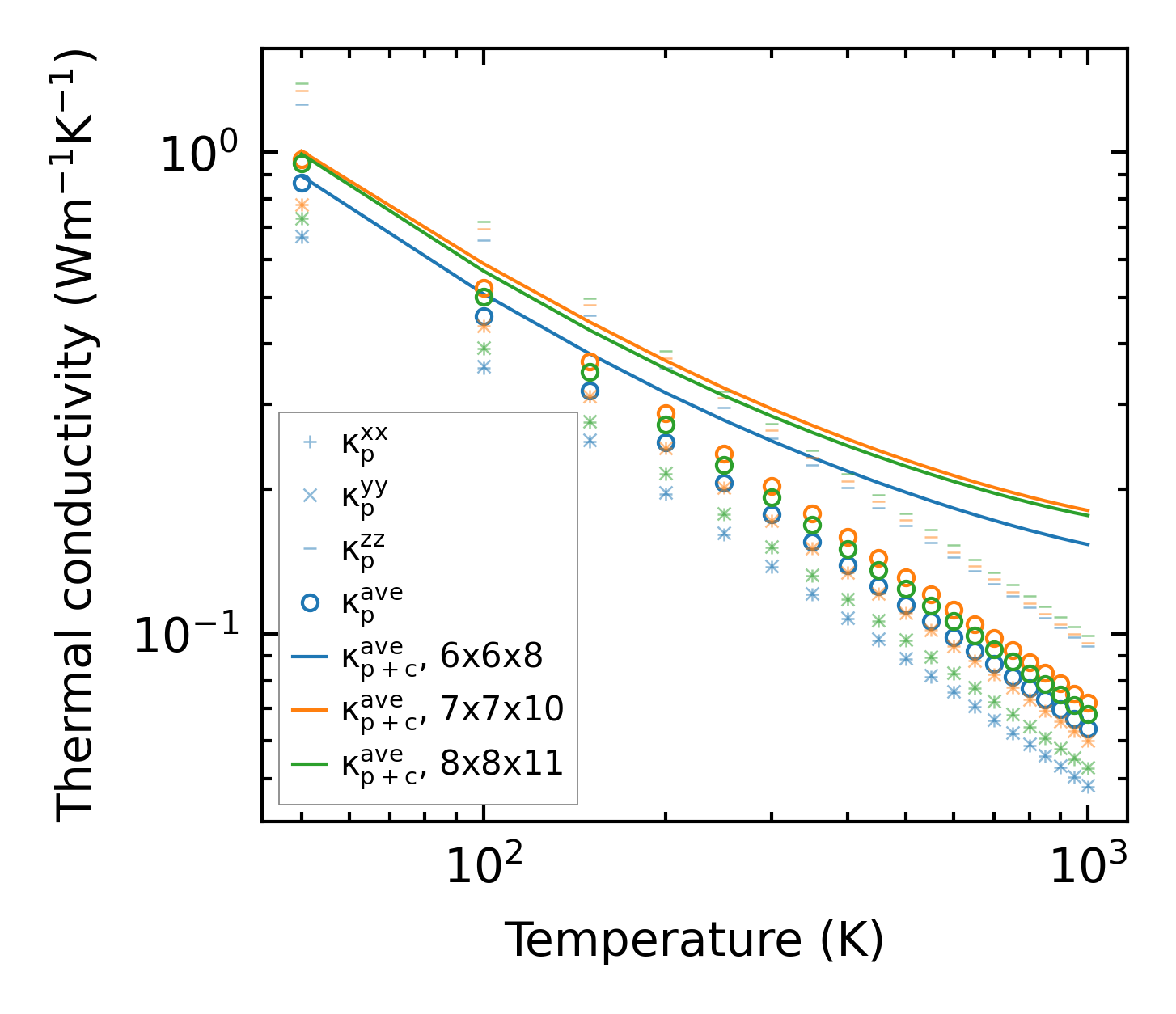

../../_images/fig_kappa11076.png — (a) Temperature-dependent lattice thermal conductivity

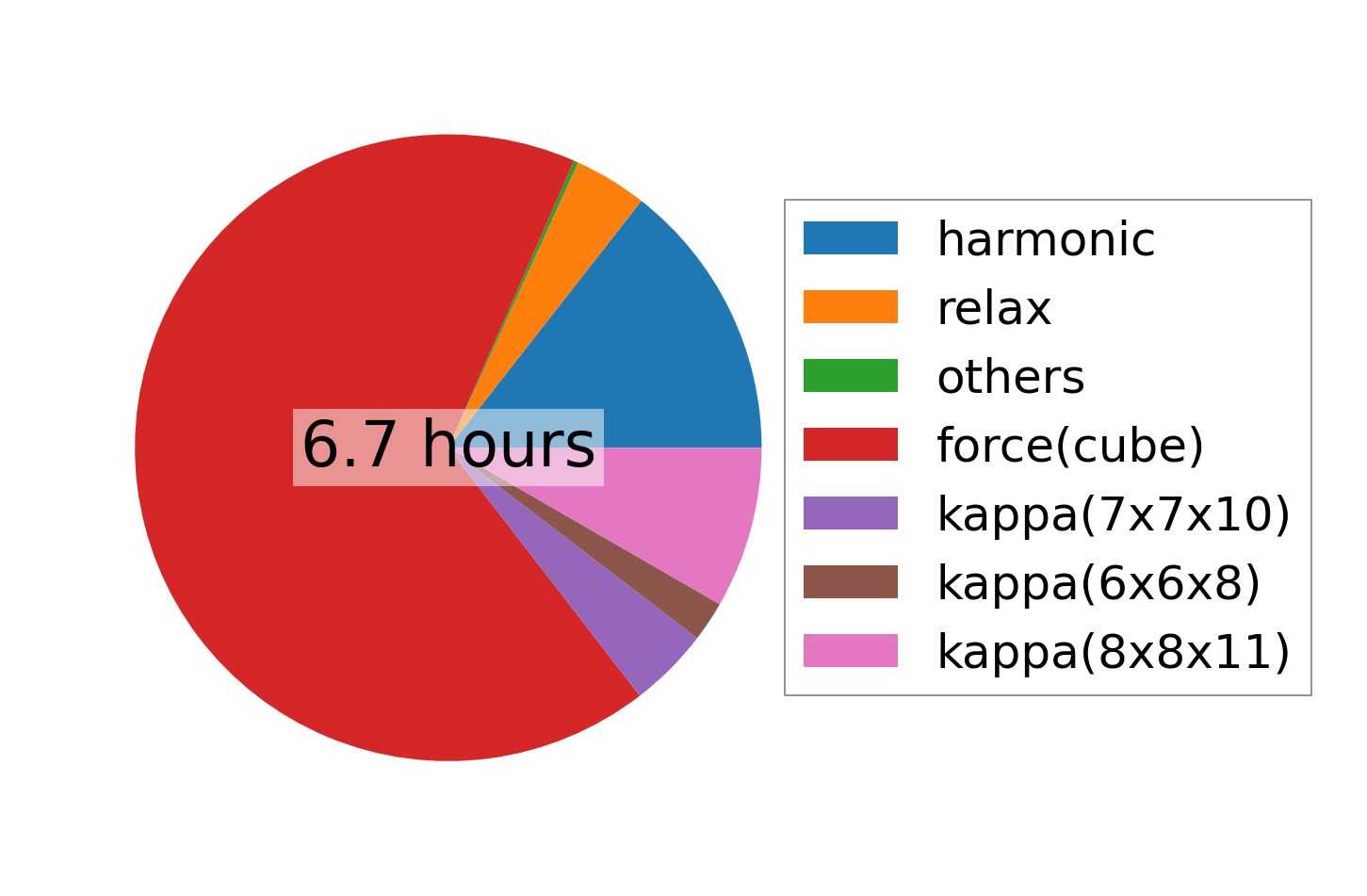

../../_images/fig_times23326.png — (b) Computation time
