mp-17114/Nd2Sn2O7/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-17114.tar.gz

Harmonic properties

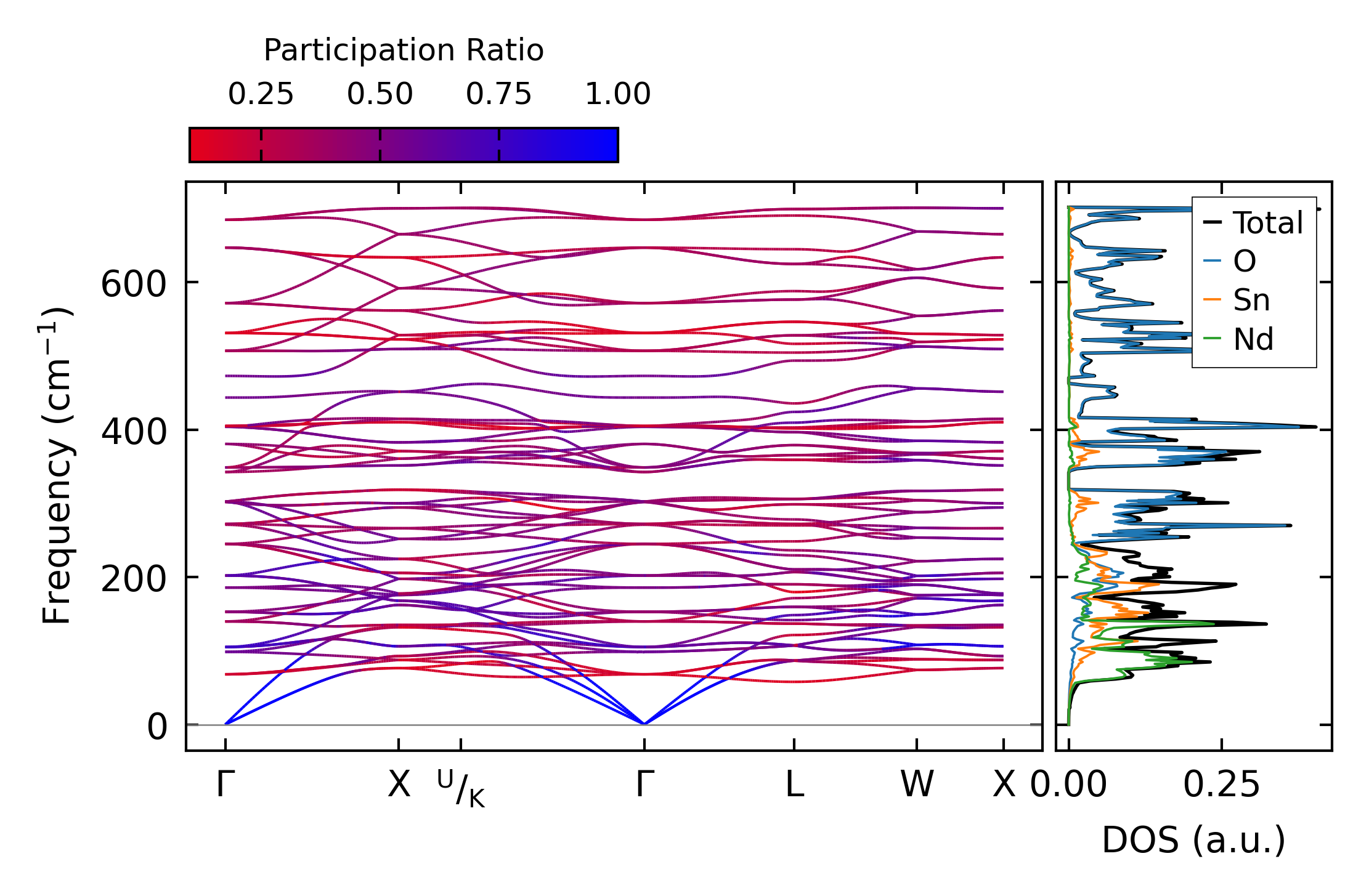

../../_images/fig_bandos_pr14193.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14193.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6033.png — (a) Grüneisen parameters

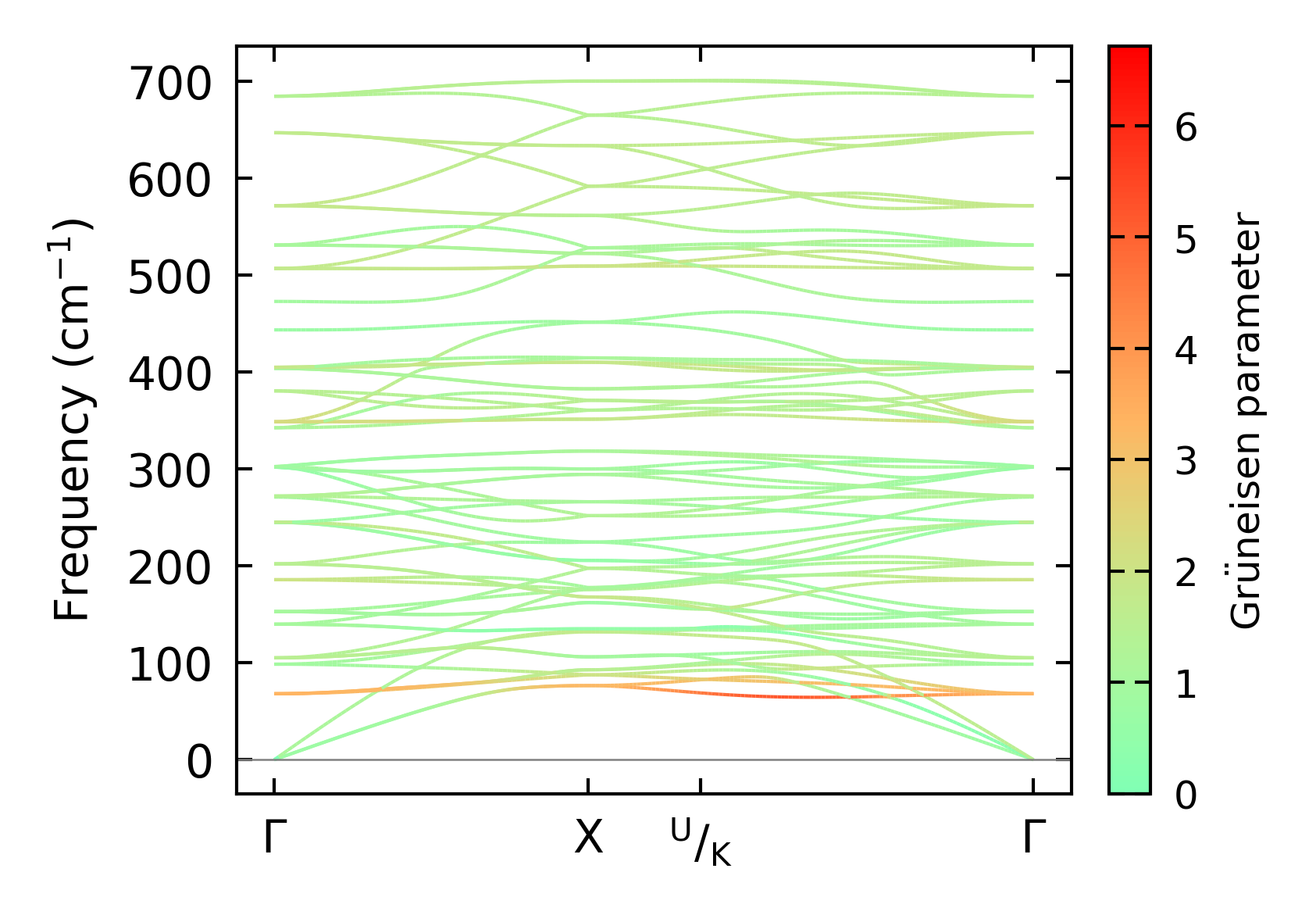

../../_images/fig_gruneisen6033.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

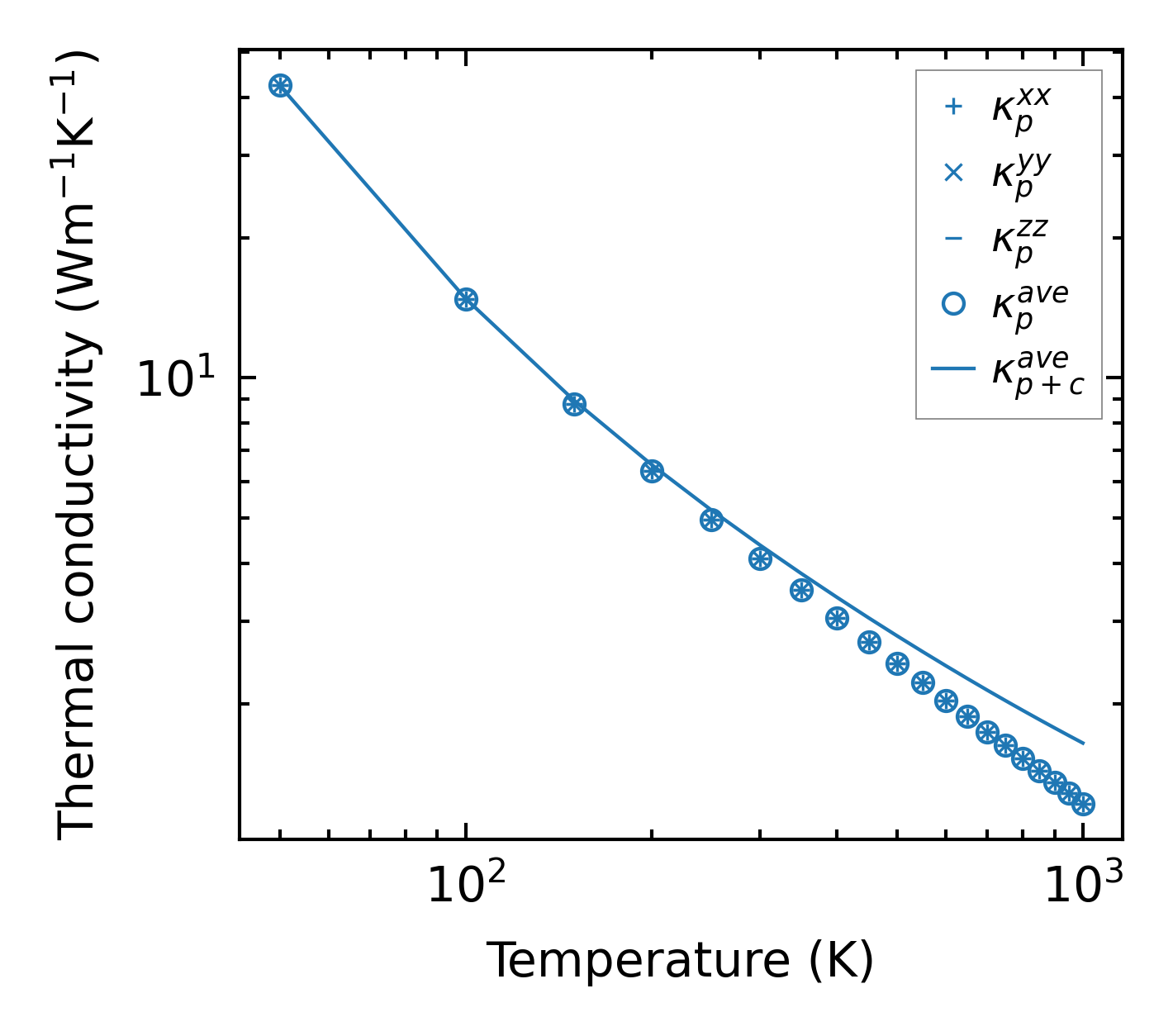

../../_images/fig_kappa11353.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6110.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

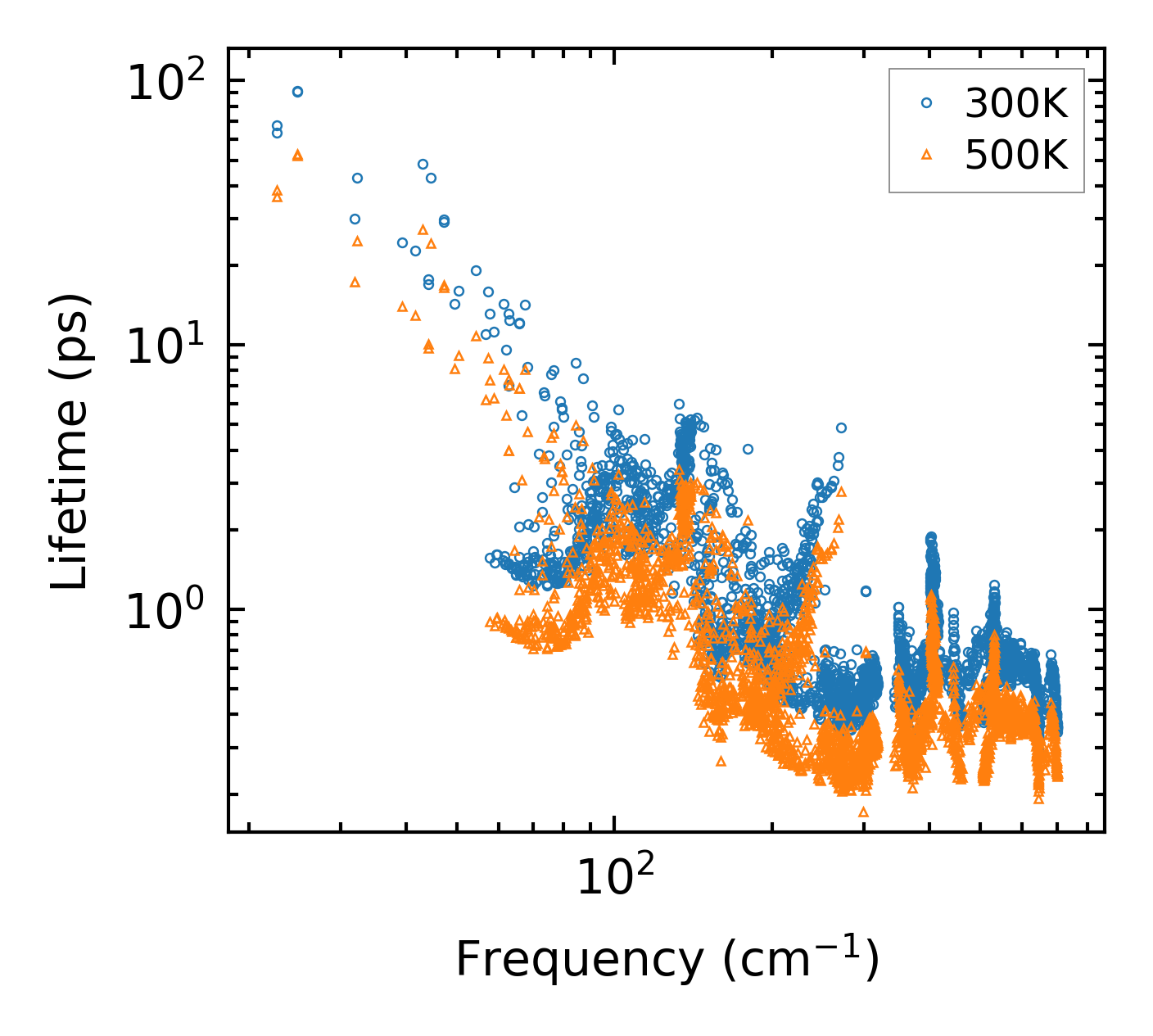

../../_images/fig_lifetime5972.png — (a) Phonon lifetime due to phonon-phonon scattering

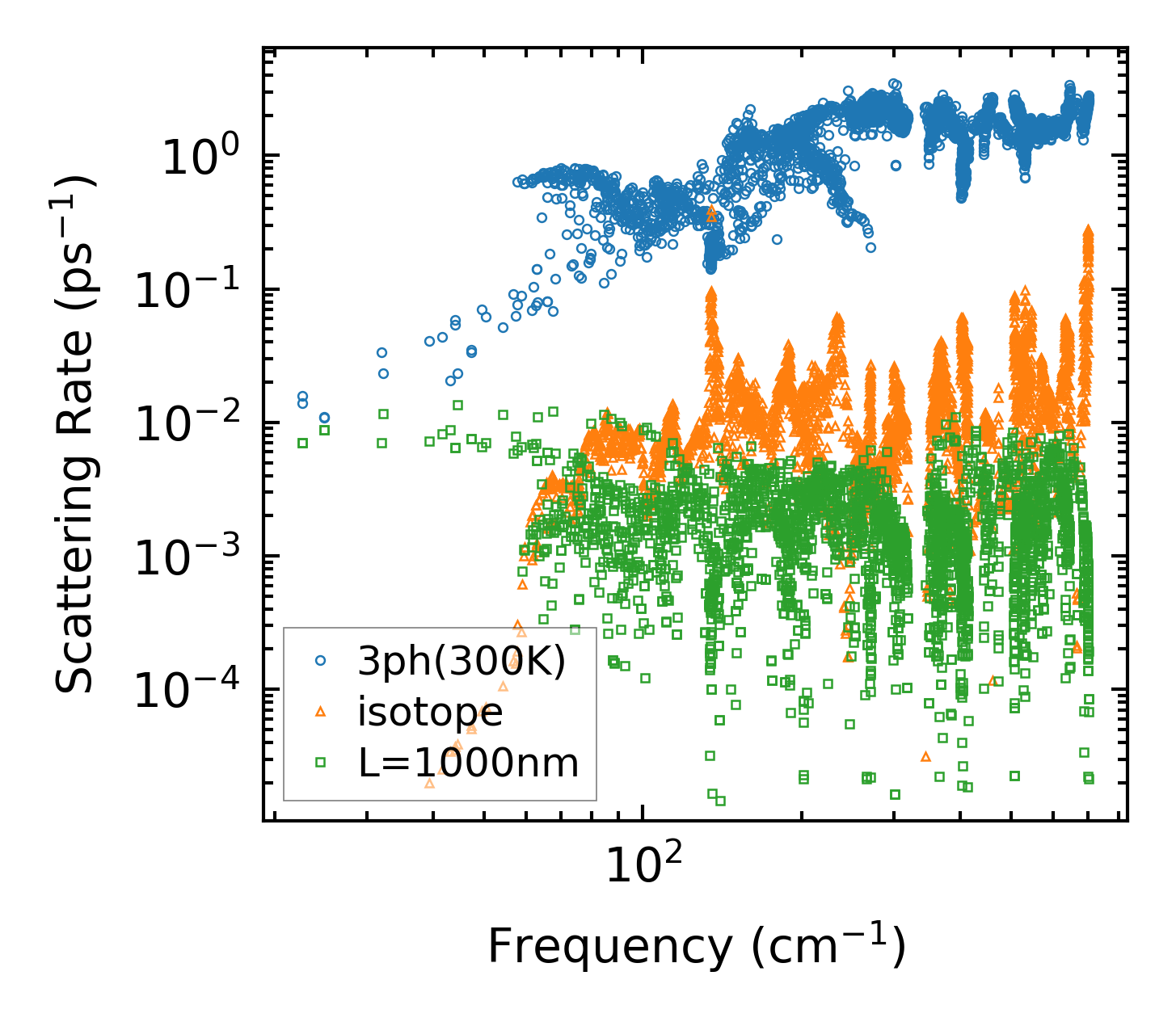

../../_images/fig_scat_rates5971.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5972.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

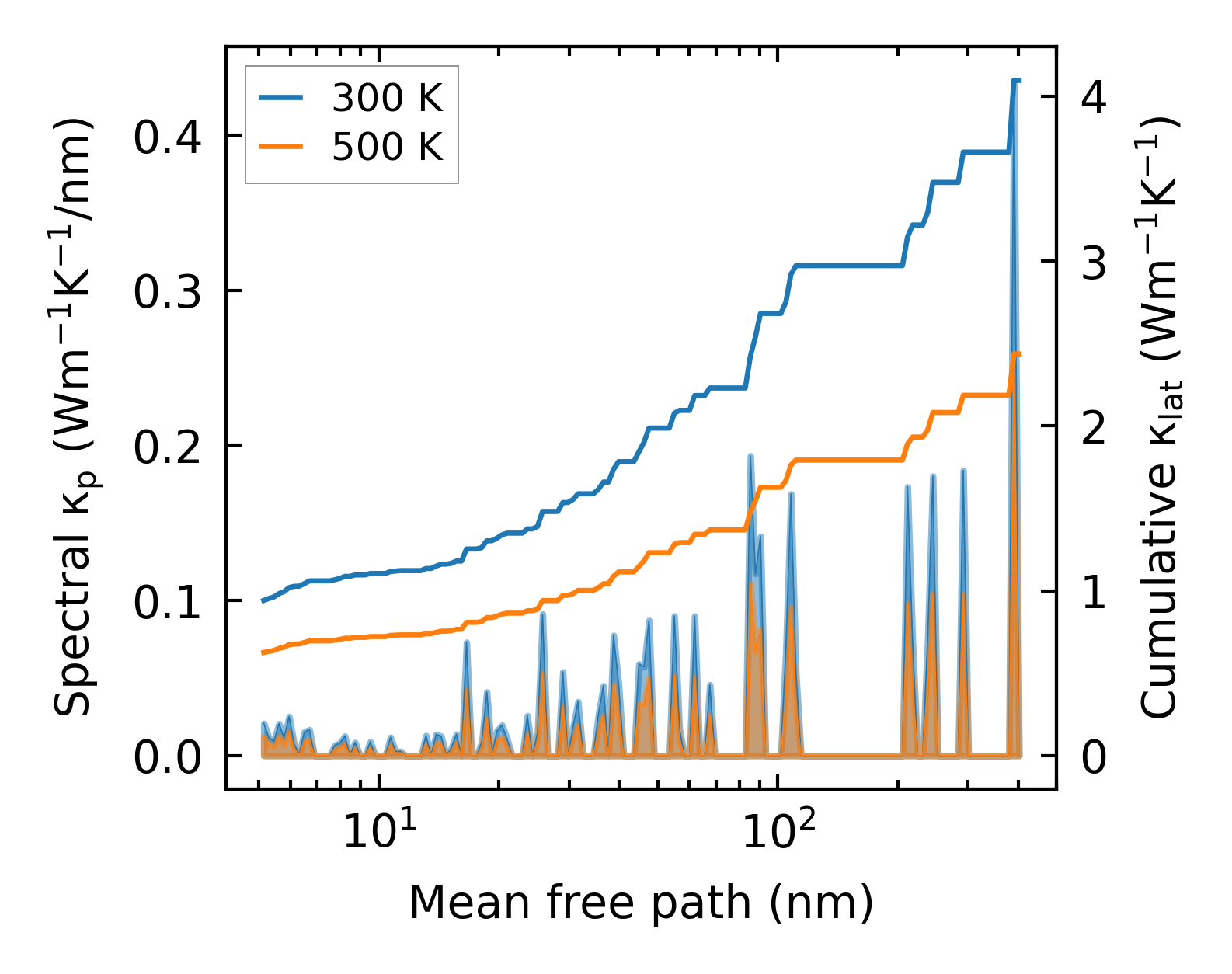

../../_images/fig_cumu_mfp5971.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

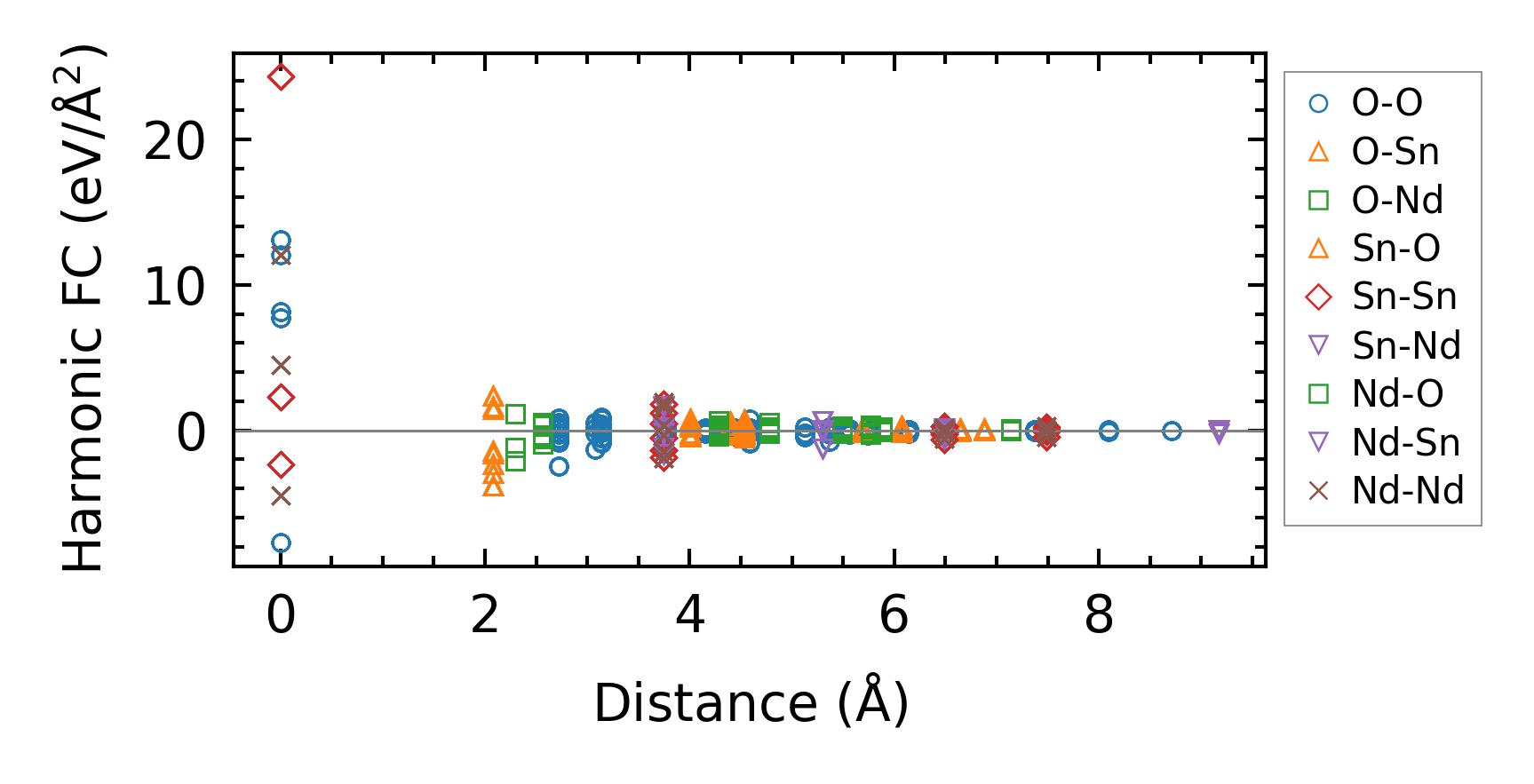

../../_images/fig_fc213821.png — (a) Force constants w.r.t atomic distance

Summary

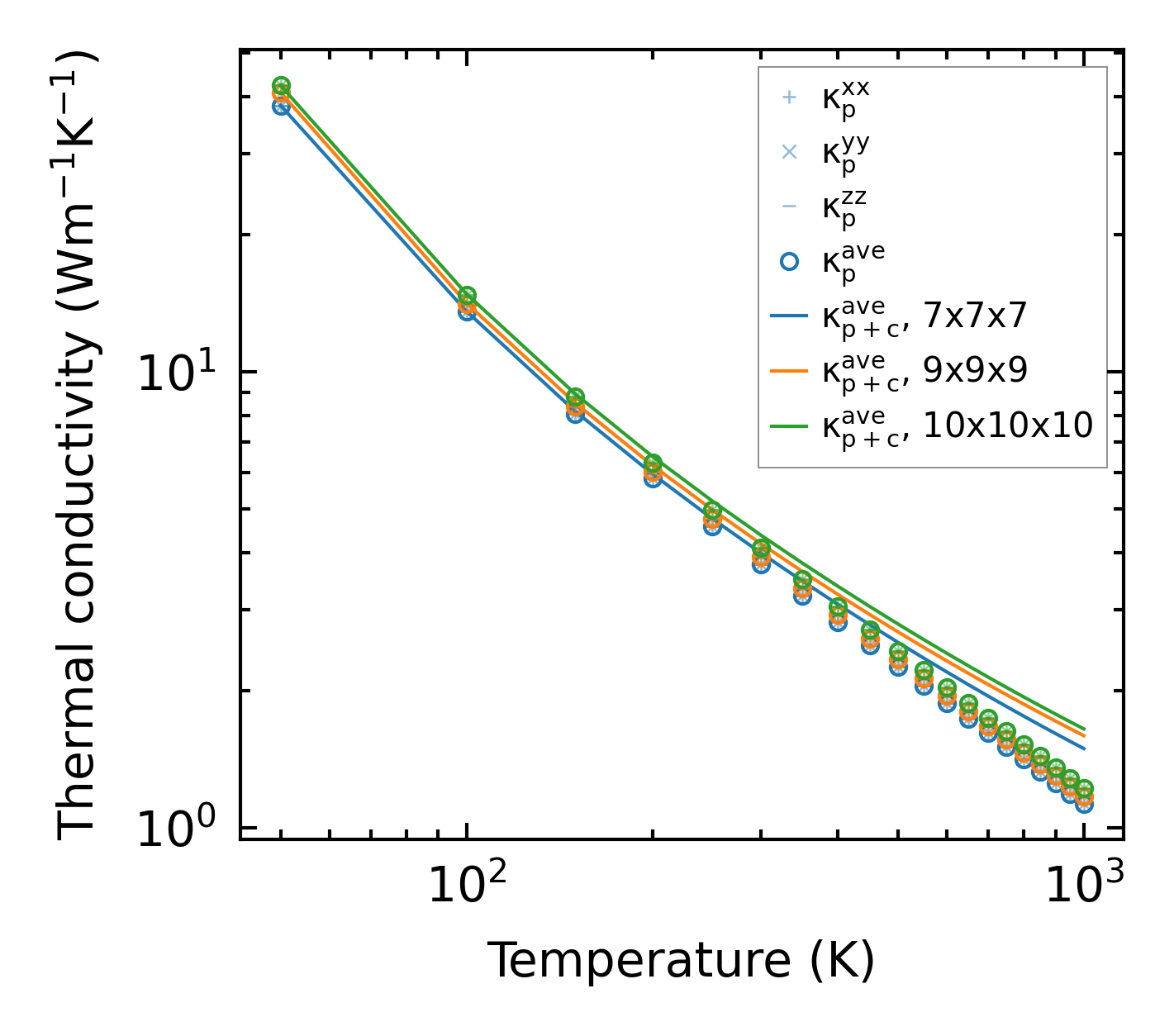

../../_images/fig_kappa11354.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23721.png — (b) Computation time
