mp-17201-2/Er2WO6/anharm

Space group: P2/c (13)
Link: Materials Project
Download: mp-17201-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14216.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14216.png — (b) Thermodynamic properties

Grüneisen parameters

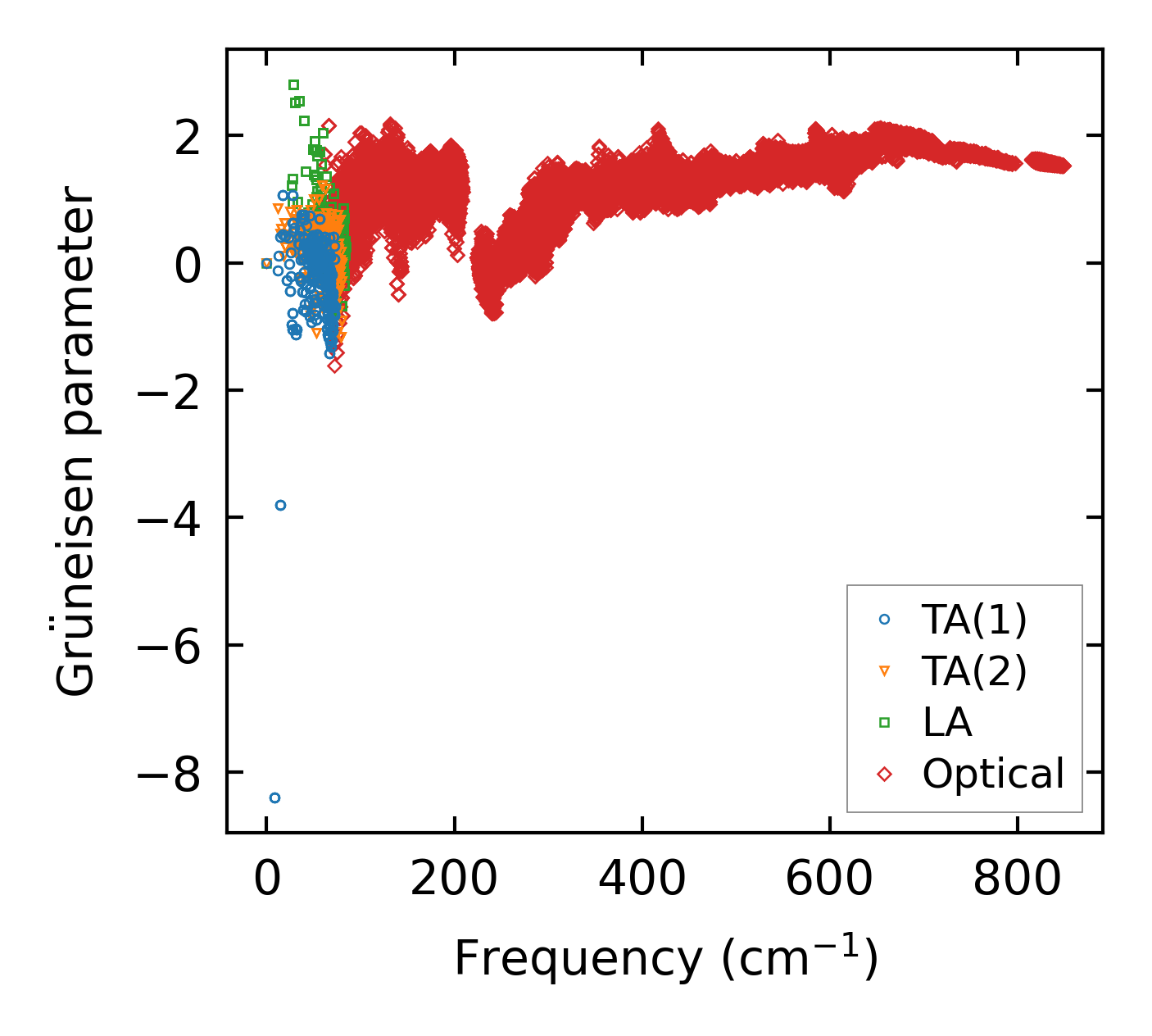

../../_images/fig_gru_all6046.png — (a) Grüneisen parameters

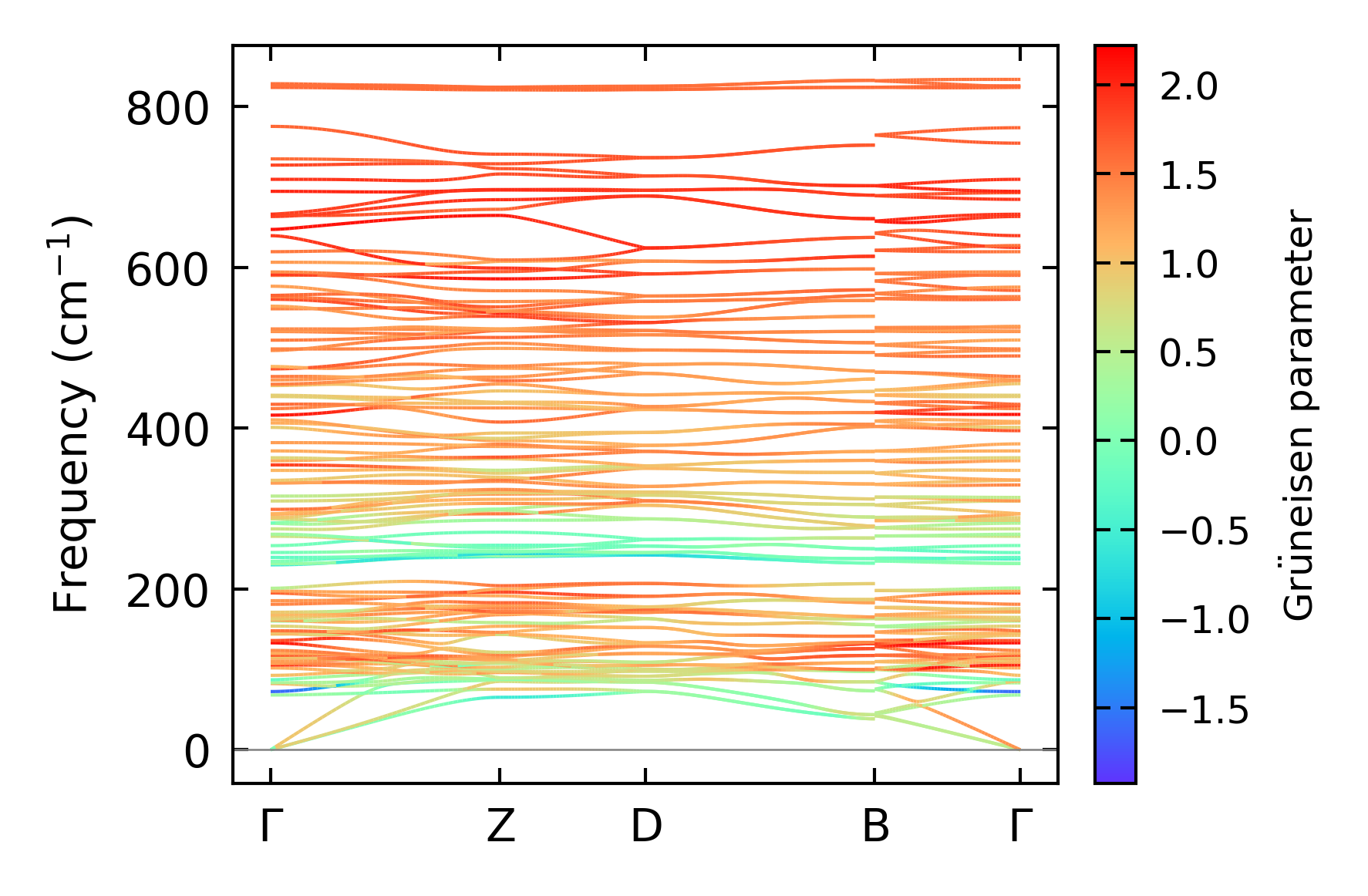

../../_images/fig_gruneisen6046.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x13x6, supercell: 2x2x1

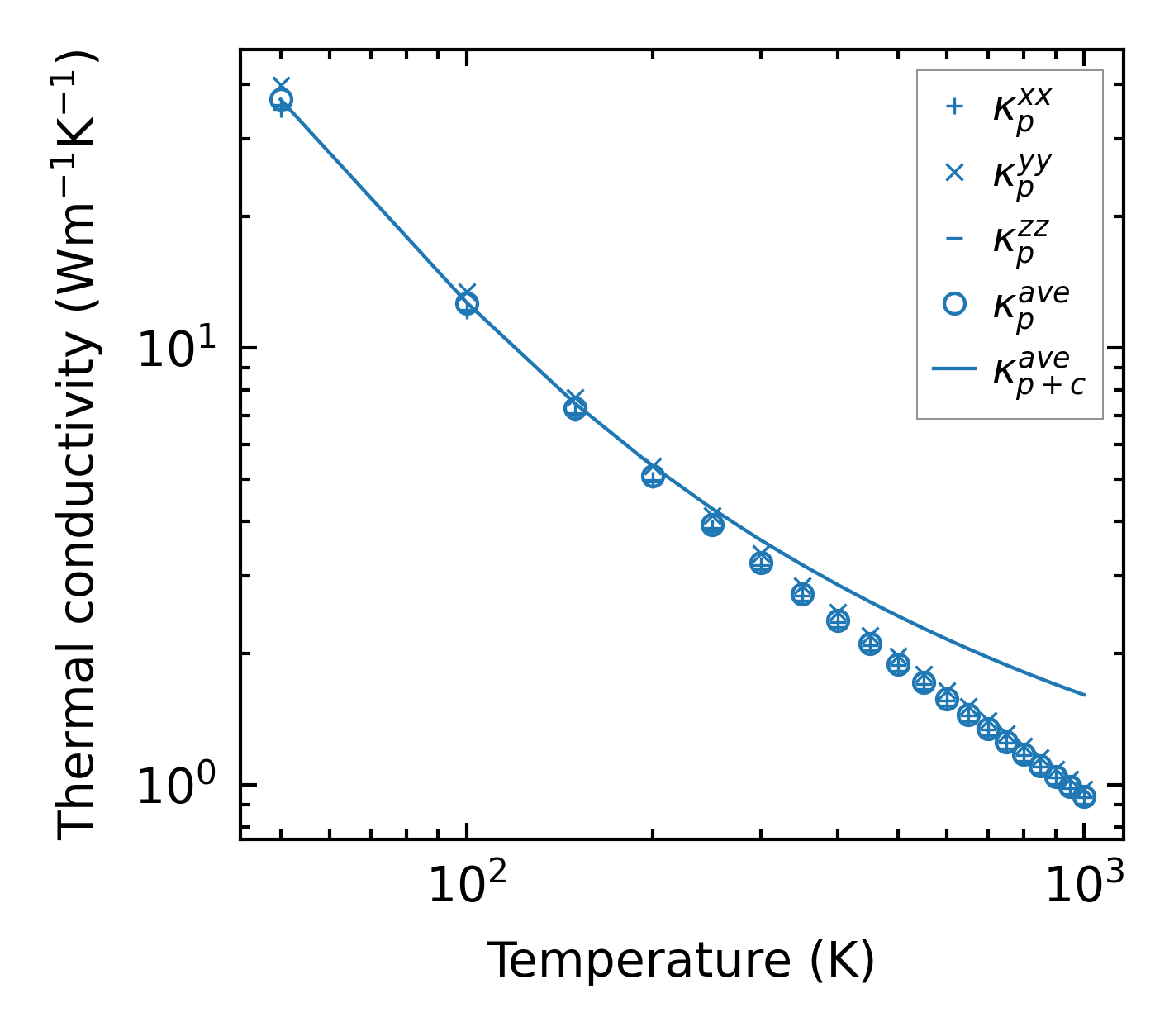

../../_images/fig_kappa11377.png — (a) Temperature-dependent lattice thermal conductivity

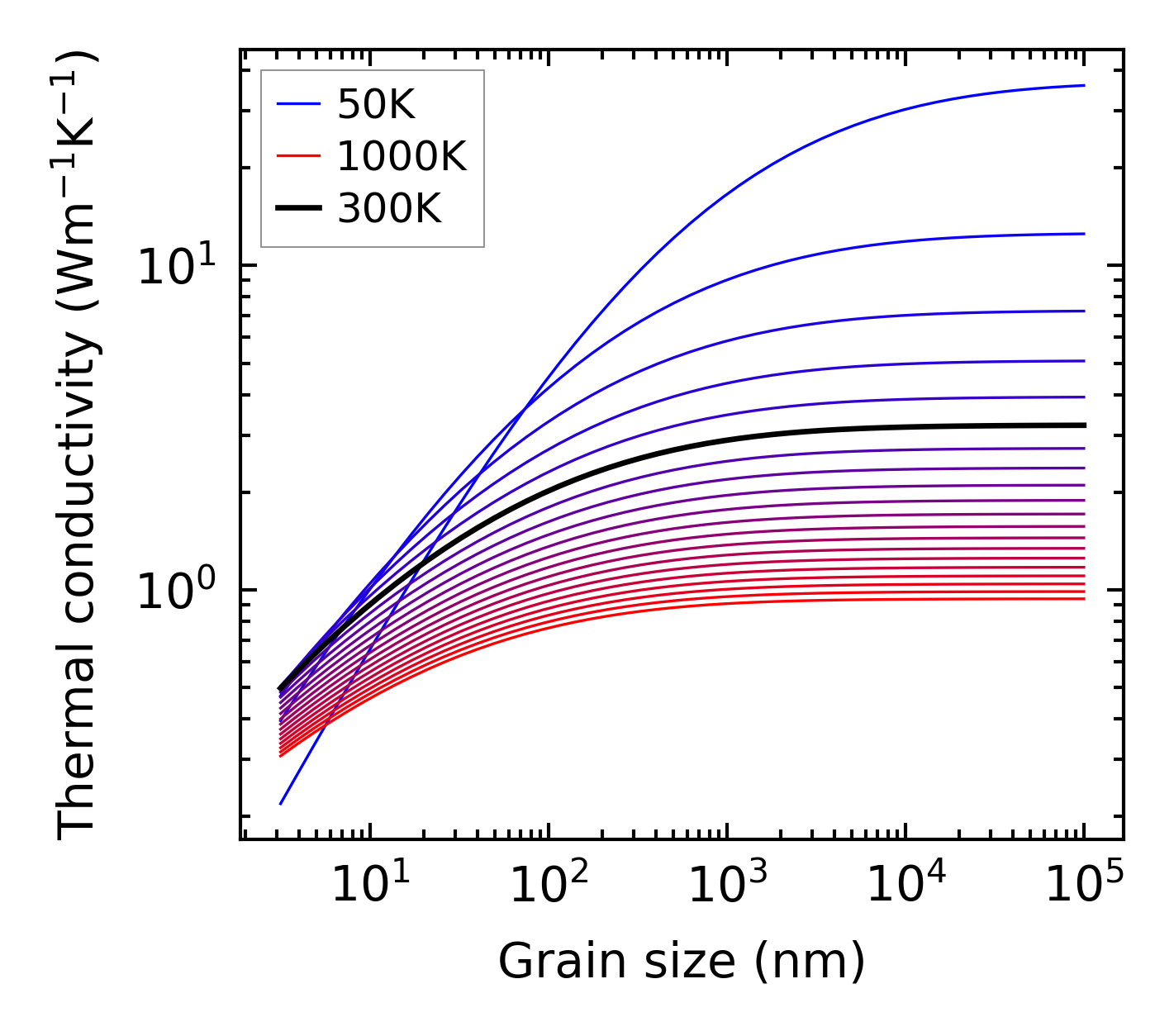

../../_images/fig_kappa_vs_grain_size6123.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

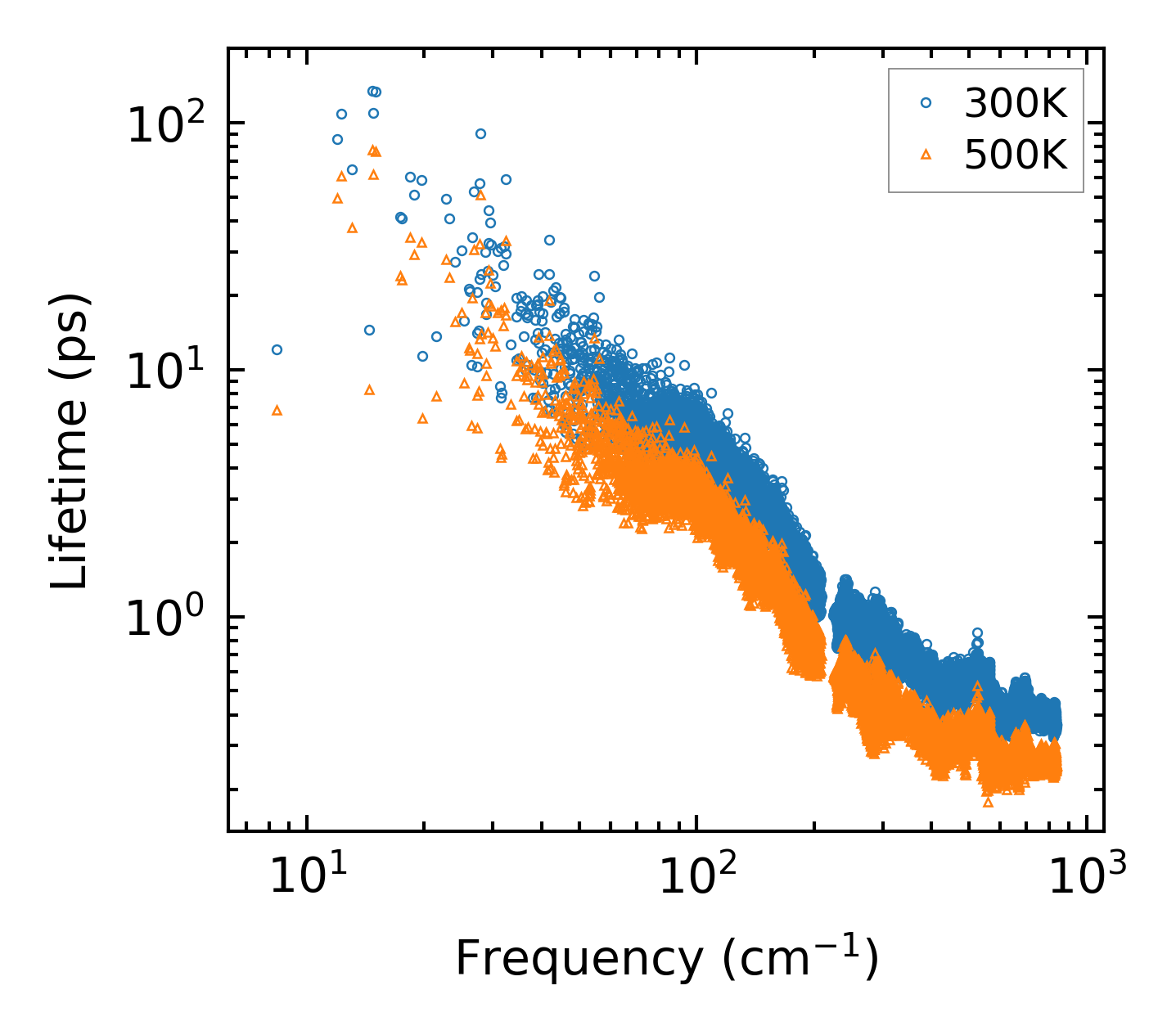

../../_images/fig_lifetime5985.png — (a) Phonon lifetime due to phonon-phonon scattering

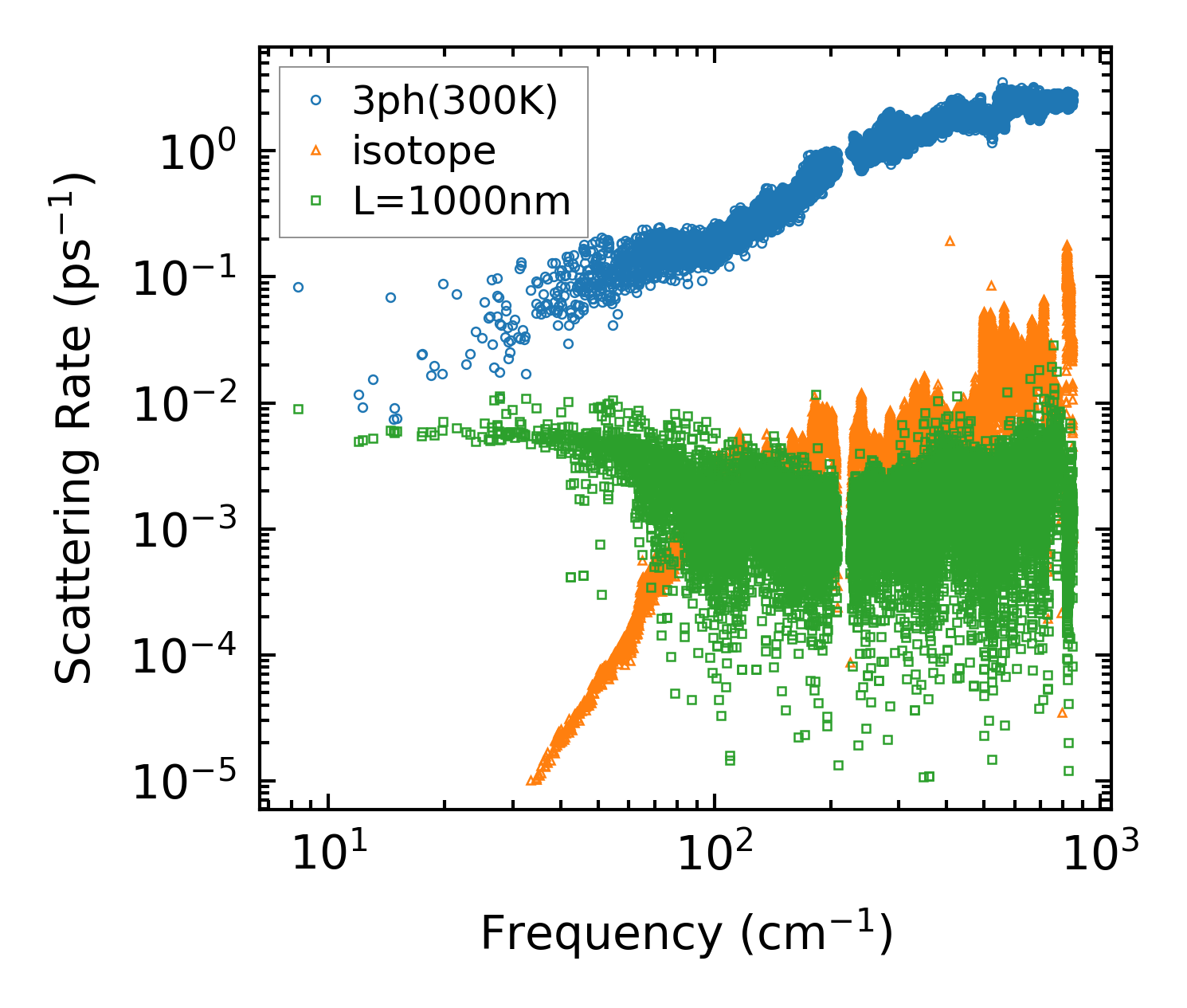

../../_images/fig_scat_rates5984.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

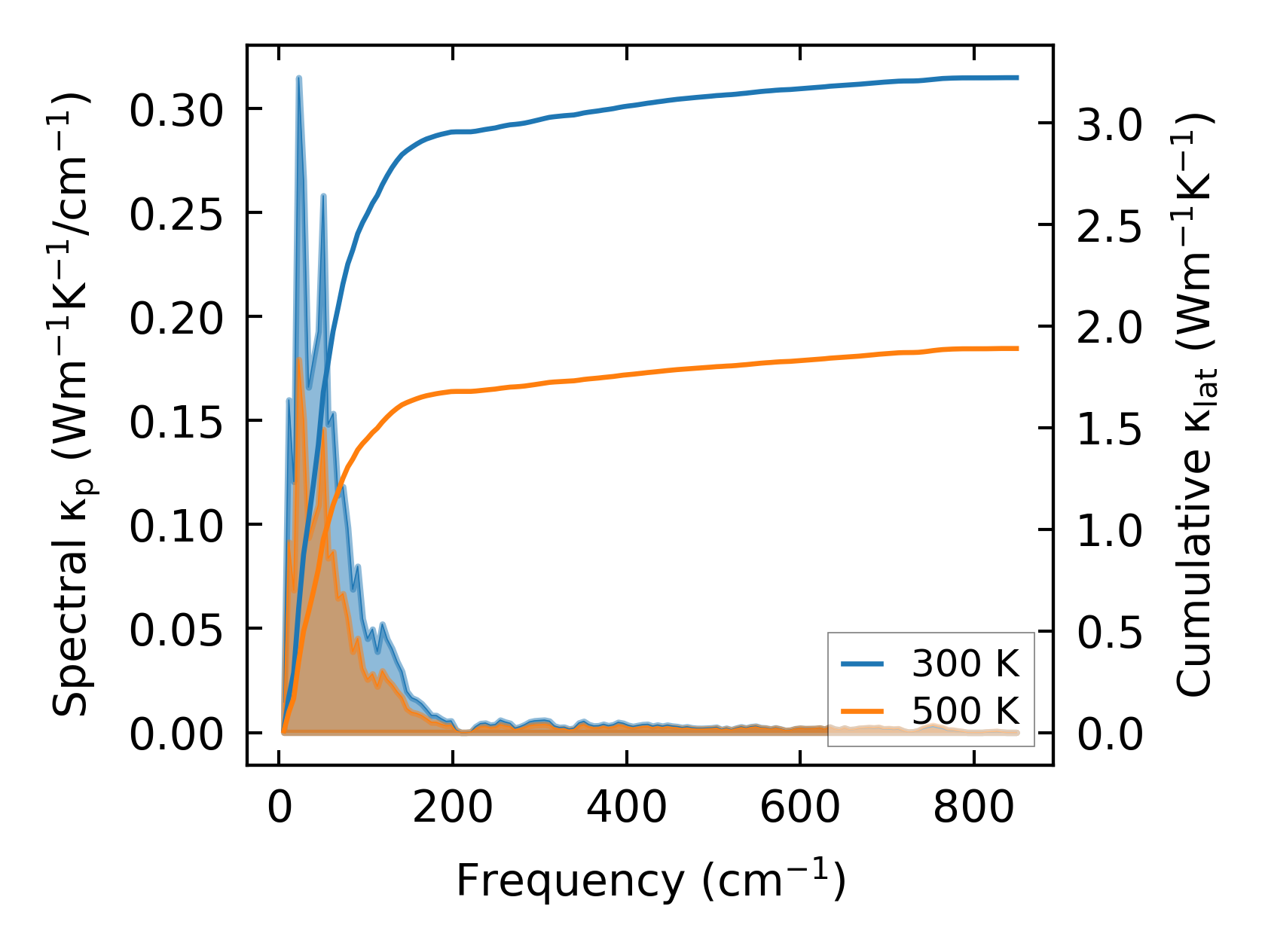

../../_images/fig_cumu_frequency5985.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

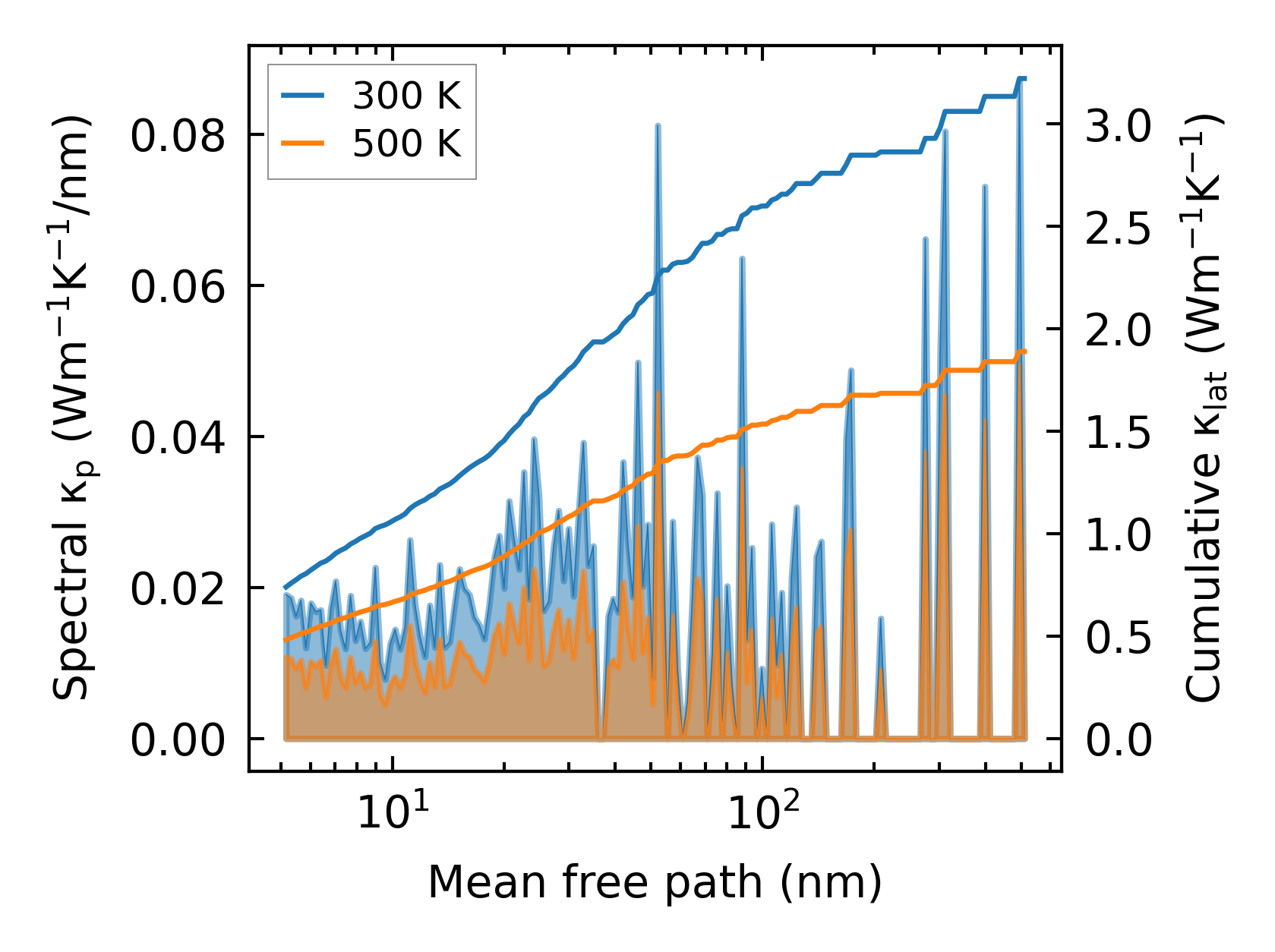

../../_images/fig_cumu_mfp5984.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213844.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11378.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23764.png — (b) Computation time
