mp-17410/CsEr3Se5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-17410.tar.gz

Harmonic properties

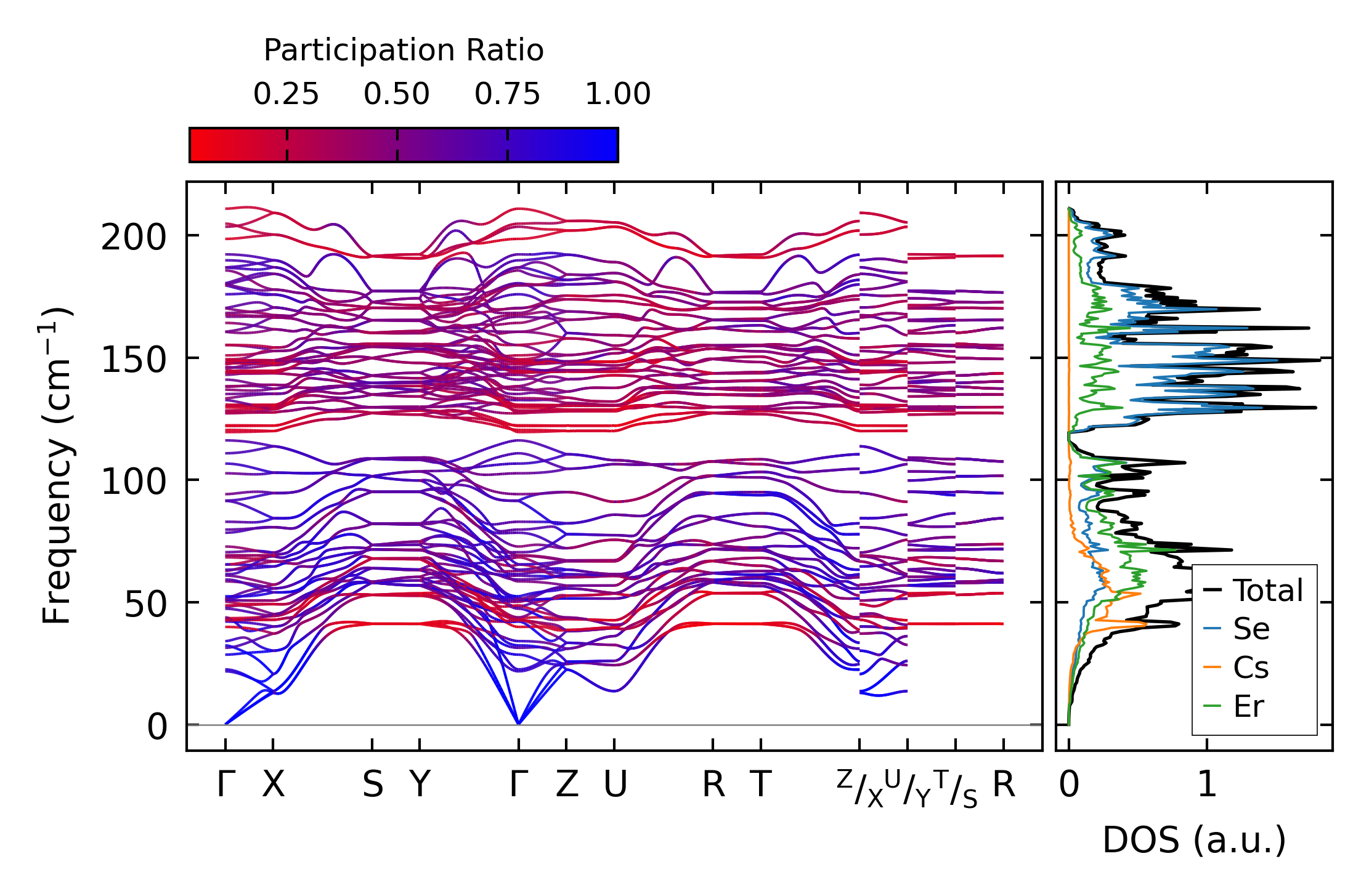

../../_images/fig_bandos_pr14274.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14274.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6077.png — (a) Grüneisen parameters

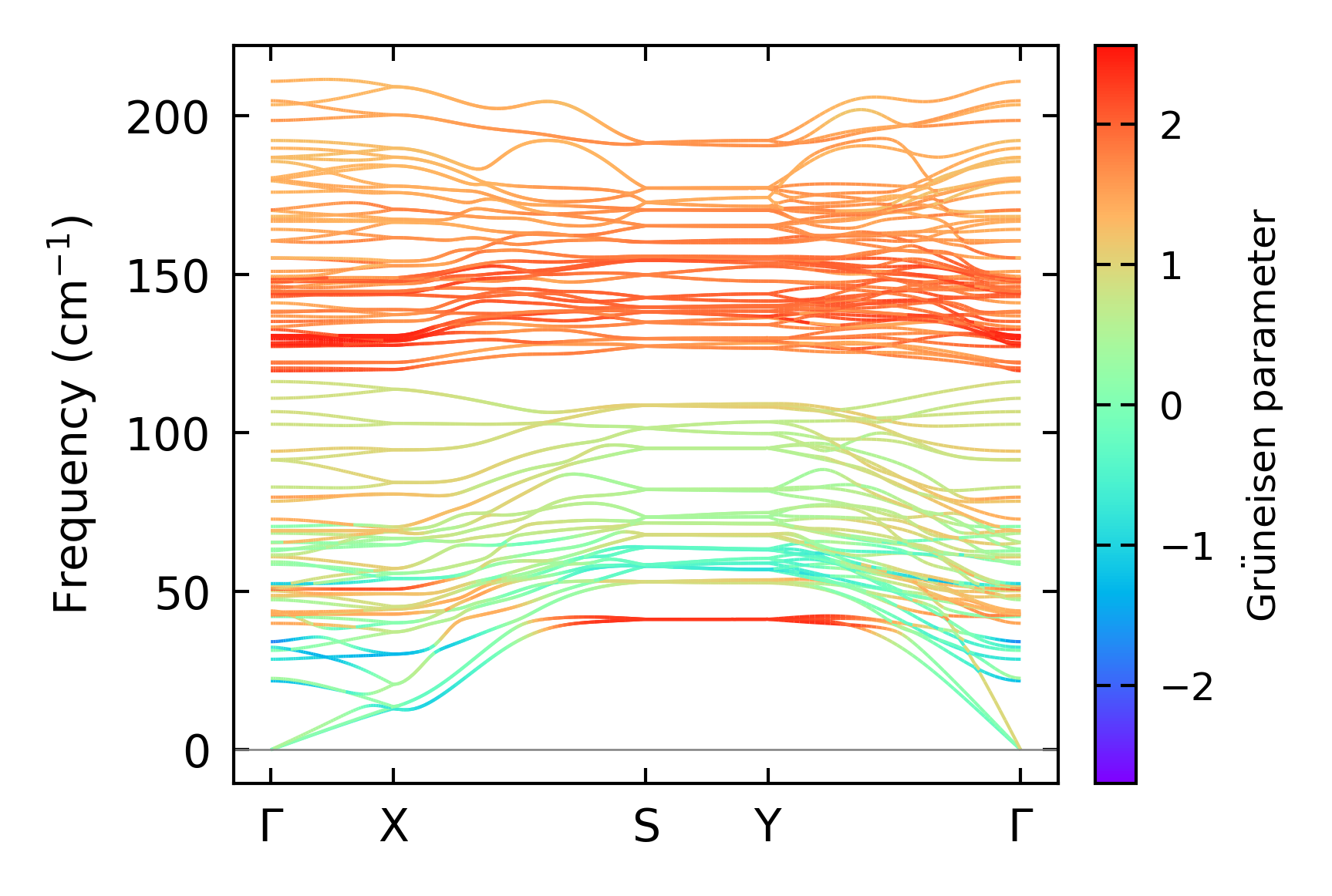

../../_images/fig_gruneisen6077.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 3x17x5, supercell: 1x4x1

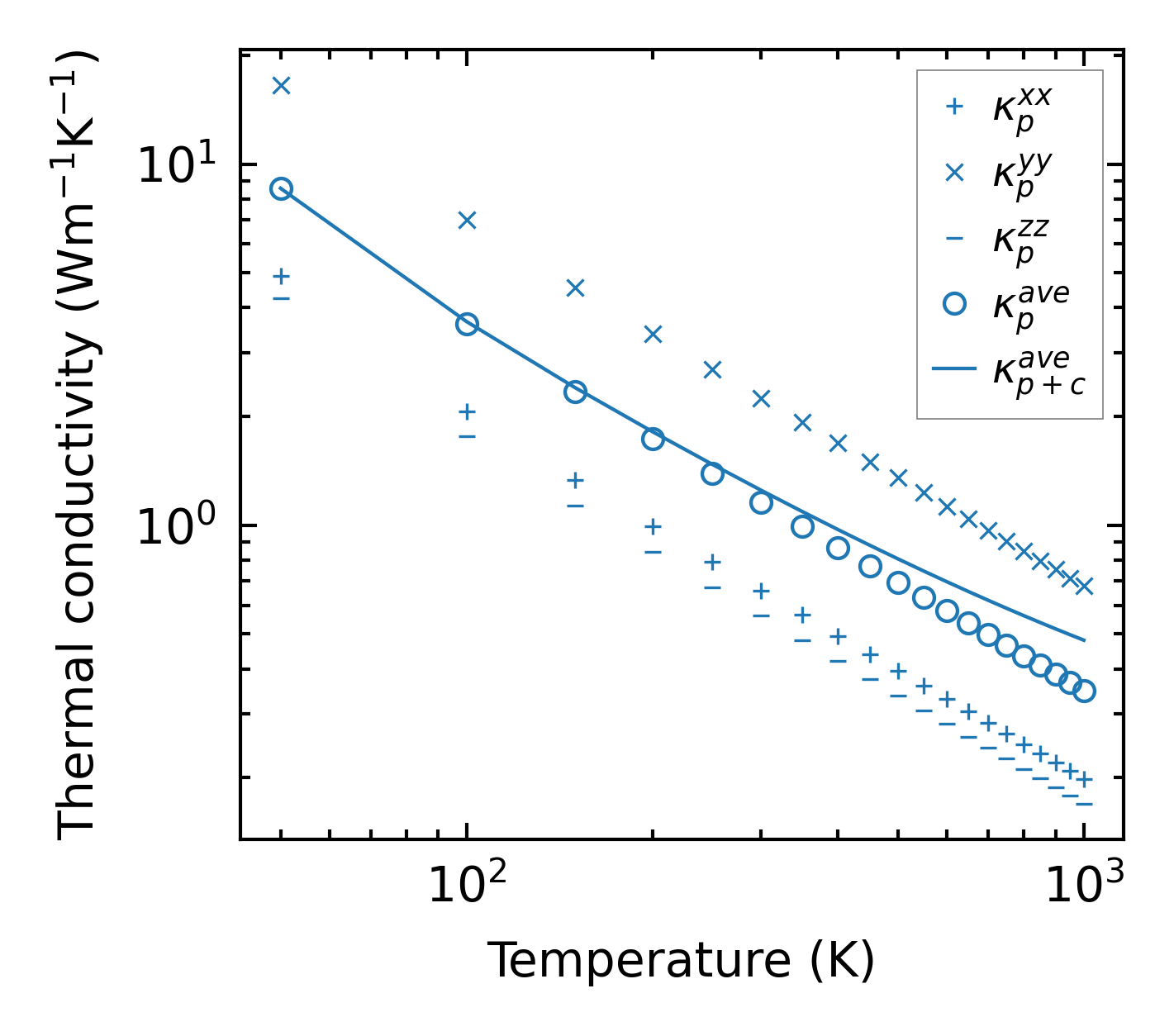

../../_images/fig_kappa11433.png — (a) Temperature-dependent lattice thermal conductivity

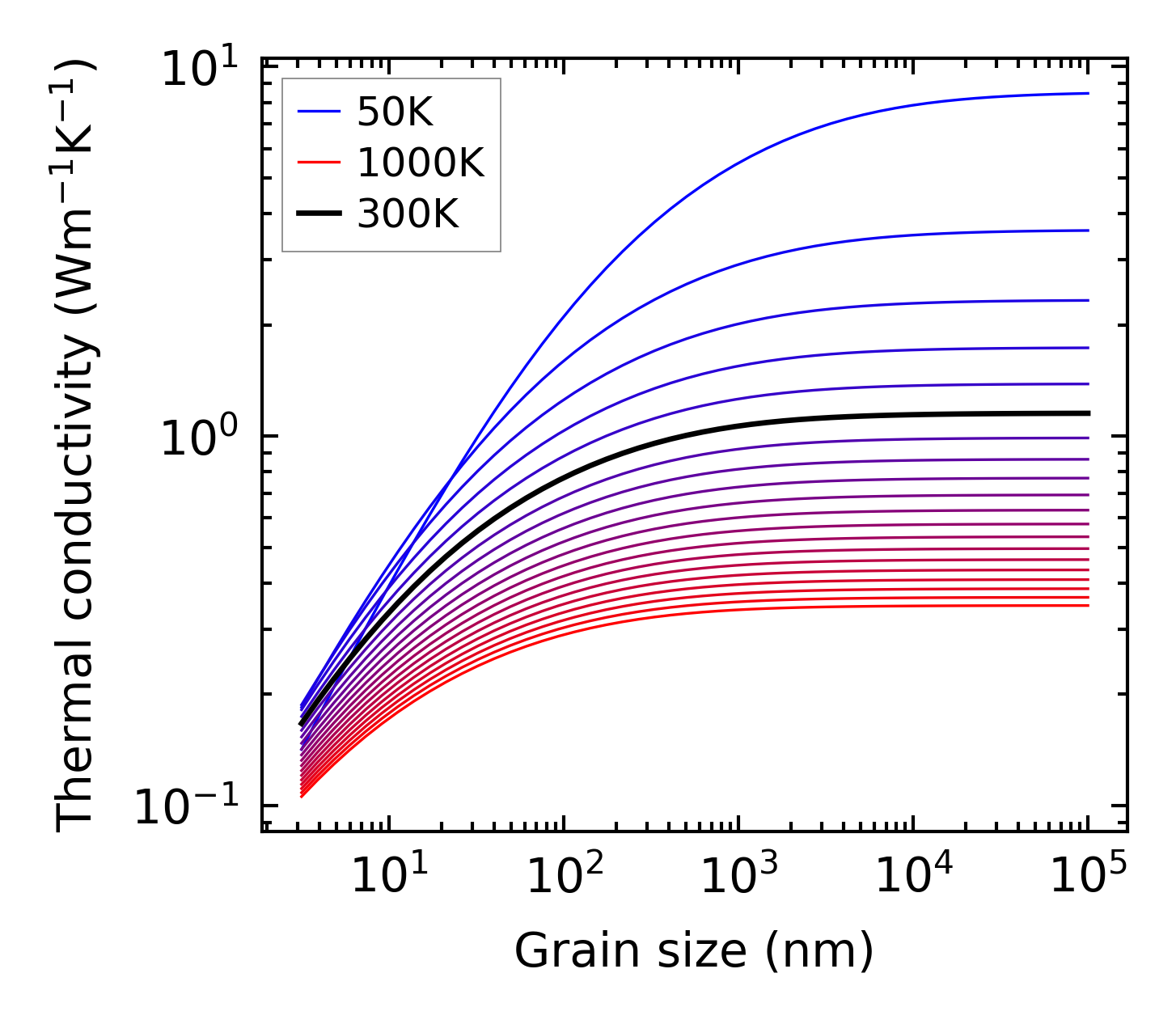

../../_images/fig_kappa_vs_grain_size6155.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6016.png — (a) Phonon lifetime due to phonon-phonon scattering

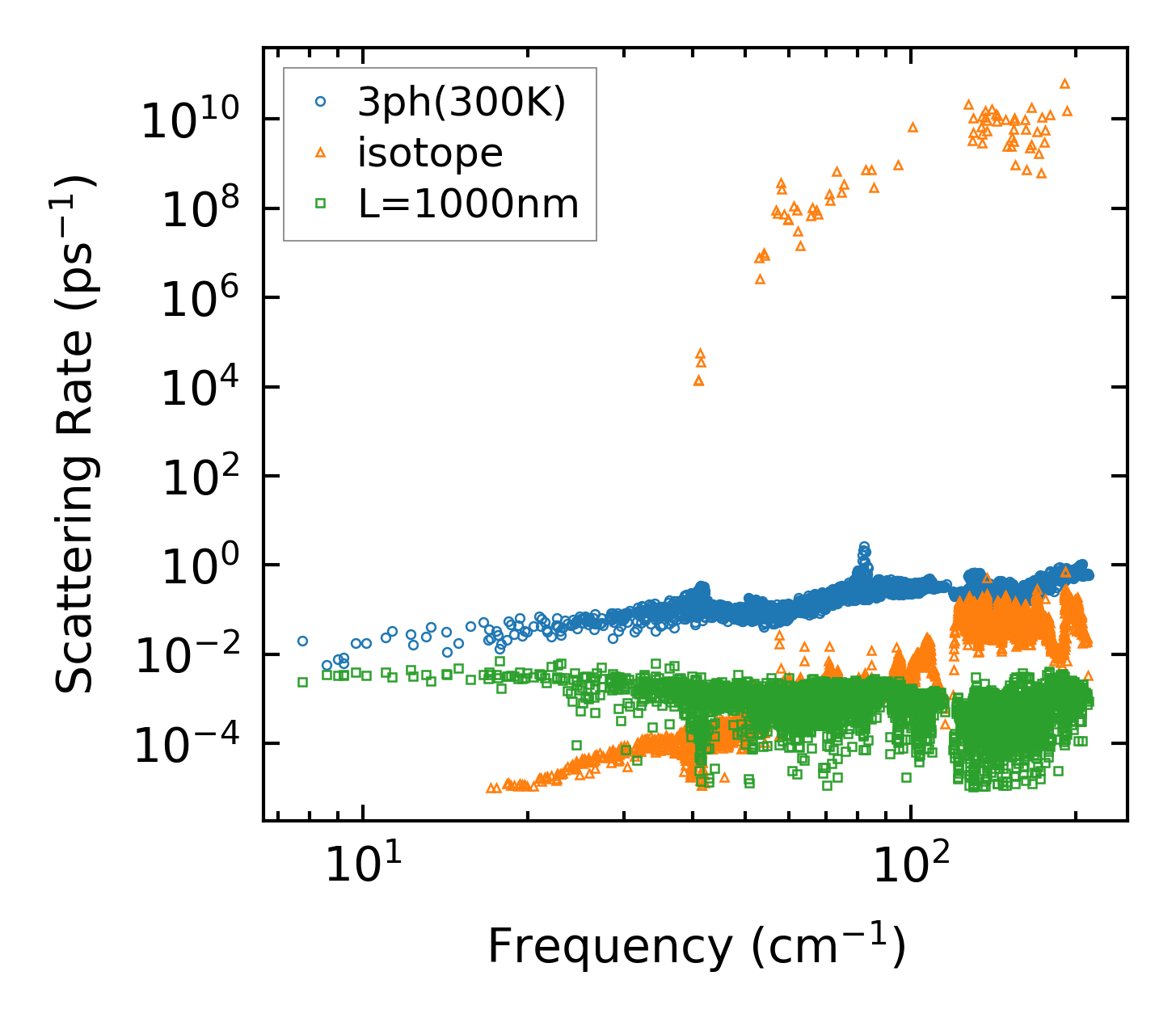

../../_images/fig_scat_rates6015.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

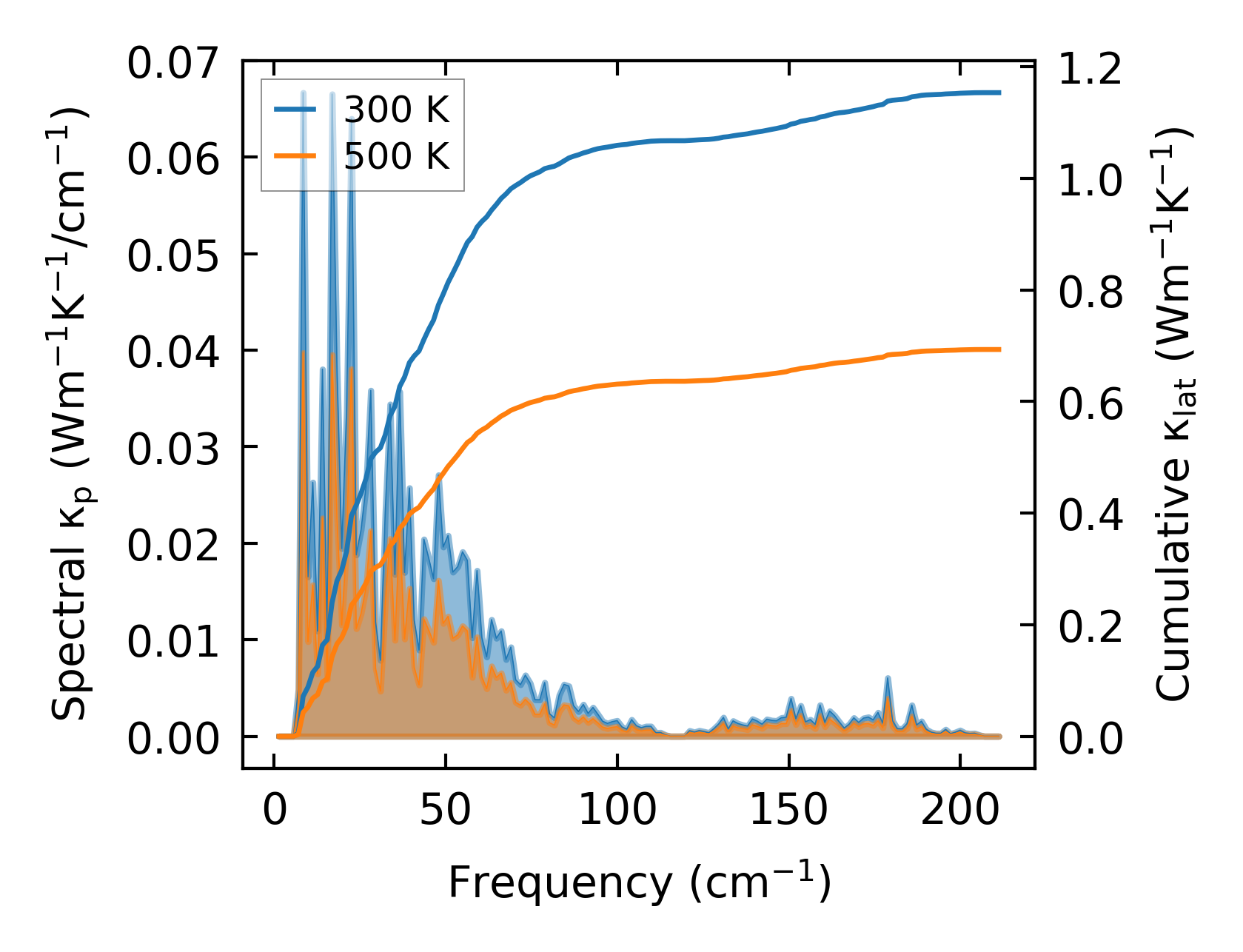

../../_images/fig_cumu_frequency6016.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

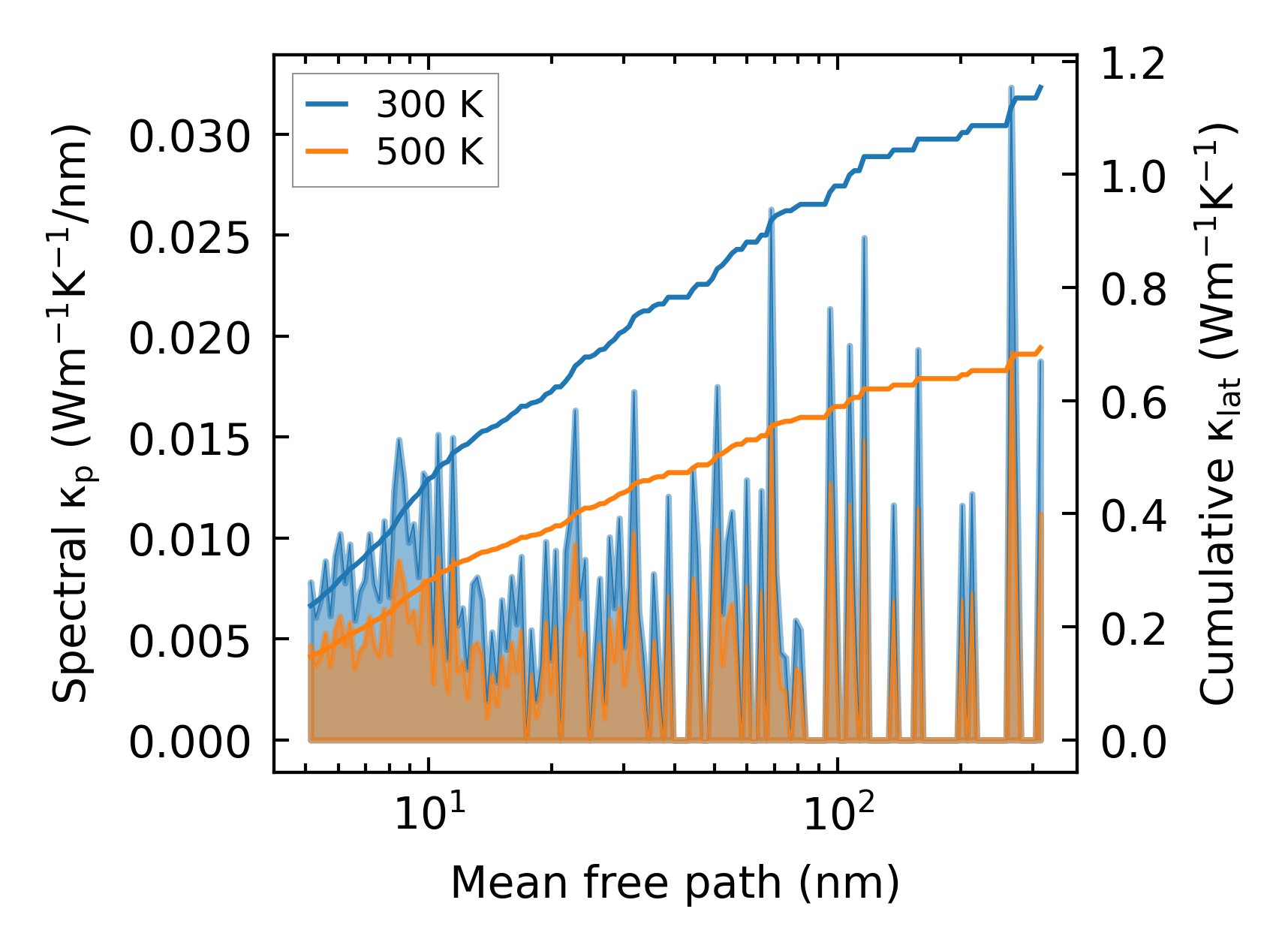

../../_images/fig_cumu_mfp6015.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213902.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11434.png — (a) Temperature-dependent lattice thermal conductivity

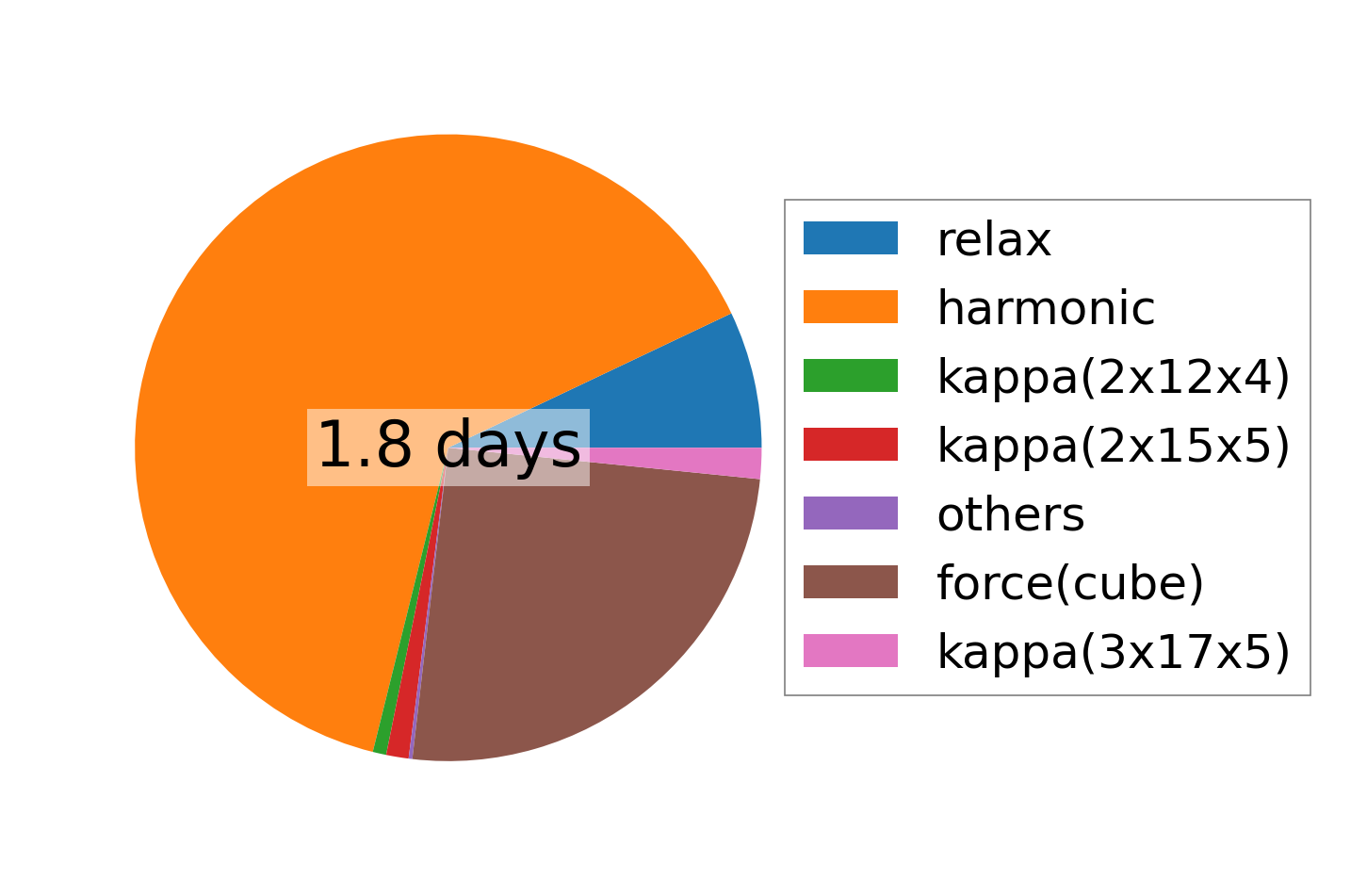

../../_images/fig_times23842.png — (b) Computation time
