mp-17410-2/CsEr3Se5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-17410-2.tar.gz

Equation of state

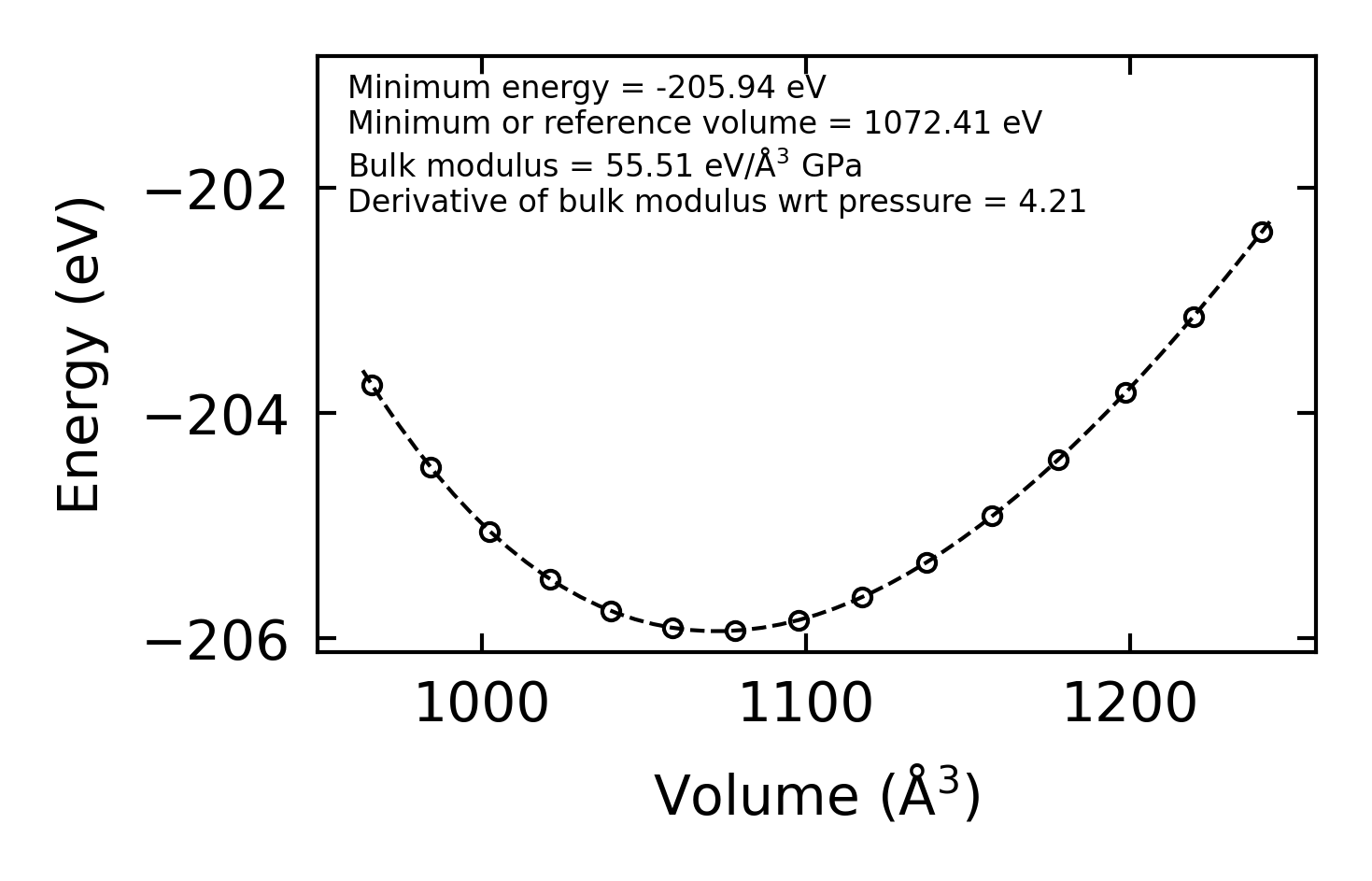

../../_images/fig_bm7150.png — (a) Equation of state

Harmonic properties

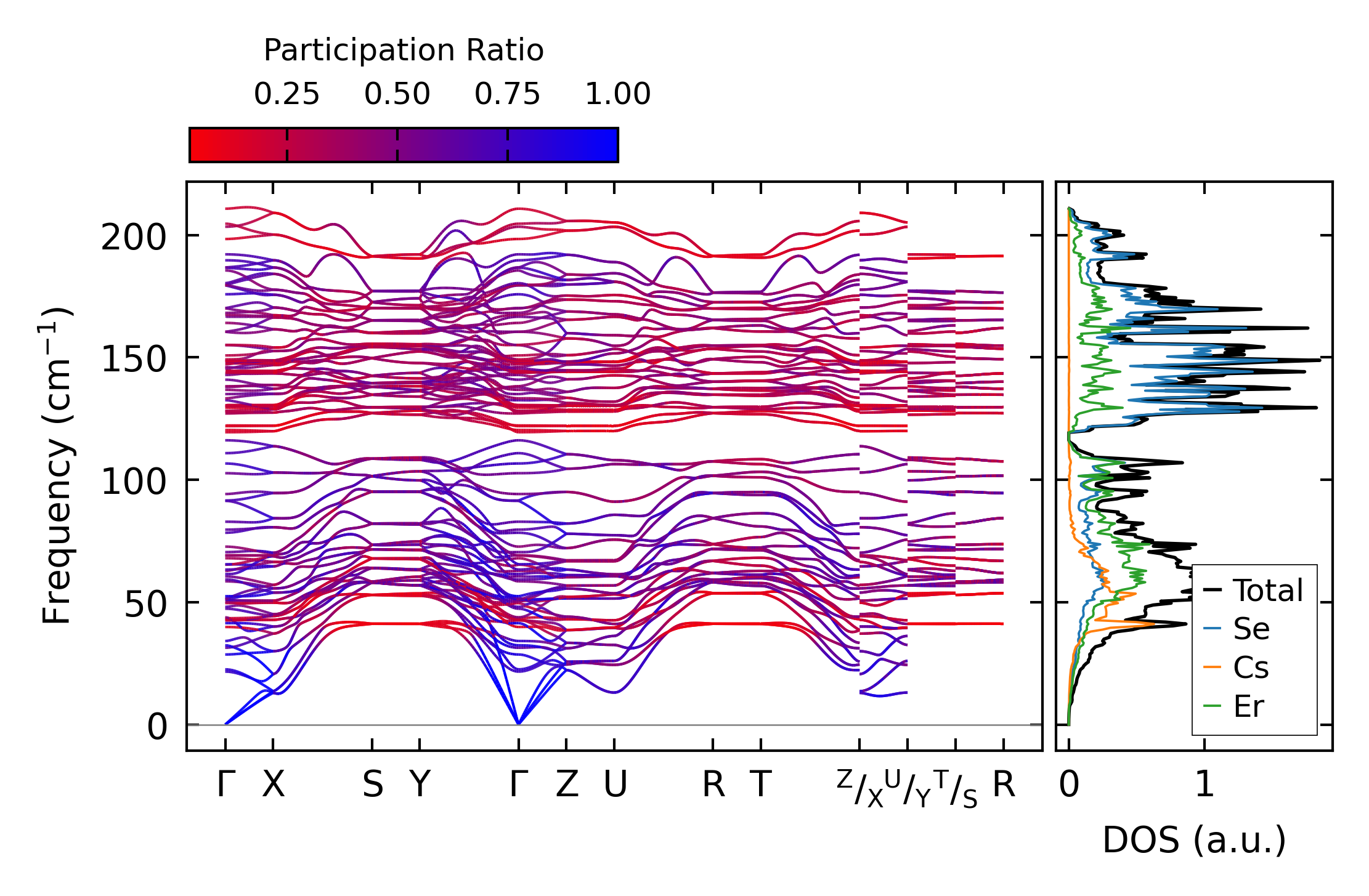

../../_images/fig_bandos_pr14275.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14275.png — (b) Thermodynamic properties

Grüneisen parameters

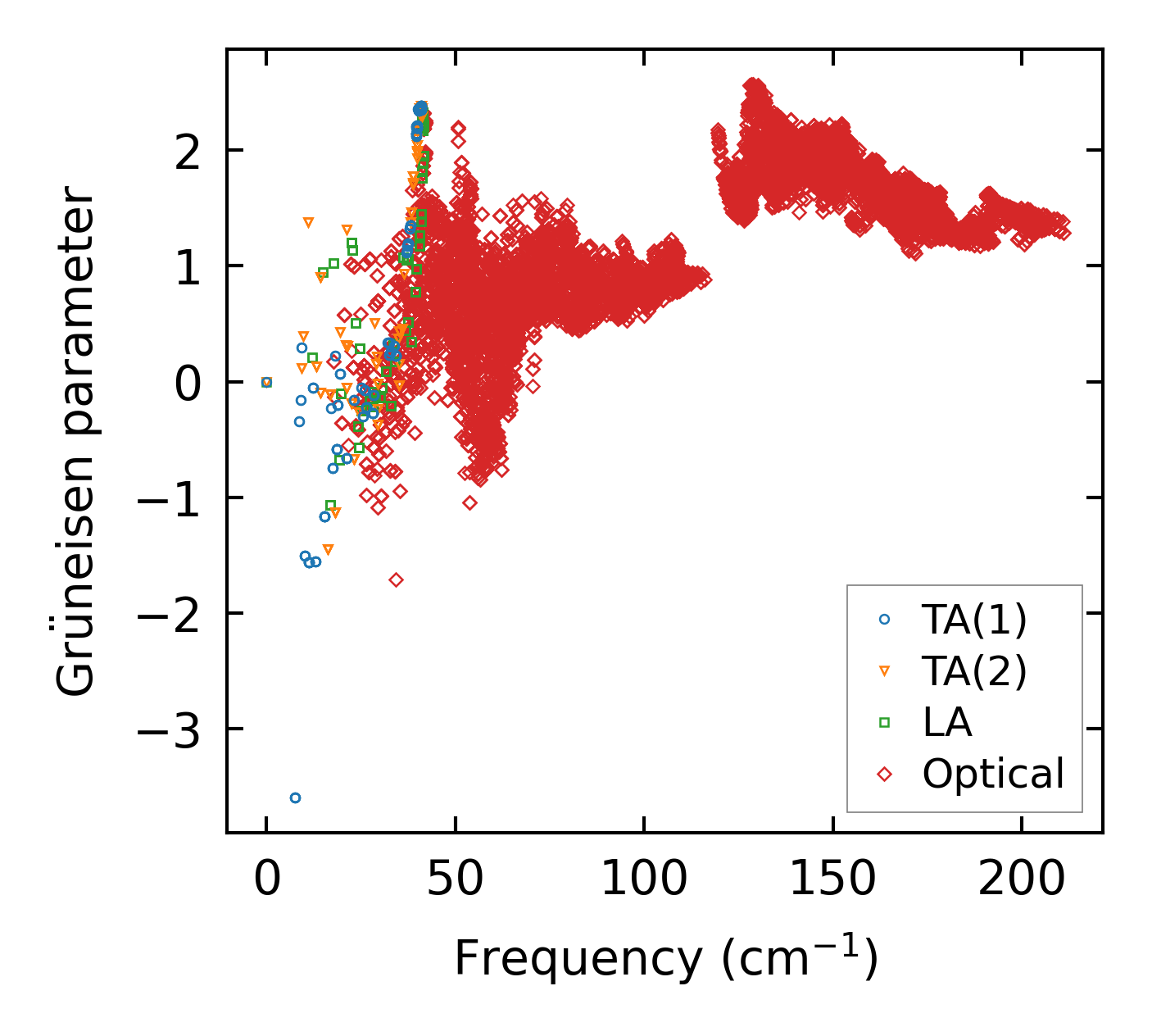

../../_images/fig_gru_all6078.png — (a) Grüneisen parameters

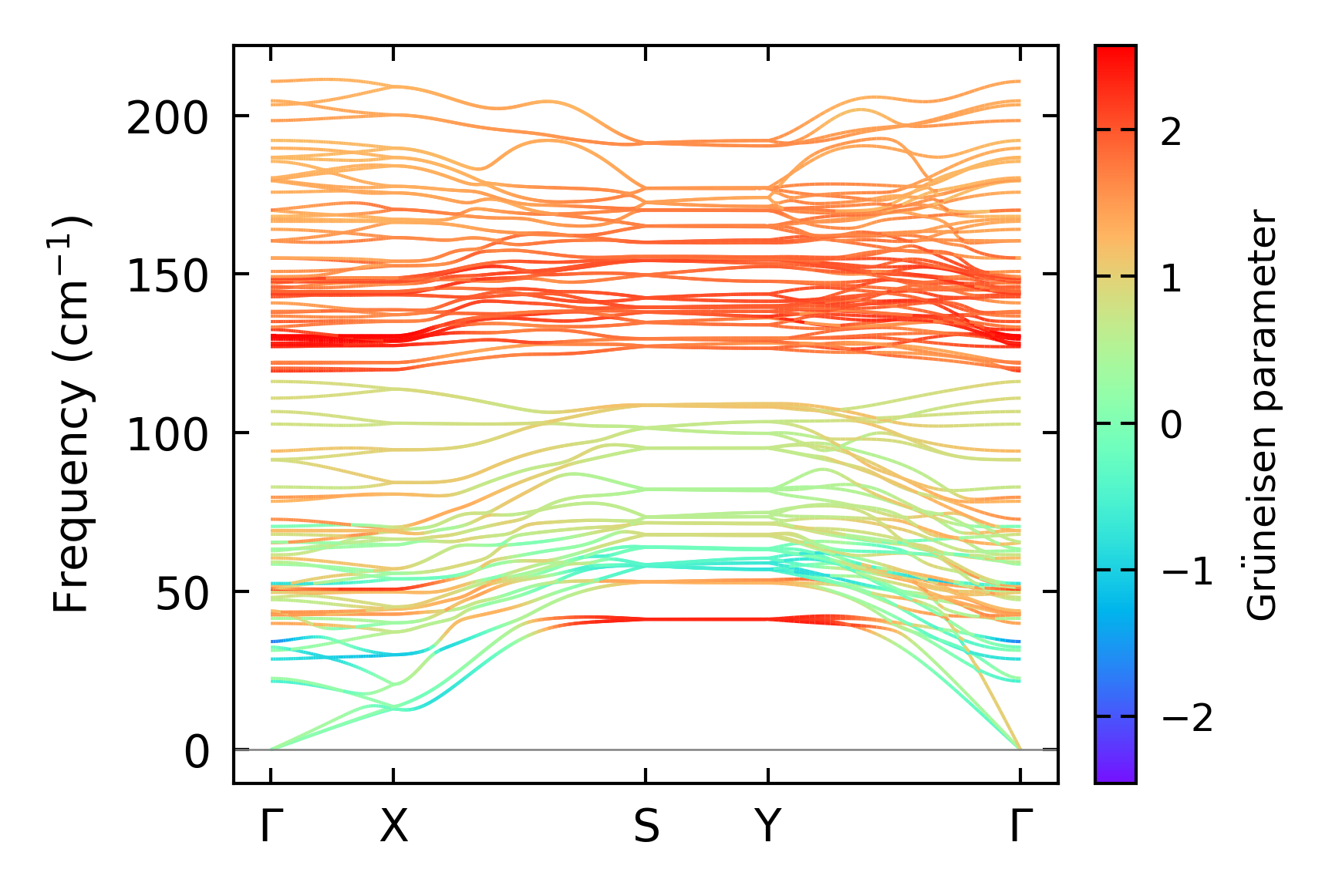

../../_images/fig_gruneisen6078.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 3x17x5, supercell: 1x4x1

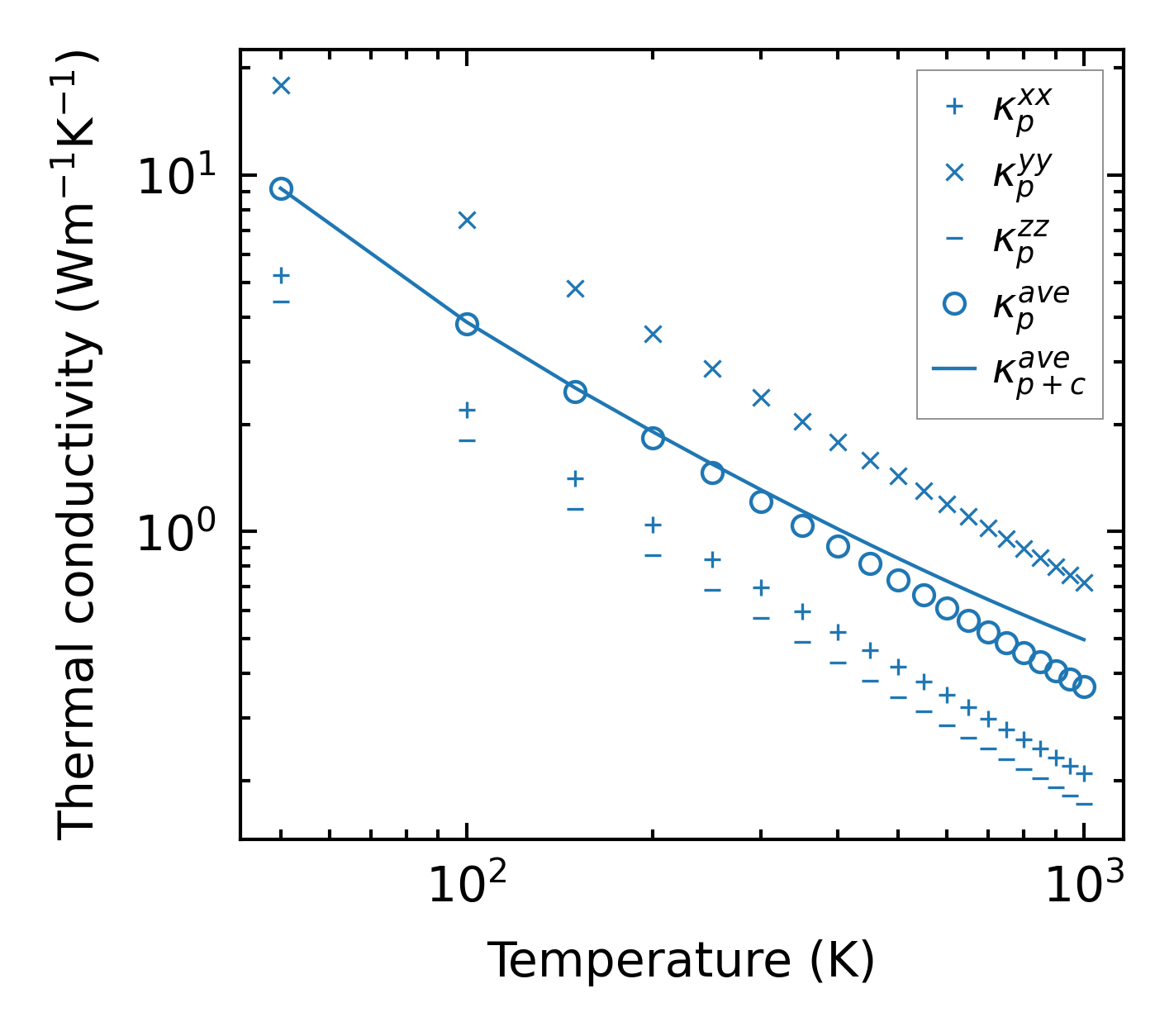

../../_images/fig_kappa11435.png — (a) Temperature-dependent lattice thermal conductivity

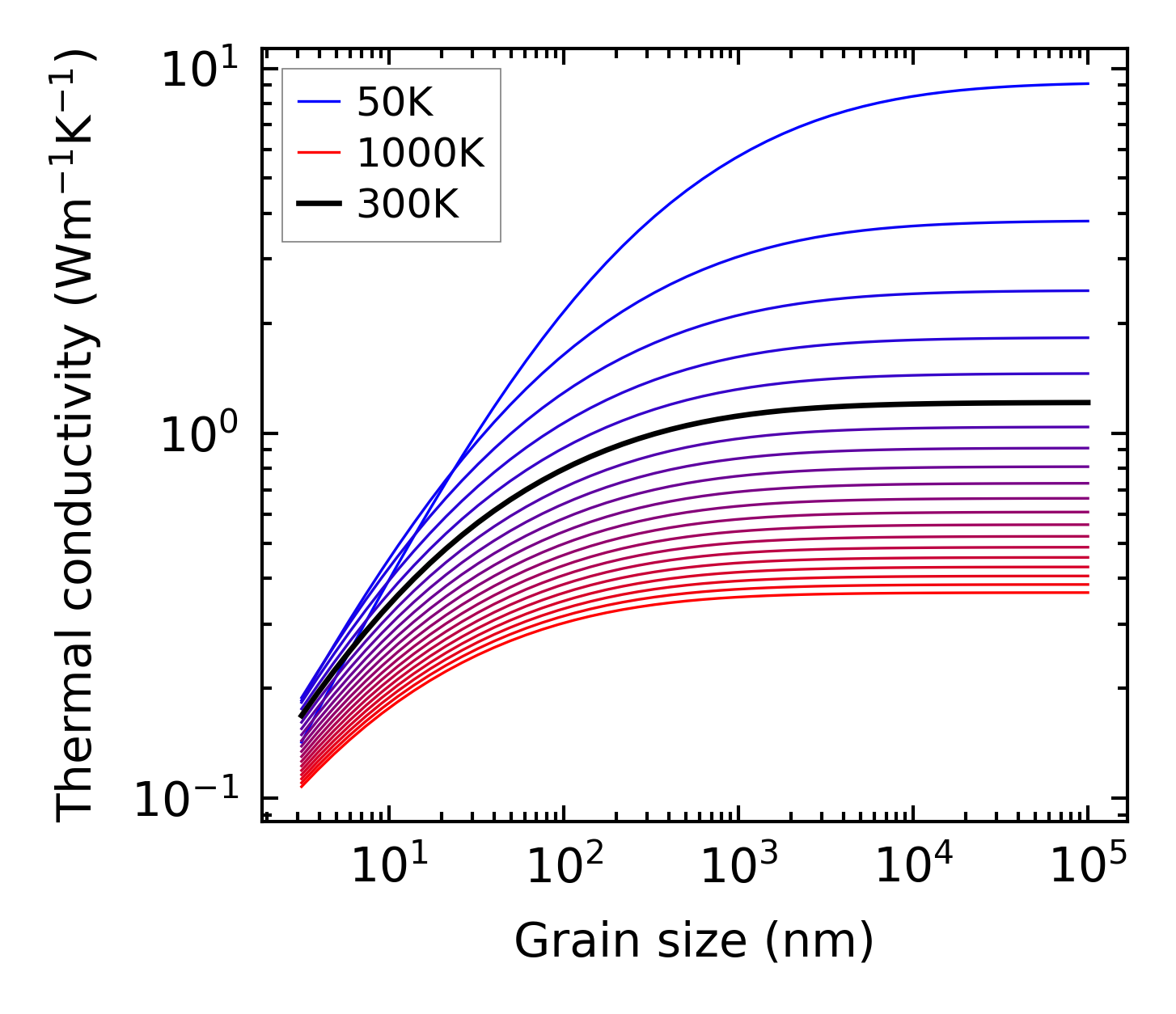

../../_images/fig_kappa_vs_grain_size6156.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

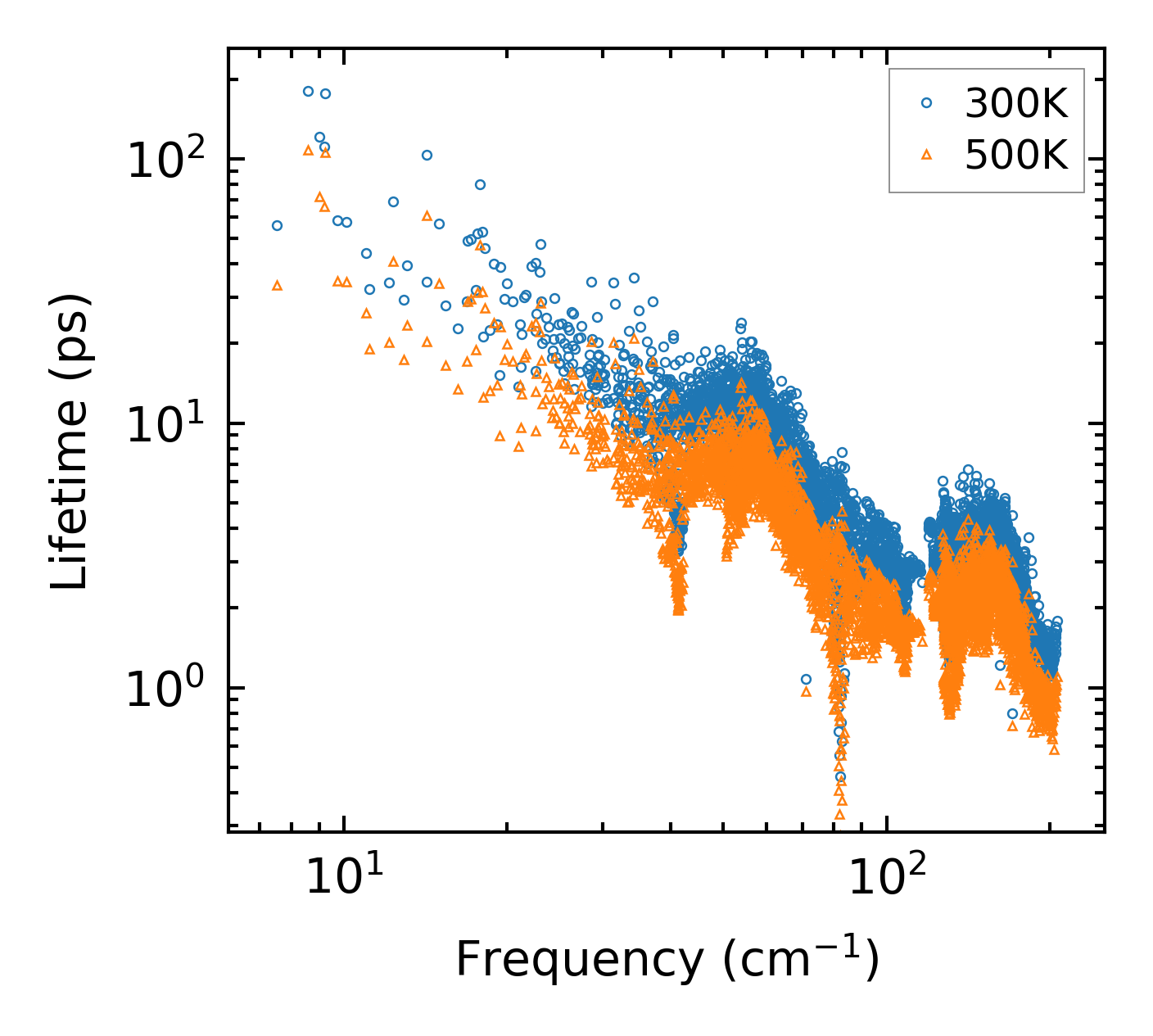

../../_images/fig_lifetime6017.png — (a) Phonon lifetime due to phonon-phonon scattering

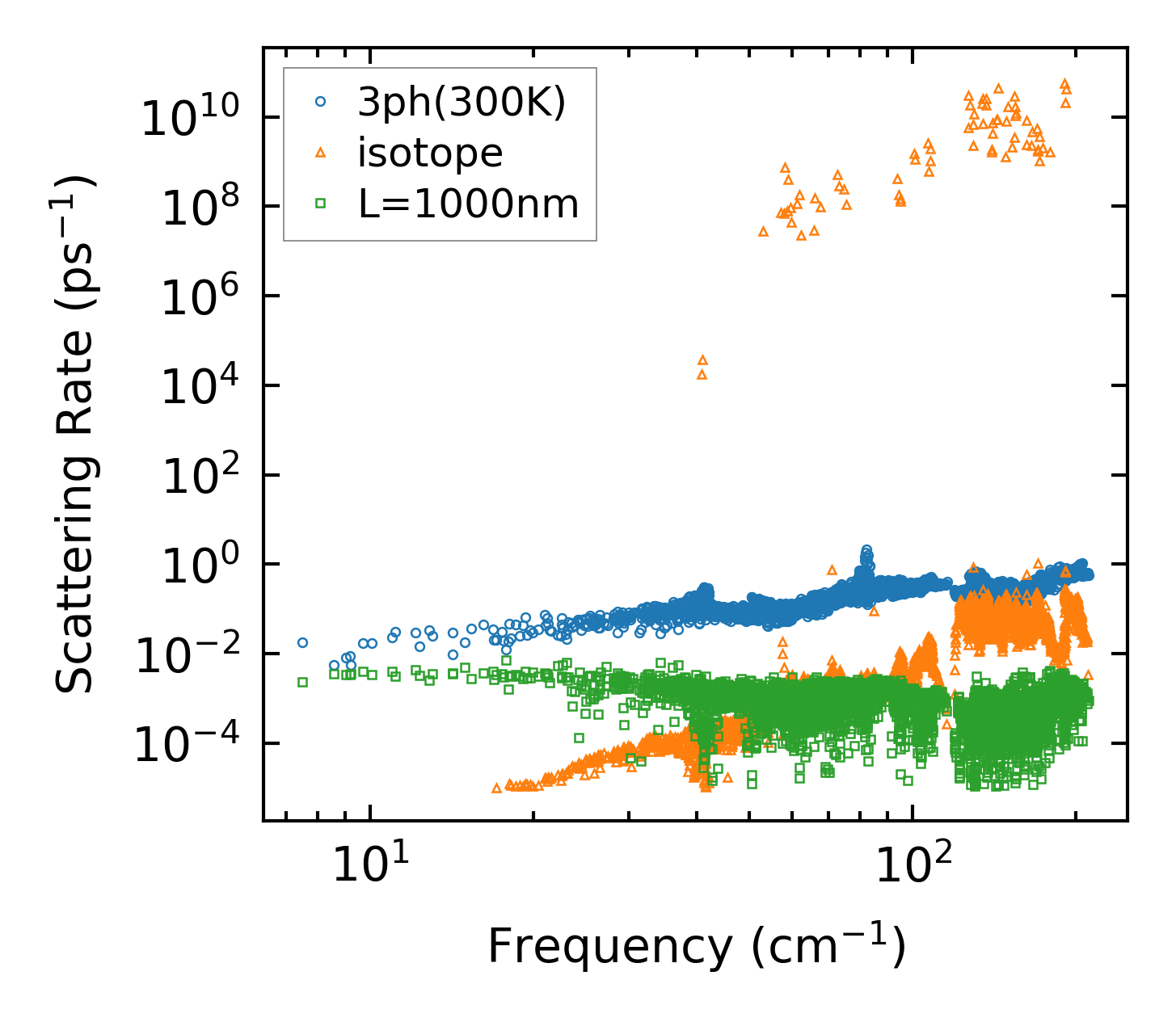

../../_images/fig_scat_rates6016.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

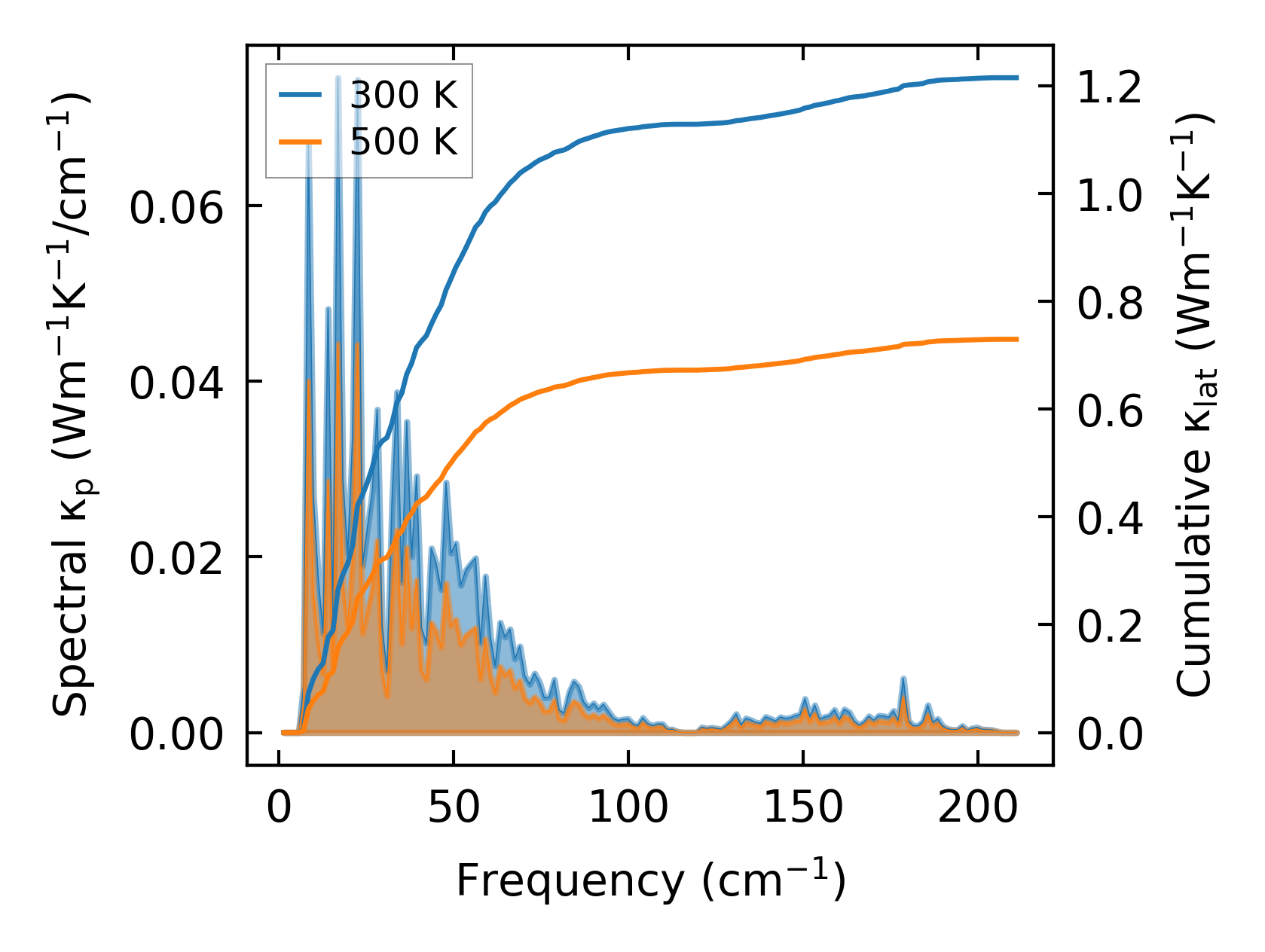

../../_images/fig_cumu_frequency6017.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

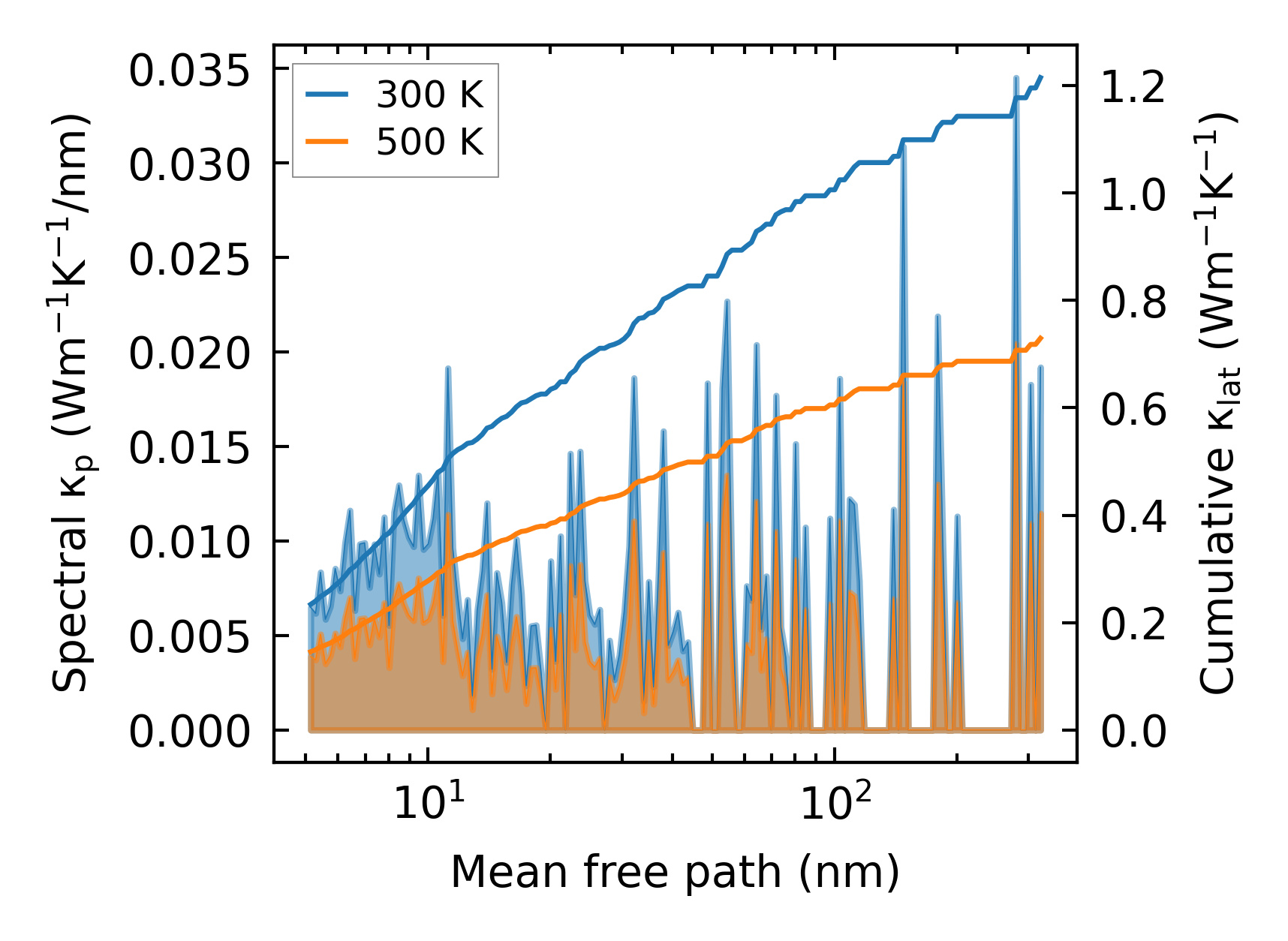

../../_images/fig_cumu_mfp6016.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

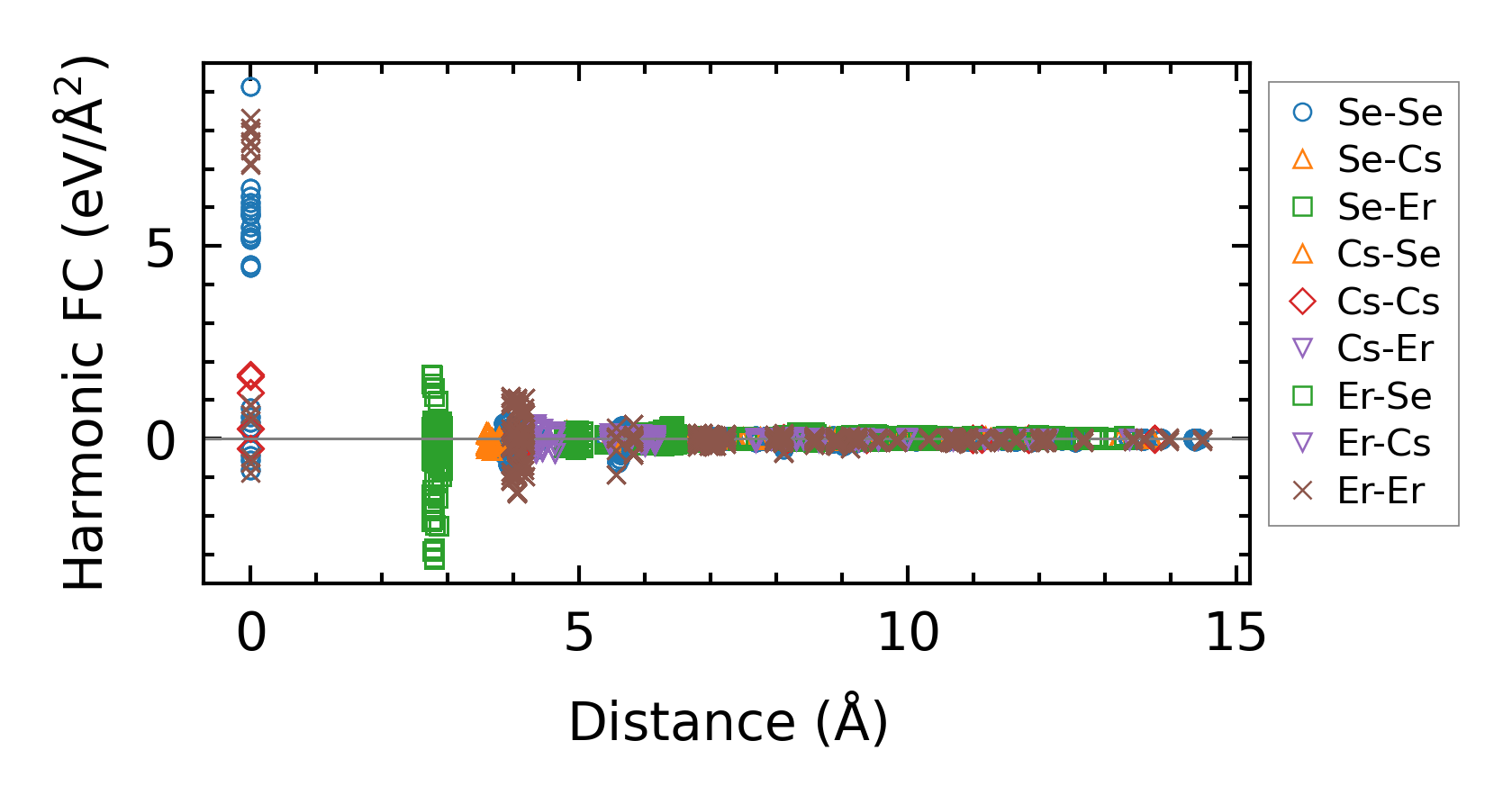

../../_images/fig_fc213903.png — (a) Force constants w.r.t atomic distance

Summary

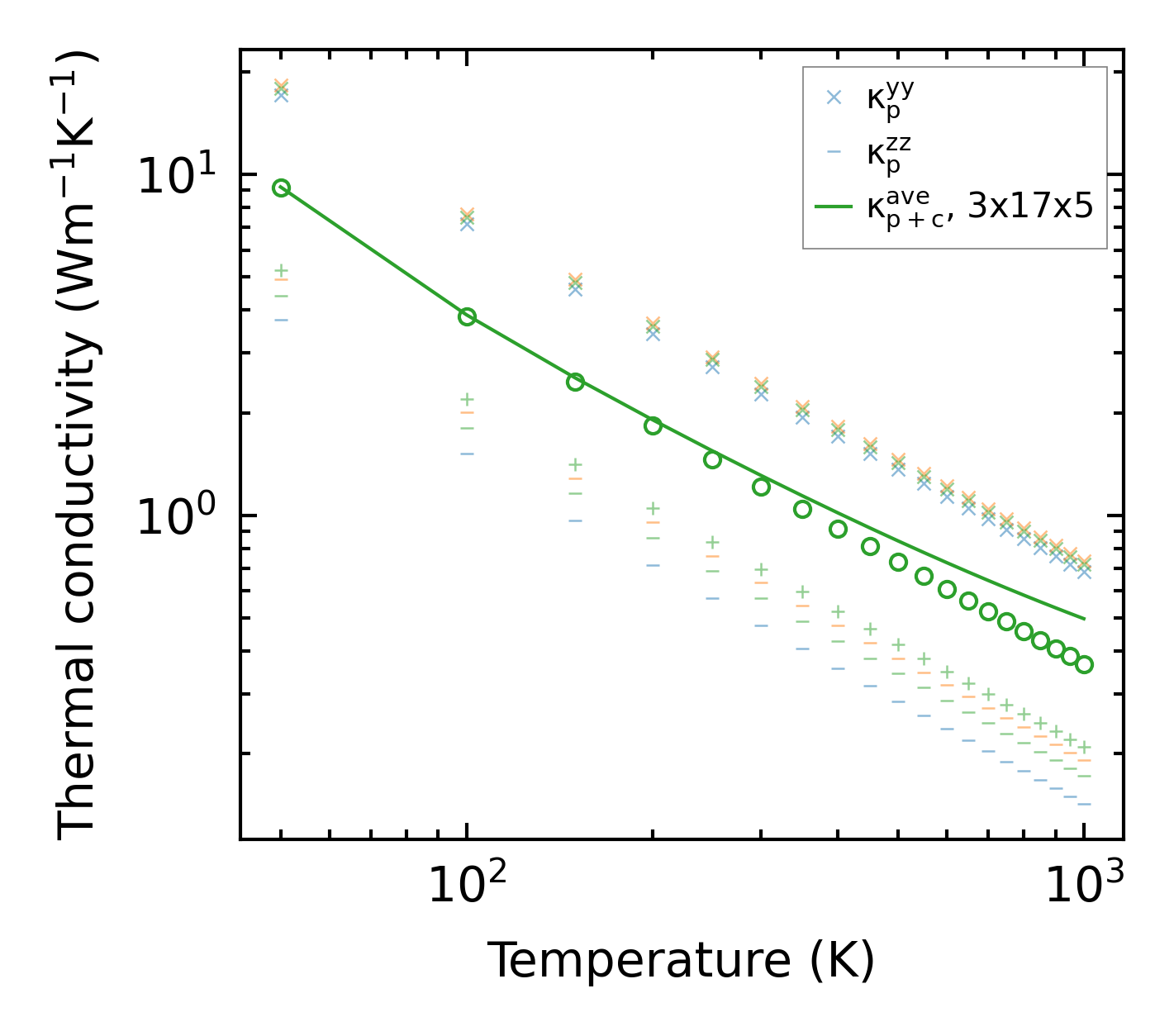

../../_images/fig_kappa11436.png — (a) Temperature-dependent lattice thermal conductivity

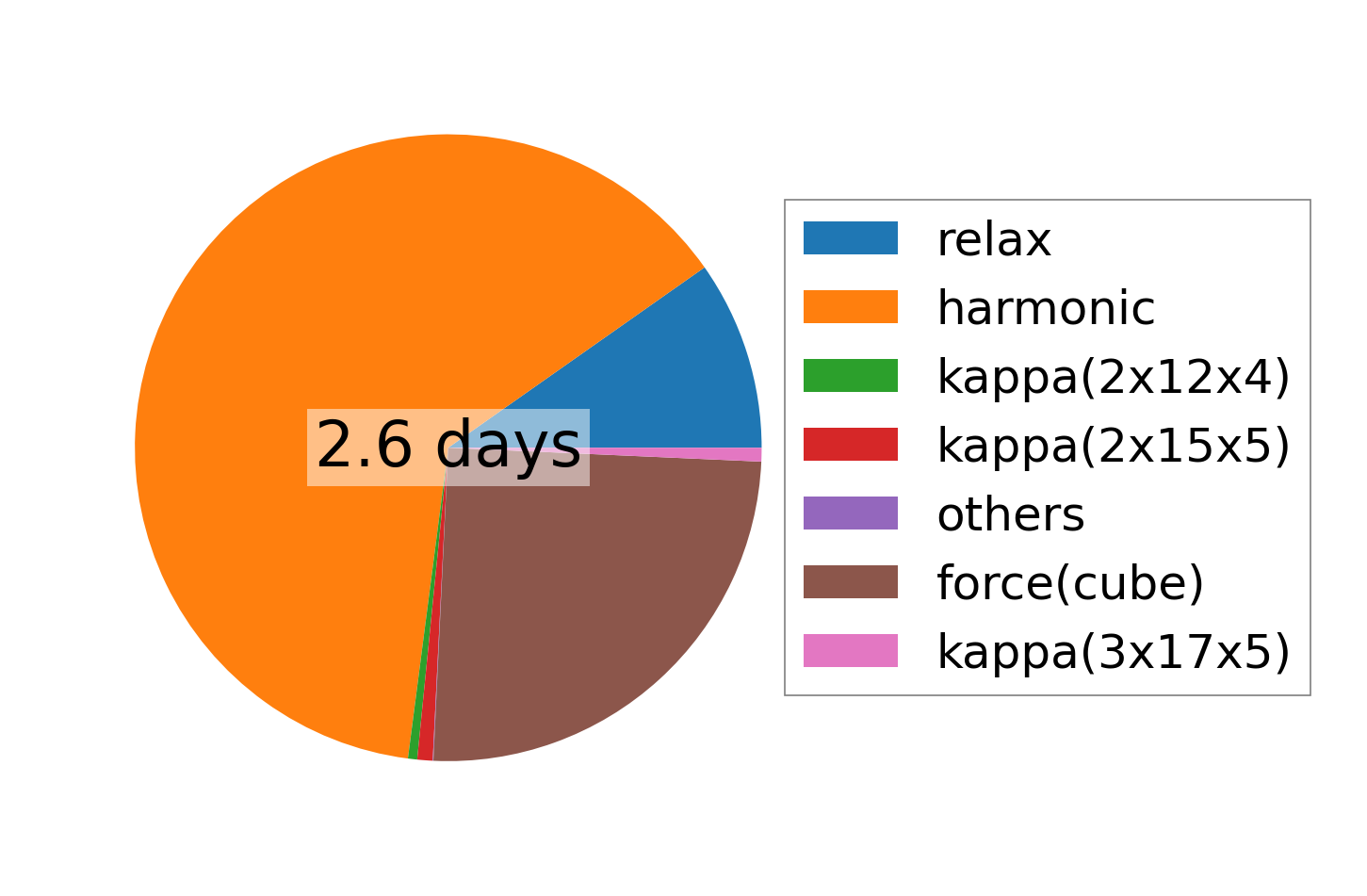

../../_images/fig_times23843.png — (b) Computation time
