mp-17229/RbBe3ZnF9/anharm

Space group: P-6c2 (188)
Link: Materials Project
Download: mp-17229.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14219.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14219.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6049.png — (a) Grüneisen parameters

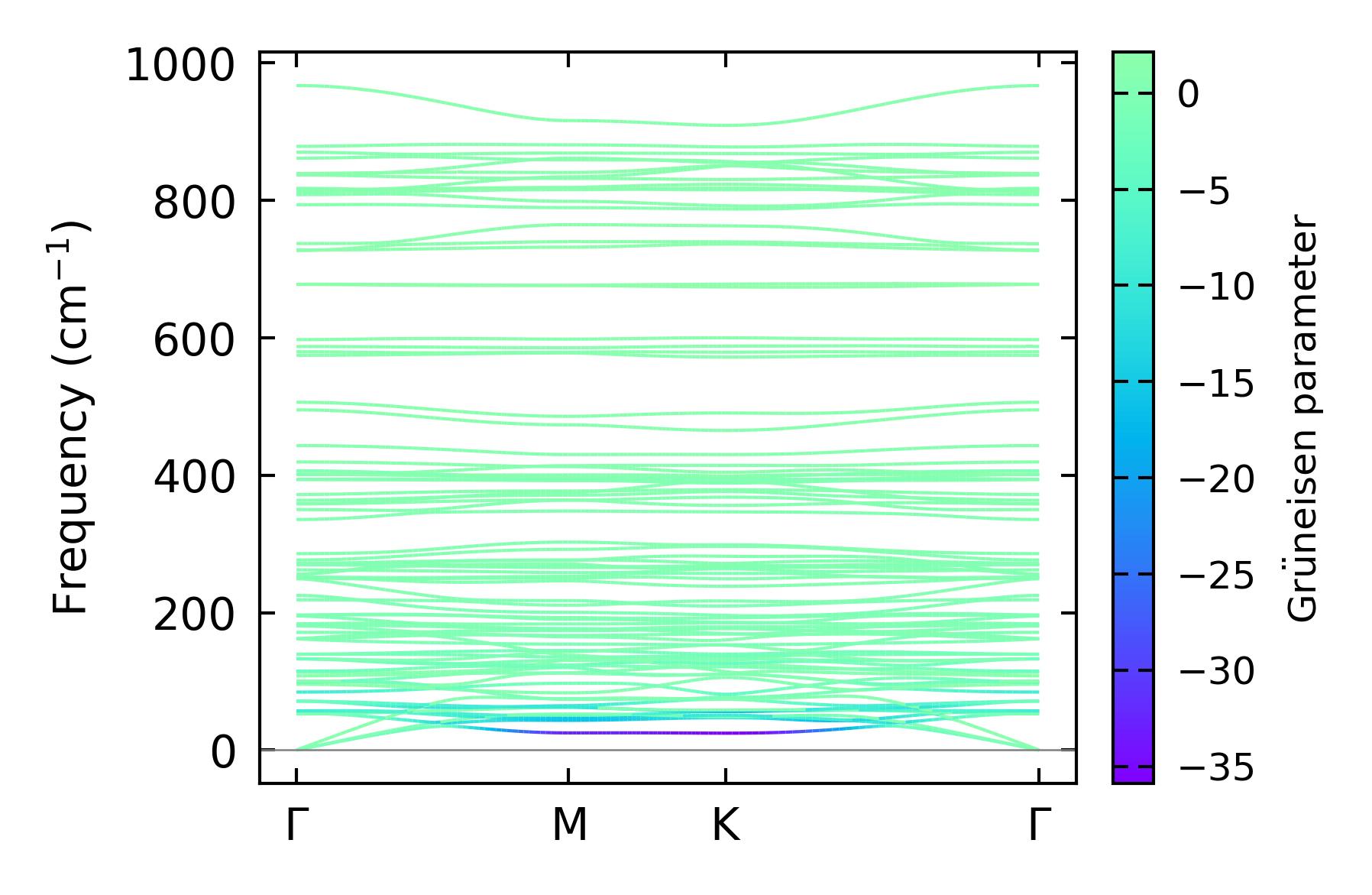

../../_images/fig_gruneisen6049.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x7, supercell: 2x2x1

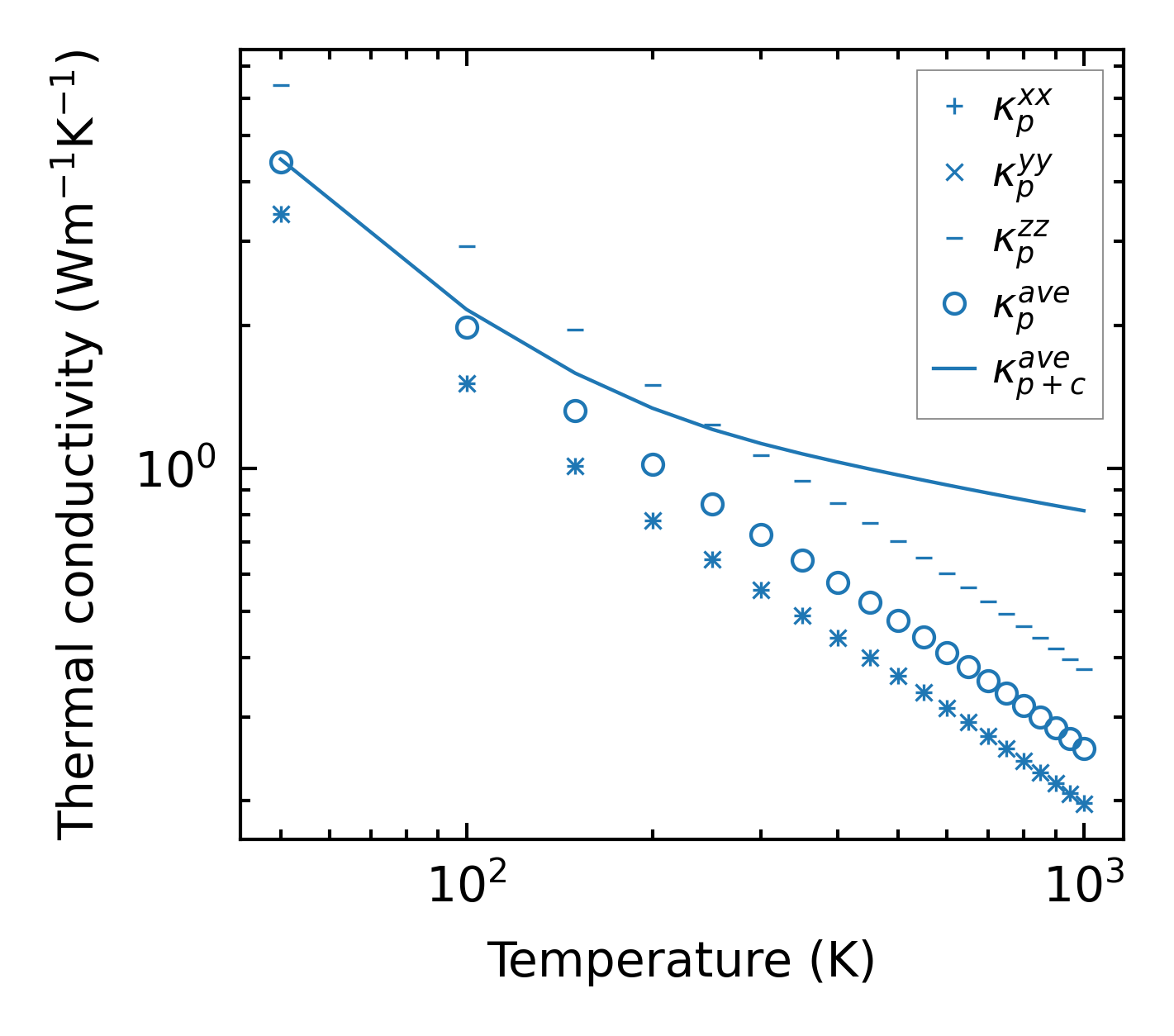

../../_images/fig_kappa11384.png — (a) Temperature-dependent lattice thermal conductivity

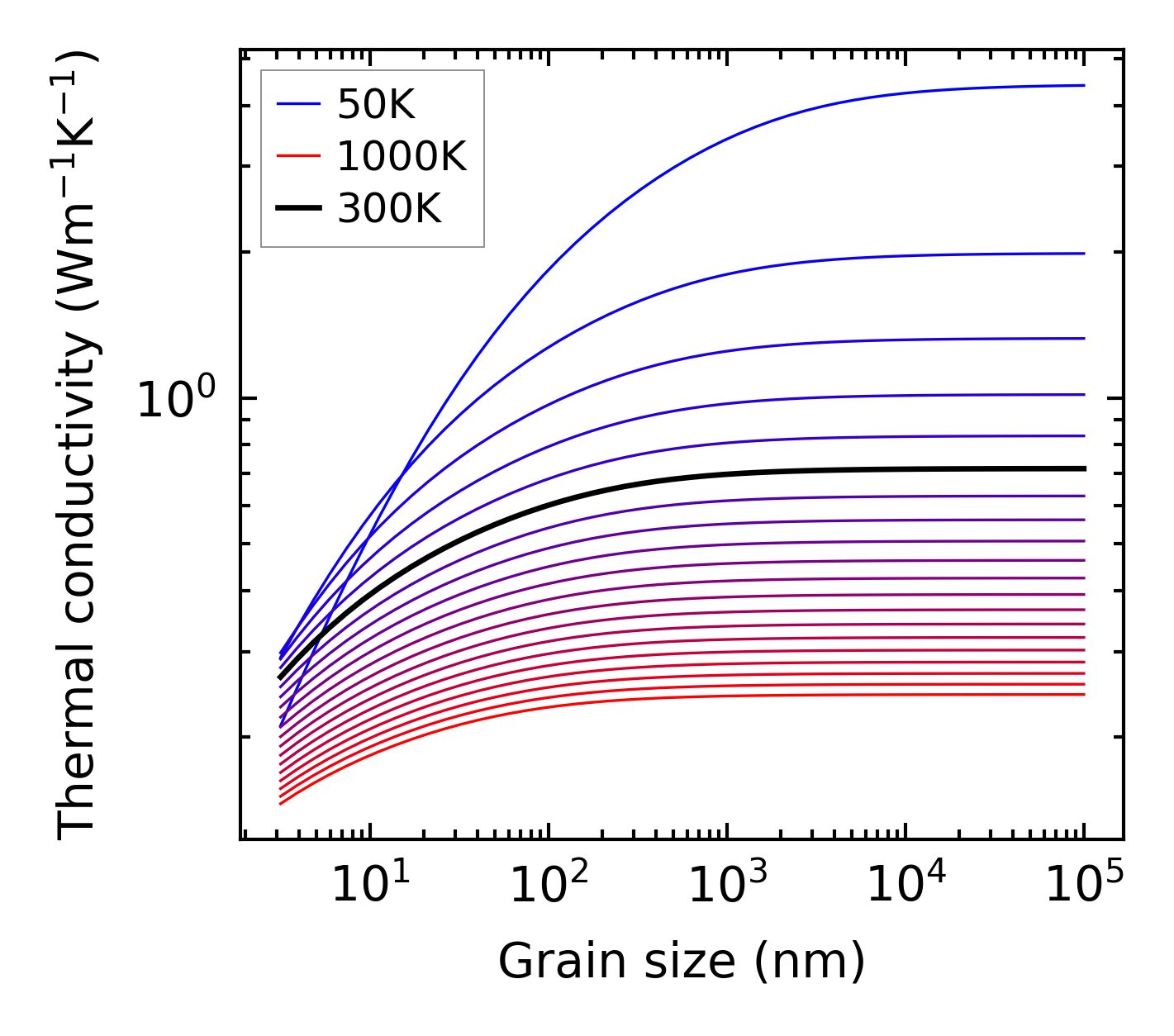

../../_images/fig_kappa_vs_grain_size6127.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

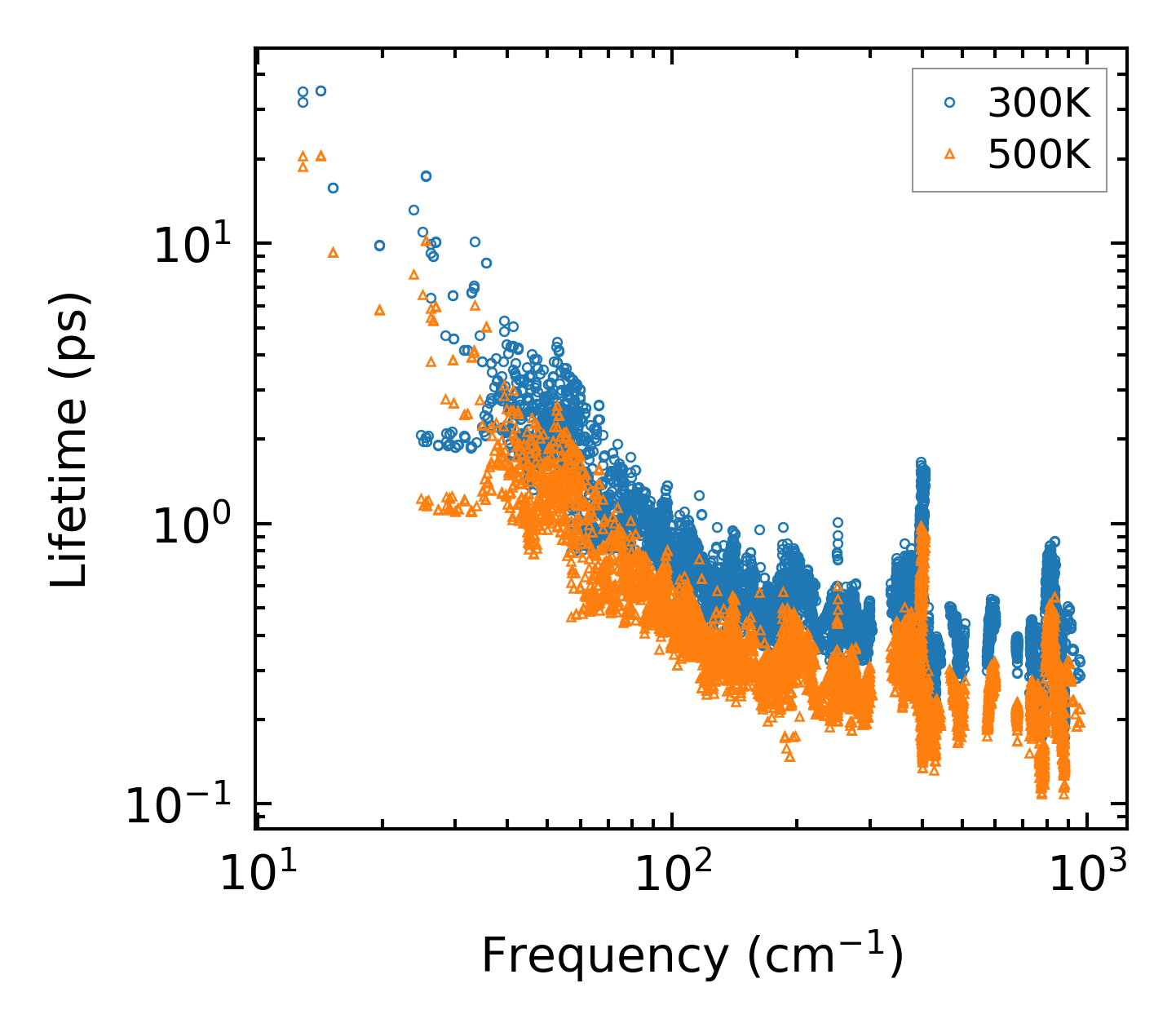

../../_images/fig_lifetime5988.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5987.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5988.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

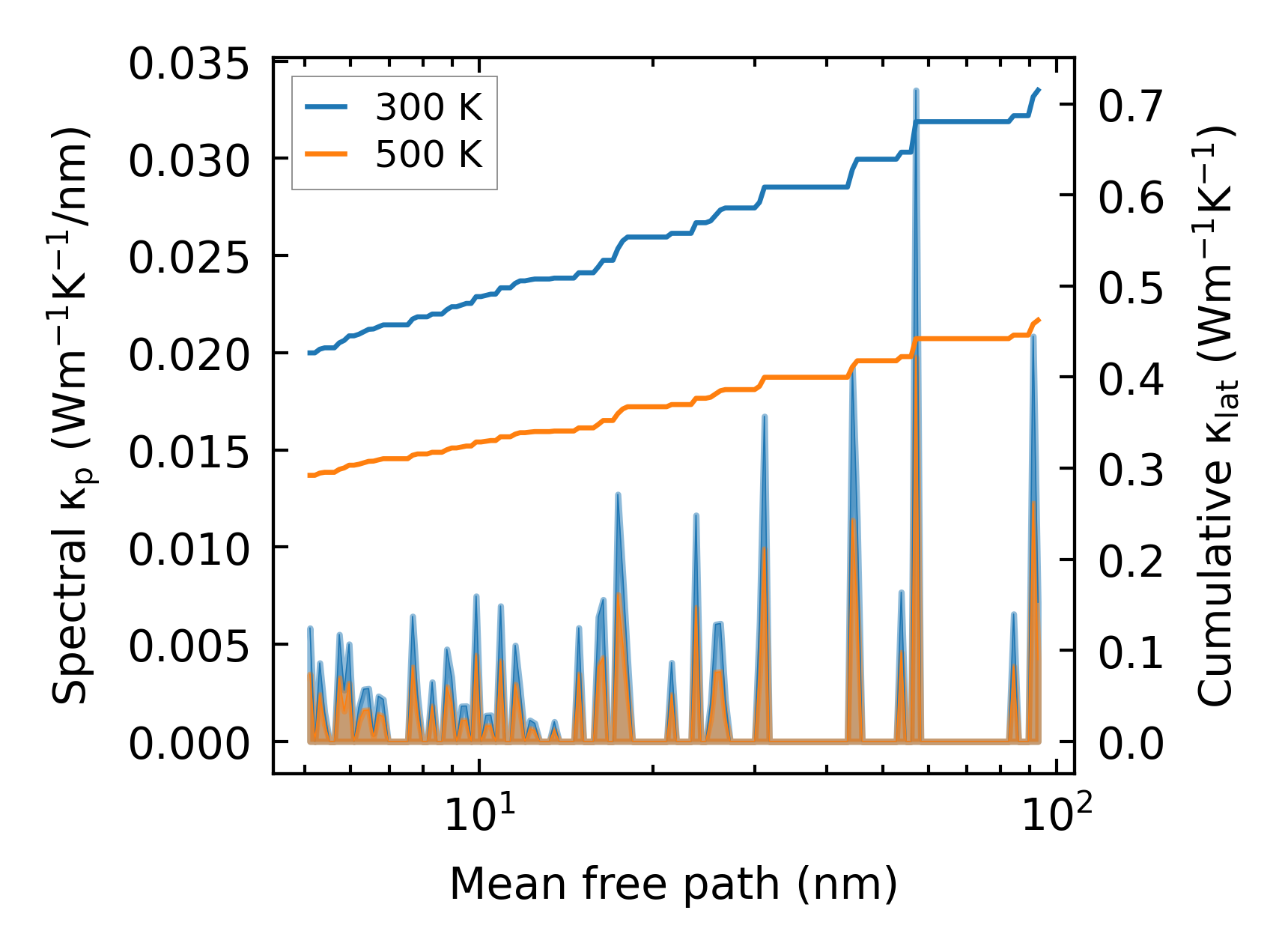

../../_images/fig_cumu_mfp5987.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

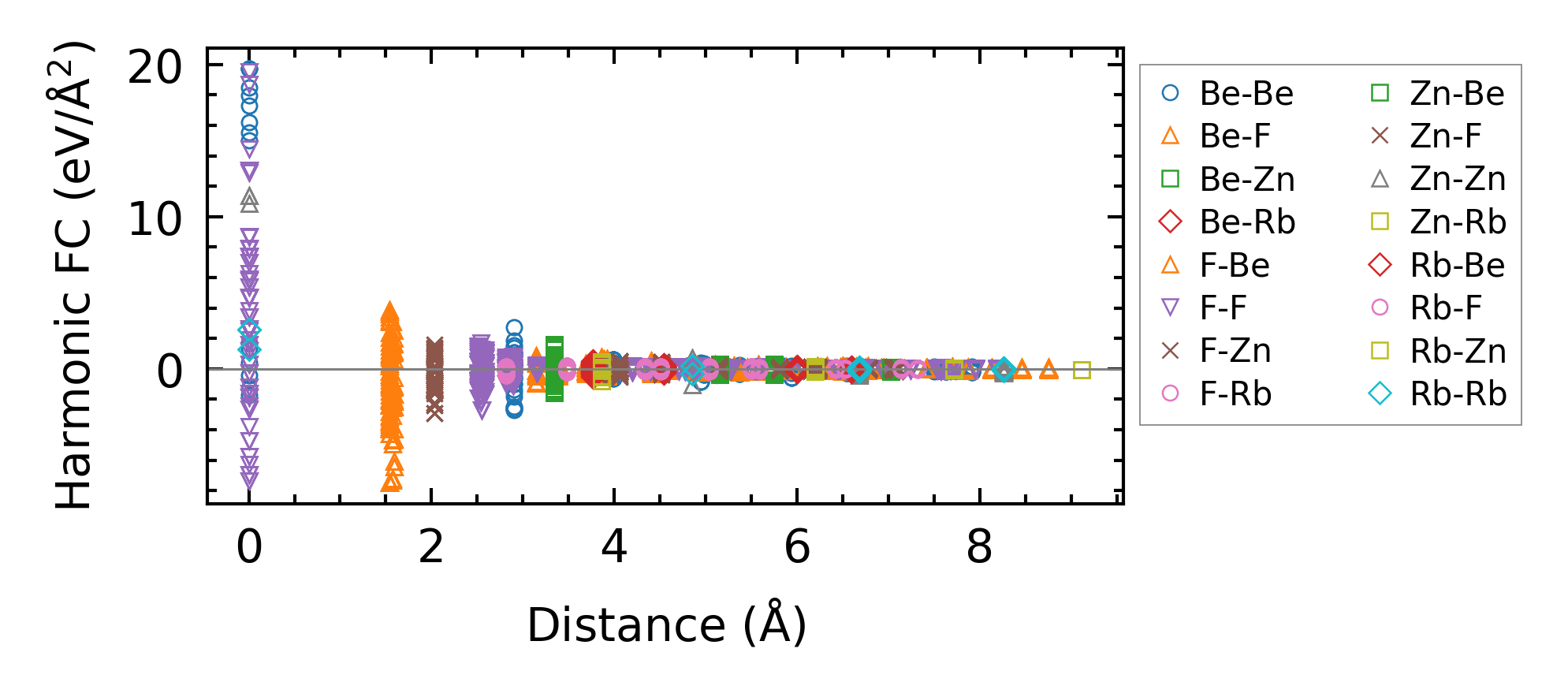

../../_images/fig_fc213847.png — (a) Force constants w.r.t atomic distance

Summary

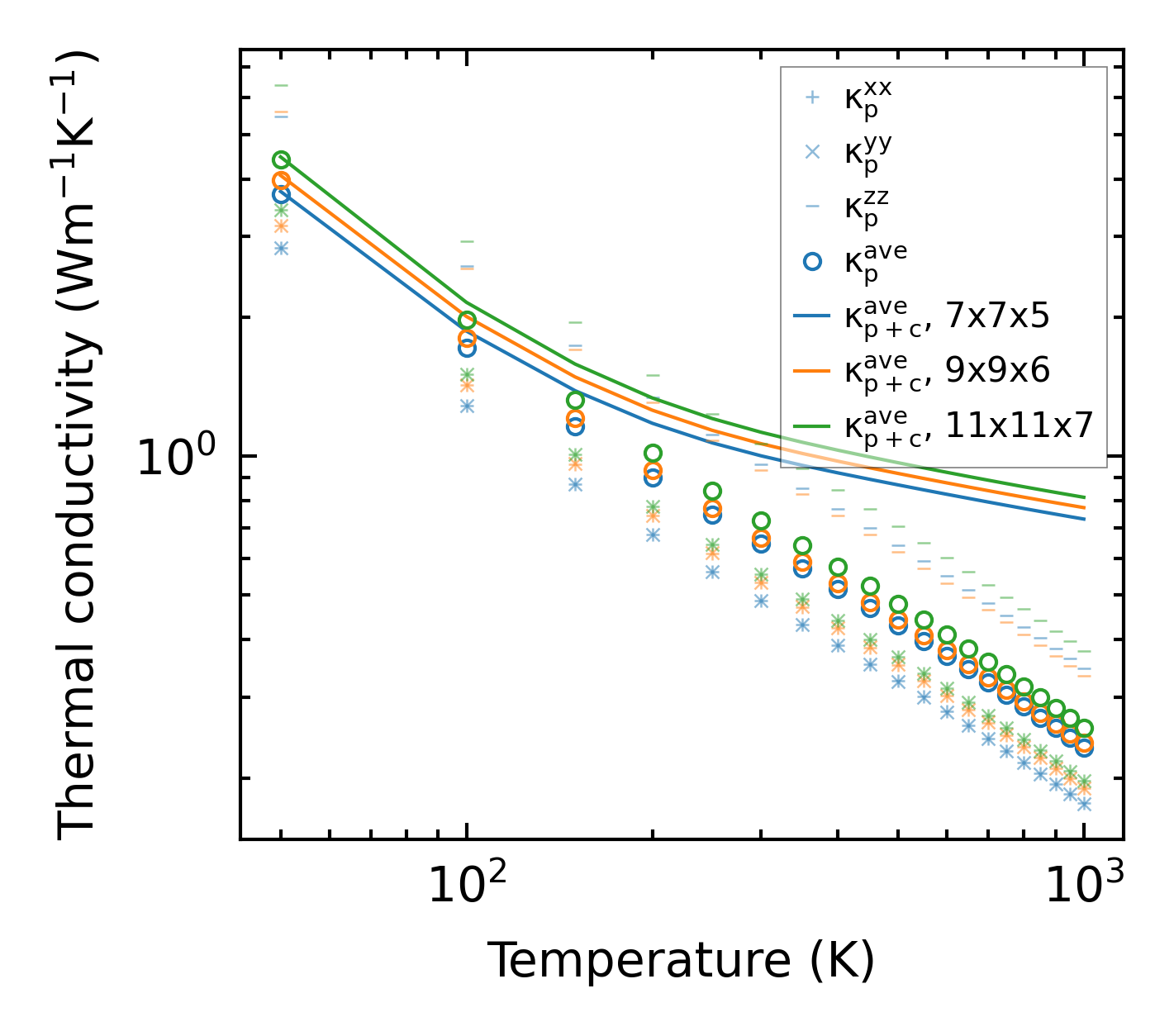

../../_images/fig_kappa11385.png — (a) Temperature-dependent lattice thermal conductivity

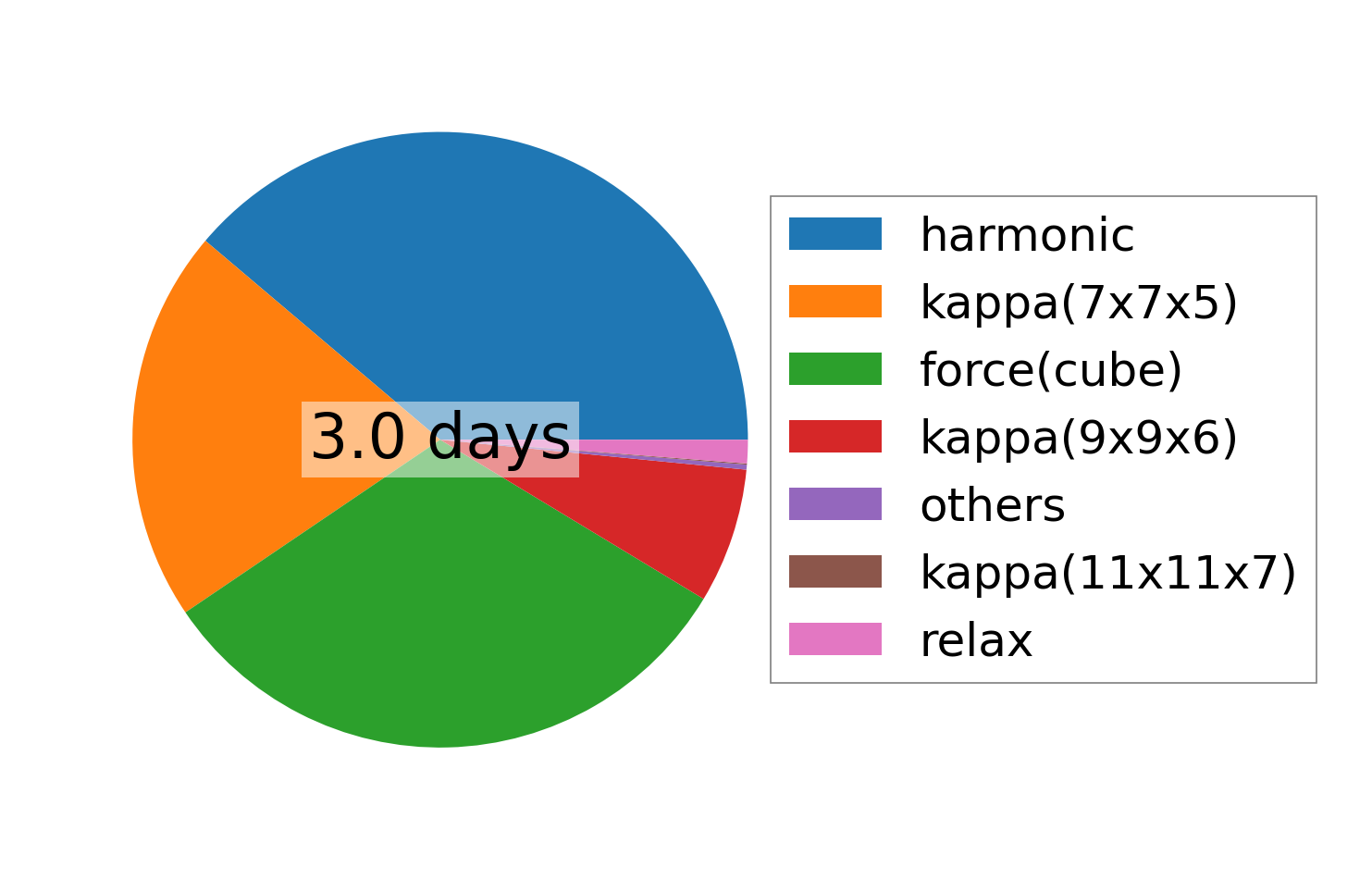

../../_images/fig_times23769.png — (b) Computation time
