mp-17371/K2ErF5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-17371.tar.gz

Harmonic properties

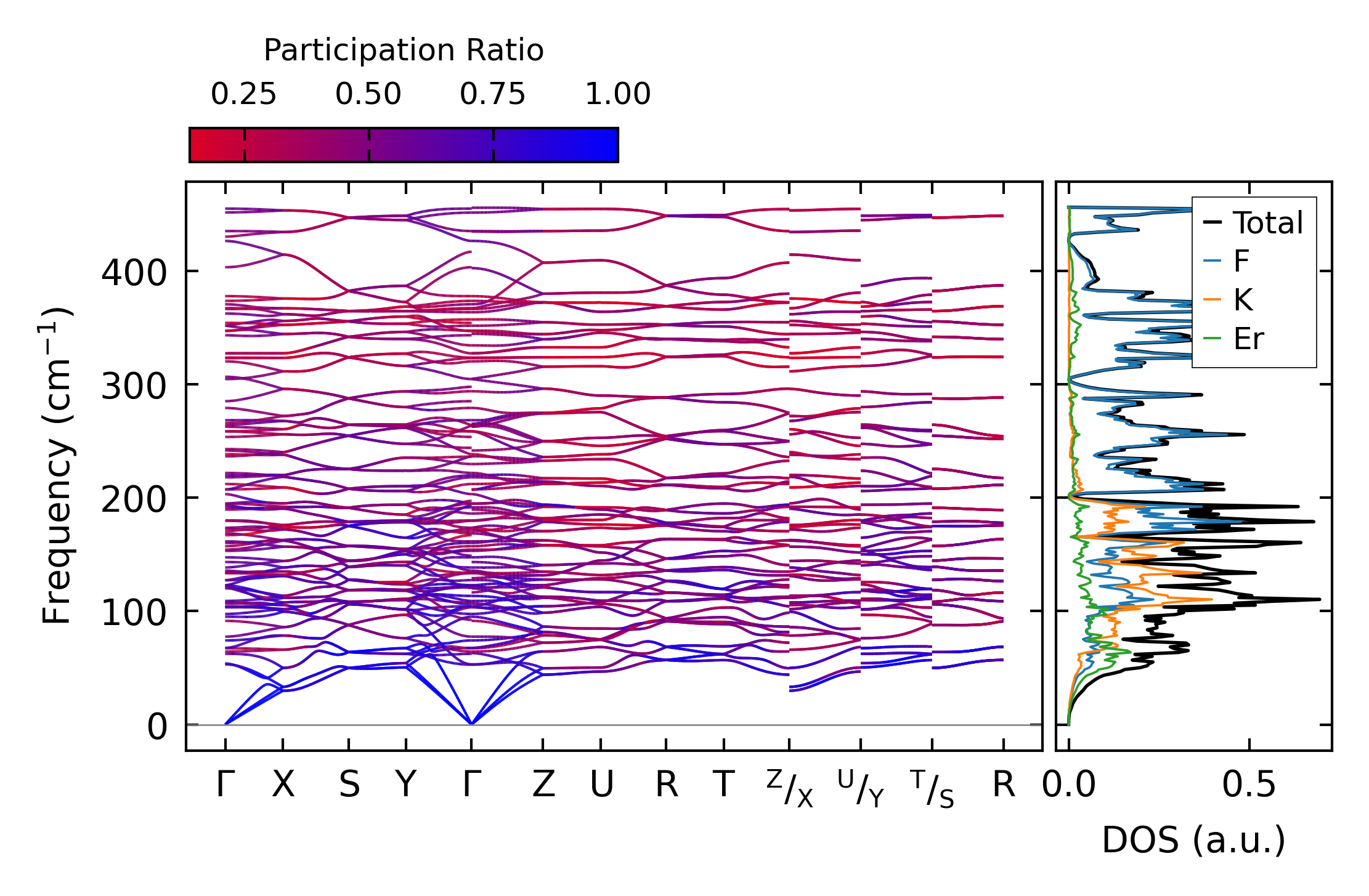

../../_images/fig_bandos_pr14263.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14263.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6070.png — (a) Grüneisen parameters

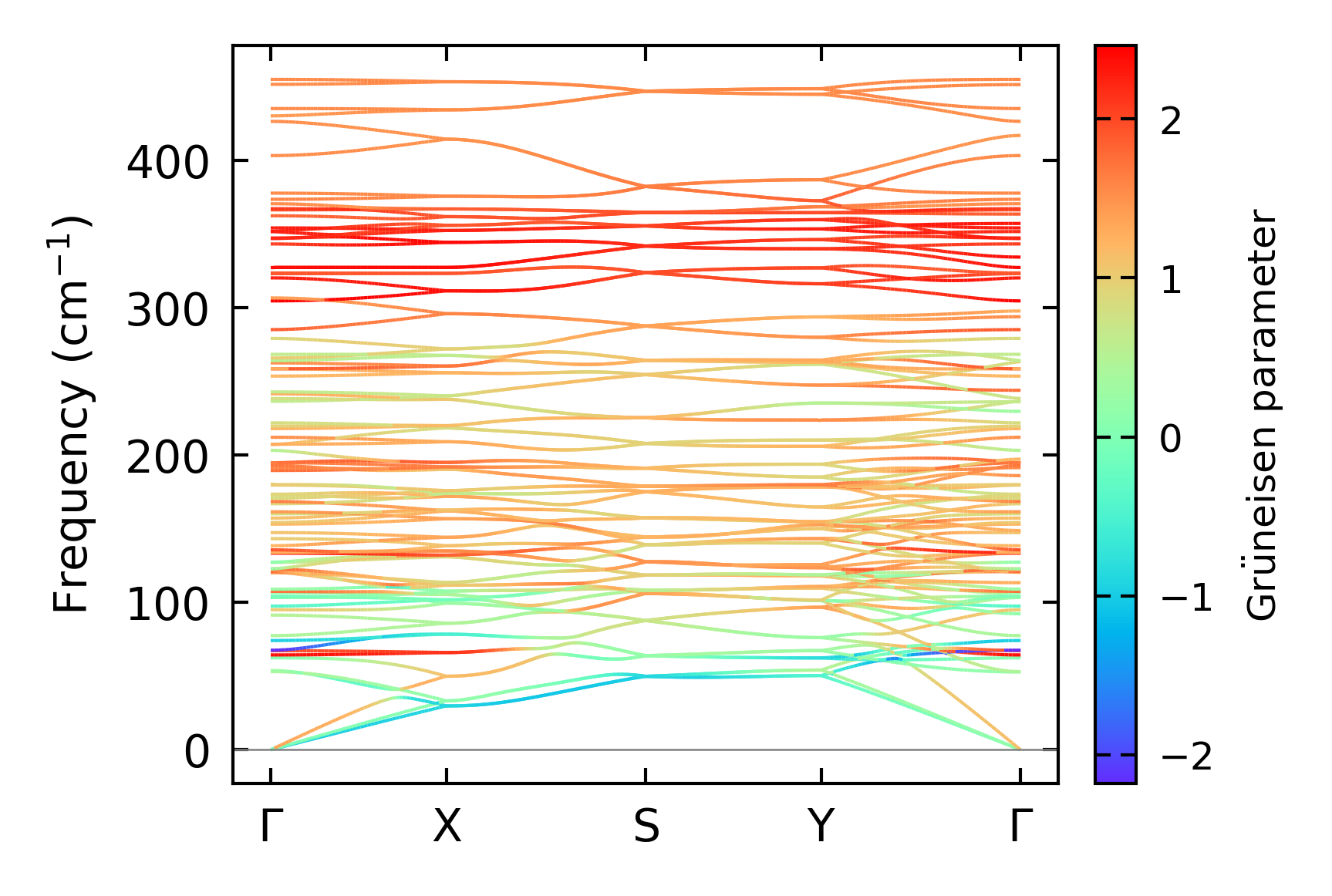

../../_images/fig_gruneisen6070.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x10x10, supercell: 1x2x2

../../_images/fig_kappa11421.png — (a) Temperature-dependent lattice thermal conductivity

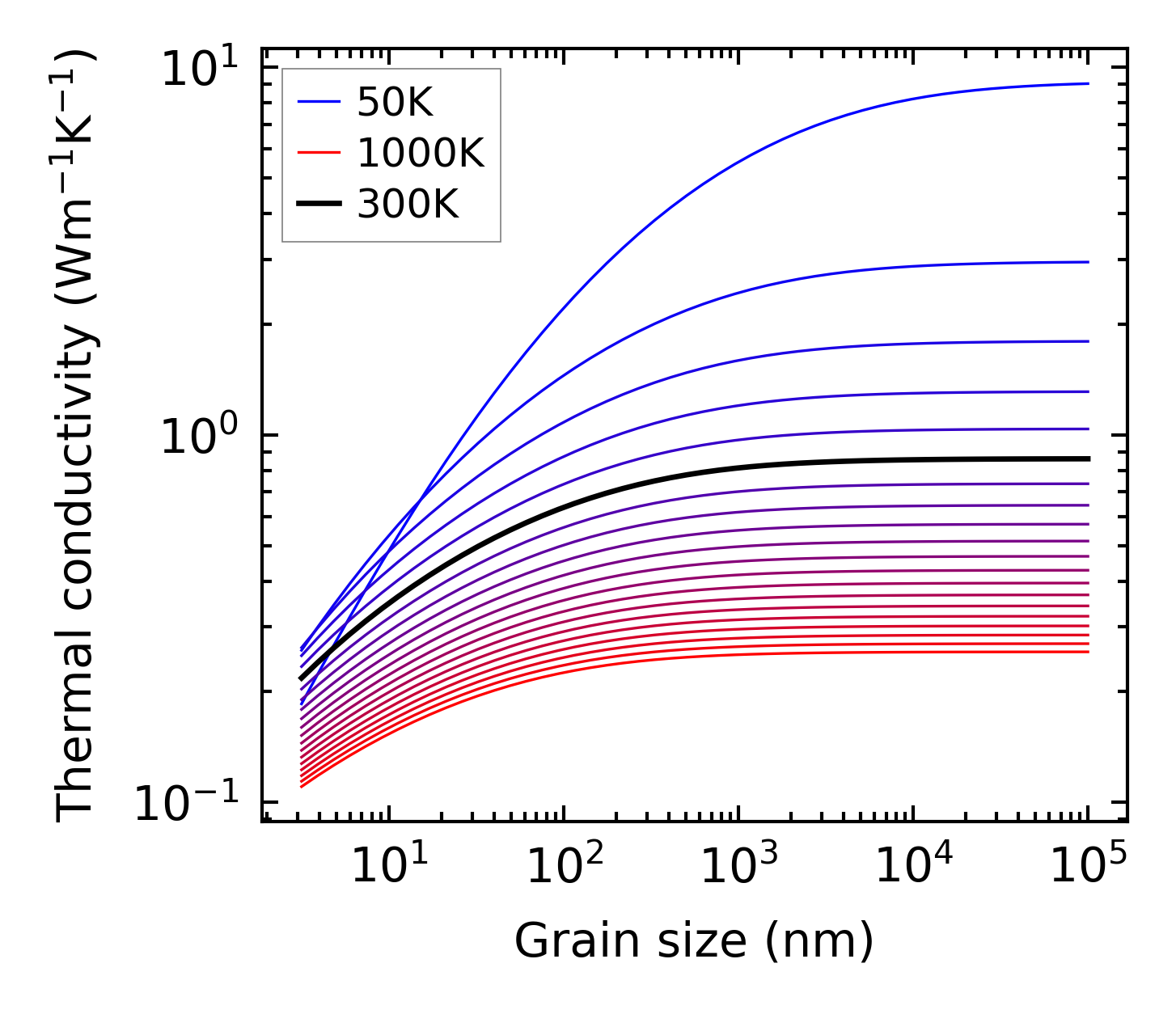

../../_images/fig_kappa_vs_grain_size6148.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

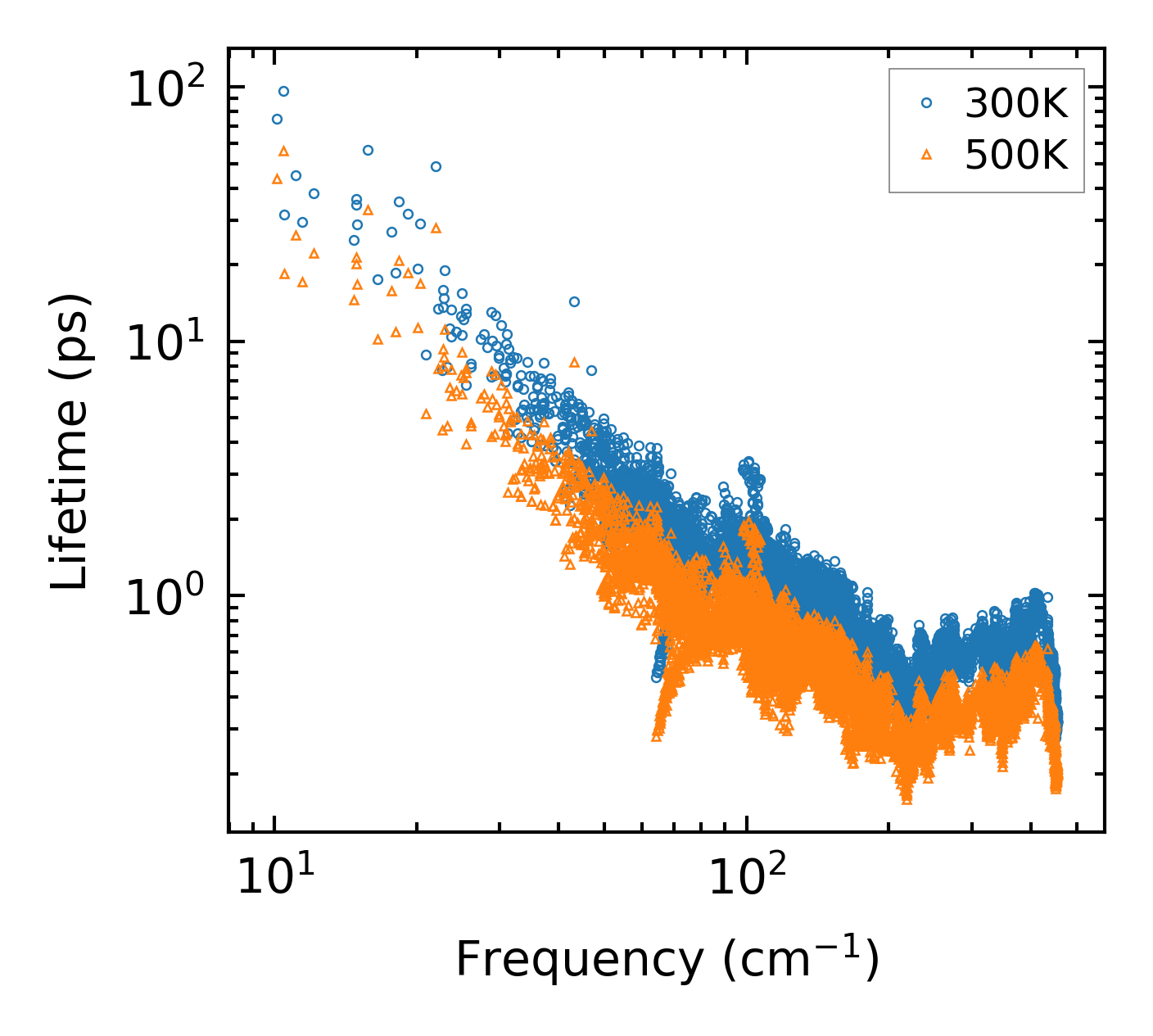

../../_images/fig_lifetime6009.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6008.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

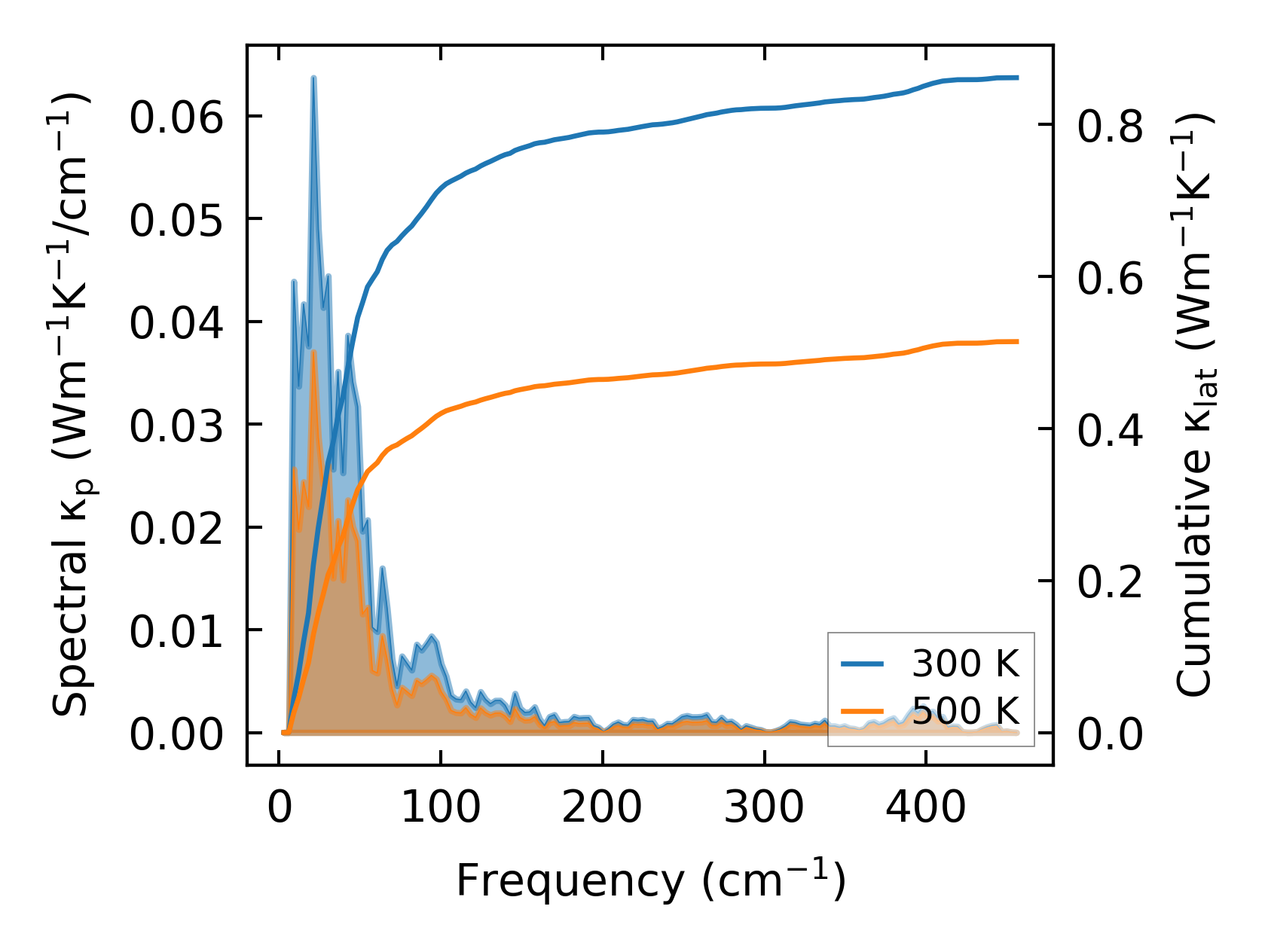

../../_images/fig_cumu_frequency6009.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

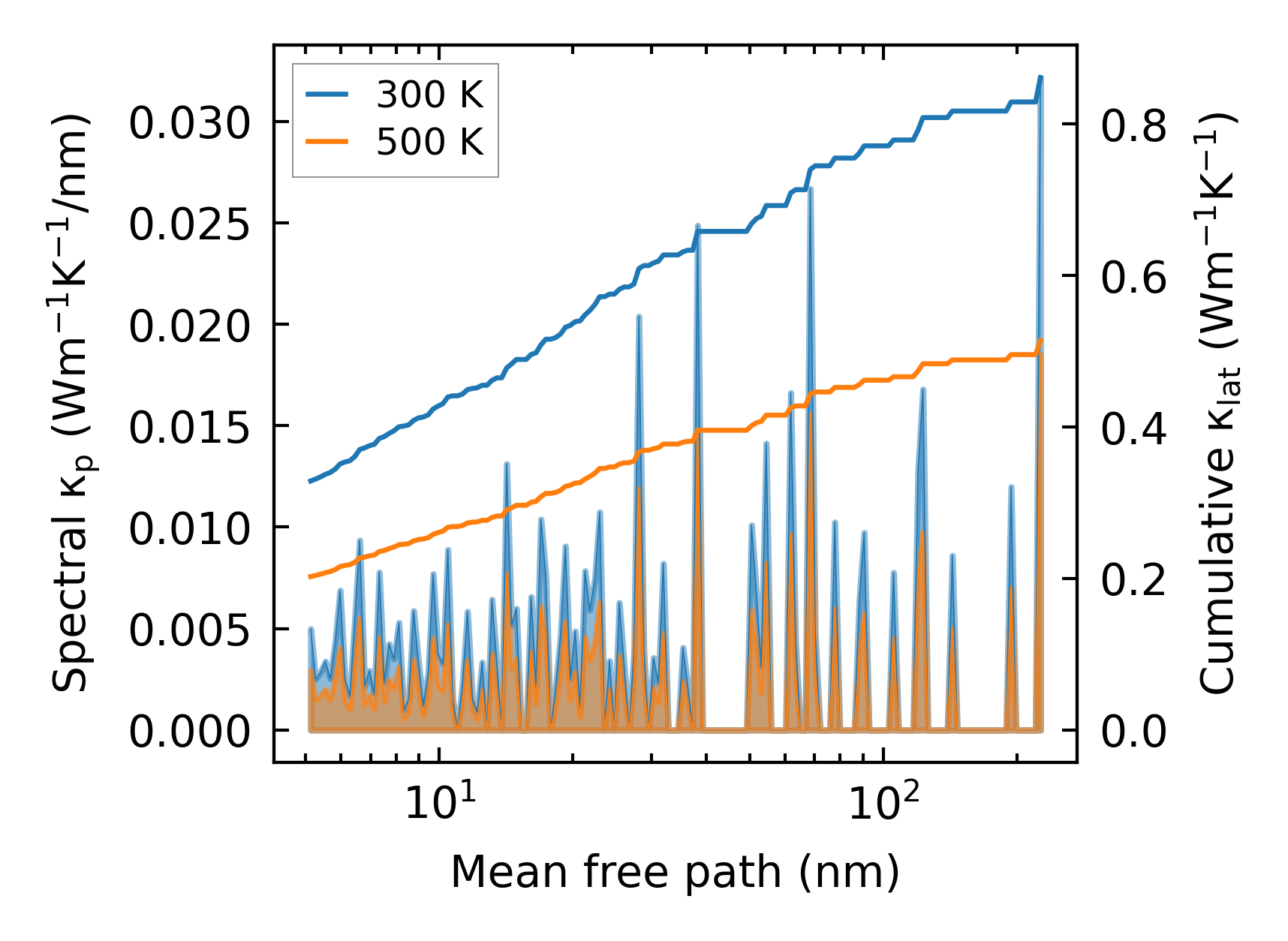

../../_images/fig_cumu_mfp6008.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

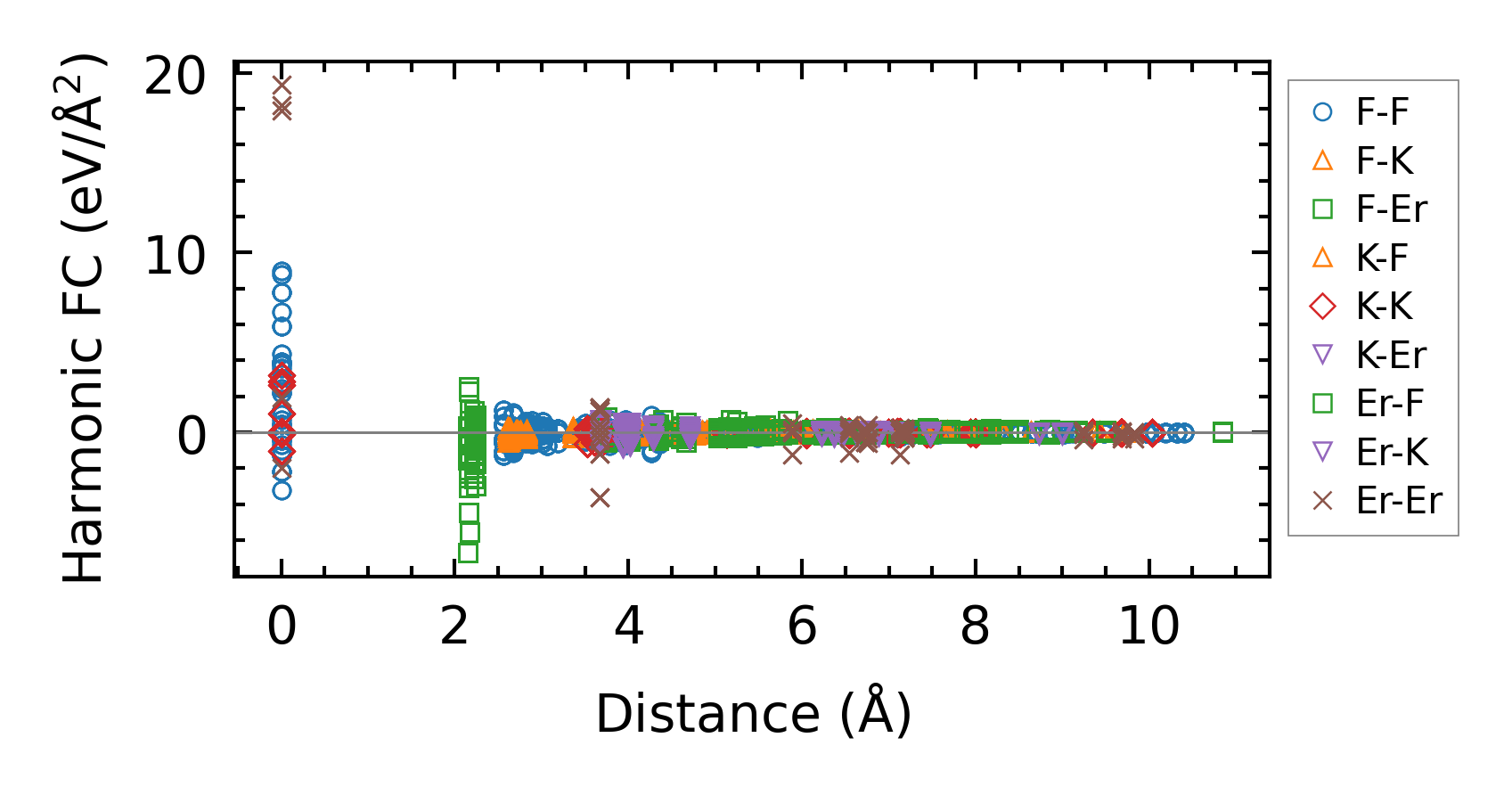

../../_images/fig_fc213891.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11422.png — (a) Temperature-dependent lattice thermal conductivity

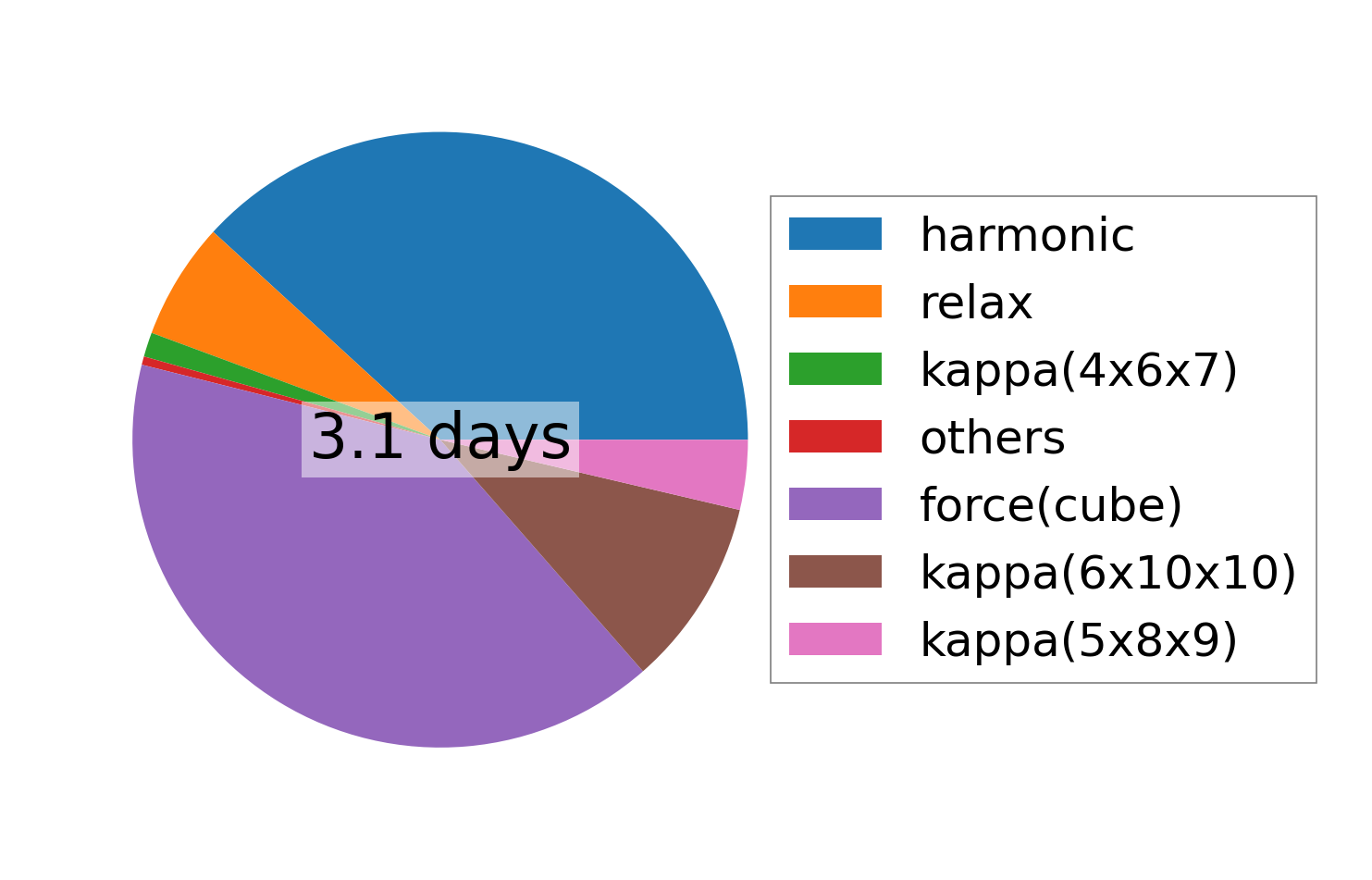

../../_images/fig_times23824.png — (b) Computation time
