mp-18975-2/Na2SrV4O12/anharm

Space group: P4/nbm (125)
Link: Materials Project
Download: mp-18975-2.tar.gz

Equation of state

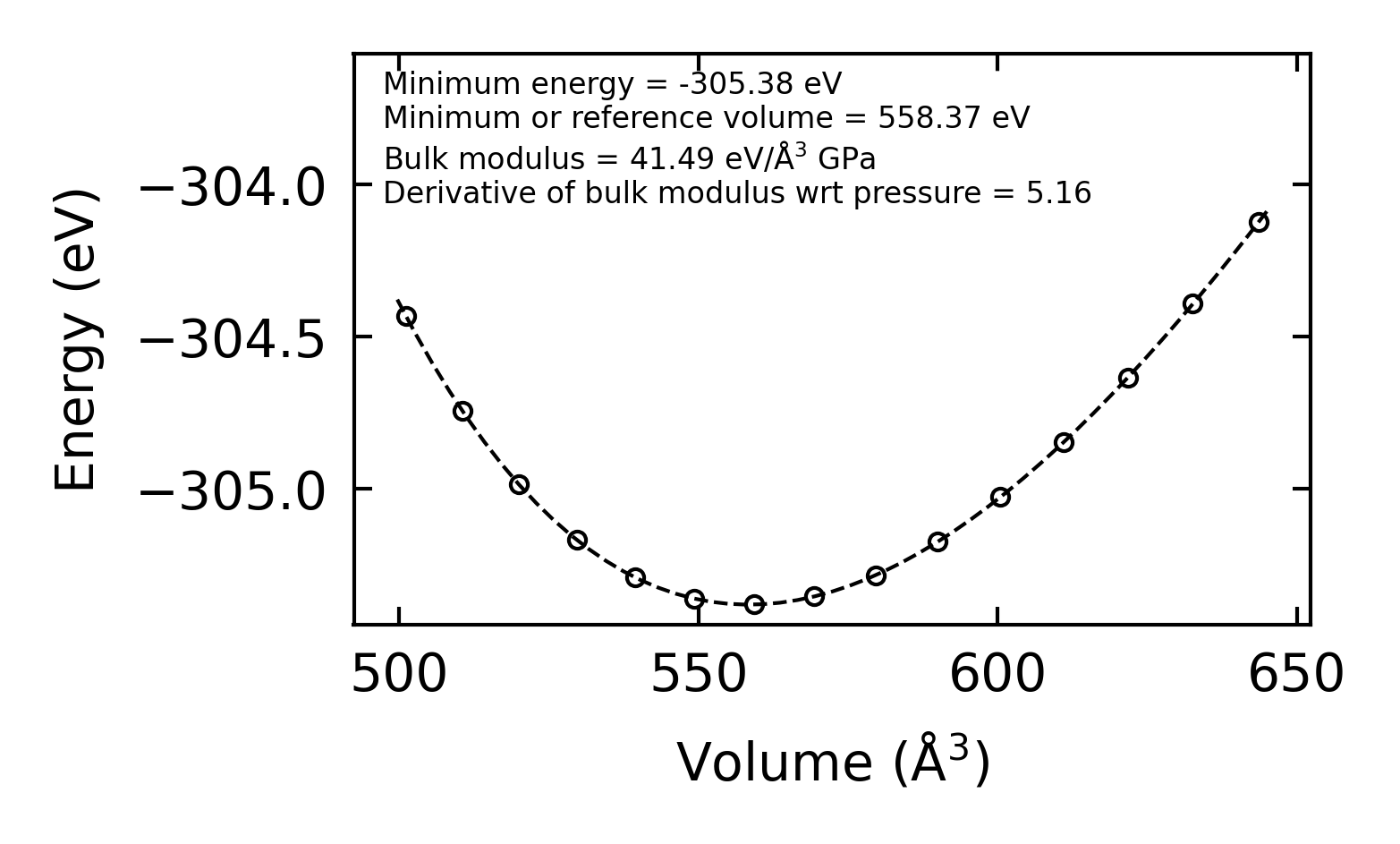

../../_images/fig_bm6819.png — (a) Equation of state

Harmonic properties

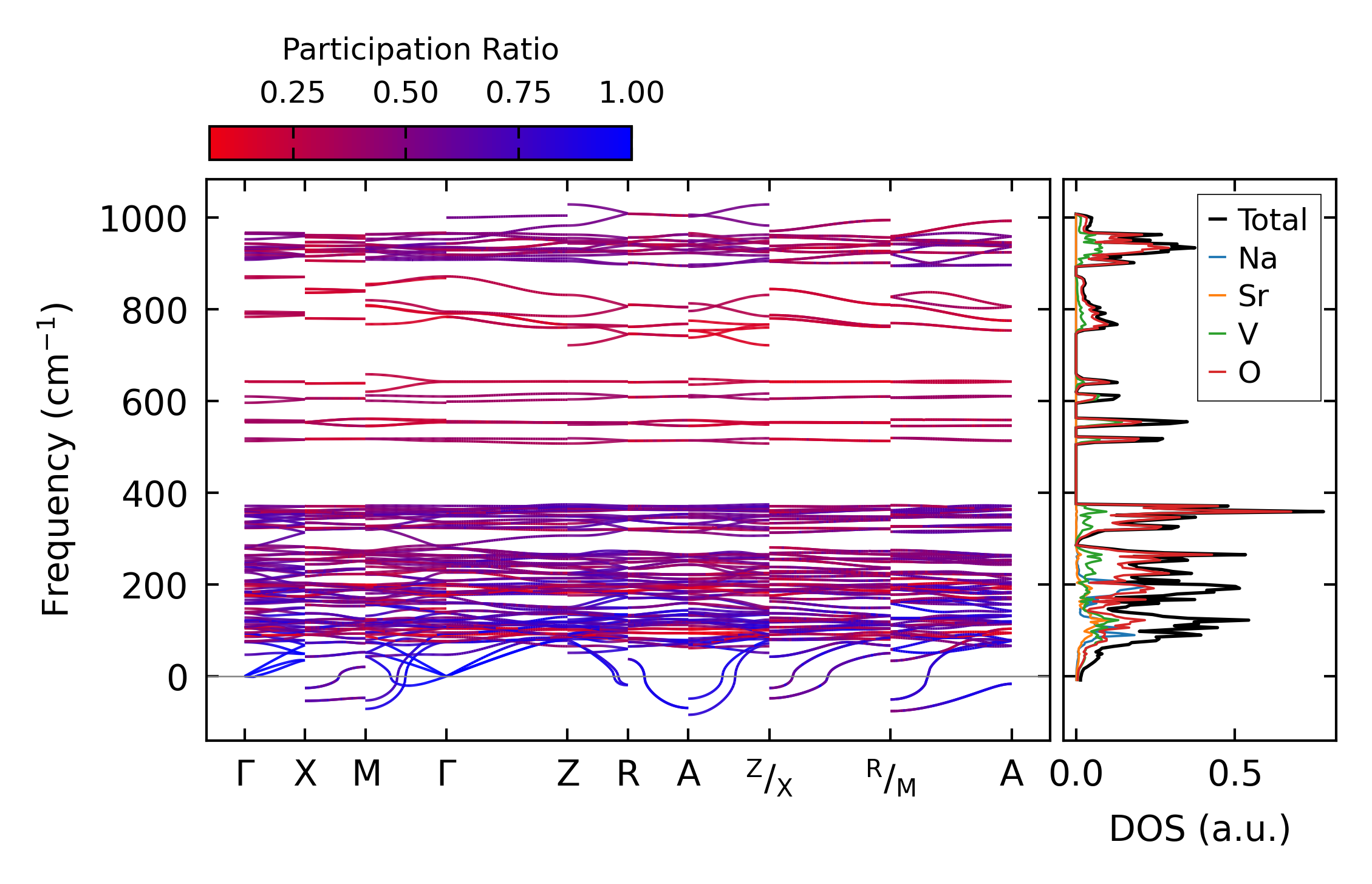

../../_images/fig_bandos_pr13654.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos18024.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13654.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5765.png — (a) Grüneisen parameters

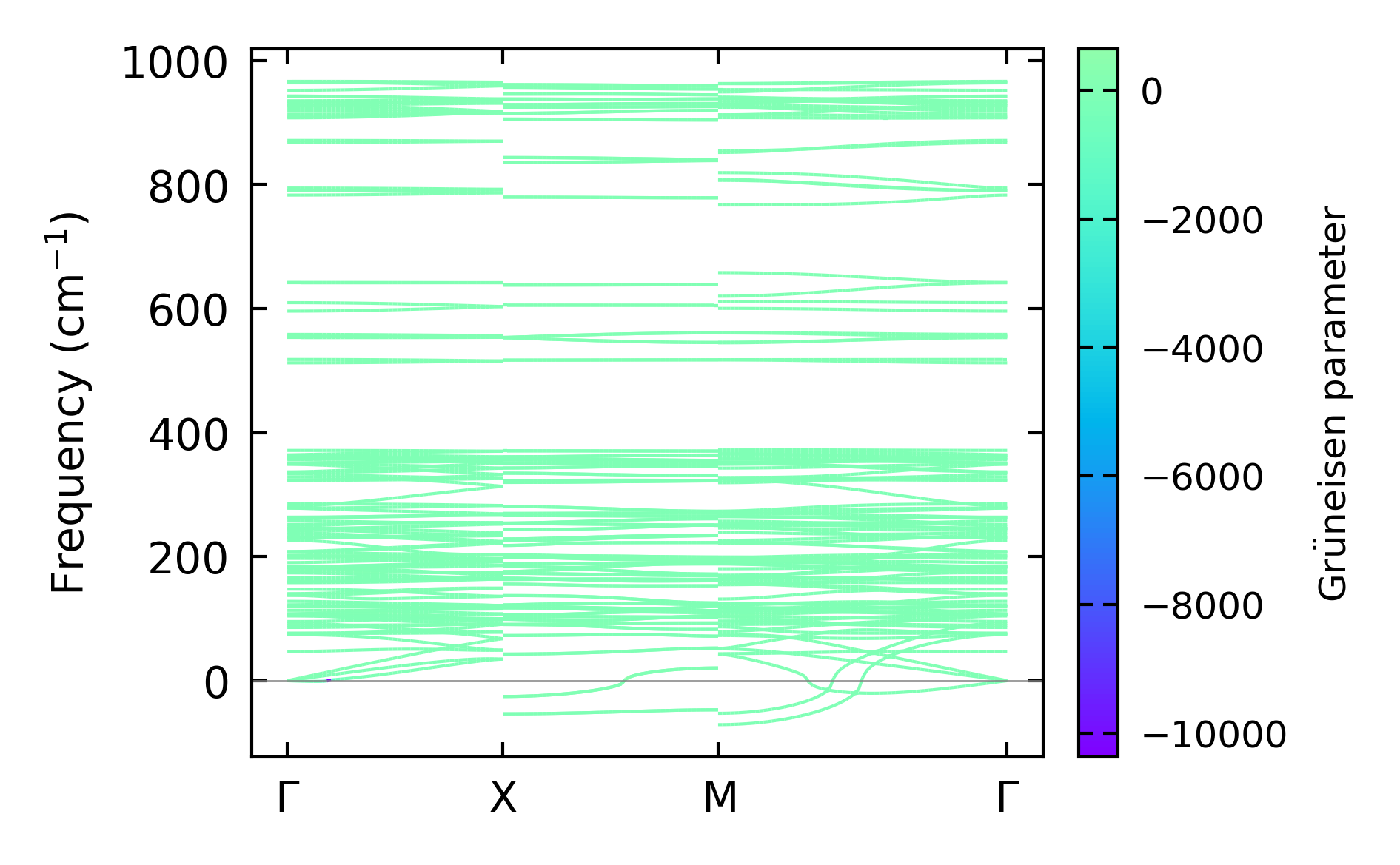

../../_images/fig_gruneisen5765.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x3 — q-mesh: 6x6x14, supercell: 2x2x3

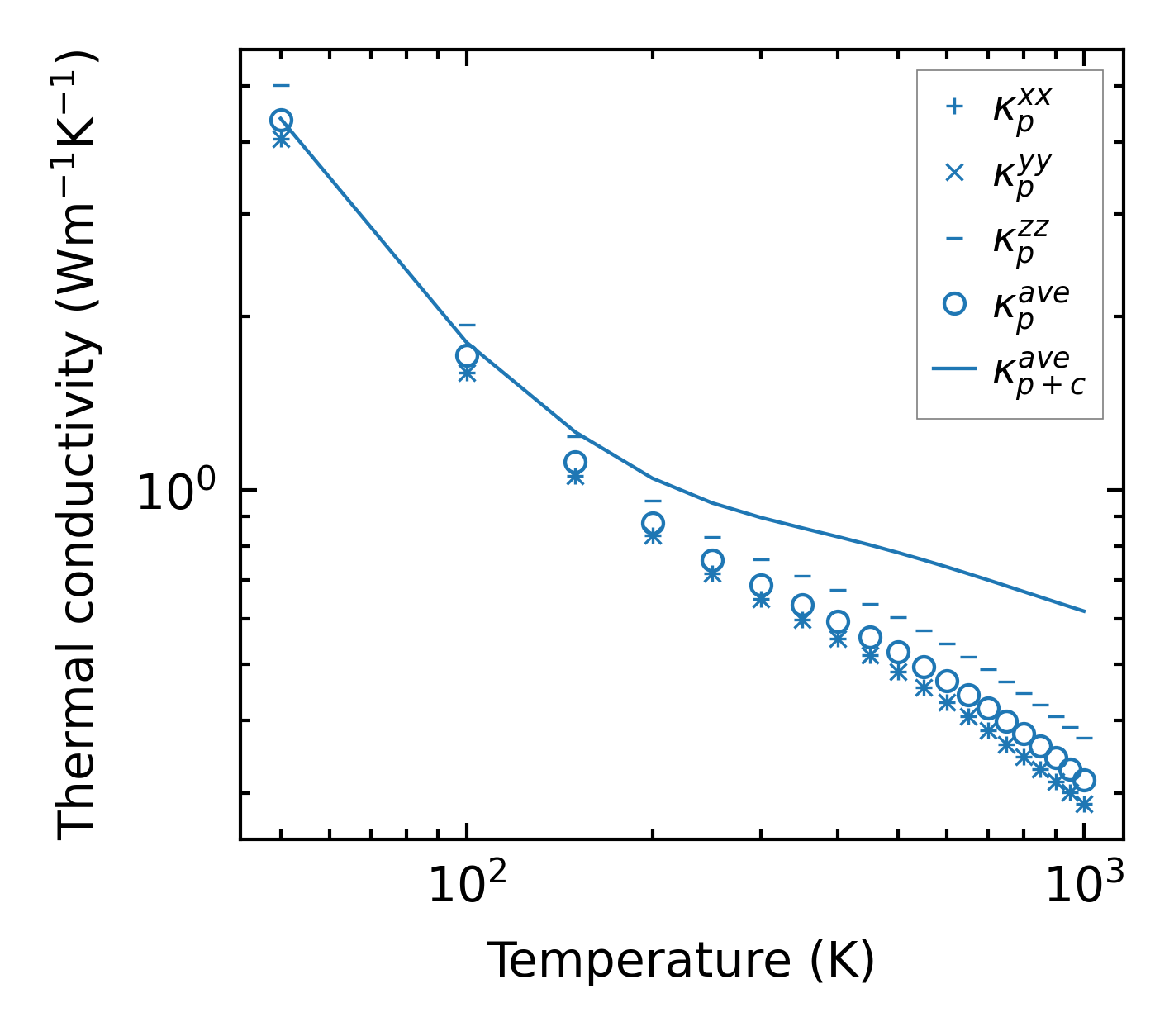

../../_images/fig_kappa10843.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5836.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5710.png — (a) Phonon lifetime due to phonon-phonon scattering

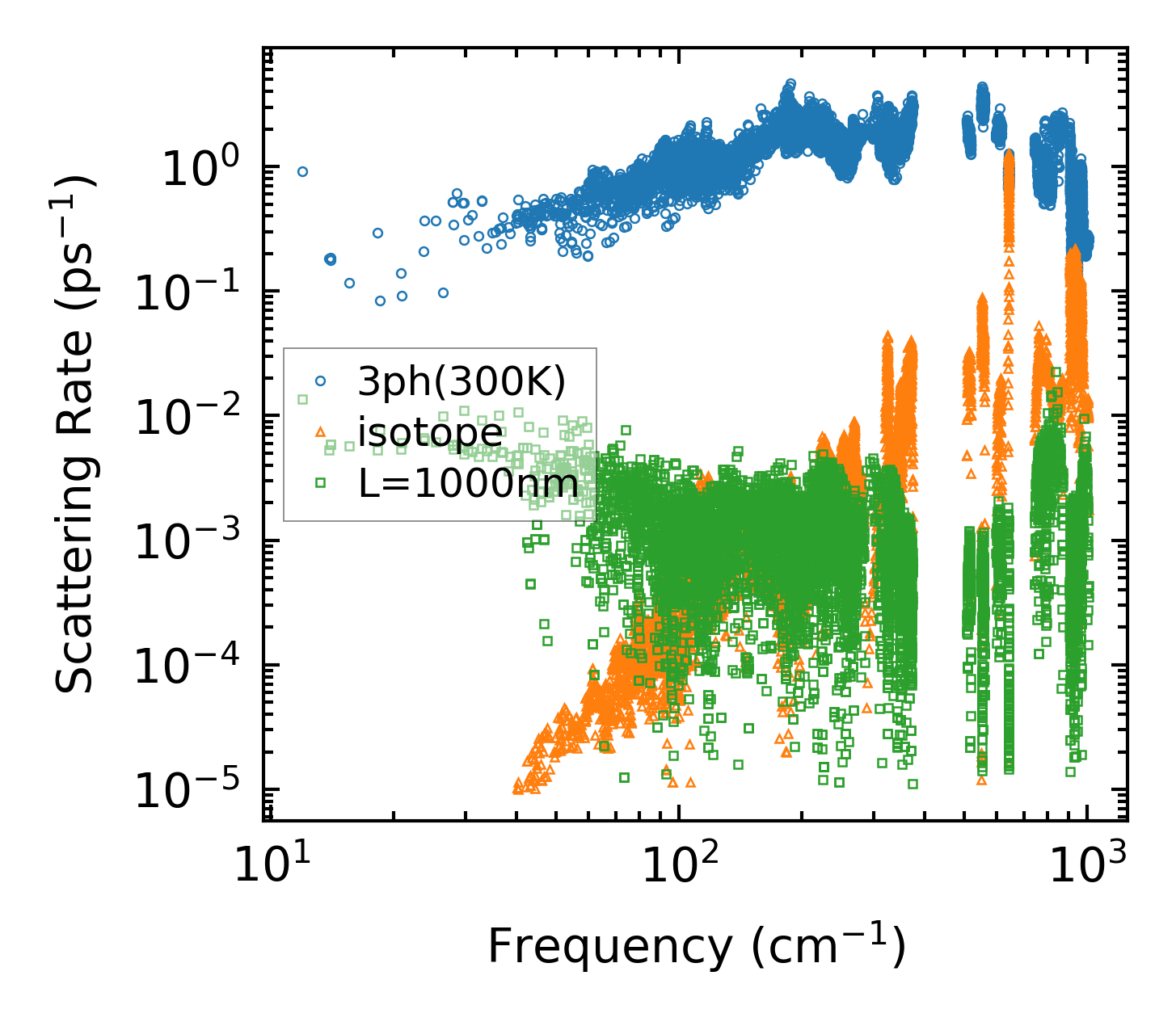

../../_images/fig_scat_rates5709.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

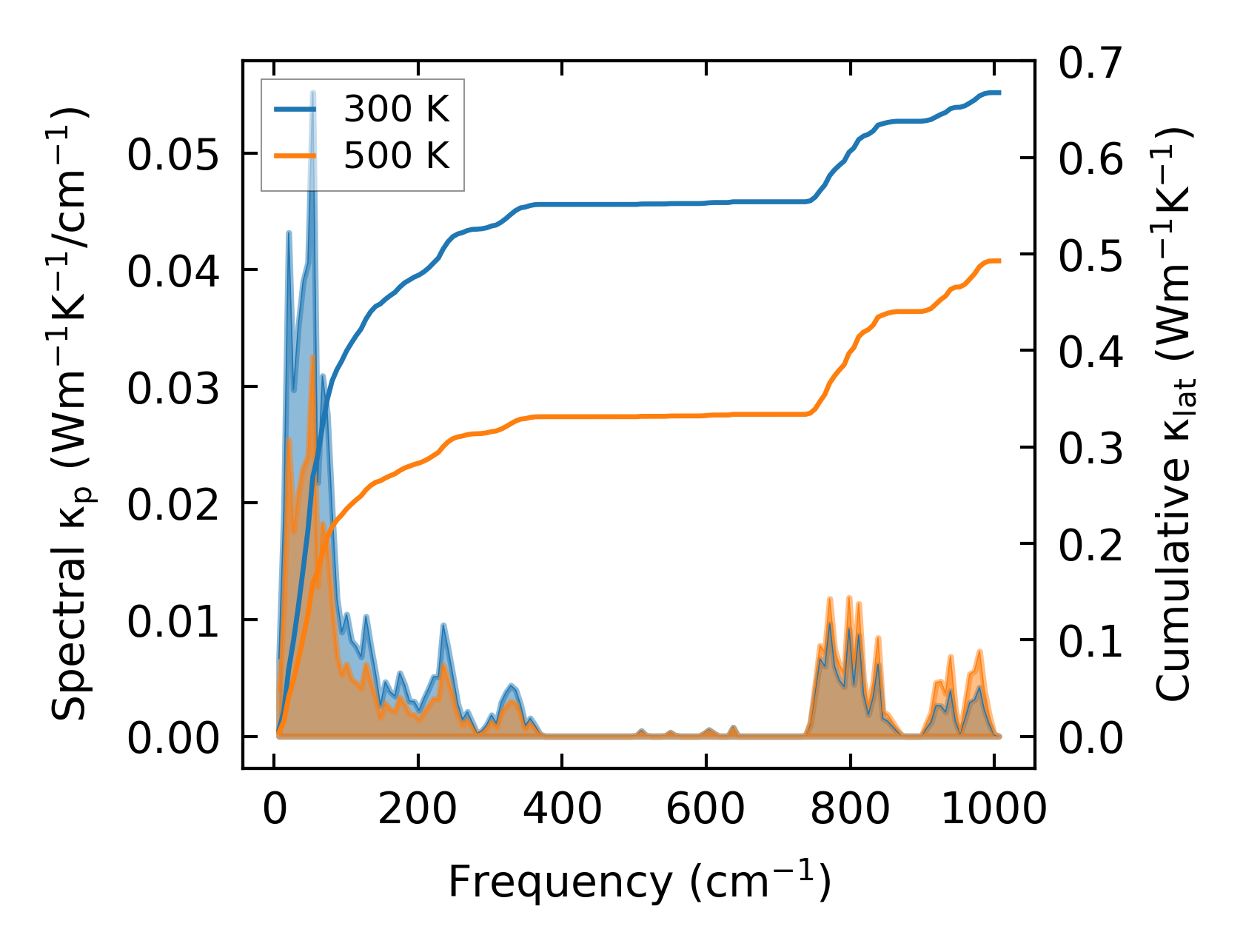

../../_images/fig_cumu_frequency5710.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5709.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

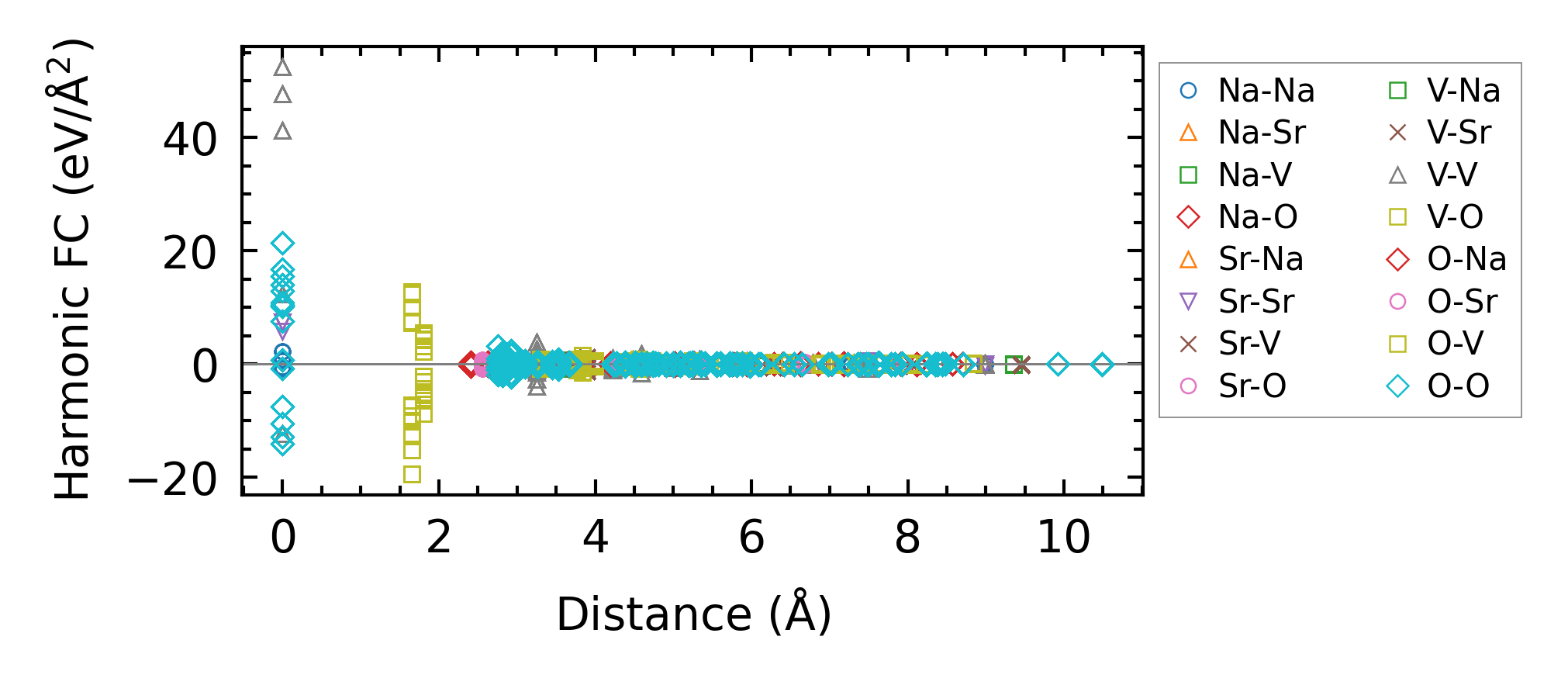

../../_images/fig_fc213282.png — (a) Force constants w.r.t atomic distance

Summary

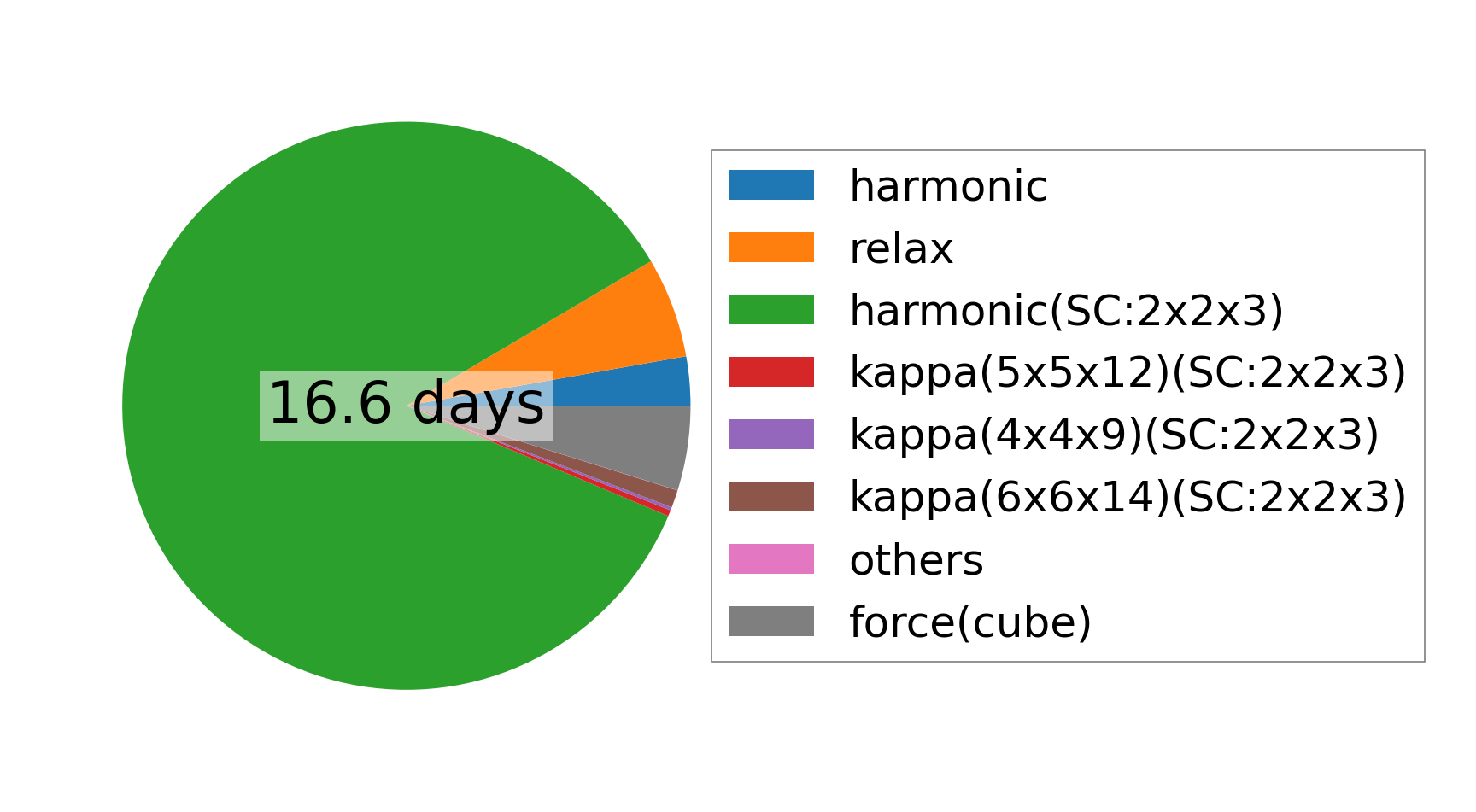

../../_images/fig_times22930.png — (a) Computation time
