mp-18177/Ba3NbAs3O/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-18177.tar.gz

Harmonic properties

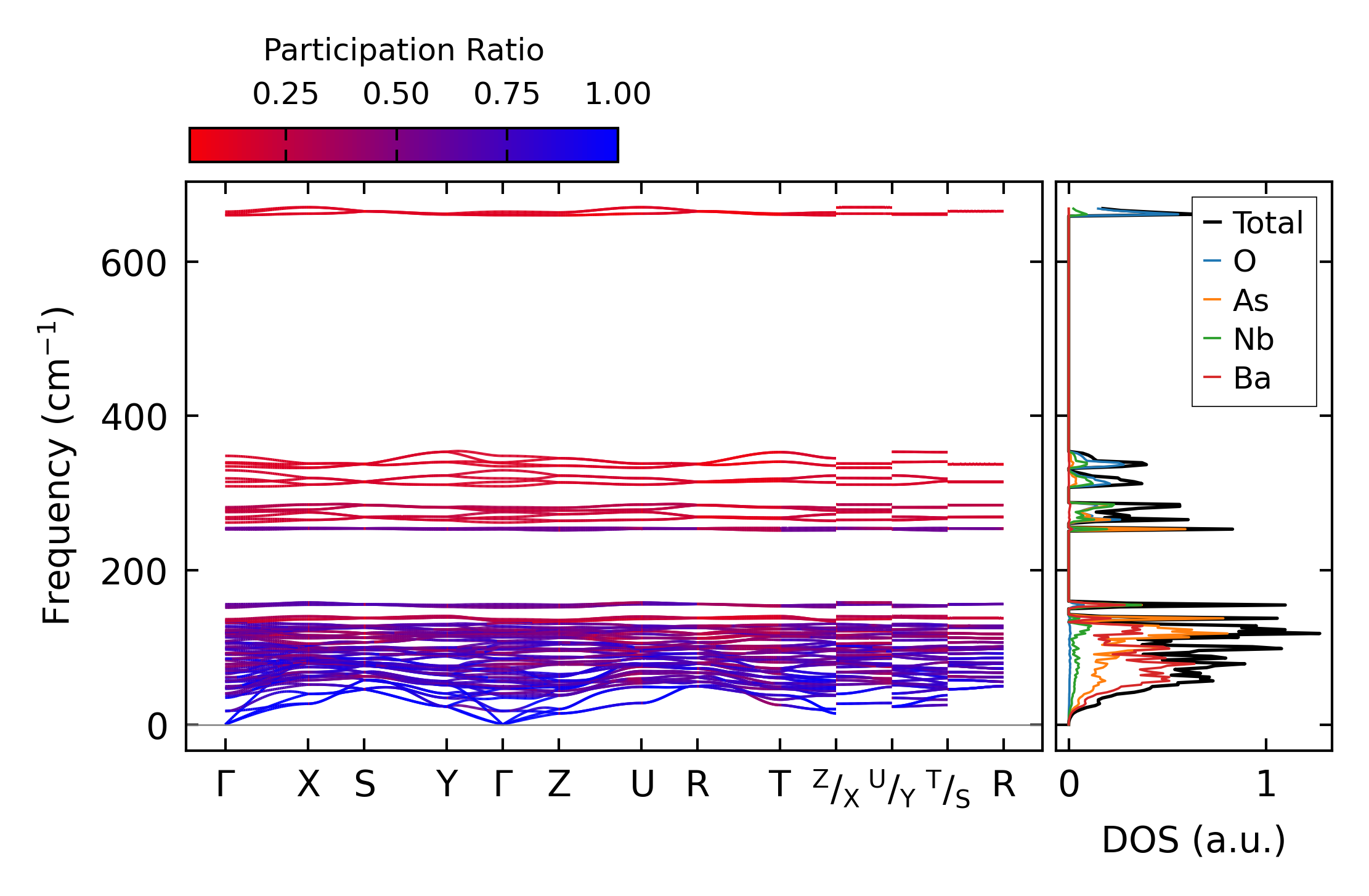

../../_images/fig_bandos_pr13802.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13802.png — (b) Thermodynamic properties

Grüneisen parameters

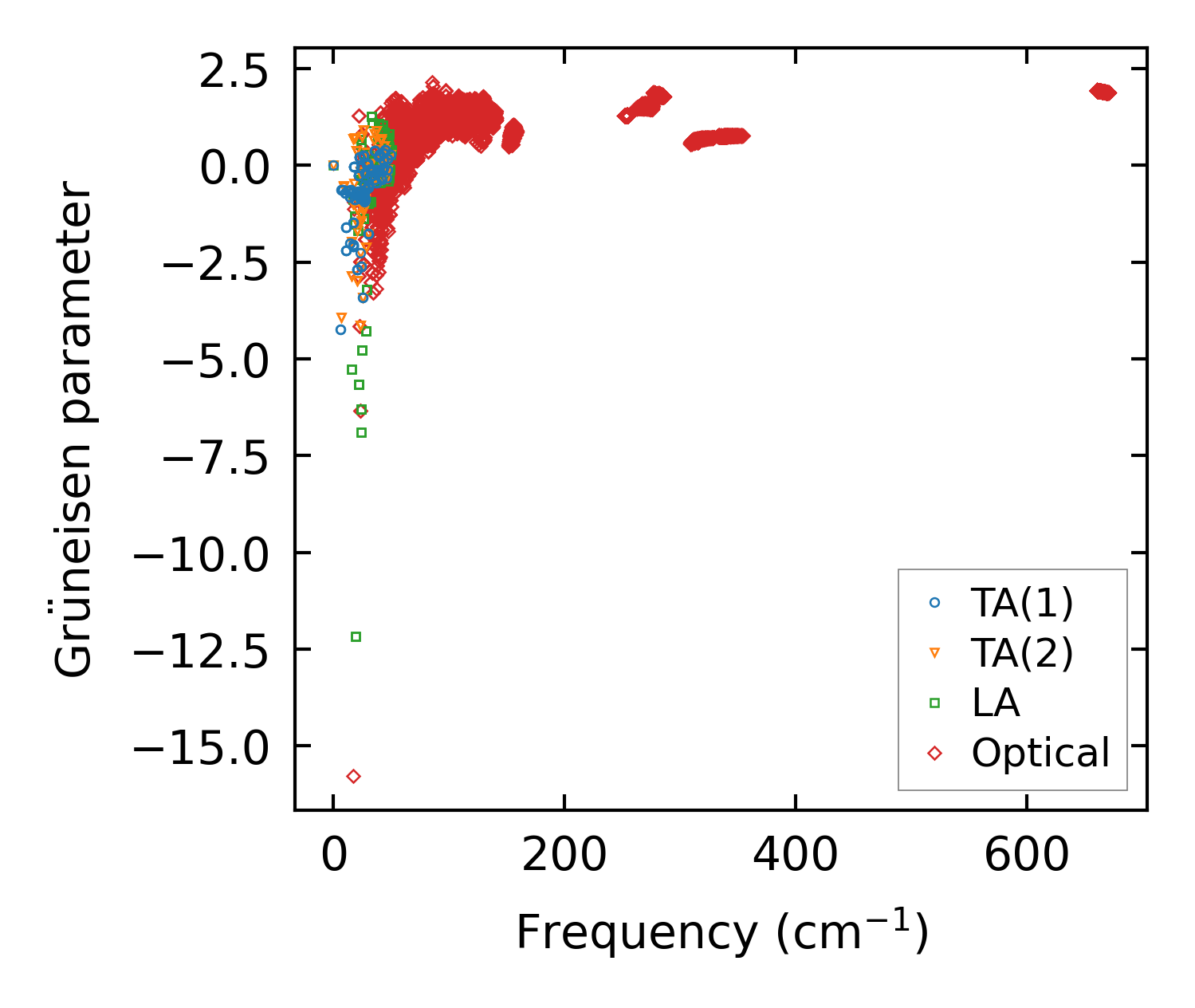

../../_images/fig_gru_all5817.png — (a) Grüneisen parameters

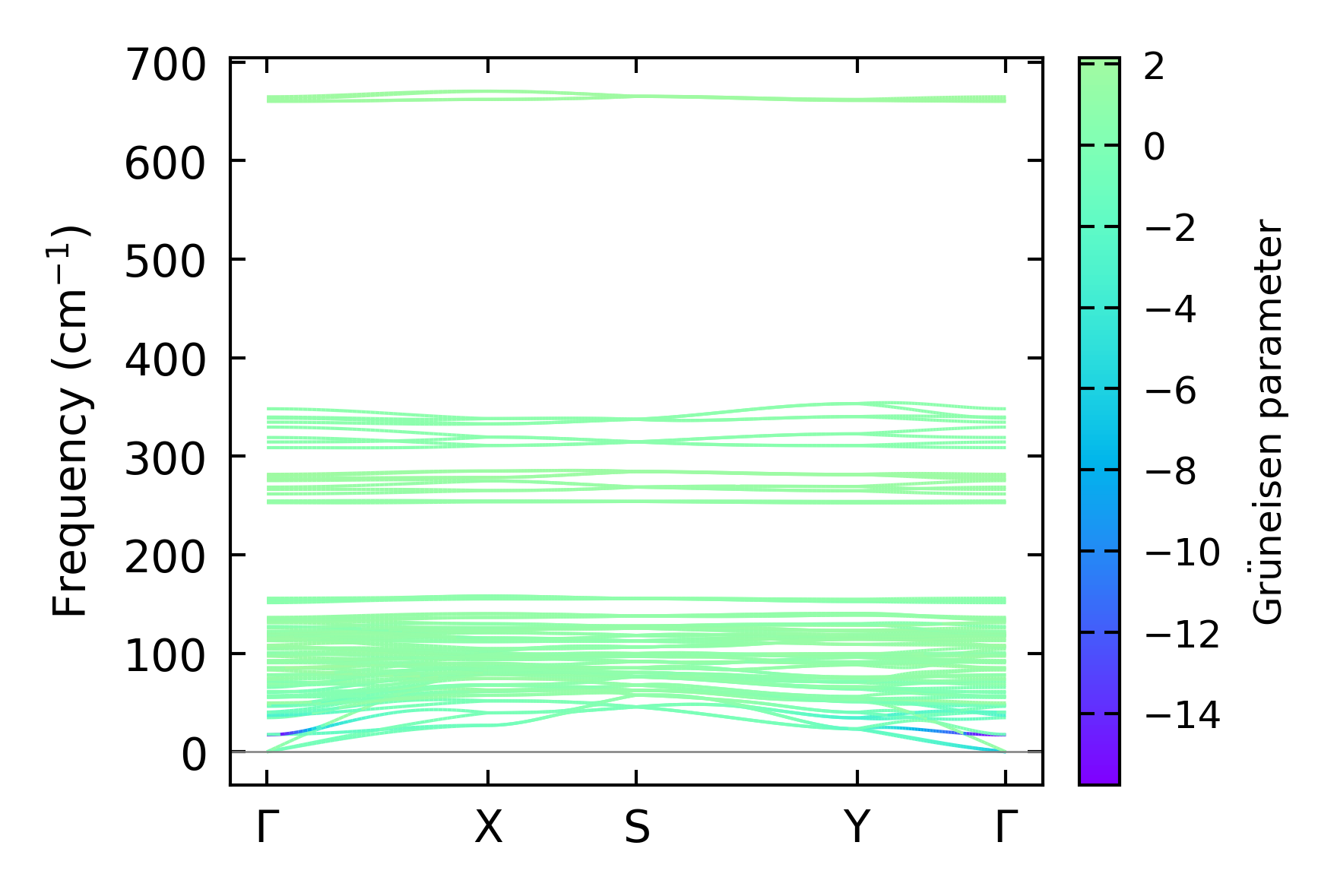

../../_images/fig_gruneisen5817.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x6x5, supercell: 2x2x1

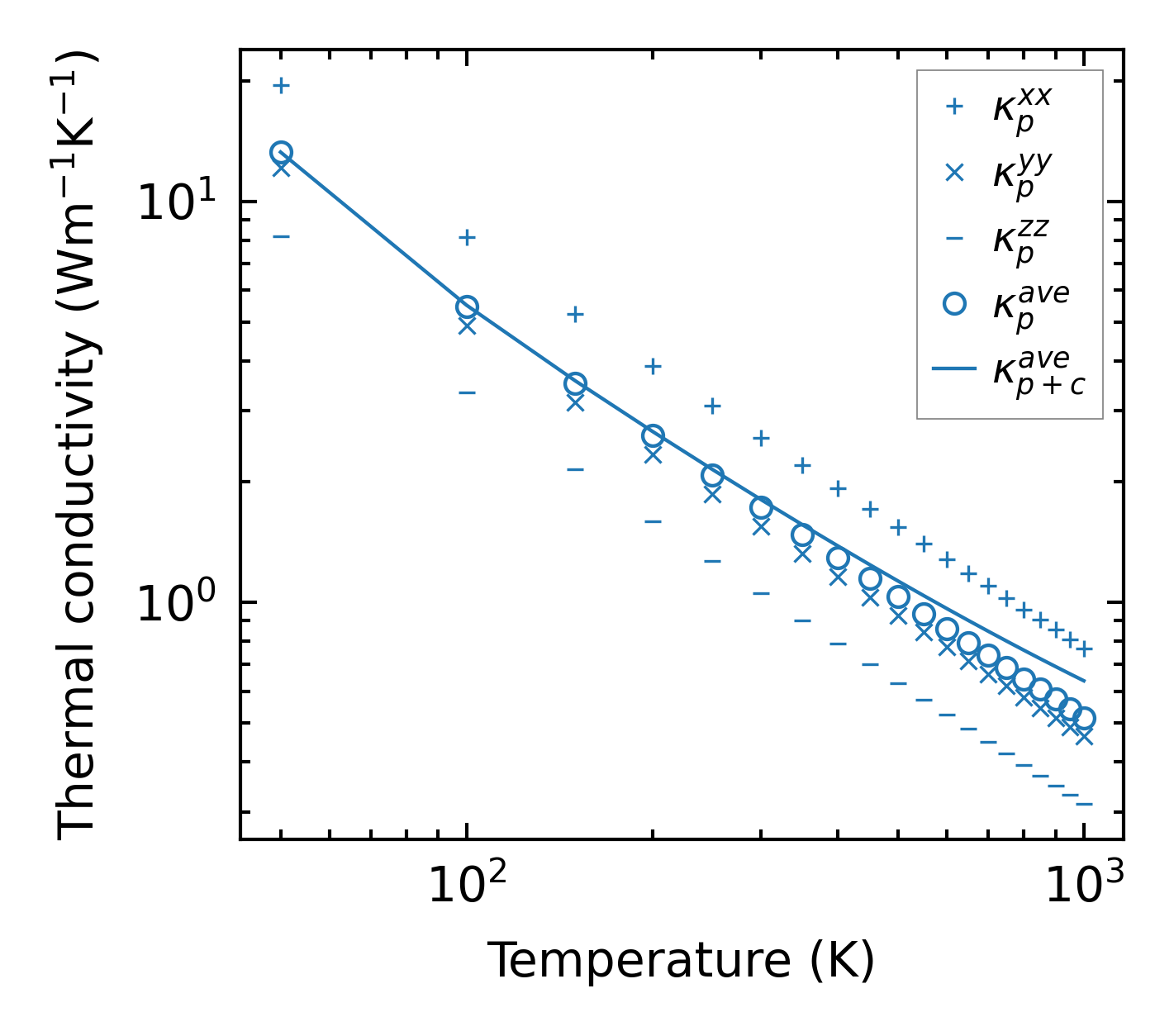

../../_images/fig_kappa10940.png — (a) Temperature-dependent lattice thermal conductivity

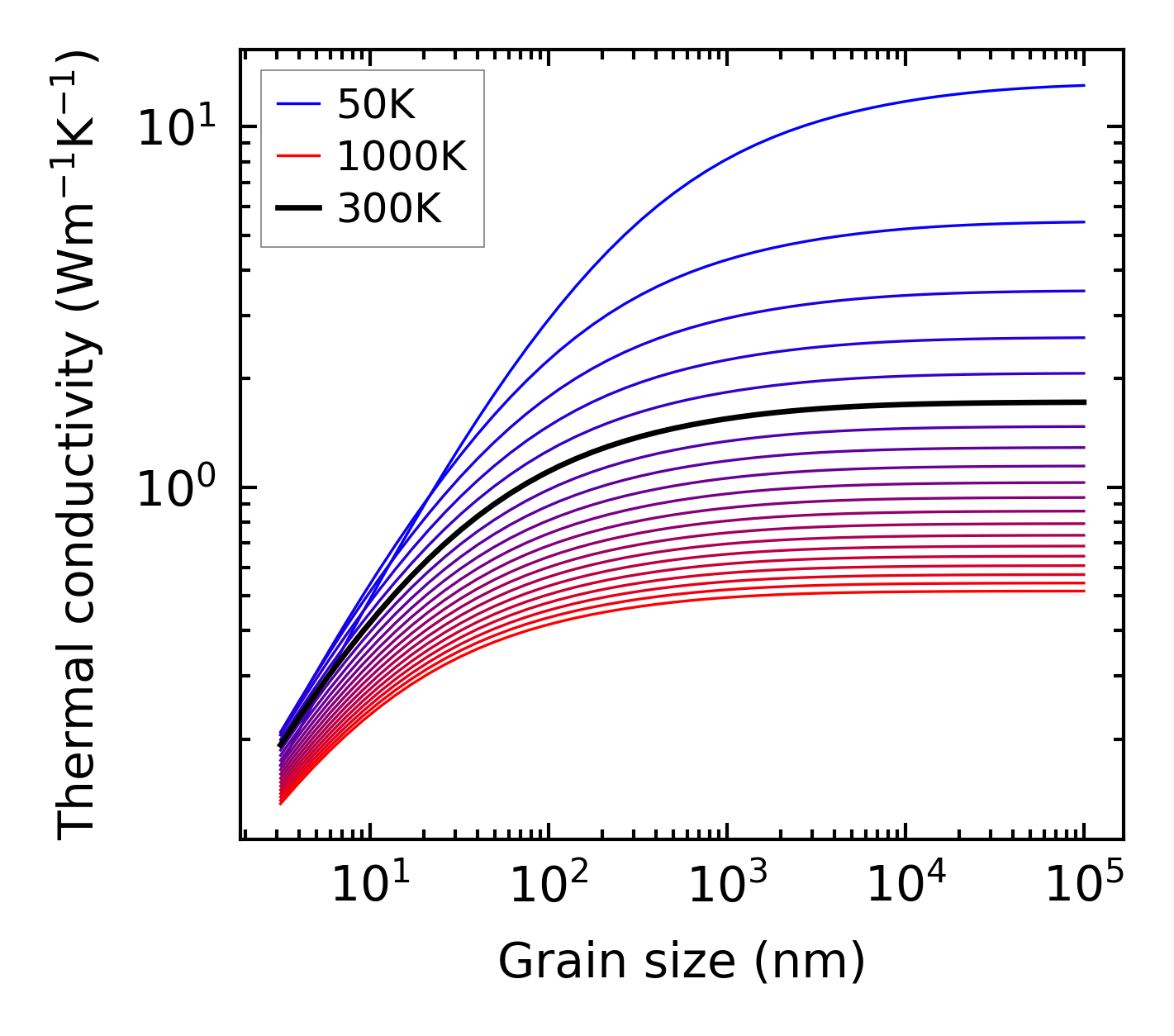

../../_images/fig_kappa_vs_grain_size5889.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

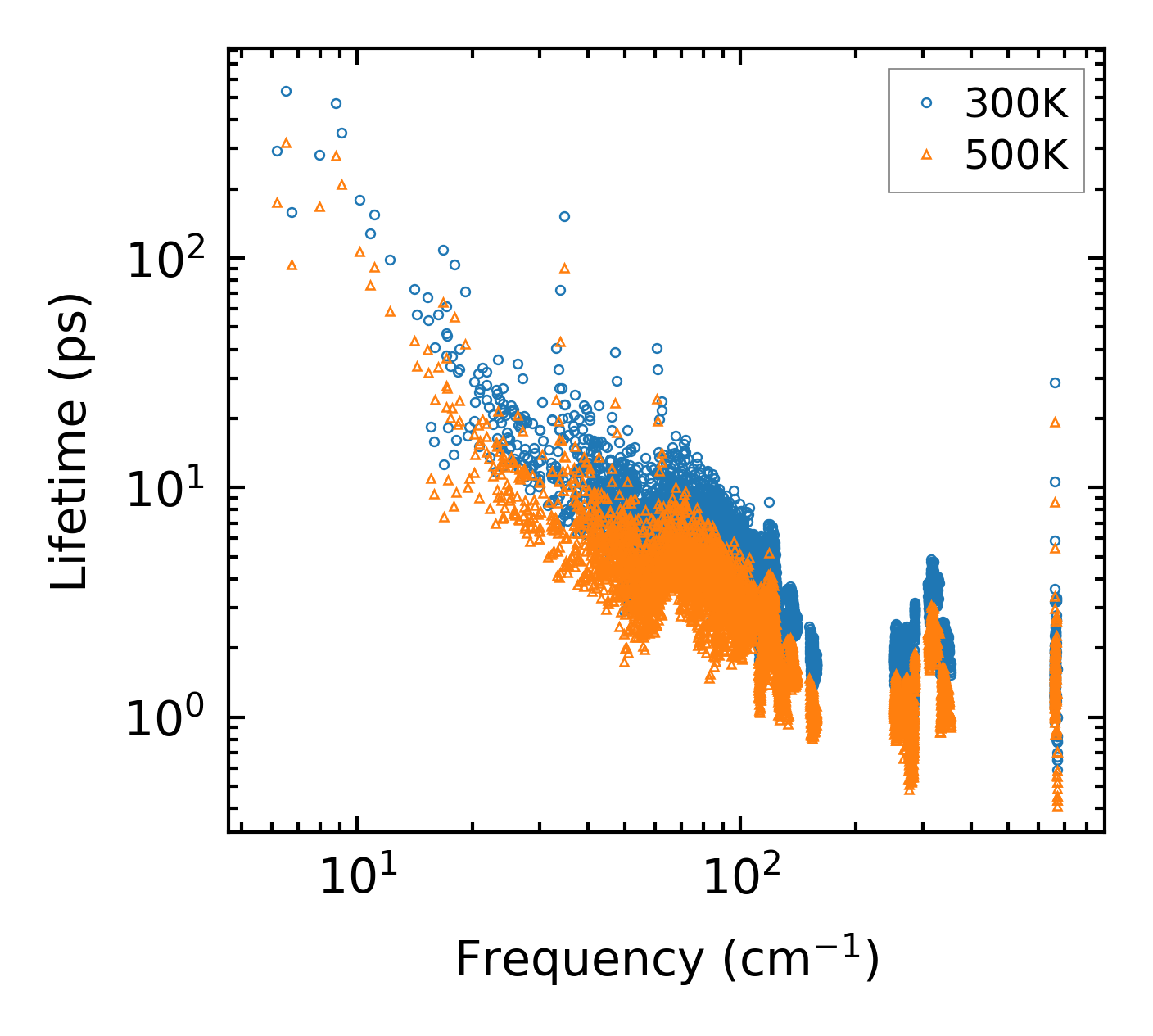

../../_images/fig_lifetime5761.png — (a) Phonon lifetime due to phonon-phonon scattering

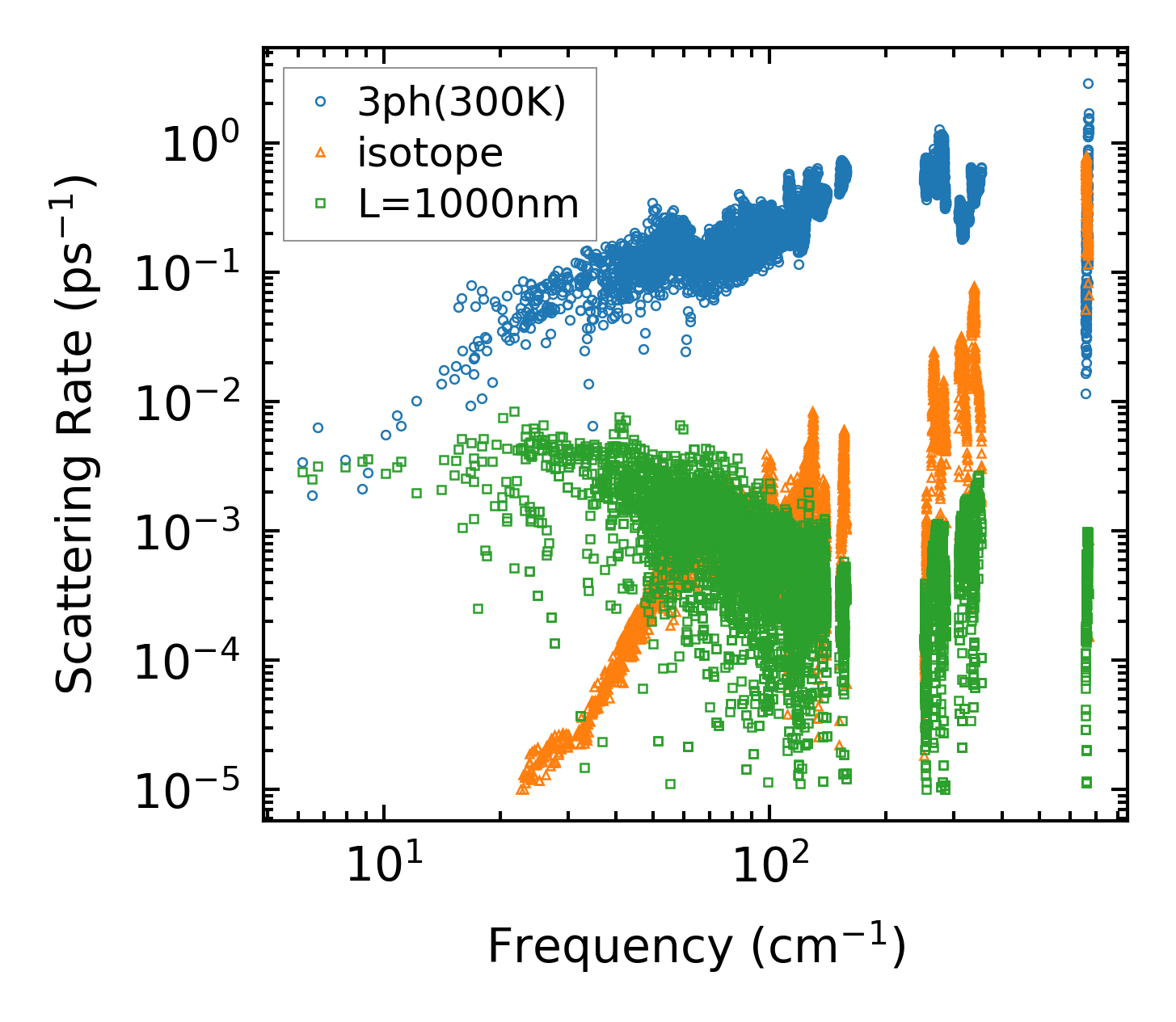

../../_images/fig_scat_rates5760.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

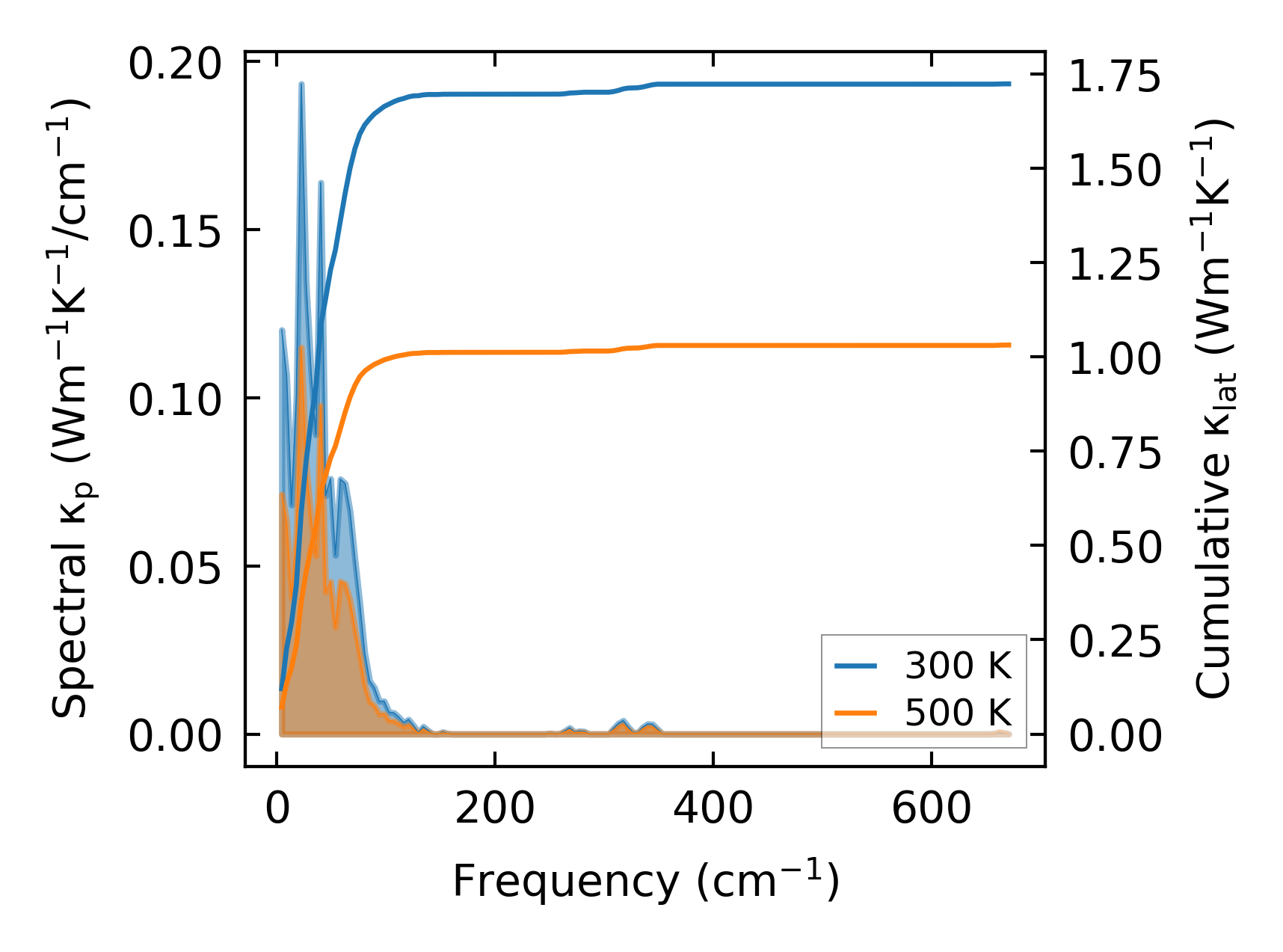

../../_images/fig_cumu_frequency5761.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

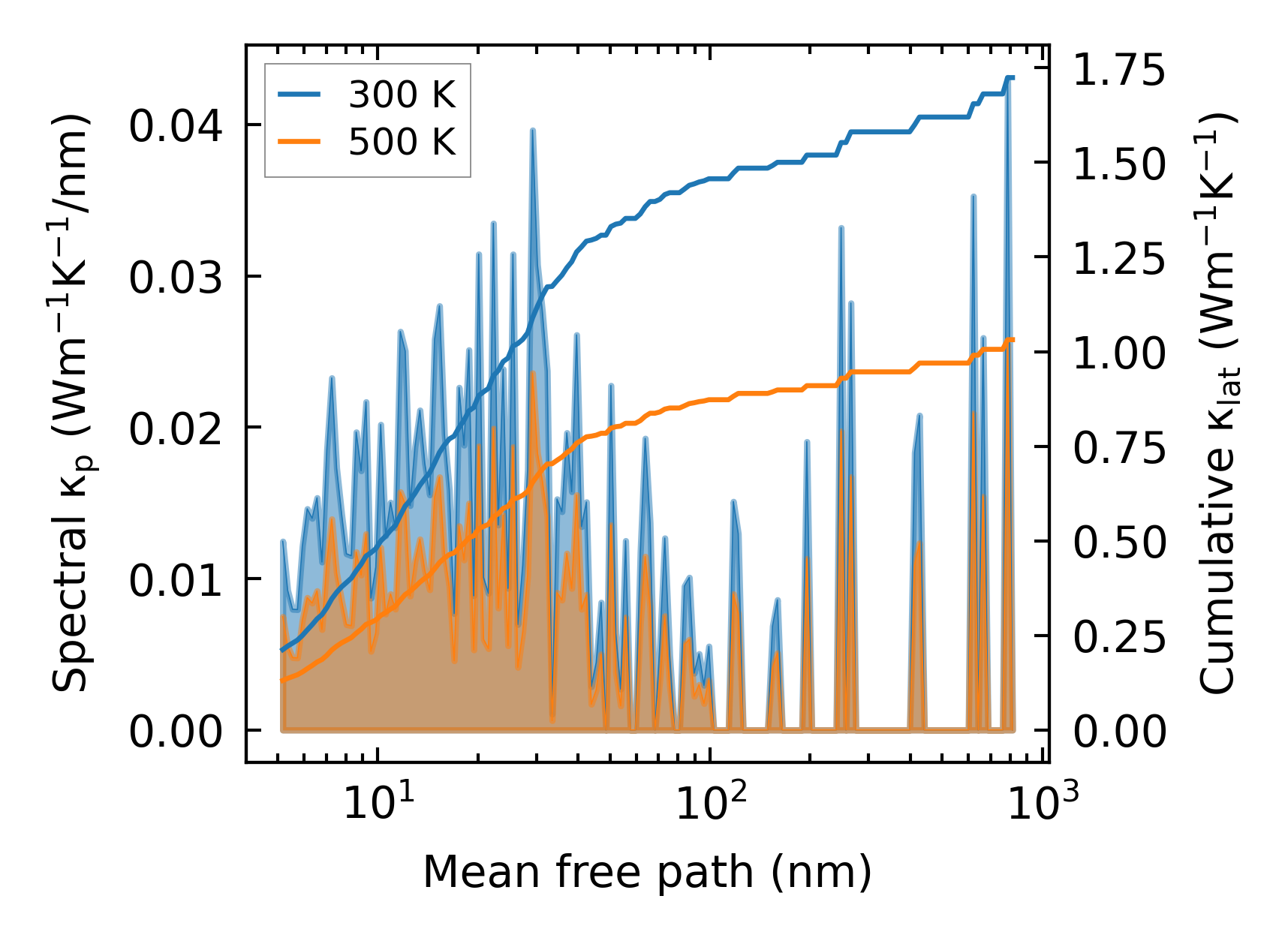

../../_images/fig_cumu_mfp5760.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

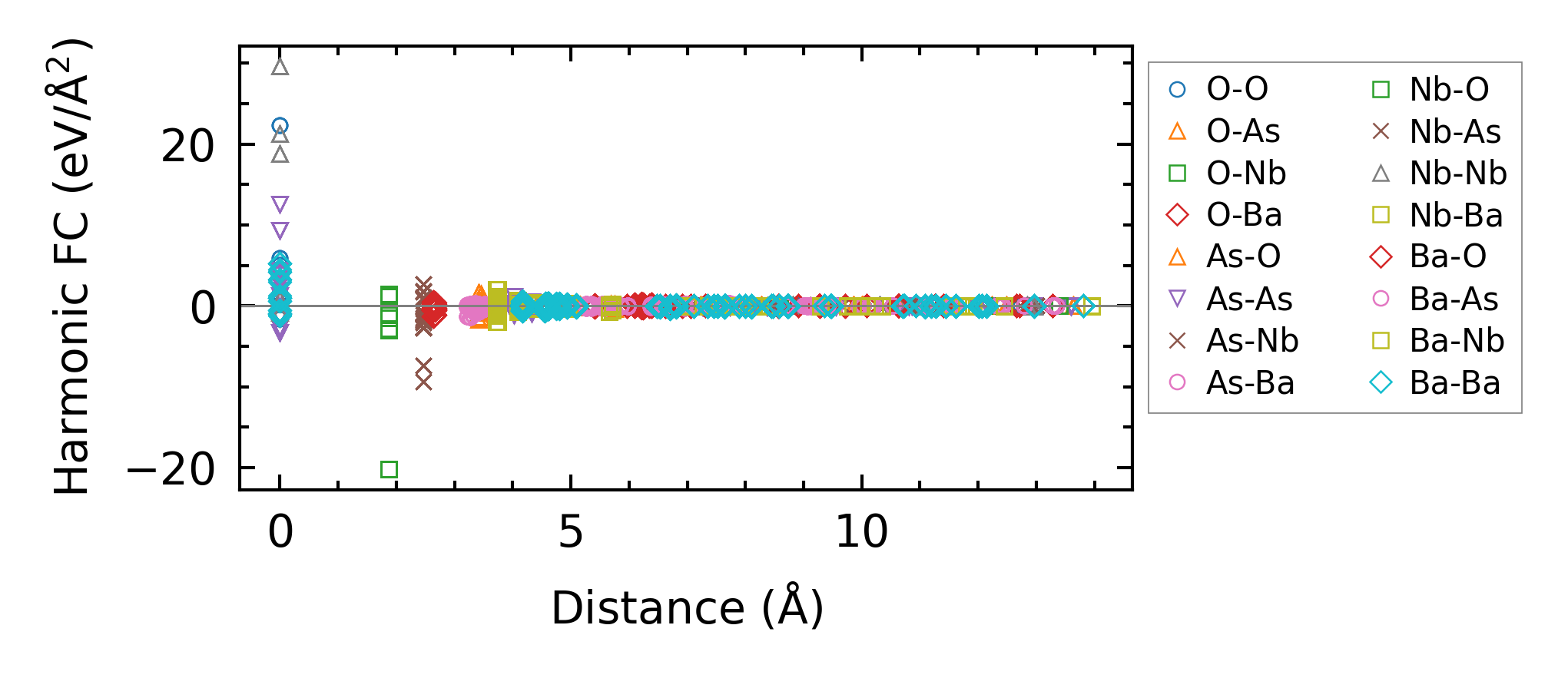

../../_images/fig_fc213430.png — (a) Force constants w.r.t atomic distance

Summary

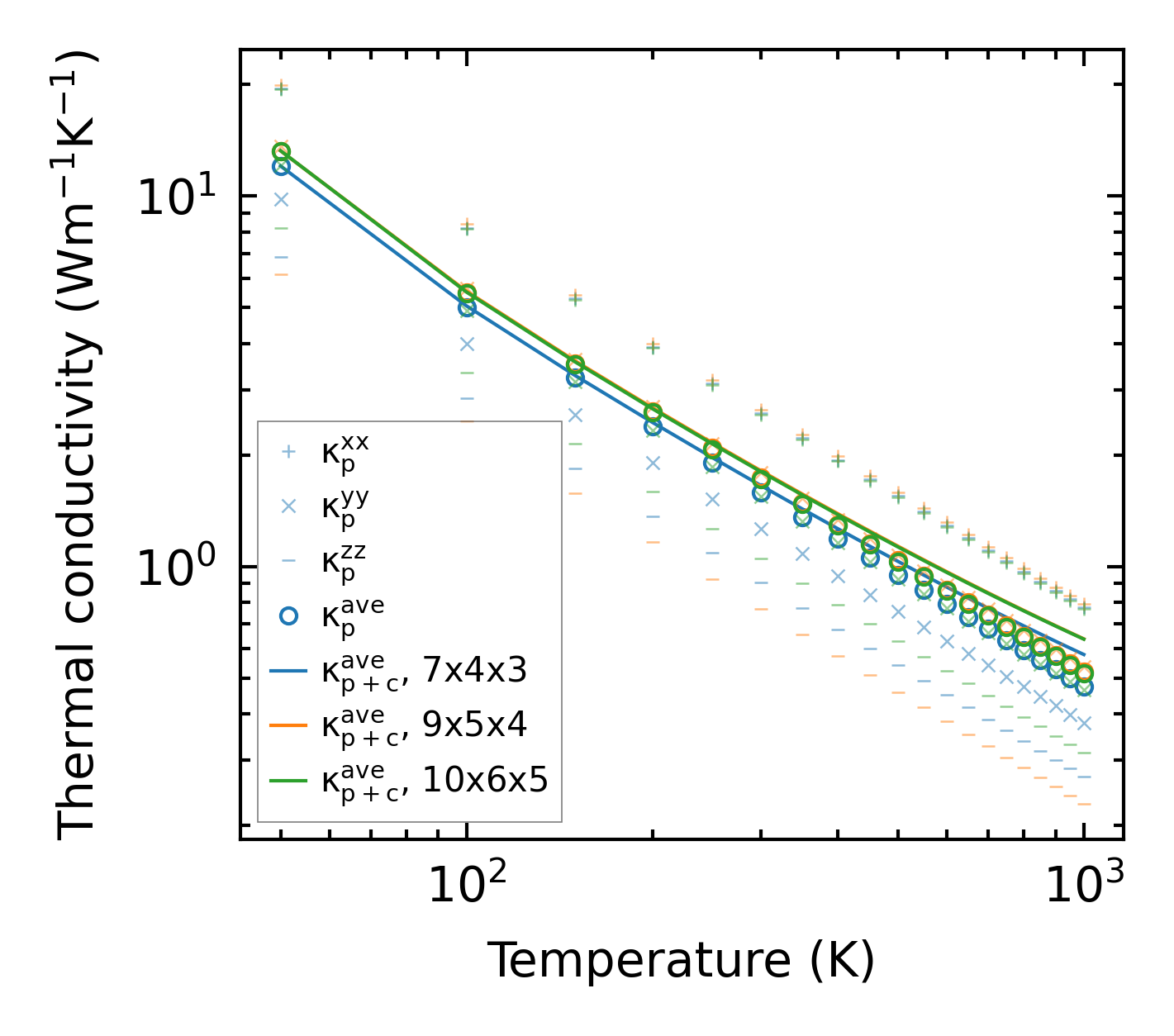

../../_images/fig_kappa10941.png — (a) Temperature-dependent lattice thermal conductivity

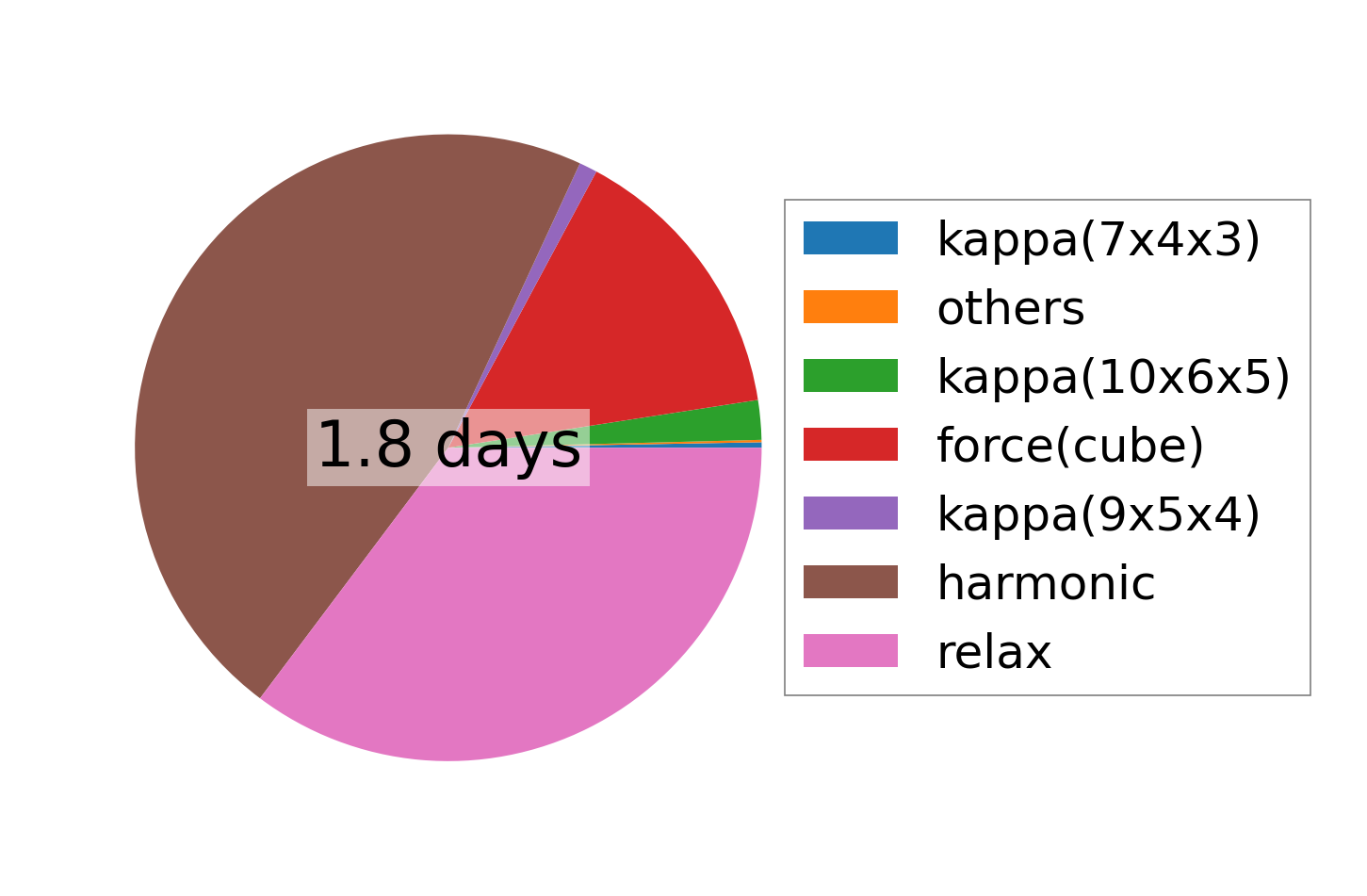

../../_images/fig_times23143.png — (b) Computation time
