mp-18062-2/Na10YbSn12/anharm

Space group: I-43m (217)
Link: Materials Project
Download: mp-18062-2.tar.gz

Equation of state

../../_images/fig_bm6875.png — (a) Equation of state

Harmonic properties

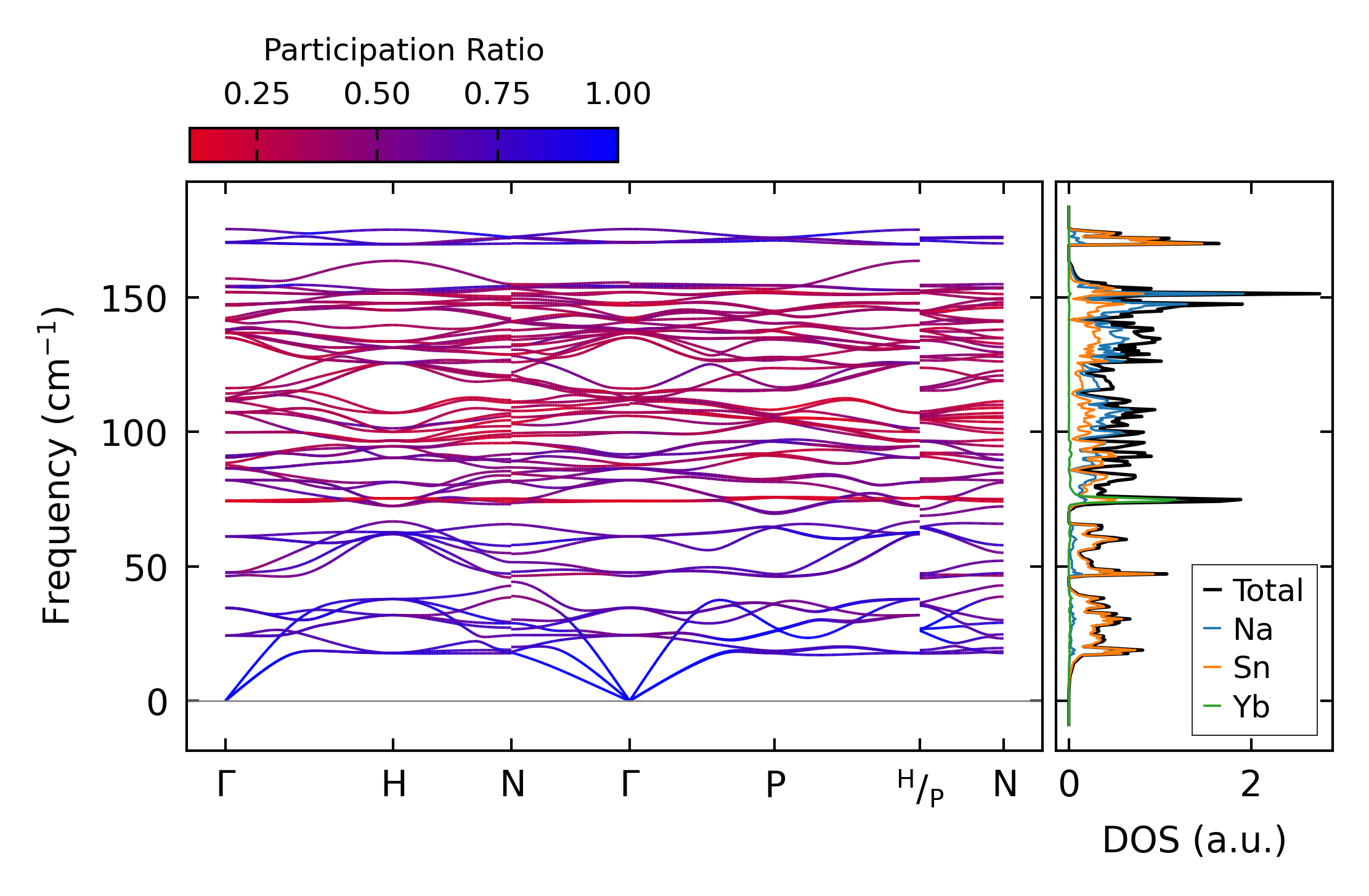

../../_images/fig_bandos_pr13762.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13762.png — (b) Thermodynamic properties

Grüneisen parameters

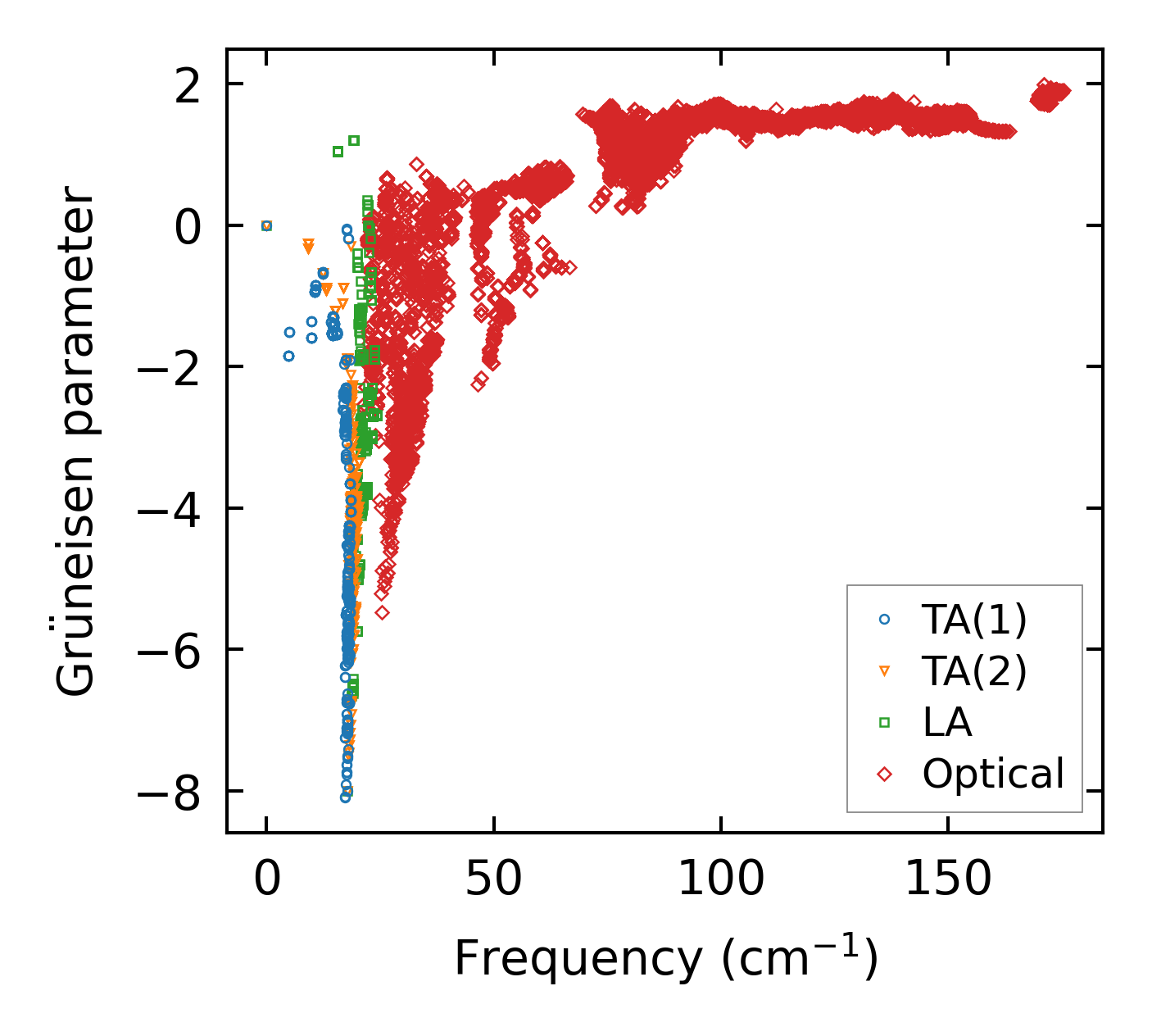

../../_images/fig_gru_all5800.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5800.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

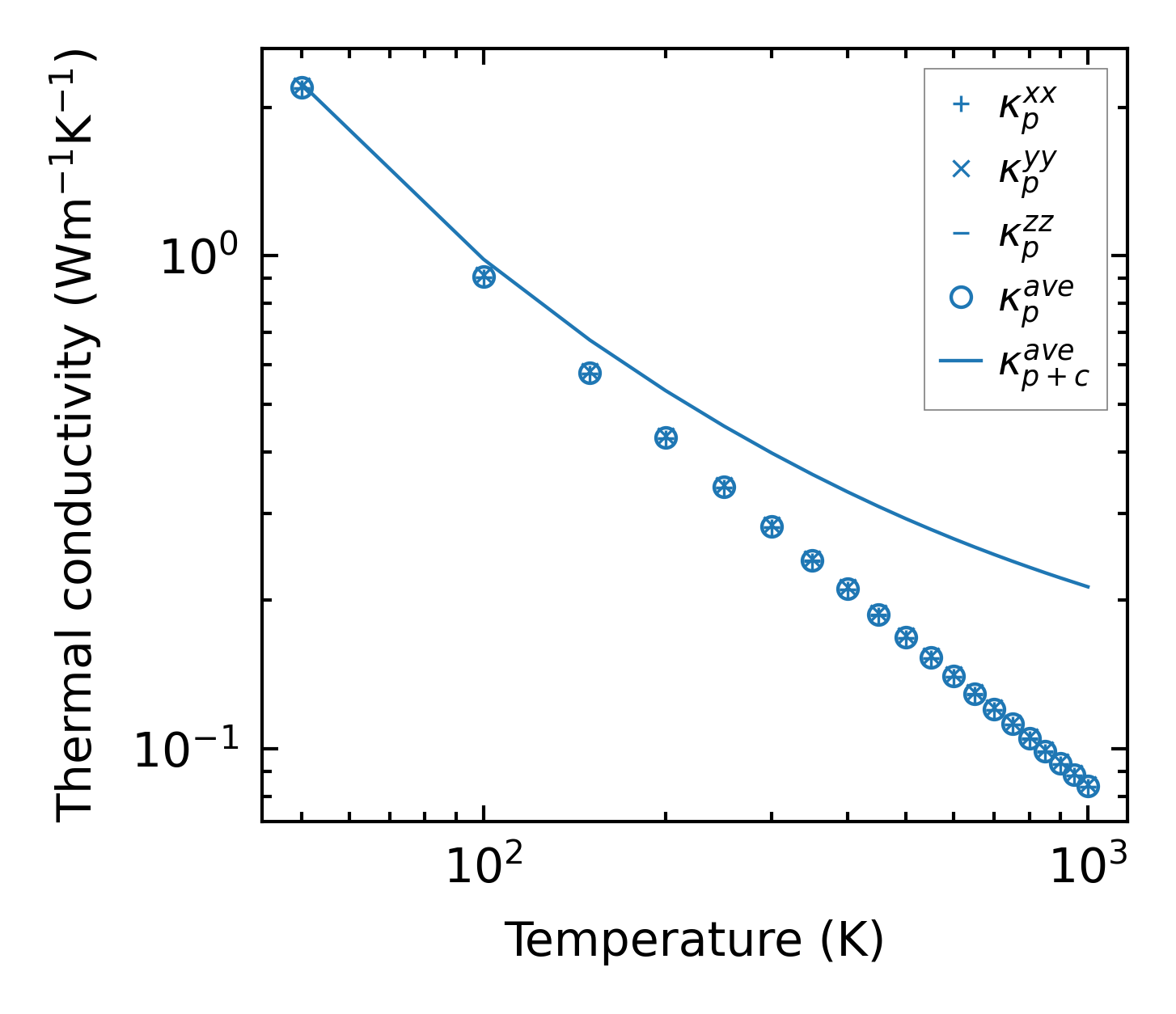

../../_images/fig_kappa10905.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5870.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

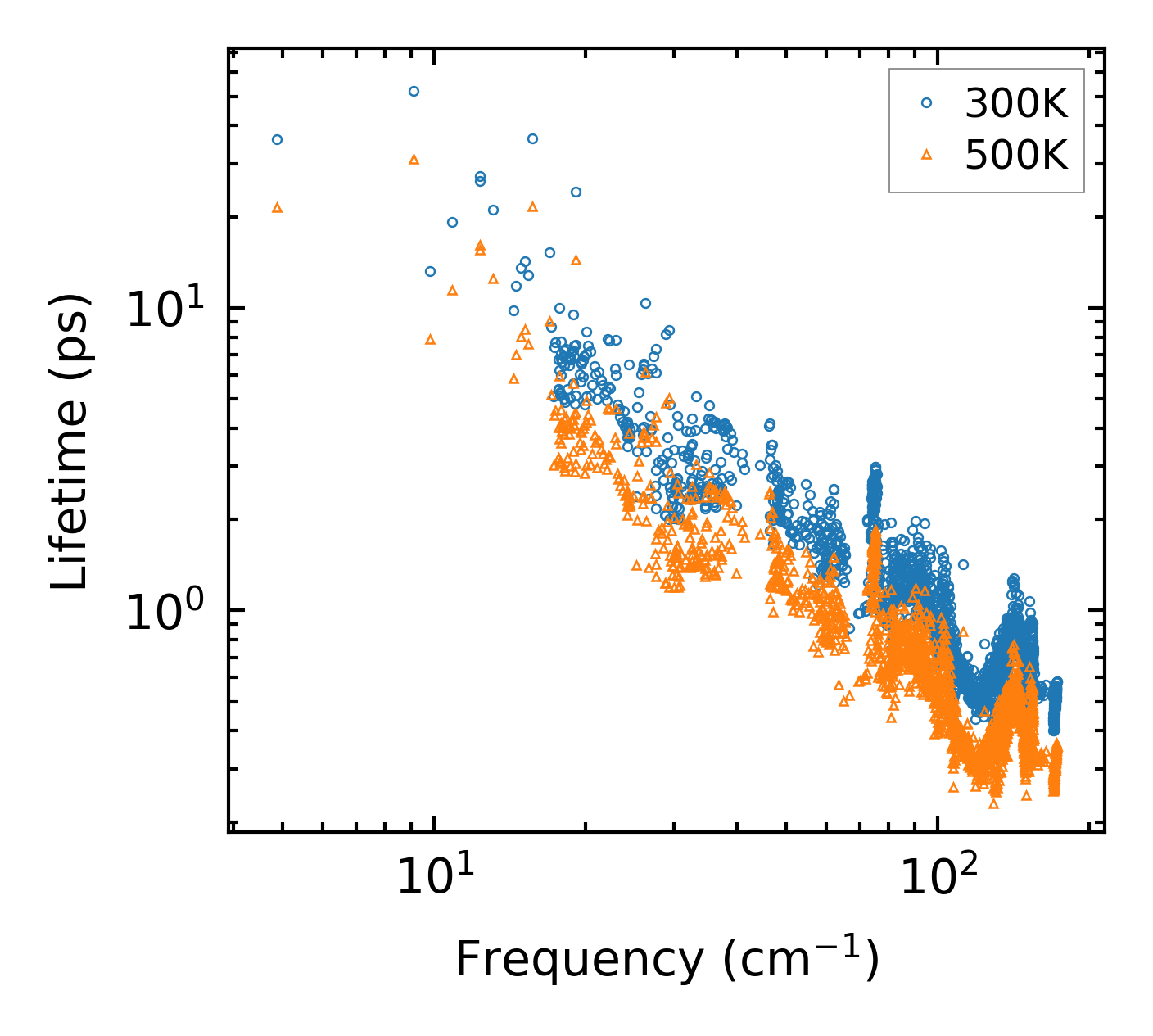

../../_images/fig_lifetime5744.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5743.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

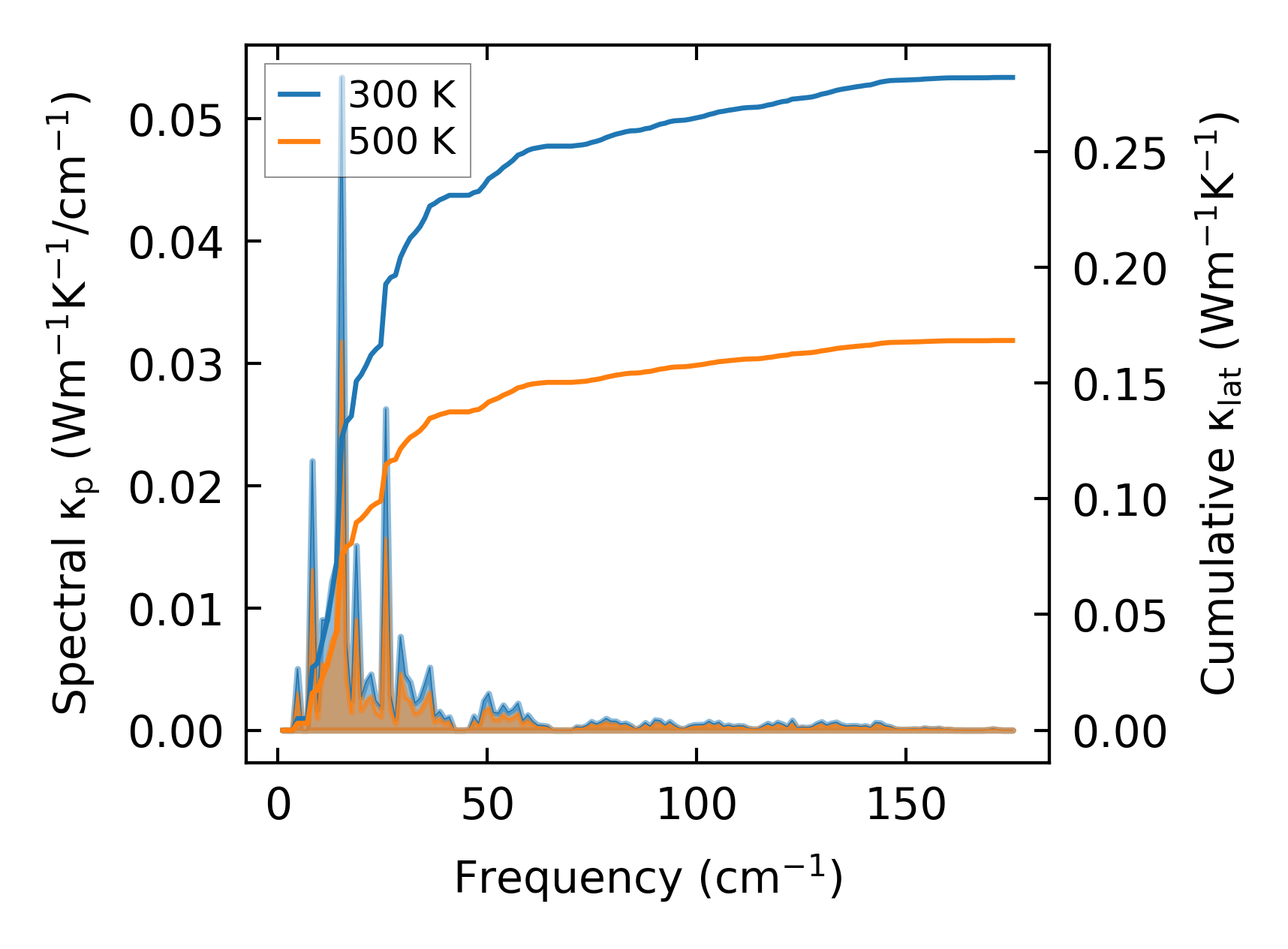

../../_images/fig_cumu_frequency5744.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

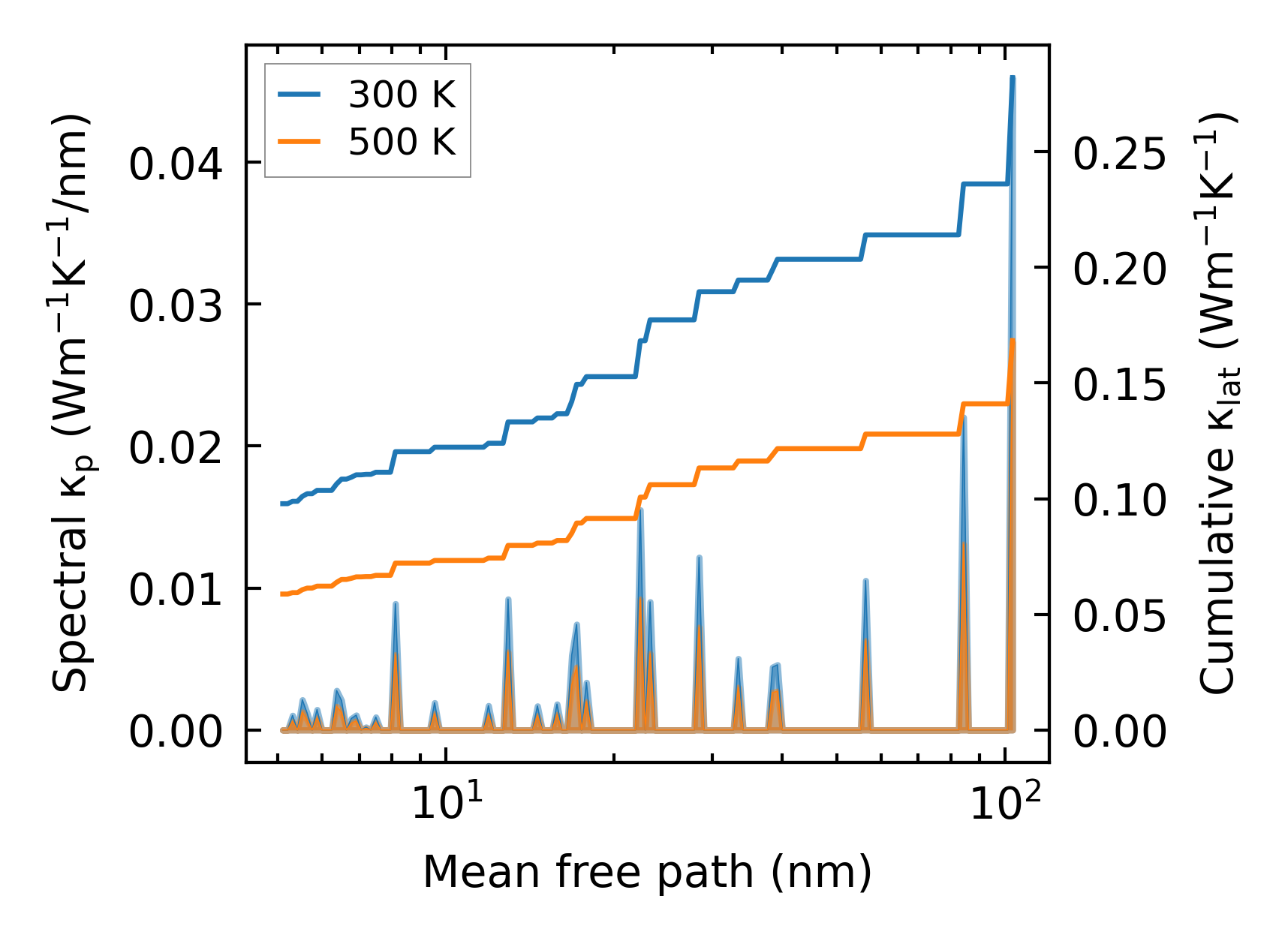

../../_images/fig_cumu_mfp5743.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

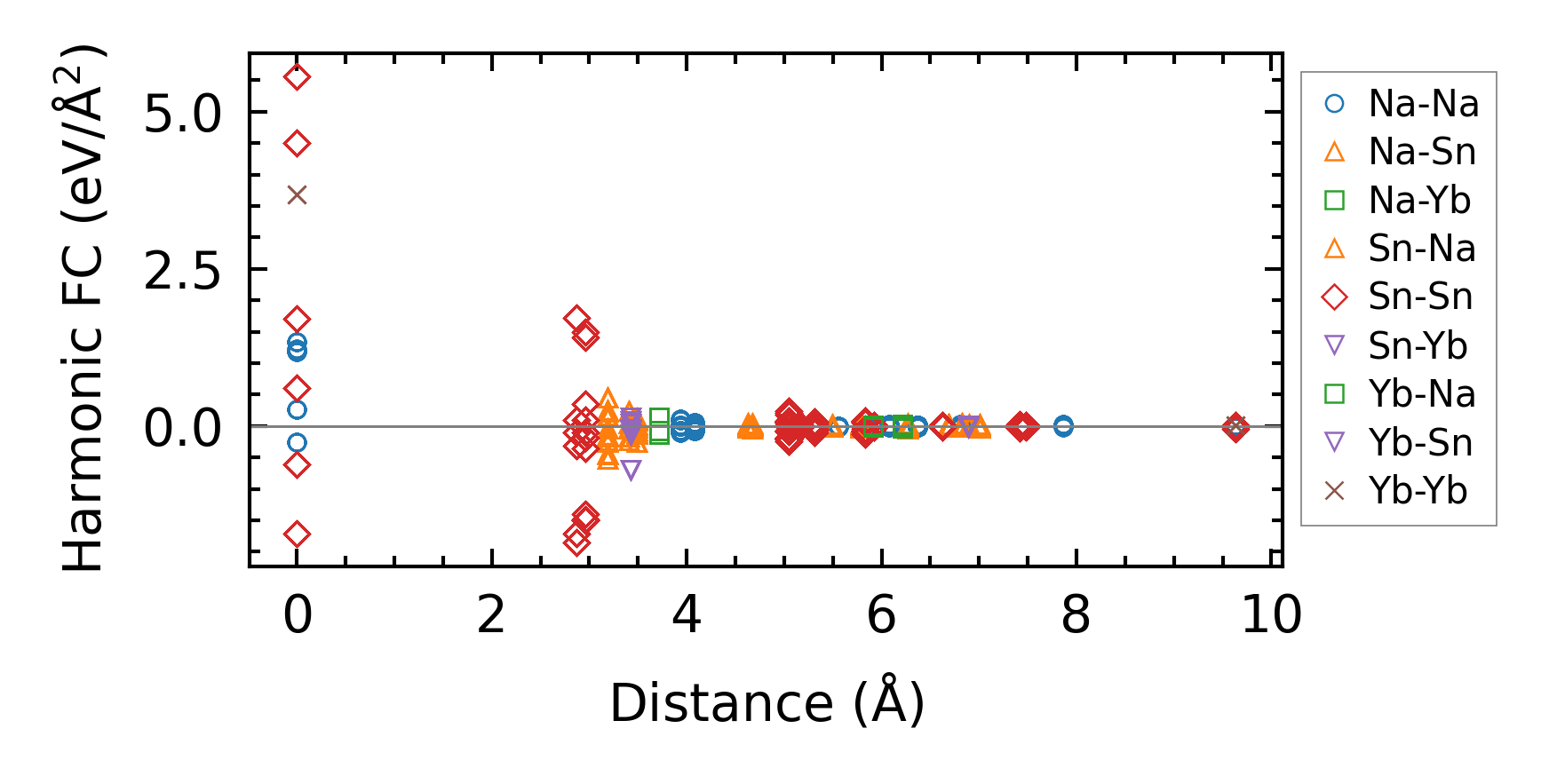

../../_images/fig_fc213390.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10906.png — (a) Temperature-dependent lattice thermal conductivity

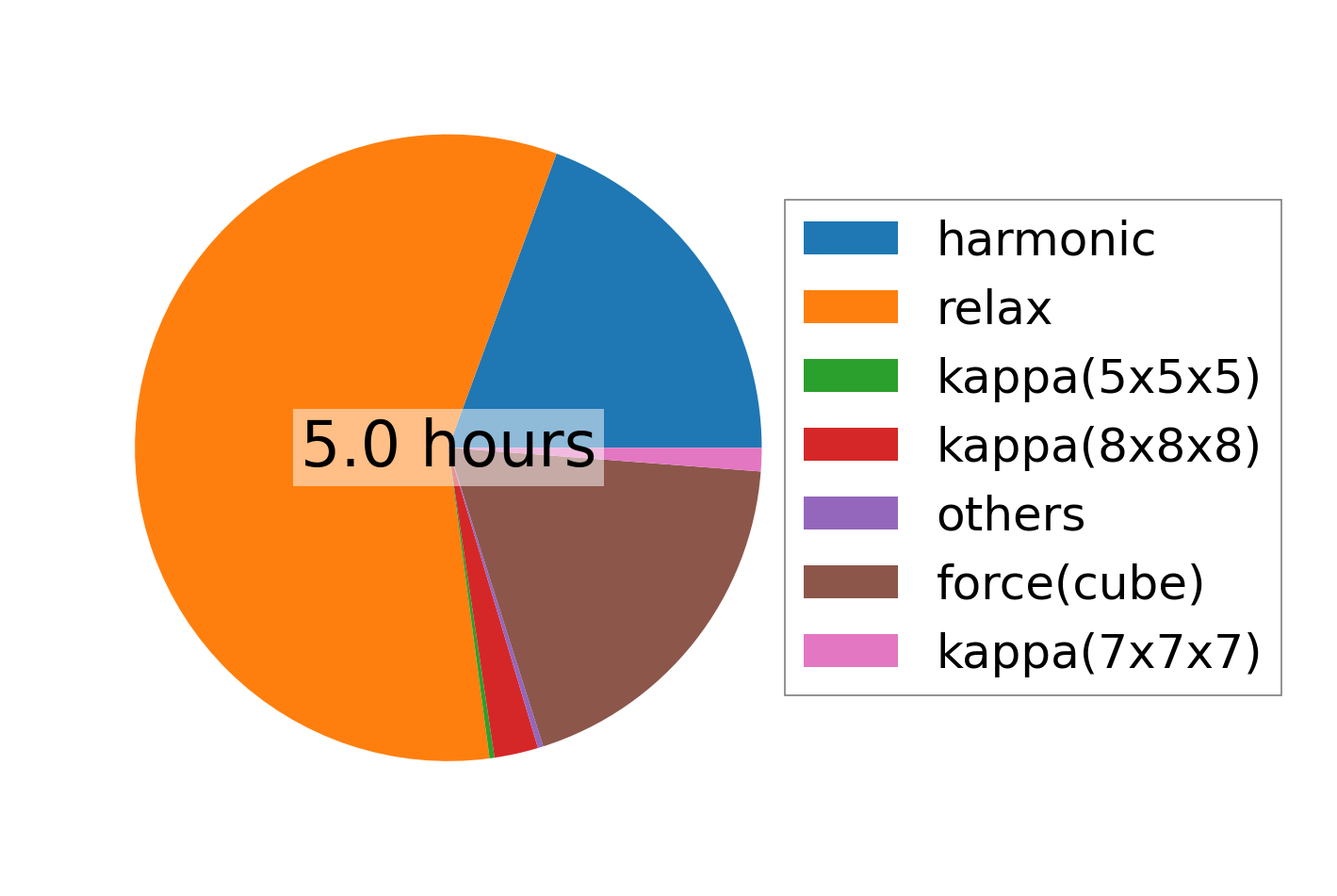

../../_images/fig_times23081.png — (b) Computation time
