mp-18629/NaTmGeO4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-18629.tar.gz

Harmonic properties

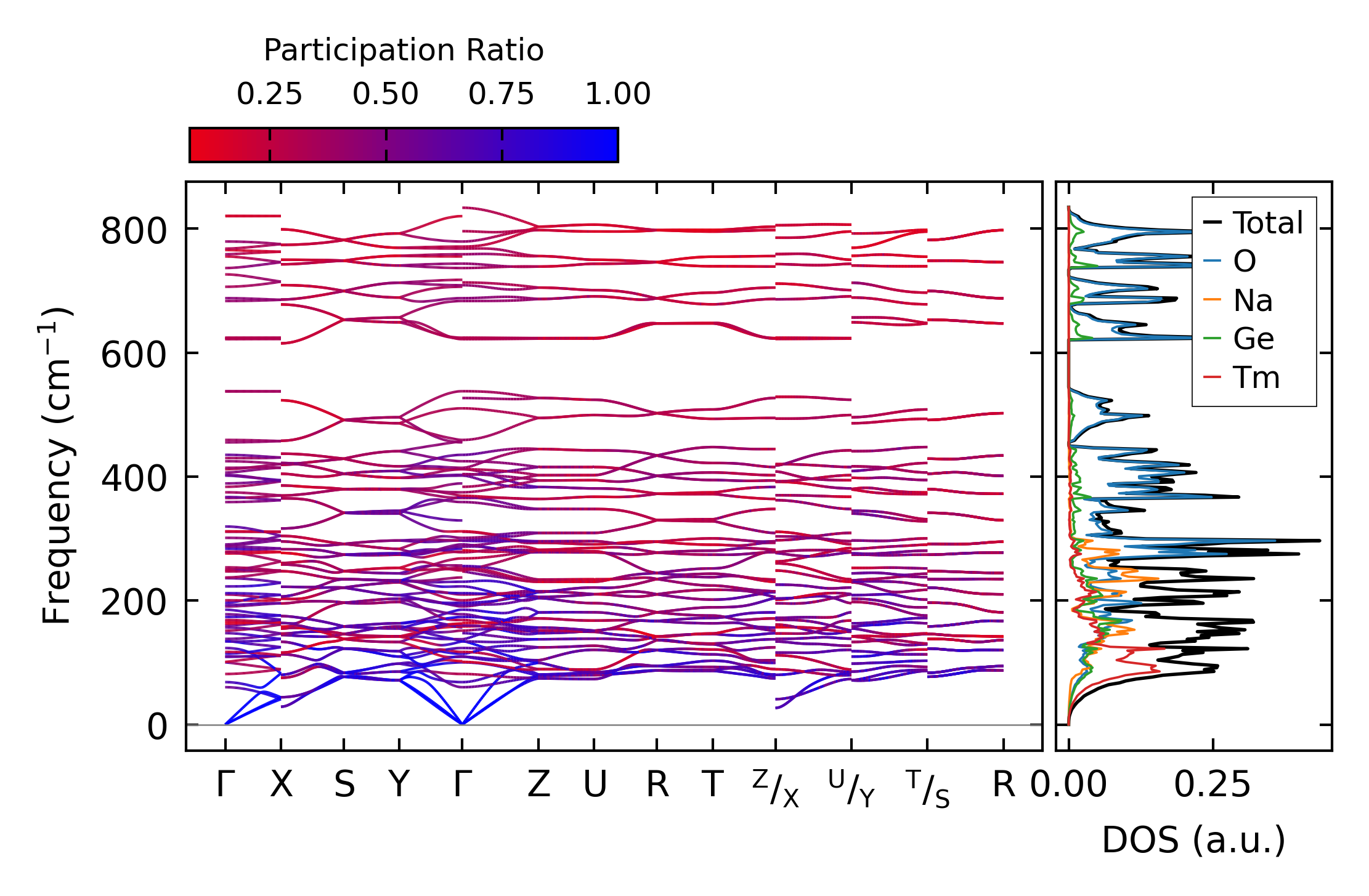

../../_images/fig_bandos_pr13573.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13573.png — (b) Thermodynamic properties

Grüneisen parameters

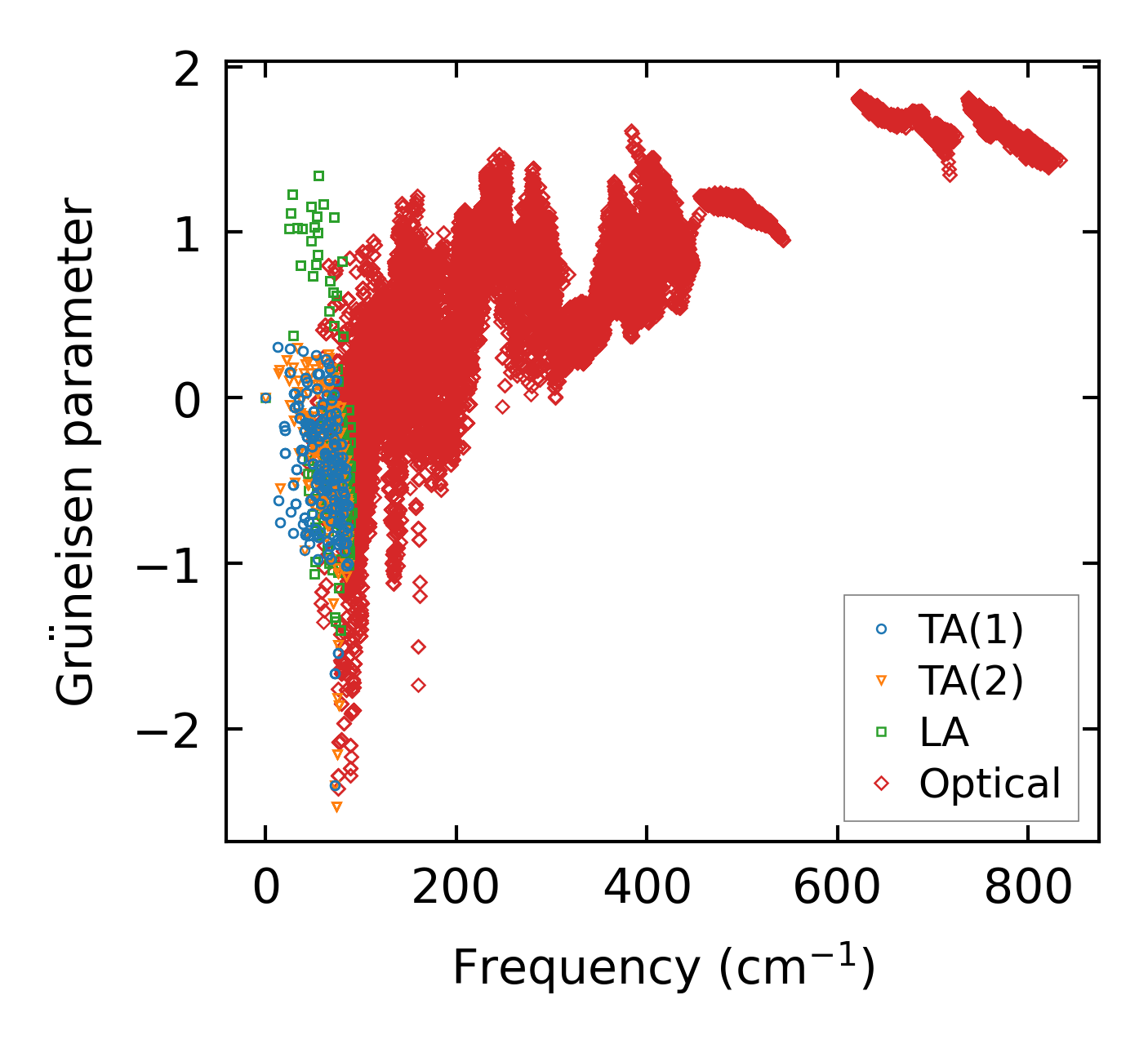

../../_images/fig_gru_all5742.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5742.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x11x13, supercell: 1x2x2

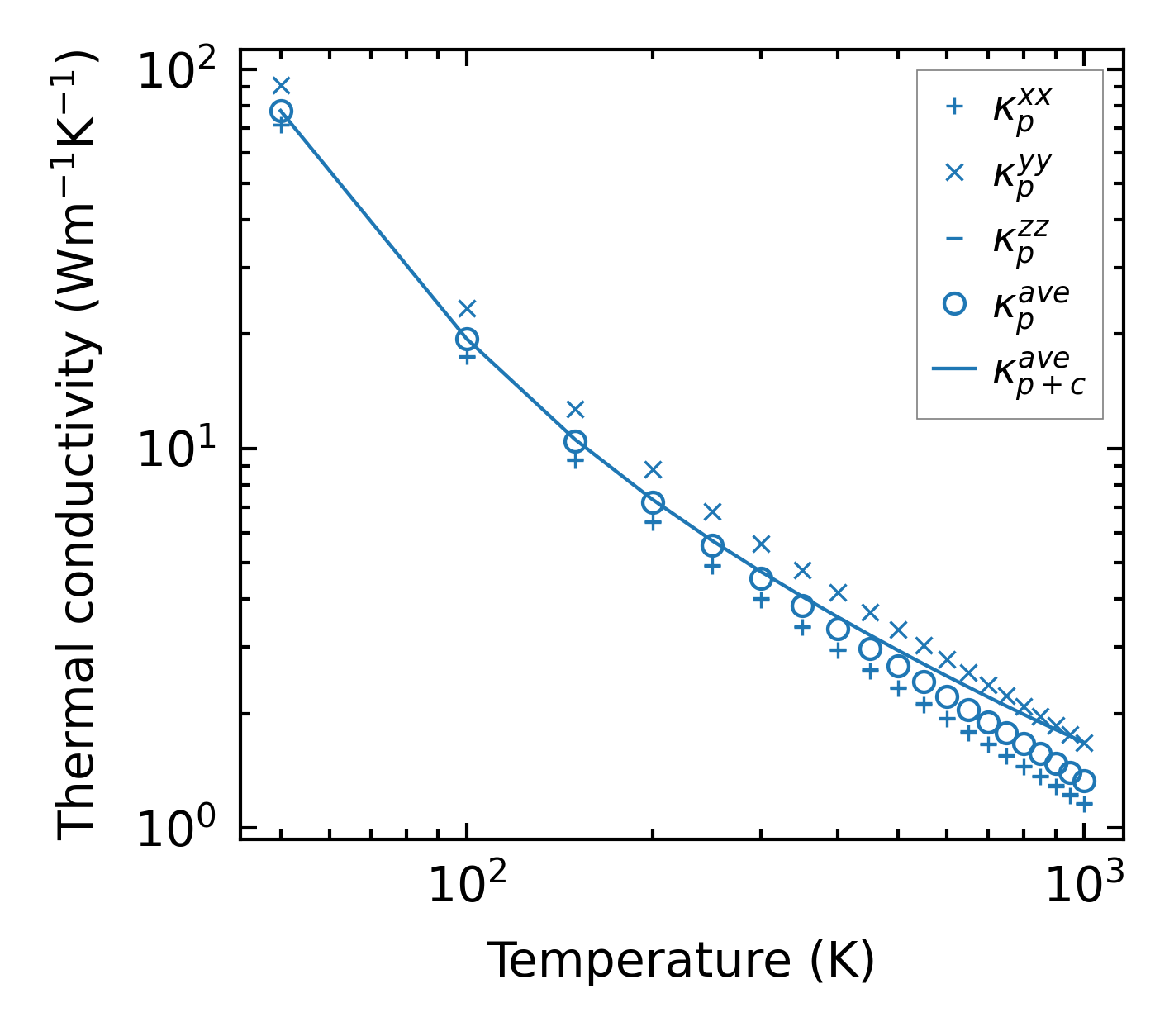

../../_images/fig_kappa10795.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5811.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

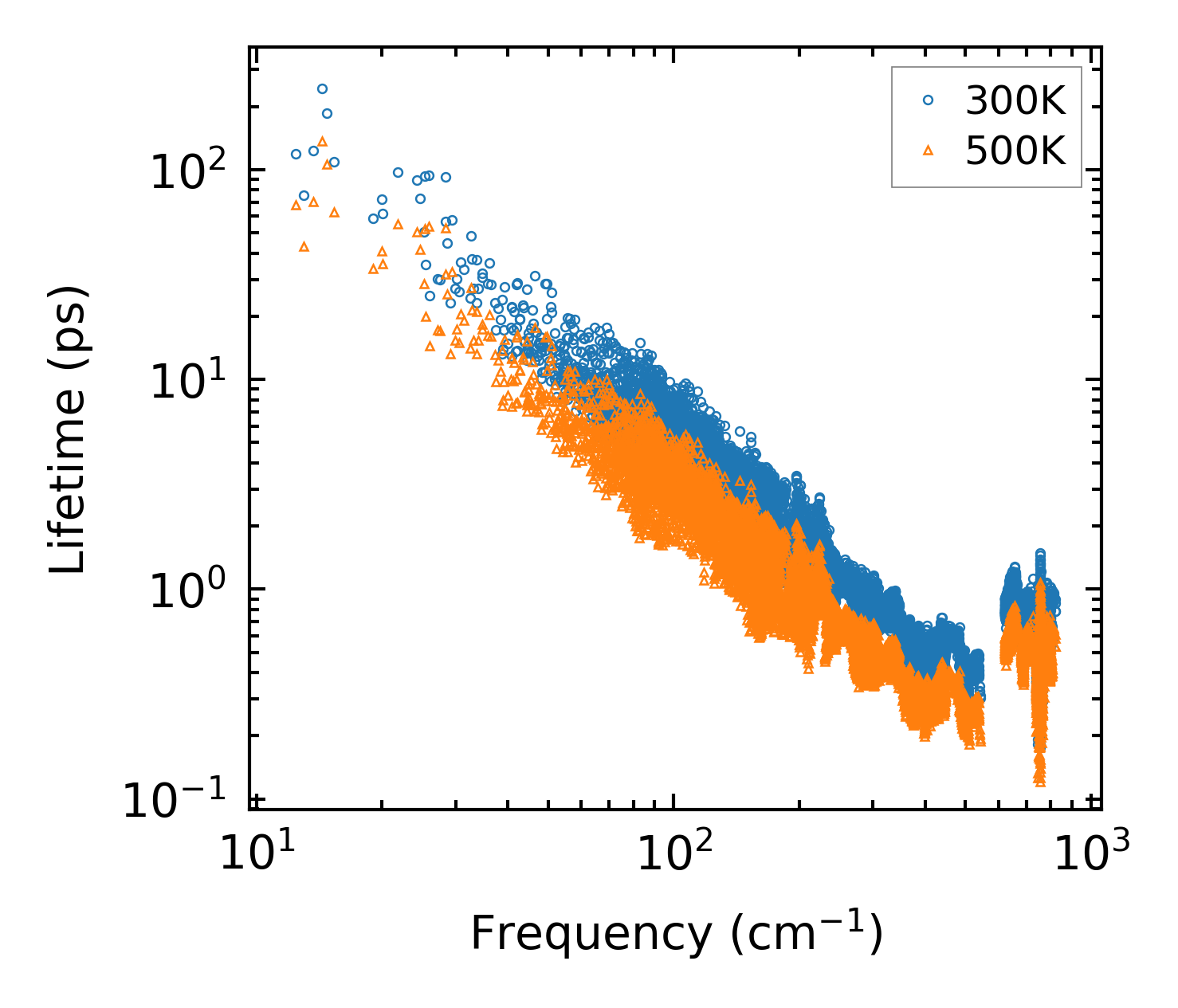

../../_images/fig_lifetime5687.png — (a) Phonon lifetime due to phonon-phonon scattering

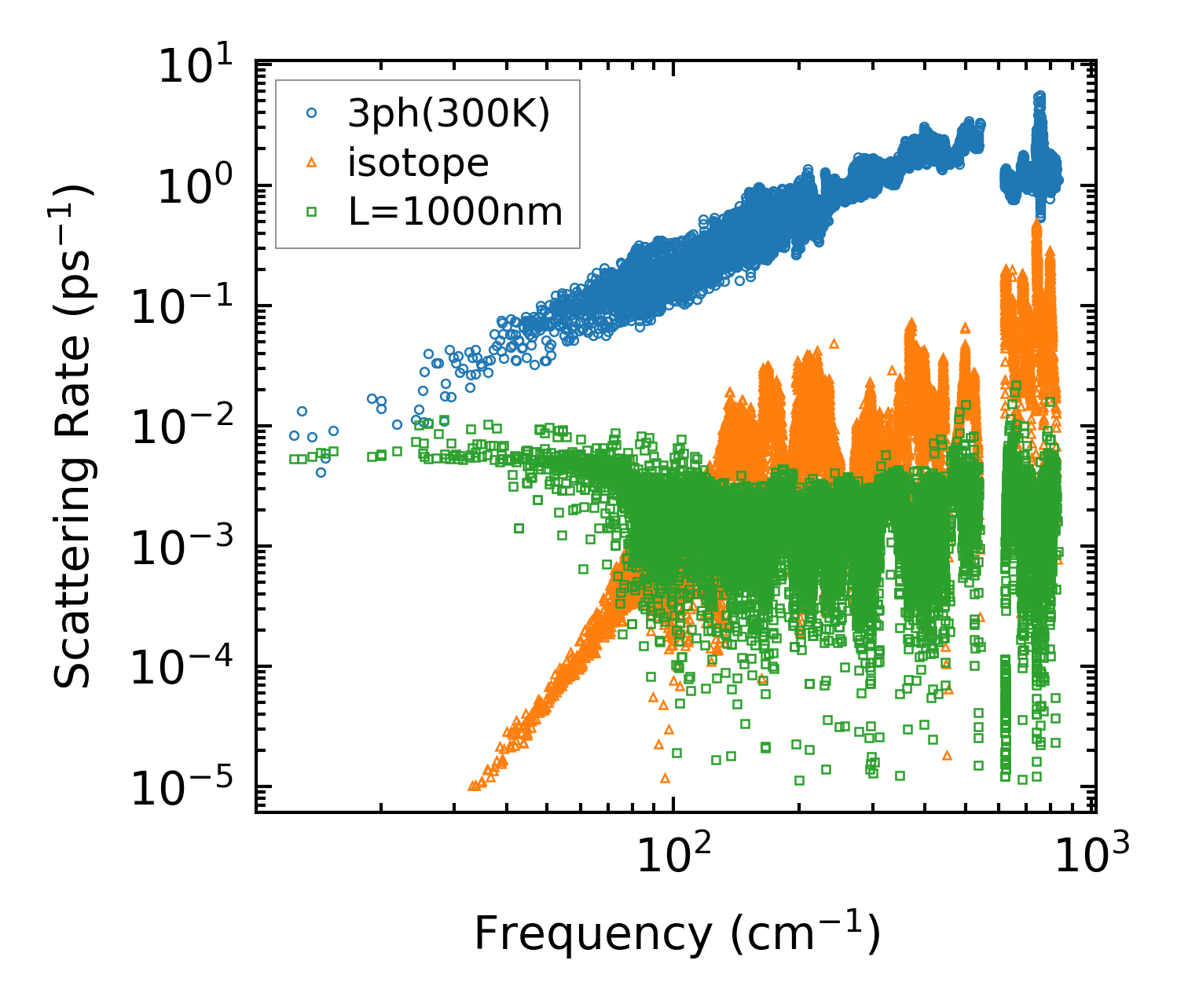

../../_images/fig_scat_rates5686.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

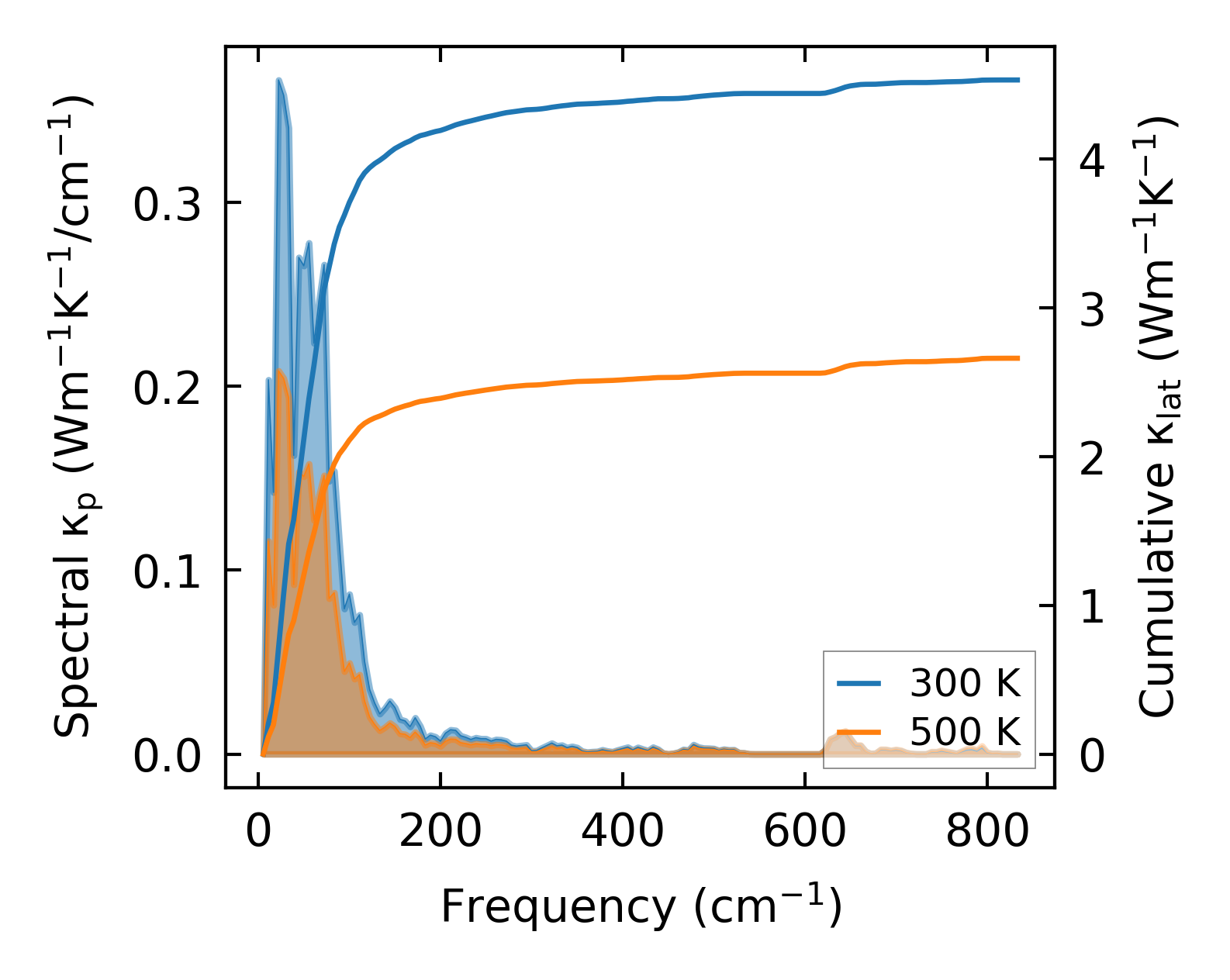

../../_images/fig_cumu_frequency5687.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

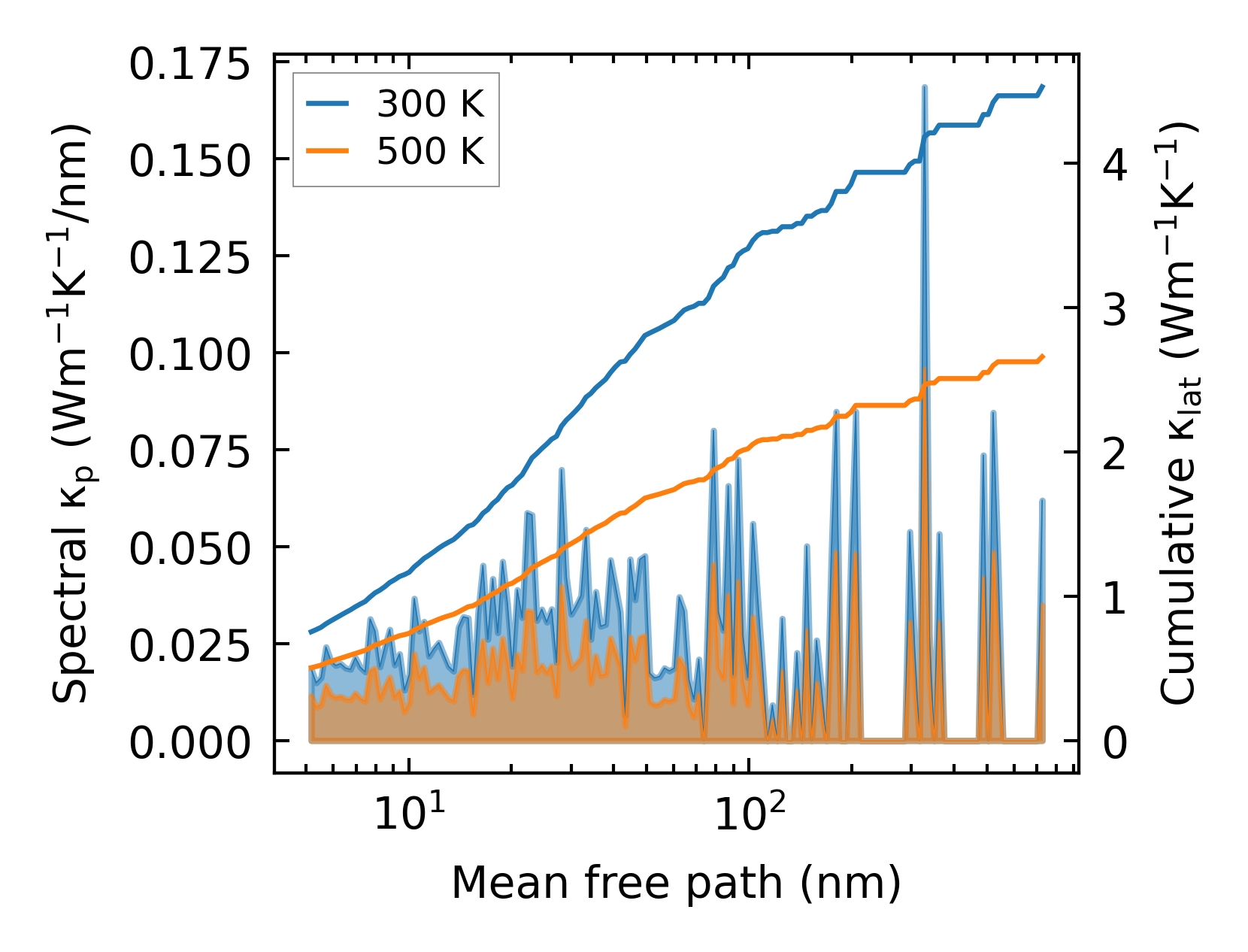

../../_images/fig_cumu_mfp5686.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213201.png — (a) Force constants w.r.t atomic distance

Summary

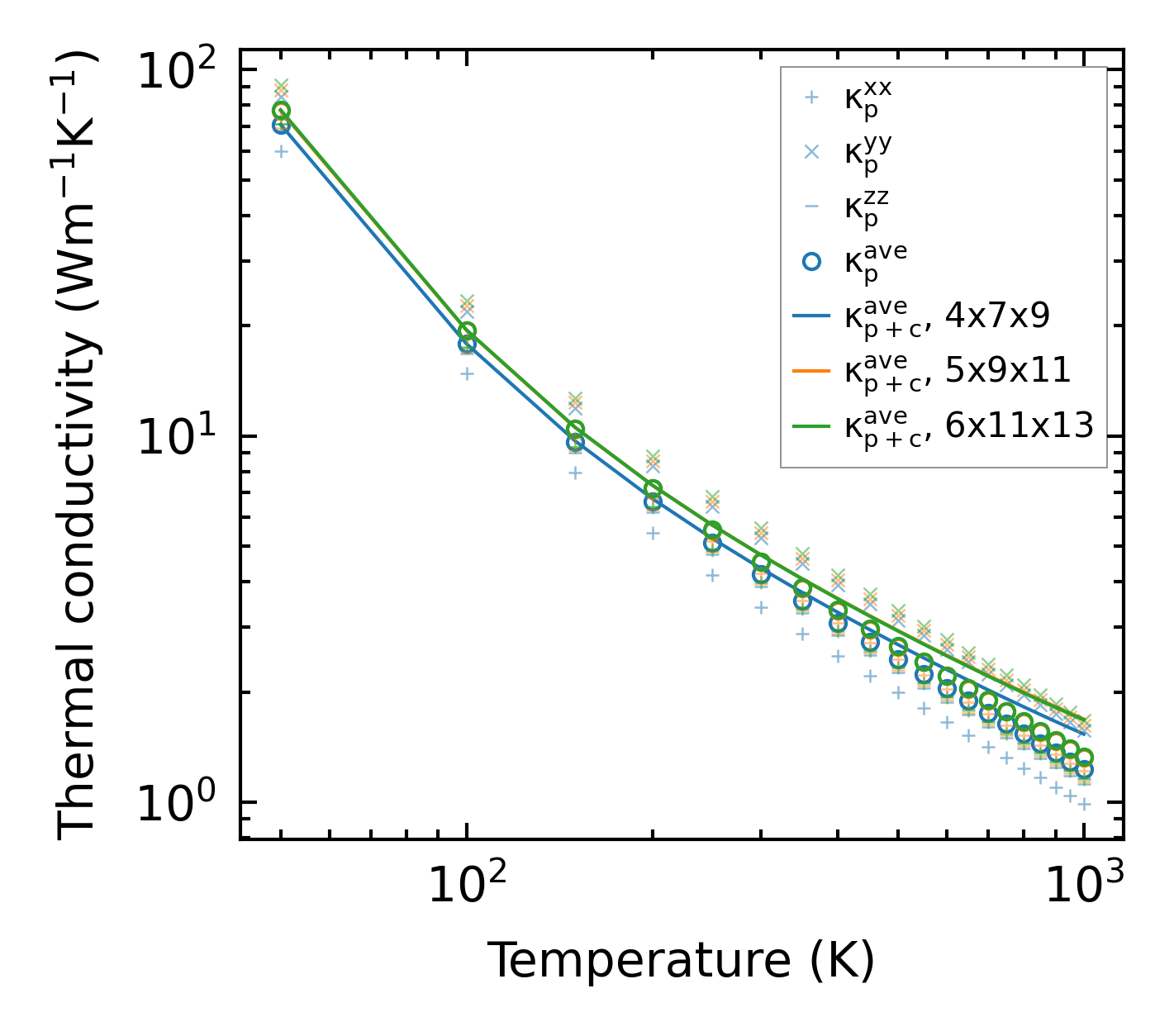

../../_images/fig_kappa10796.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times22817.png — (b) Computation time
