mp-18040/KPrF4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-18040.tar.gz

Harmonic properties

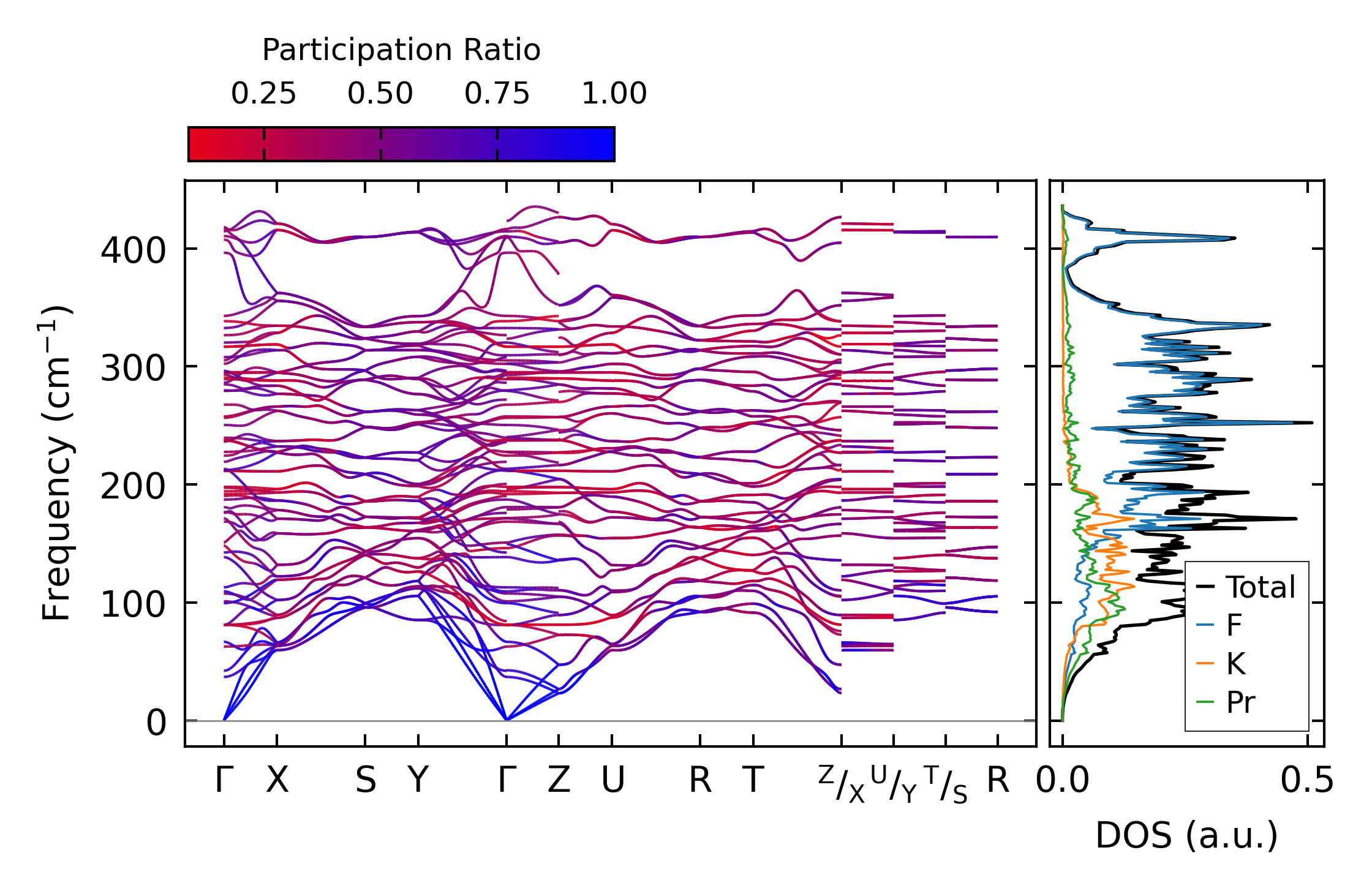

../../_images/fig_bandos_pr13754.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13754.png — (b) Thermodynamic properties

Grüneisen parameters

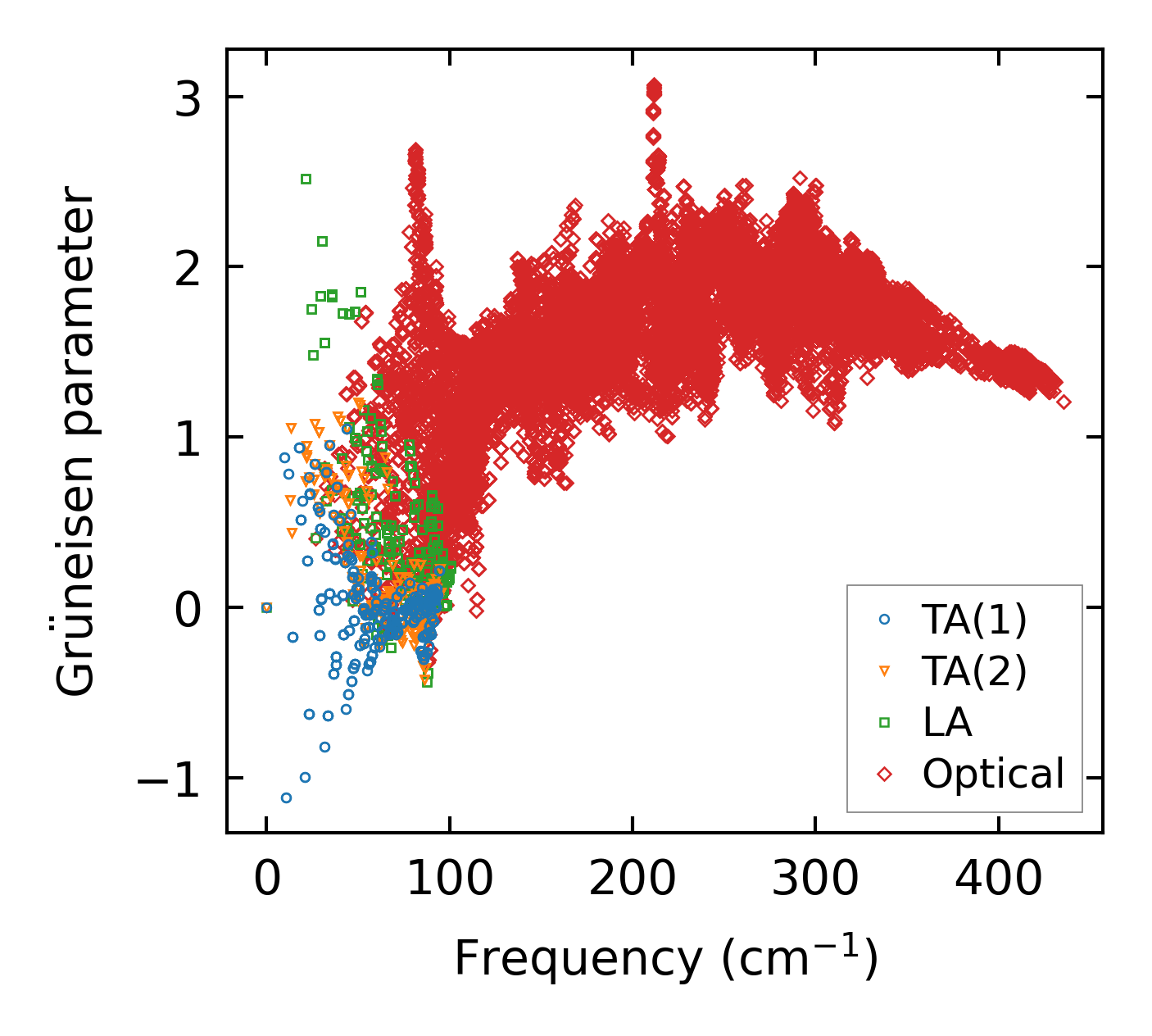

../../_images/fig_gru_all5796.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5796.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x19x4, supercell: 2x3x1

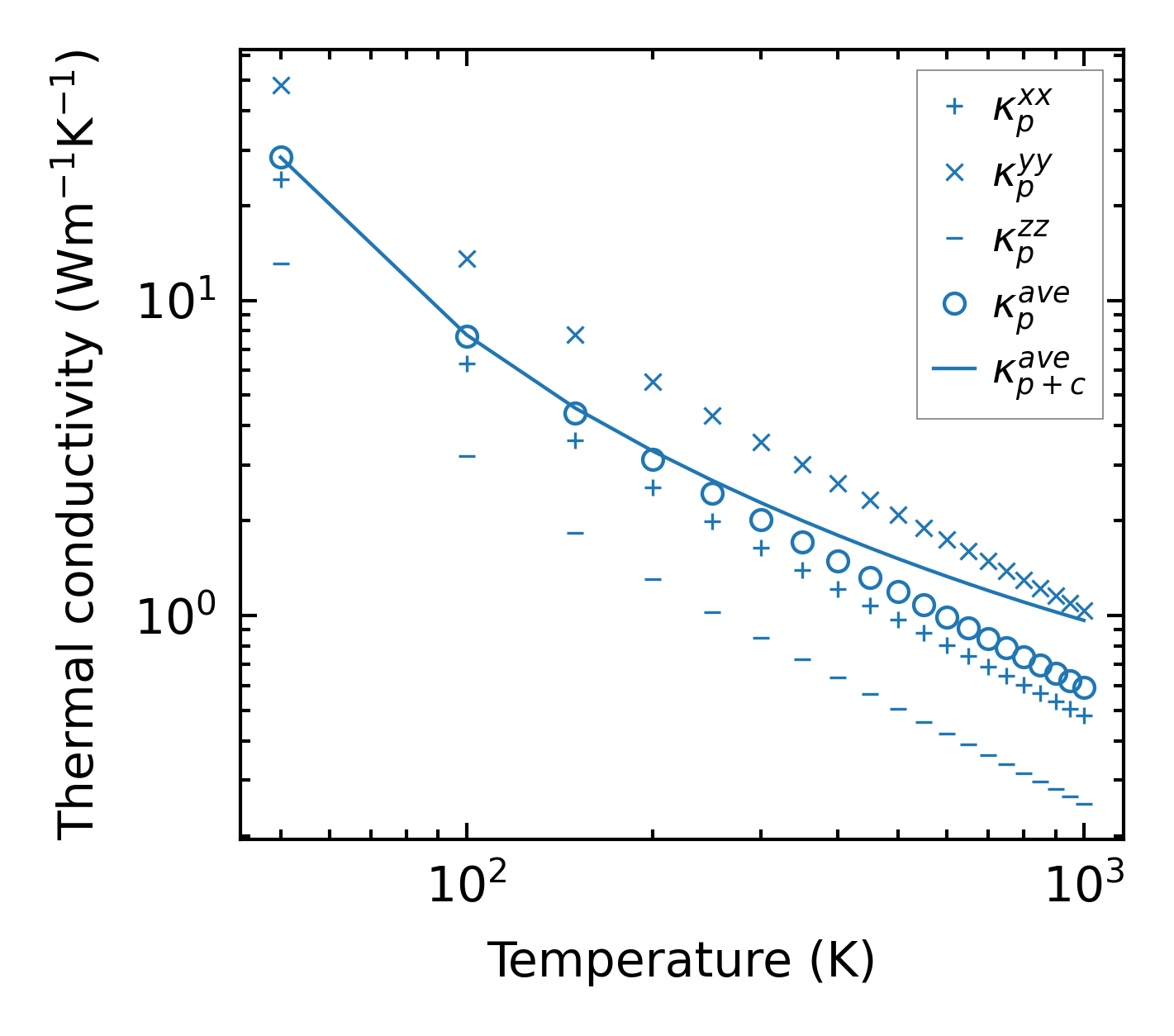

../../_images/fig_kappa10898.png — (a) Temperature-dependent lattice thermal conductivity

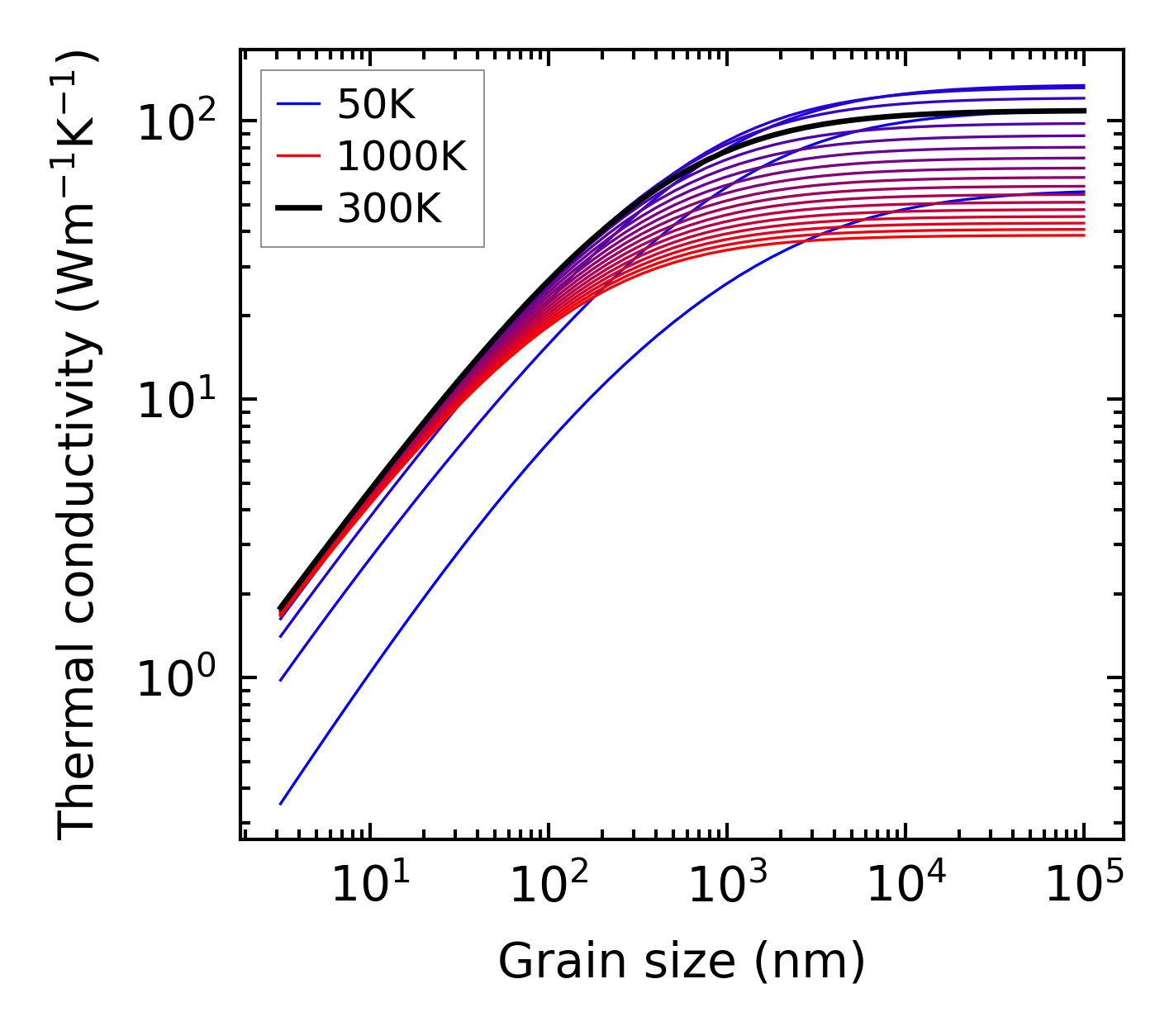

../../_images/fig_kappa_vs_grain_size5866.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

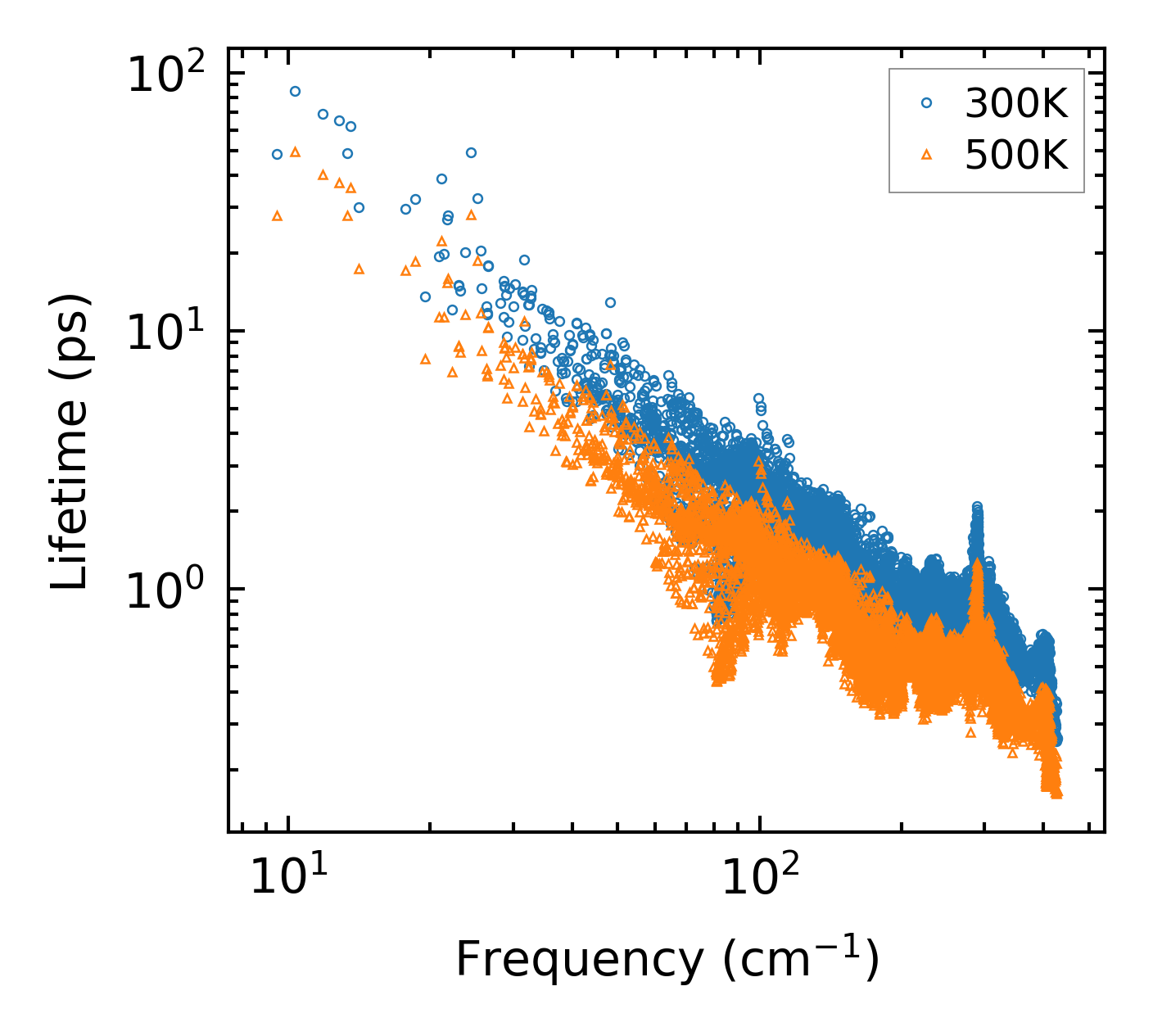

../../_images/fig_lifetime5740.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5739.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5740.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

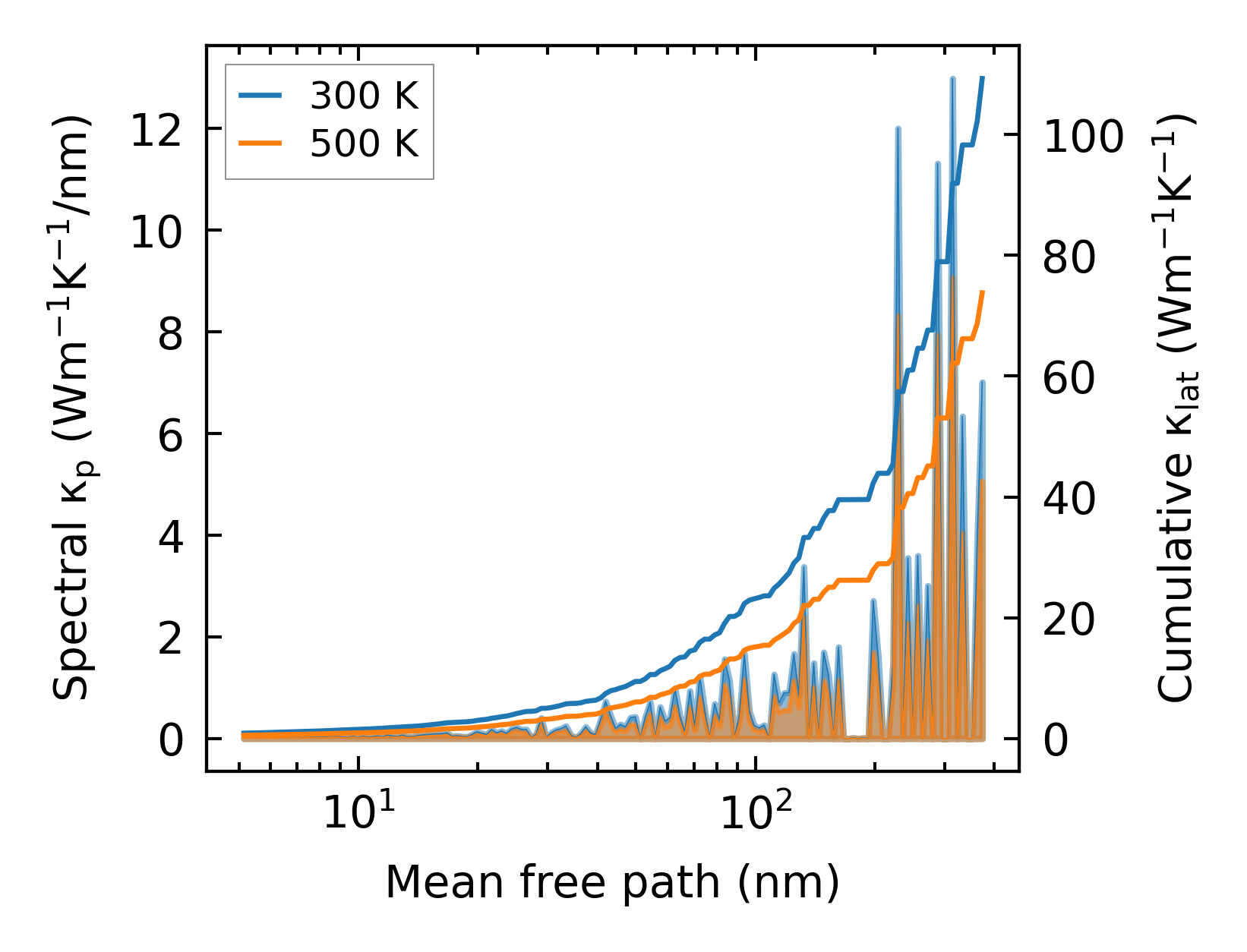

../../_images/fig_cumu_mfp5739.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

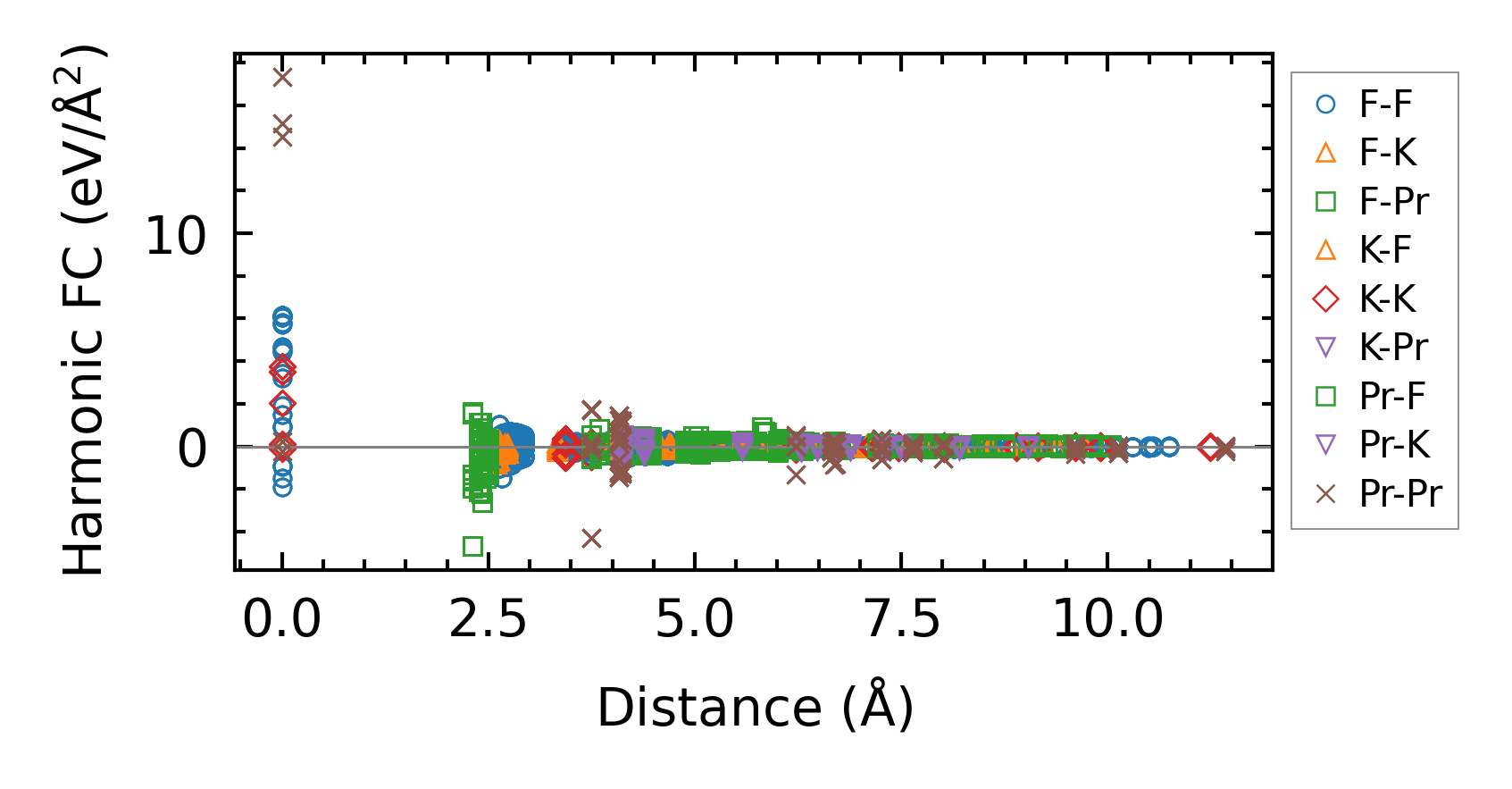

../../_images/fig_fc213382.png — (a) Force constants w.r.t atomic distance

Summary

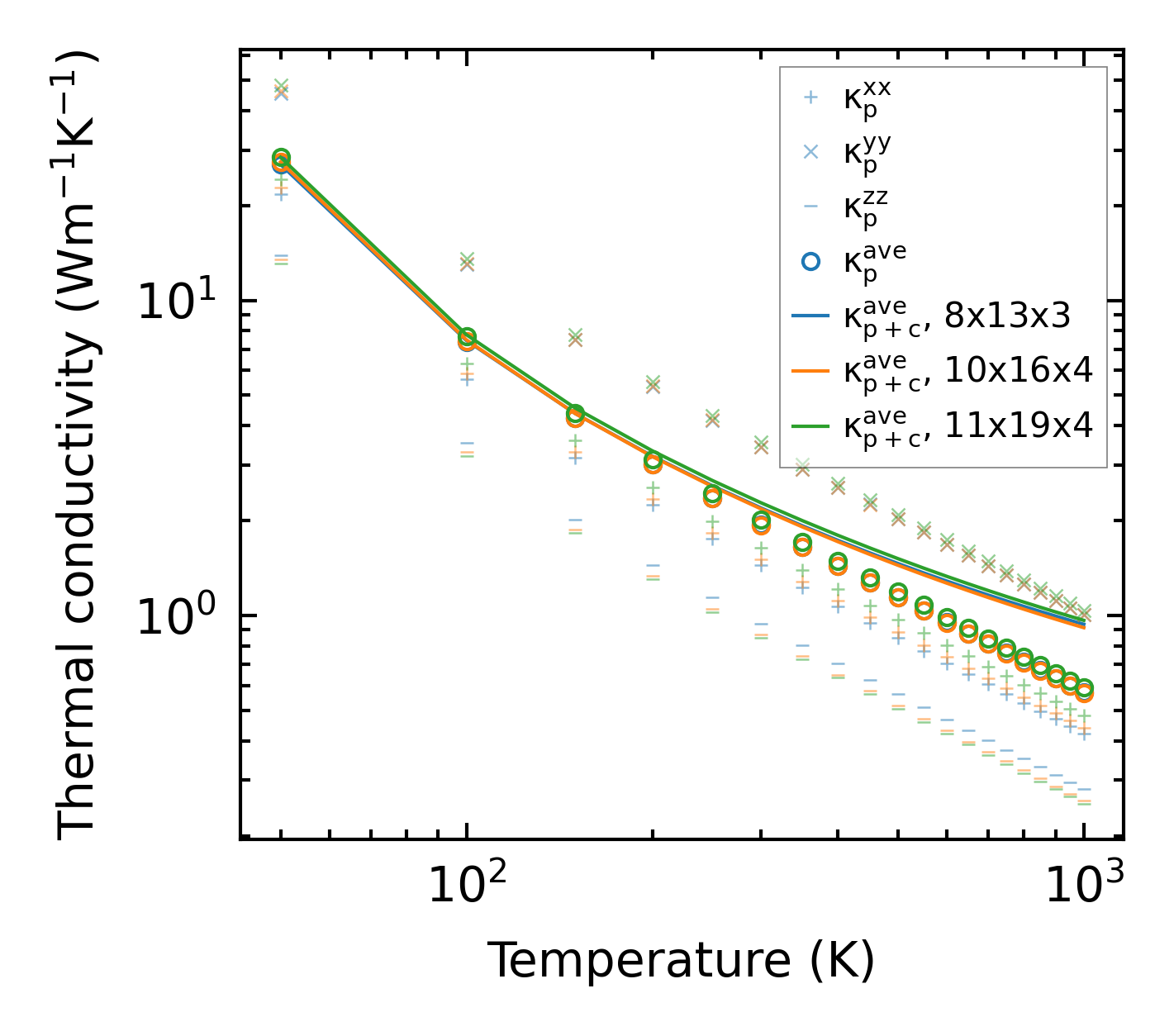

../../_images/fig_kappa10899.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23067.png — (b) Computation time
