mp-18373/ZnSe2O5/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-18373.tar.gz

Equation of state

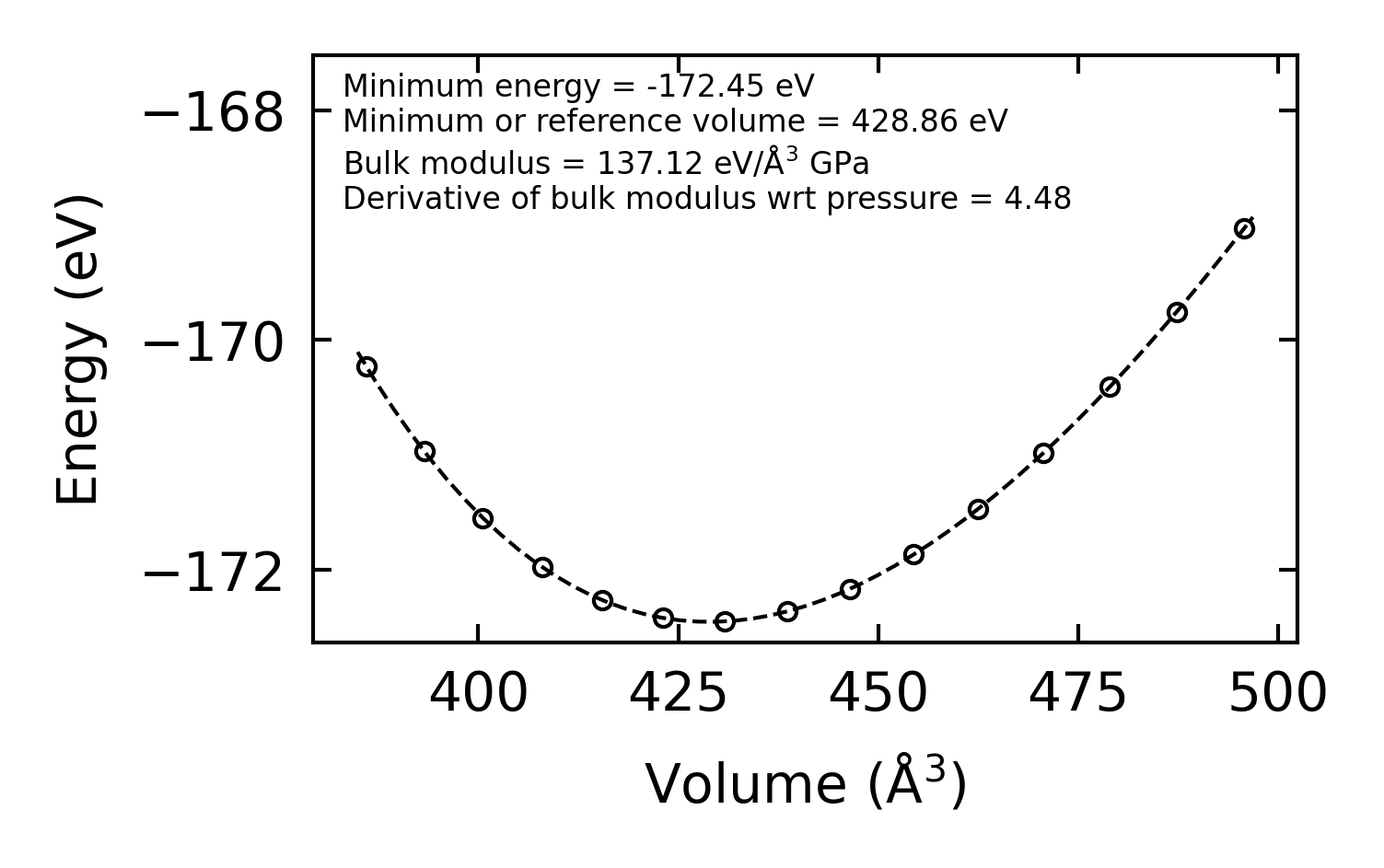

../../_images/fig_bm6936.png — (a) Equation of state

Harmonic properties

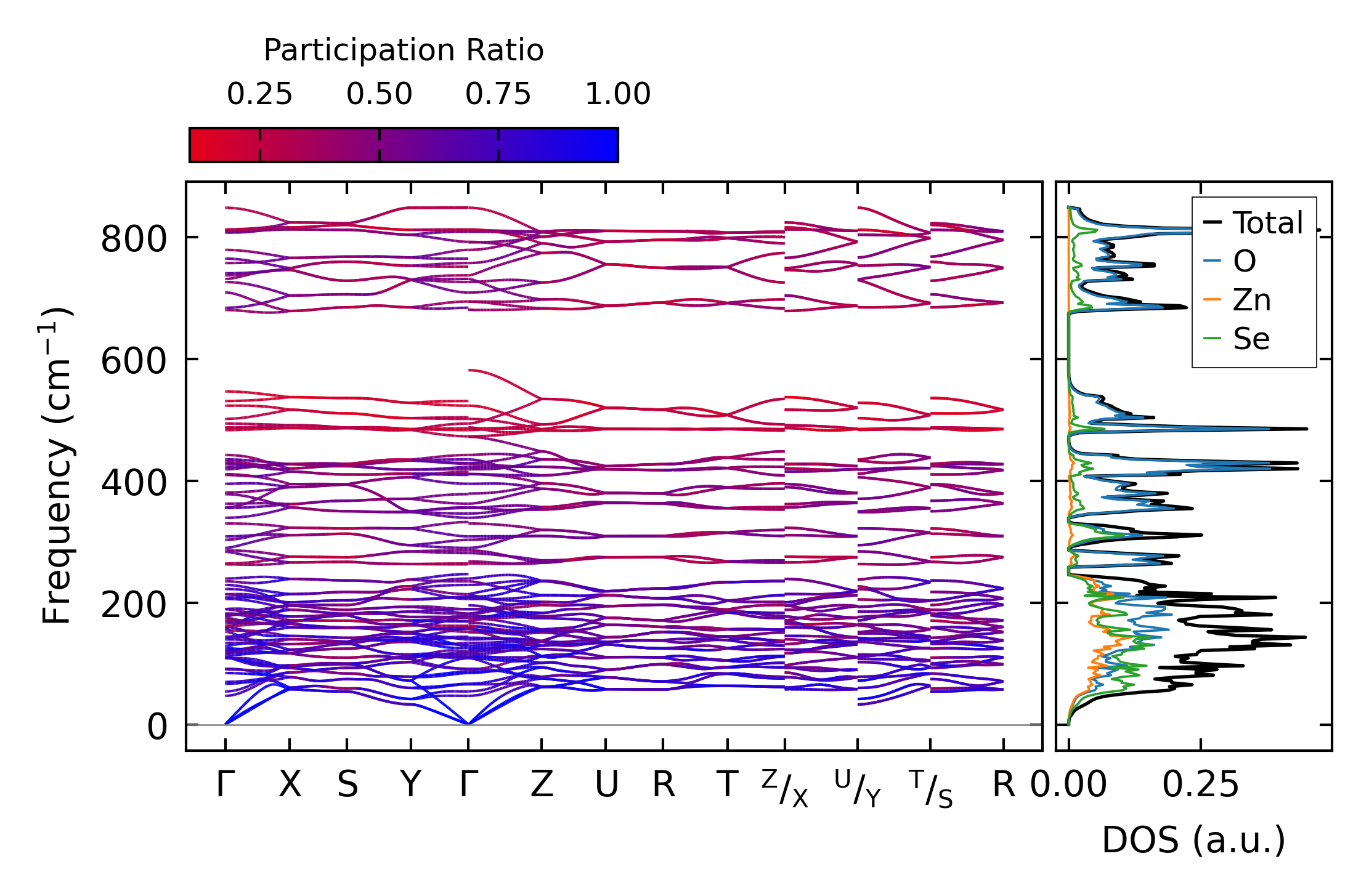

../../_images/fig_bandos_pr13857.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13857.png — (b) Thermodynamic properties

Grüneisen parameters

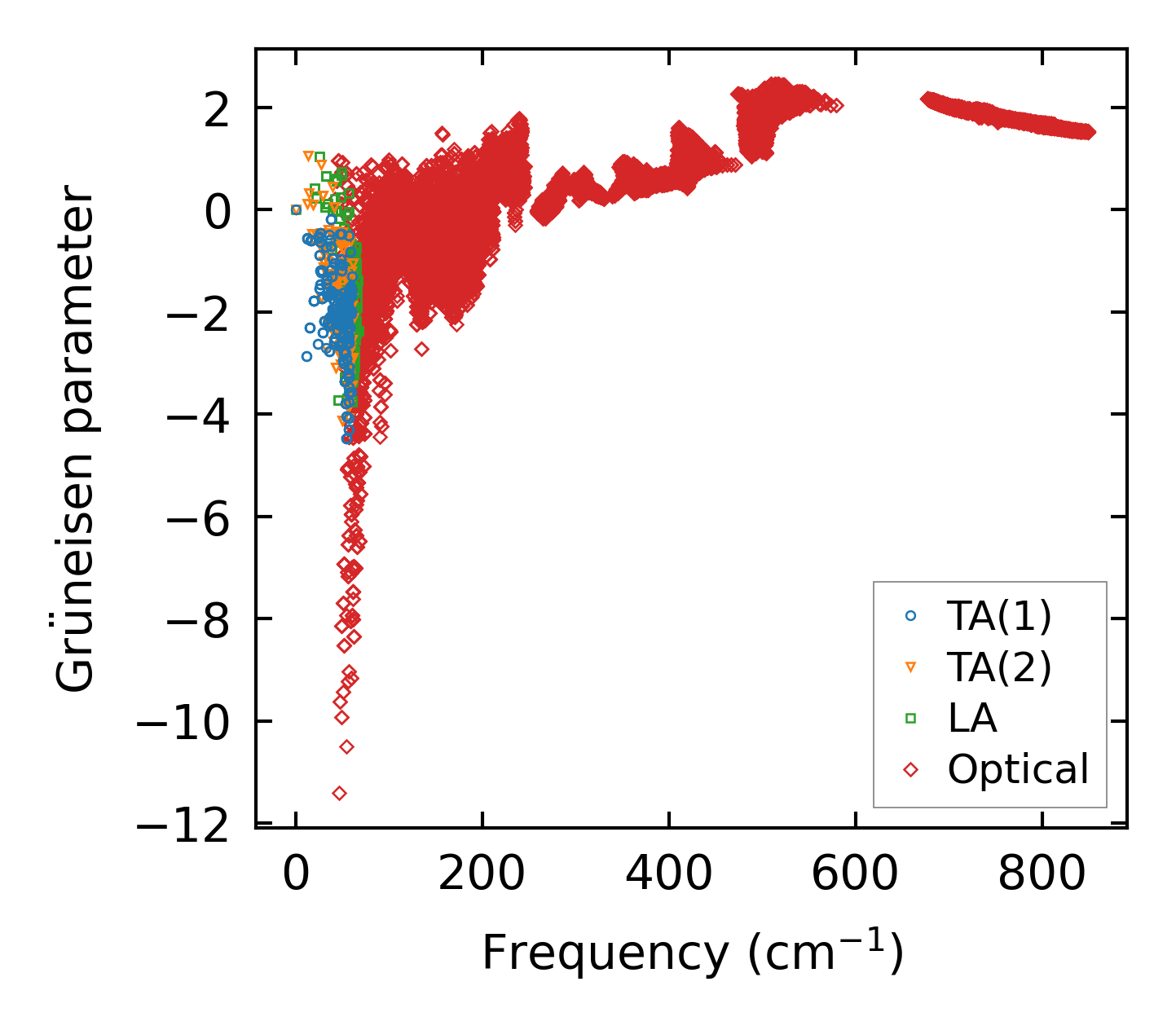

../../_images/fig_gru_all5850.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5850.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x6x11, supercell: 2x1x2

../../_images/fig_kappa11004.png — (a) Temperature-dependent lattice thermal conductivity

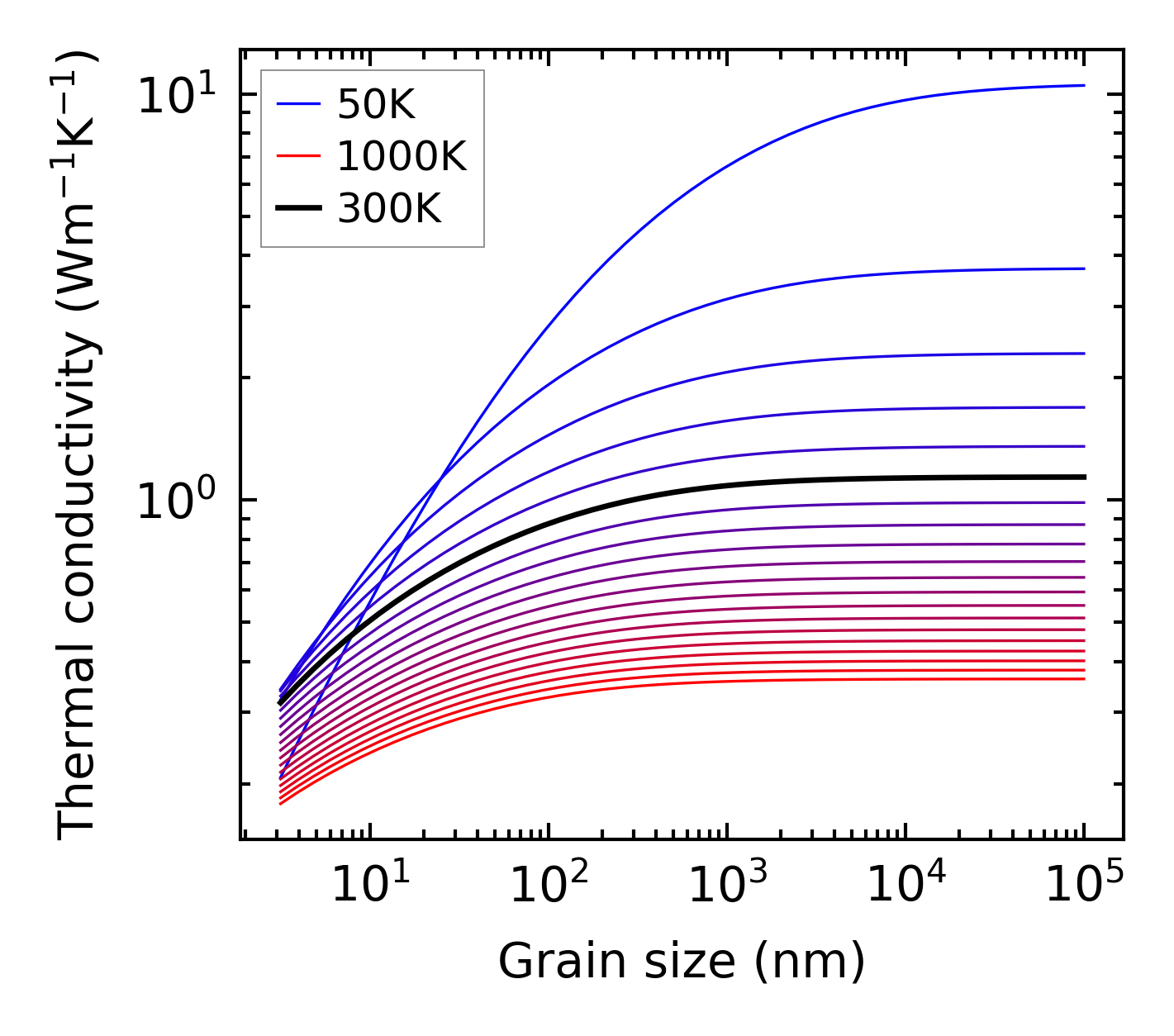

../../_images/fig_kappa_vs_grain_size5923.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

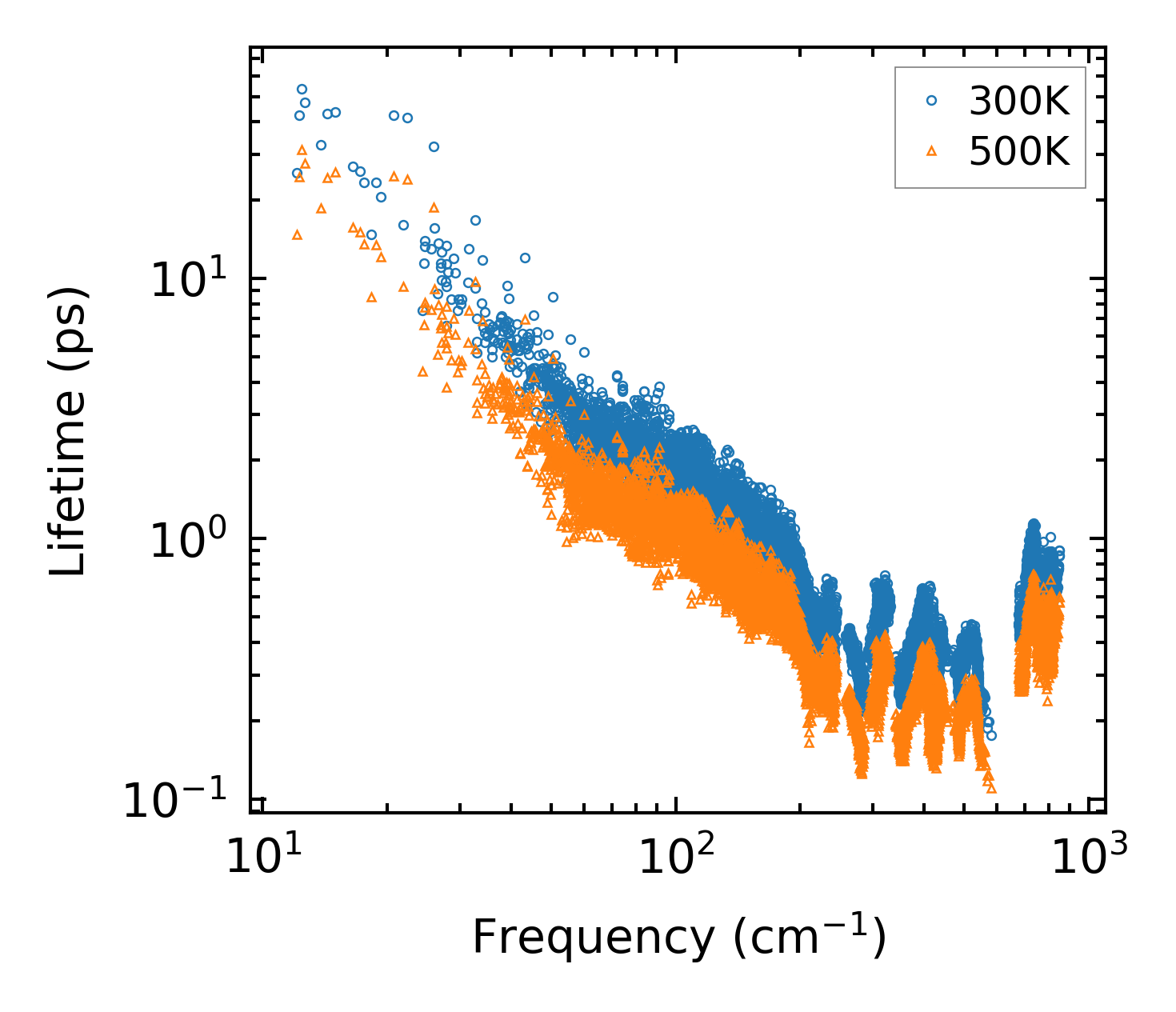

../../_images/fig_lifetime5793.png — (a) Phonon lifetime due to phonon-phonon scattering

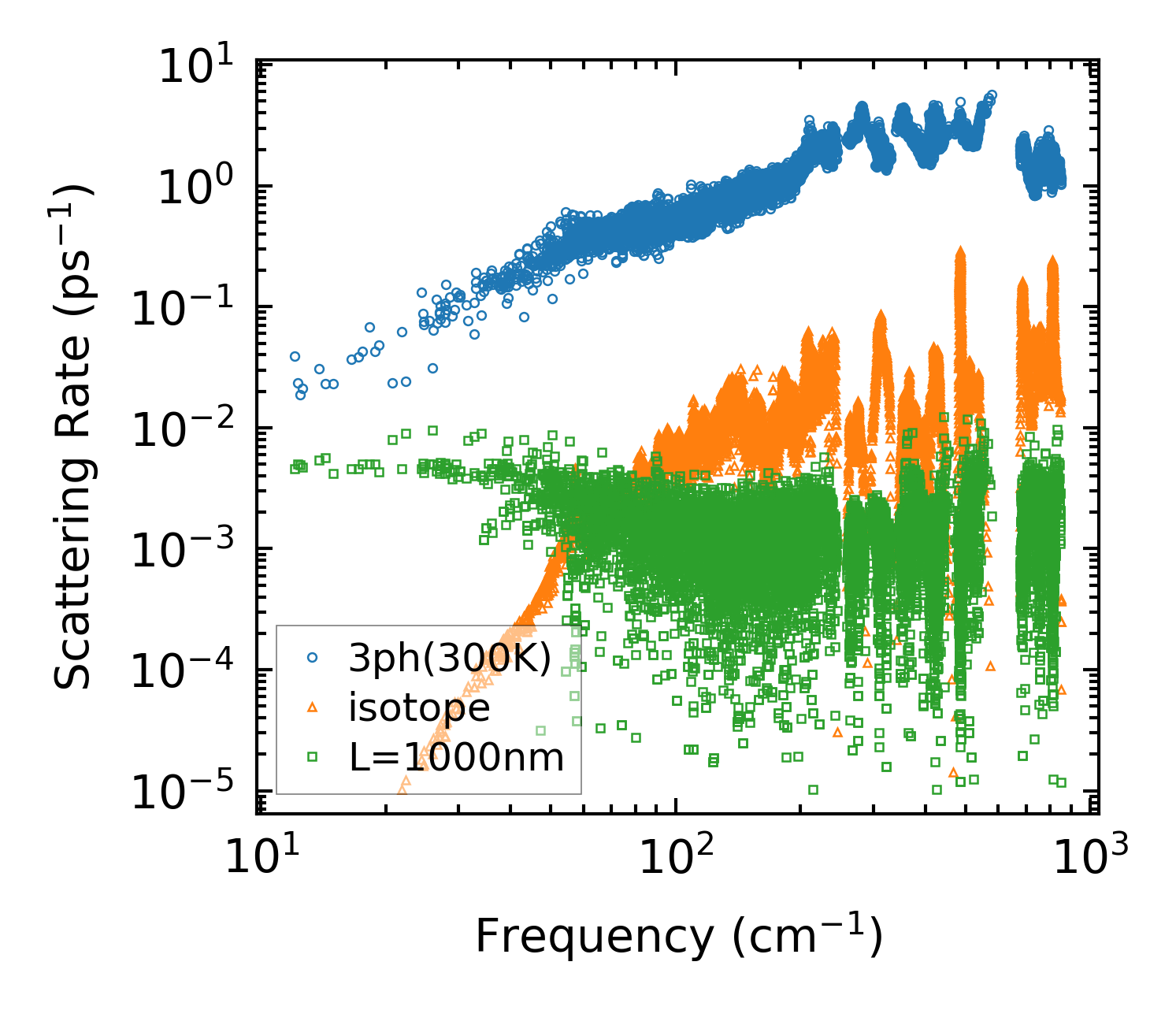

../../_images/fig_scat_rates5792.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5793.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5792.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

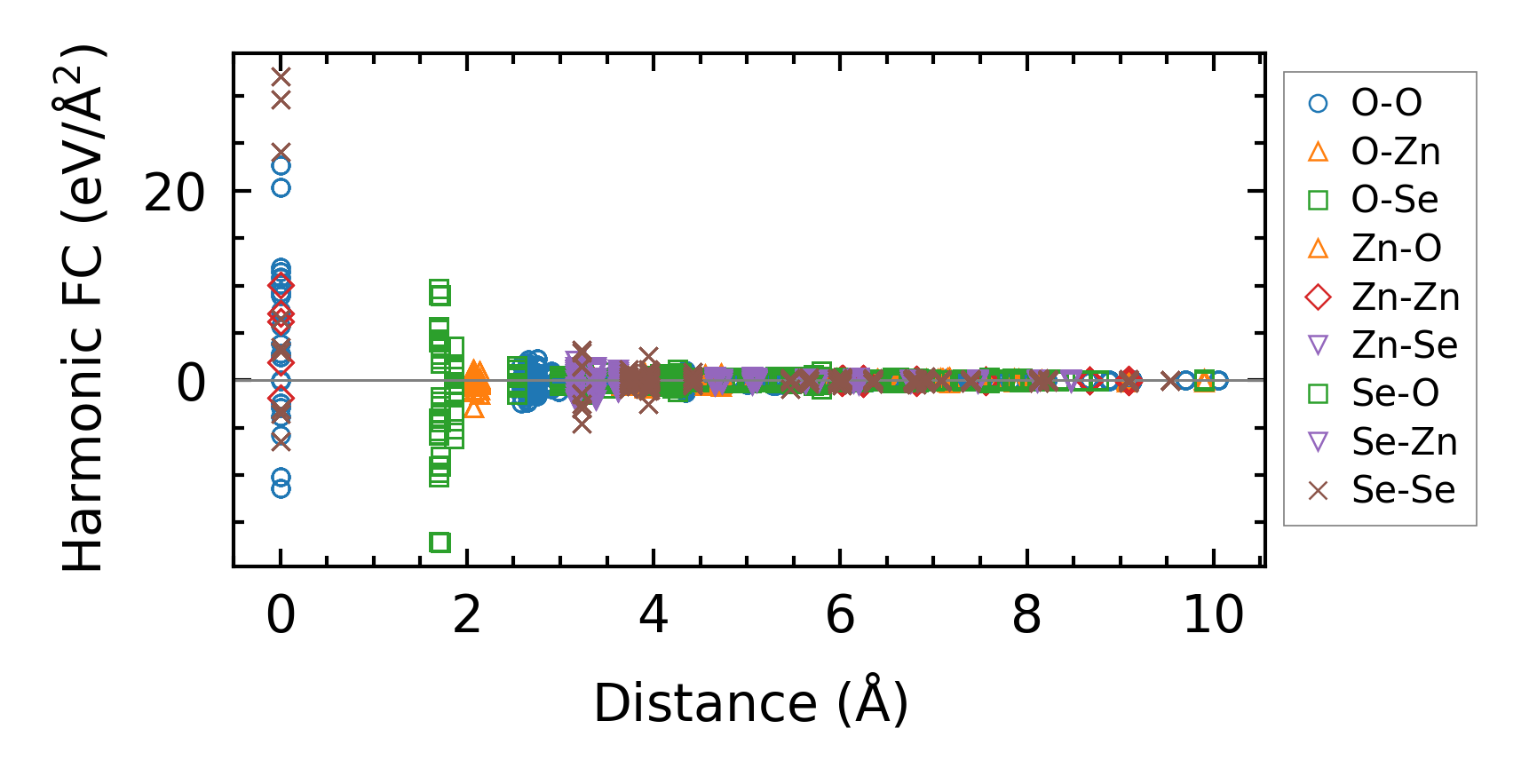

../../_images/fig_fc213485.png — (a) Force constants w.r.t atomic distance

Summary

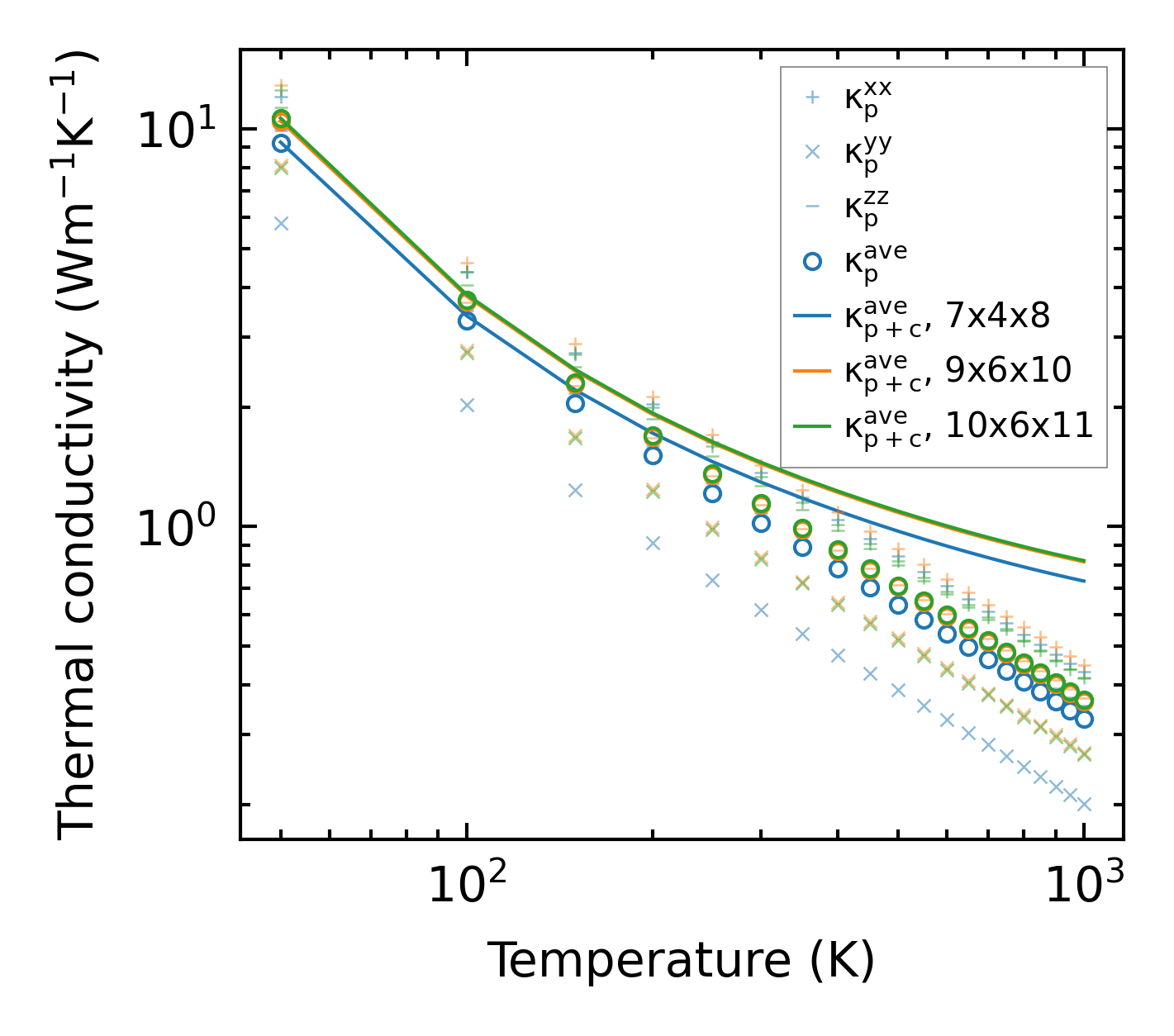

../../_images/fig_kappa11005.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23232.png — (b) Computation time
