mp-18447/K3Na2SnAs3/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-18447.tar.gz

Harmonic properties

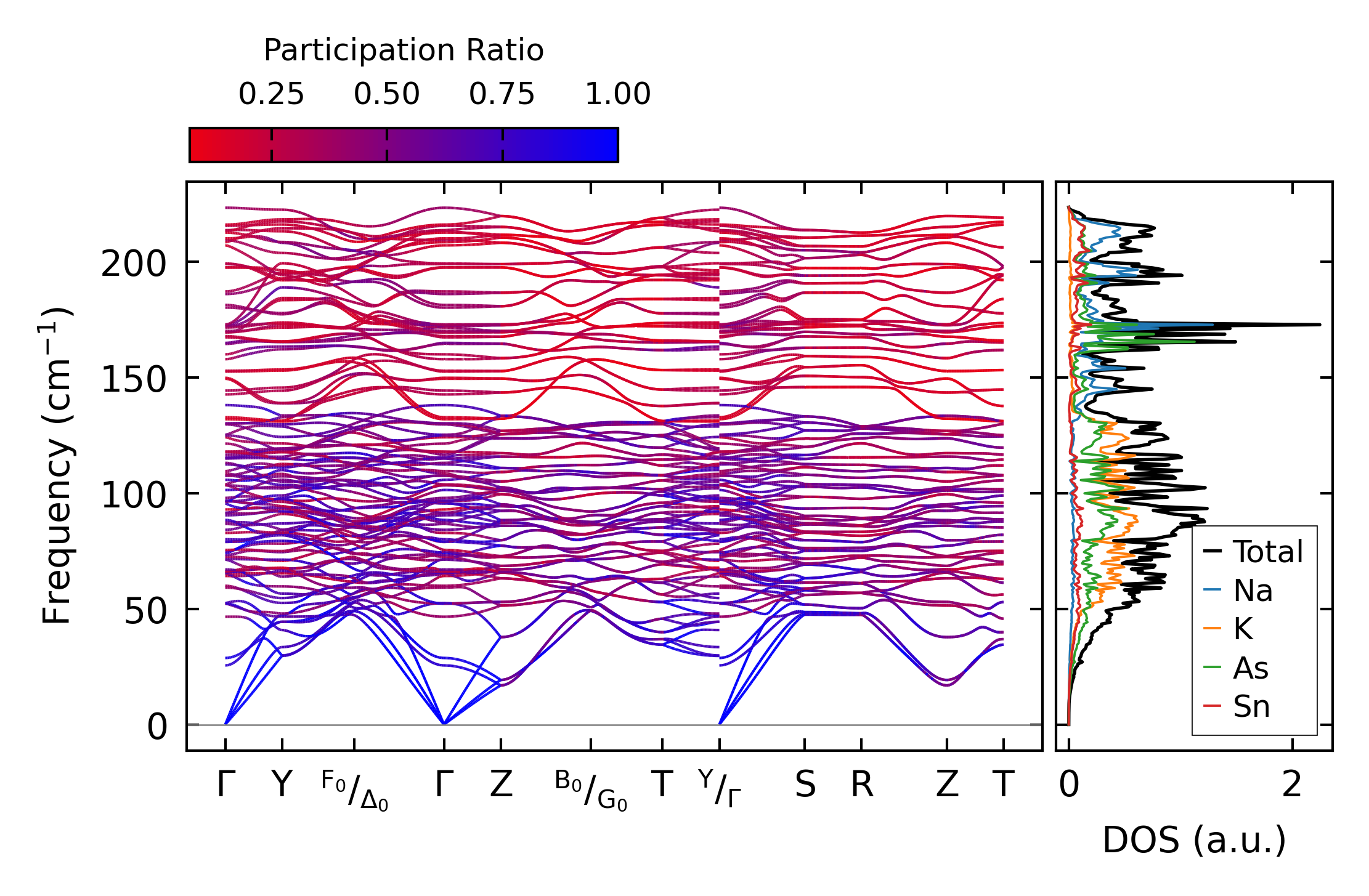

../../_images/fig_bandos_pr13875.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13875.png — (b) Thermodynamic properties

Grüneisen parameters

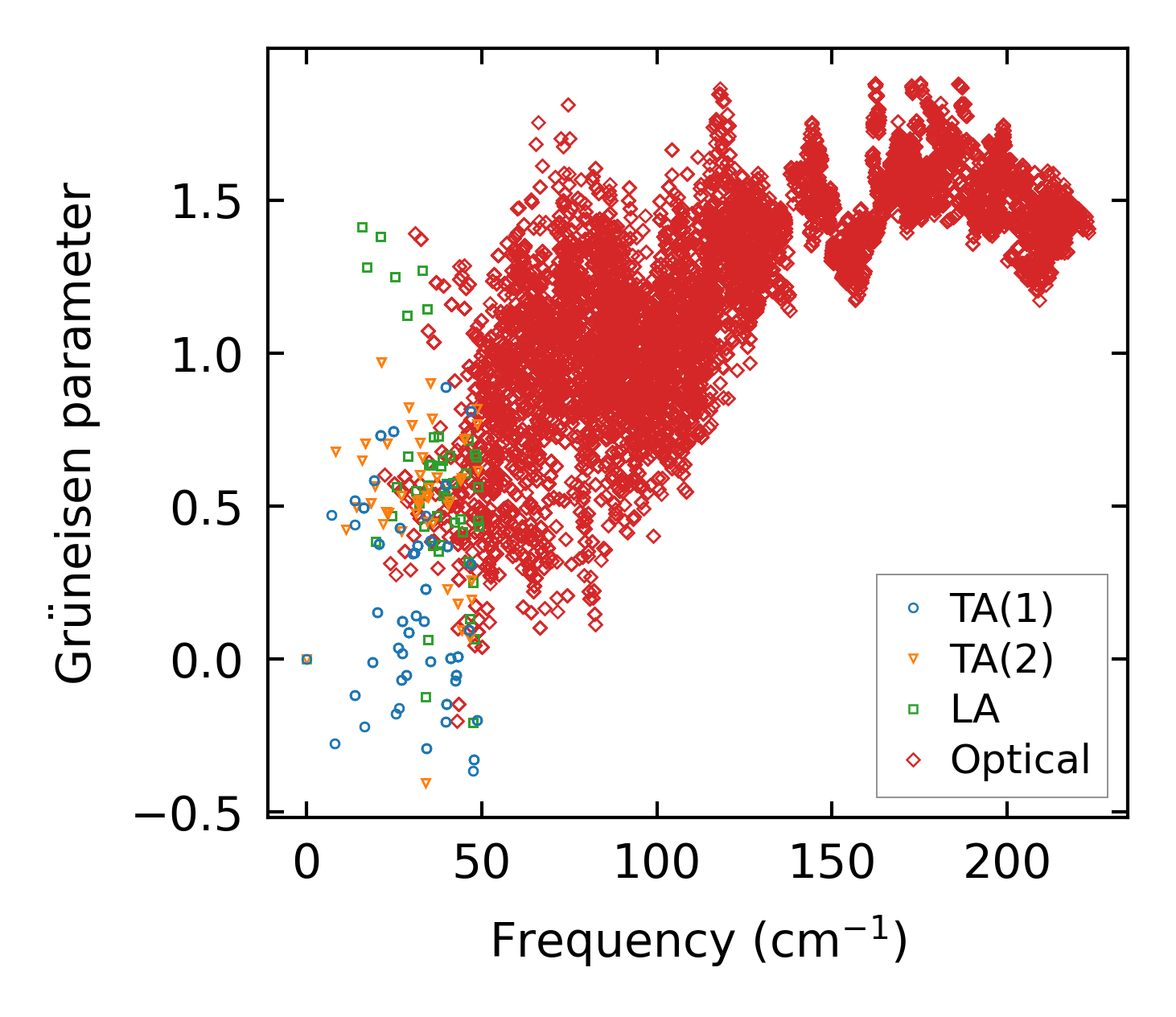

../../_images/fig_gru_all5859.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5859.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x5, supercell: 1x2x1

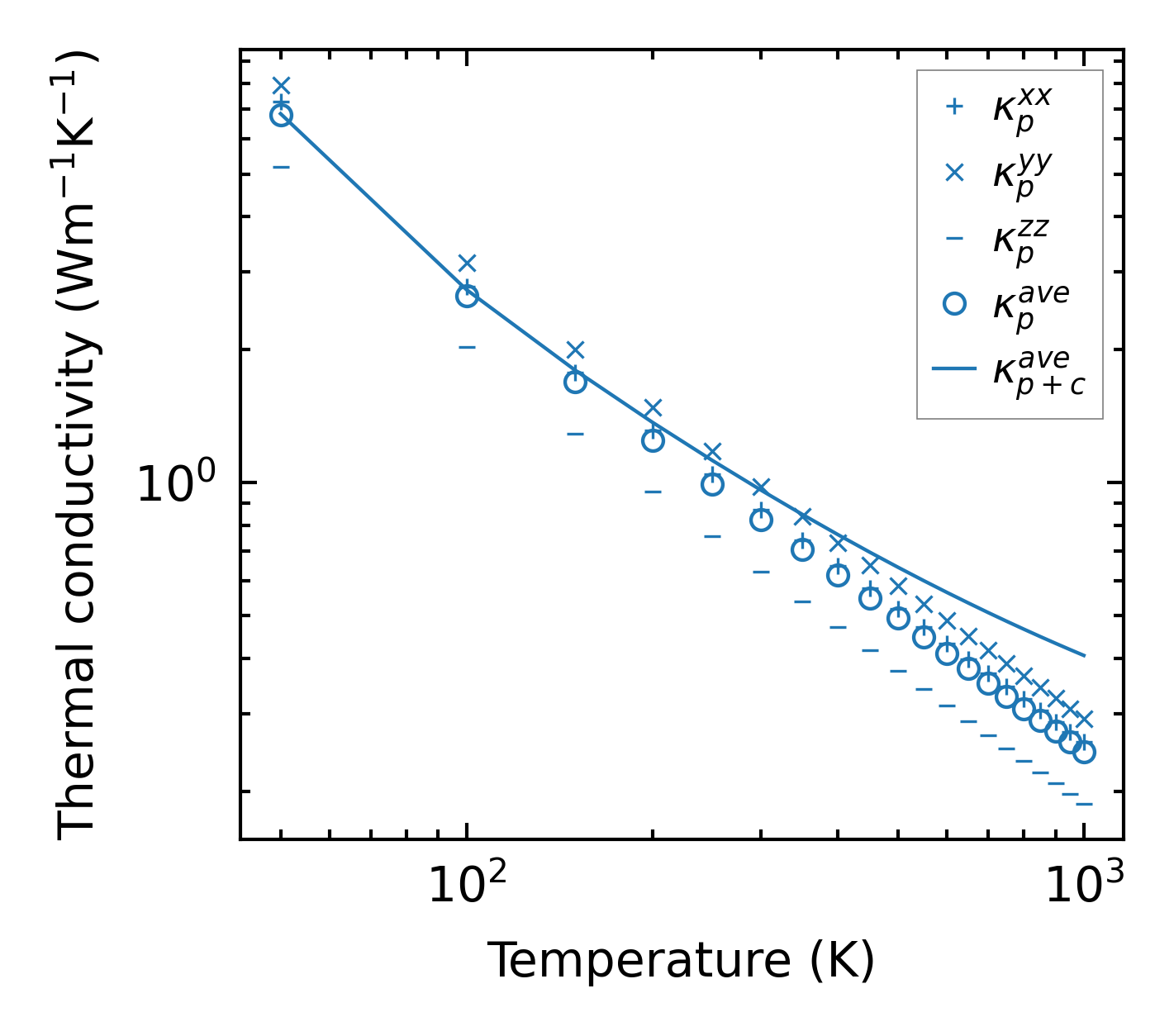

../../_images/fig_kappa11023.png — (a) Temperature-dependent lattice thermal conductivity

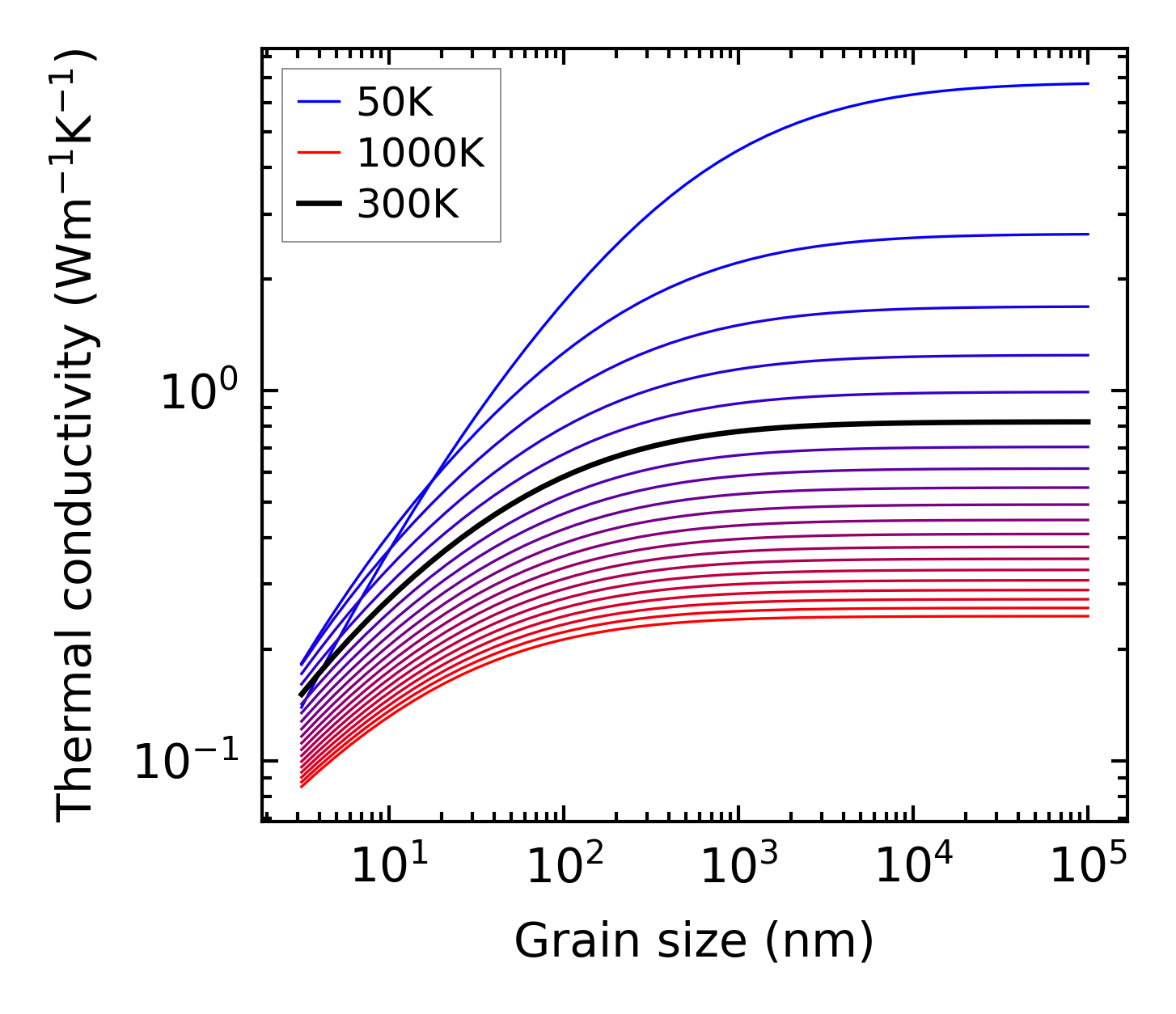

../../_images/fig_kappa_vs_grain_size5933.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5802.png — (a) Phonon lifetime due to phonon-phonon scattering

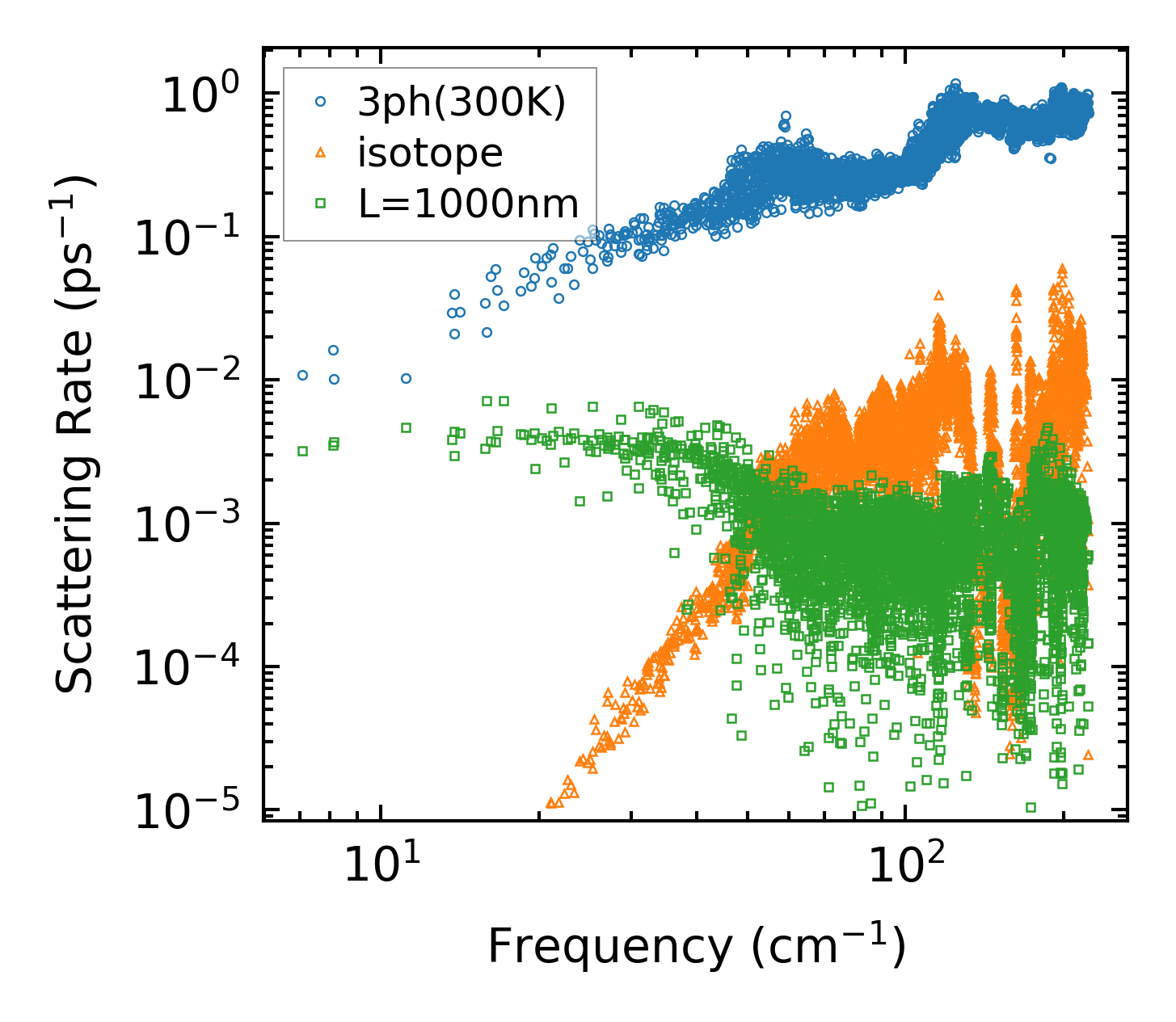

../../_images/fig_scat_rates5801.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

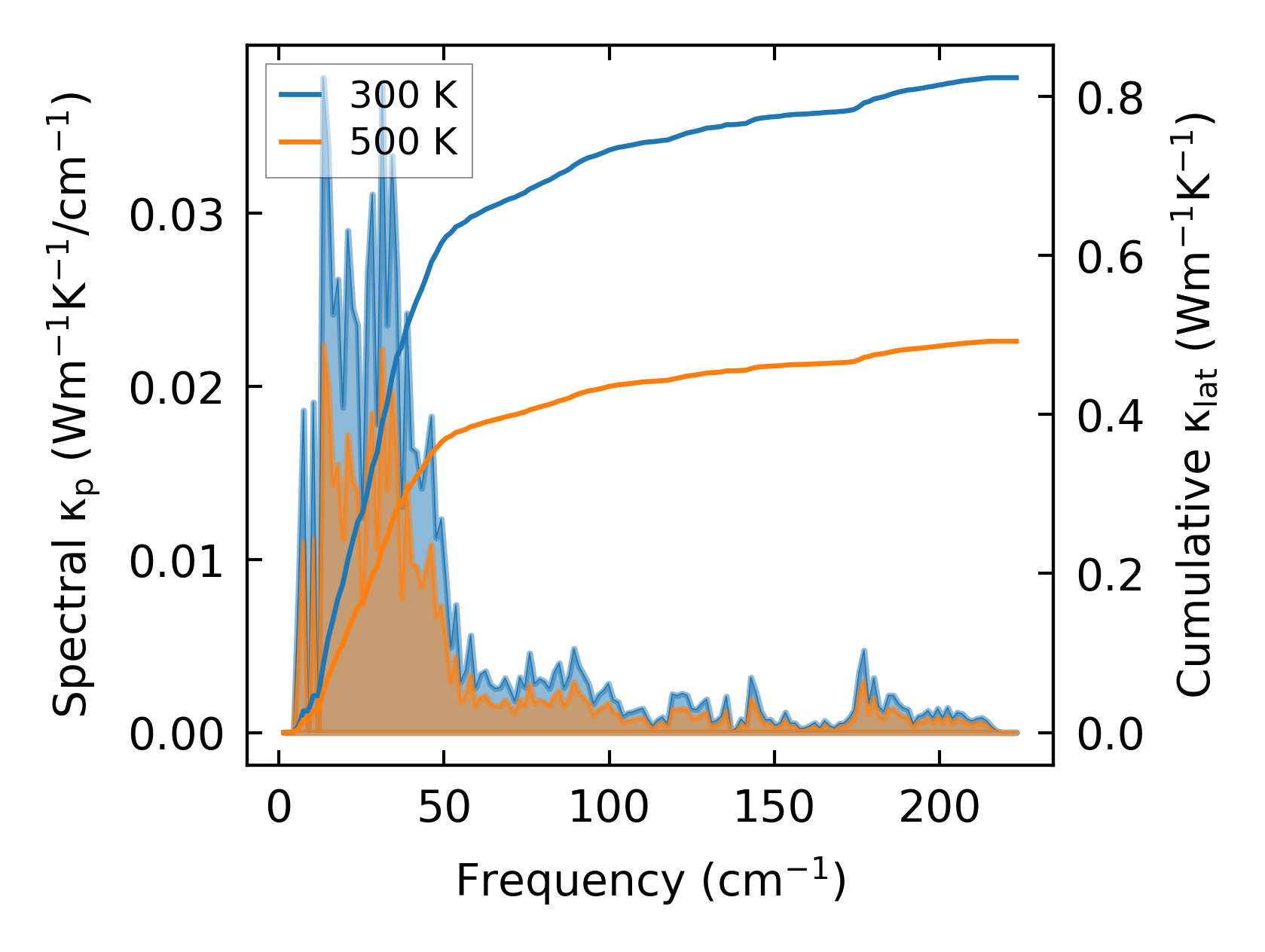

../../_images/fig_cumu_frequency5802.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

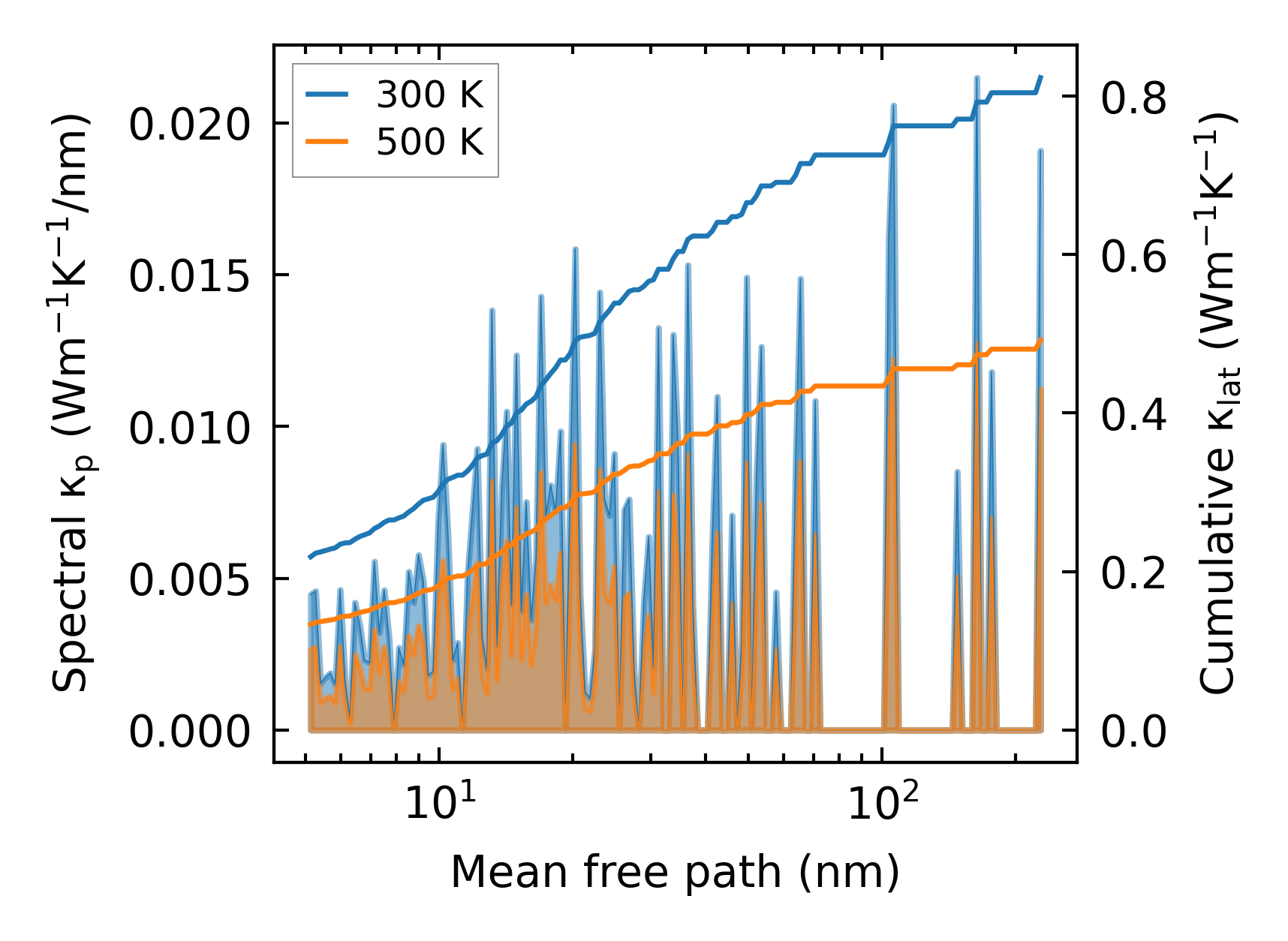

../../_images/fig_cumu_mfp5801.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213503.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11024.png — (a) Temperature-dependent lattice thermal conductivity

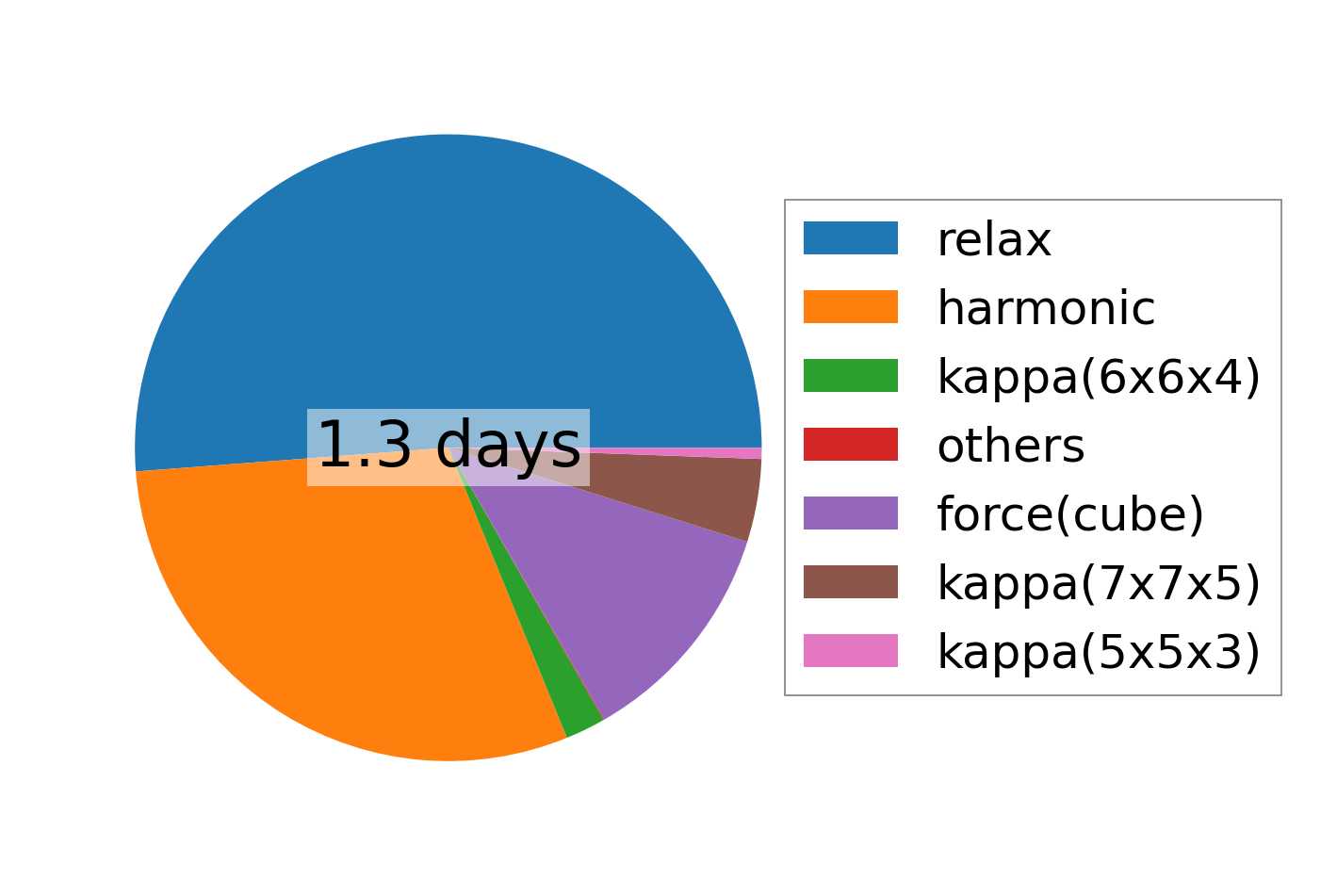

../../_images/fig_times23262.png — (b) Computation time
