mp-18008/Ba2HgS3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-18008.tar.gz

Harmonic properties

../../_images/fig_bandos_pr13750.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13750.png — (b) Thermodynamic properties

Grüneisen parameters

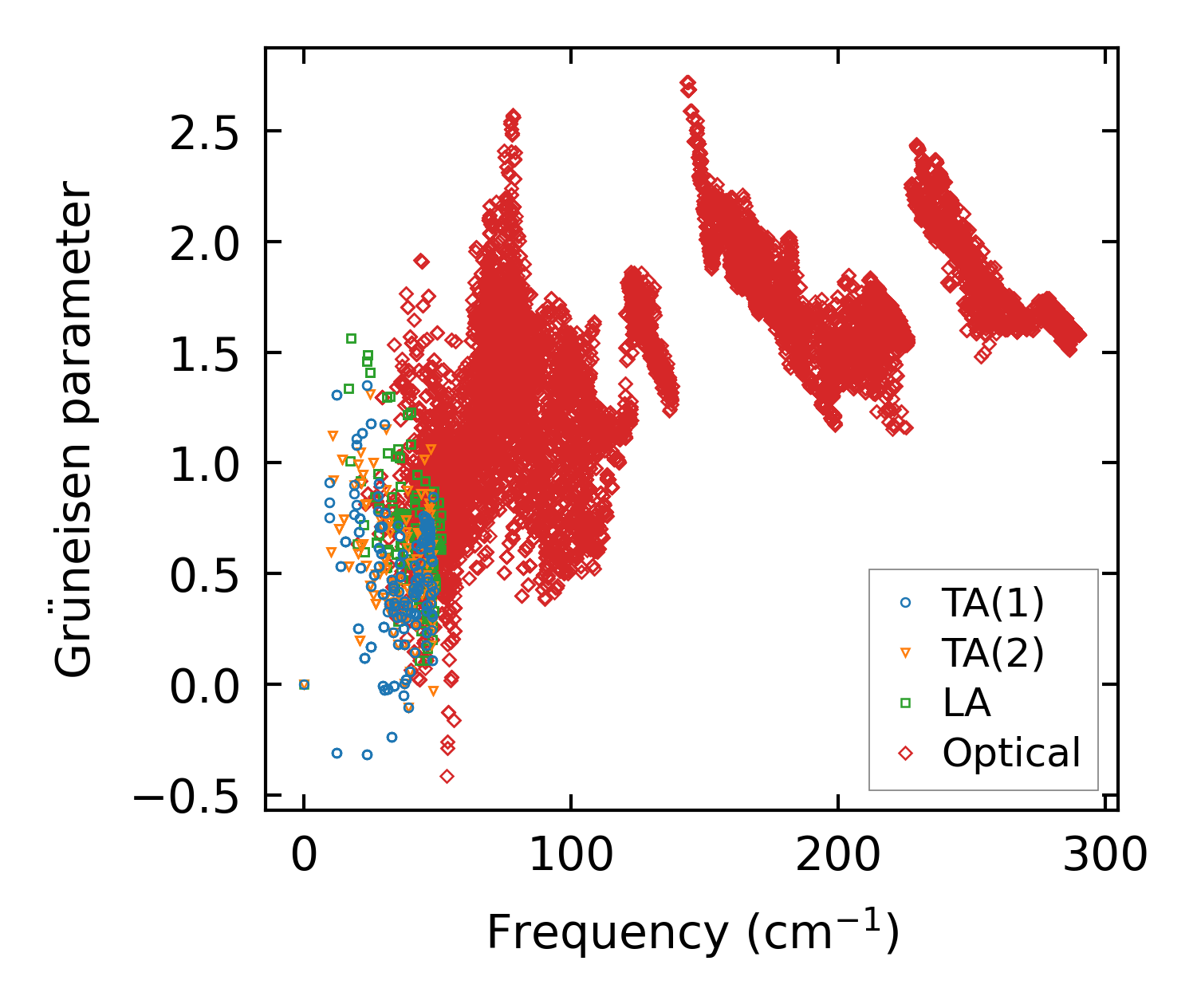

../../_images/fig_gru_all5794.png — (a) Grüneisen parameters

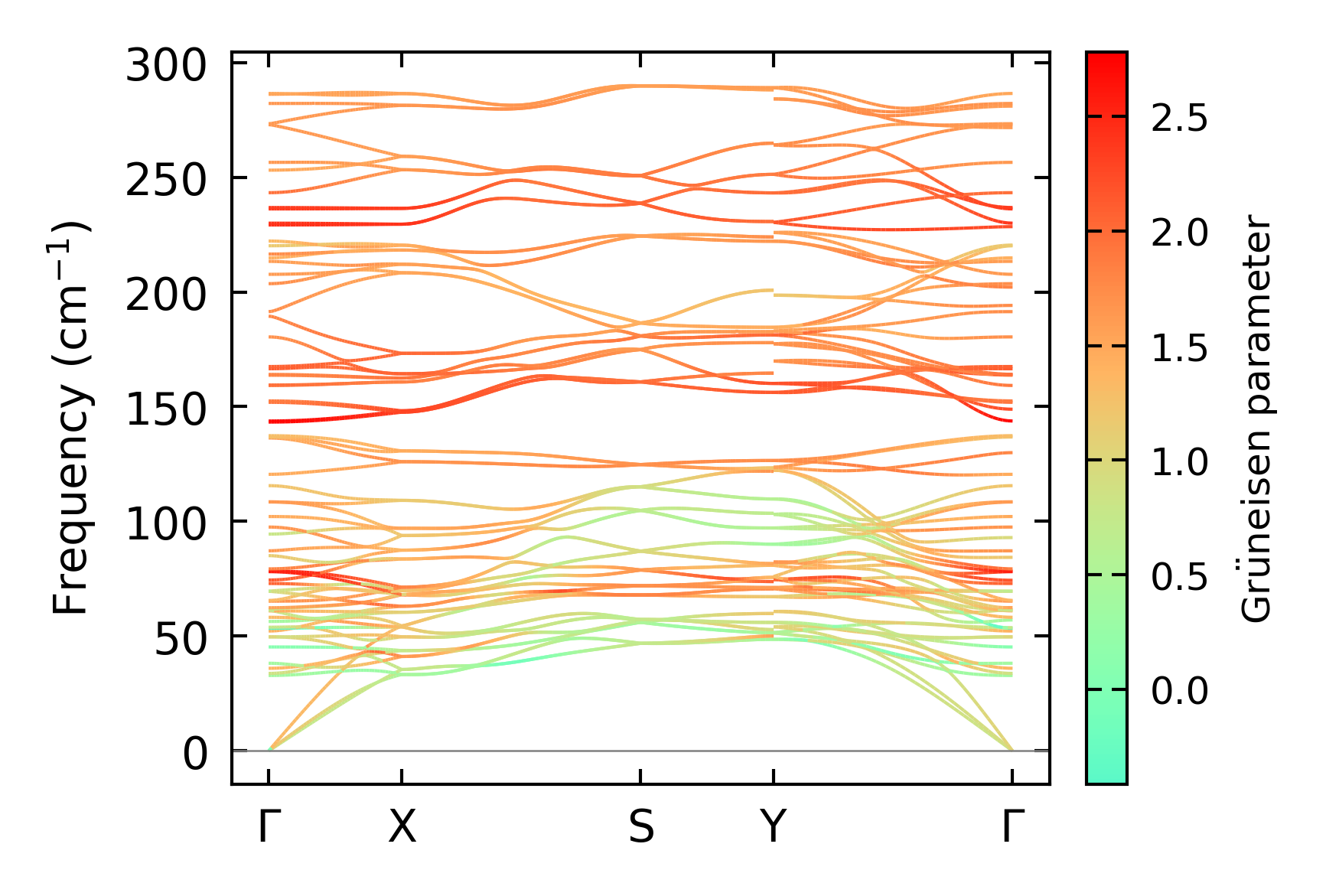

../../_images/fig_gruneisen5794.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x16x4, supercell: 2x3x1

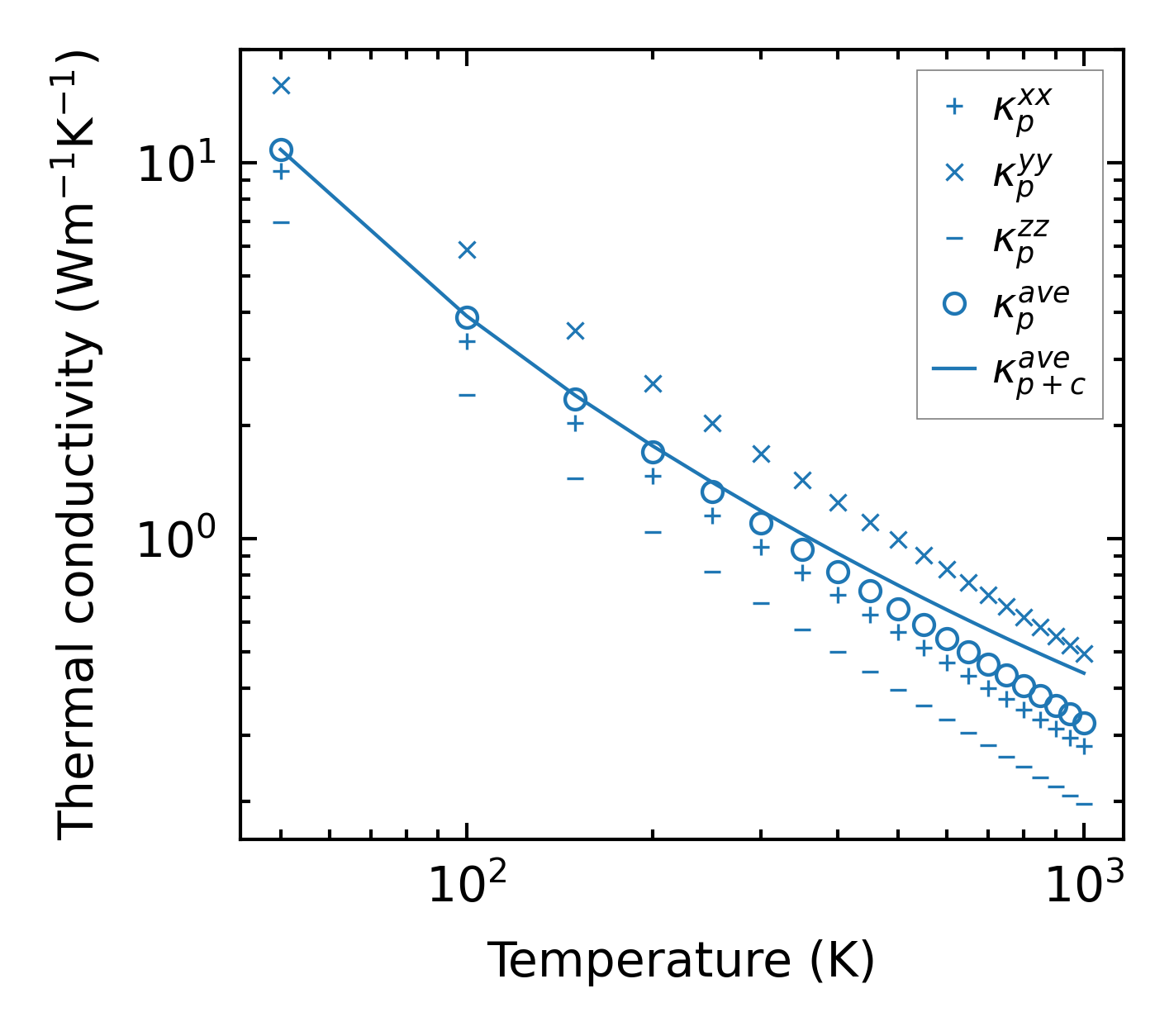

../../_images/fig_kappa10894.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5864.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

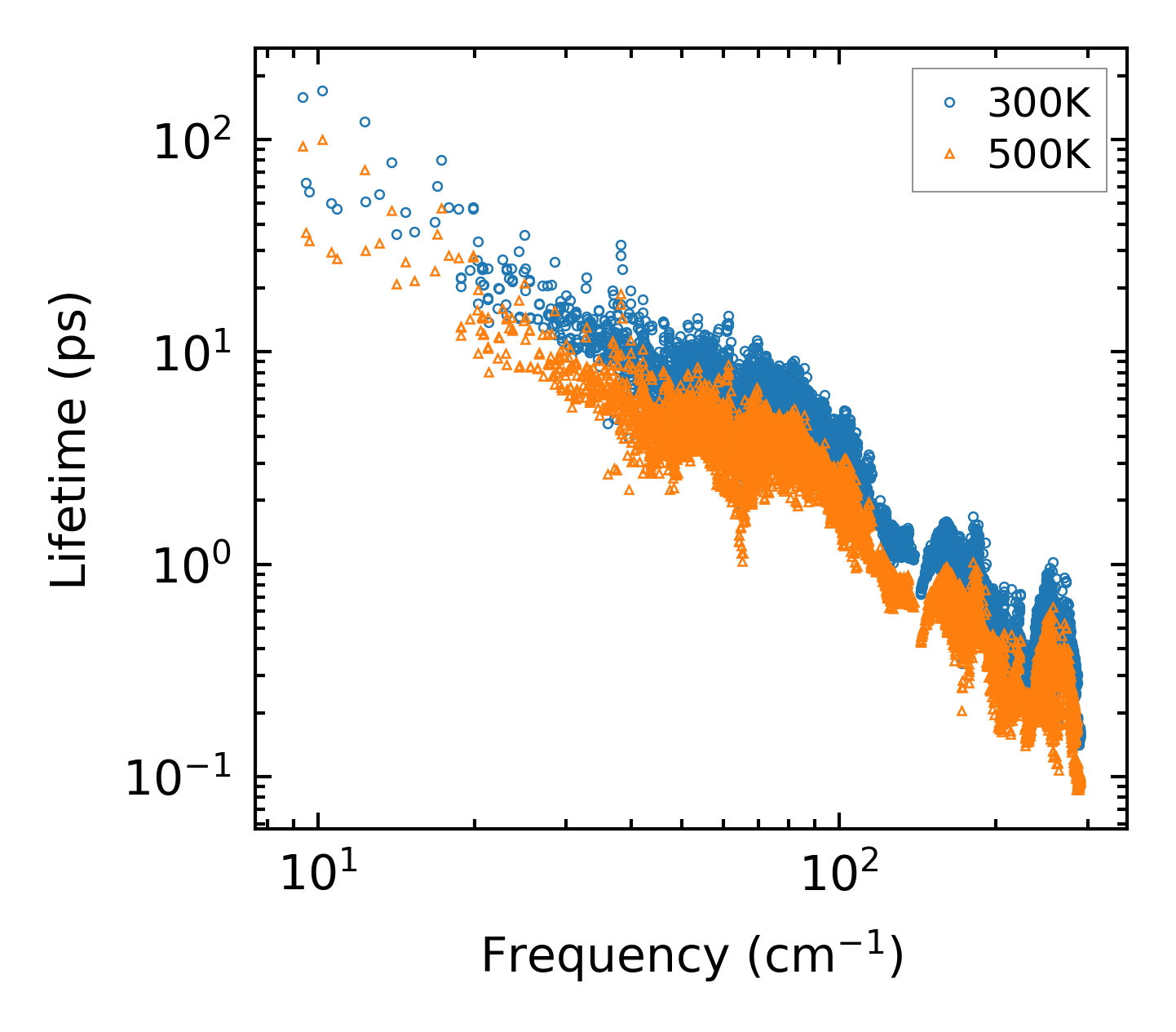

../../_images/fig_lifetime5738.png — (a) Phonon lifetime due to phonon-phonon scattering

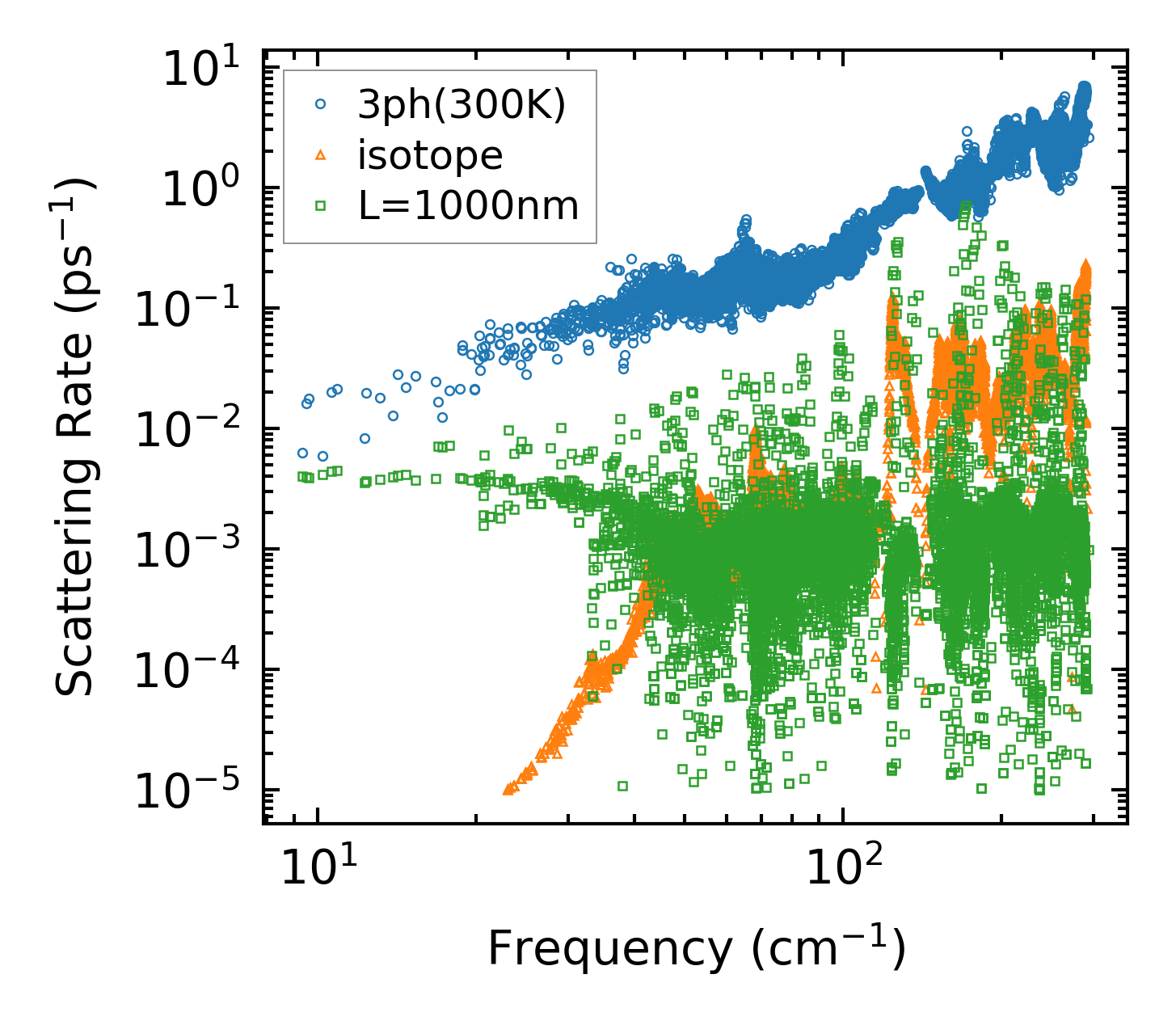

../../_images/fig_scat_rates5737.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

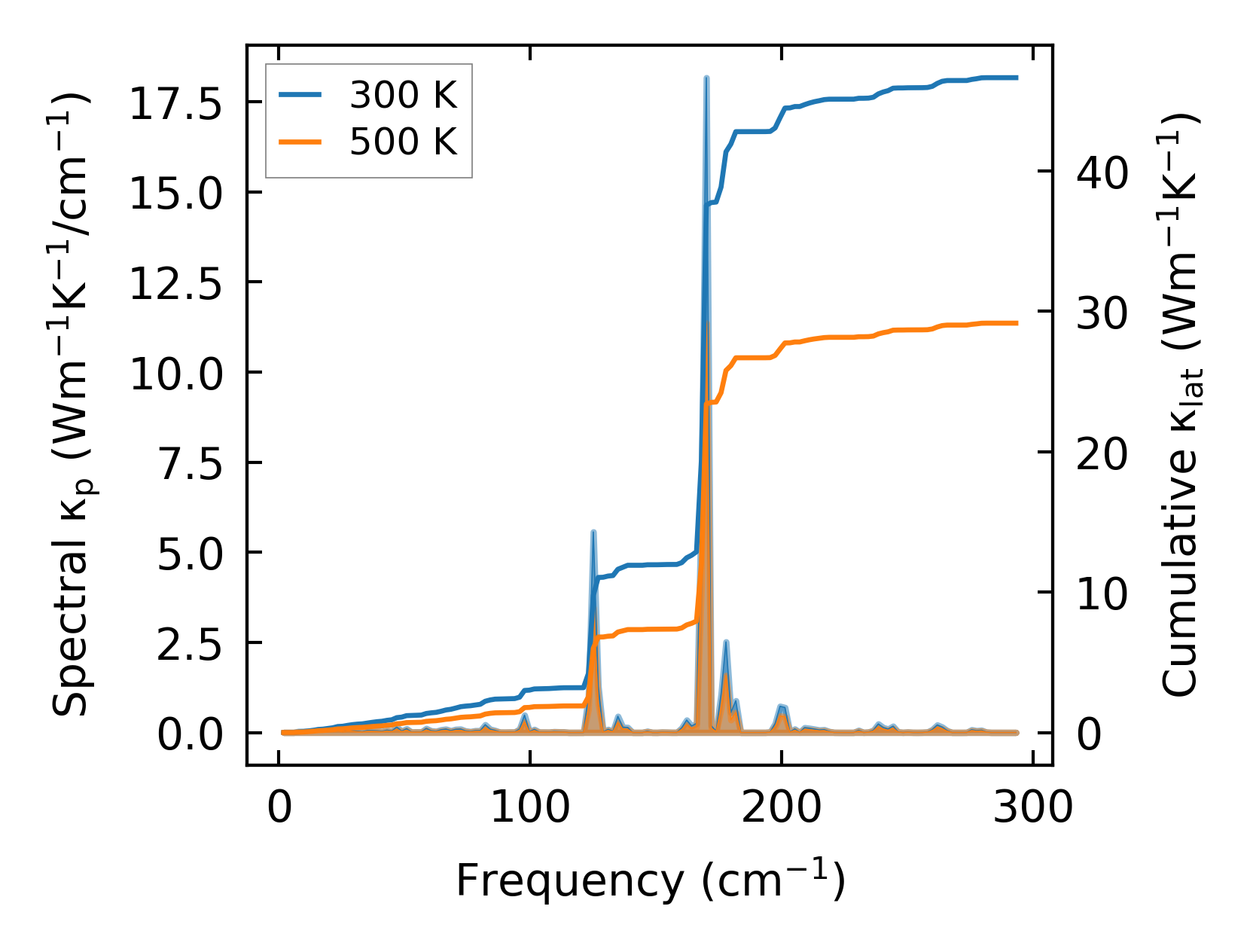

../../_images/fig_cumu_frequency5738.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

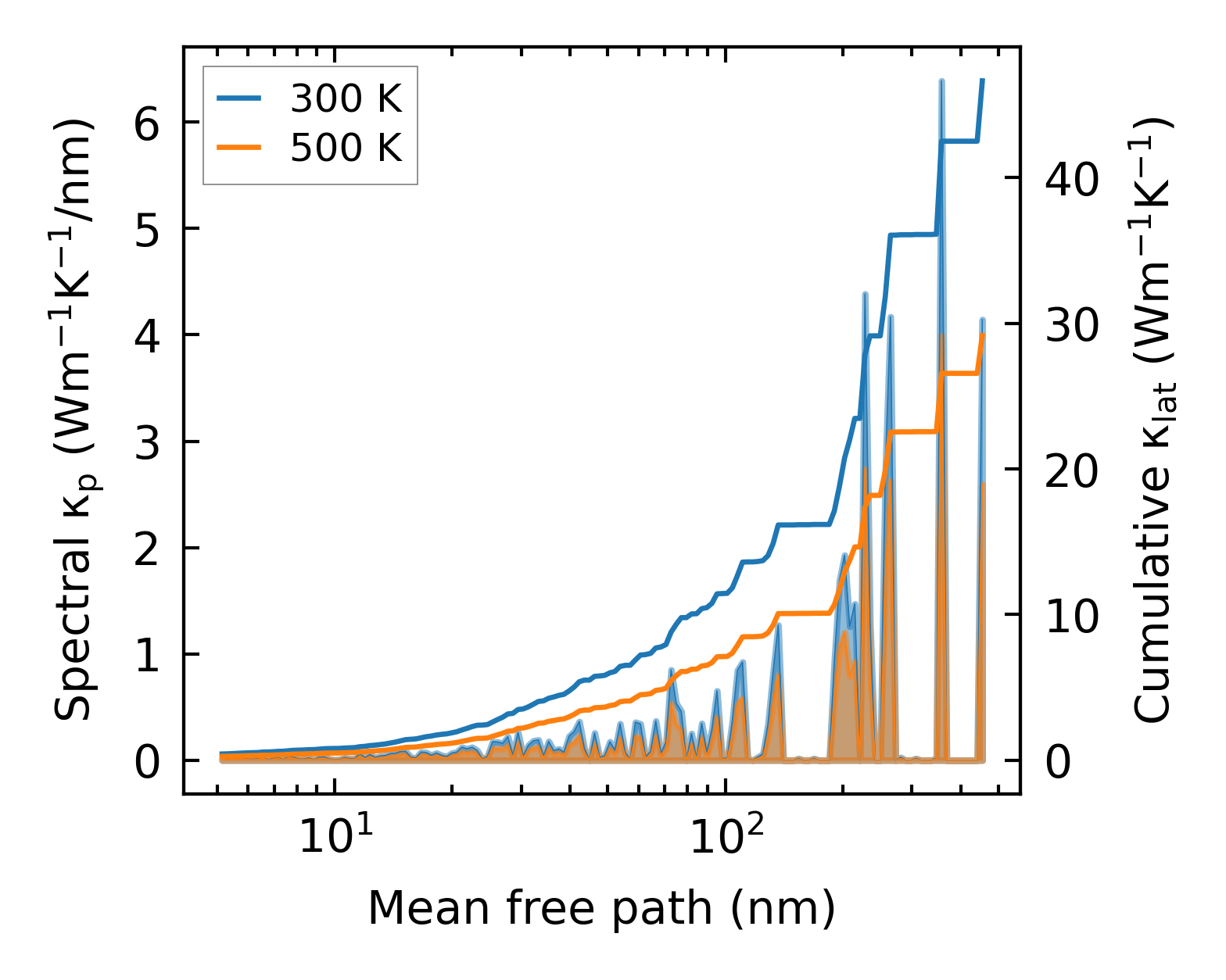

../../_images/fig_cumu_mfp5737.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

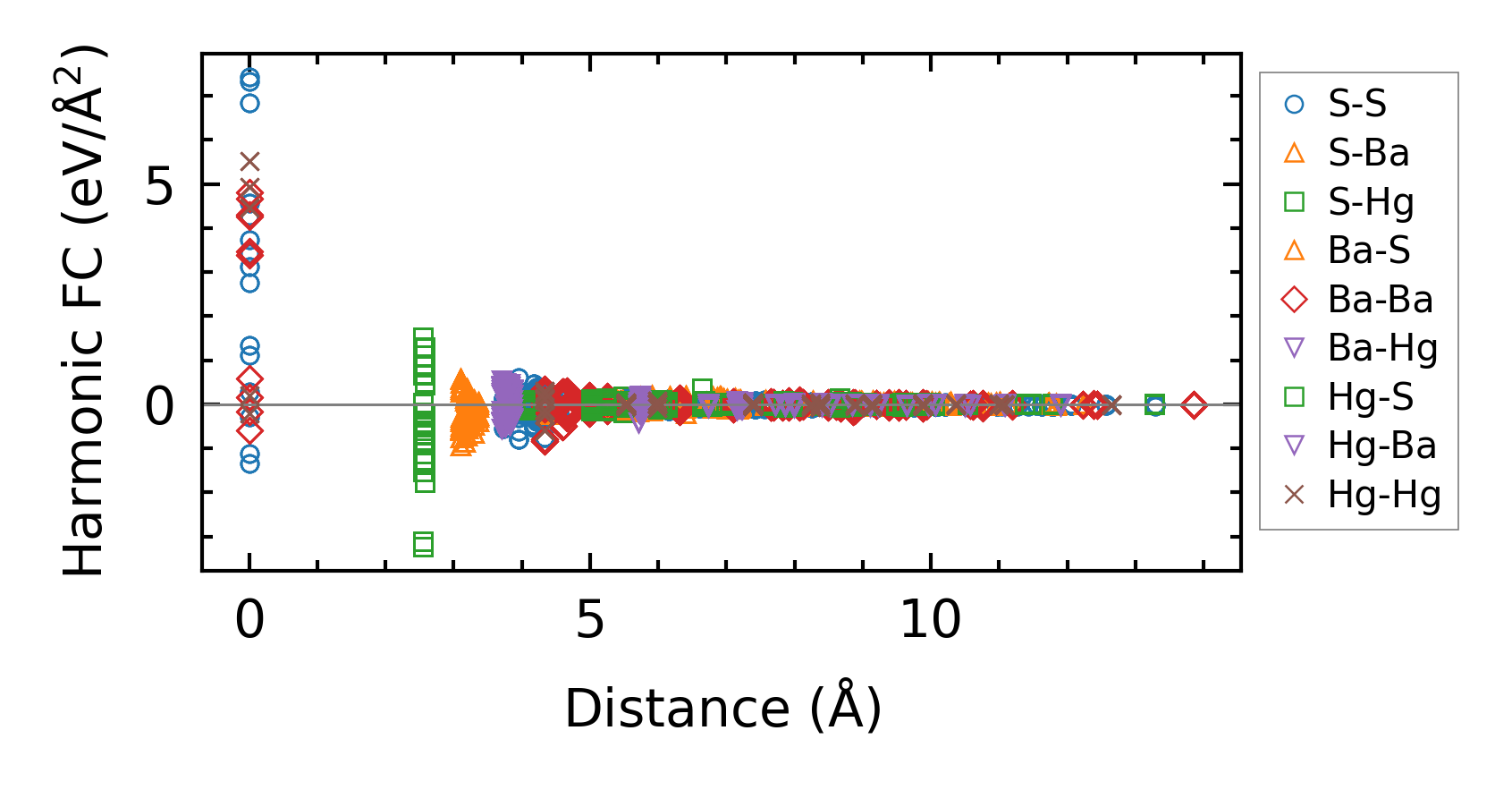

../../_images/fig_fc213378.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10895.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23059.png — (b) Computation time
