mp-18253/SrGa4O7/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-18253.tar.gz

Equation of state

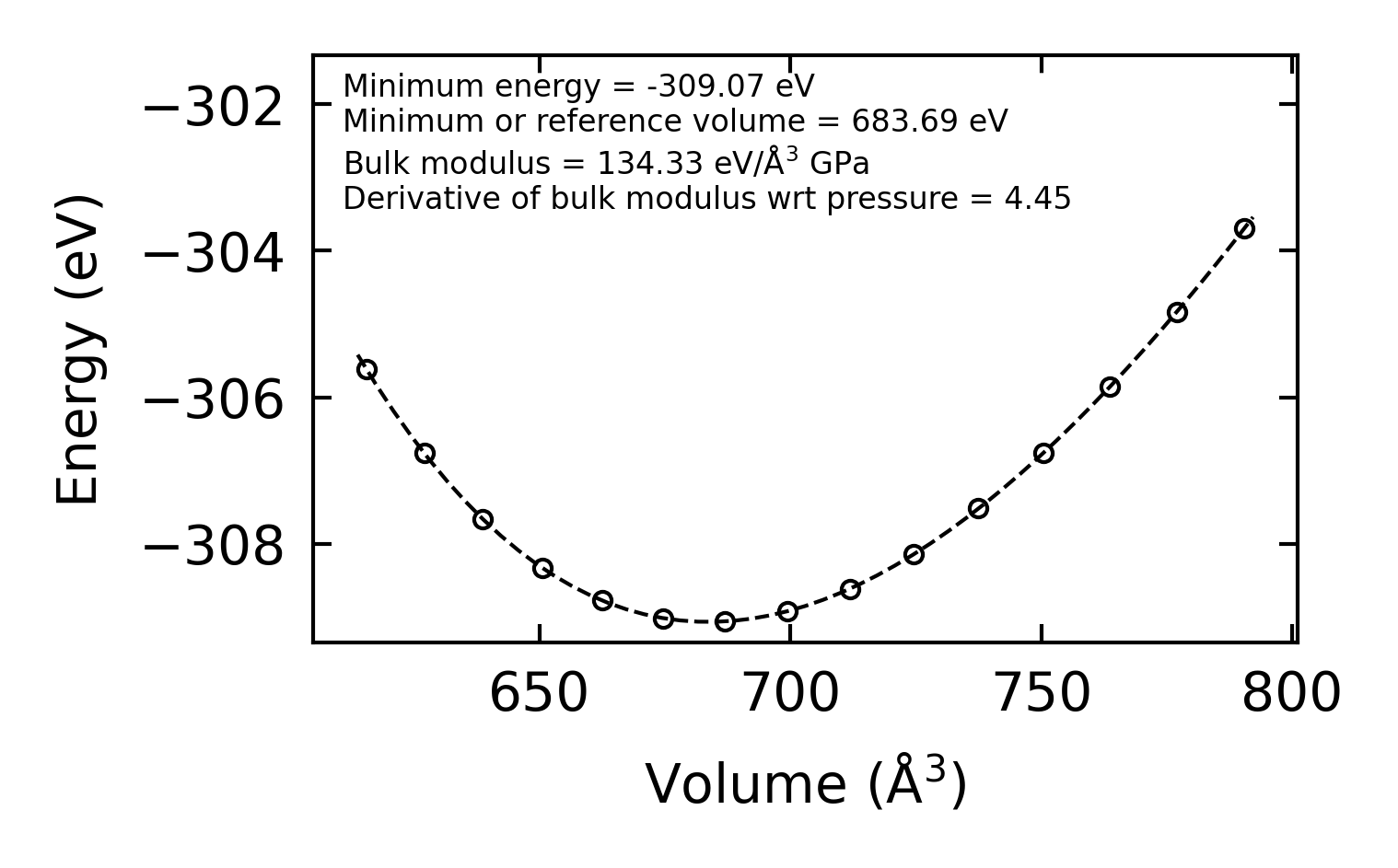

../../_images/fig_bm6916.png — (a) Equation of state

Harmonic properties

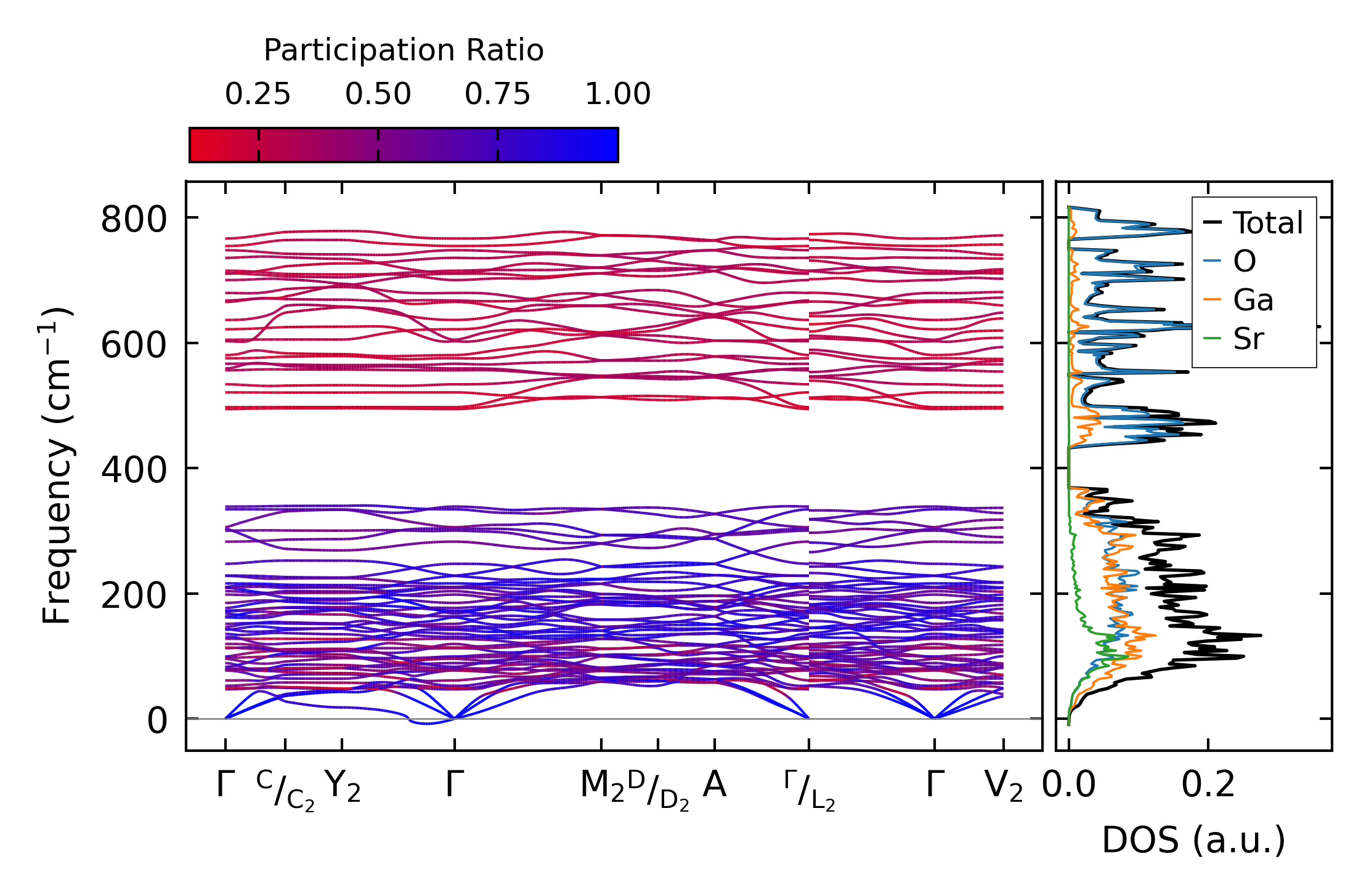

../../_images/fig_bandos_pr13821.png — (a) Phonon dispersion with participation ratio and DOS

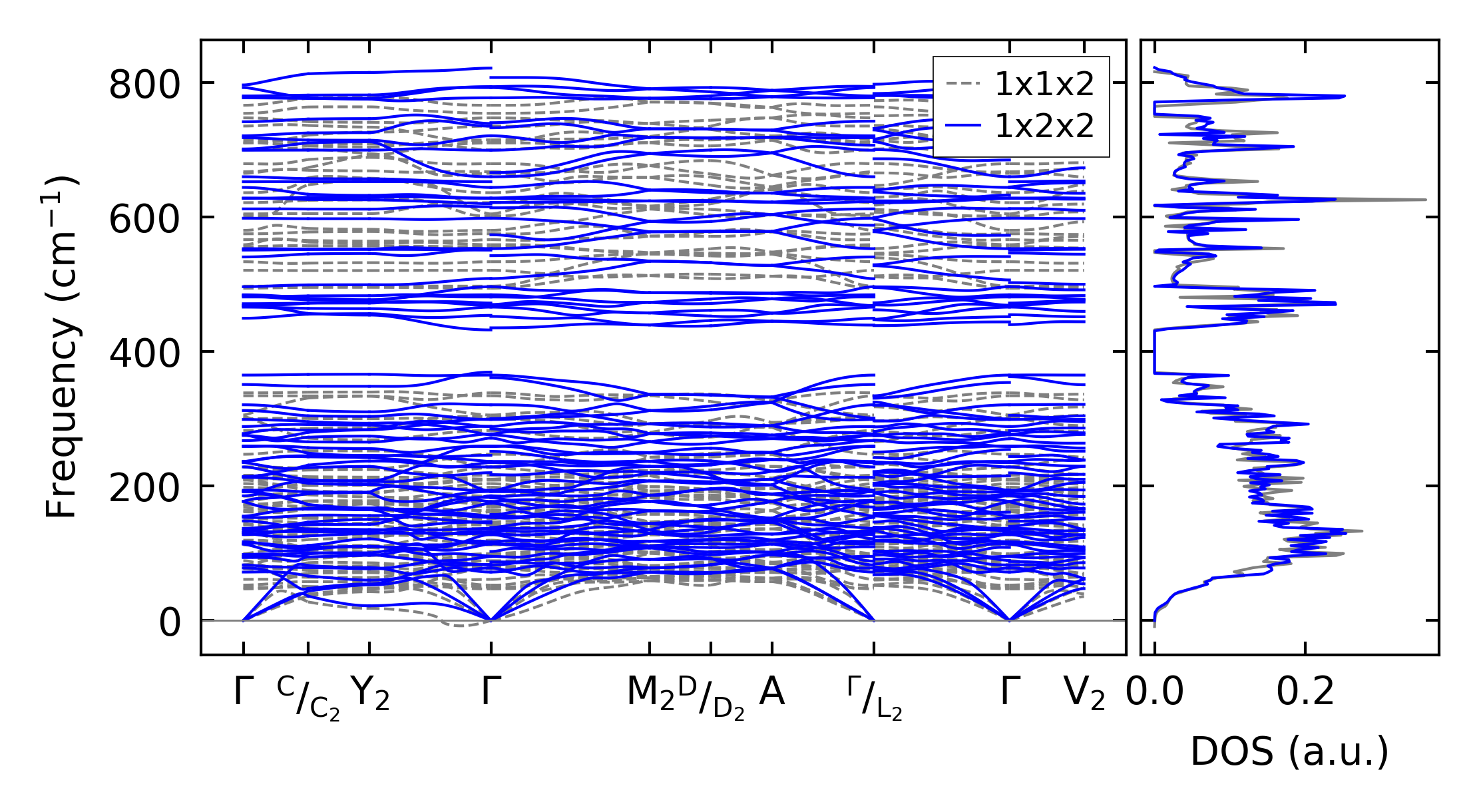

../../_images/fig_bandos18215.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13821.png — (c) Thermodynamic properties

Grüneisen parameters

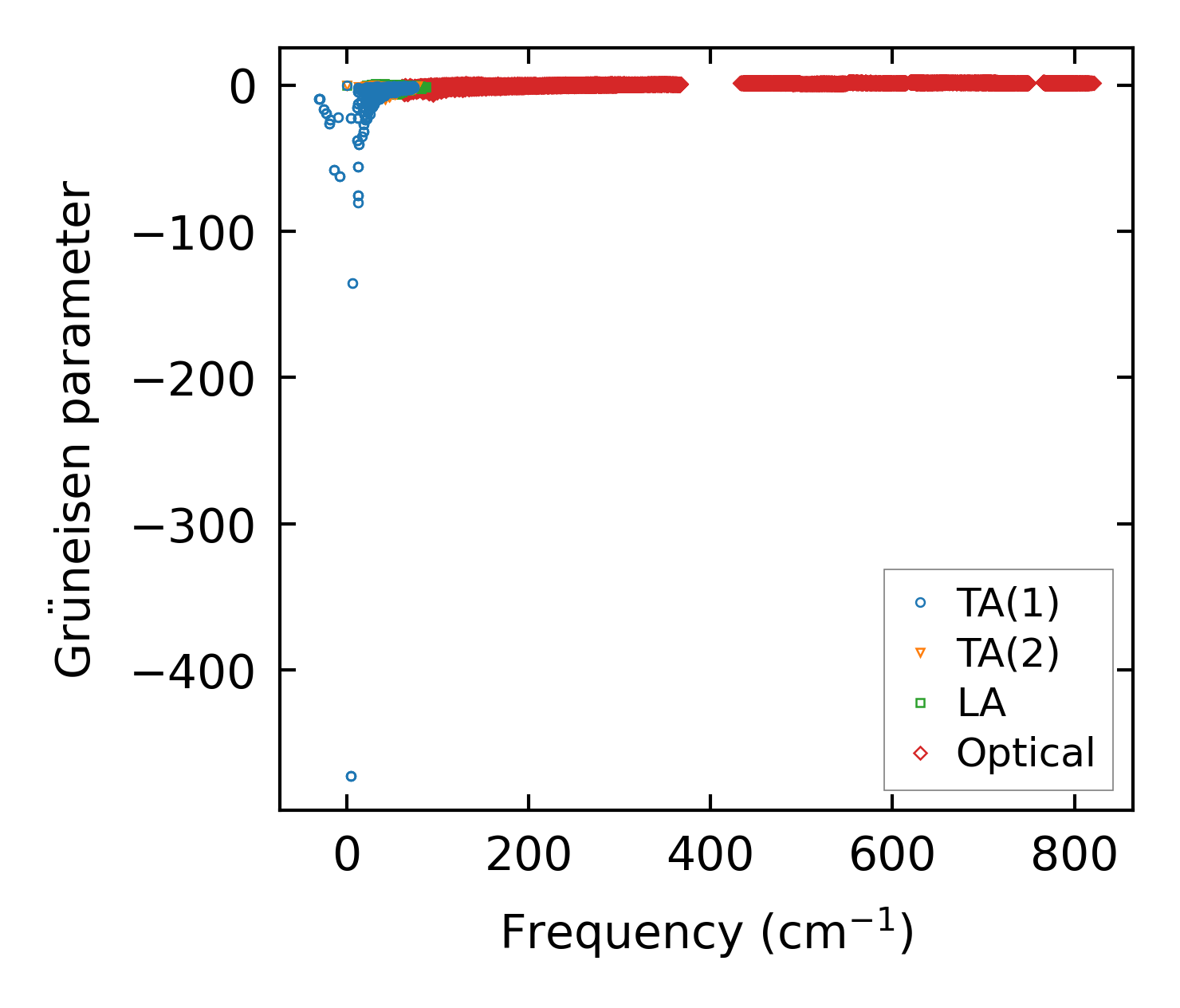

../../_images/fig_gru_all5831.png — (a) Grüneisen parameters

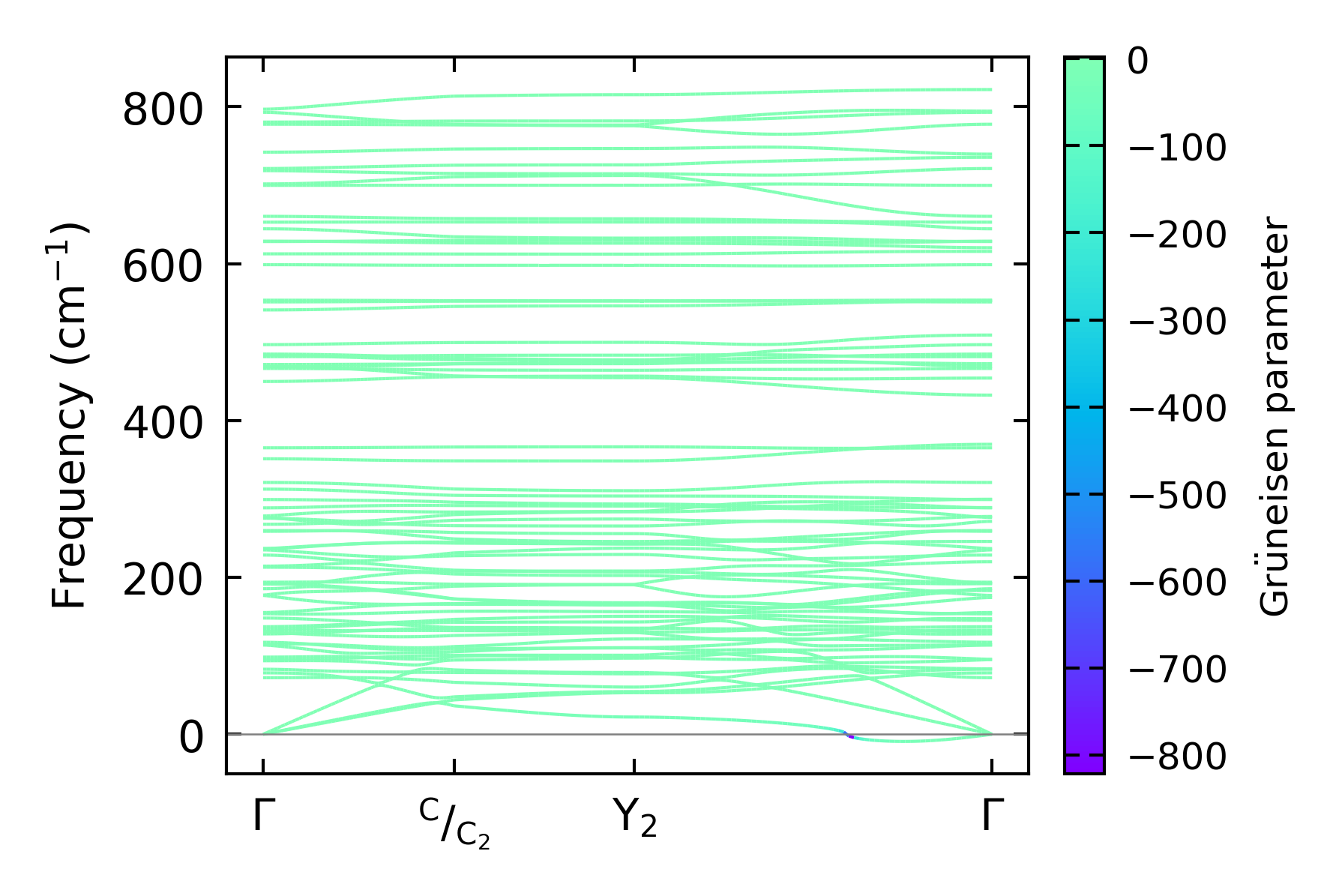

../../_images/fig_gruneisen5831.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x2 — q-mesh: 9x9x13, supercell: 1x2x2

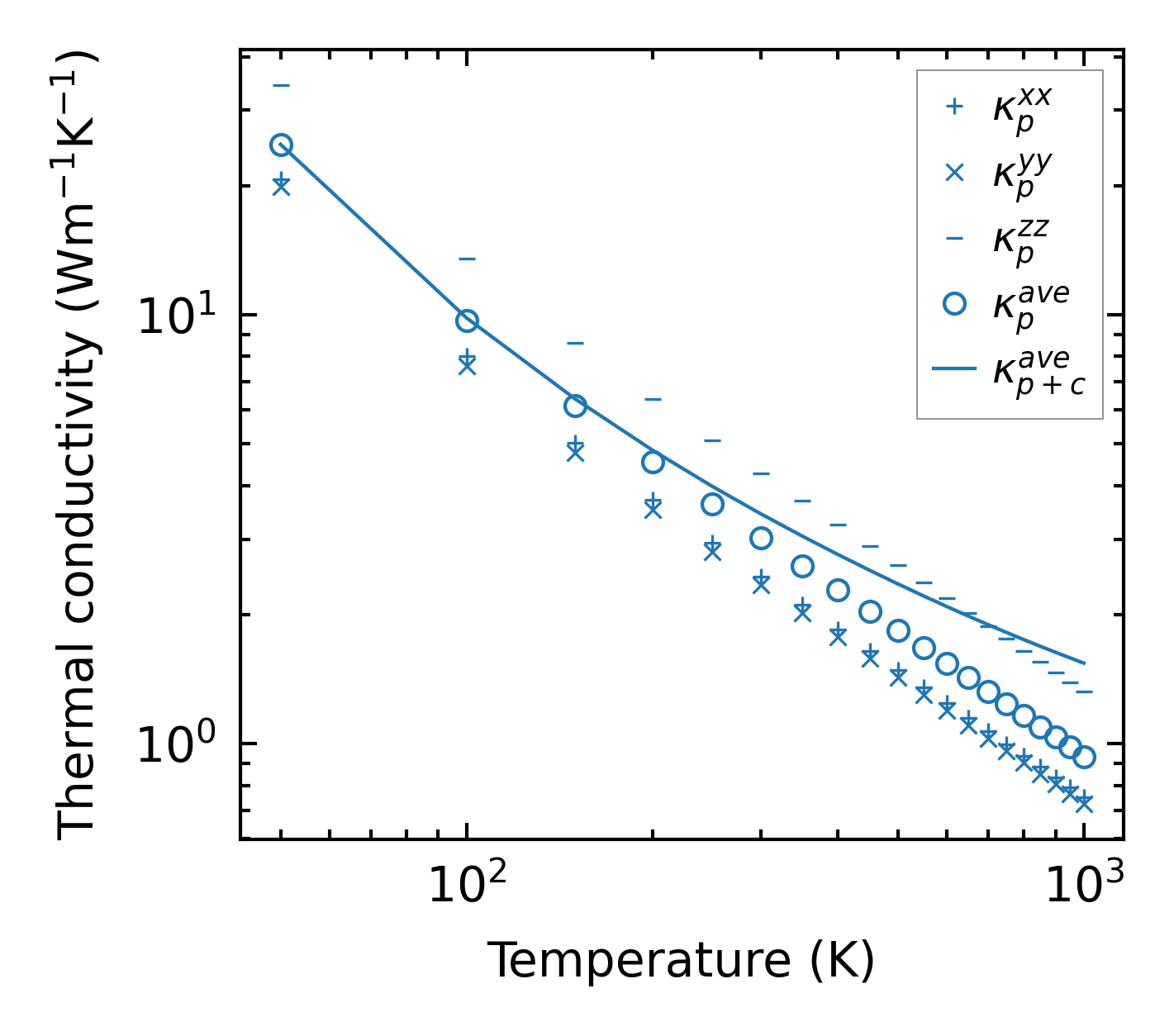

../../_images/fig_kappa10965.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5902.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5774.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5773.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

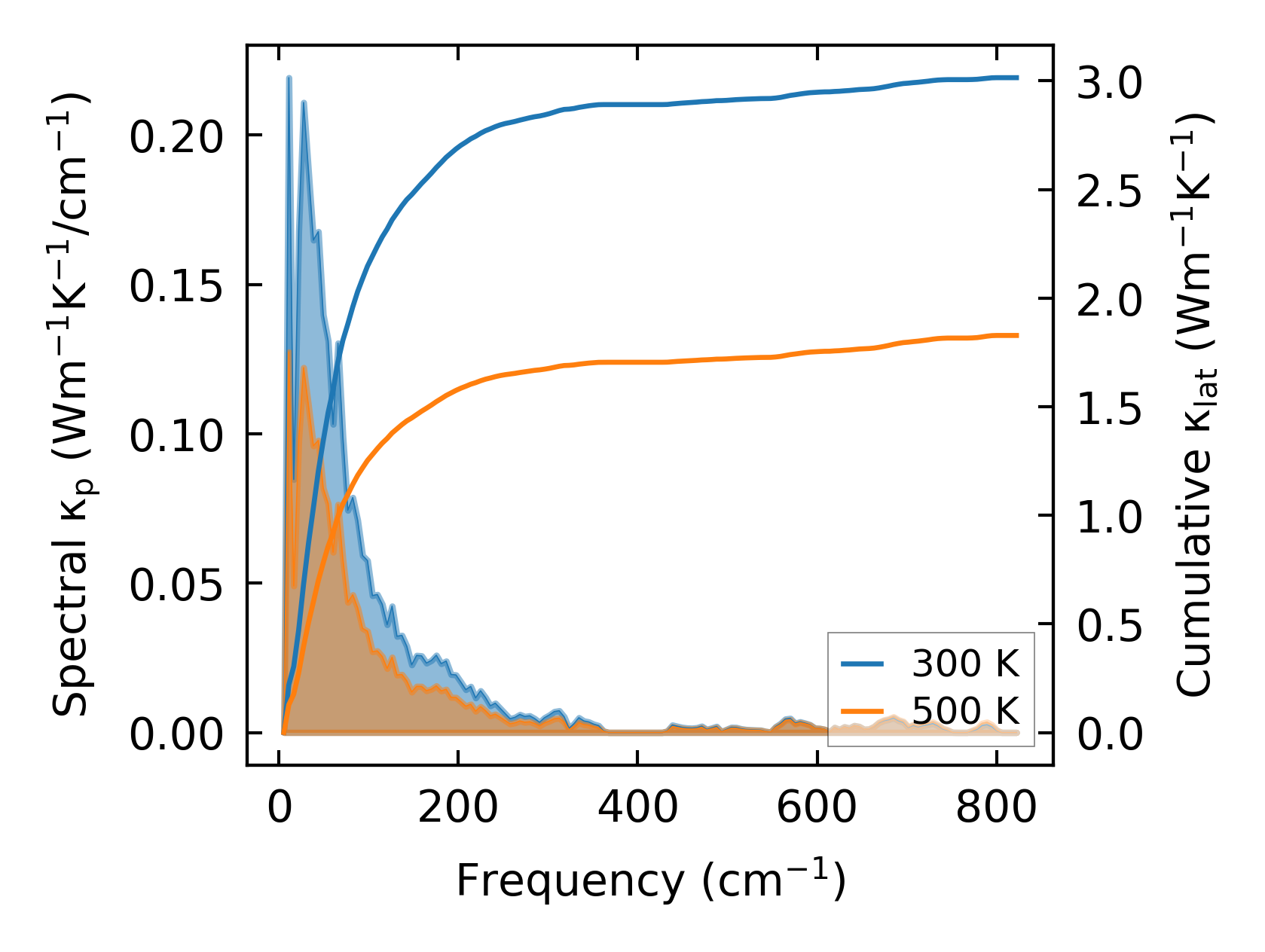

../../_images/fig_cumu_frequency5774.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5773.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213449.png — (a) Force constants w.r.t atomic distance

Summary

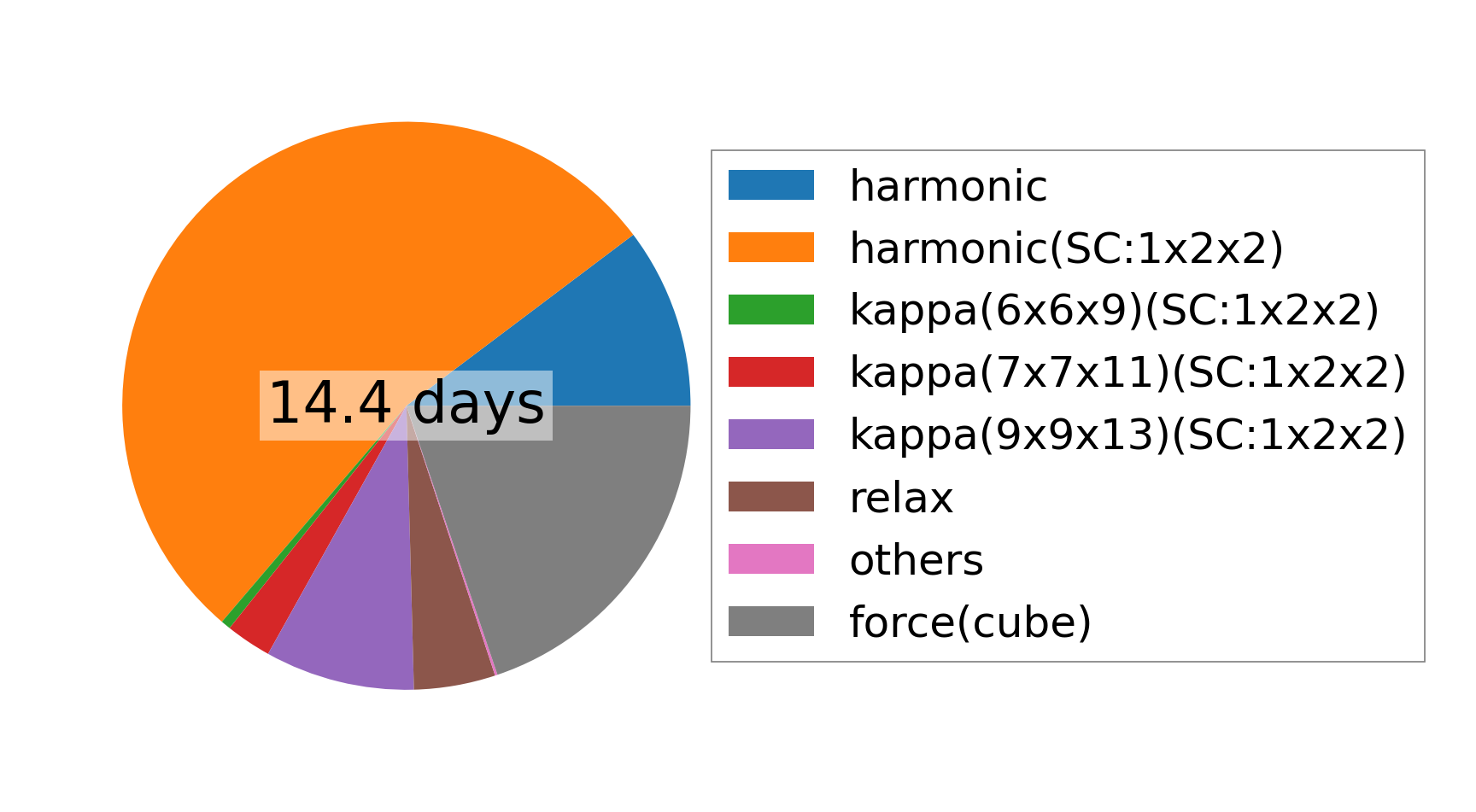

../../_images/fig_times23178.png — (a) Computation time
