mp-18084/BaTb2ZnO5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-18084.tar.gz

Harmonic properties

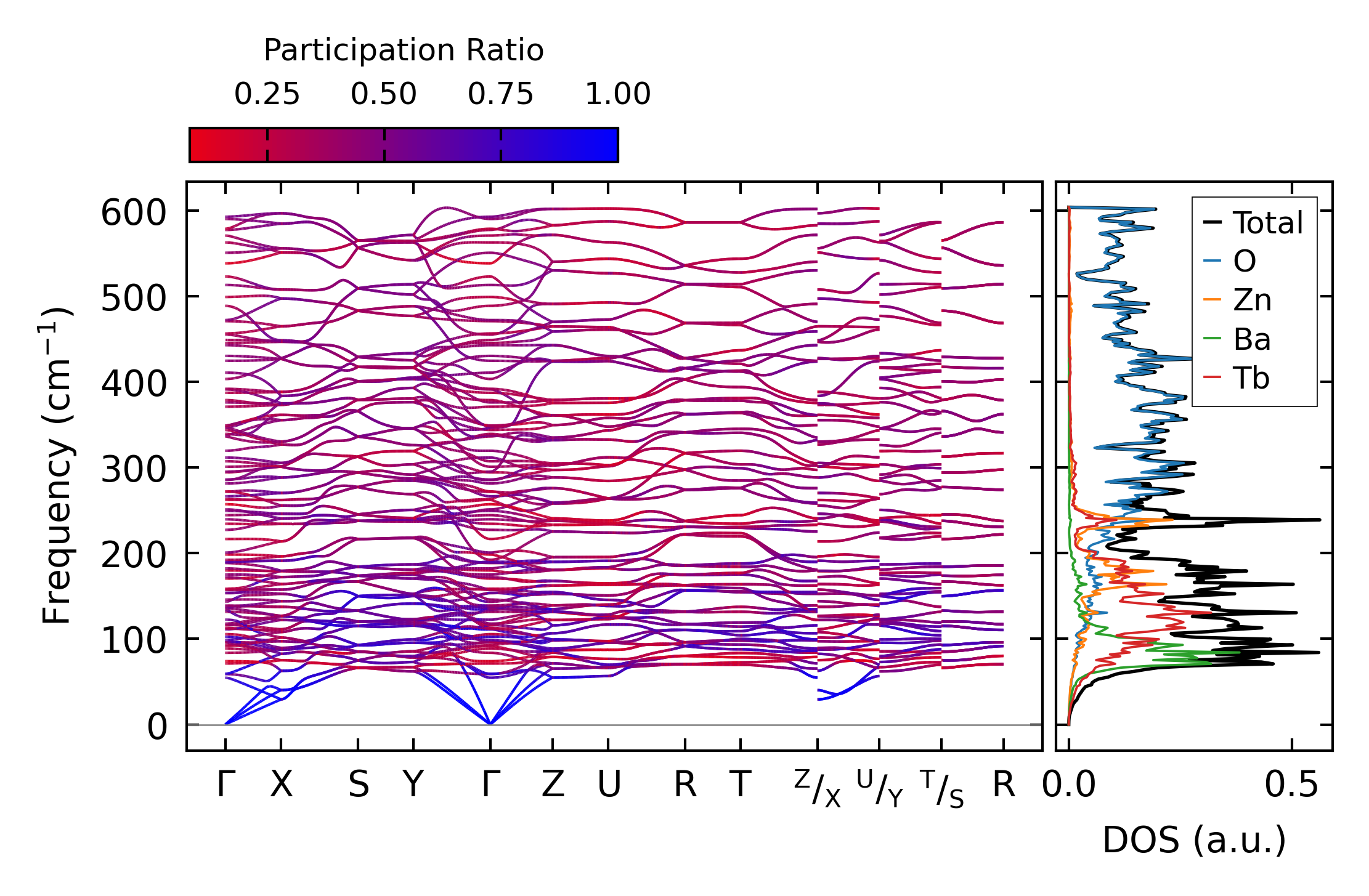

../../_images/fig_bandos_pr13768.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13768.png — (b) Thermodynamic properties

Grüneisen parameters

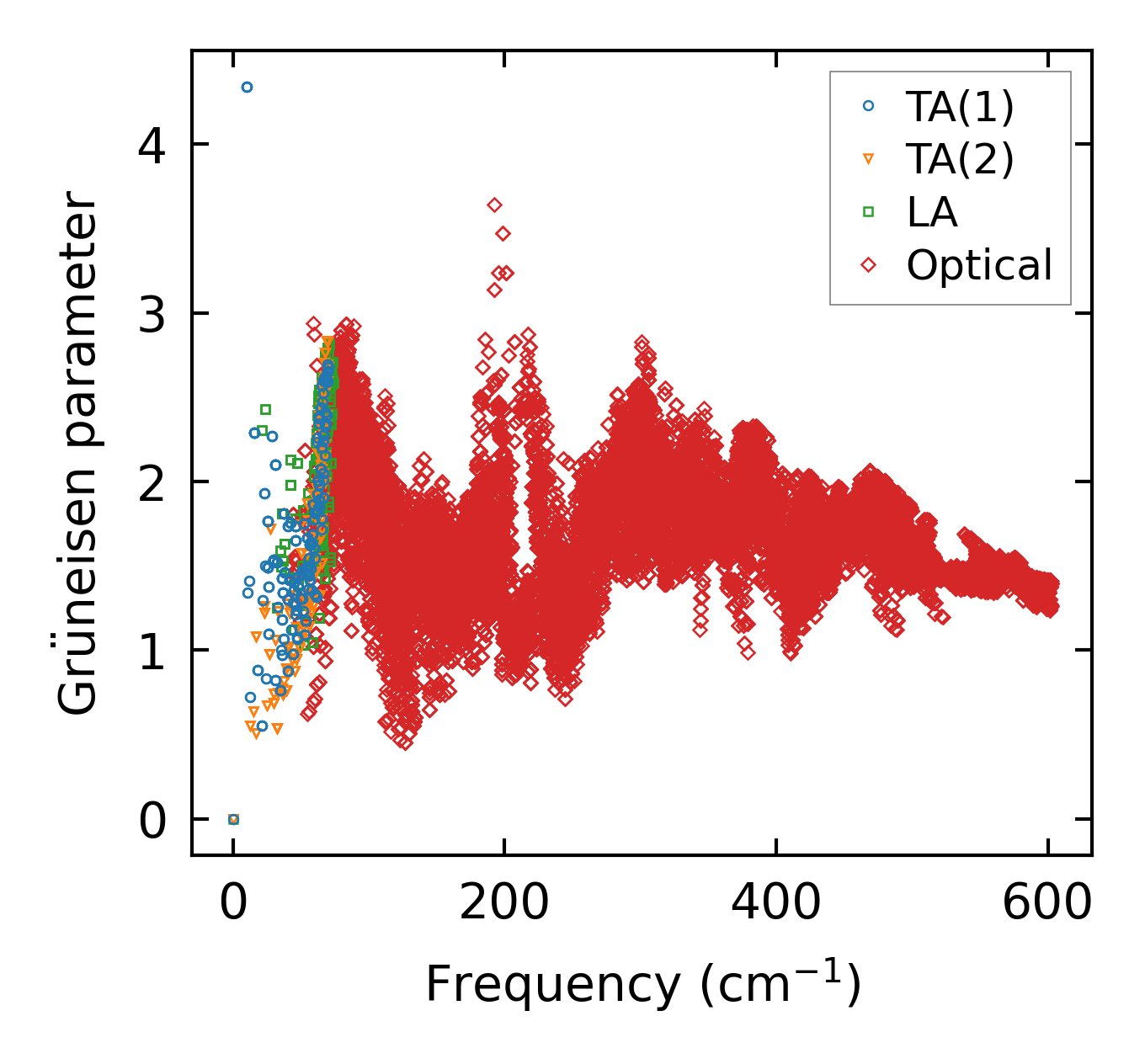

../../_images/fig_gru_all5802.png — (a) Grüneisen parameters

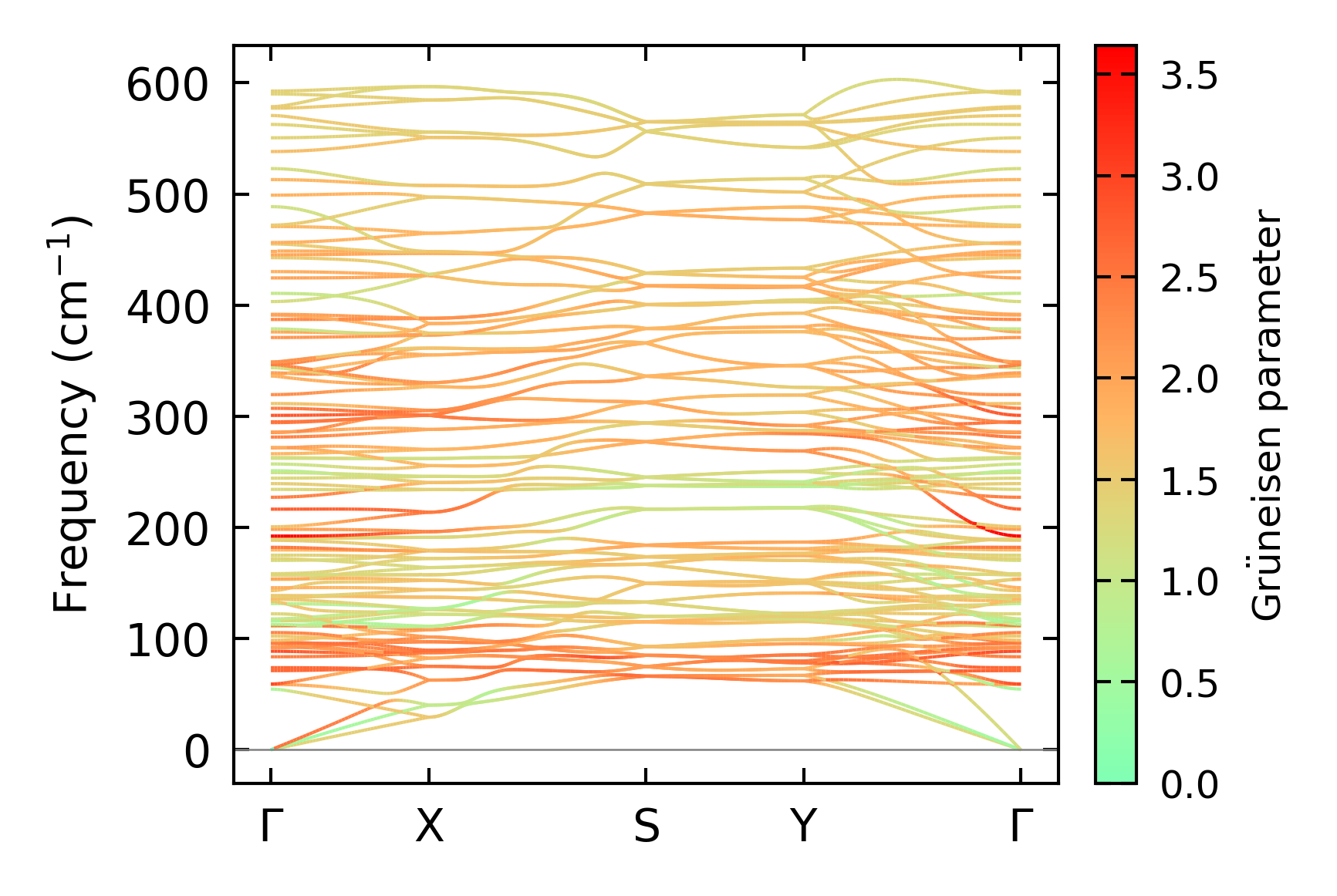

../../_images/fig_gruneisen5802.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x12x10, supercell: 1x2x2

../../_images/fig_kappa10909.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5872.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

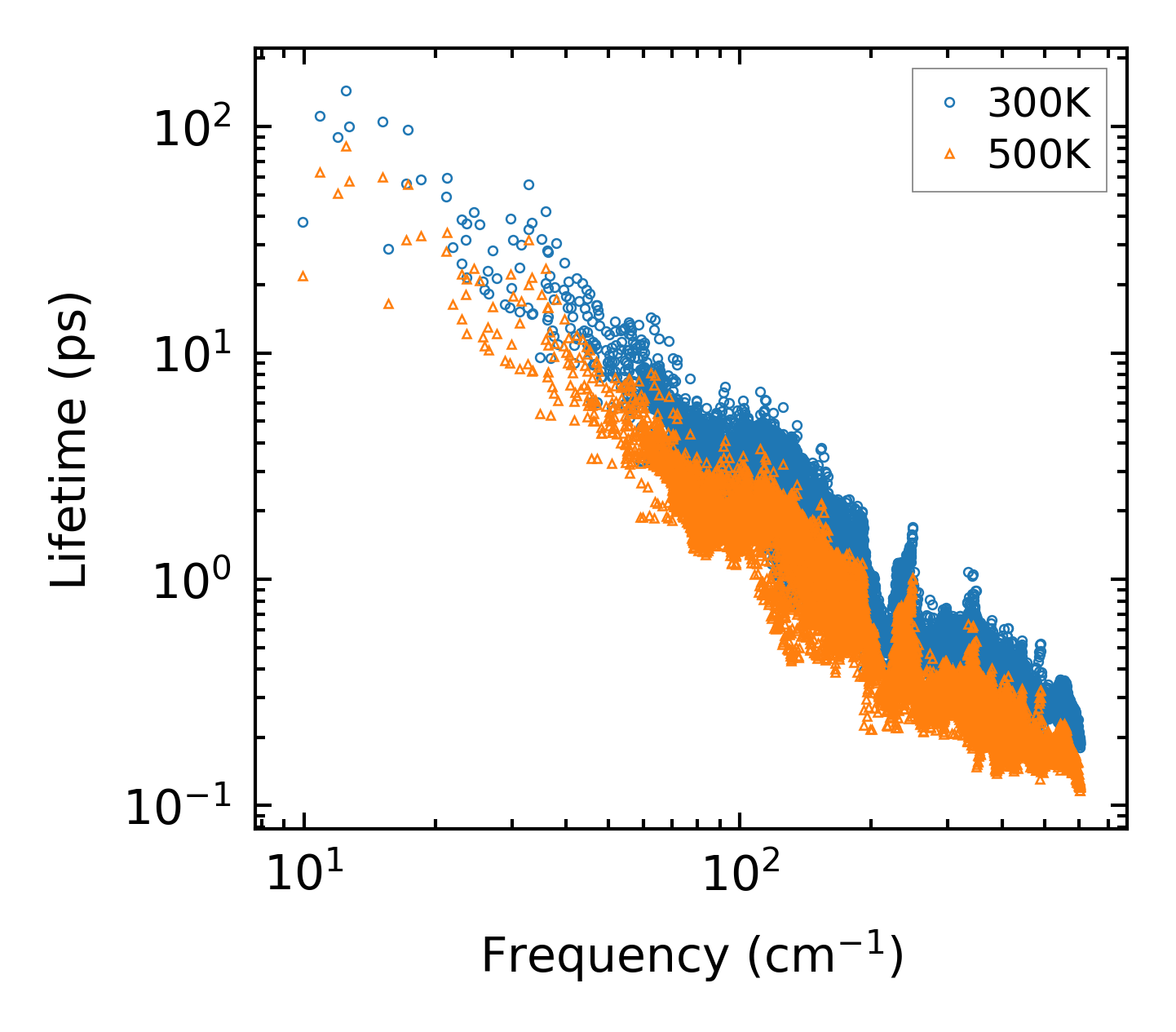

../../_images/fig_lifetime5746.png — (a) Phonon lifetime due to phonon-phonon scattering

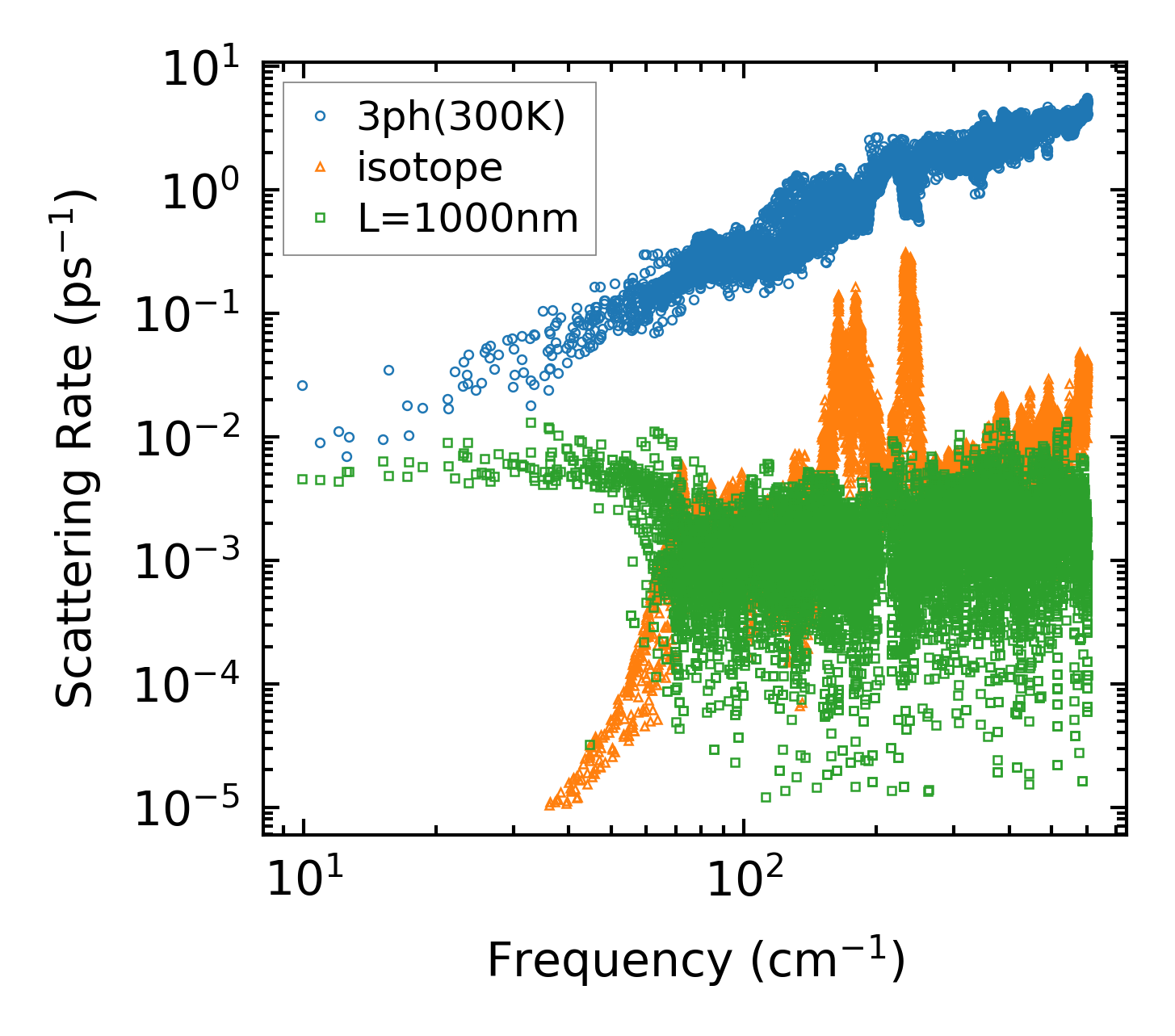

../../_images/fig_scat_rates5745.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5746.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

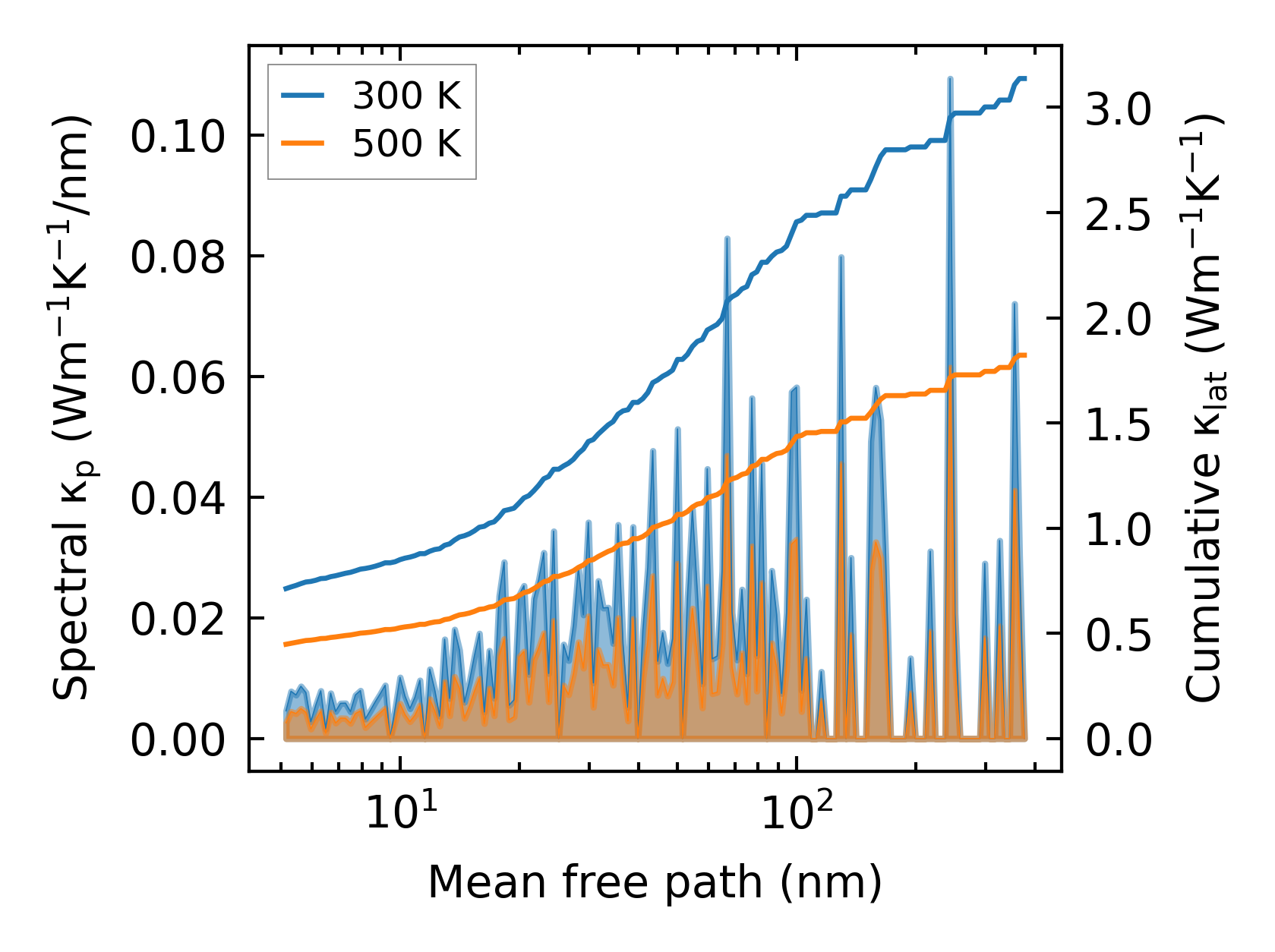

../../_images/fig_cumu_mfp5745.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

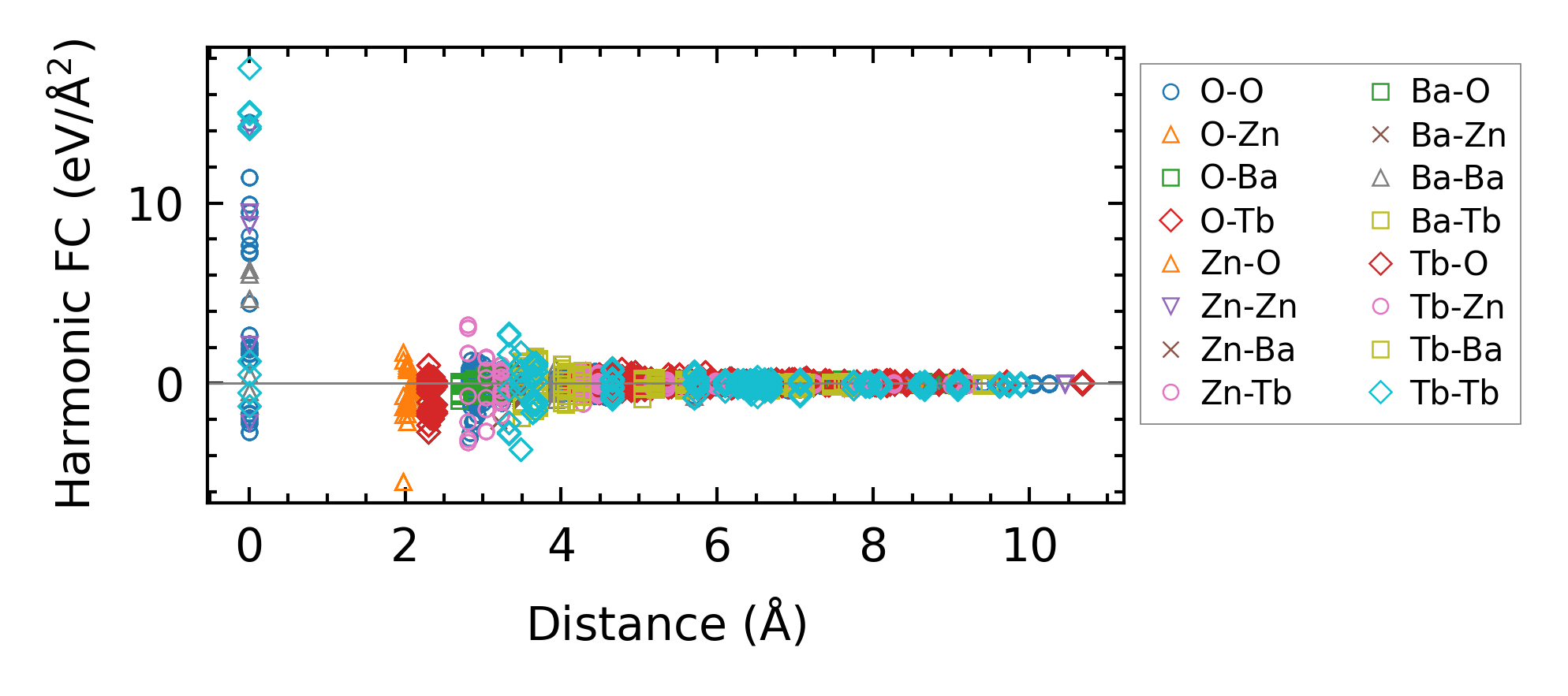

../../_images/fig_fc213396.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10910.png — (a) Temperature-dependent lattice thermal conductivity

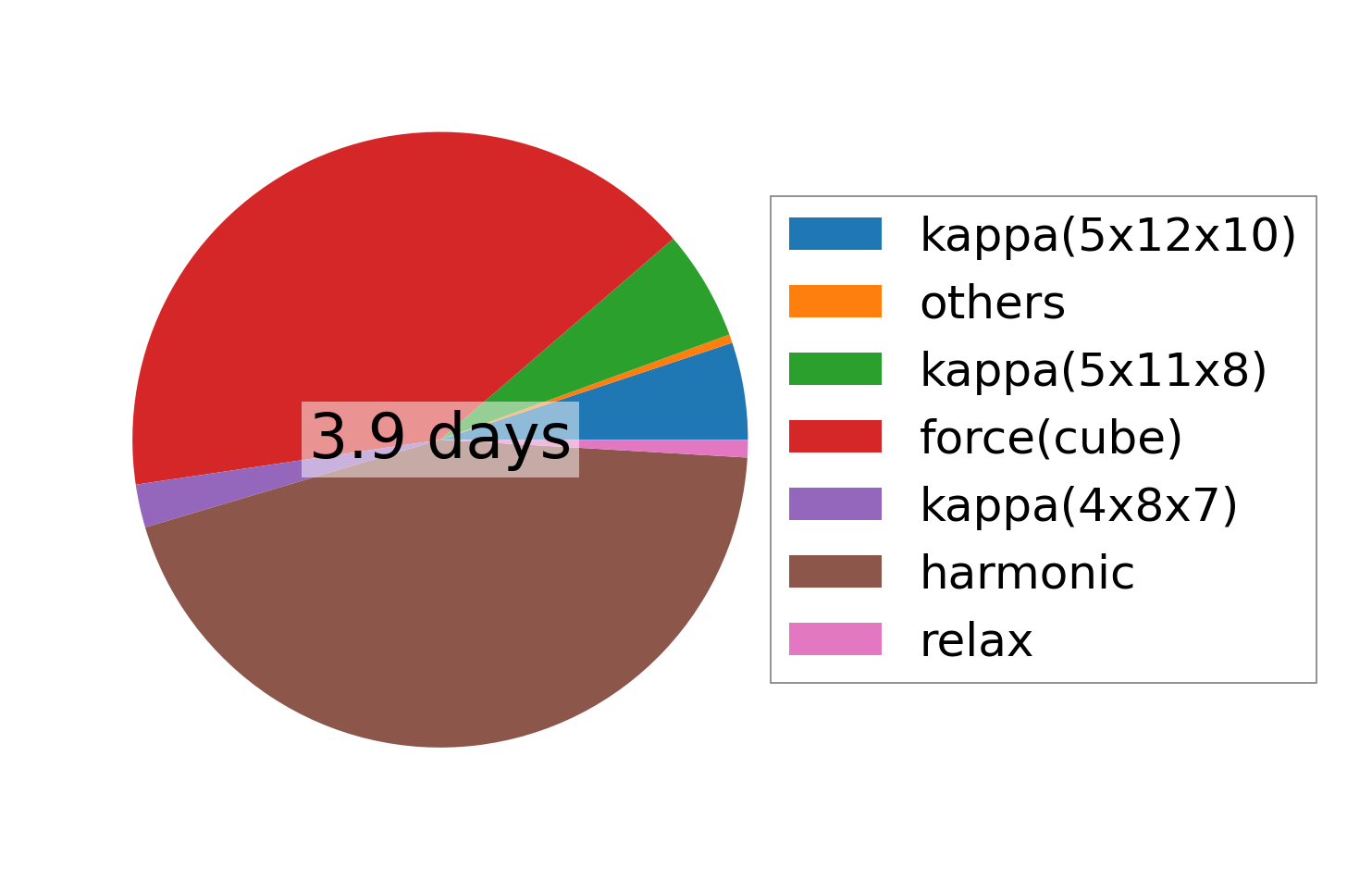

../../_images/fig_times23090.png — (b) Computation time
