mp-10996/YbMg2Sb2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-10996.tar.gz

Equation of state

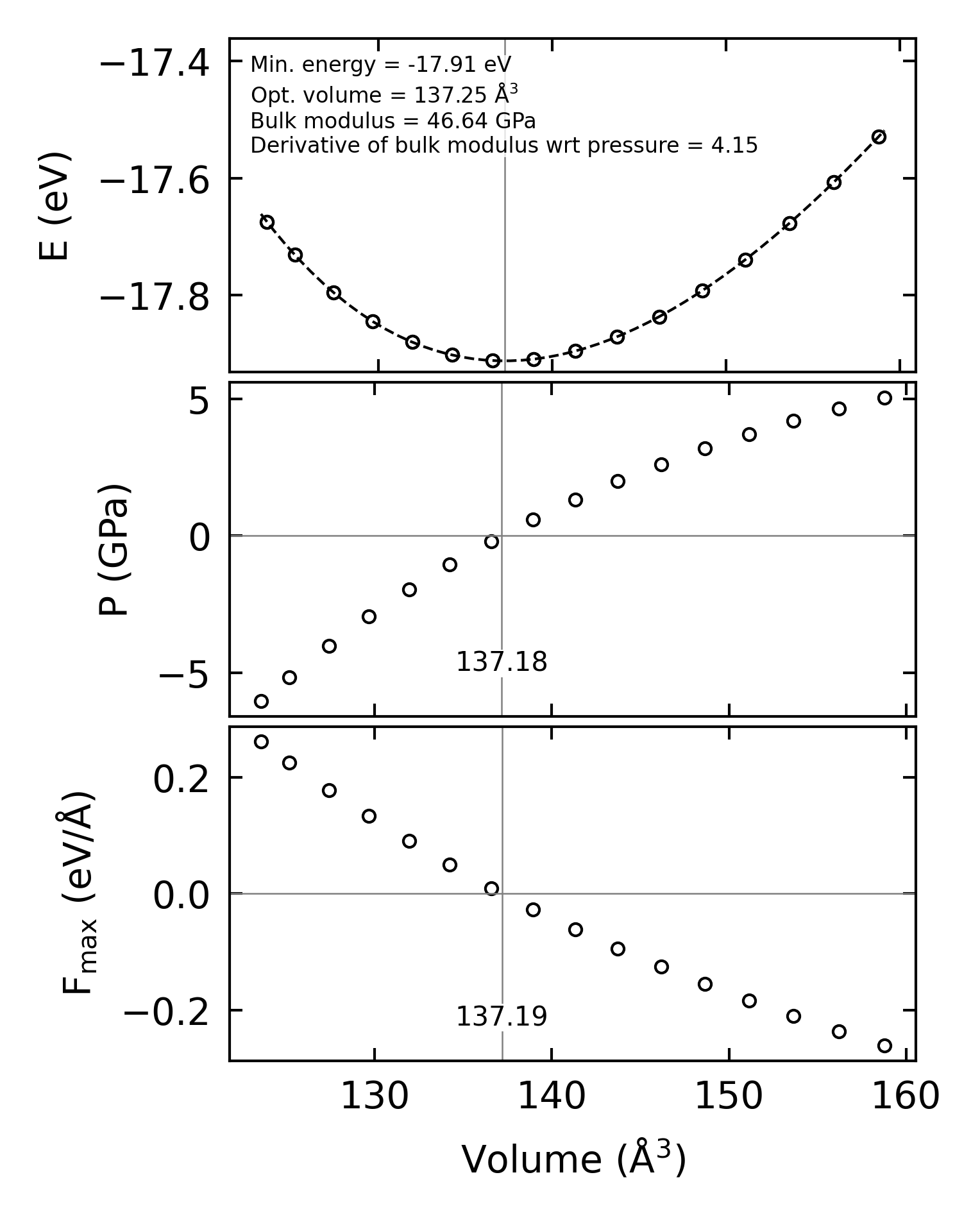

../../_images/fig_bm247.png — (a) Equation of state

Harmonic properties

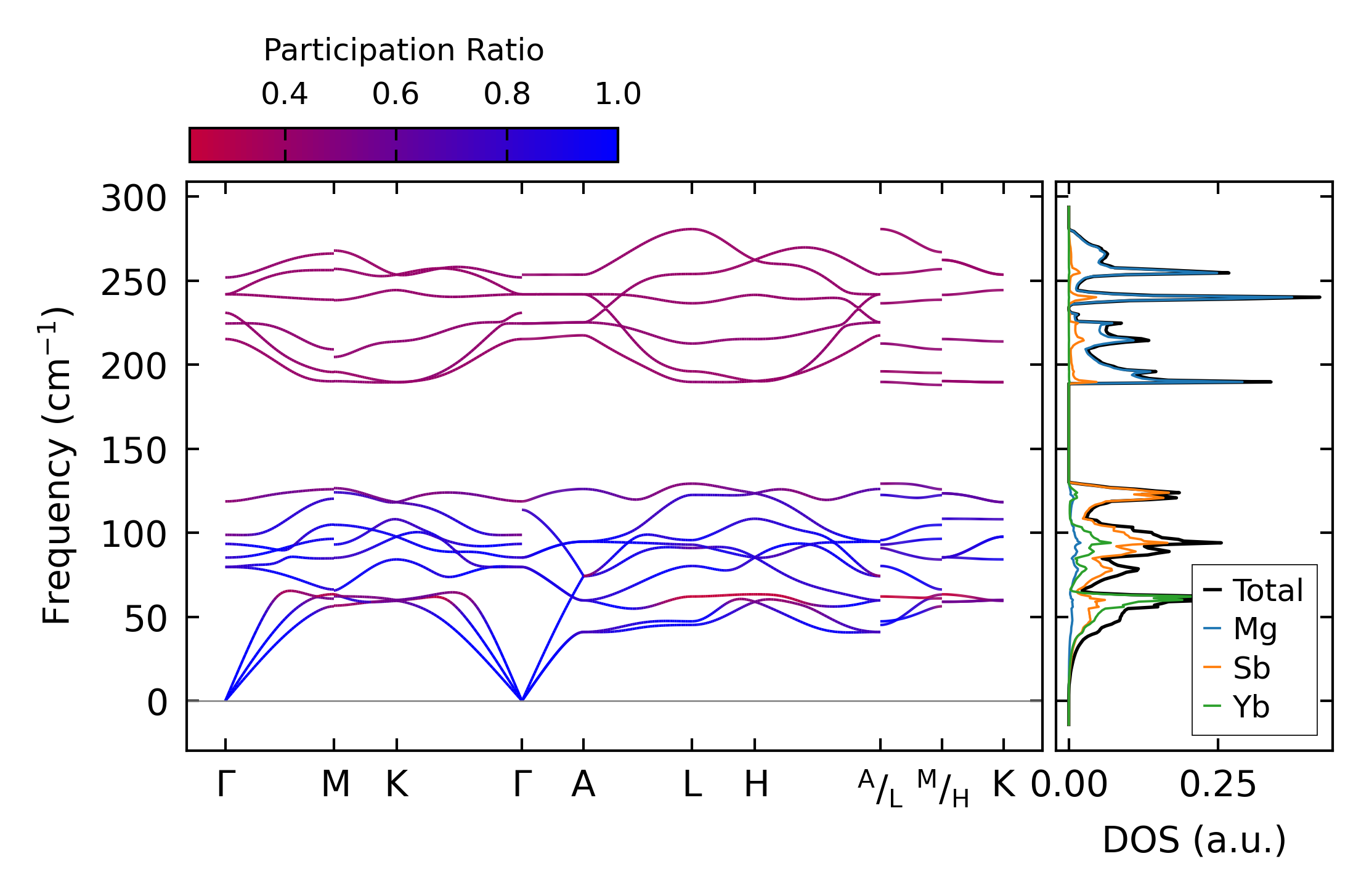

../../_images/fig_bandos_pr695.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo695.png — (b) Thermodynamic properties

Grüneisen parameters

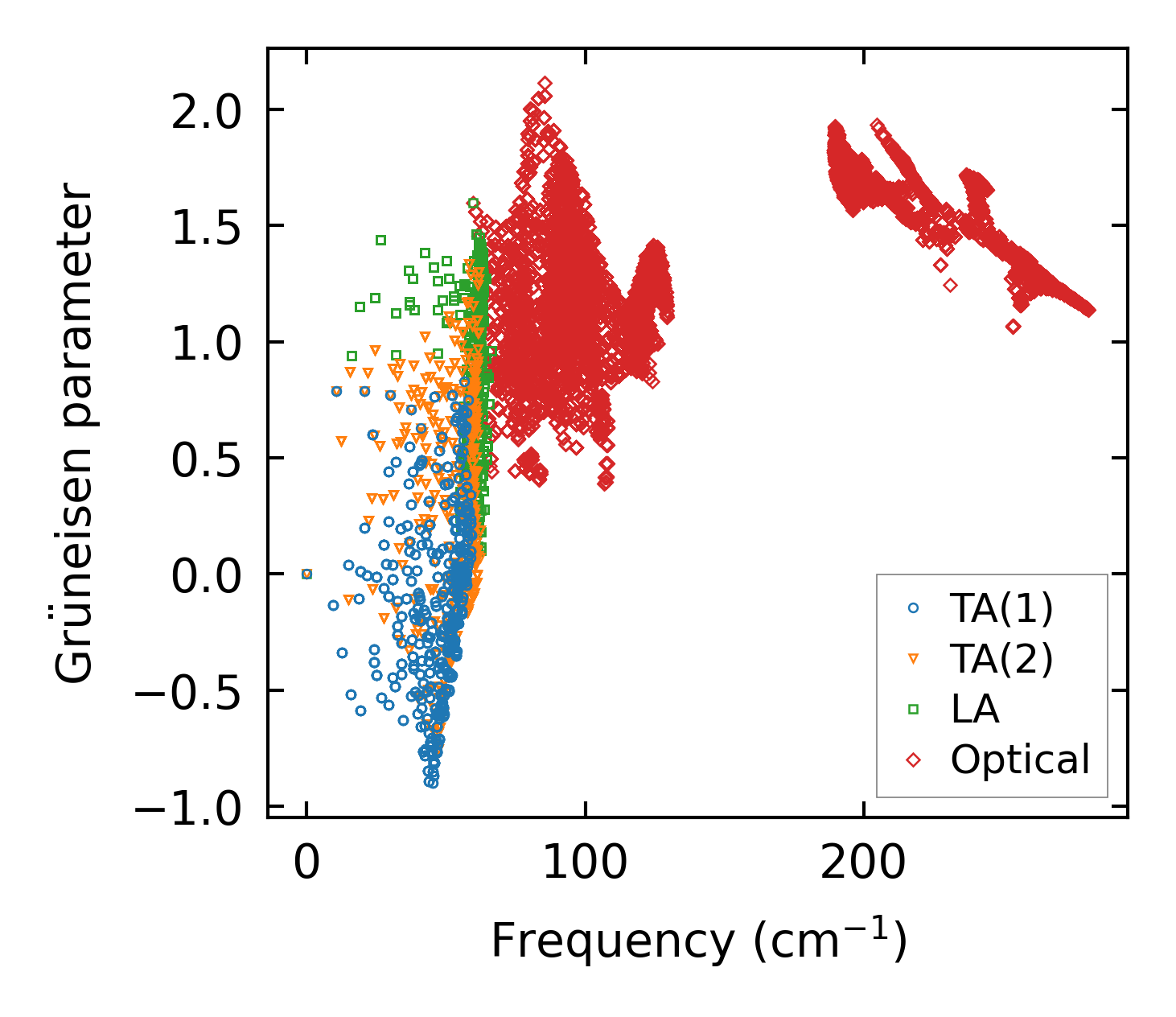

../../_images/fig_gru_all462.png — (a) Grüneisen parameters

../../_images/fig_gruneisen462.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x10, supercell: 3x3x2

../../_images/fig_kappa897.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size469.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

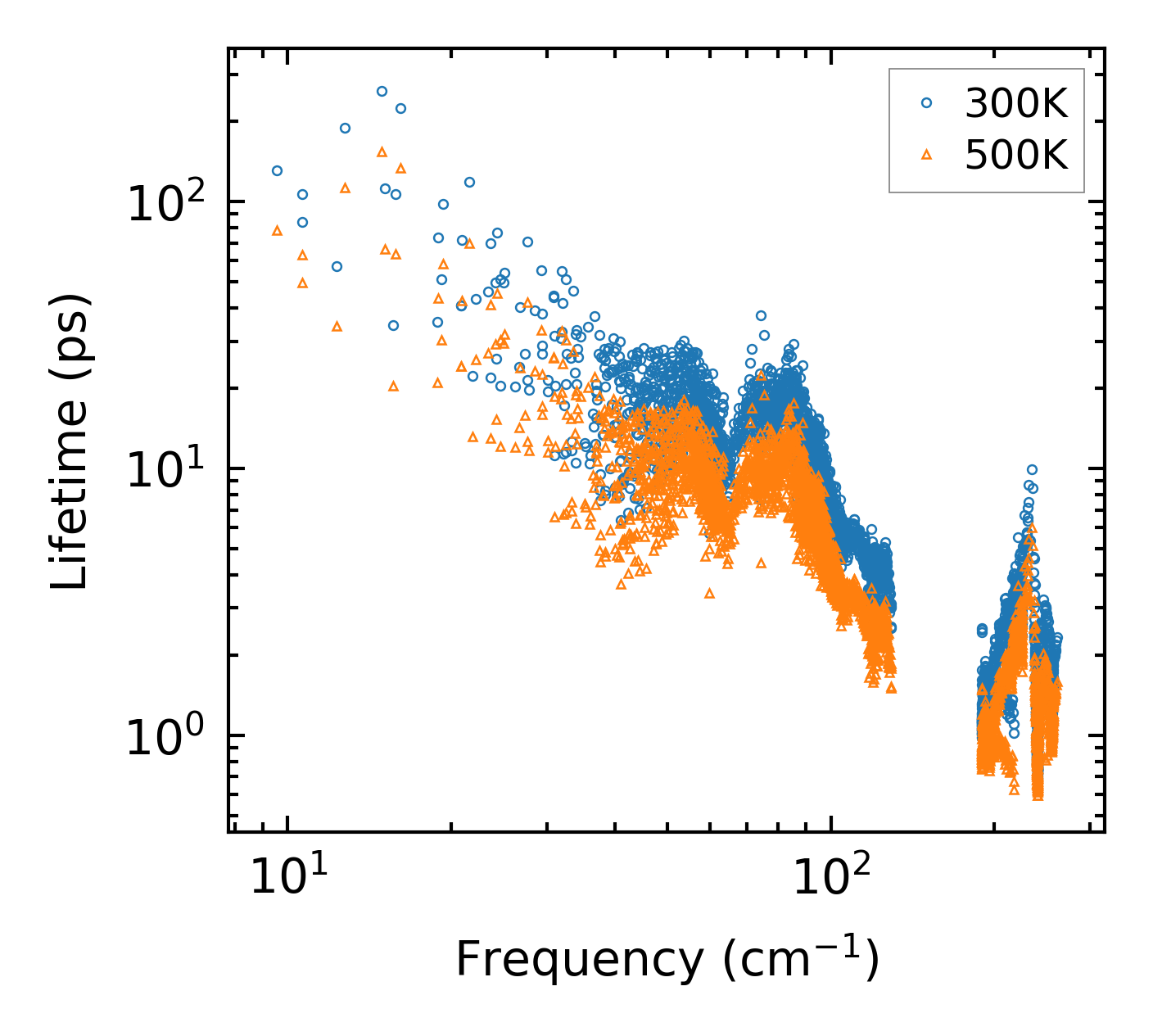

../../_images/fig_lifetime460.png — (a) Phonon lifetime due to phonon-phonon scattering

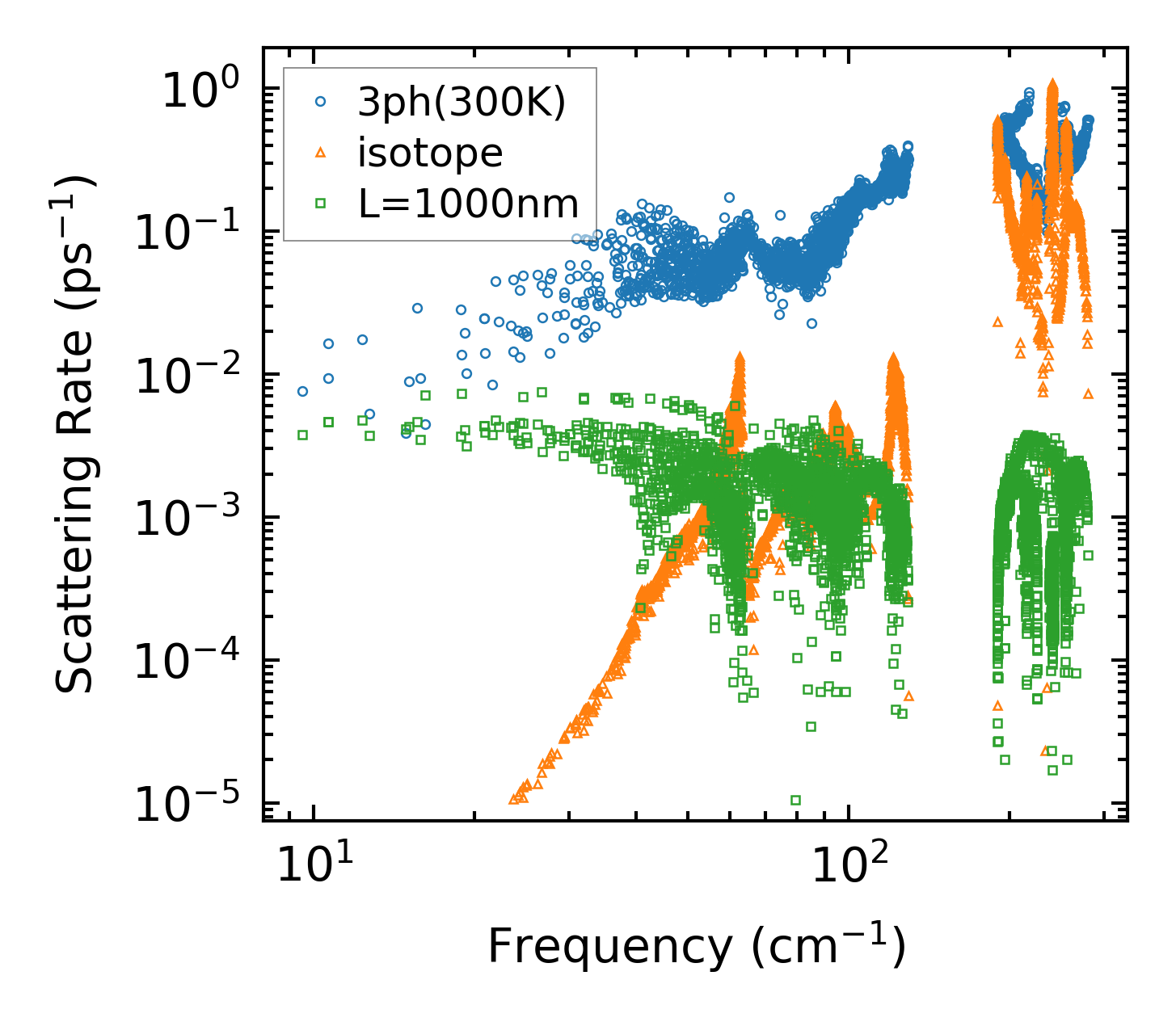

../../_images/fig_scat_rates459.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

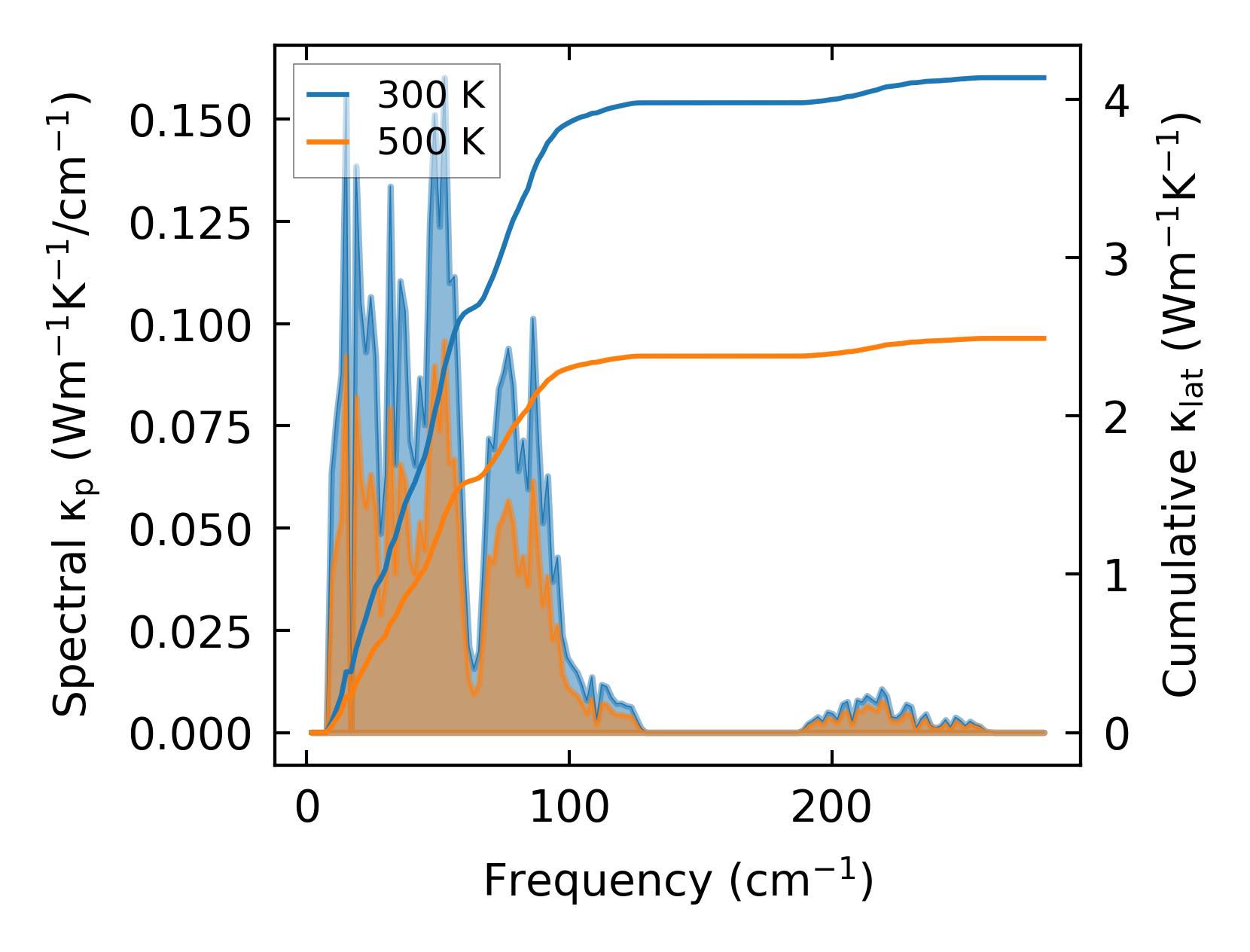

../../_images/fig_cumu_frequency460.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp460.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

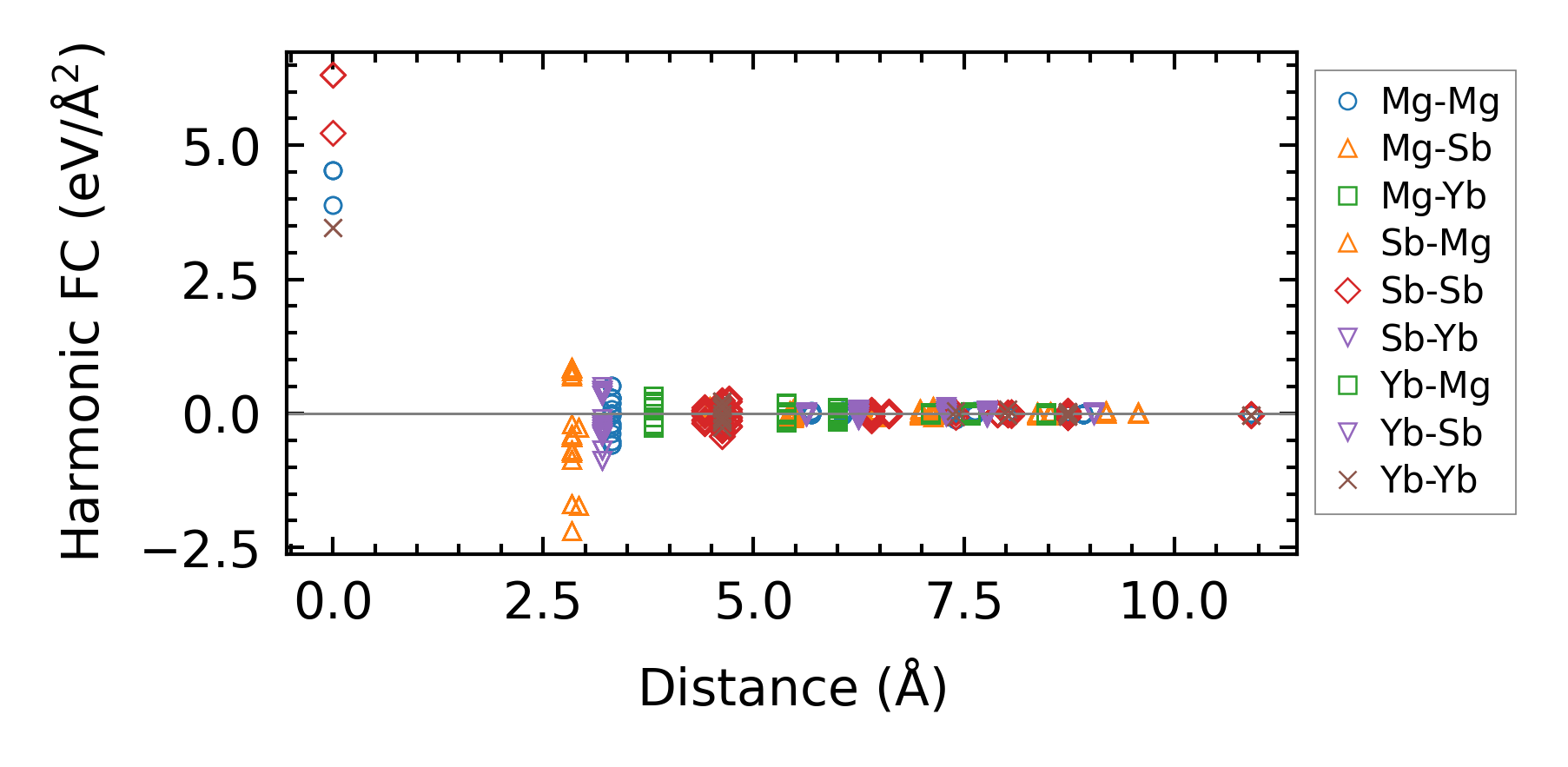

../../_images/fig_fc2606.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa898.png — (a) Temperature-dependent lattice thermal conductivity

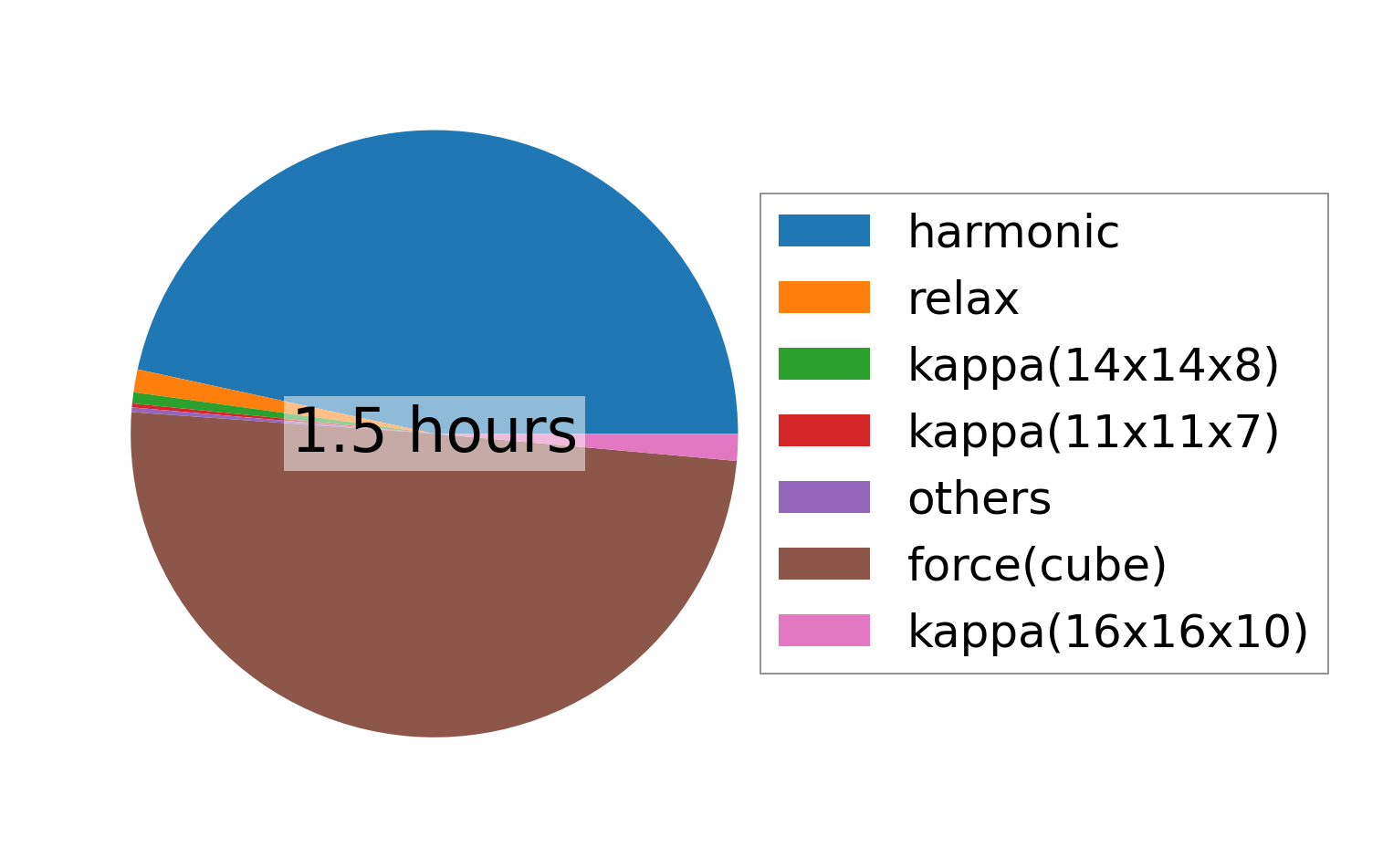

../../_images/fig_times996.png — (b) Computation time
