mp-10233/Ca2BN2F/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-10233.tar.gz

Harmonic properties

../../_images/fig_bandos_pr524.png — (a) Phonon dispersion with participation ratio and DOS

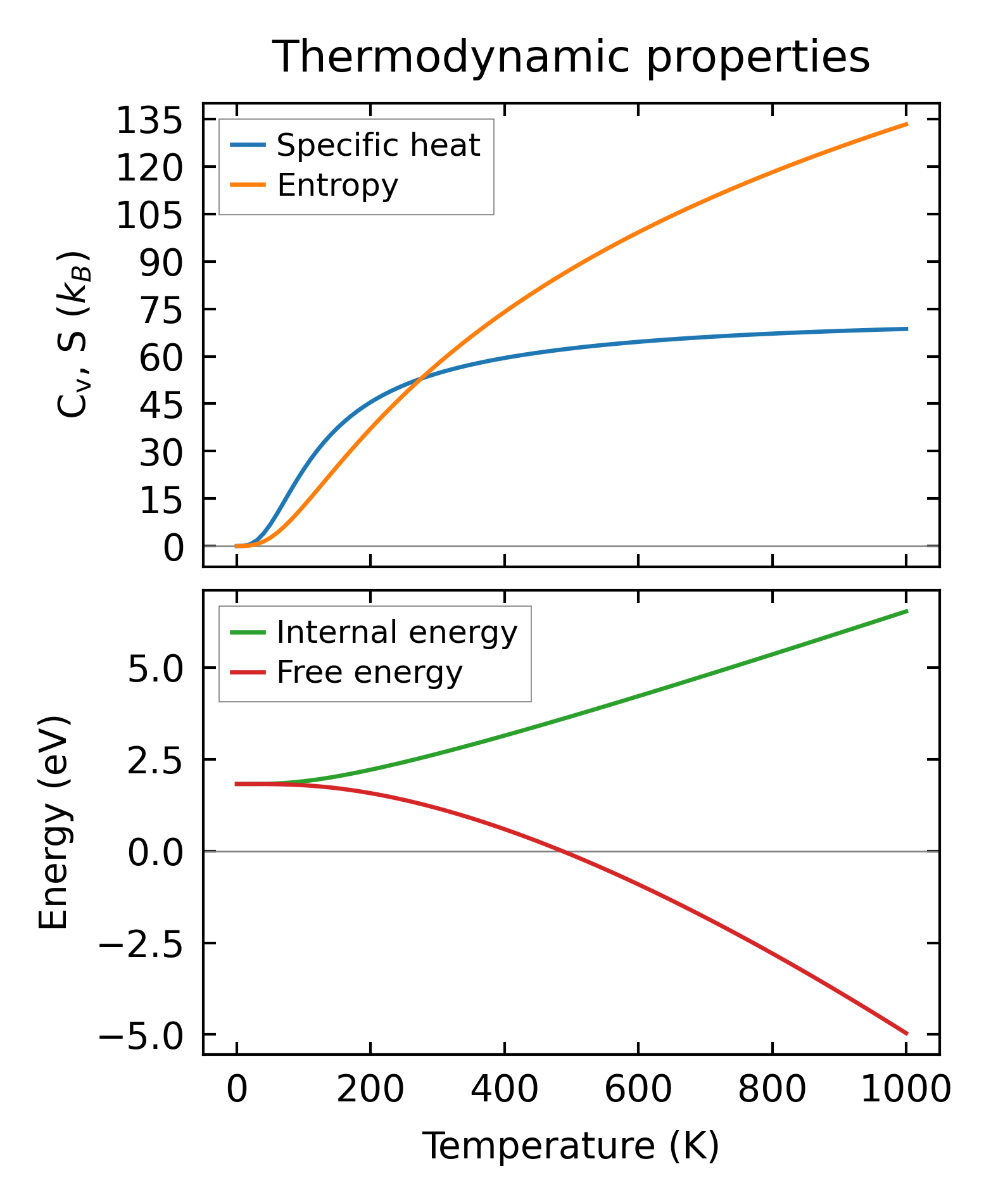

../../_images/fig_thermo524.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all354.png — (a) Grüneisen parameters

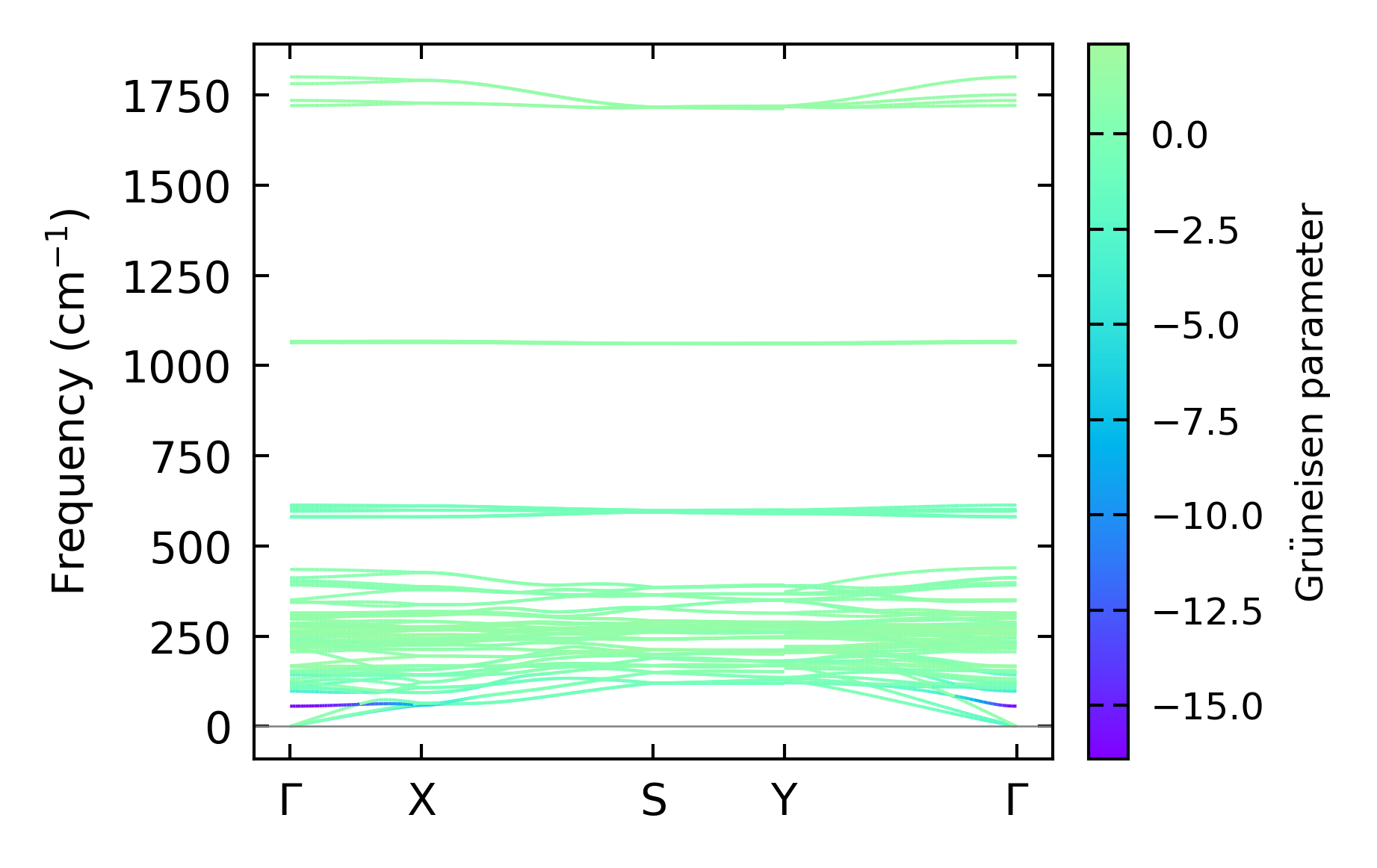

../../_images/fig_gruneisen354.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x19x7, supercell: 2x3x1

../../_images/fig_kappa686.png — (a) Temperature-dependent lattice thermal conductivity

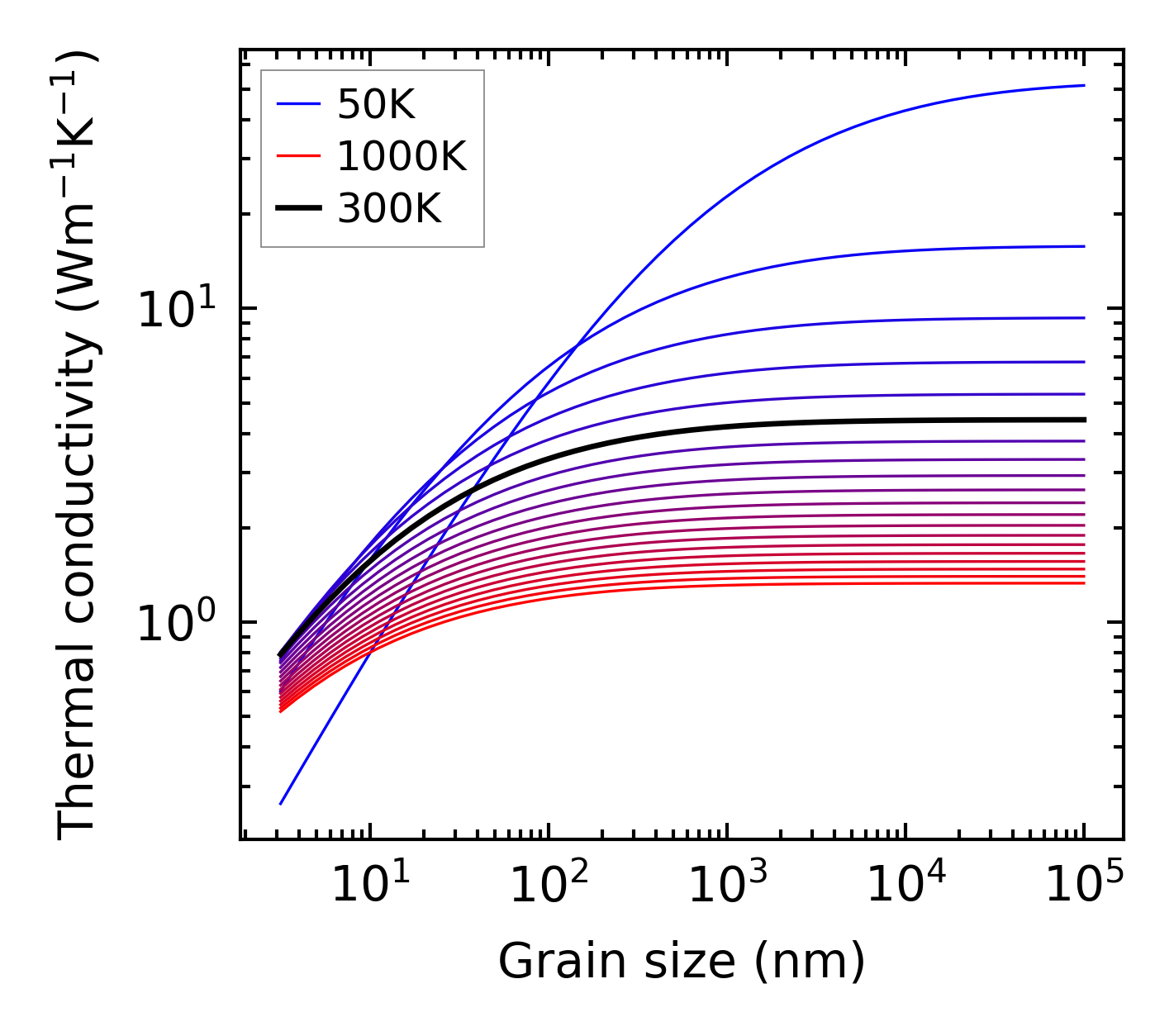

../../_images/fig_kappa_vs_grain_size357.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

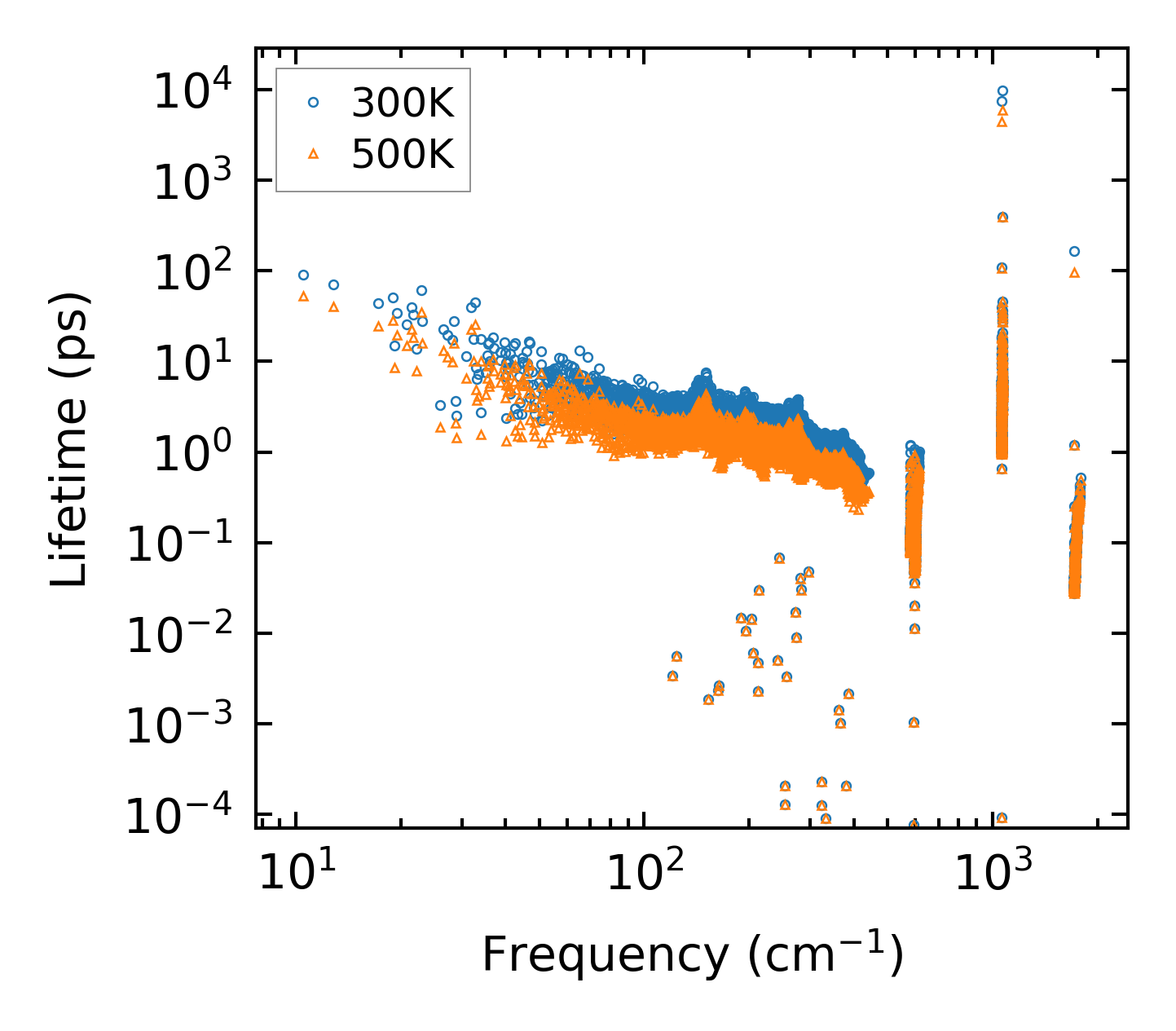

../../_images/fig_lifetime352.png — (a) Phonon lifetime due to phonon-phonon scattering

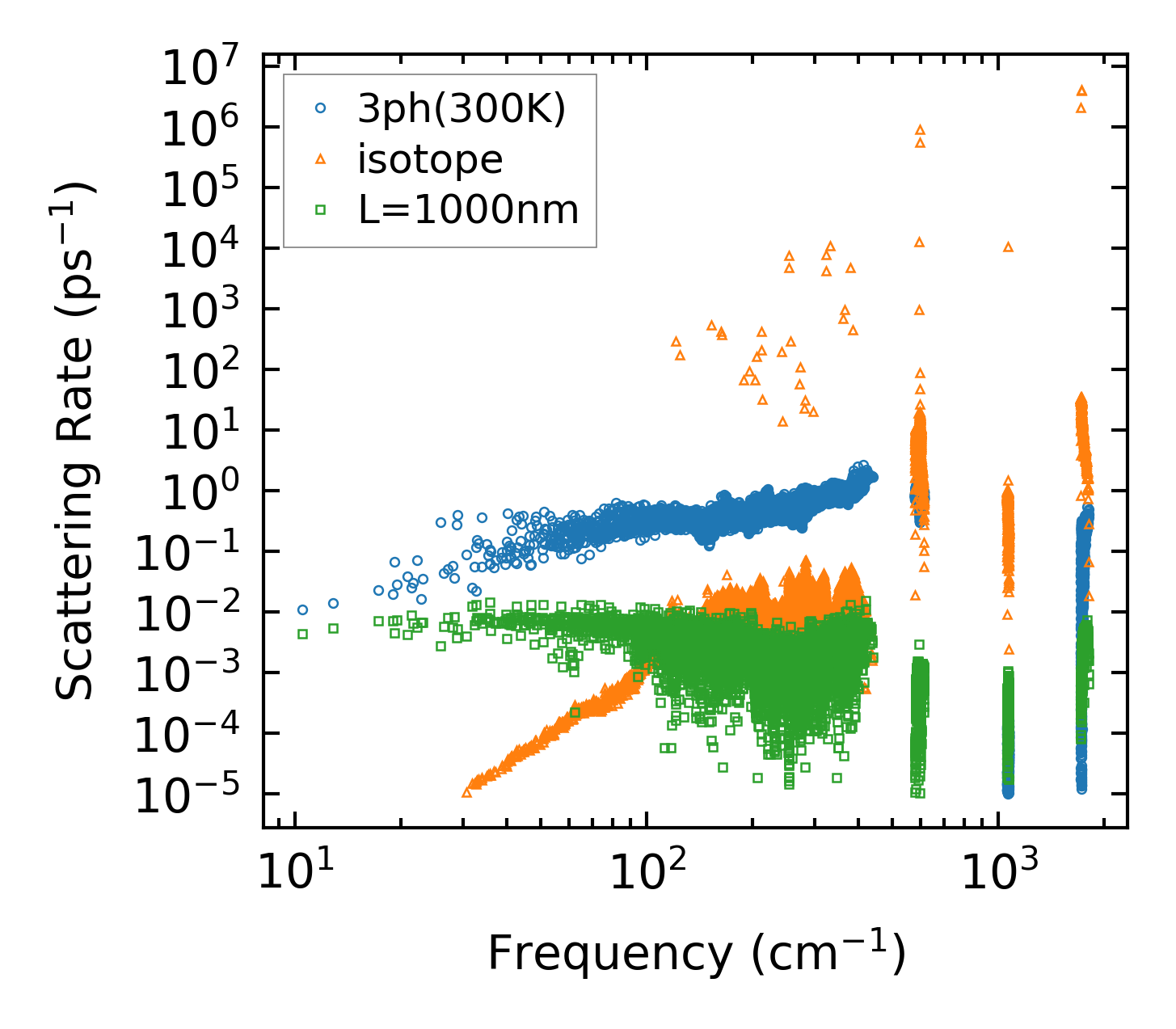

../../_images/fig_scat_rates351.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency352.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

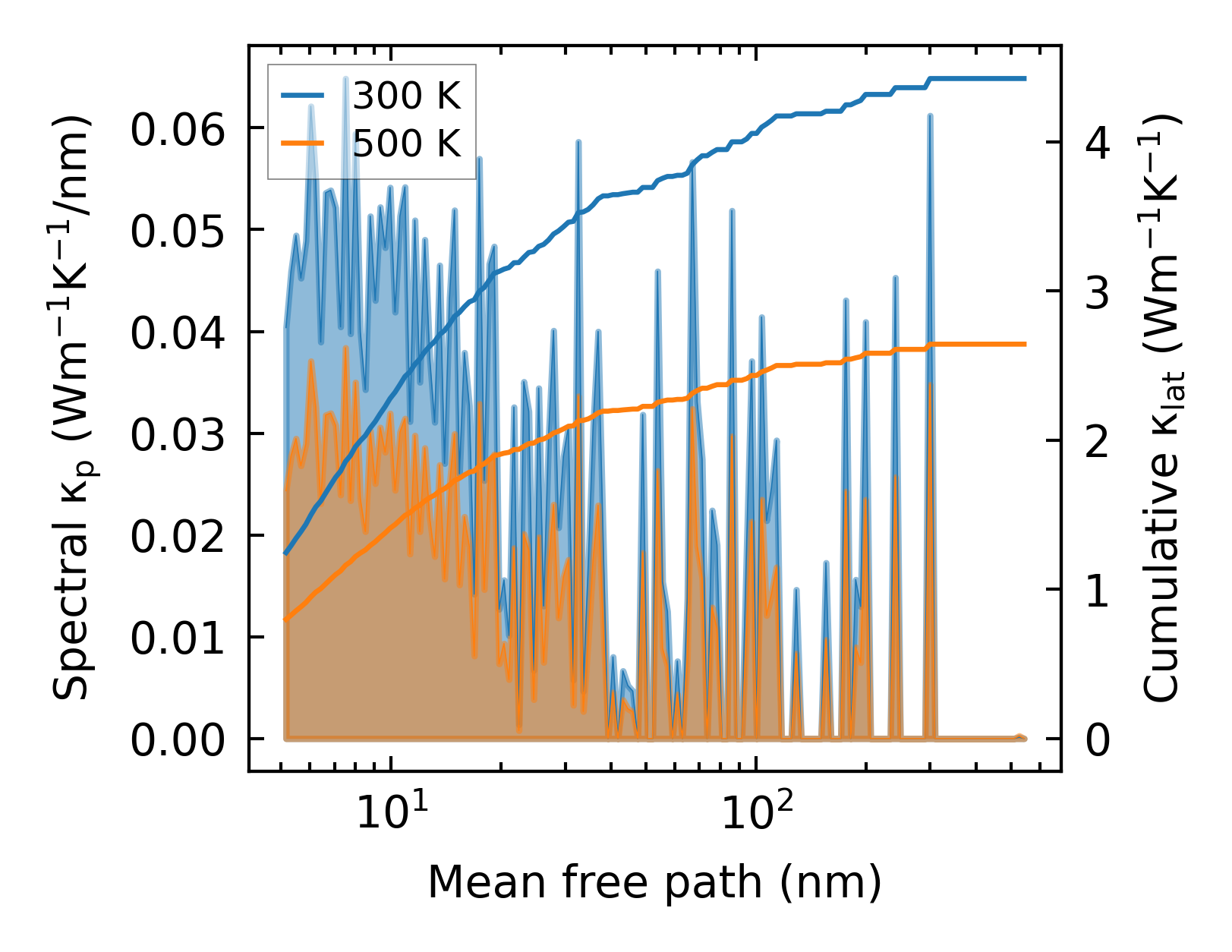

../../_images/fig_cumu_mfp352.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

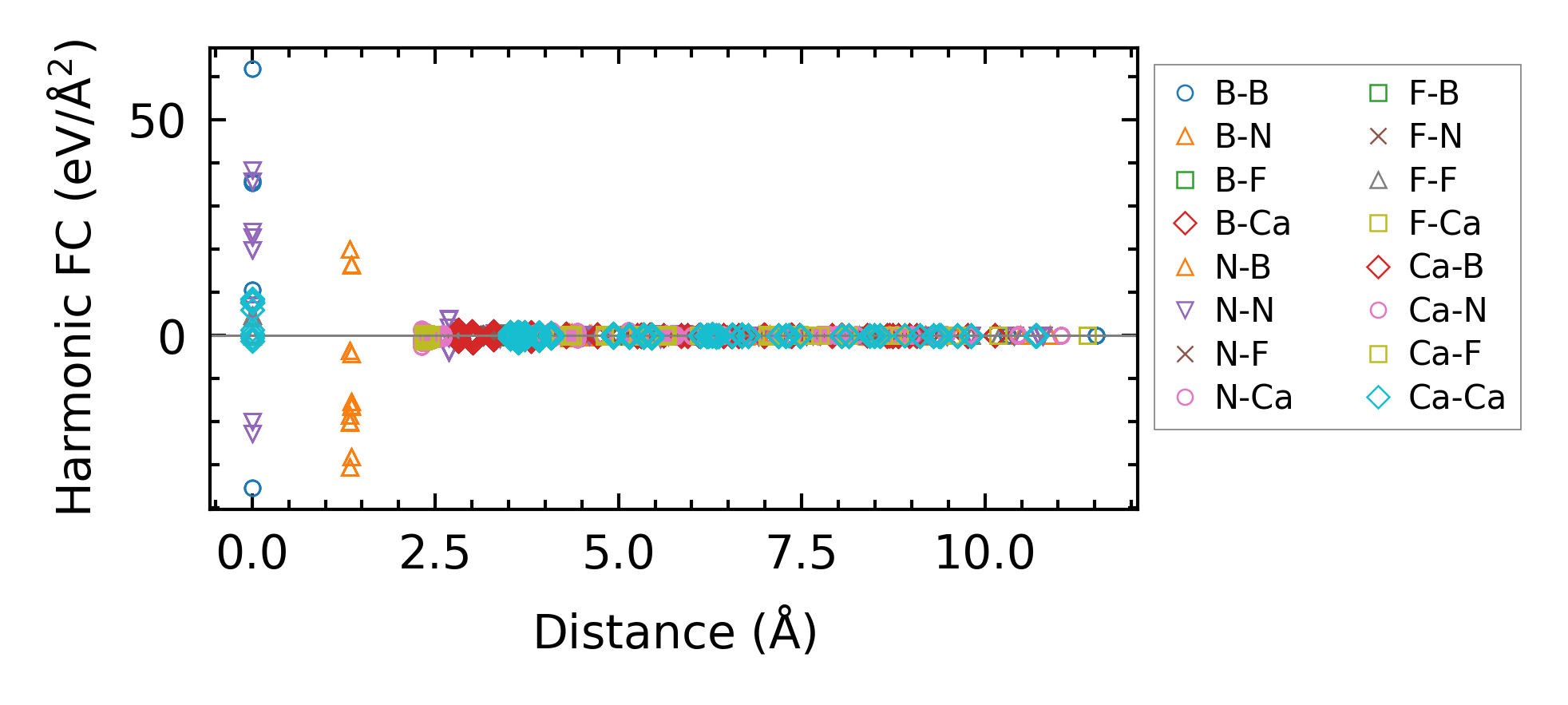

../../_images/fig_fc2446.png — (a) Force constants w.r.t atomic distance

Summary

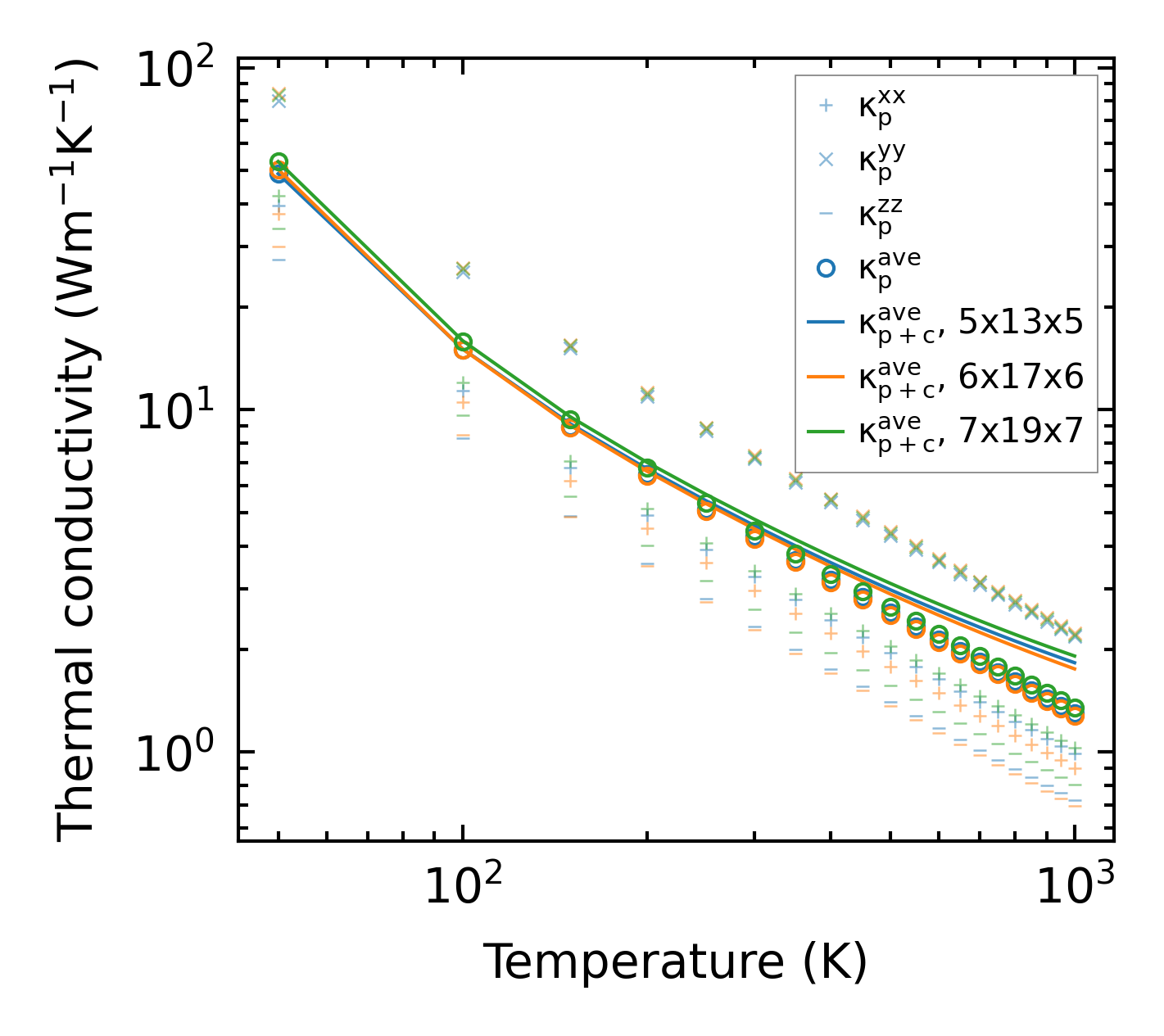

../../_images/fig_kappa687.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times782.png — (b) Computation time
