mp-10919/Rb2PtC2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-10919.tar.gz

Harmonic properties

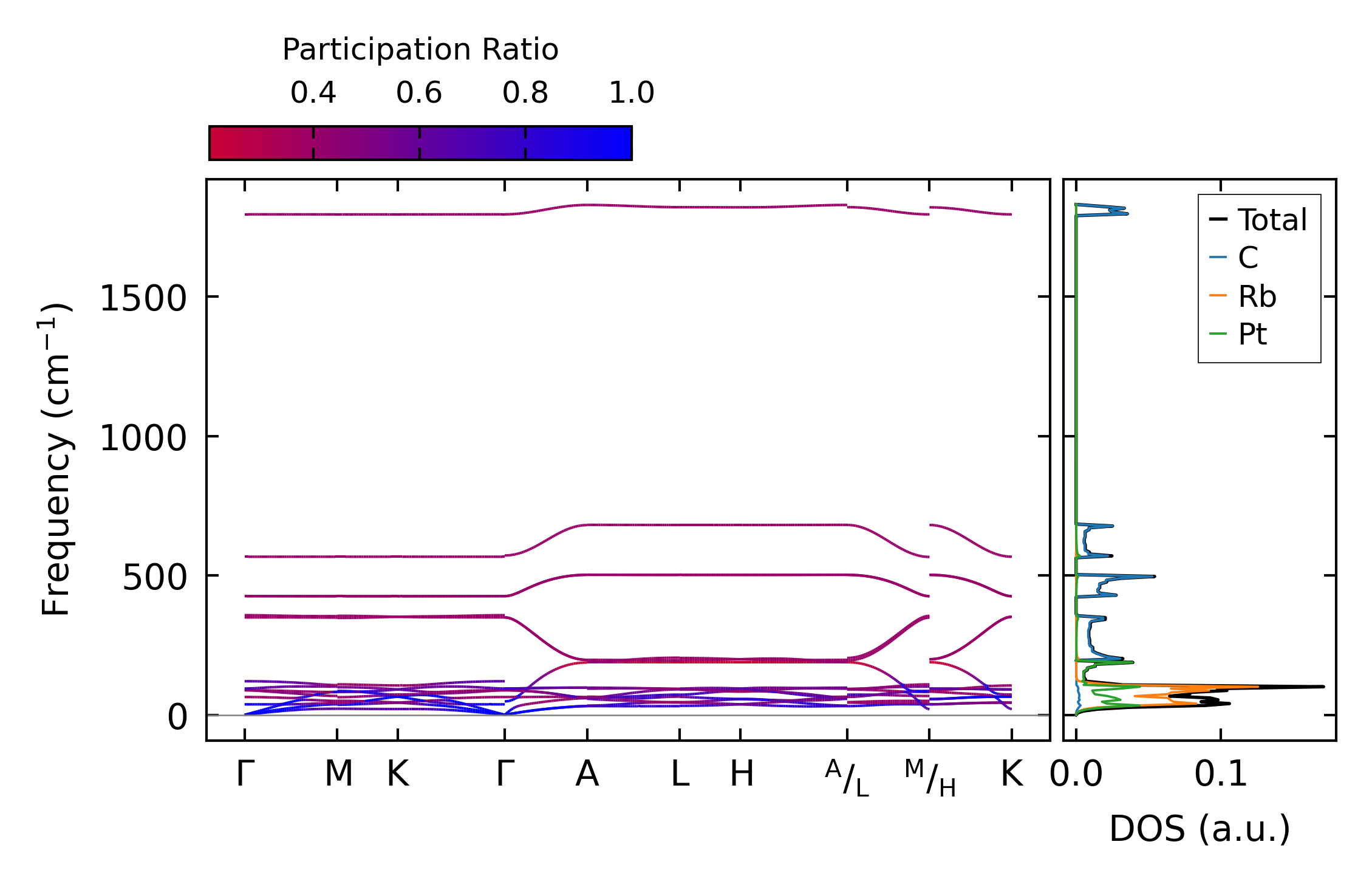

../../_images/fig_bandos_pr671.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo671.png — (b) Thermodynamic properties

Grüneisen parameters

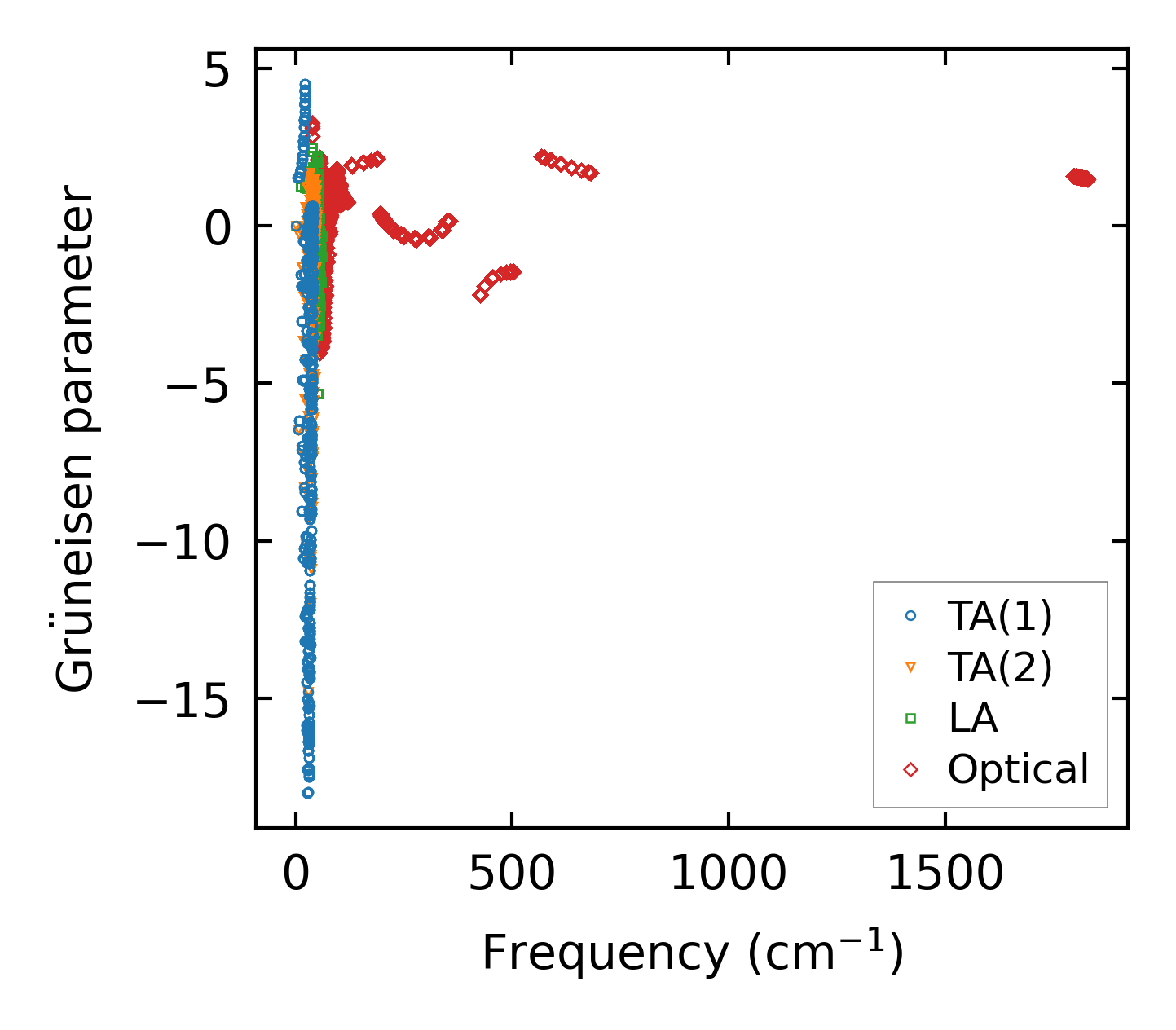

../../_images/fig_gru_all444.png — (a) Grüneisen parameters

../../_images/fig_gruneisen444.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x3x3

../../_images/fig_kappa864.png — (a) Temperature-dependent lattice thermal conductivity

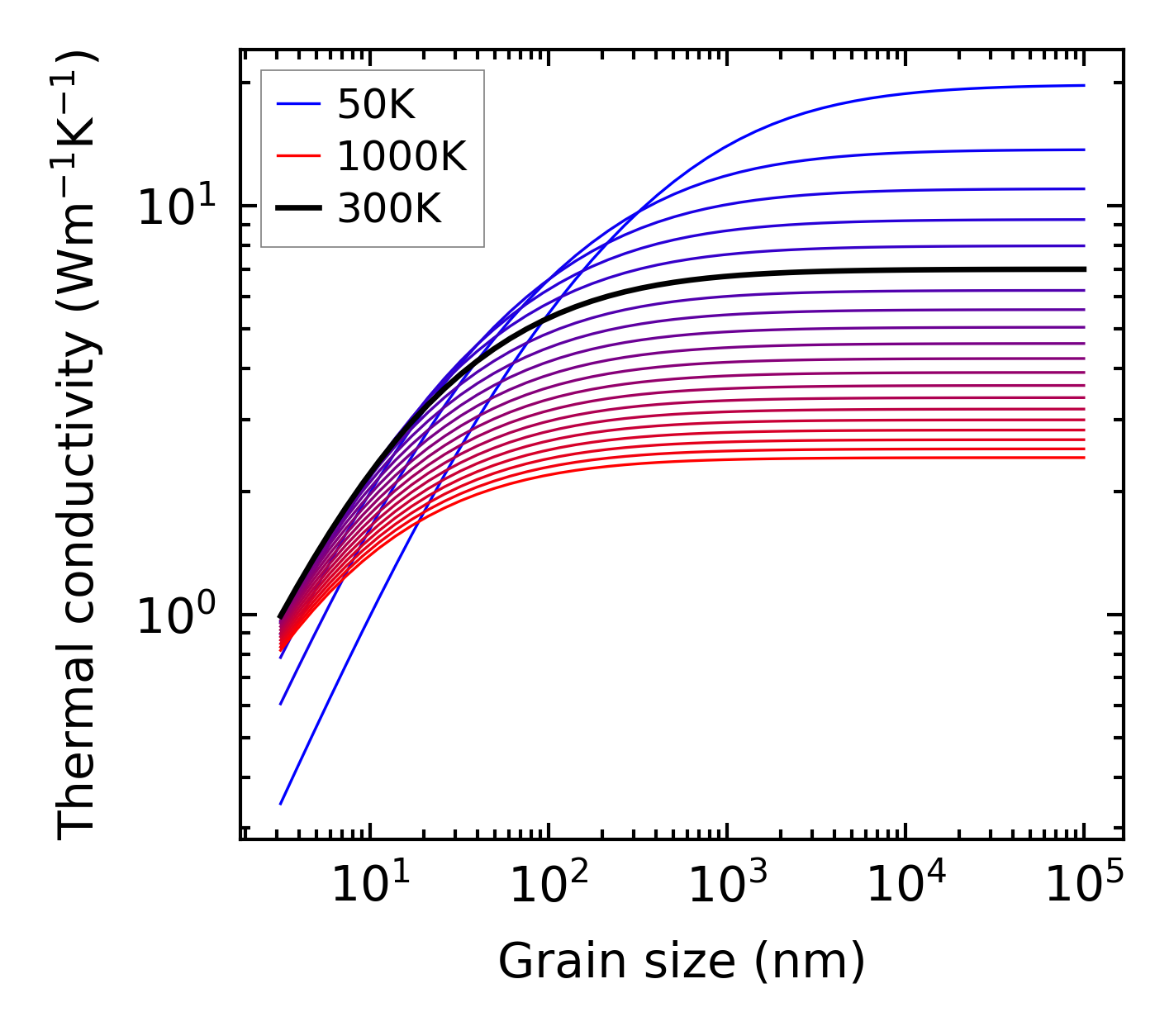

../../_images/fig_kappa_vs_grain_size451.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

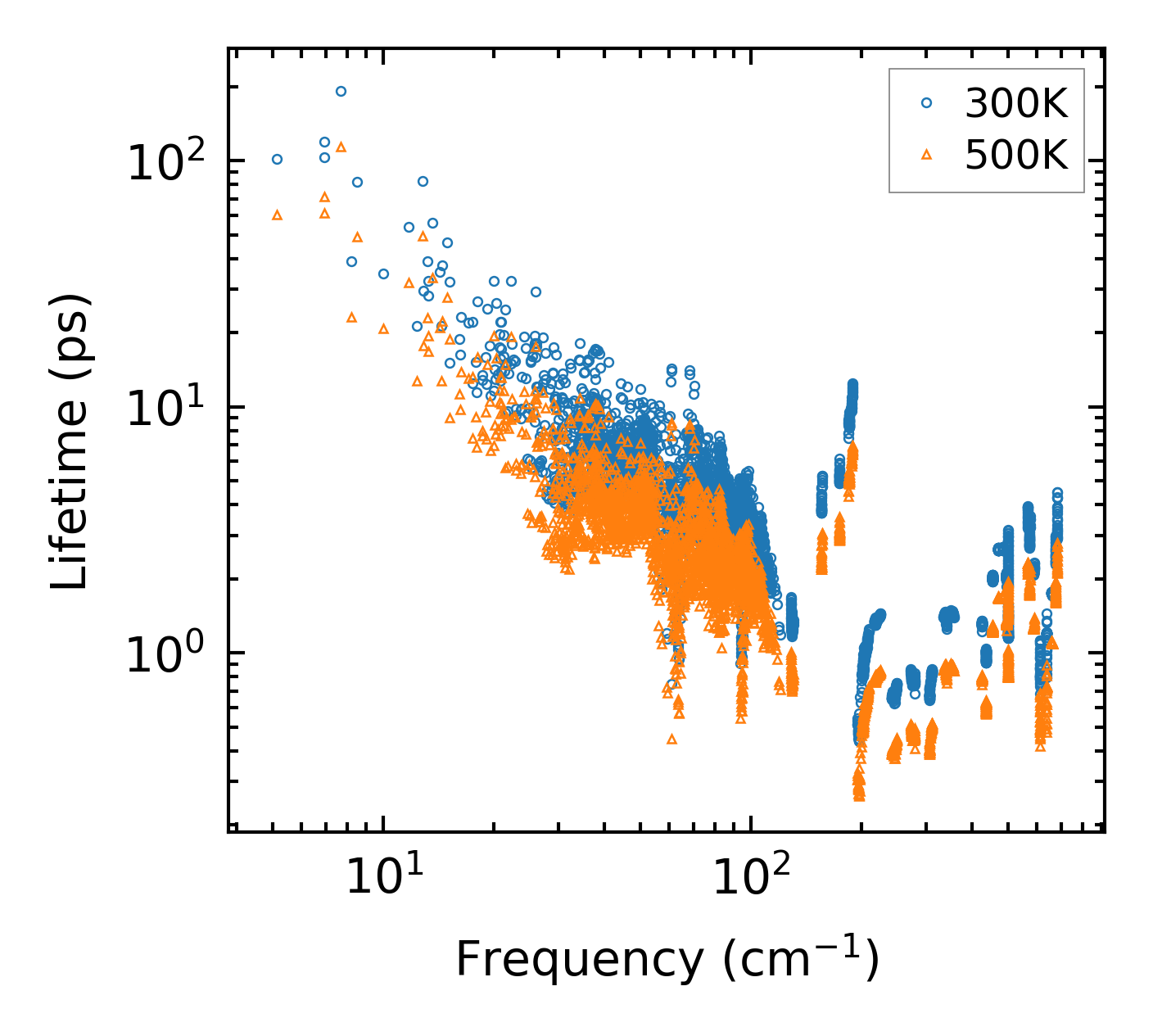

../../_images/fig_lifetime442.png — (a) Phonon lifetime due to phonon-phonon scattering

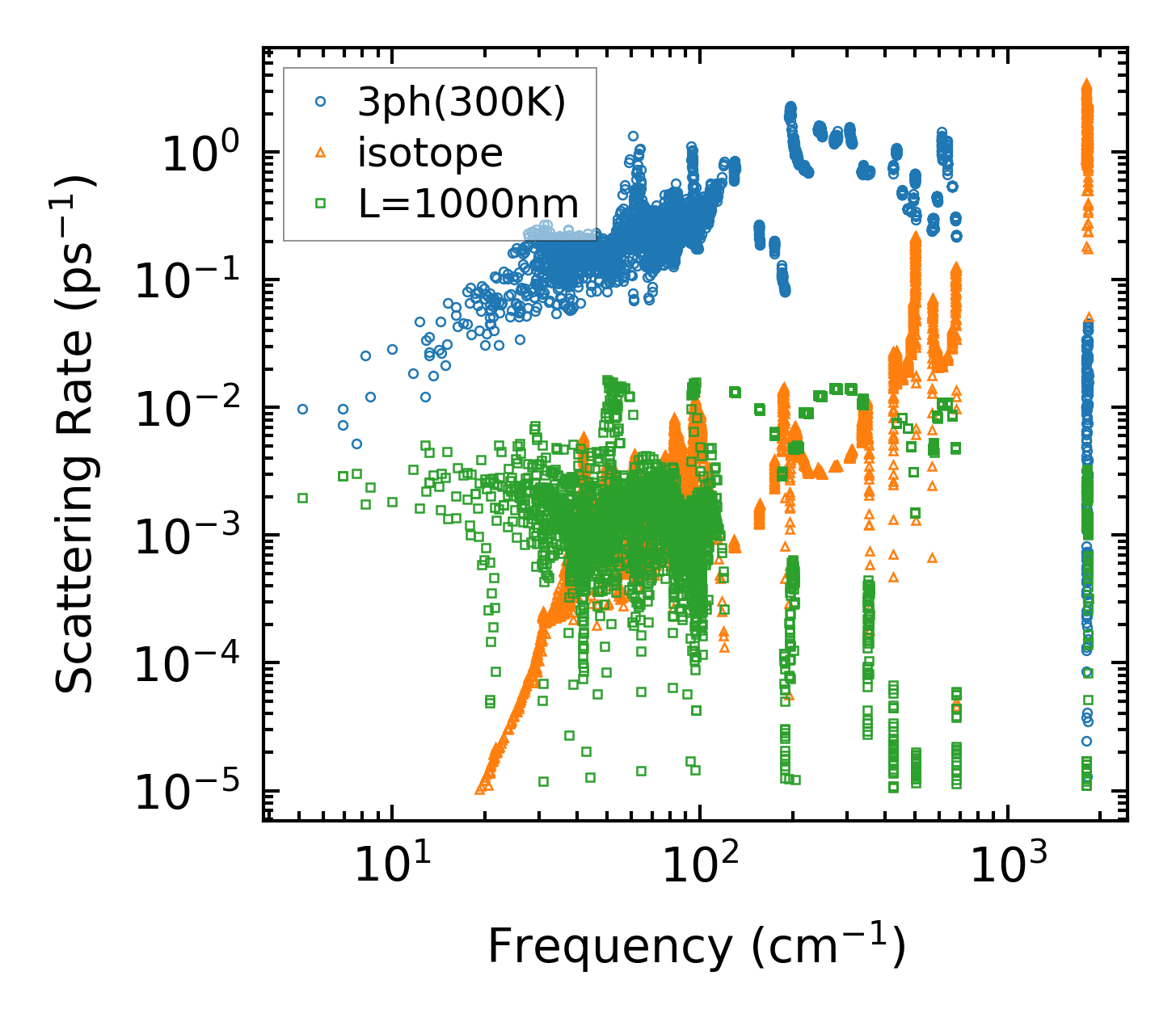

../../_images/fig_scat_rates441.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency442.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp442.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

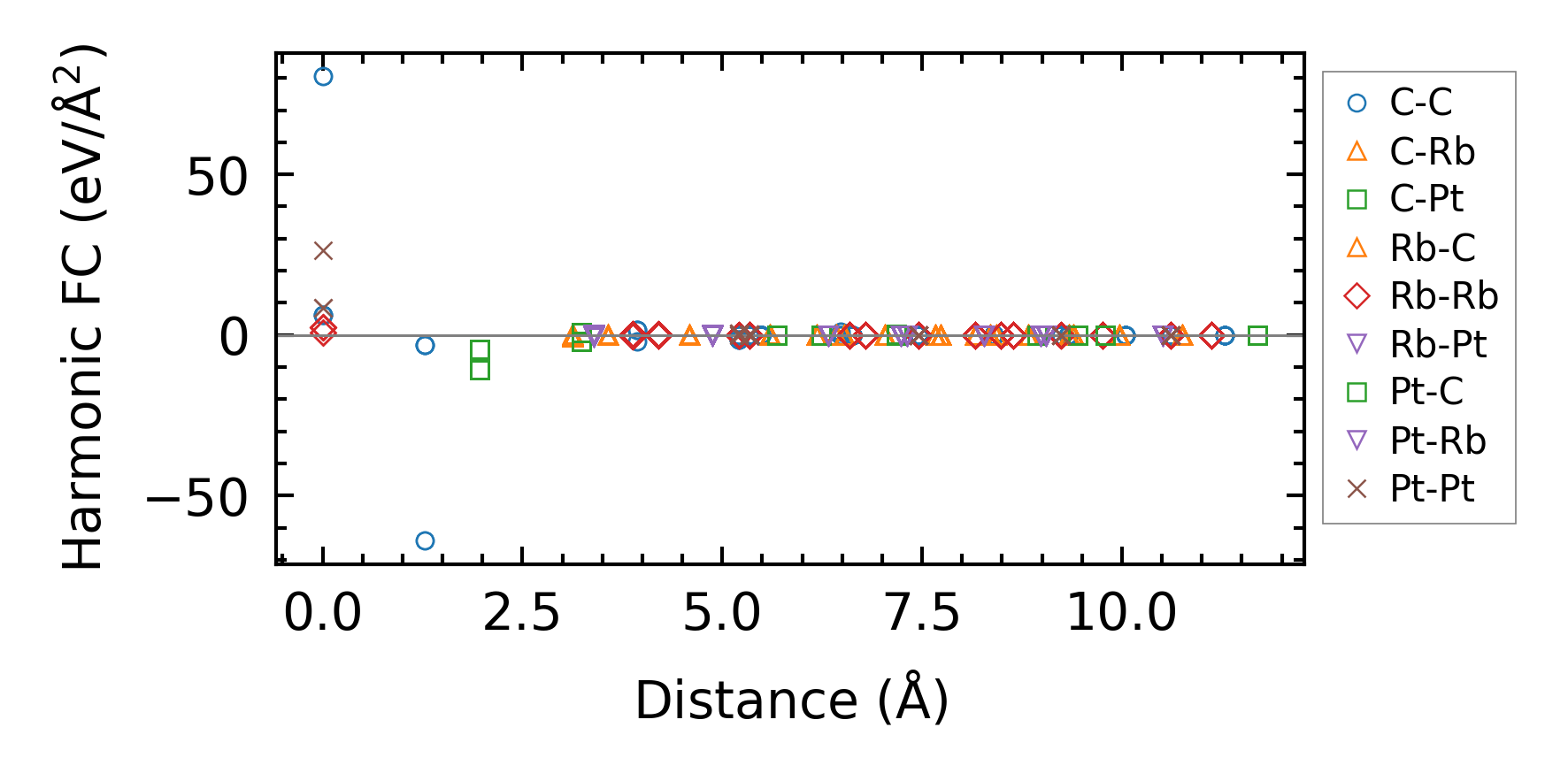

../../_images/fig_fc2582.png — (a) Force constants w.r.t atomic distance

Summary

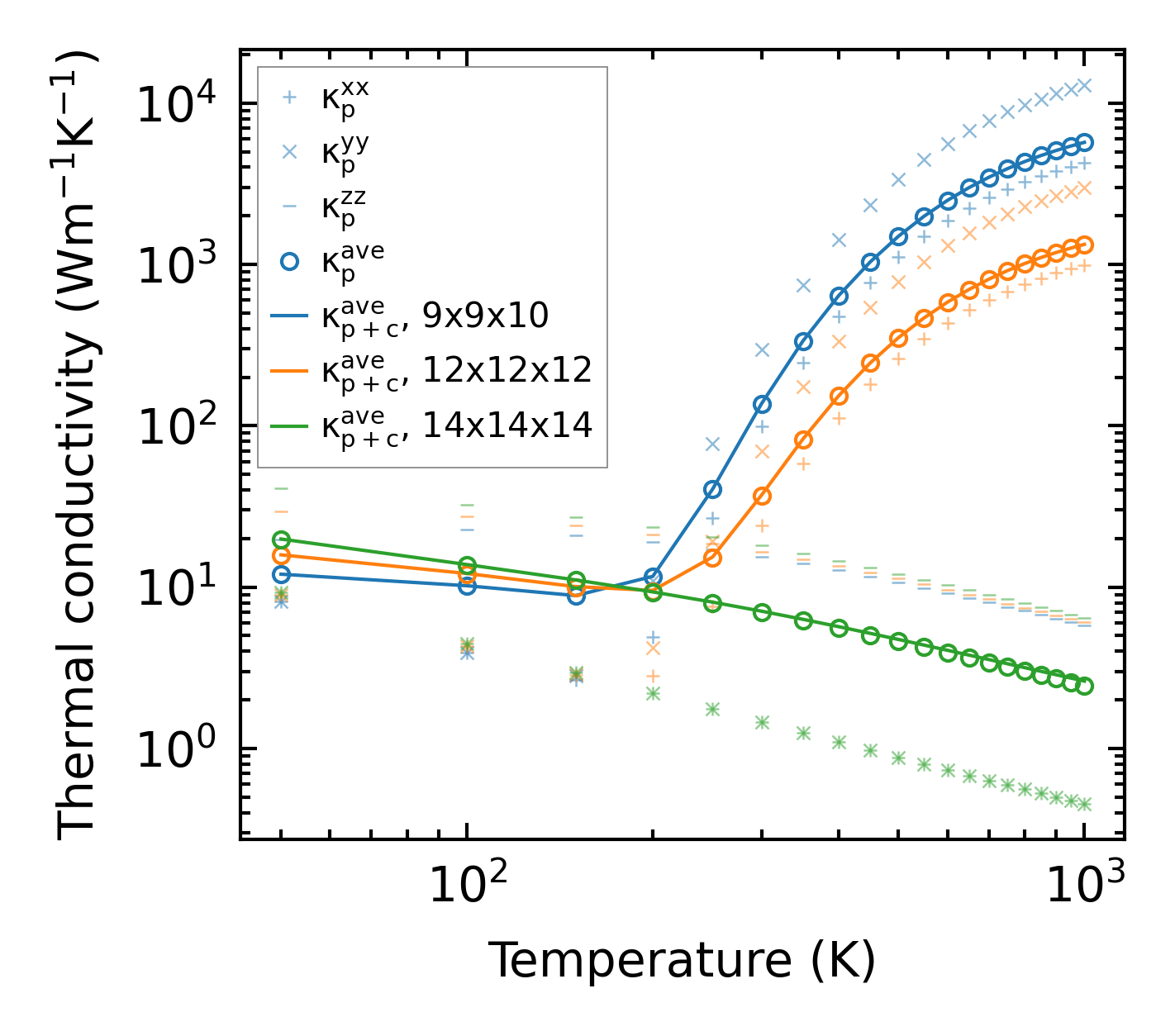

../../_images/fig_kappa865.png — (a) Temperature-dependent lattice thermal conductivity

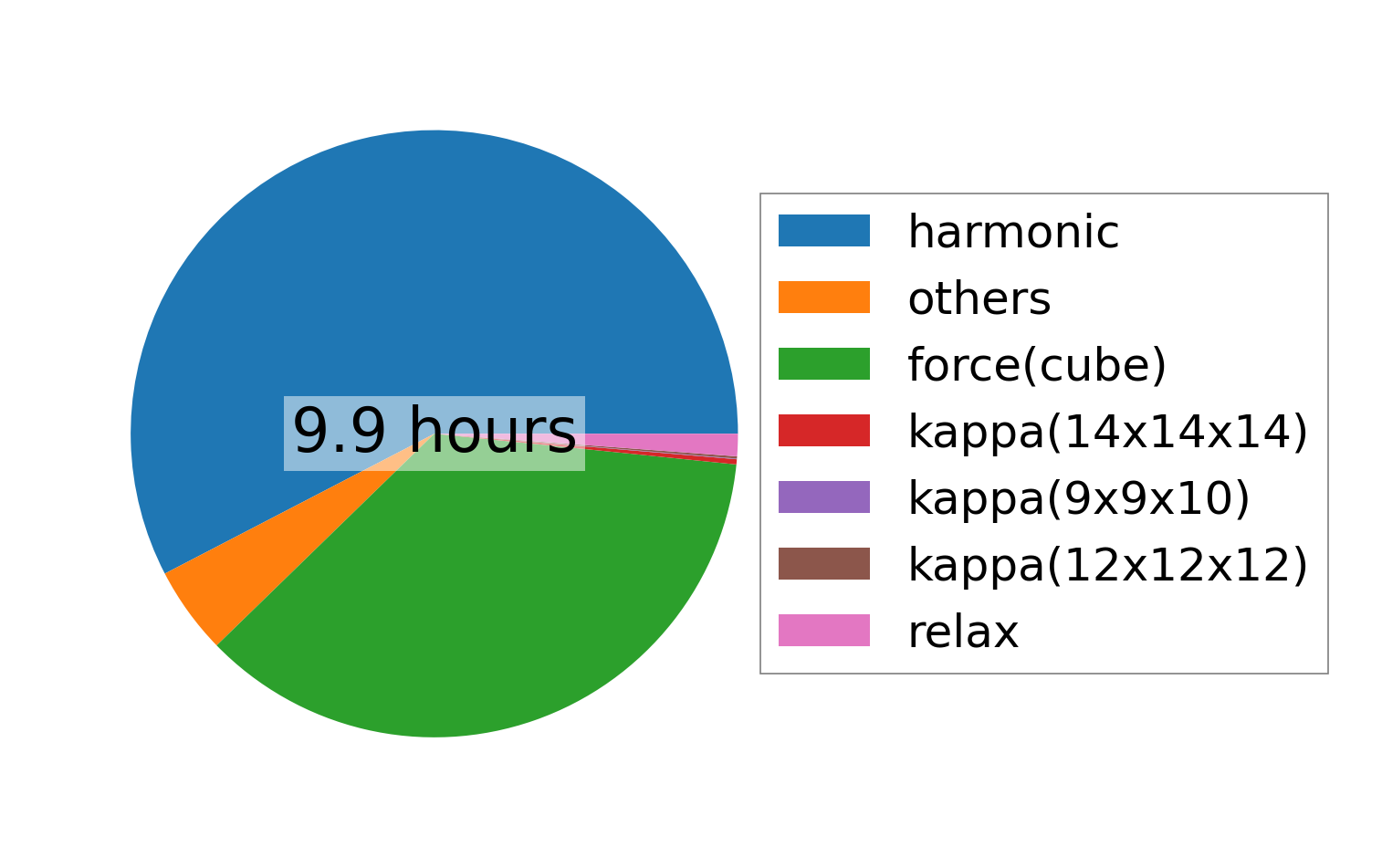

../../_images/fig_times970.png — (b) Computation time
