mp-10942/KNaLaNbO5/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-10942.tar.gz

Equation of state

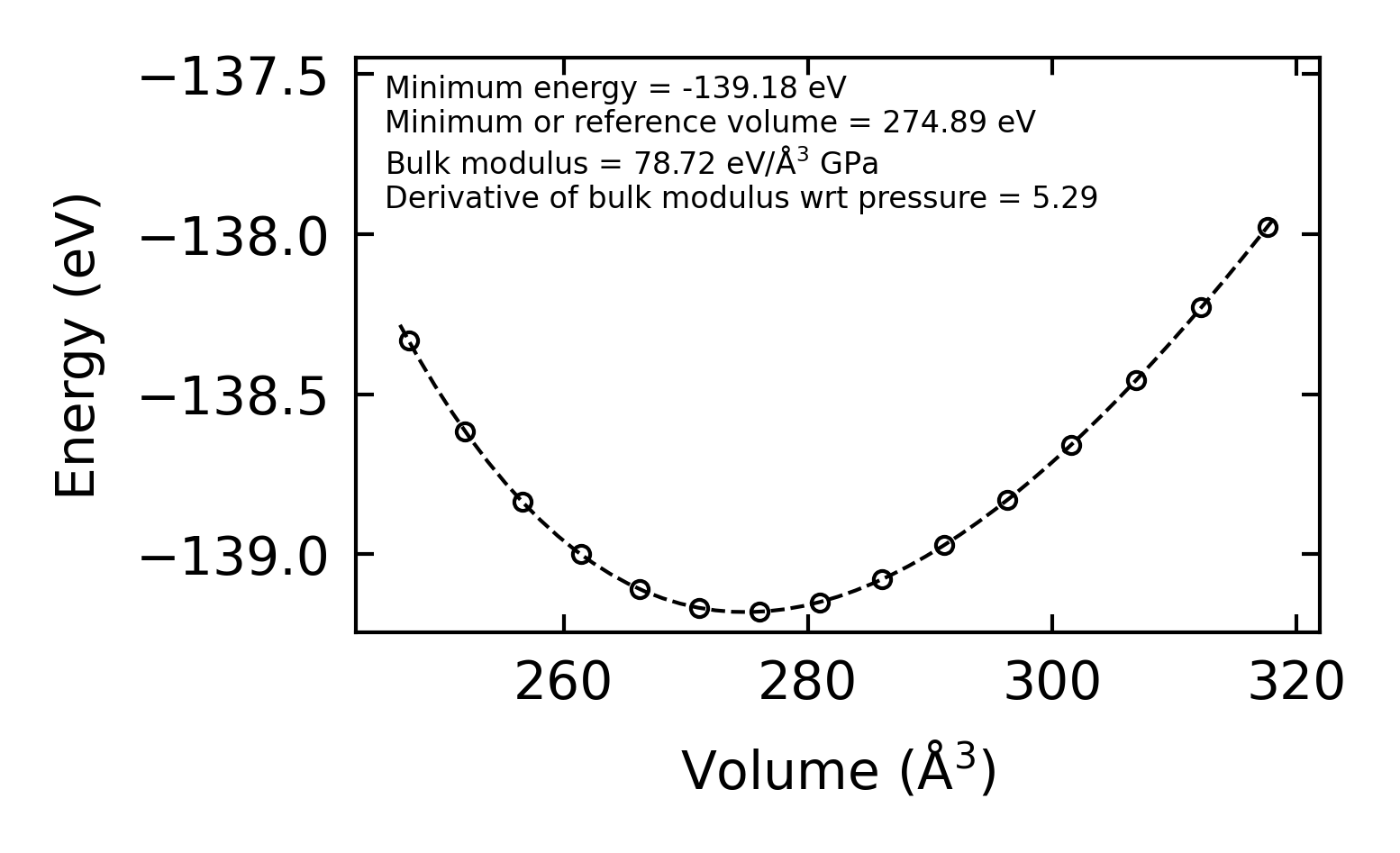

../../_images/fig_bm241.png — (a) Equation of state

Harmonic properties

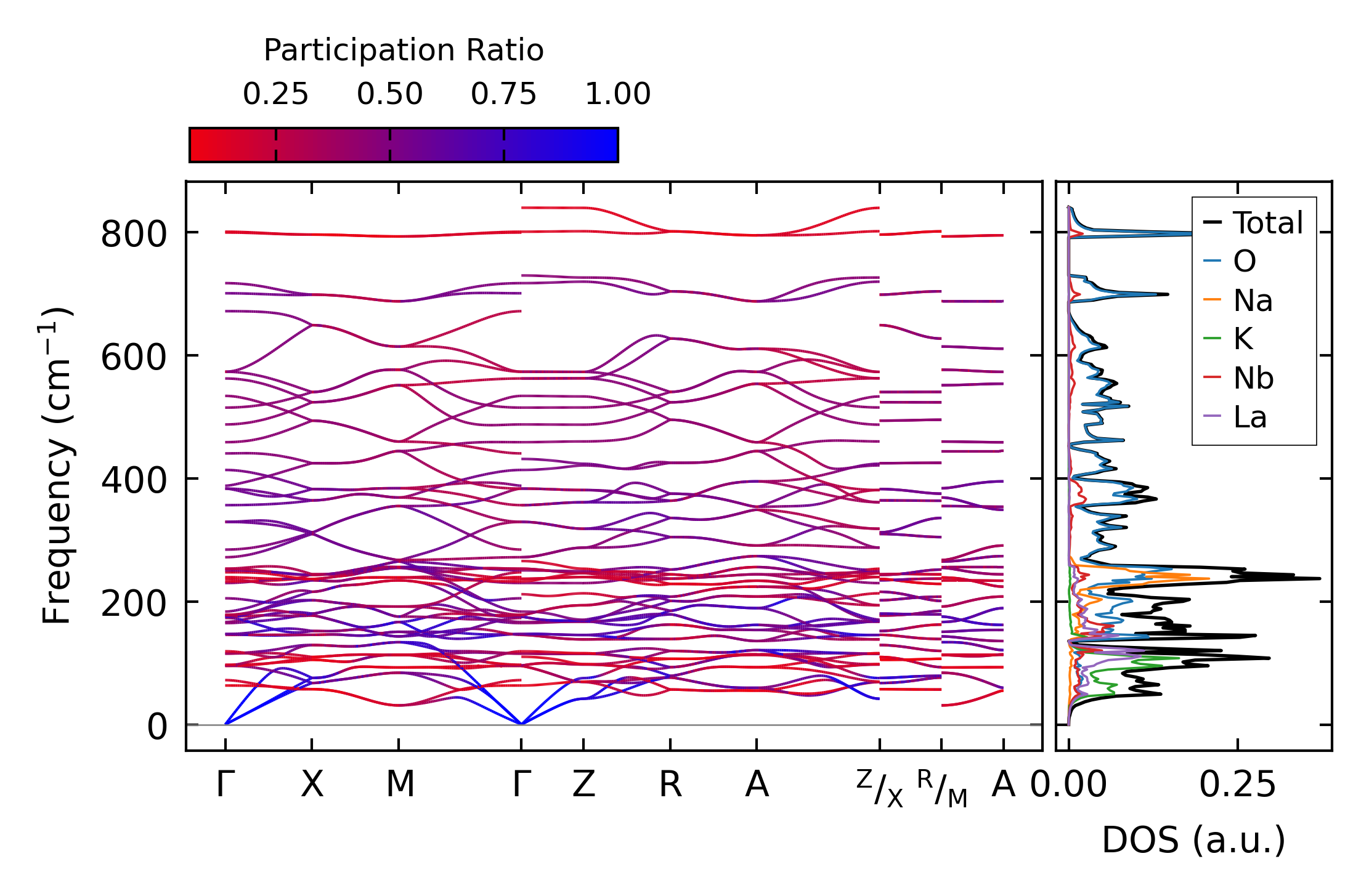

../../_images/fig_bandos_pr681.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo681.png — (b) Thermodynamic properties

Grüneisen parameters

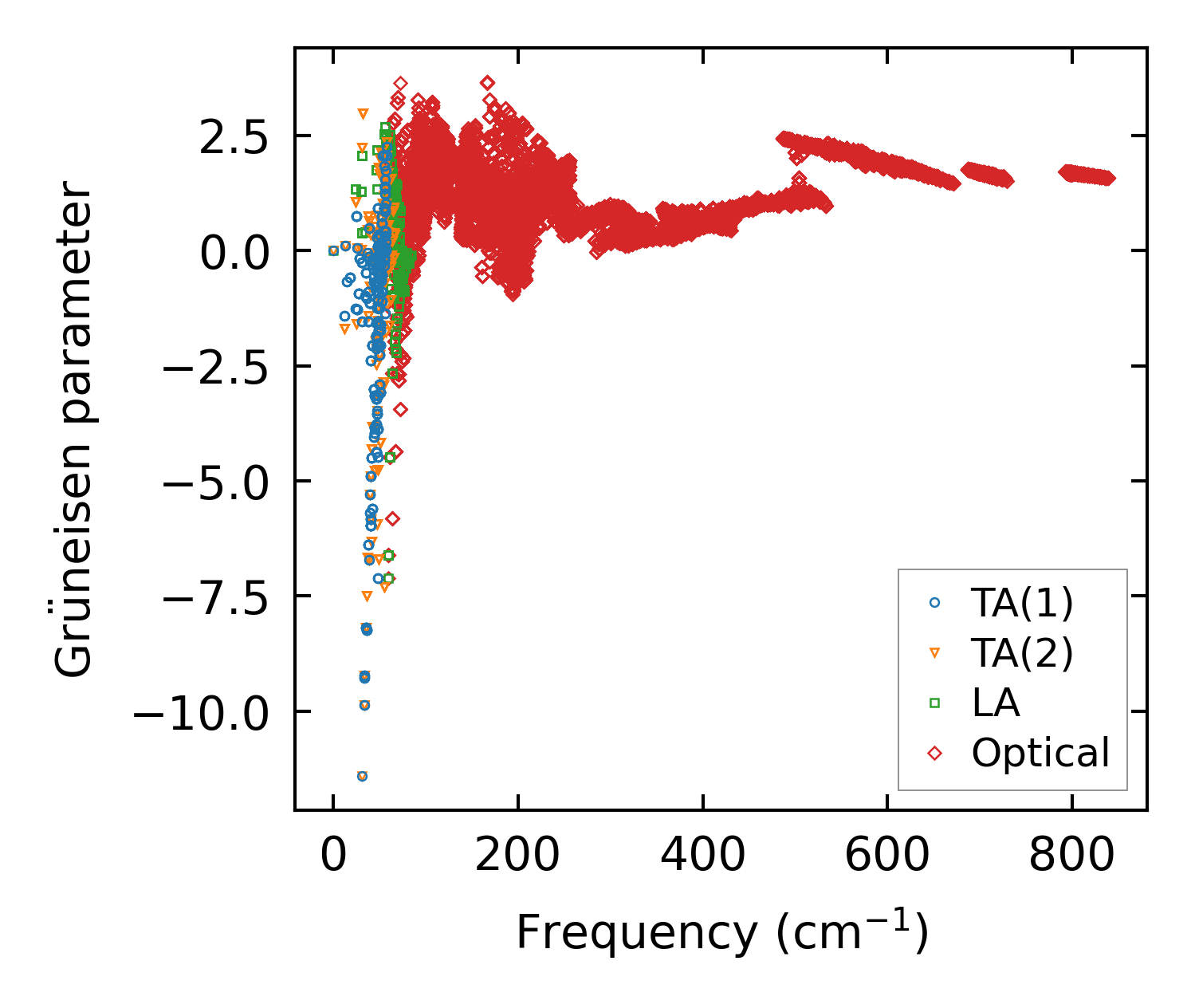

../../_images/fig_gru_all452.png — (a) Grüneisen parameters

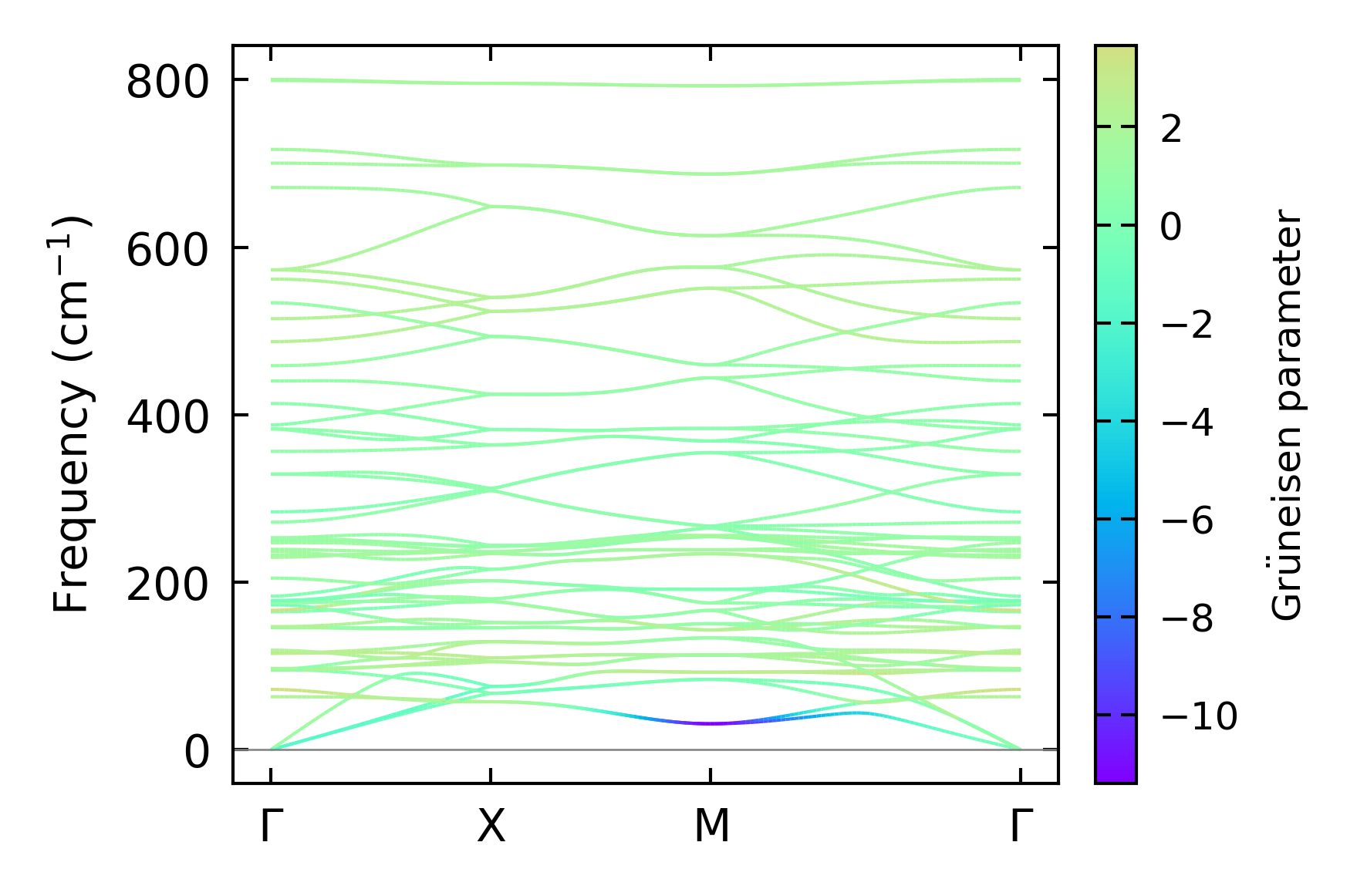

../../_images/fig_gruneisen452.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x8, supercell: 2x2x2

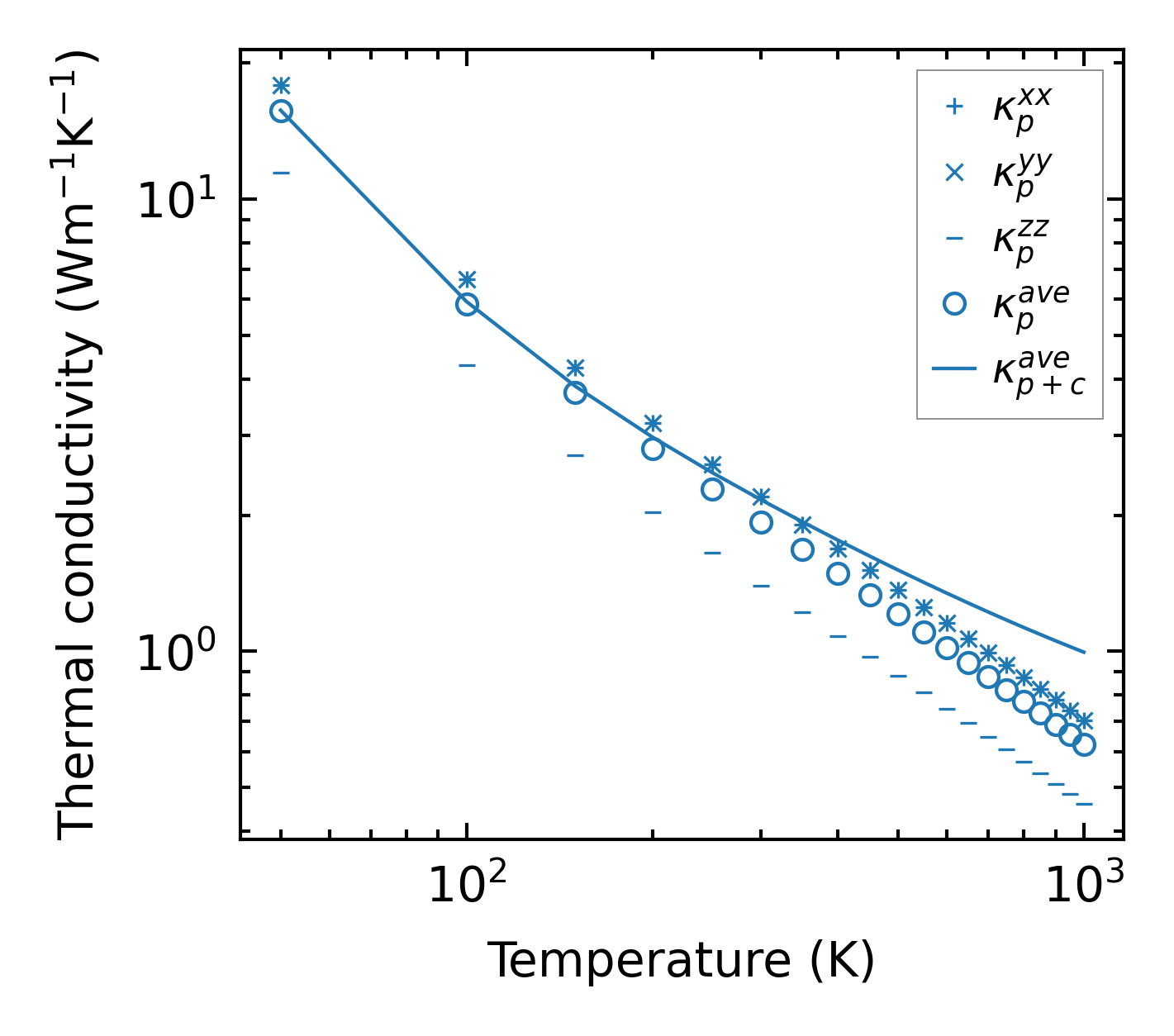

../../_images/fig_kappa879.png — (a) Temperature-dependent lattice thermal conductivity

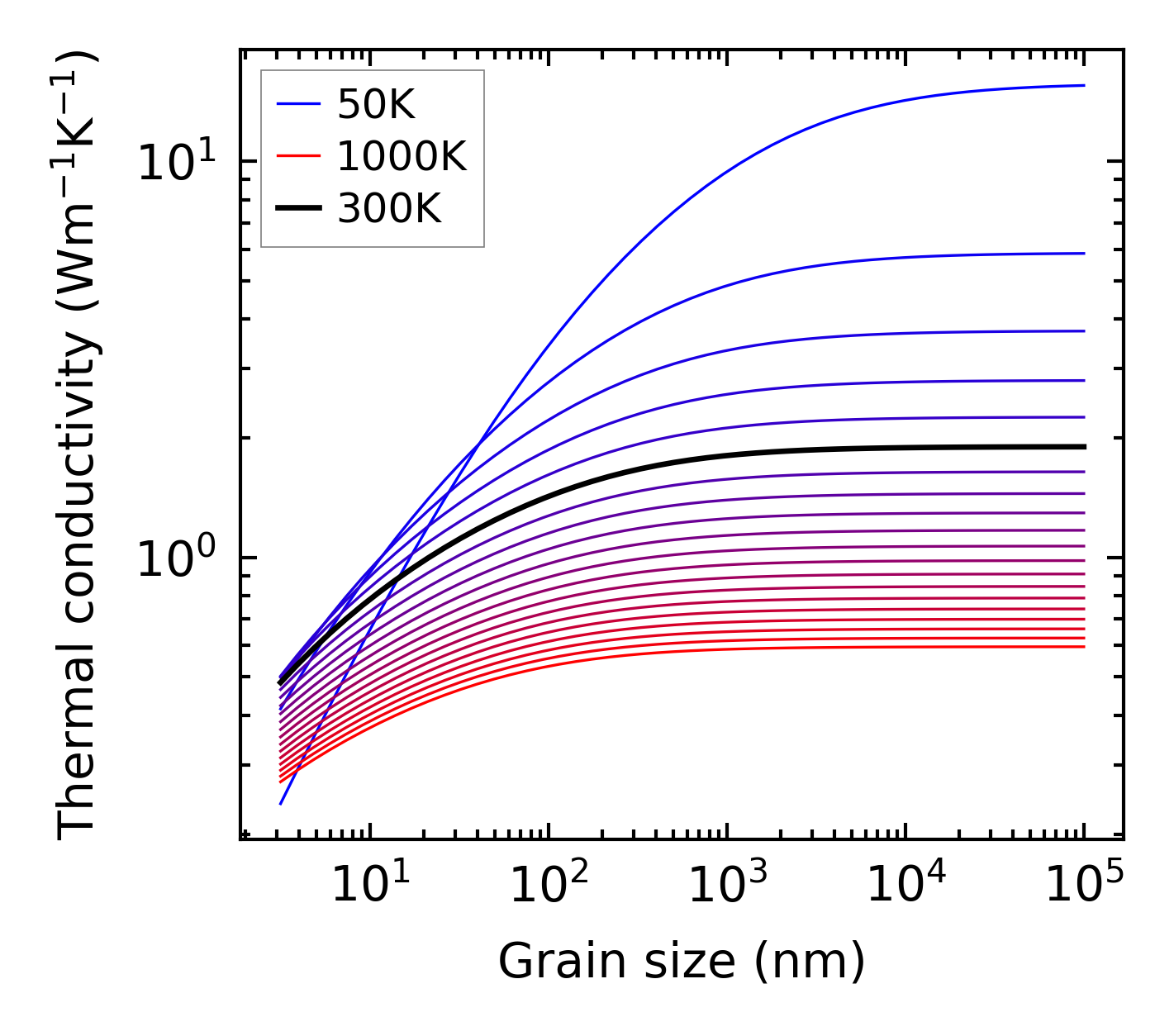

../../_images/fig_kappa_vs_grain_size459.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

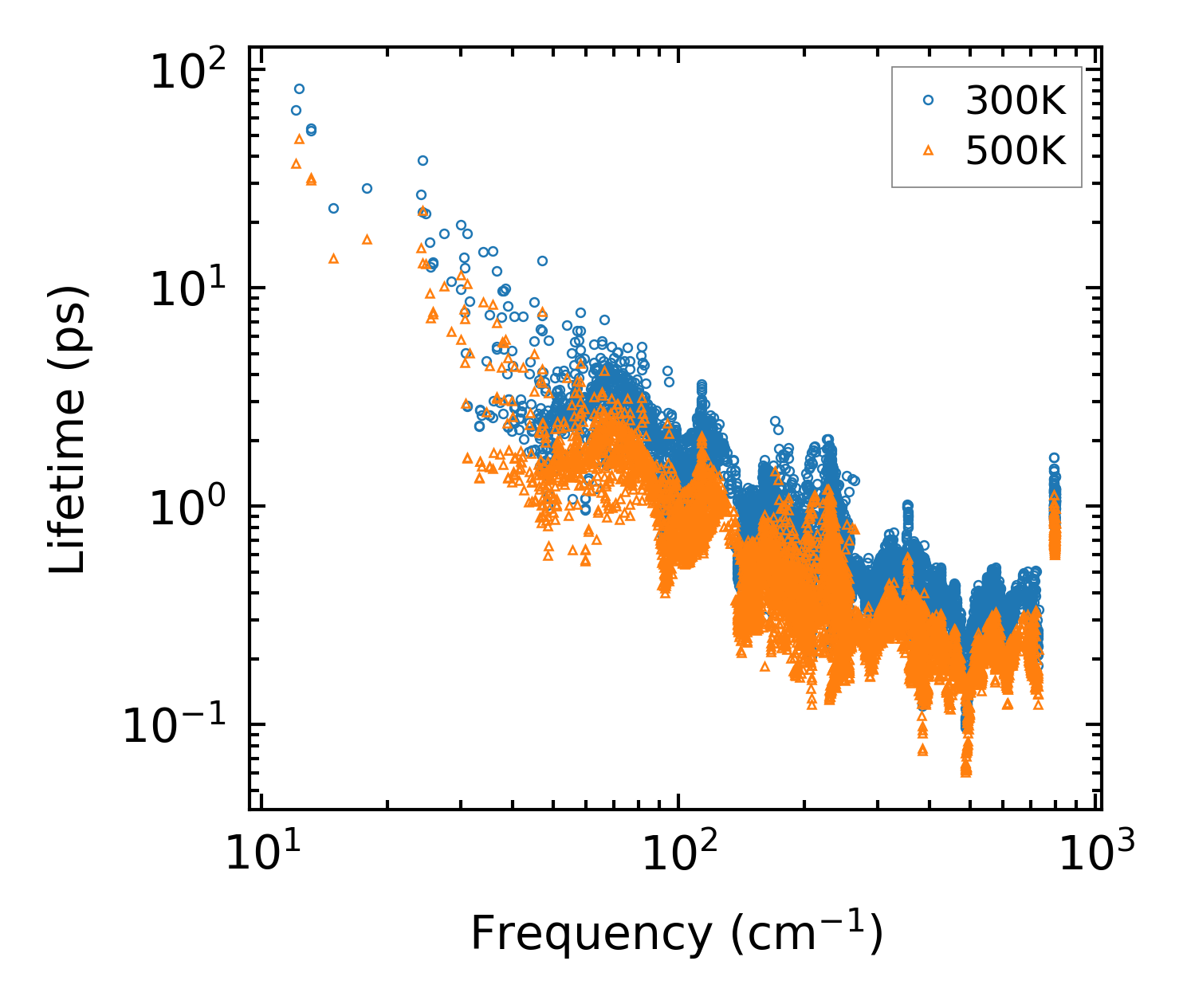

../../_images/fig_lifetime450.png — (a) Phonon lifetime due to phonon-phonon scattering

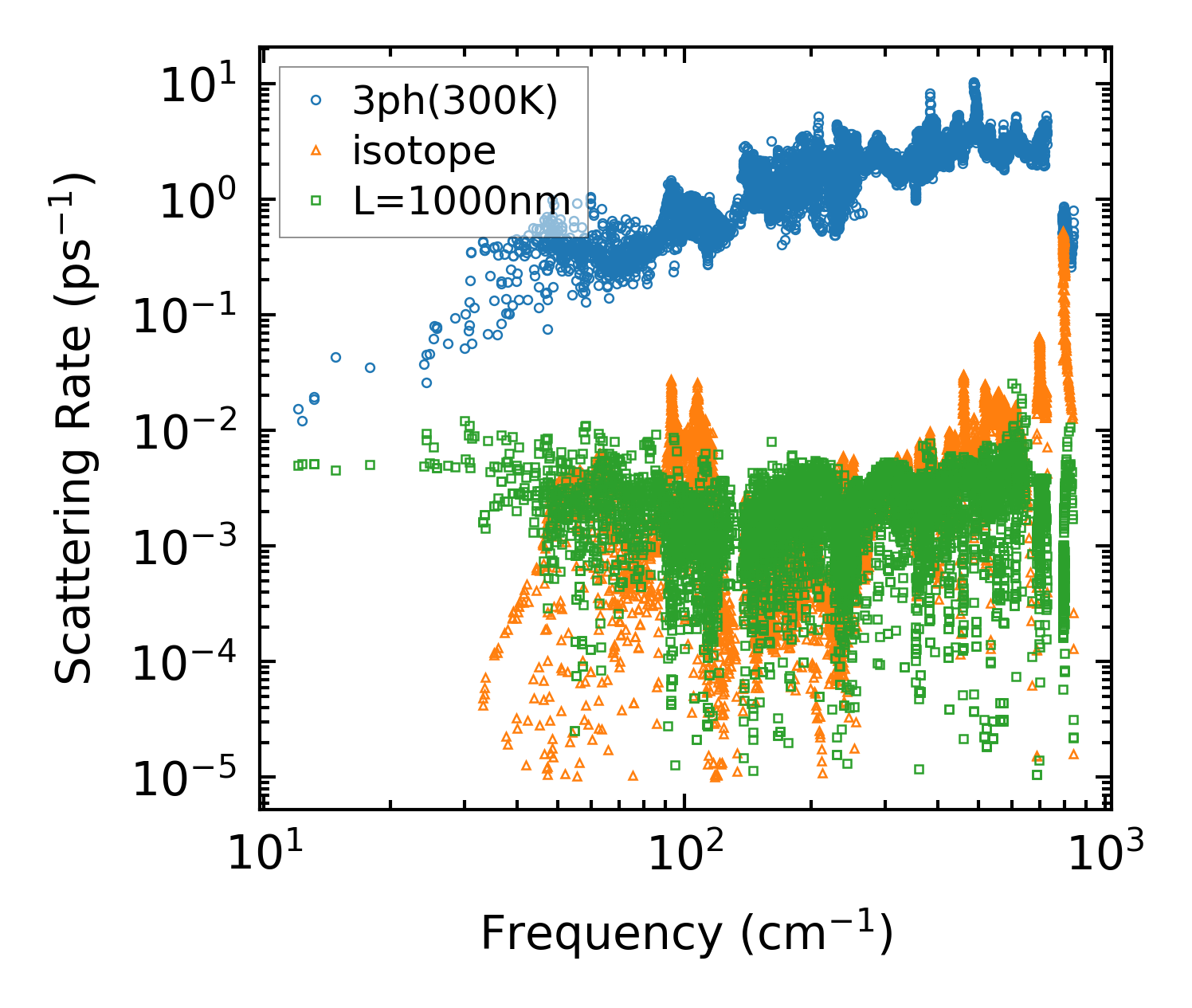

../../_images/fig_scat_rates449.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

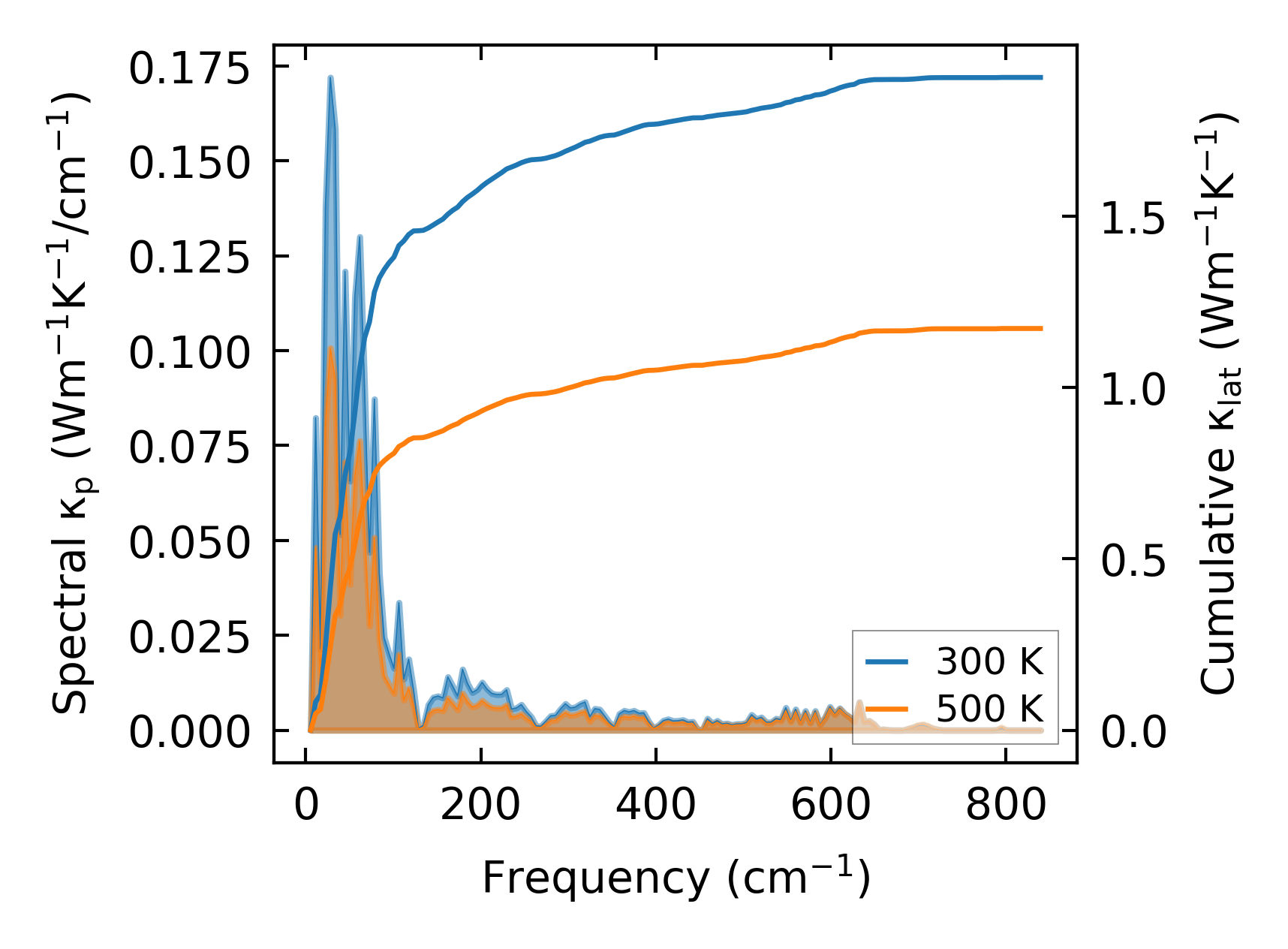

../../_images/fig_cumu_frequency450.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

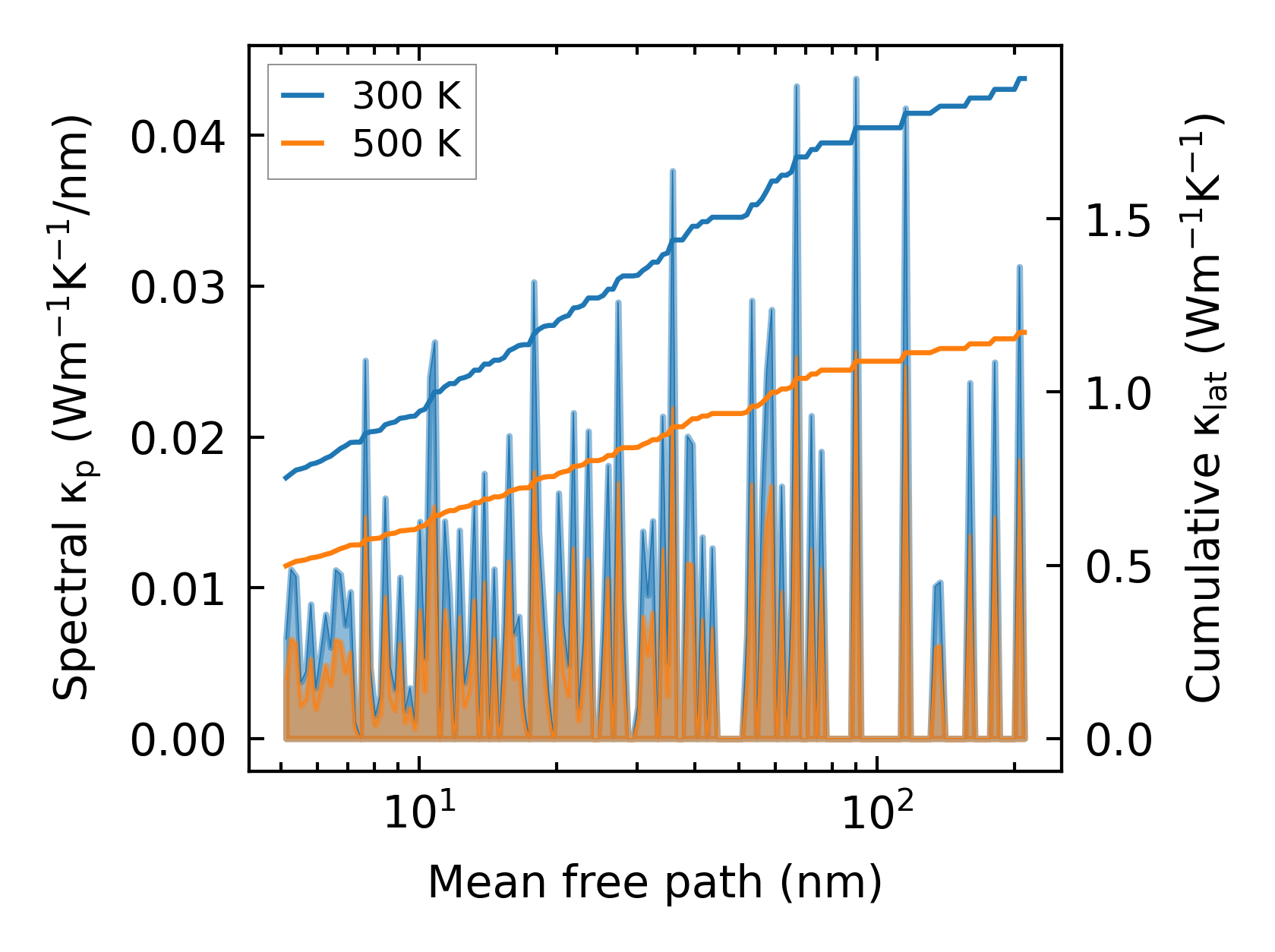

../../_images/fig_cumu_mfp450.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

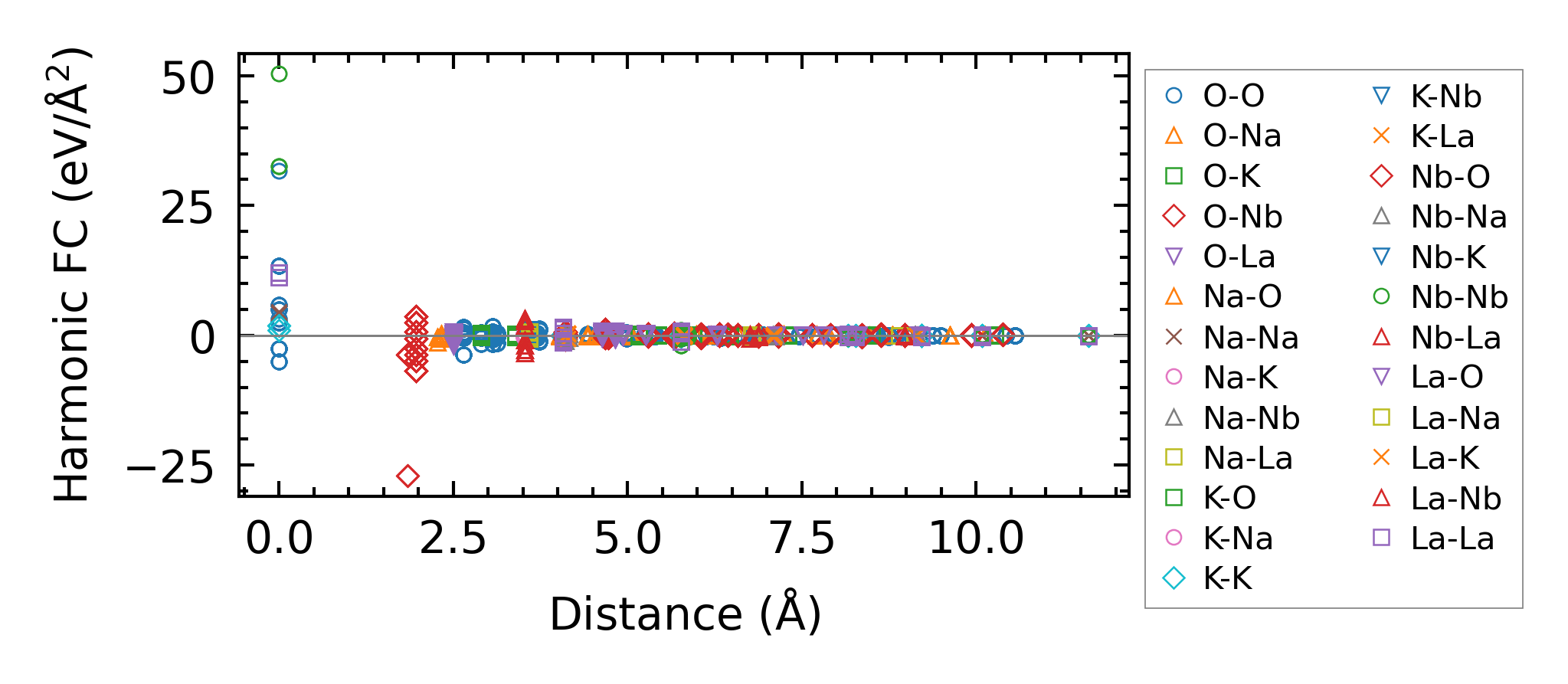

../../_images/fig_fc2592.png — (a) Force constants w.r.t atomic distance

Summary

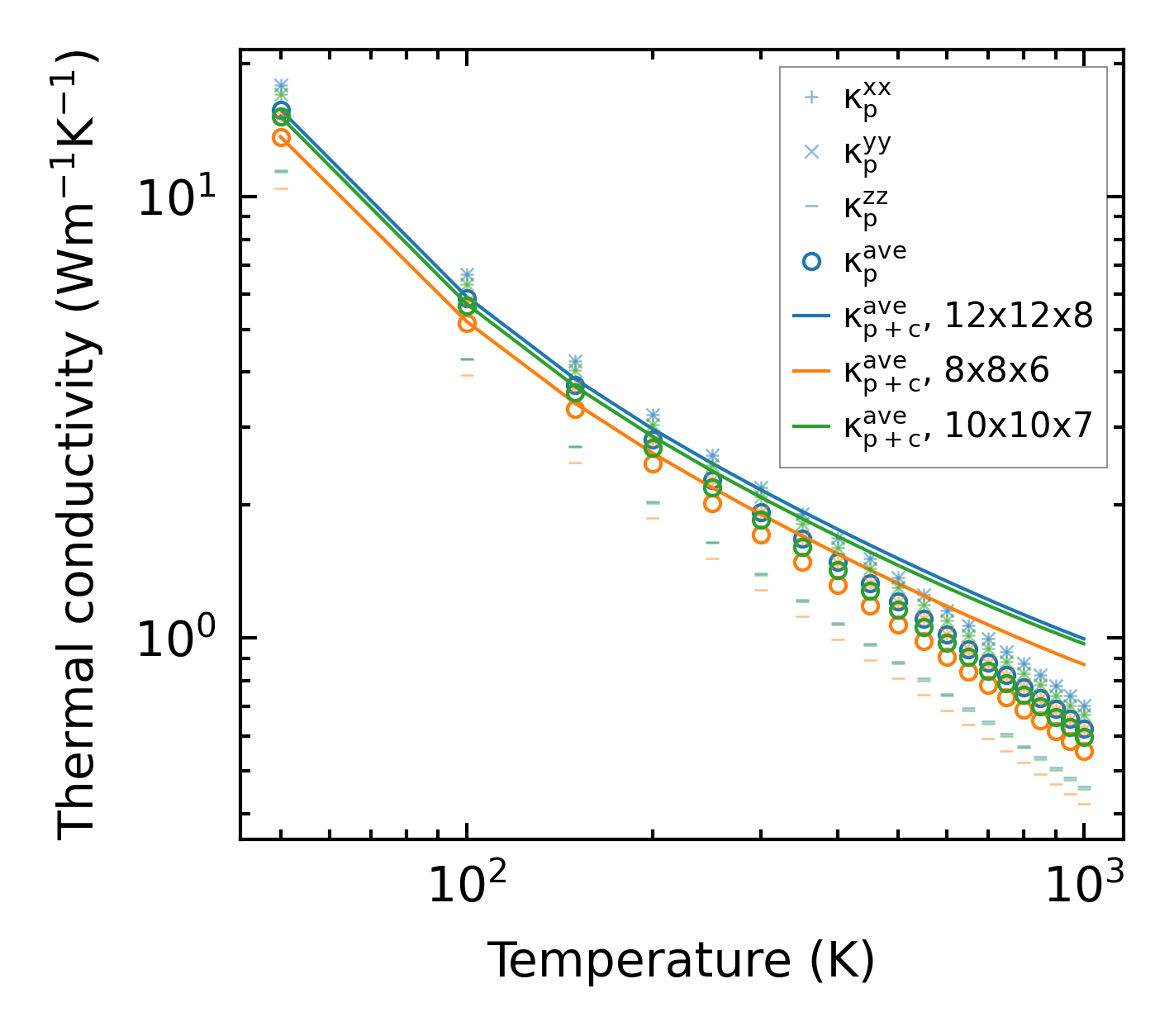

../../_images/fig_kappa880.png — (a) Temperature-dependent lattice thermal conductivity

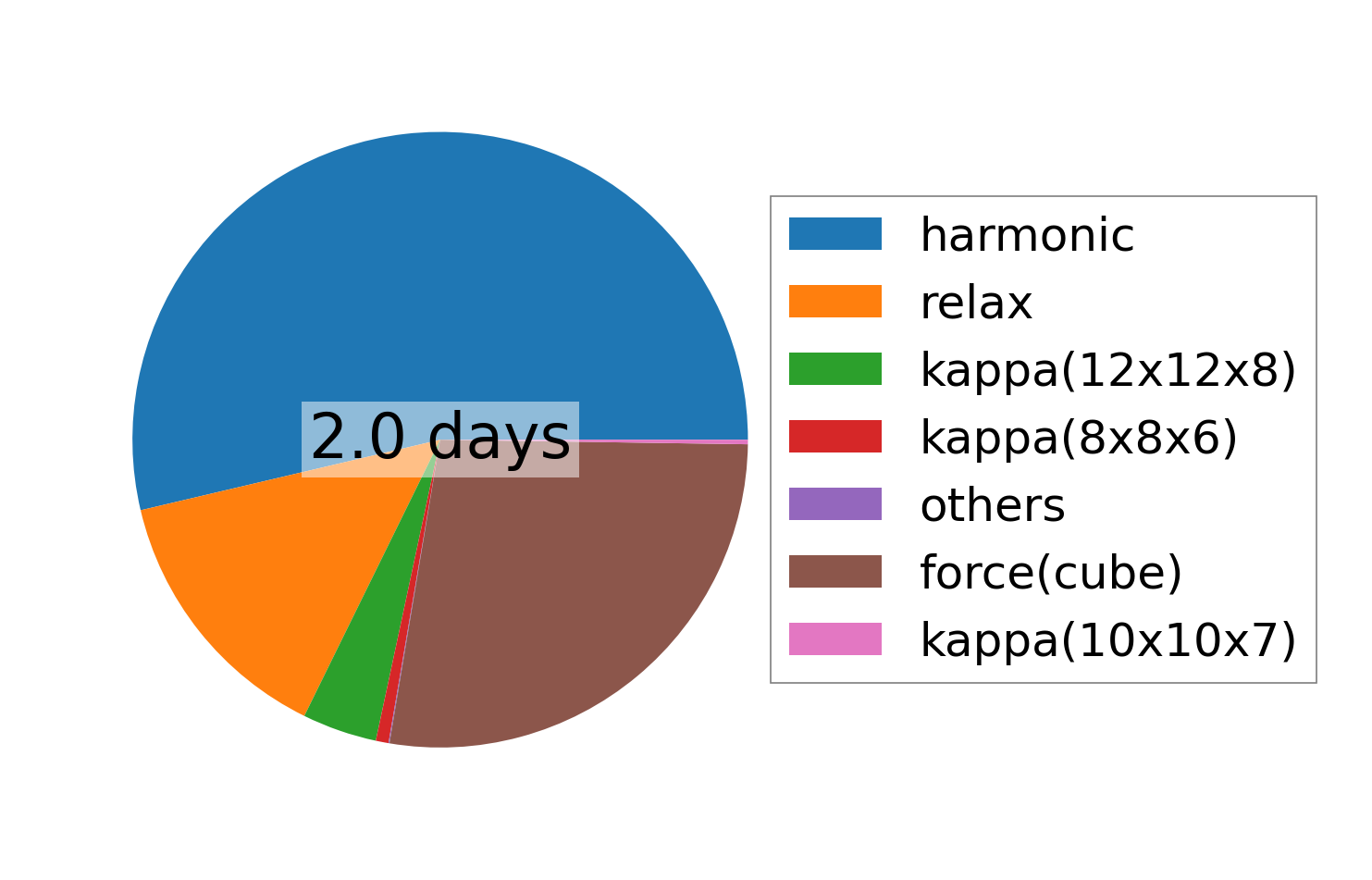

../../_images/fig_times981.png — (b) Computation time
