mp-10776/K2SnAs2S6/anharm

Space group: P-3 (147)
Link: Materials Project
Download: mp-10776.tar.gz

Equation of state

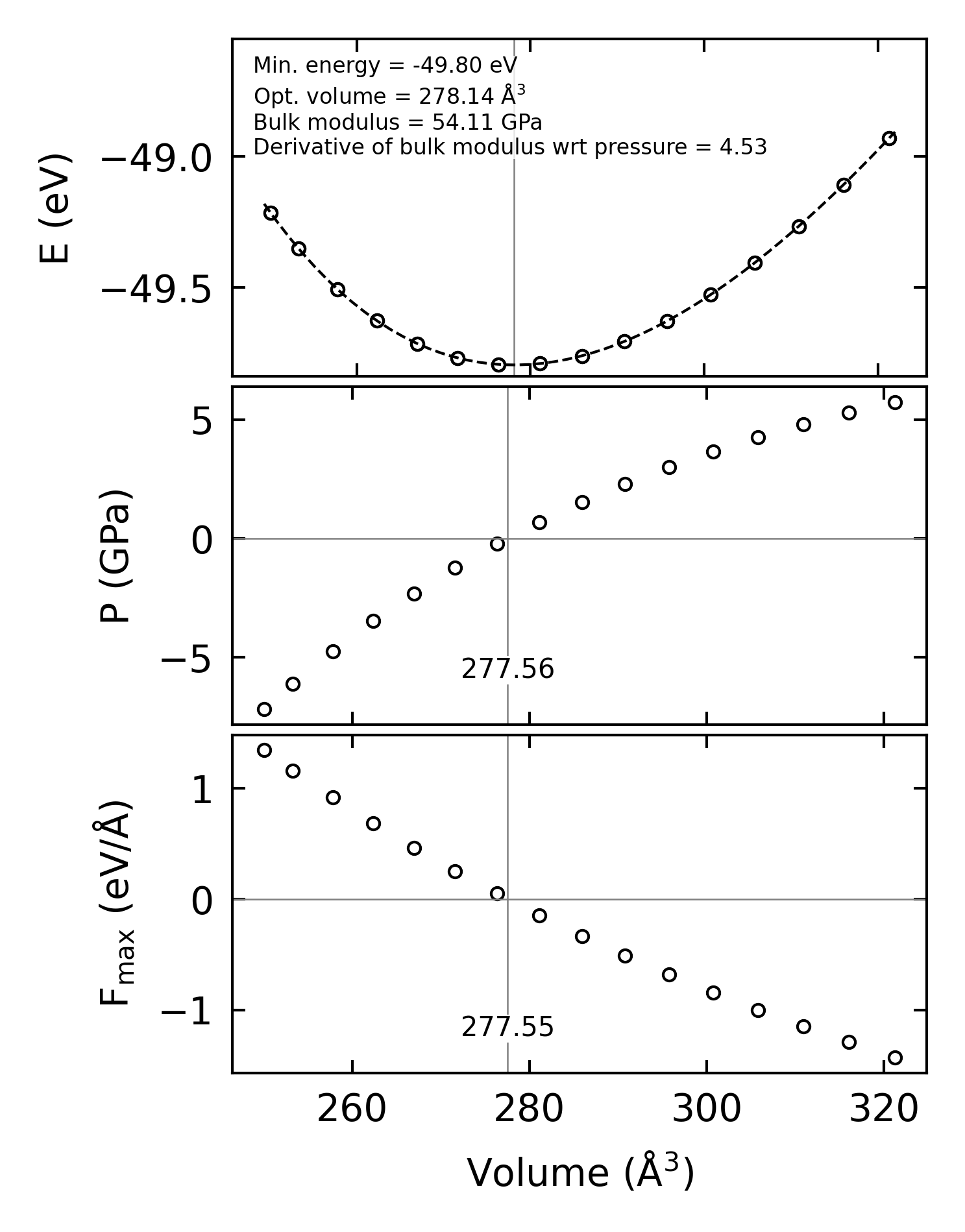

../../_images/fig_bm227.png — (a) Equation of state

Harmonic properties

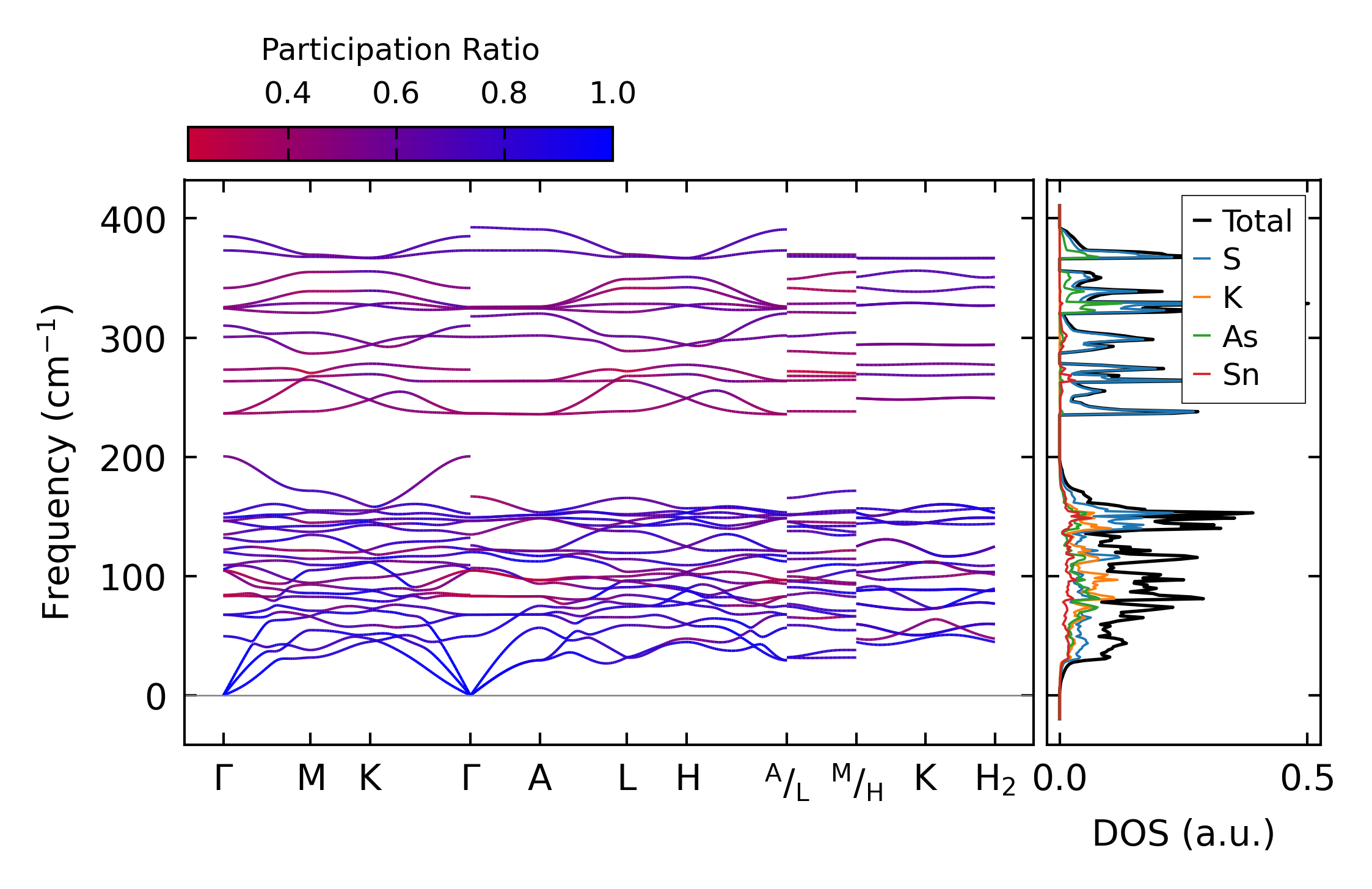

../../_images/fig_bandos_pr642.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo642.png — (b) Thermodynamic properties

Grüneisen parameters

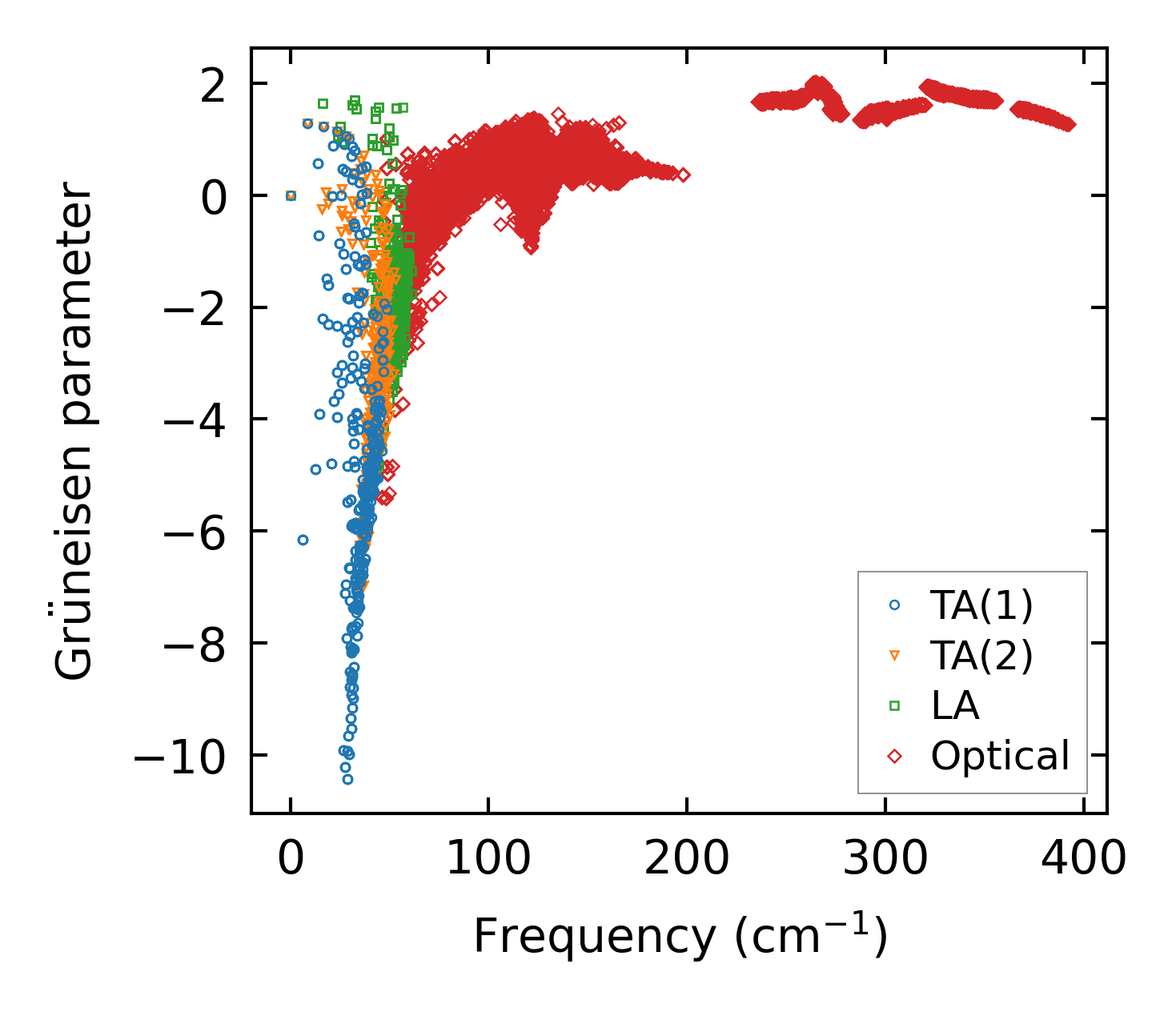

../../_images/fig_gru_all422.png — (a) Grüneisen parameters

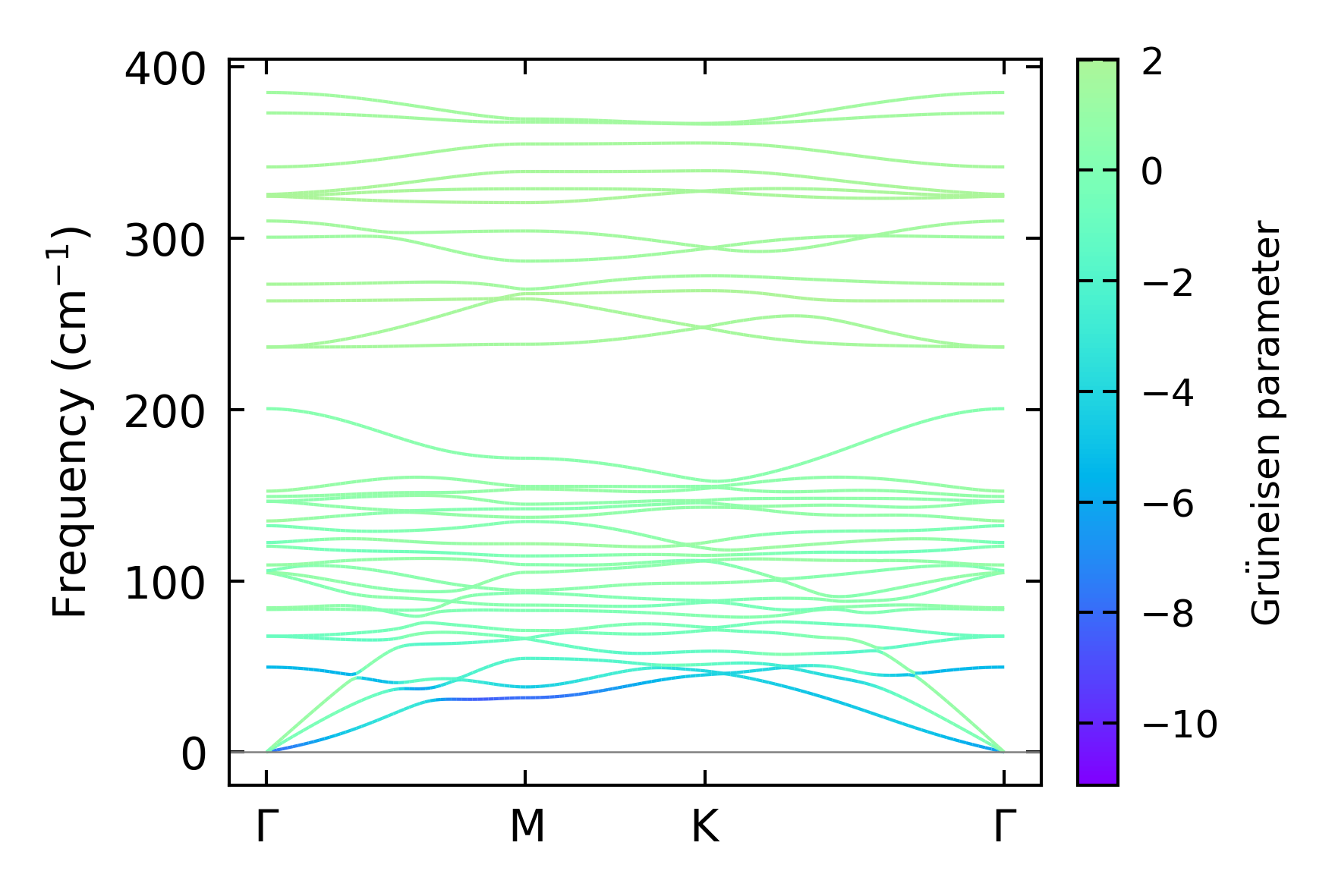

../../_images/fig_gruneisen422.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x10, supercell: 2x2x2

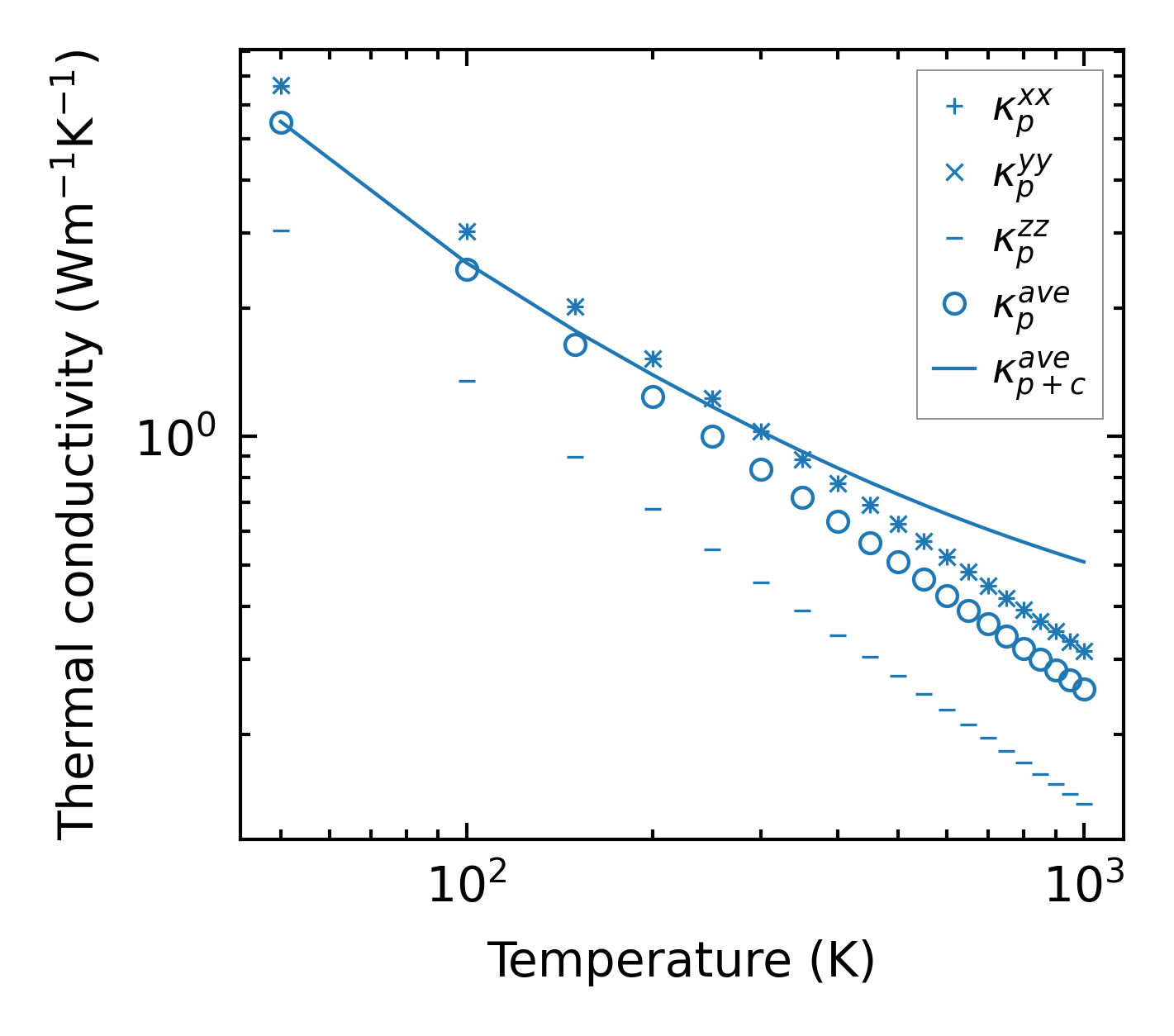

../../_images/fig_kappa821.png — (a) Temperature-dependent lattice thermal conductivity

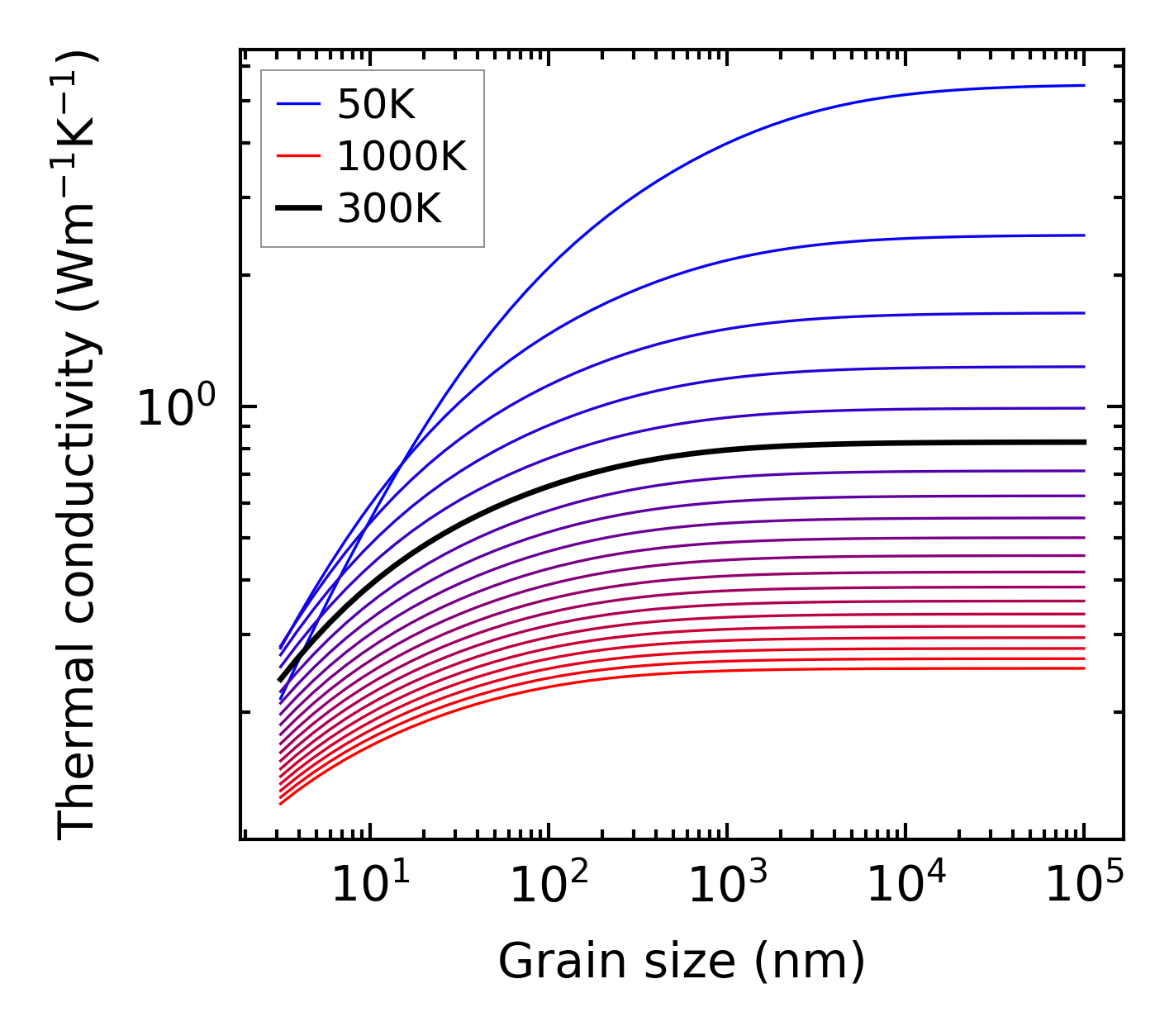

../../_images/fig_kappa_vs_grain_size428.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

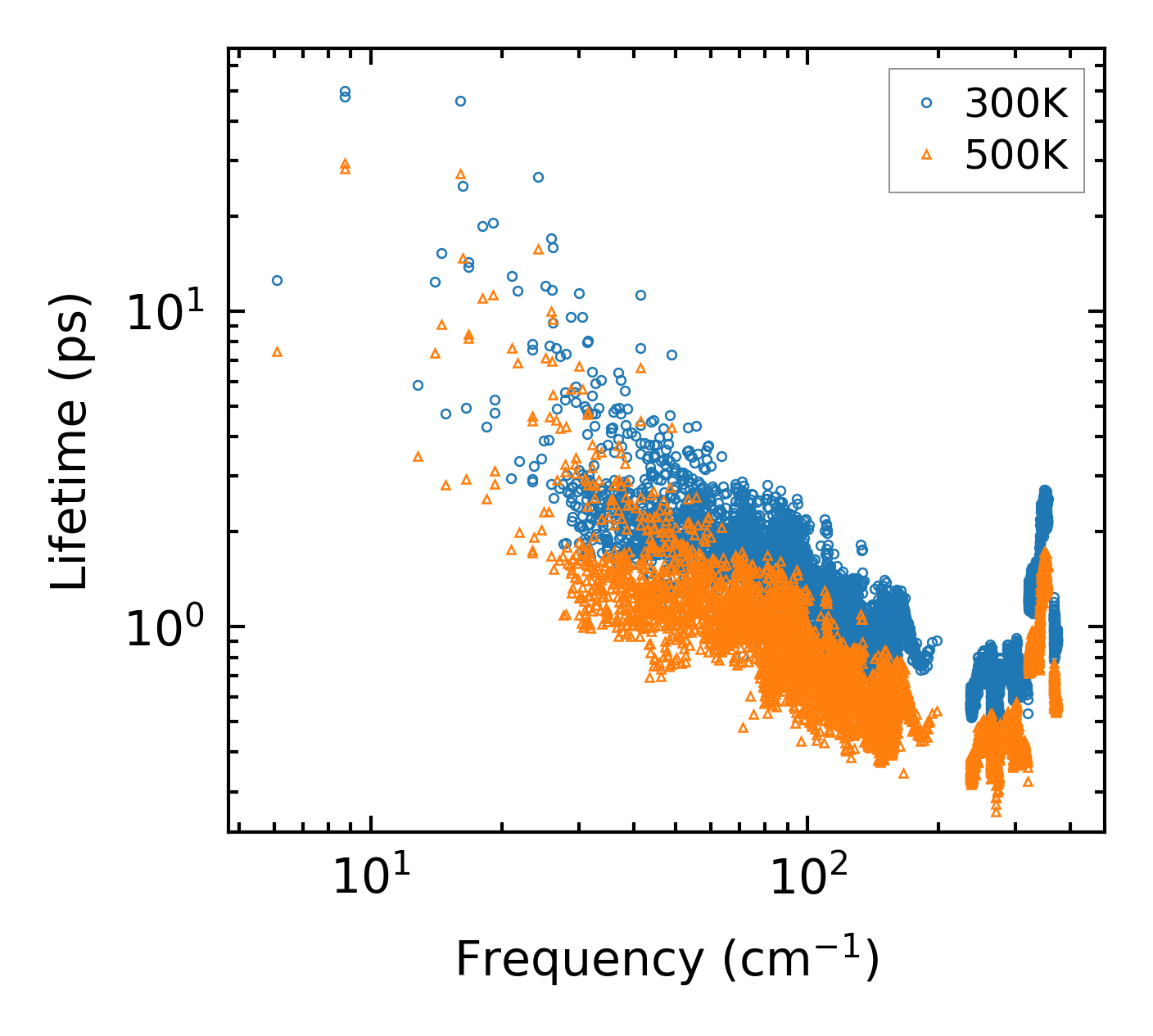

../../_images/fig_lifetime420.png — (a) Phonon lifetime due to phonon-phonon scattering

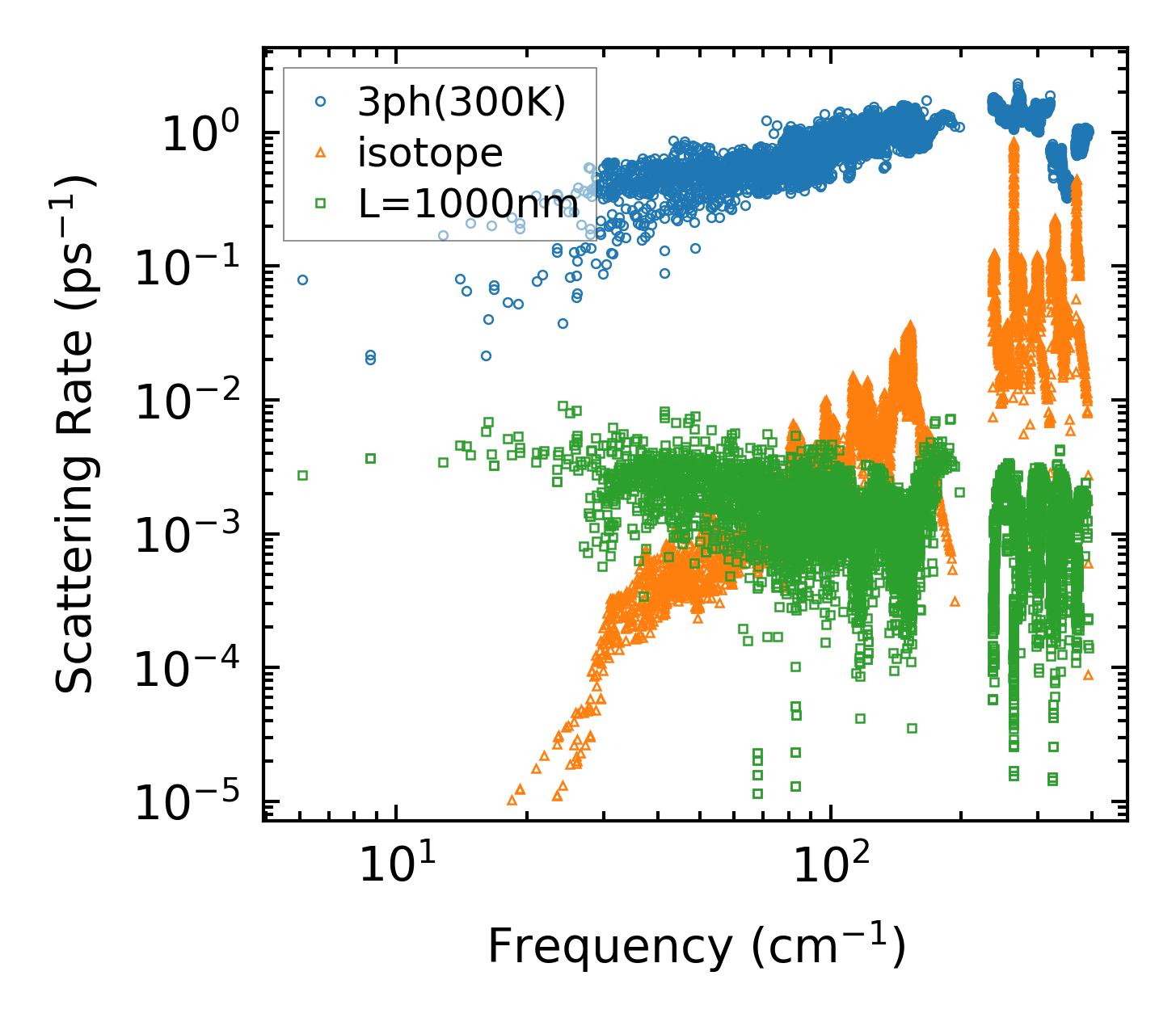

../../_images/fig_scat_rates419.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

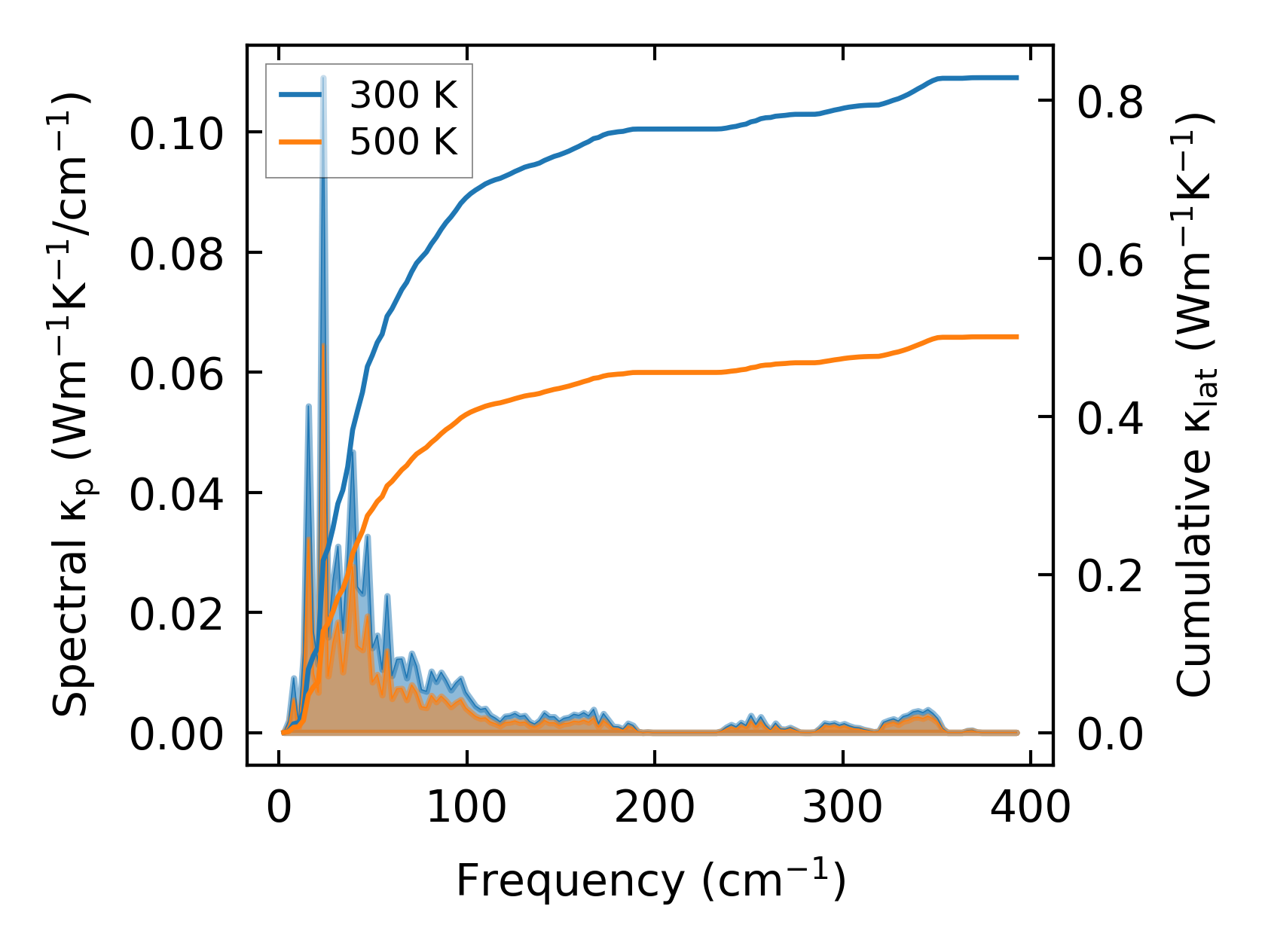

../../_images/fig_cumu_frequency420.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

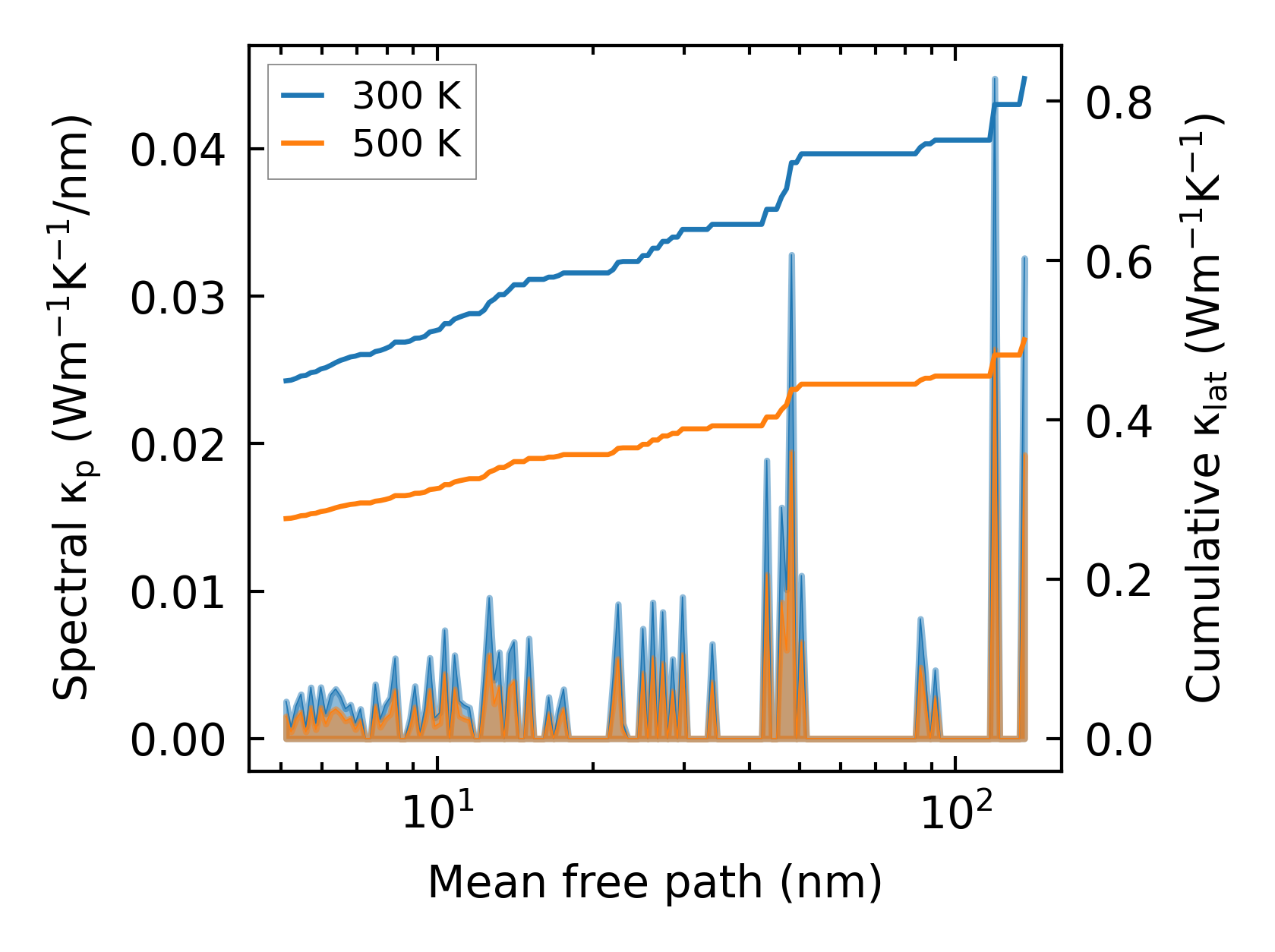

../../_images/fig_cumu_mfp420.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

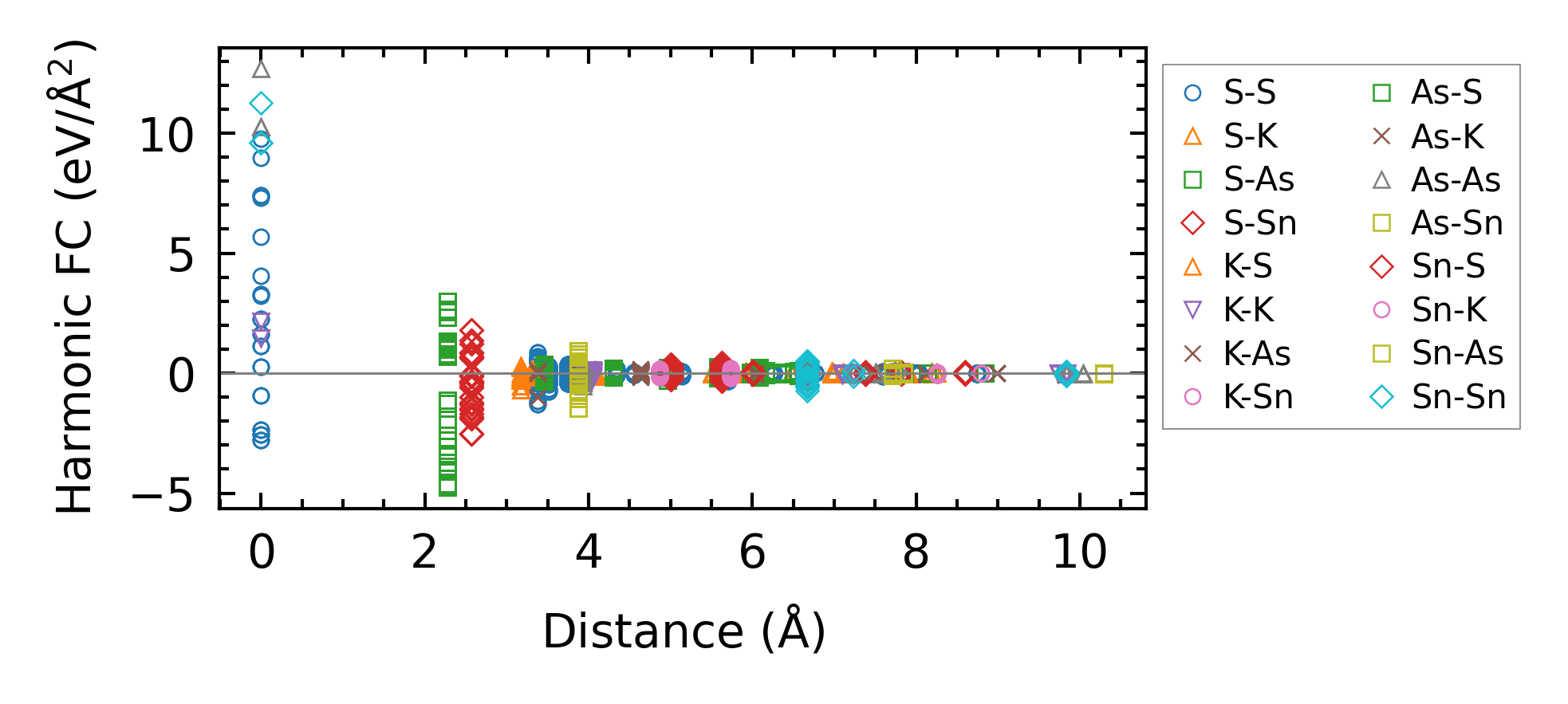

../../_images/fig_fc2555.png — (a) Force constants w.r.t atomic distance

Summary

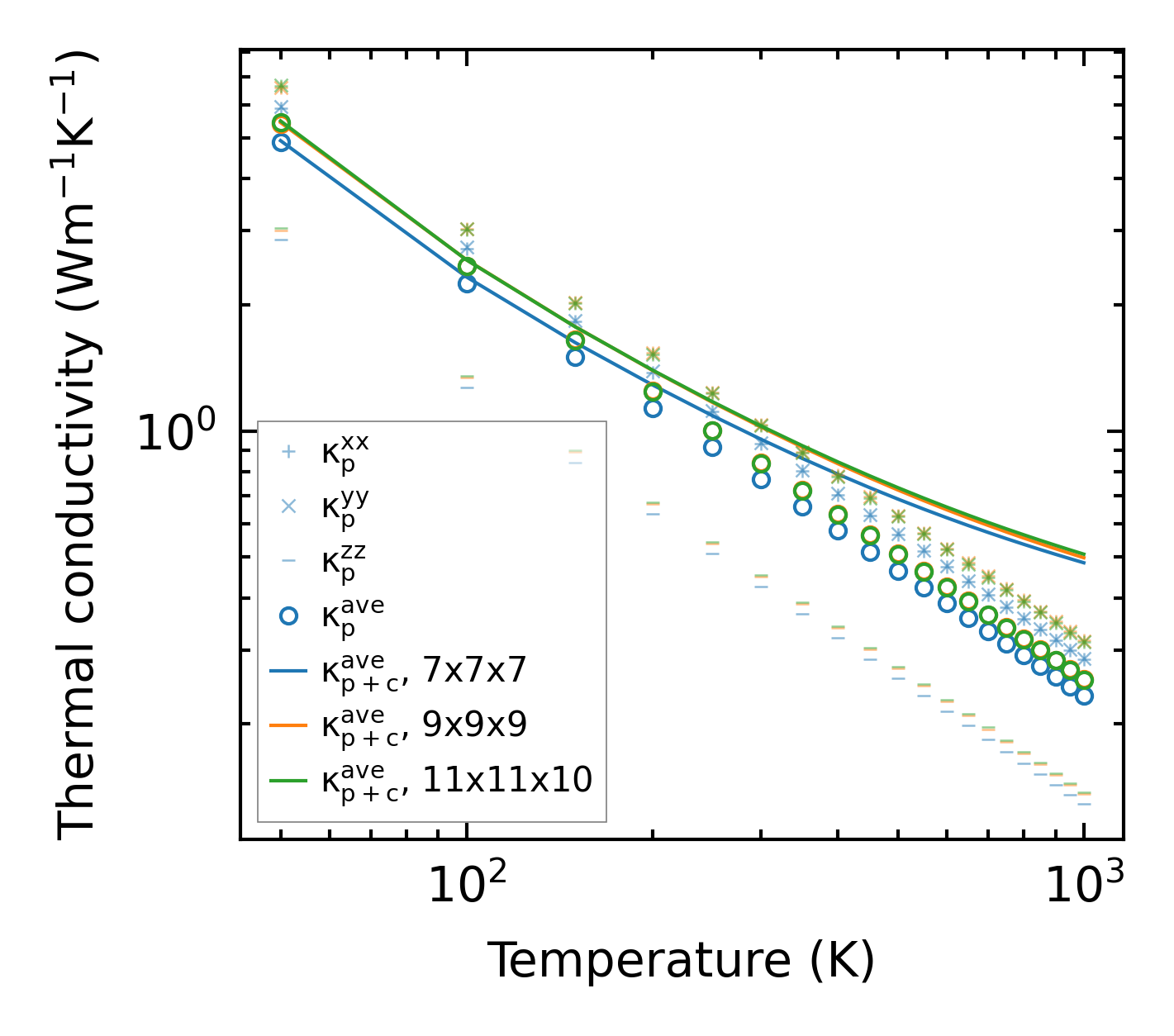

../../_images/fig_kappa822.png — (a) Temperature-dependent lattice thermal conductivity

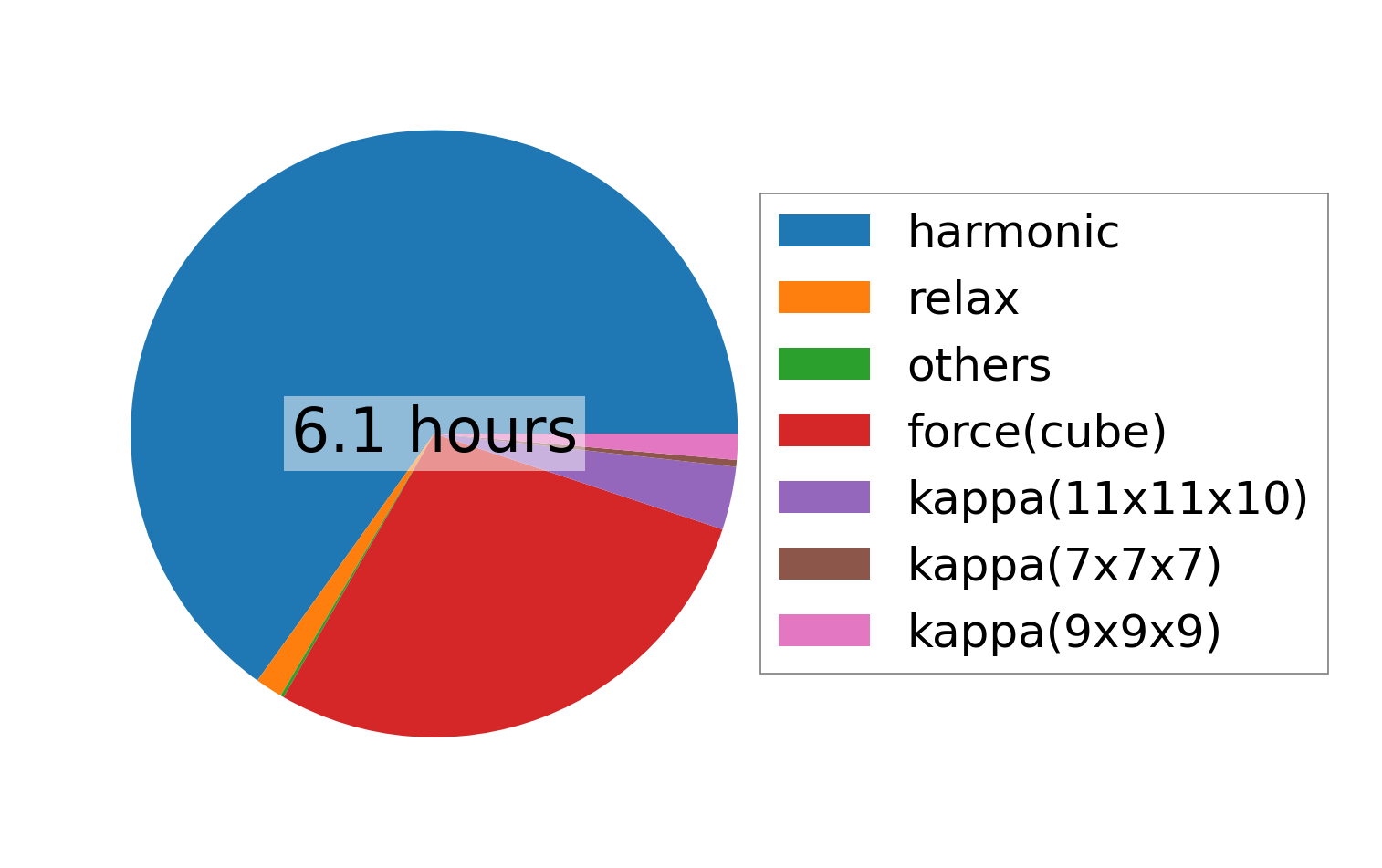

../../_images/fig_times936.png — (b) Computation time
