mp-10509/BaGaBO3F2/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-10509.tar.gz

Harmonic properties

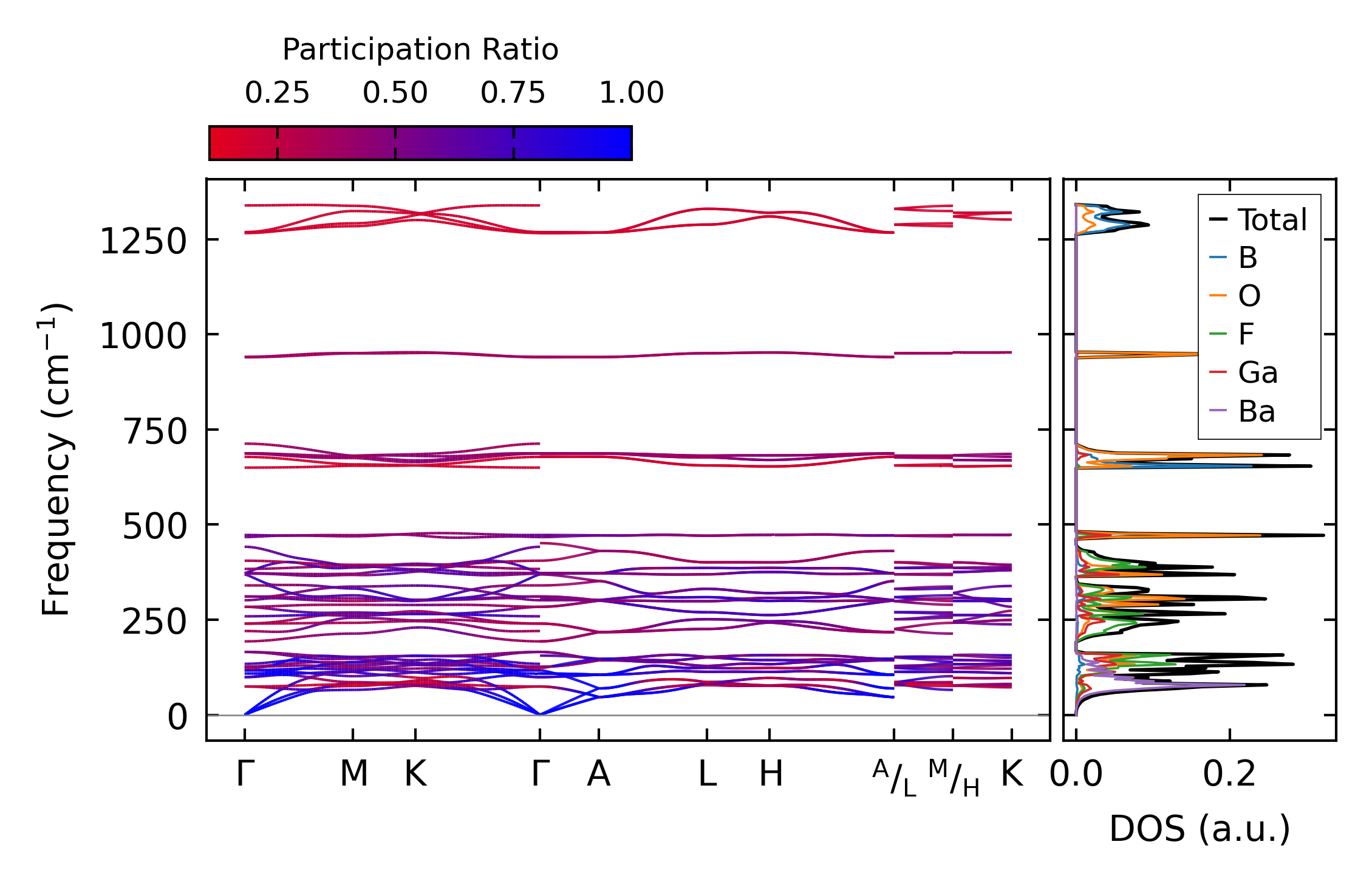

../../_images/fig_bandos_pr594.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo594.png — (b) Thermodynamic properties

Grüneisen parameters

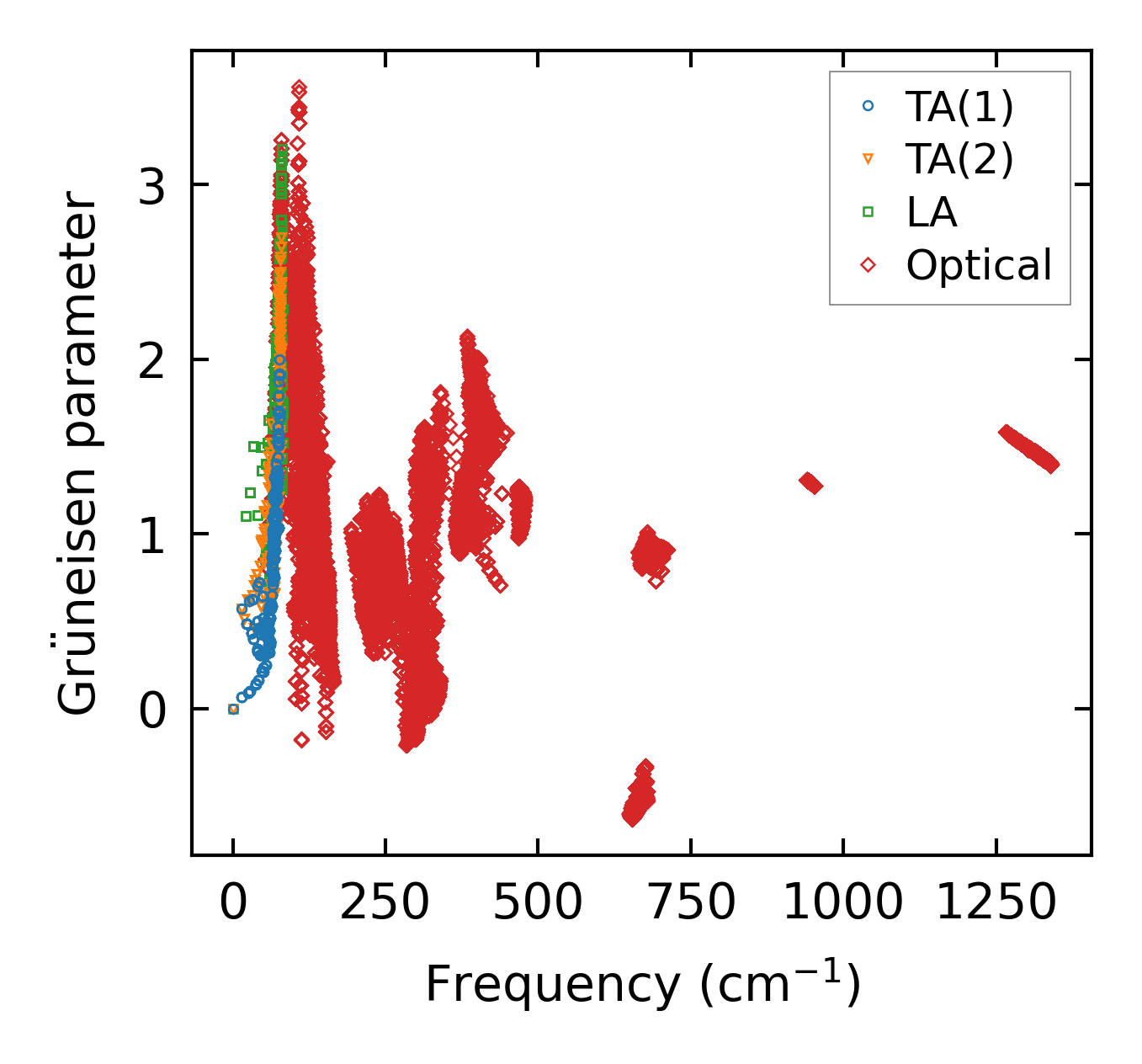

../../_images/fig_gru_all390.png — (a) Grüneisen parameters

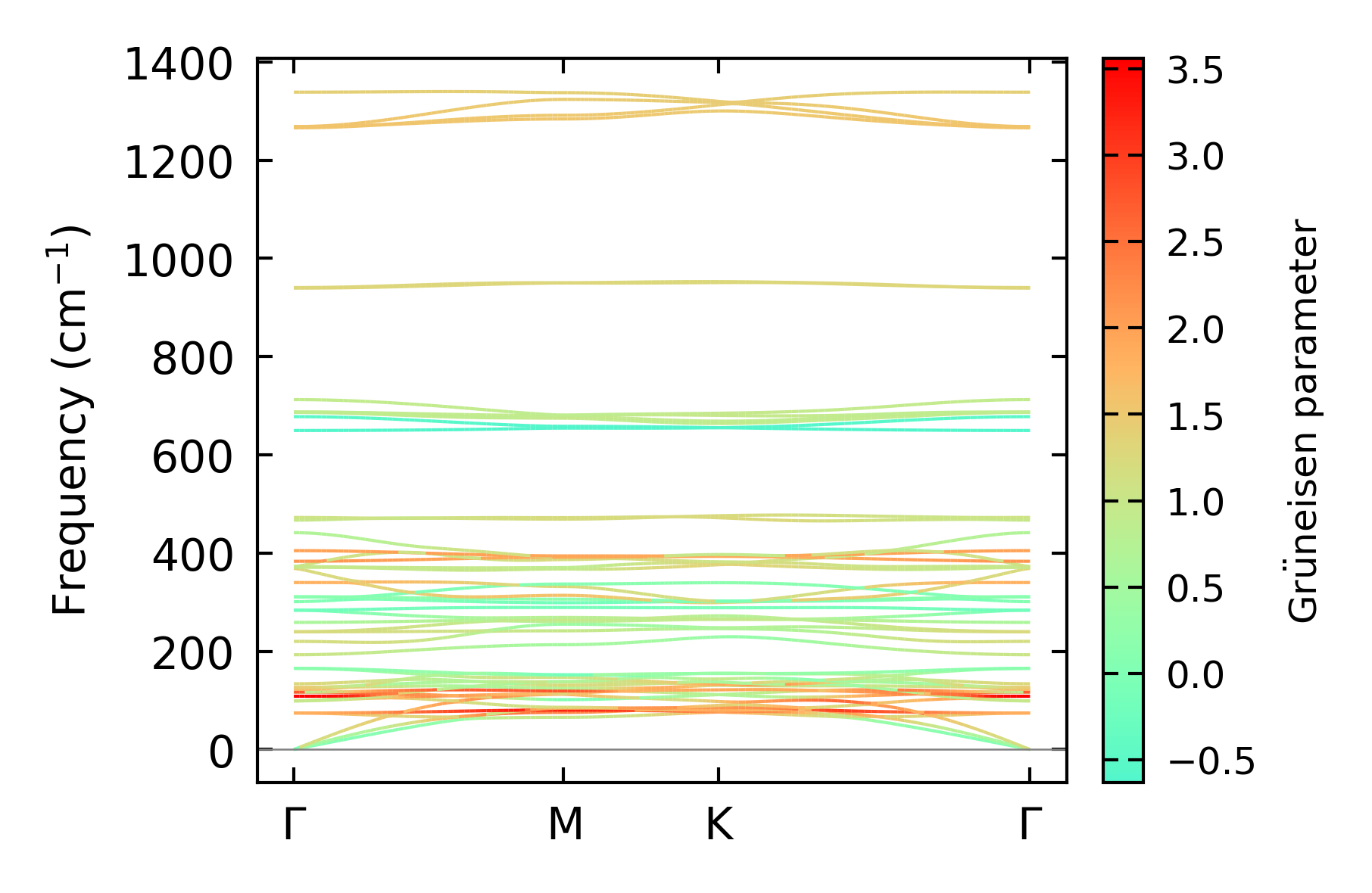

../../_images/fig_gruneisen390.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x7, supercell: 2x2x2

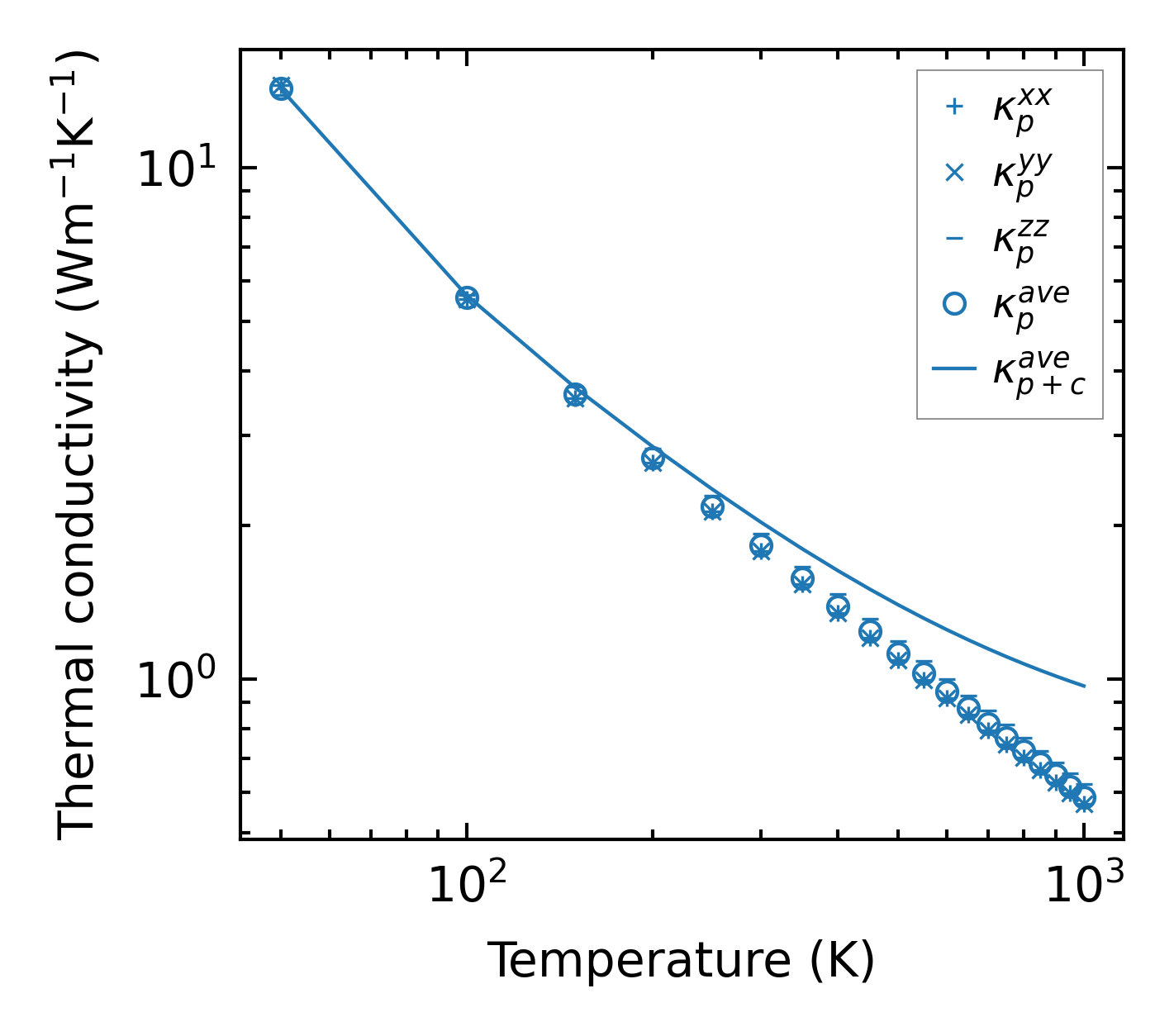

../../_images/fig_kappa759.png — (a) Temperature-dependent lattice thermal conductivity

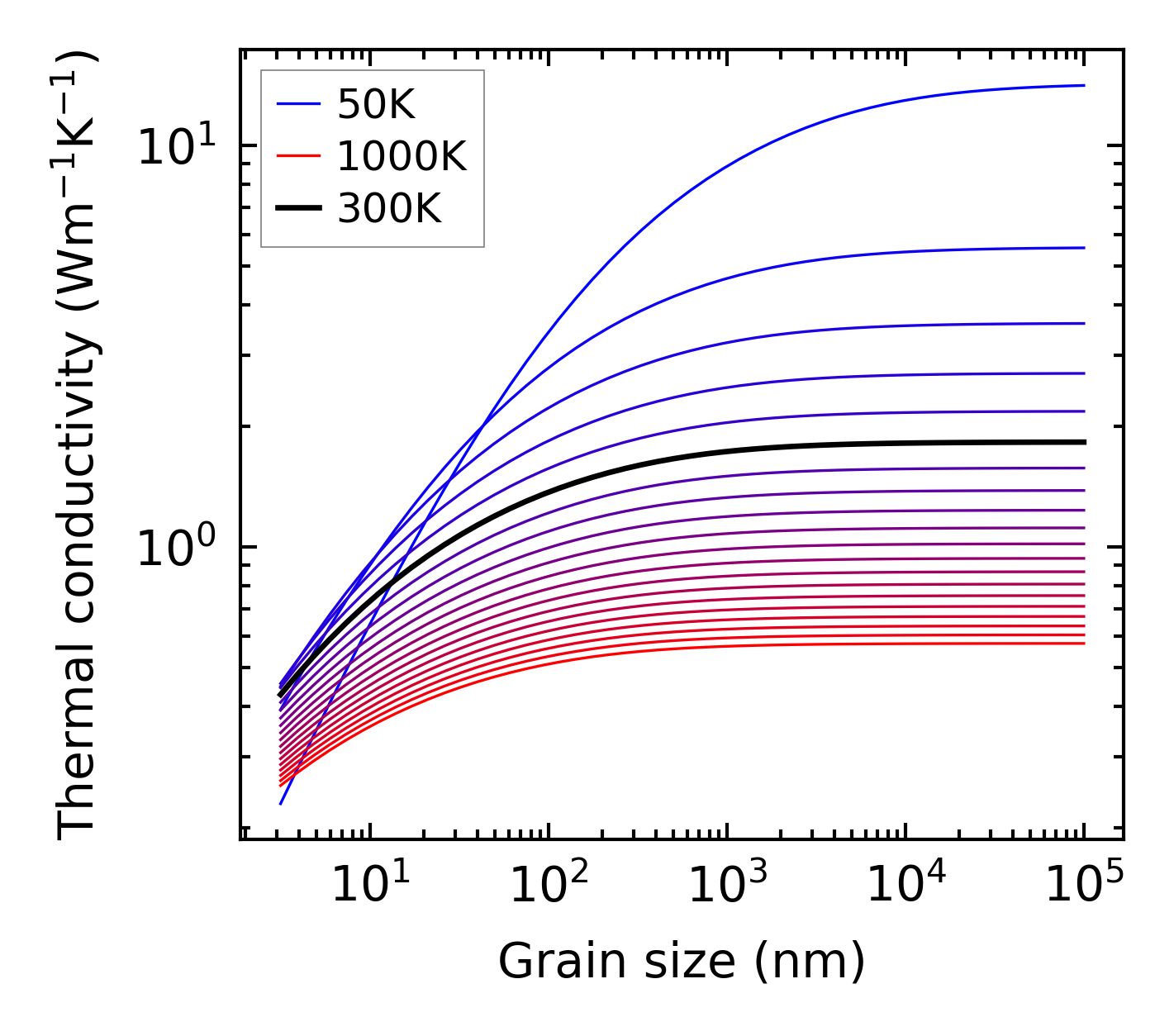

../../_images/fig_kappa_vs_grain_size396.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

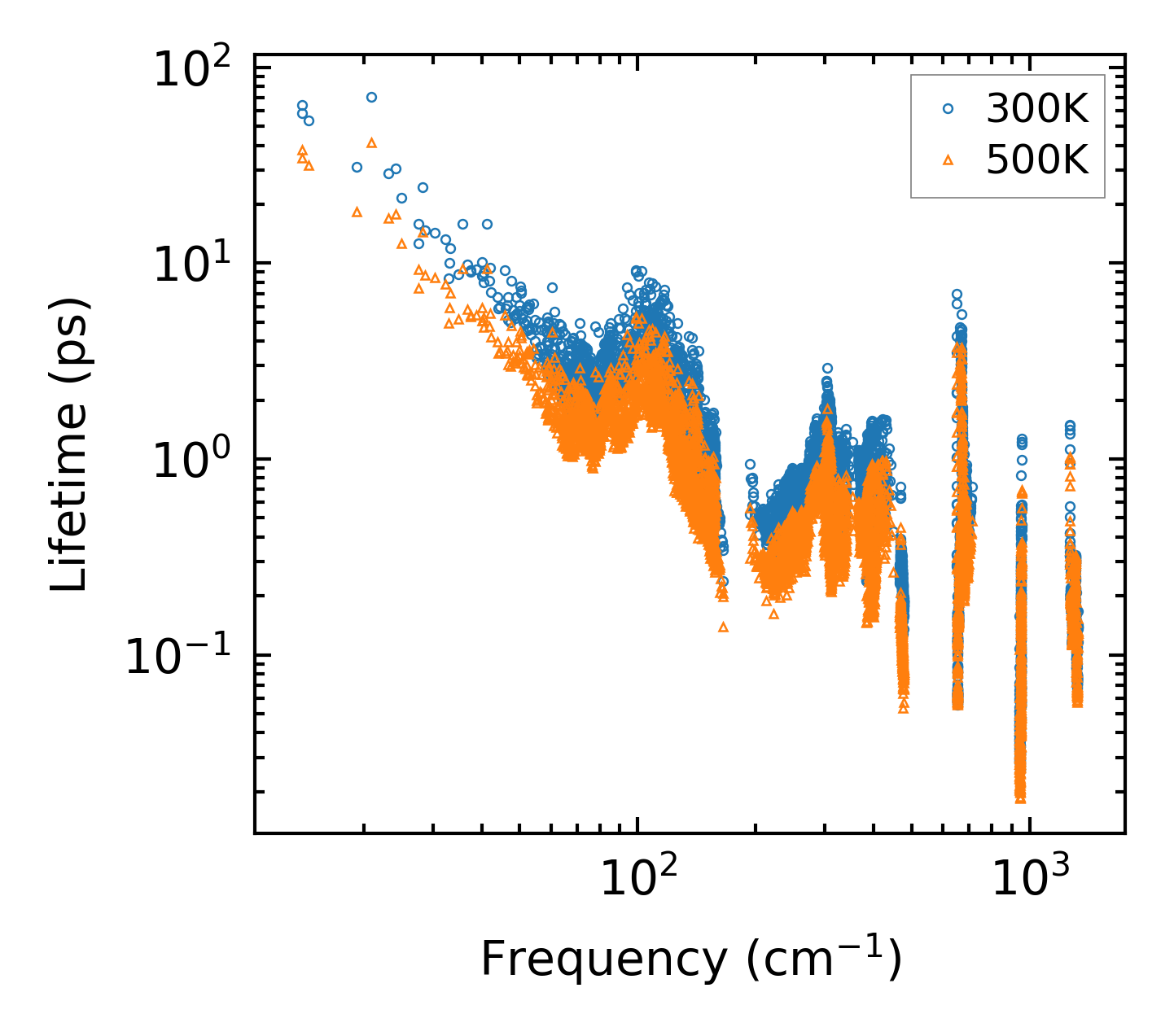

../../_images/fig_lifetime388.png — (a) Phonon lifetime due to phonon-phonon scattering

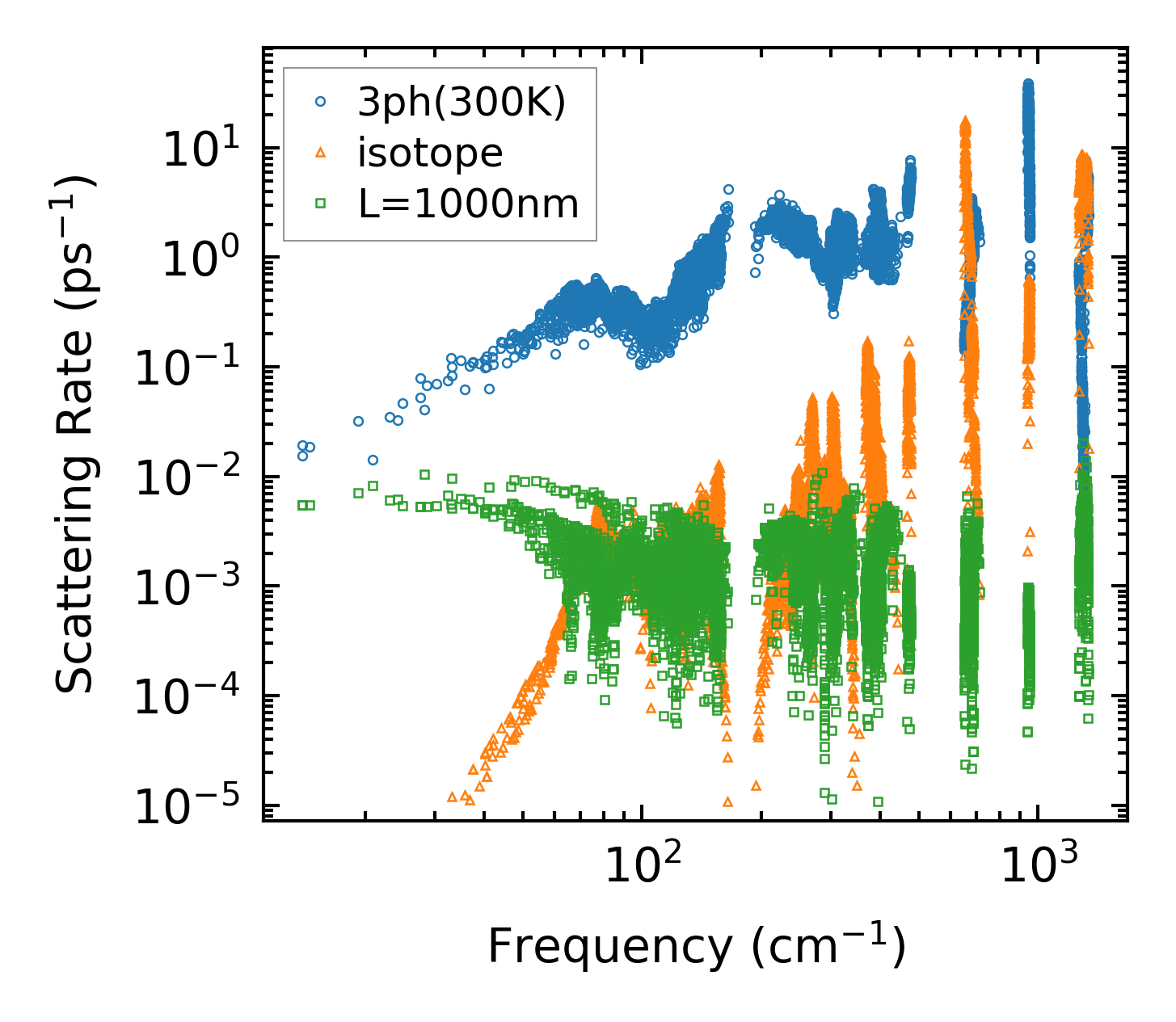

../../_images/fig_scat_rates387.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

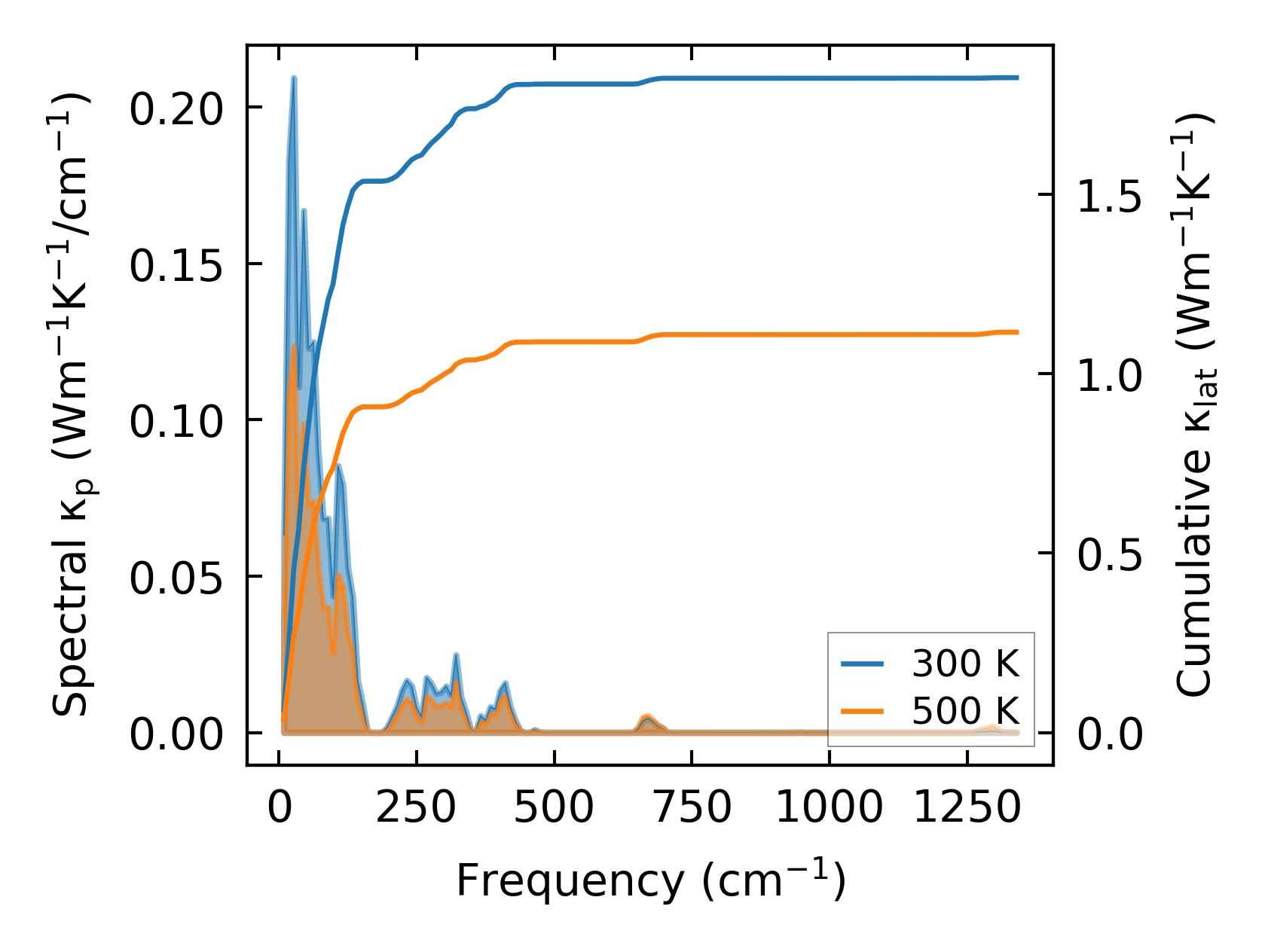

../../_images/fig_cumu_frequency388.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

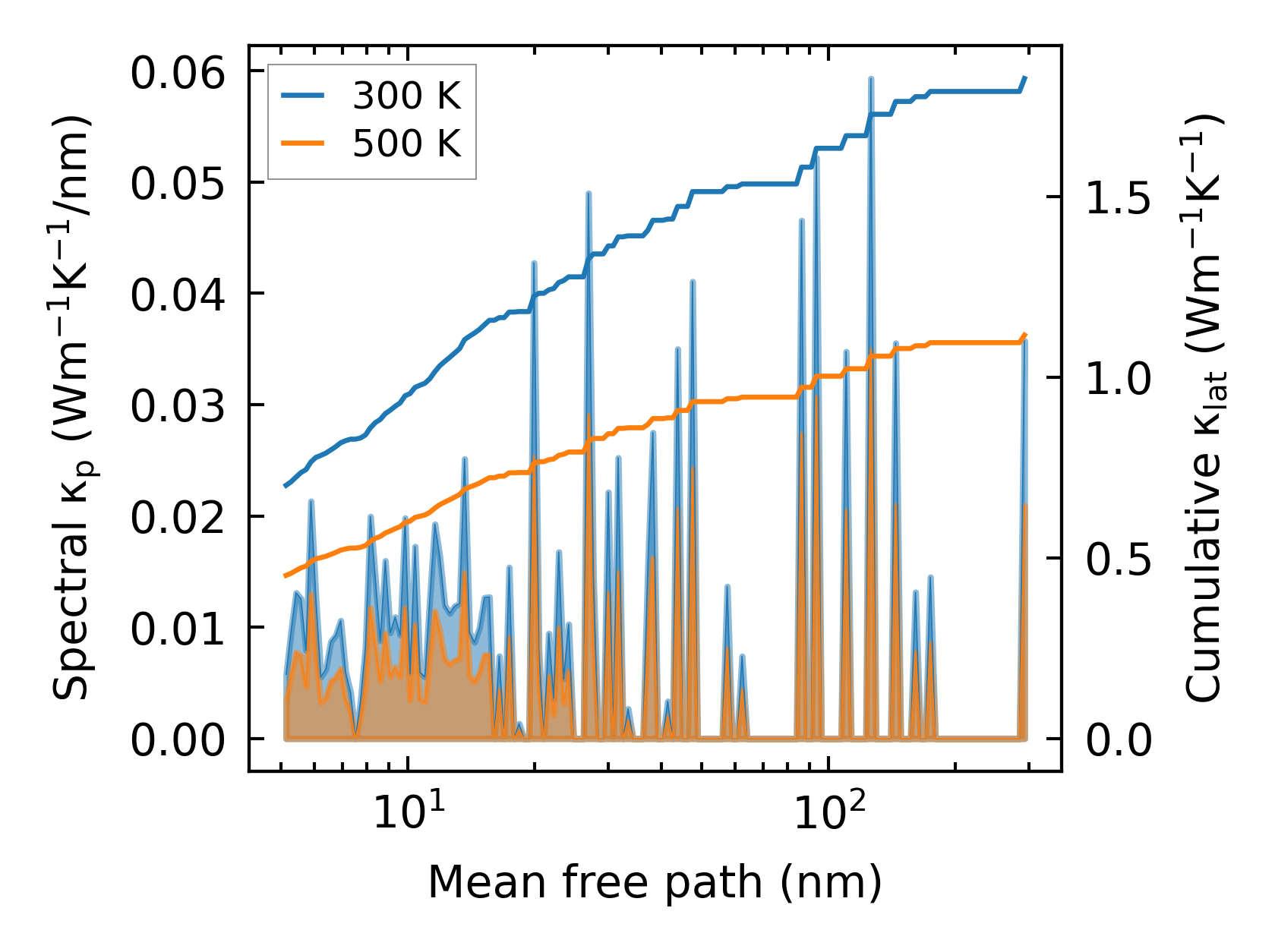

../../_images/fig_cumu_mfp388.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

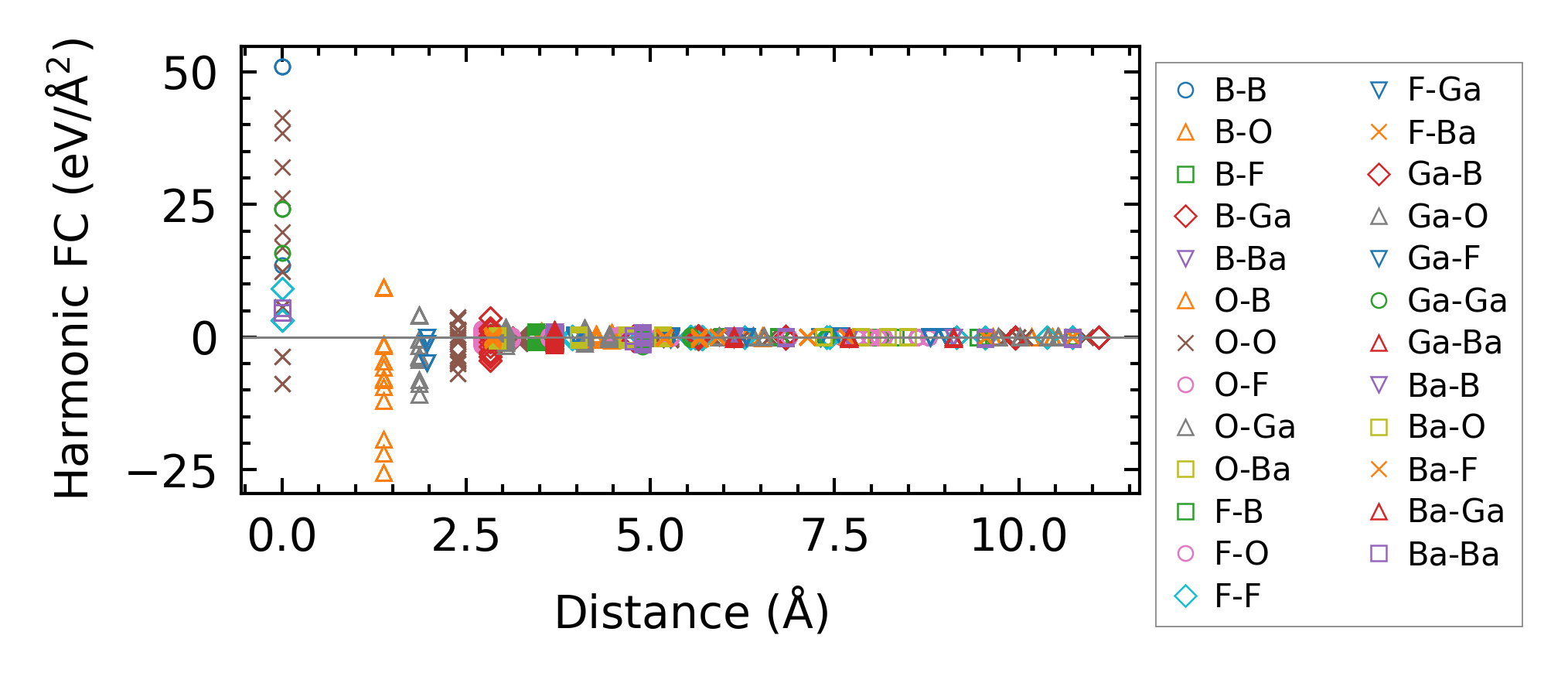

../../_images/fig_fc2511.png — (a) Force constants w.r.t atomic distance

Summary

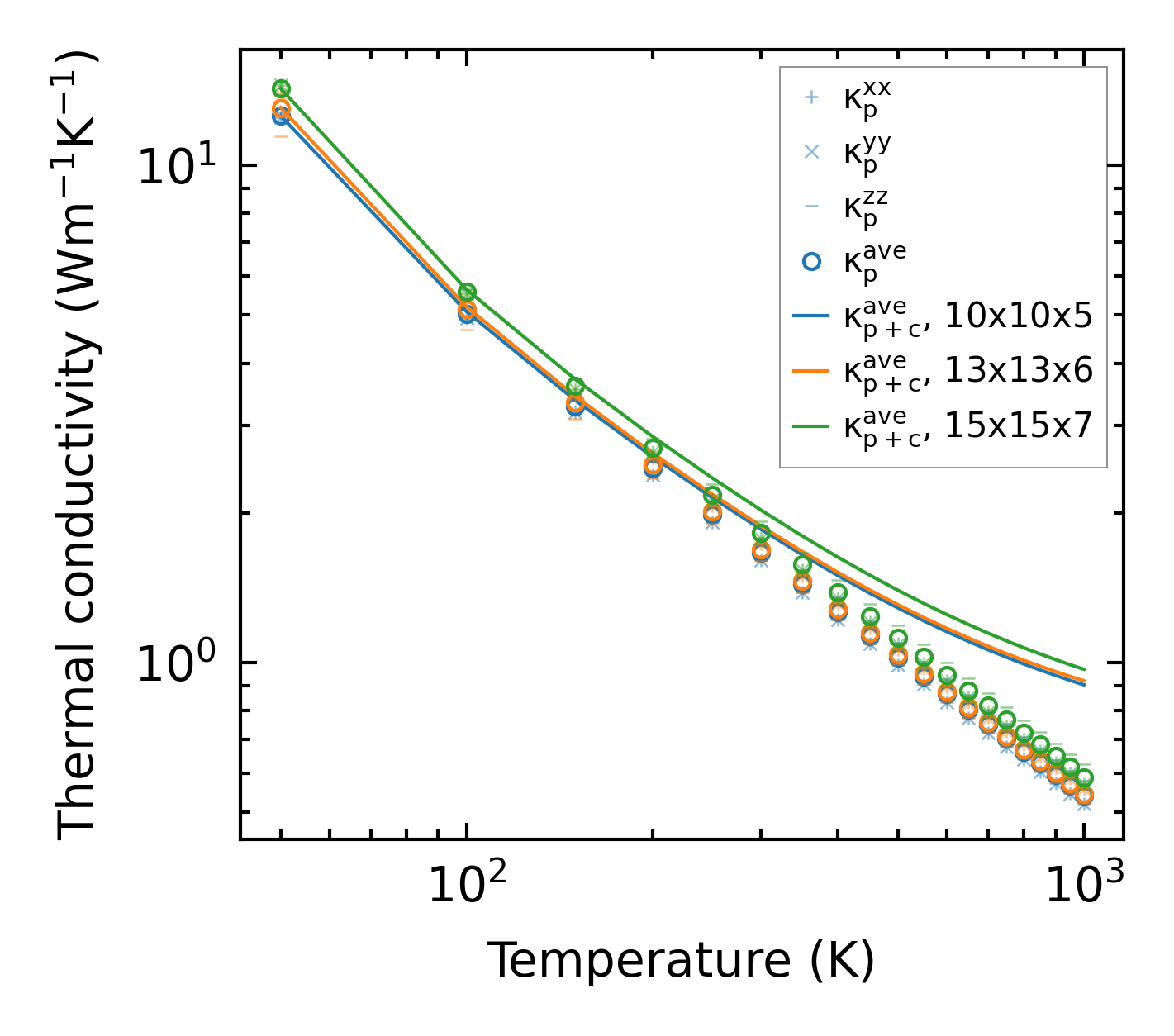

../../_images/fig_kappa760.png — (a) Temperature-dependent lattice thermal conductivity

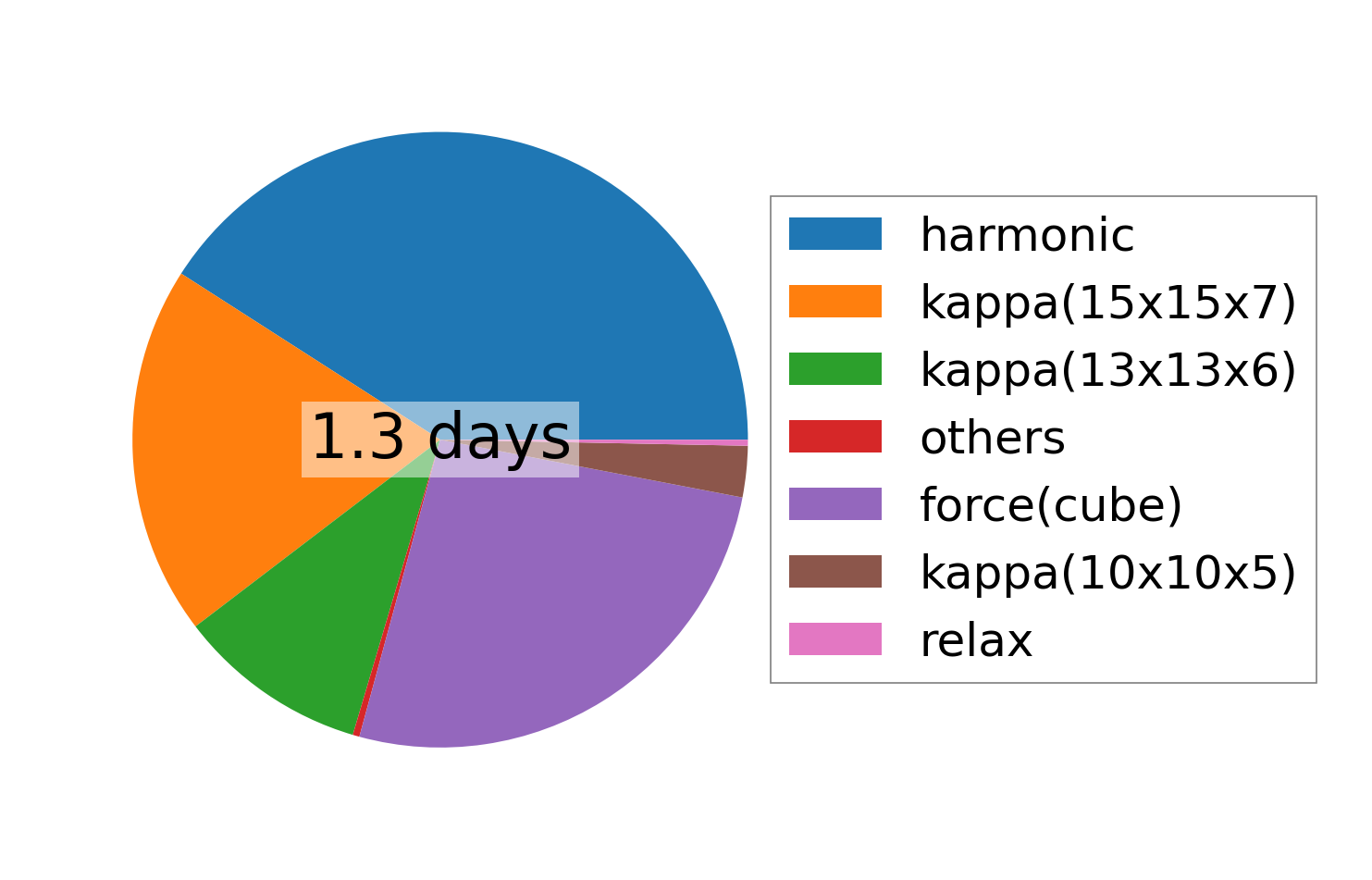

../../_images/fig_times873.png — (b) Computation time
