mp-10953/Sc2CdS4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-10953.tar.gz

Equation of state

../../_images/fig_bm242.png — (a) Equation of state

Harmonic properties

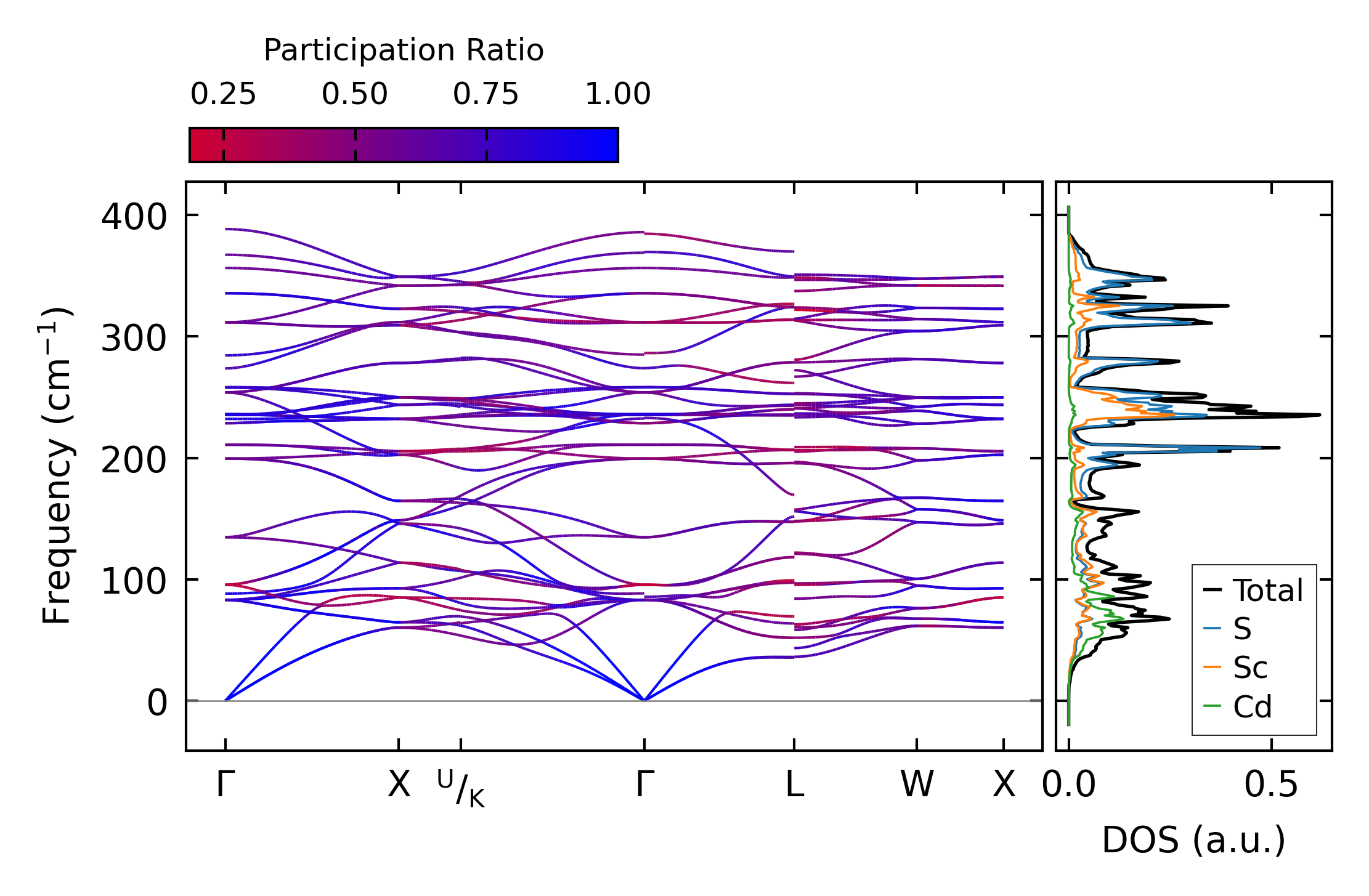

../../_images/fig_bandos_pr684.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo684.png — (b) Thermodynamic properties

Grüneisen parameters

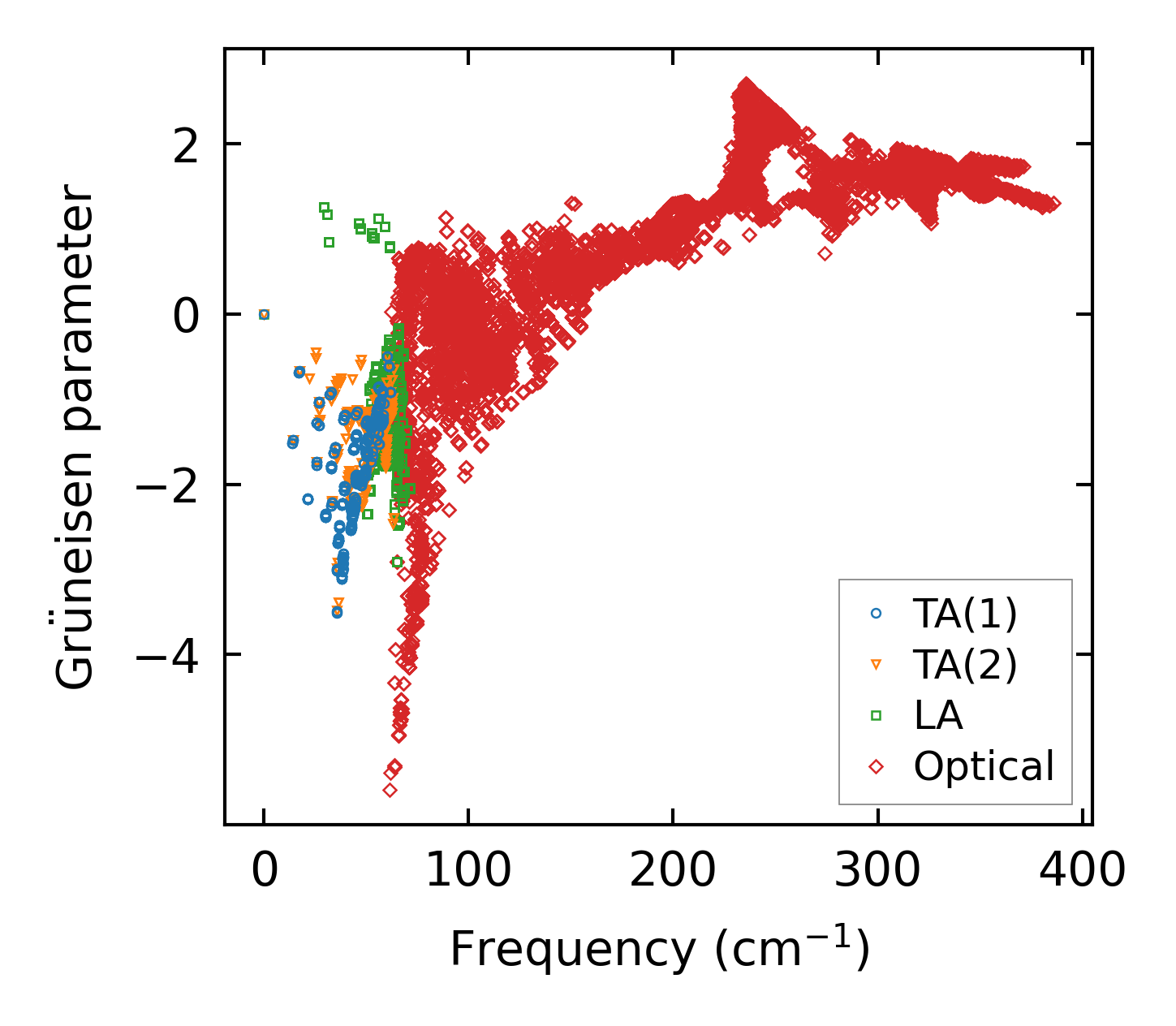

../../_images/fig_gru_all455.png — (a) Grüneisen parameters

../../_images/fig_gruneisen455.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

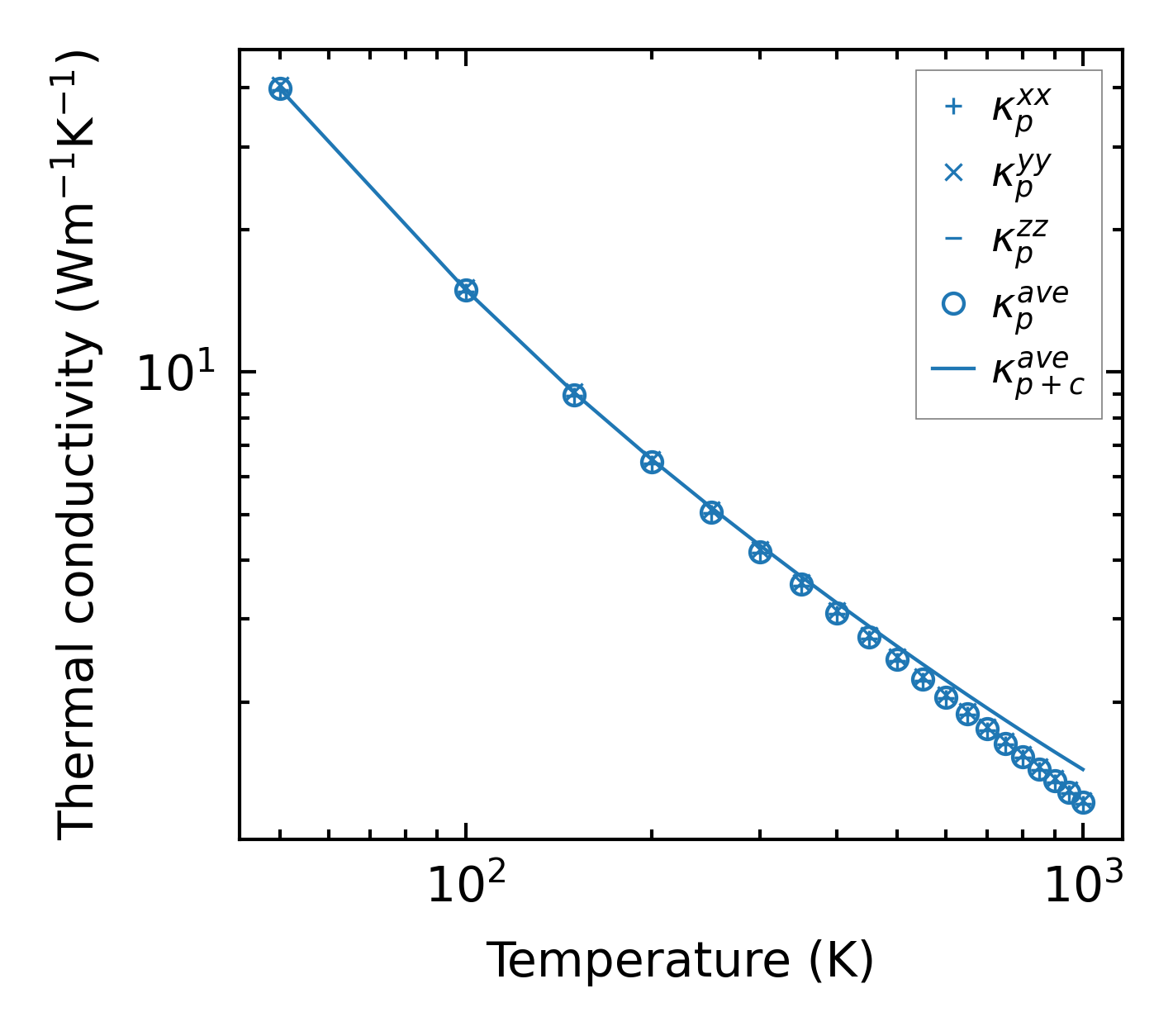

../../_images/fig_kappa885.png — (a) Temperature-dependent lattice thermal conductivity

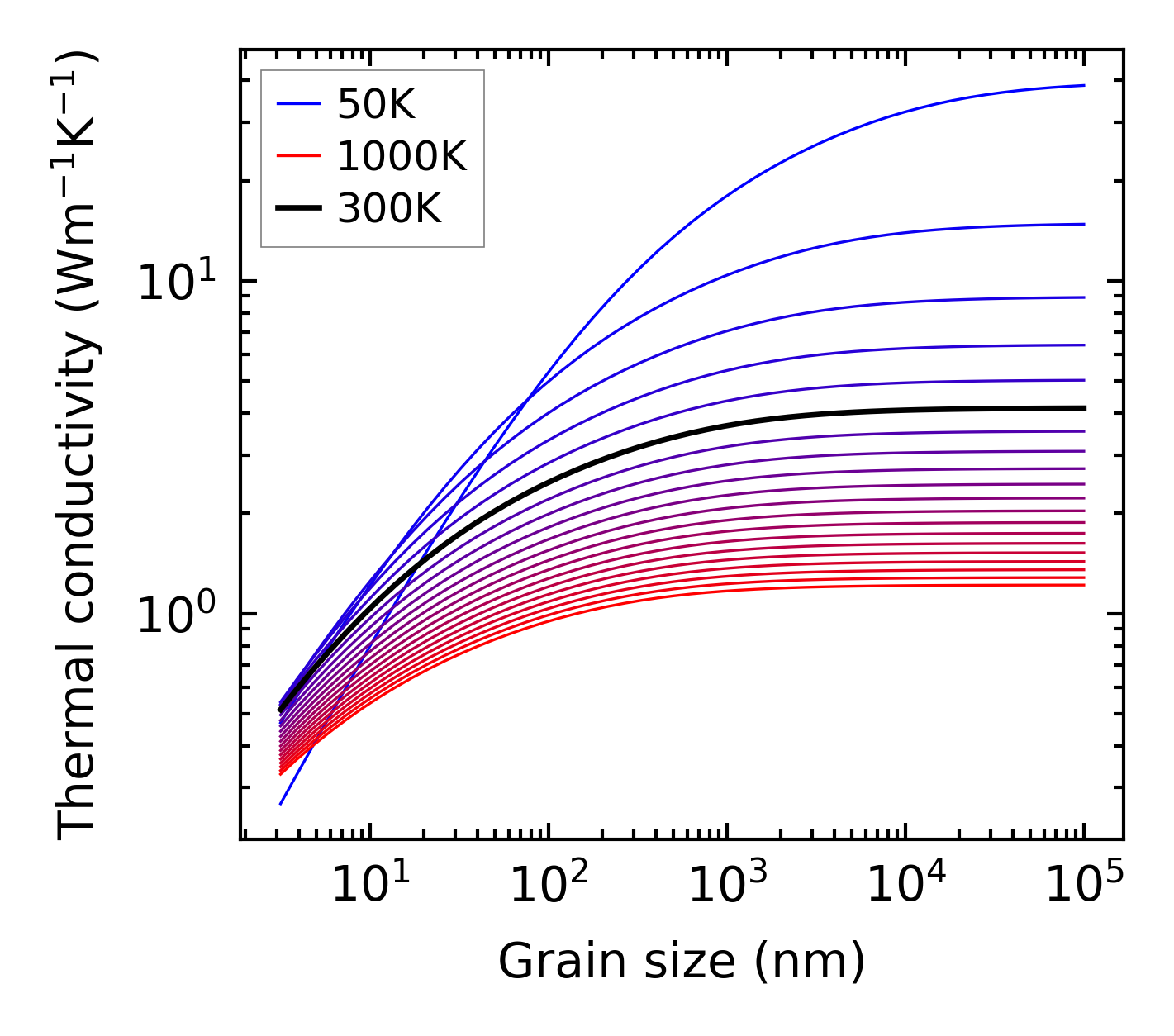

../../_images/fig_kappa_vs_grain_size462.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

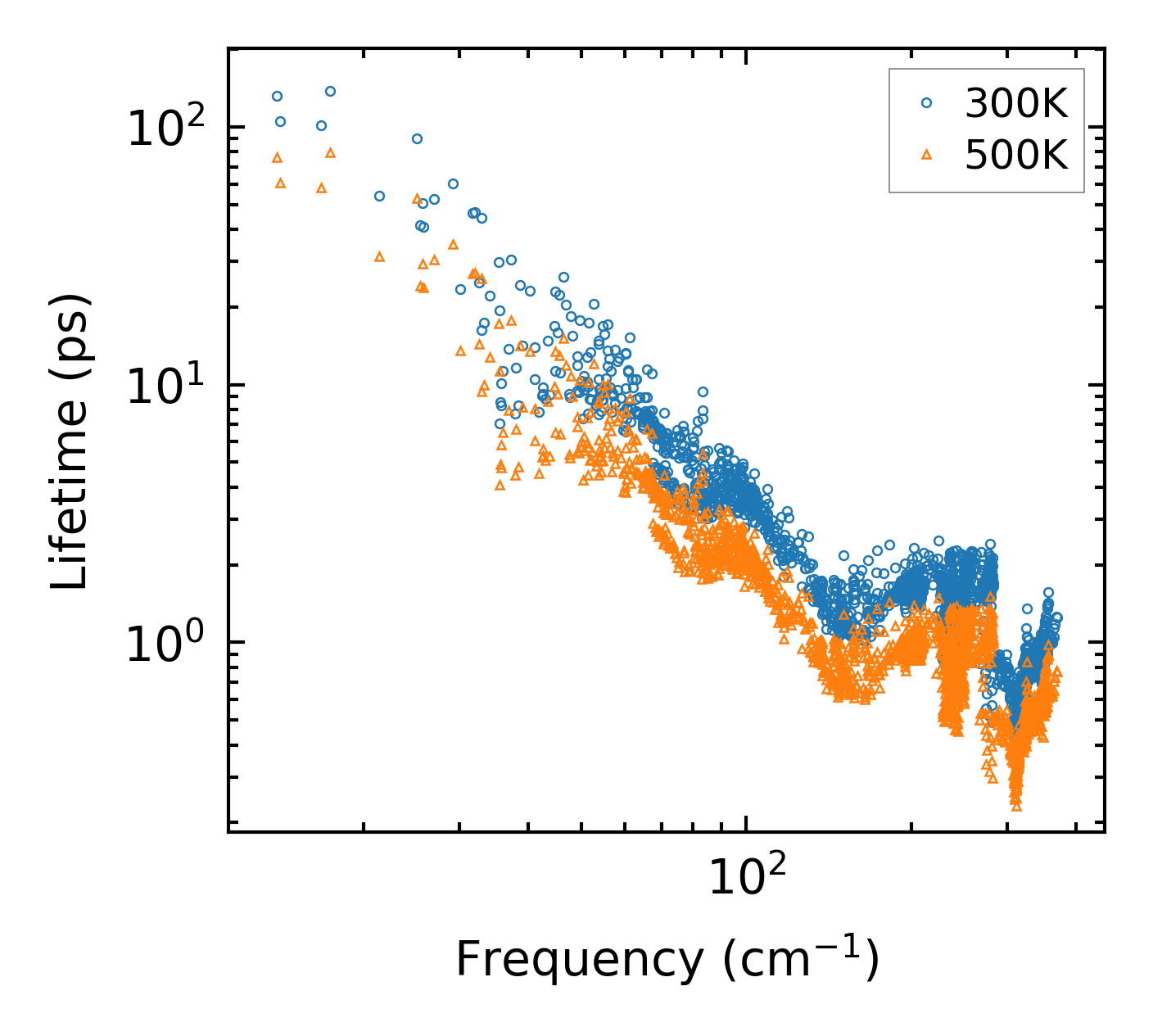

../../_images/fig_lifetime453.png — (a) Phonon lifetime due to phonon-phonon scattering

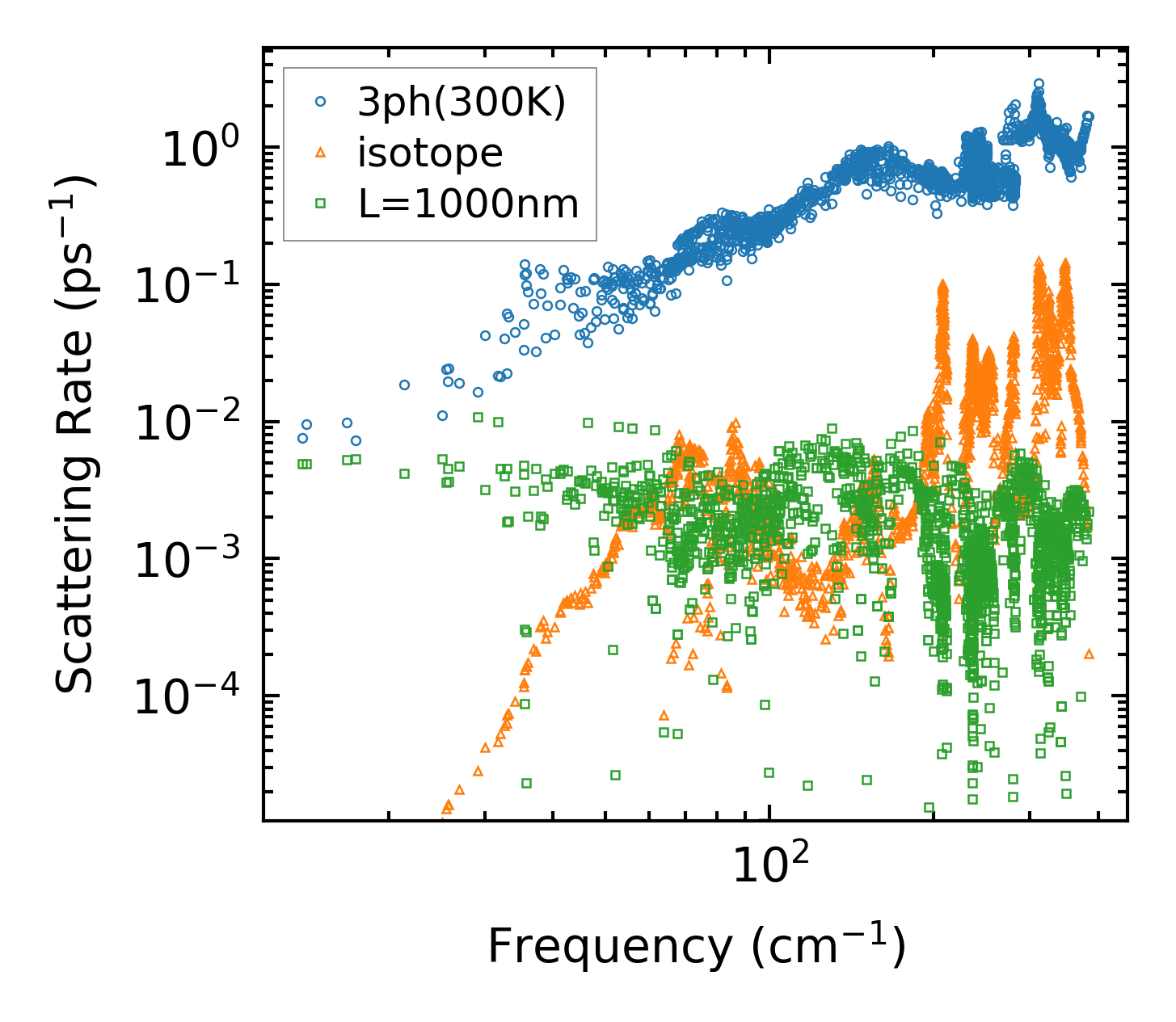

../../_images/fig_scat_rates452.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

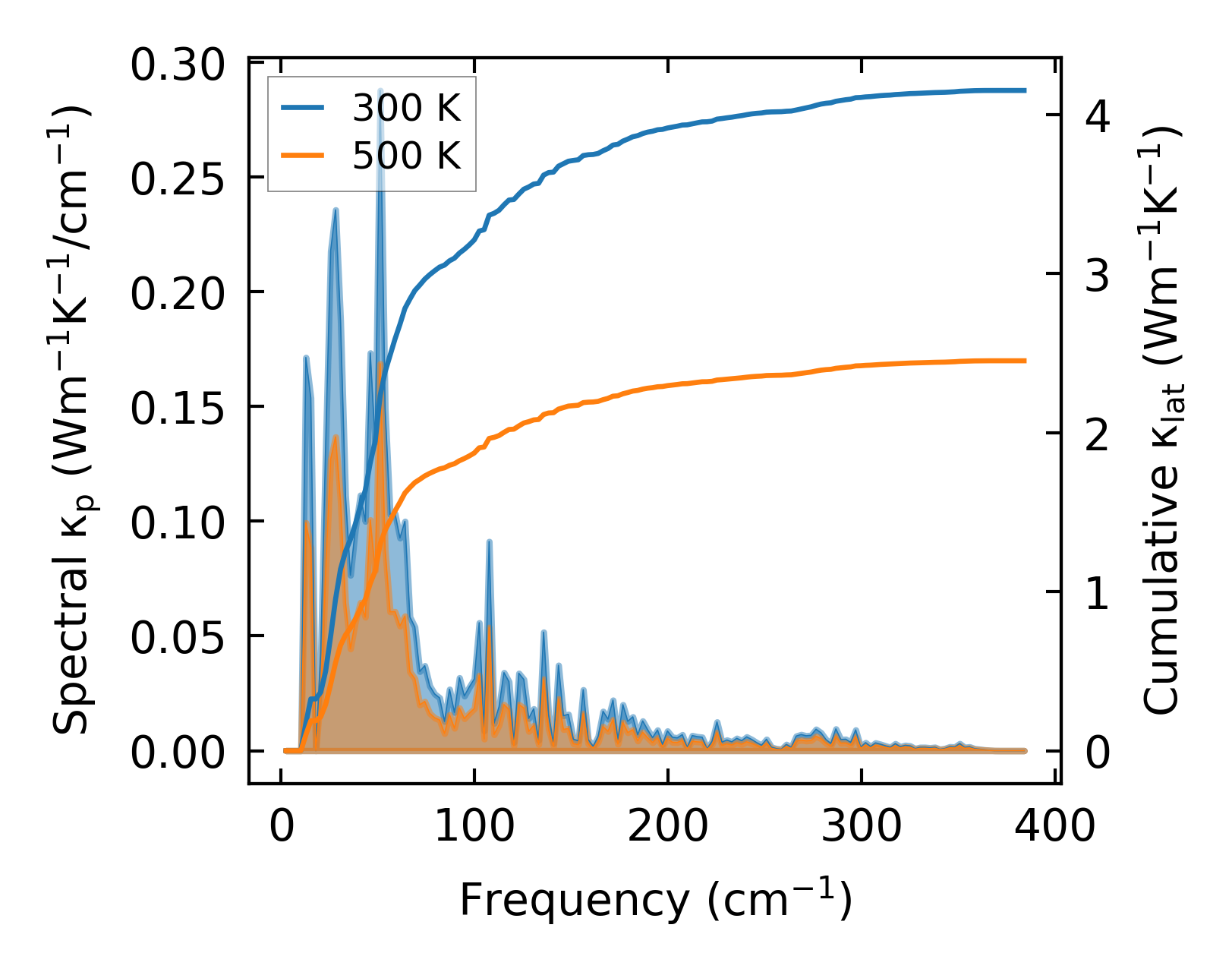

../../_images/fig_cumu_frequency453.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp453.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

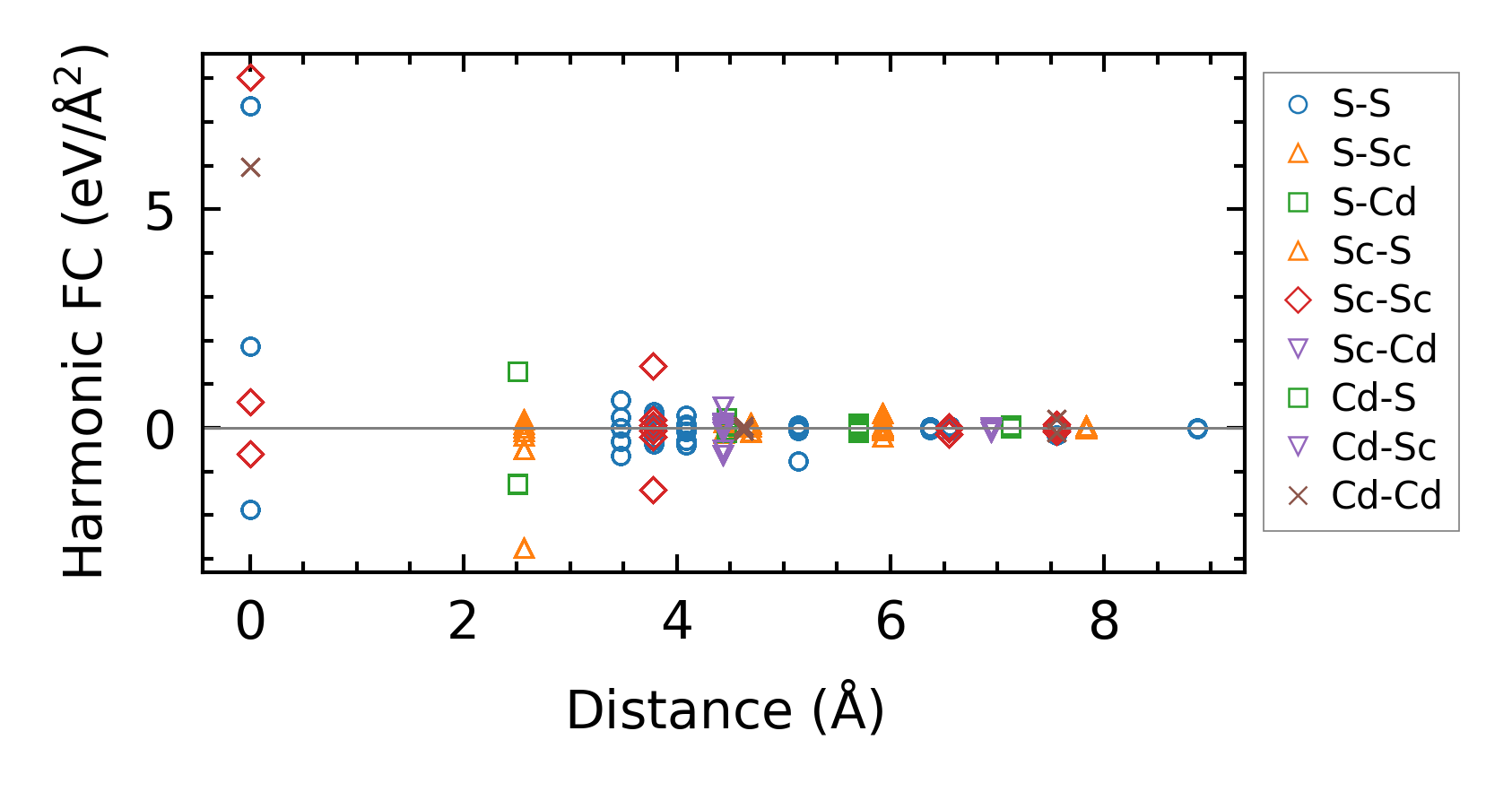

../../_images/fig_fc2595.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa886.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times984.png — (b) Computation time
