mp-10281/ZnS/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-10281.tar.gz

Harmonic properties

../../_images/fig_bandos_pr530.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo530.png — (b) Thermodynamic properties

Grüneisen parameters

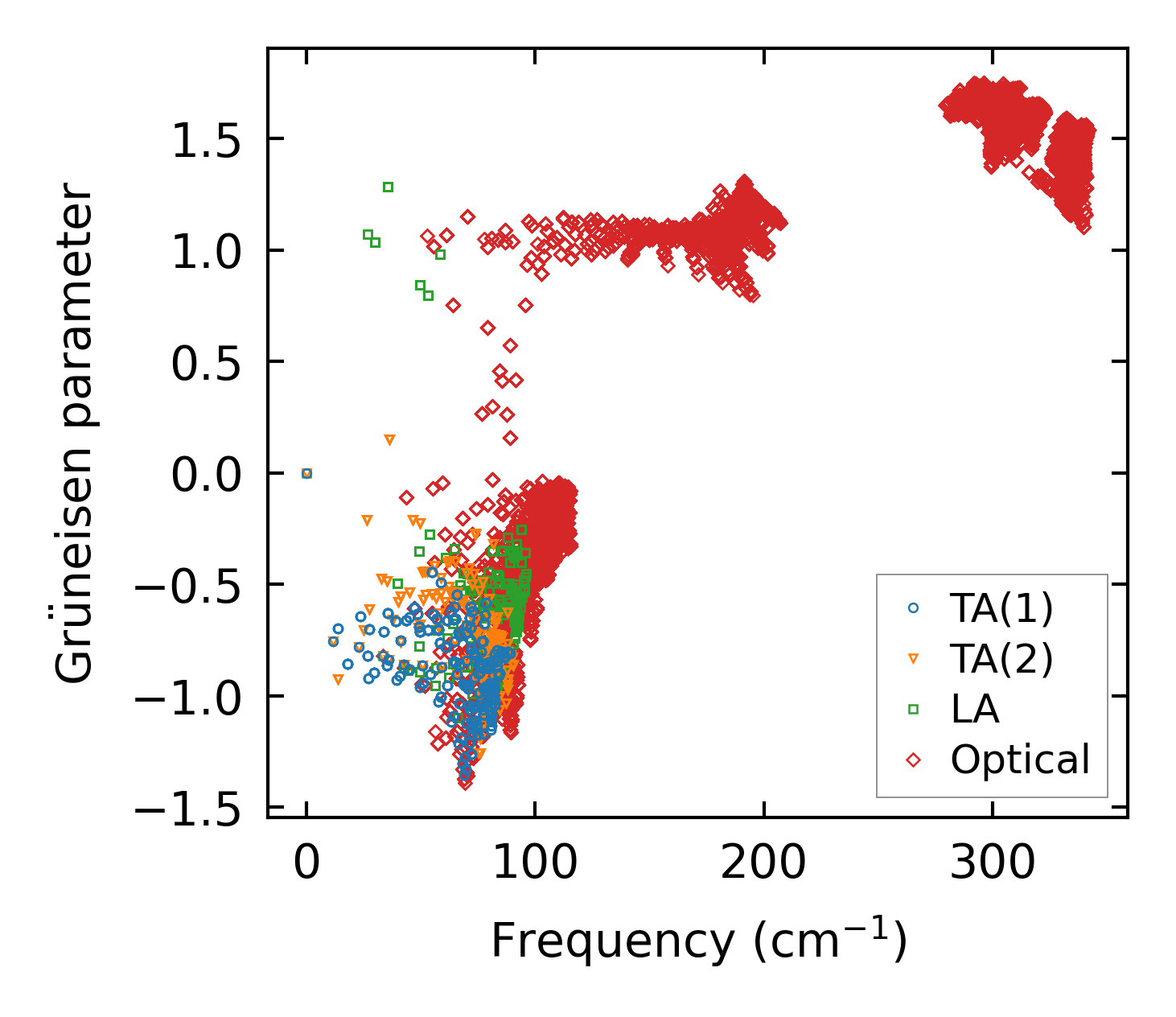

../../_images/fig_gru_all359.png — (a) Grüneisen parameters

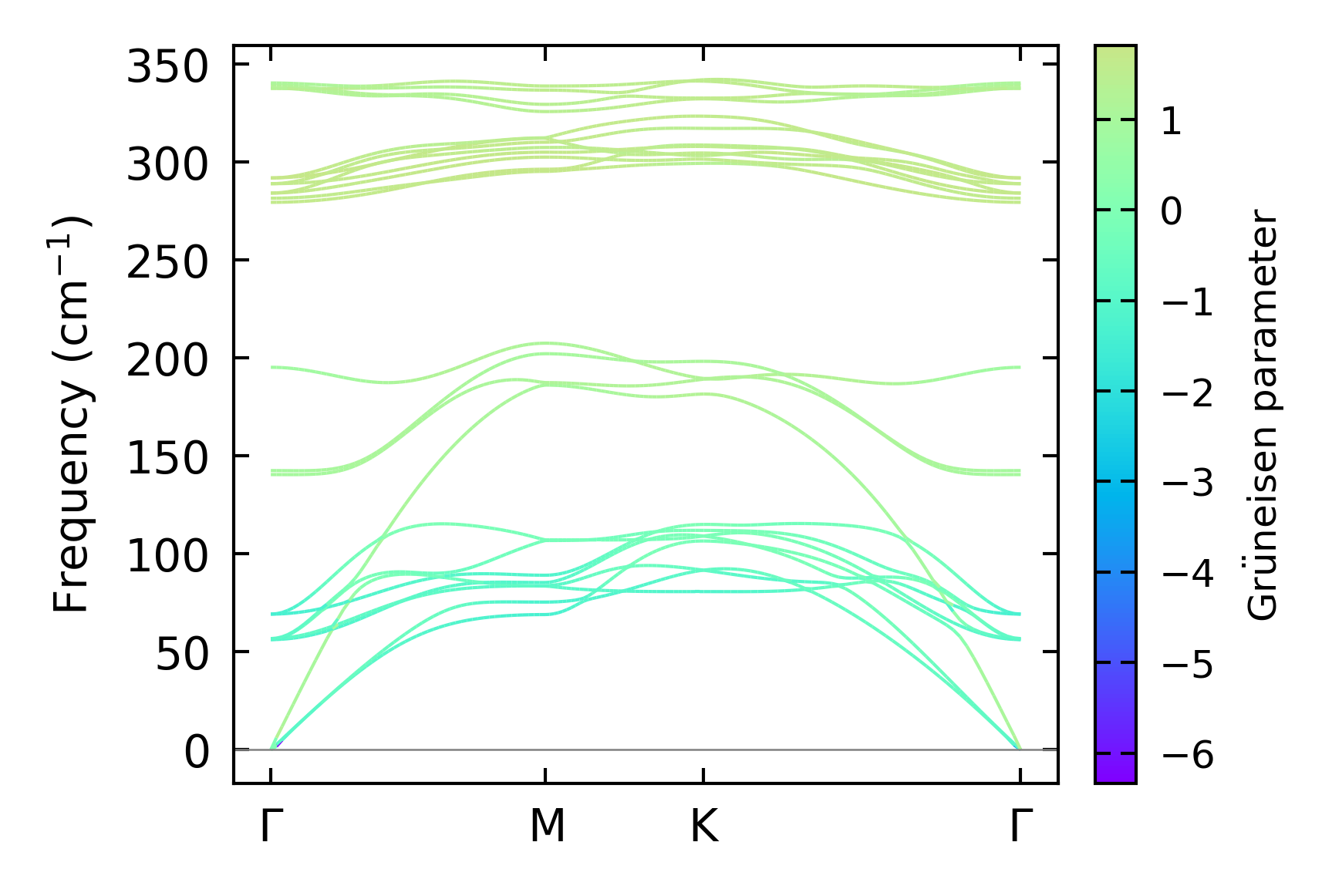

../../_images/fig_gruneisen359.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x6, supercell: 4x4x1

../../_images/fig_kappa696.png — (a) Temperature-dependent lattice thermal conductivity

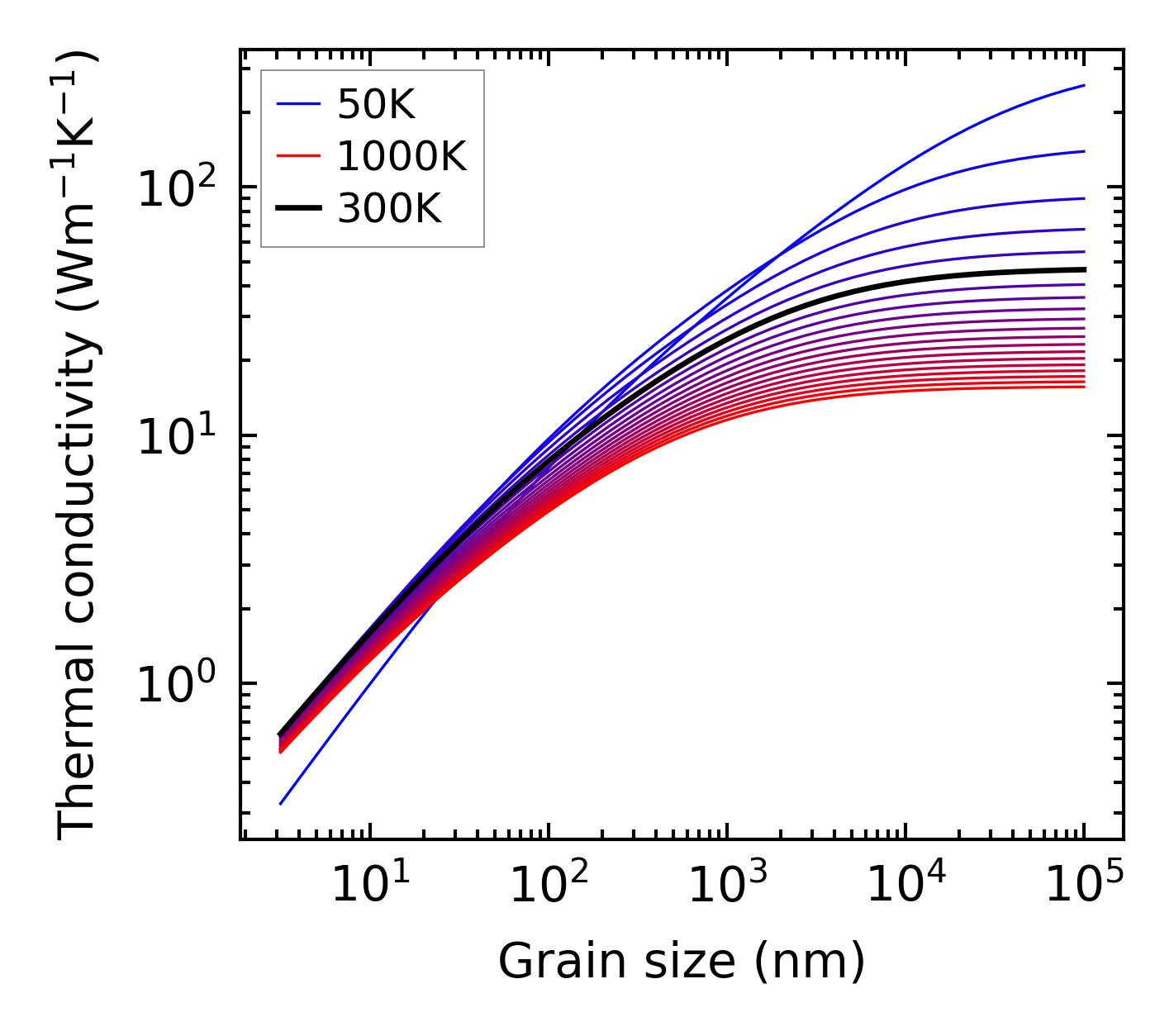

../../_images/fig_kappa_vs_grain_size363.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

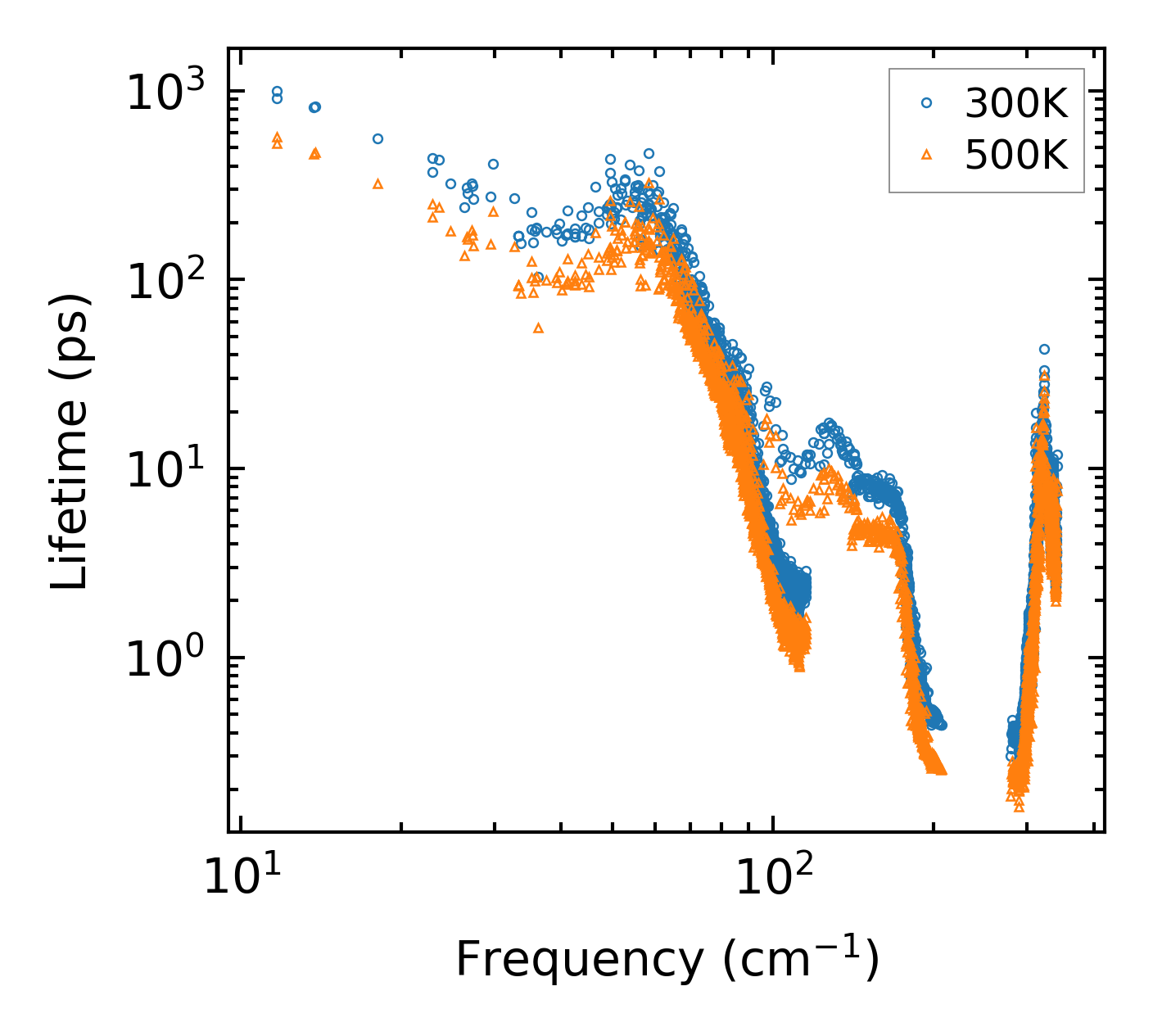

../../_images/fig_lifetime357.png — (a) Phonon lifetime due to phonon-phonon scattering

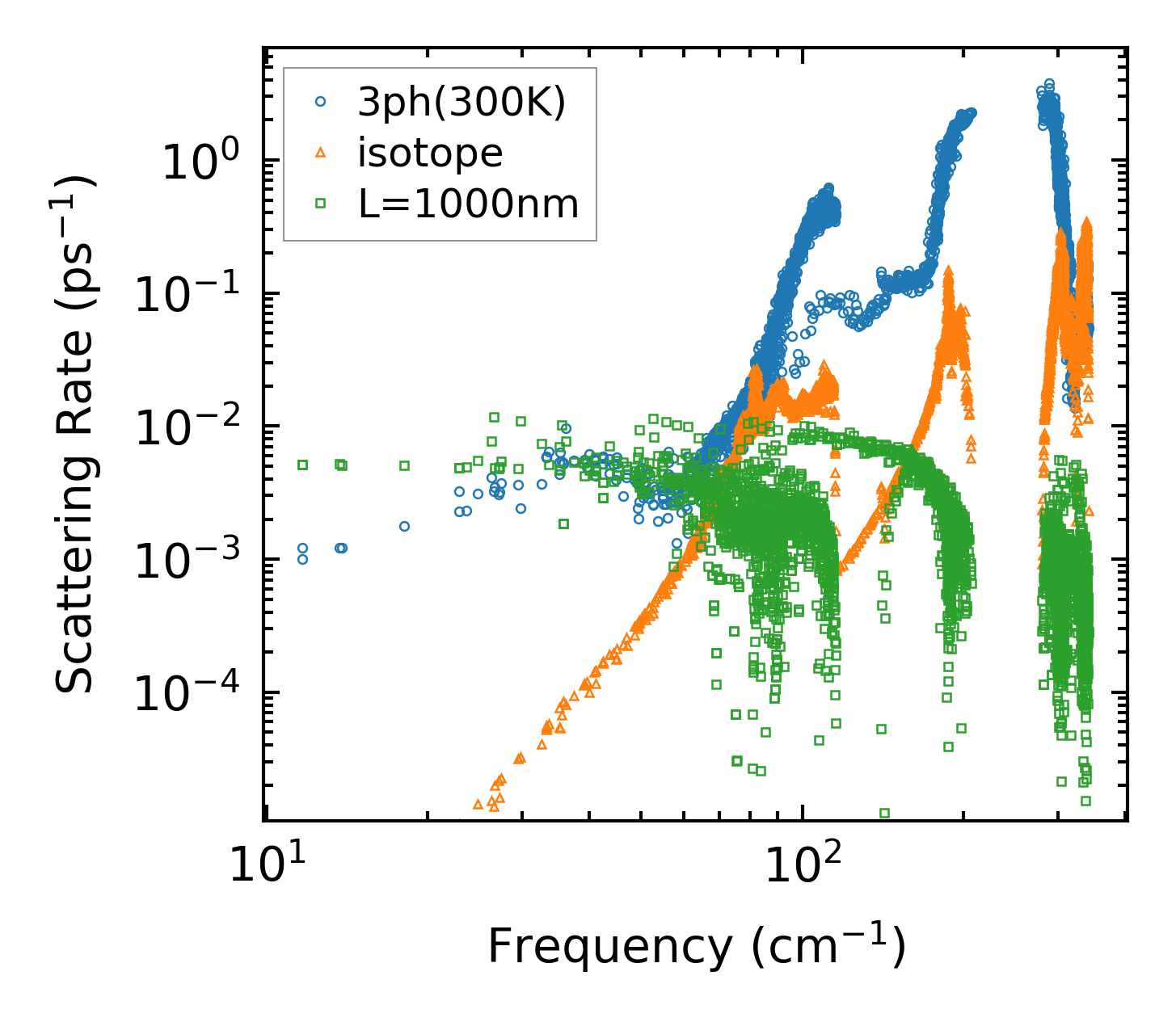

../../_images/fig_scat_rates356.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

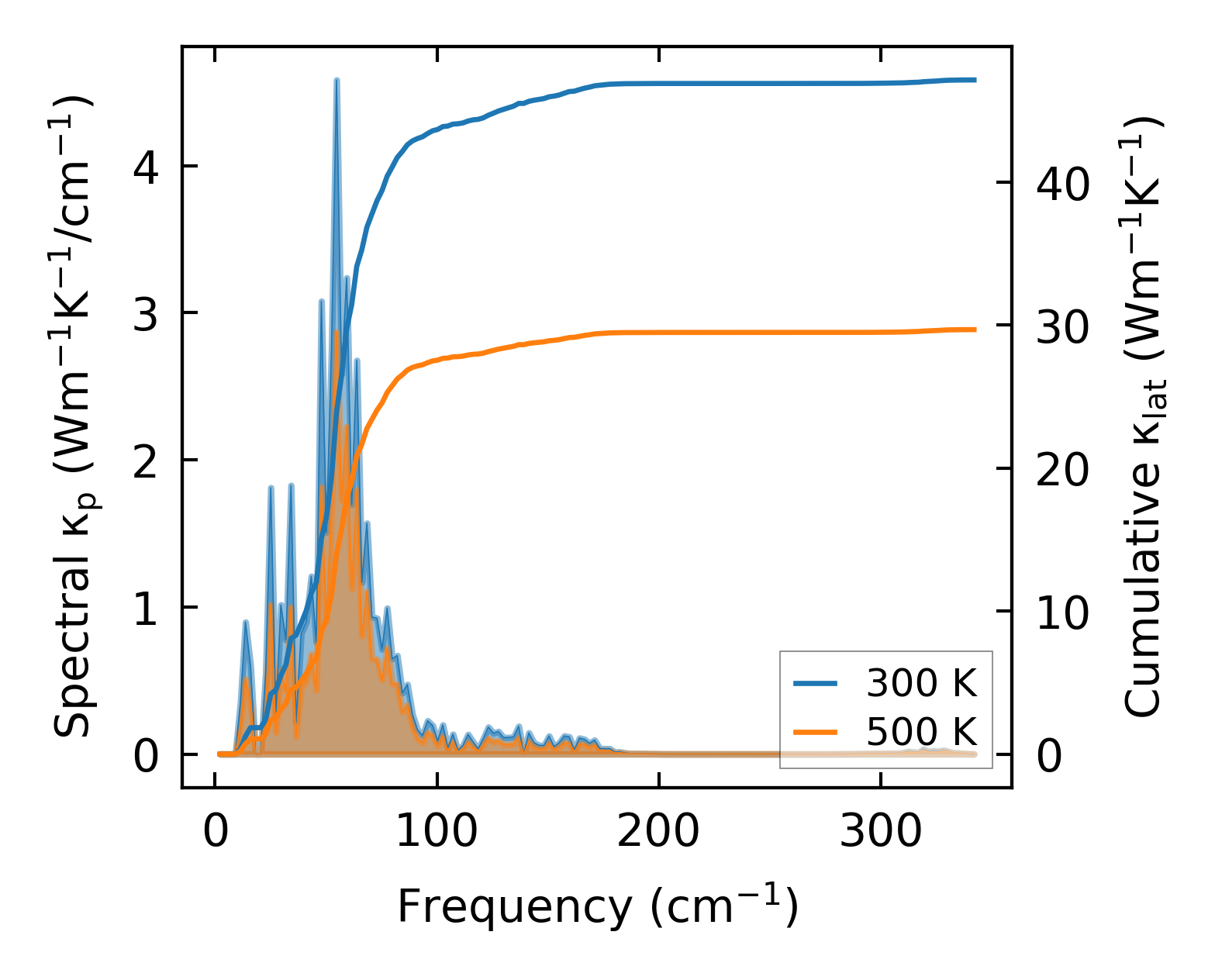

../../_images/fig_cumu_frequency357.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

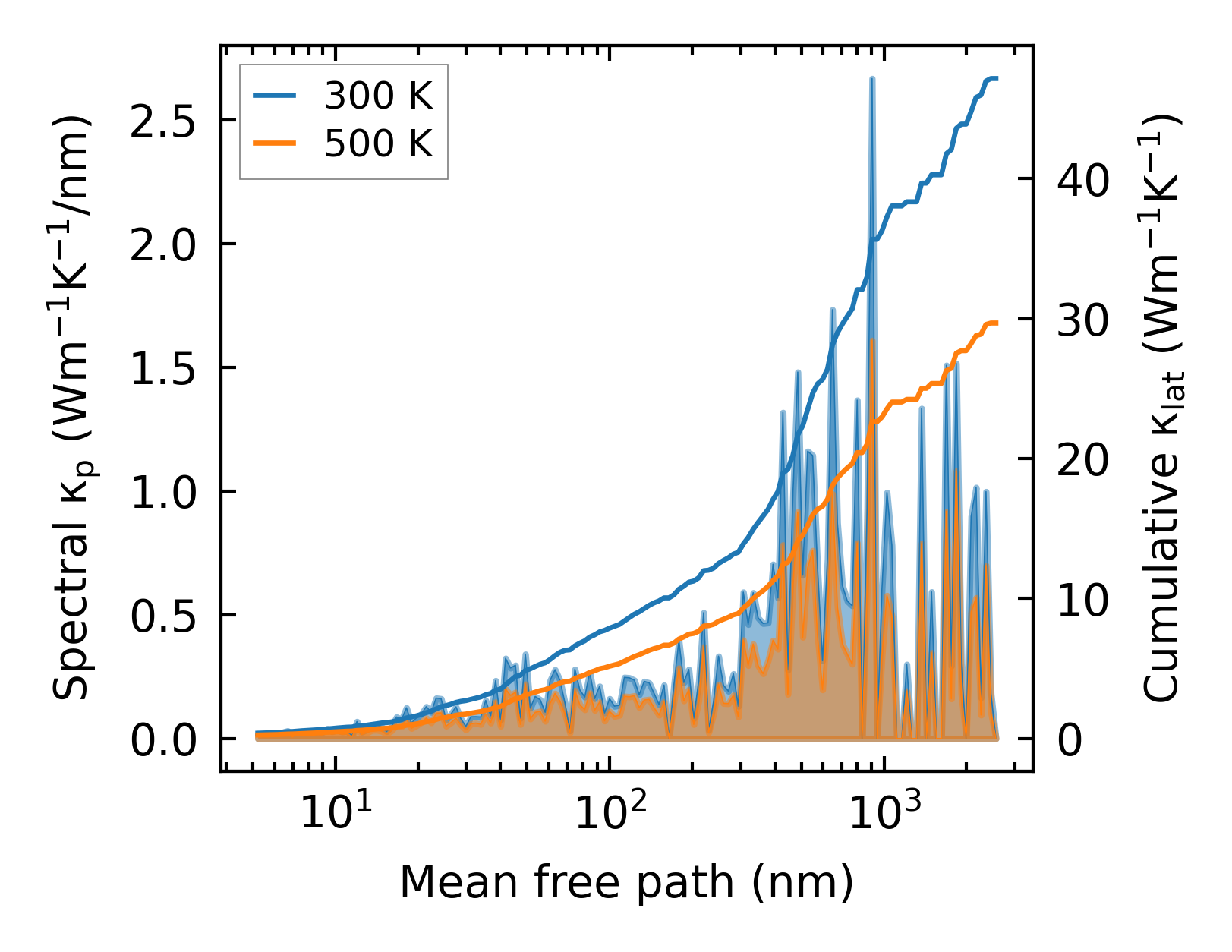

../../_images/fig_cumu_mfp357.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2450.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa697.png — (a) Temperature-dependent lattice thermal conductivity

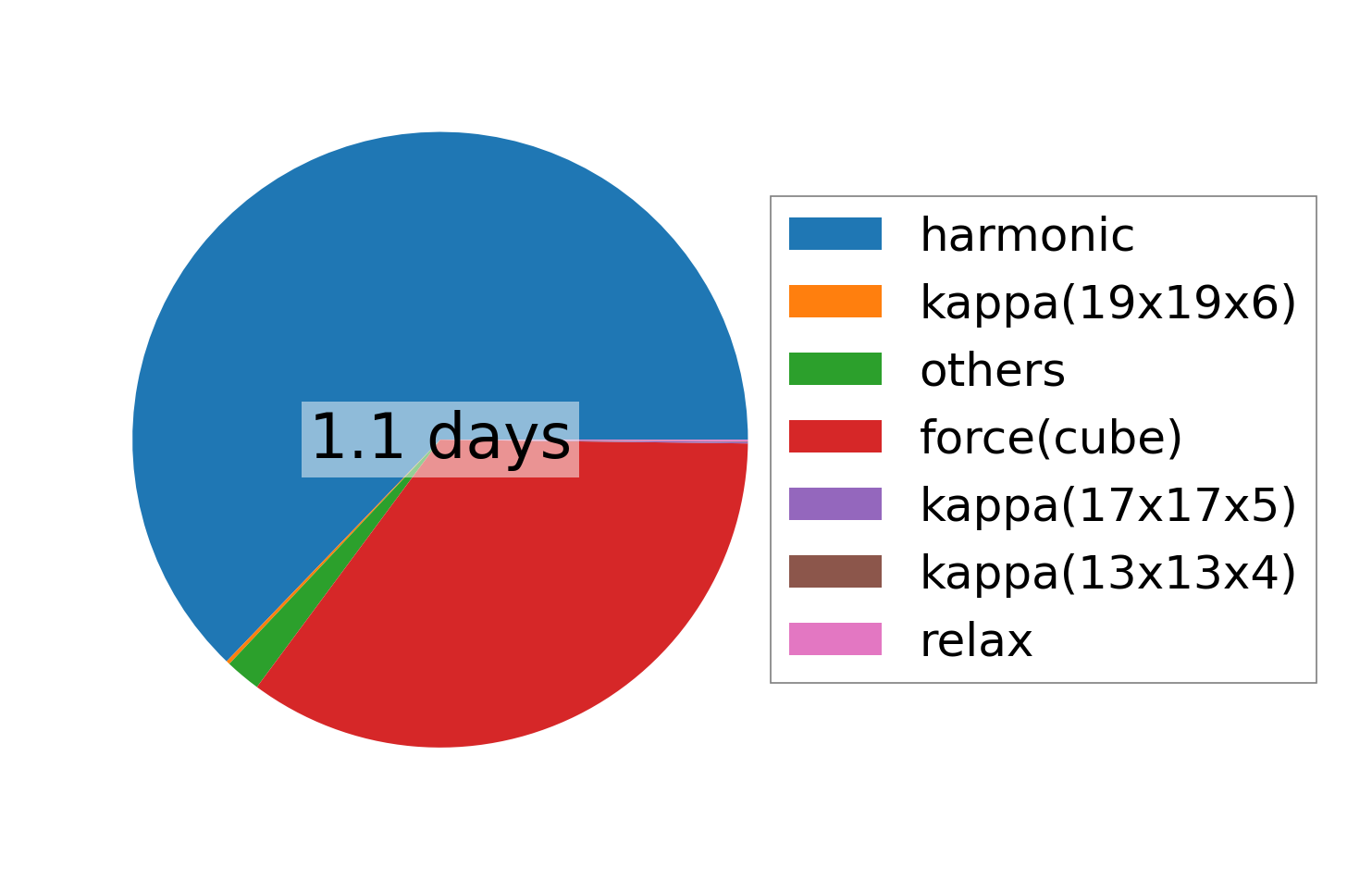

../../_images/fig_times789.png — (b) Computation time
