mp-10623/ThSbRh/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-10623.tar.gz

Harmonic properties

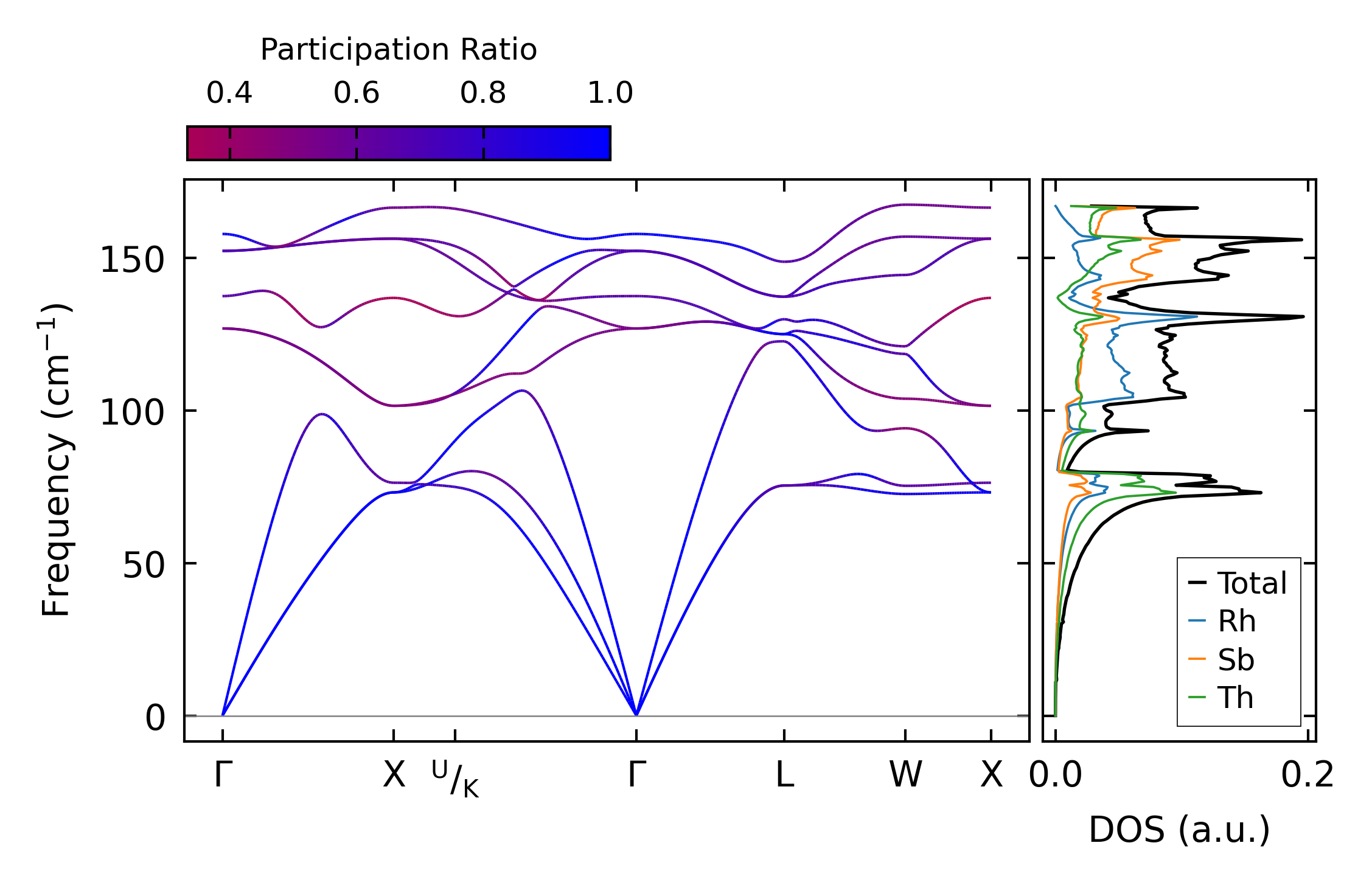

../../_images/fig_bandos_pr622.png — (a) Phonon dispersion with participation ratio and DOS

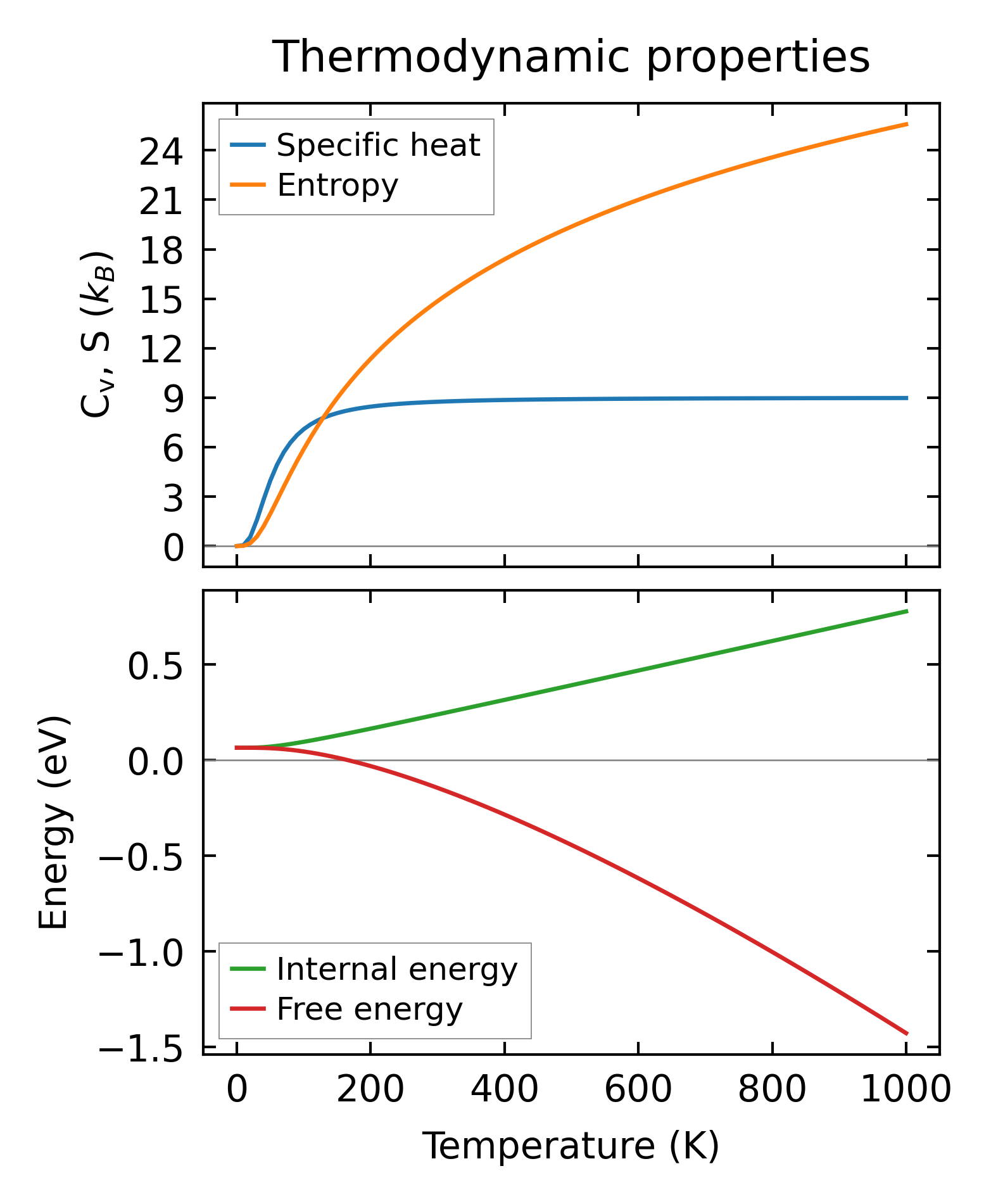

../../_images/fig_thermo622.png — (b) Thermodynamic properties

Grüneisen parameters

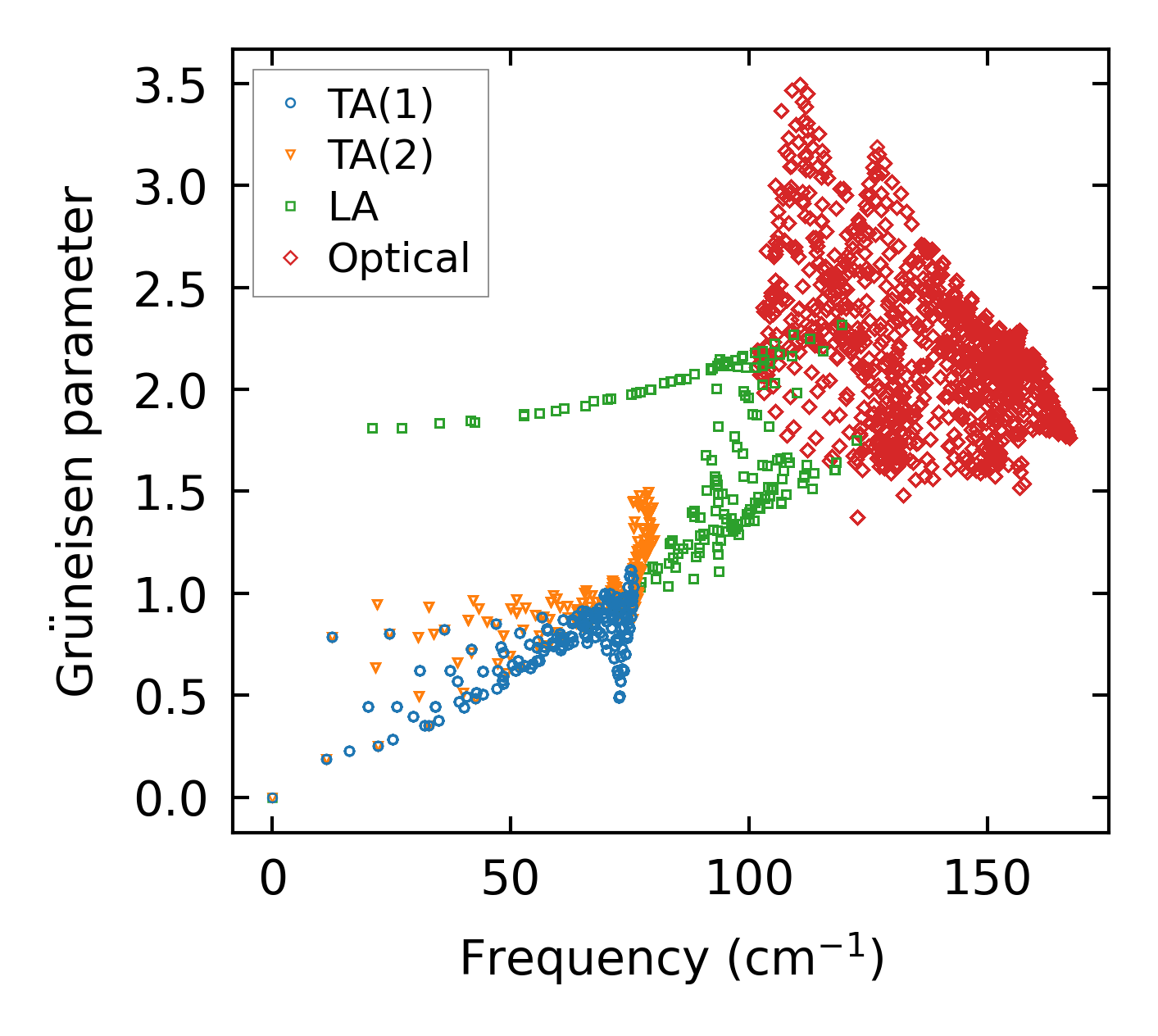

../../_images/fig_gru_all409.png — (a) Grüneisen parameters

../../_images/fig_gruneisen409.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 17x17x17, supercell: 2x2x2

../../_images/fig_kappa795.png — (a) Temperature-dependent lattice thermal conductivity

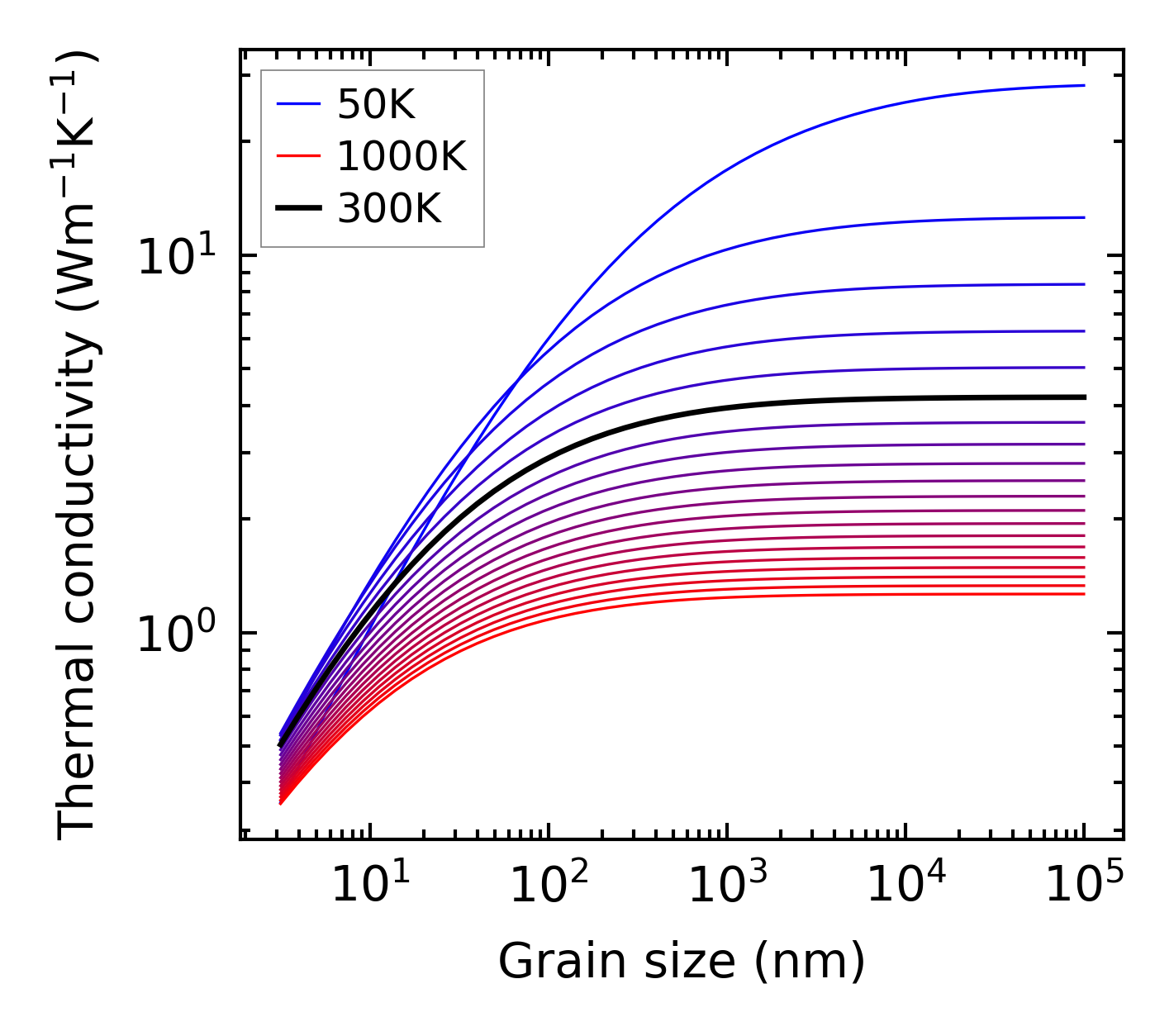

../../_images/fig_kappa_vs_grain_size415.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

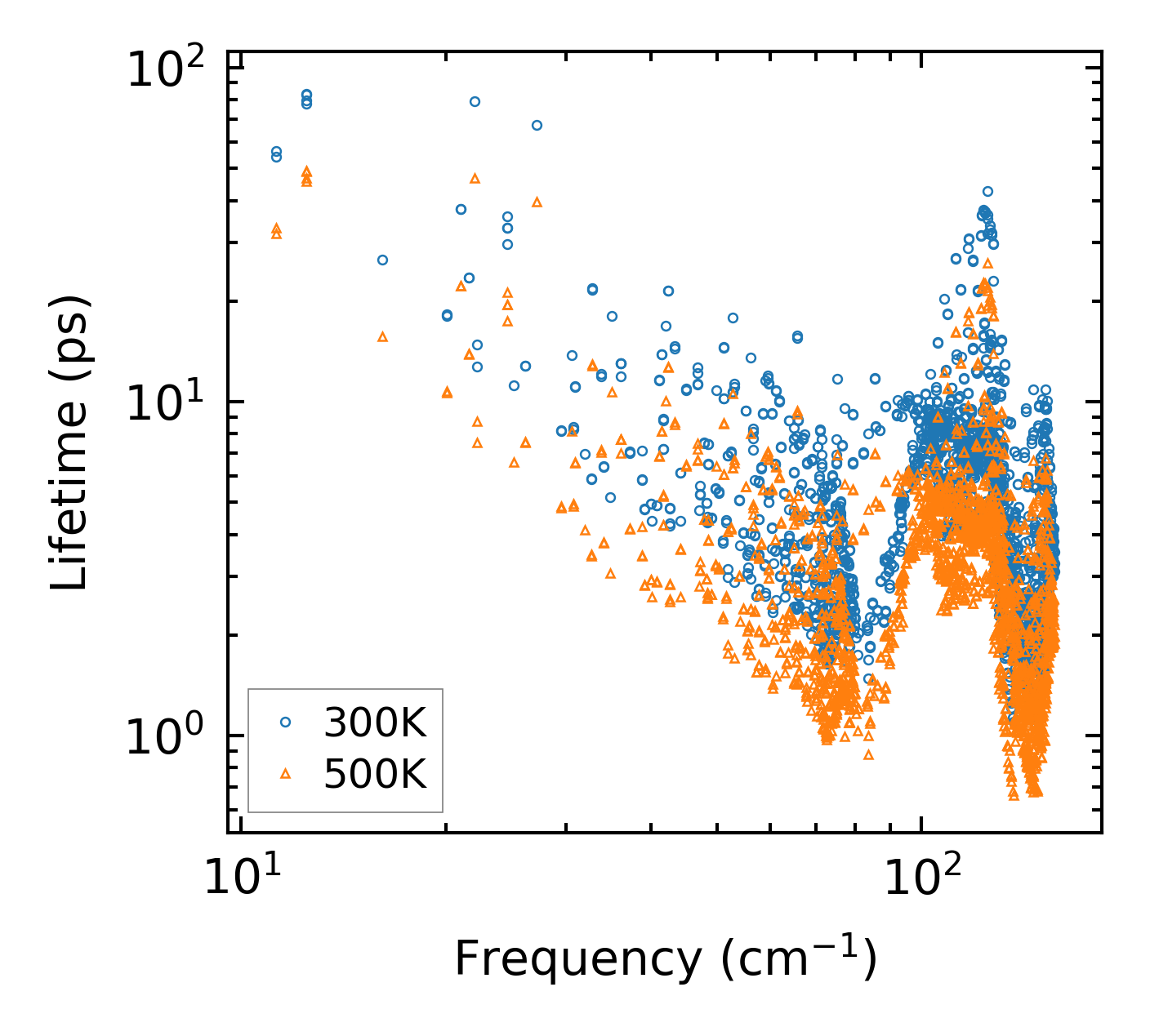

../../_images/fig_lifetime407.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates406.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

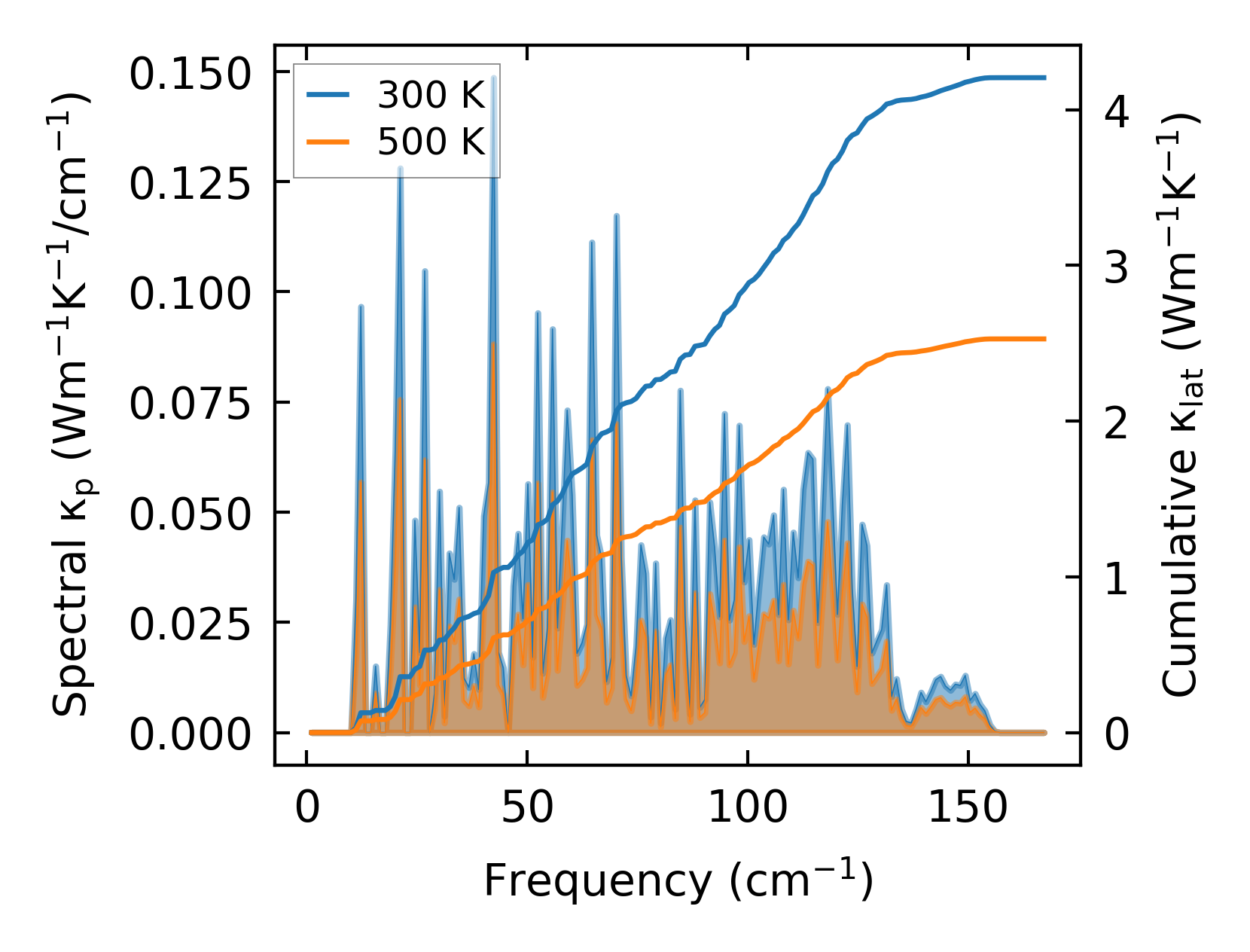

../../_images/fig_cumu_frequency407.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp407.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

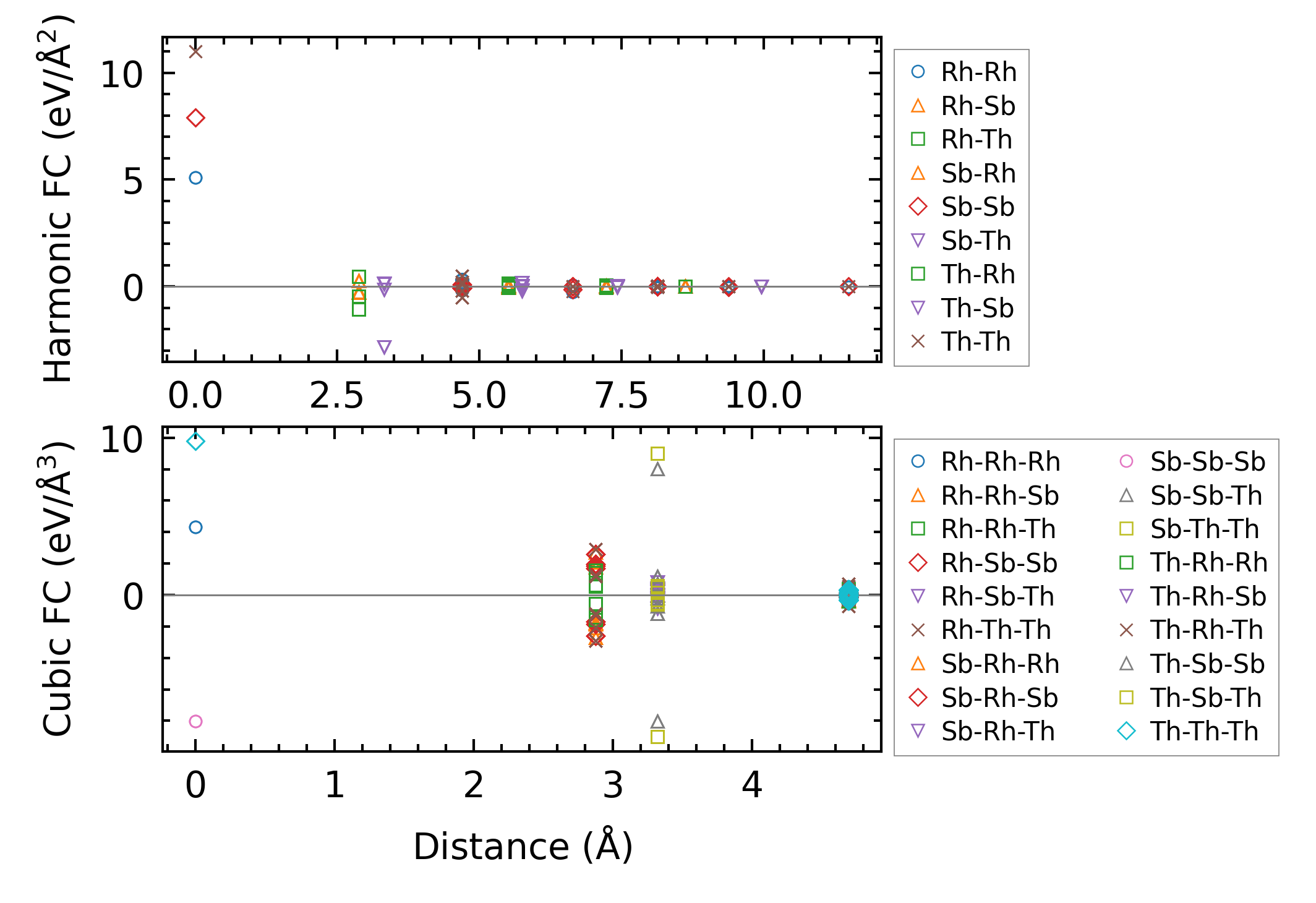

../../_images/fig_fc383.png — (a) Force constants w.r.t atomic distance

Summary

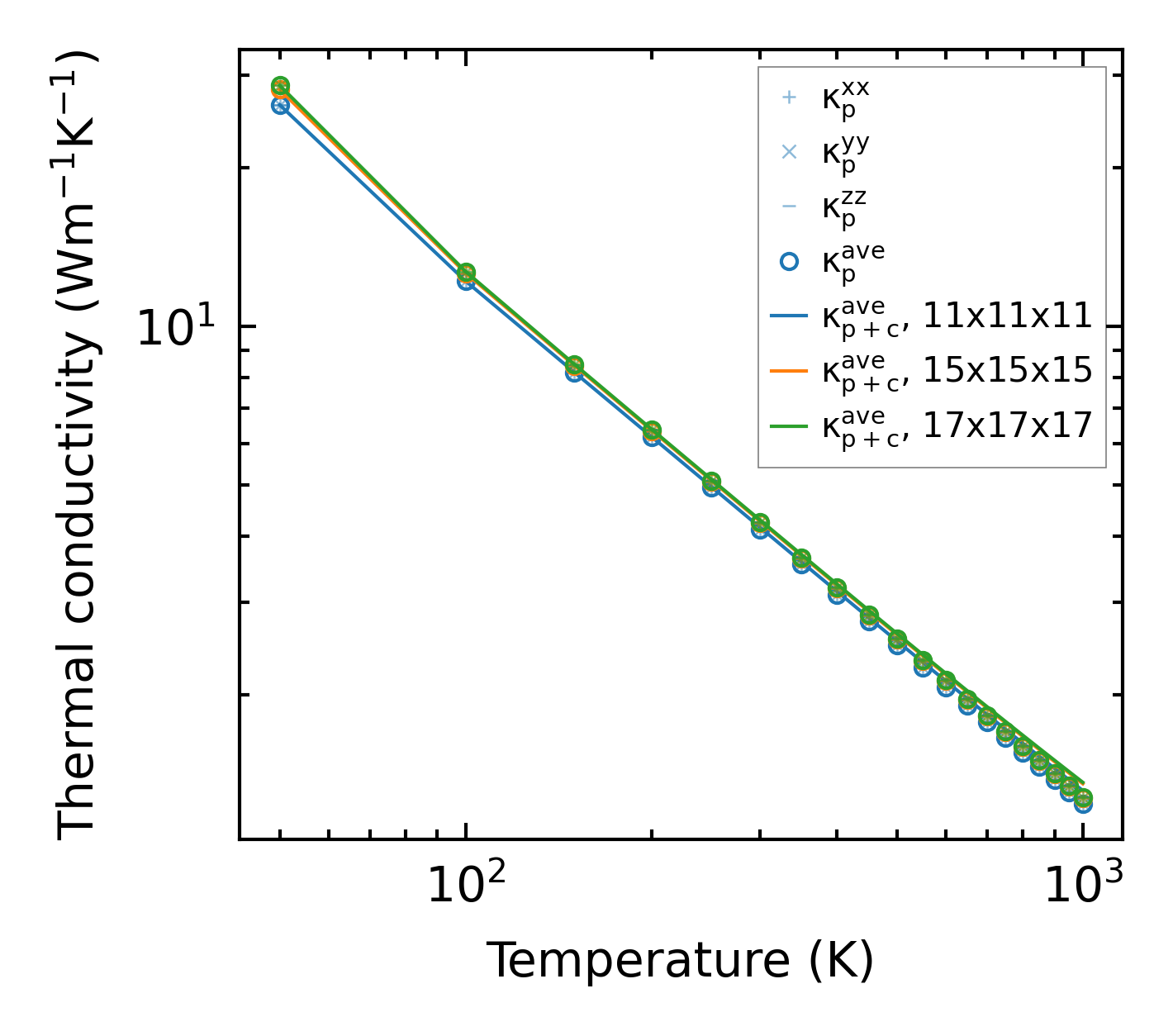

../../_images/fig_kappa796.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times909.png — (b) Computation time
