mp-10349/Na2SnTeO6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-10349.tar.gz

Harmonic properties

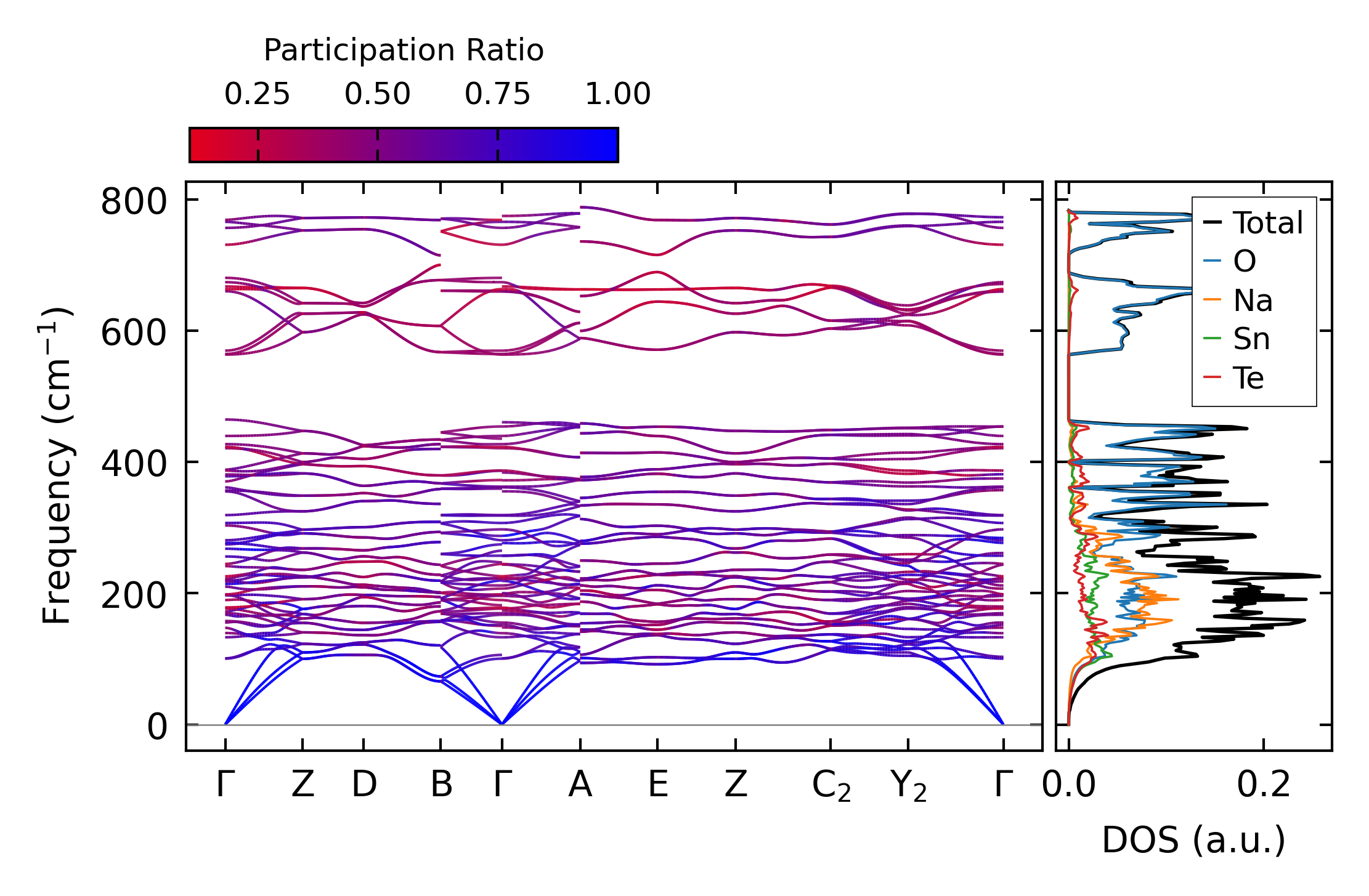

../../_images/fig_bandos_pr544.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo544.png — (b) Thermodynamic properties

Grüneisen parameters

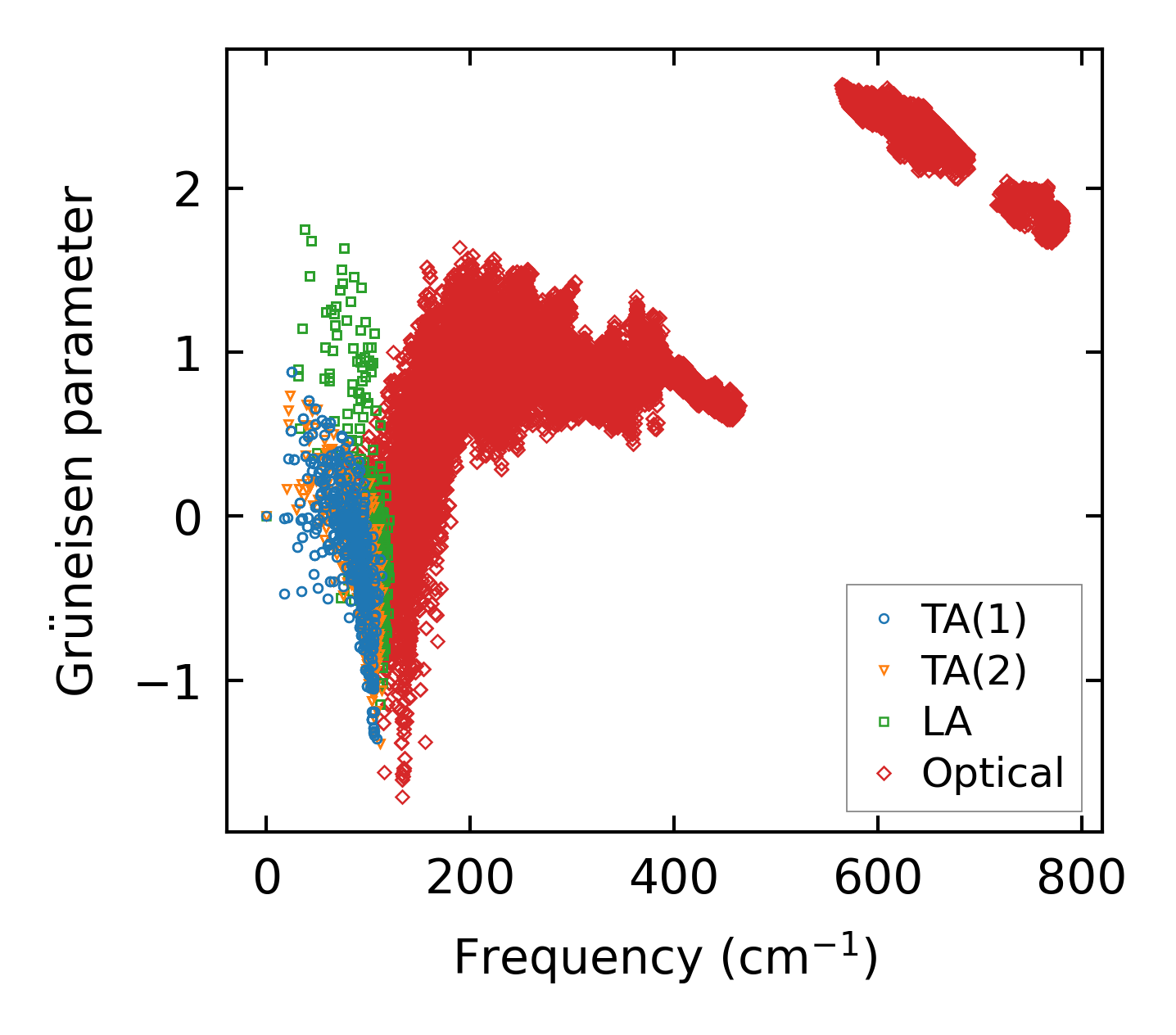

../../_images/fig_gru_all369.png — (a) Grüneisen parameters

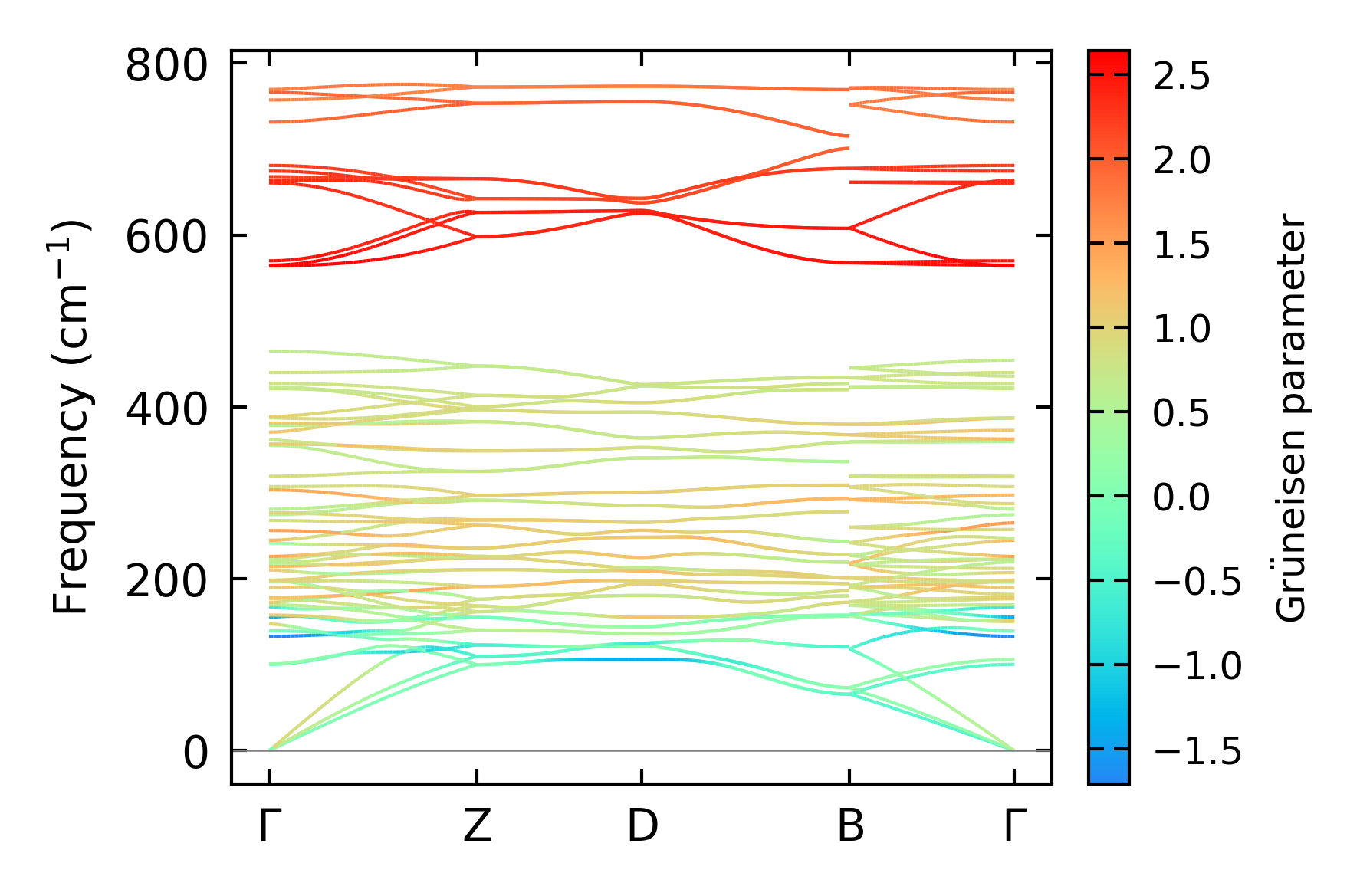

../../_images/fig_gruneisen369.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x13x8, supercell: 2x2x1

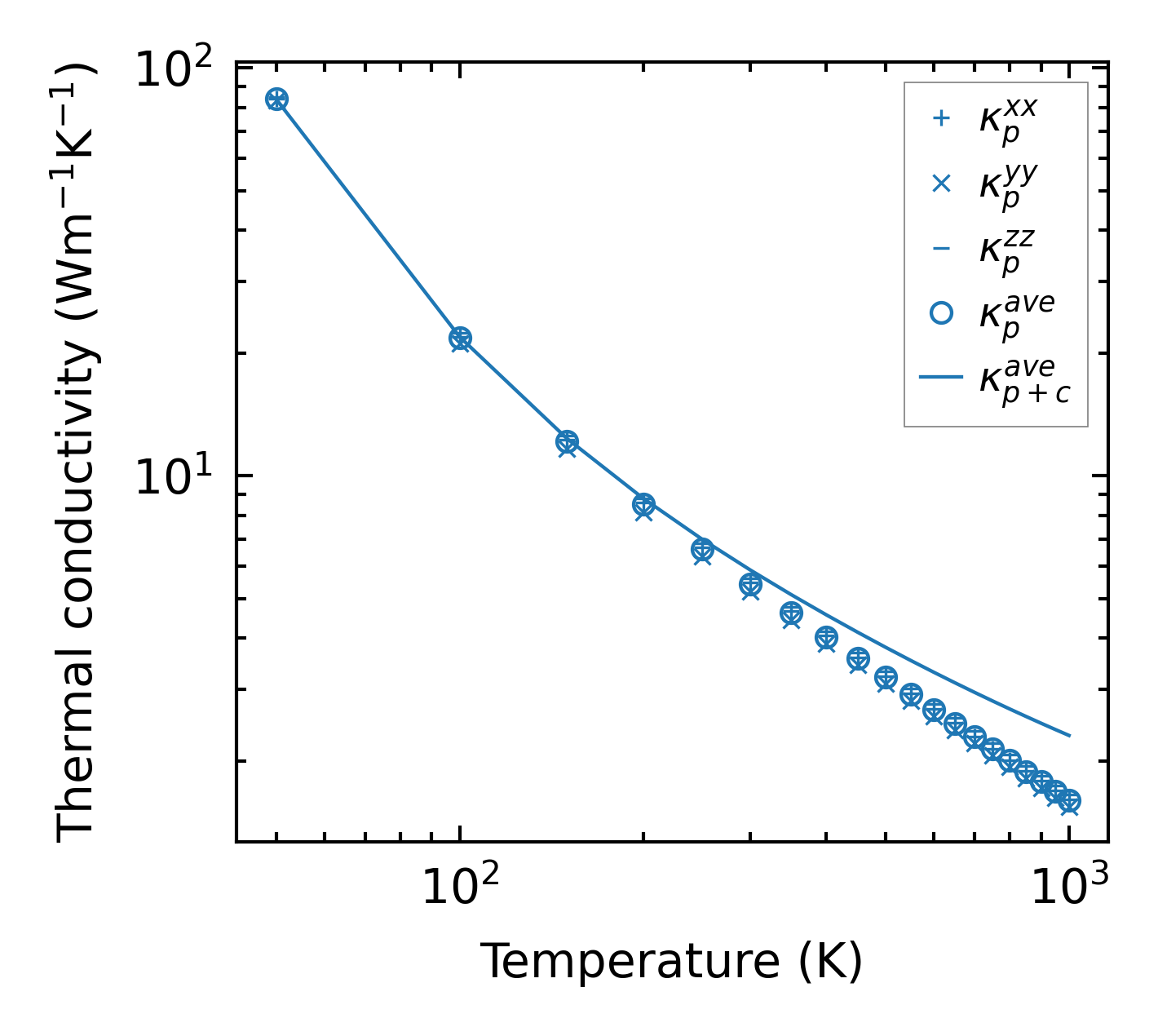

../../_images/fig_kappa716.png — (a) Temperature-dependent lattice thermal conductivity

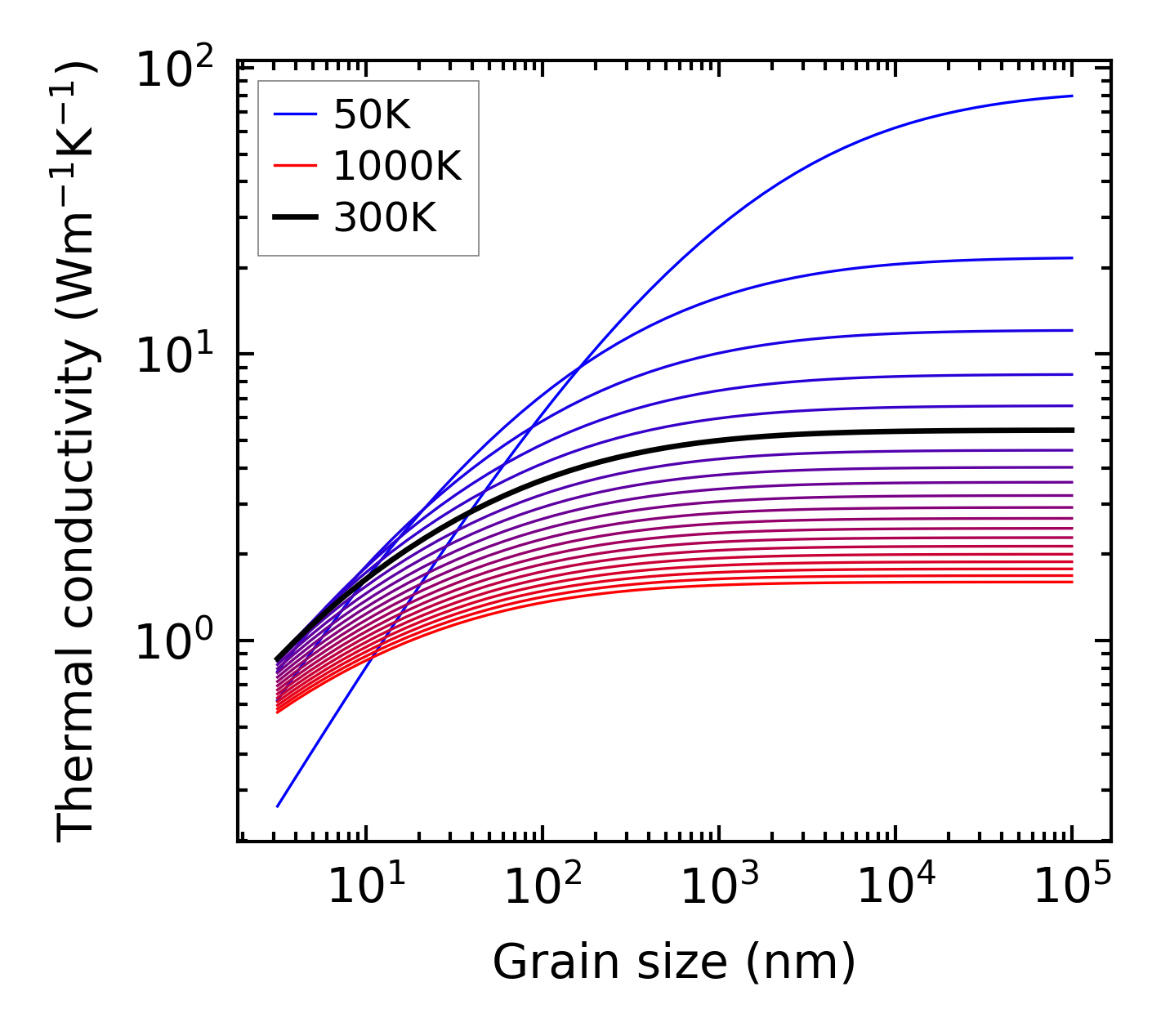

../../_images/fig_kappa_vs_grain_size373.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime367.png — (a) Phonon lifetime due to phonon-phonon scattering

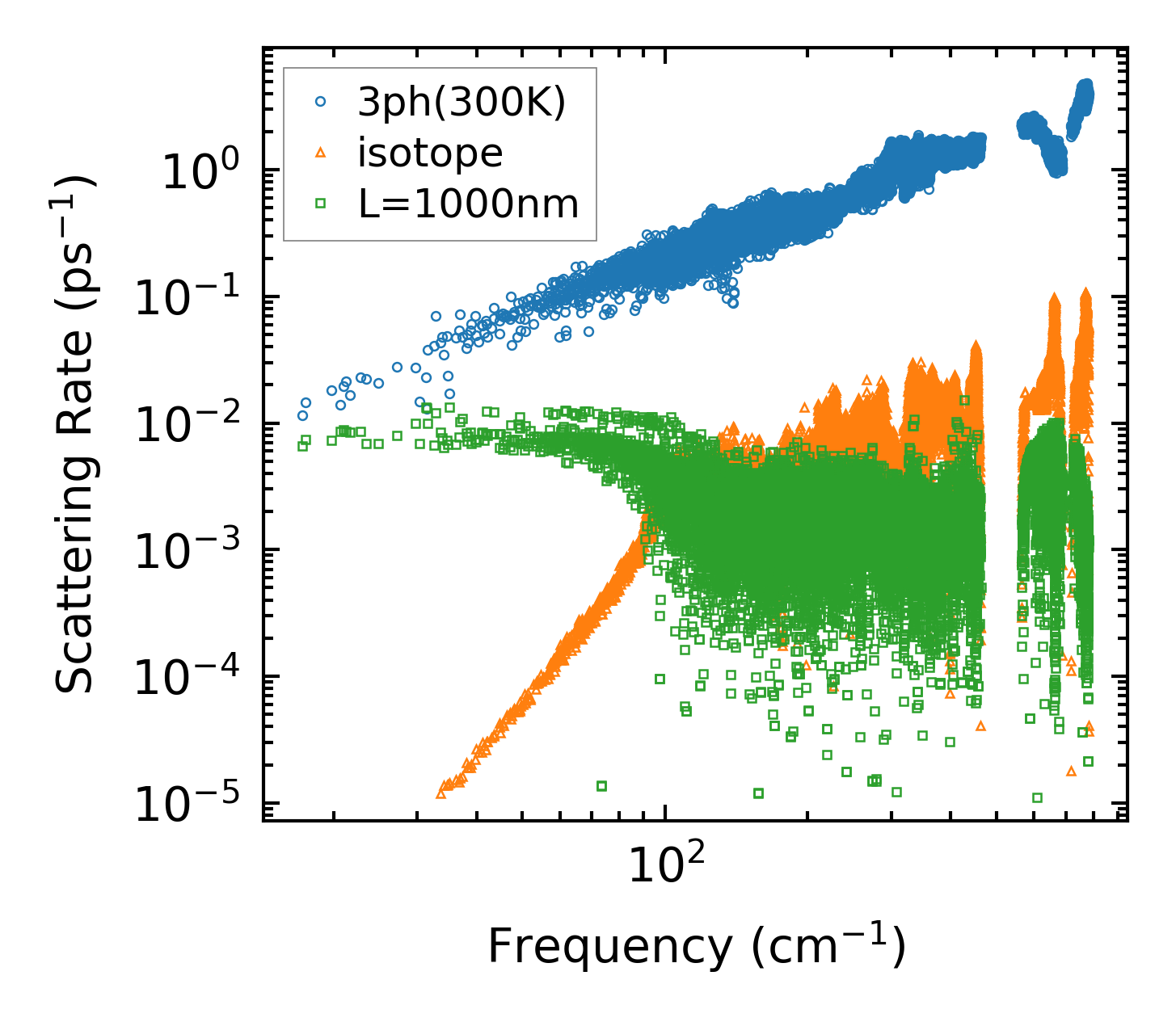

../../_images/fig_scat_rates366.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

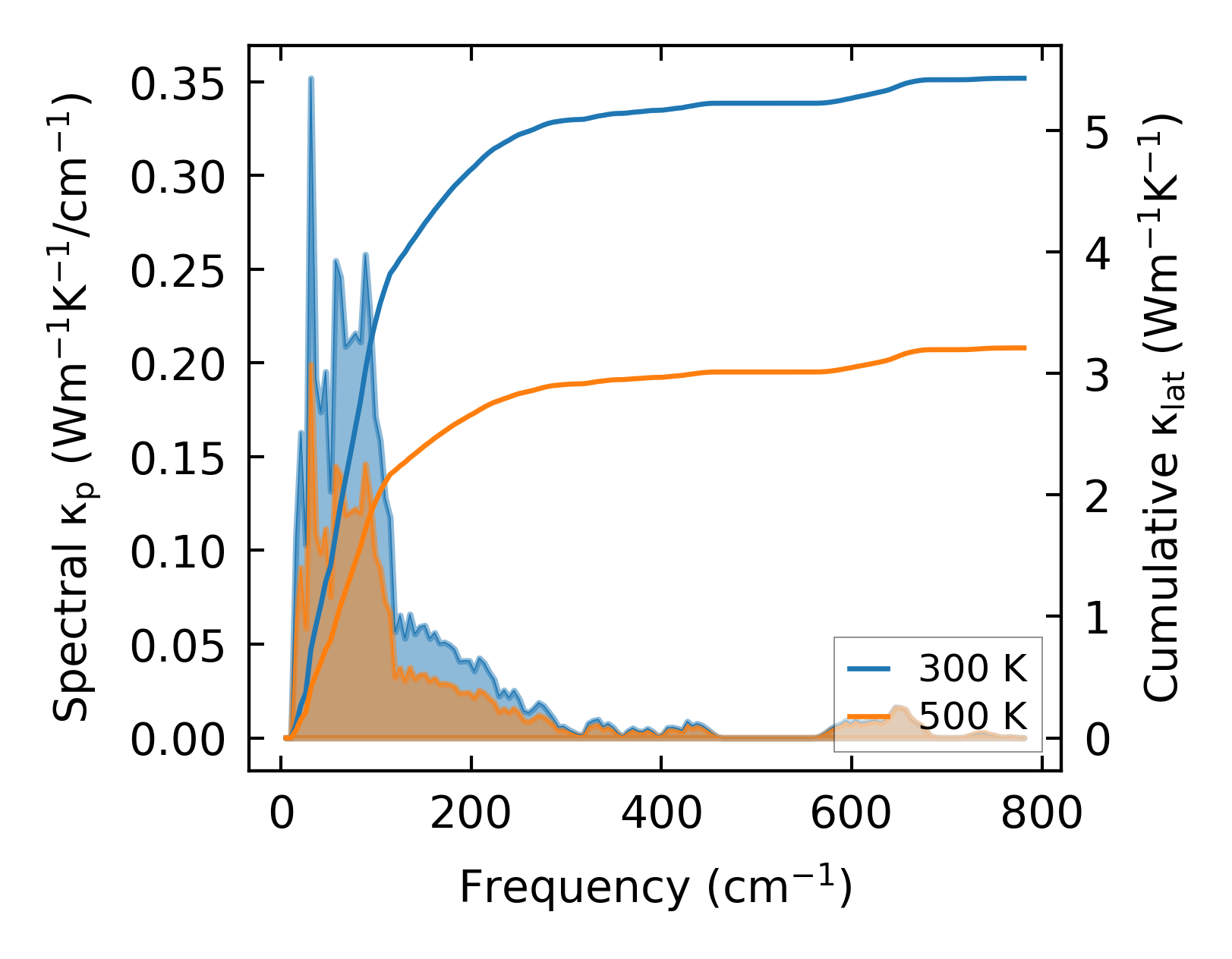

../../_images/fig_cumu_frequency367.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

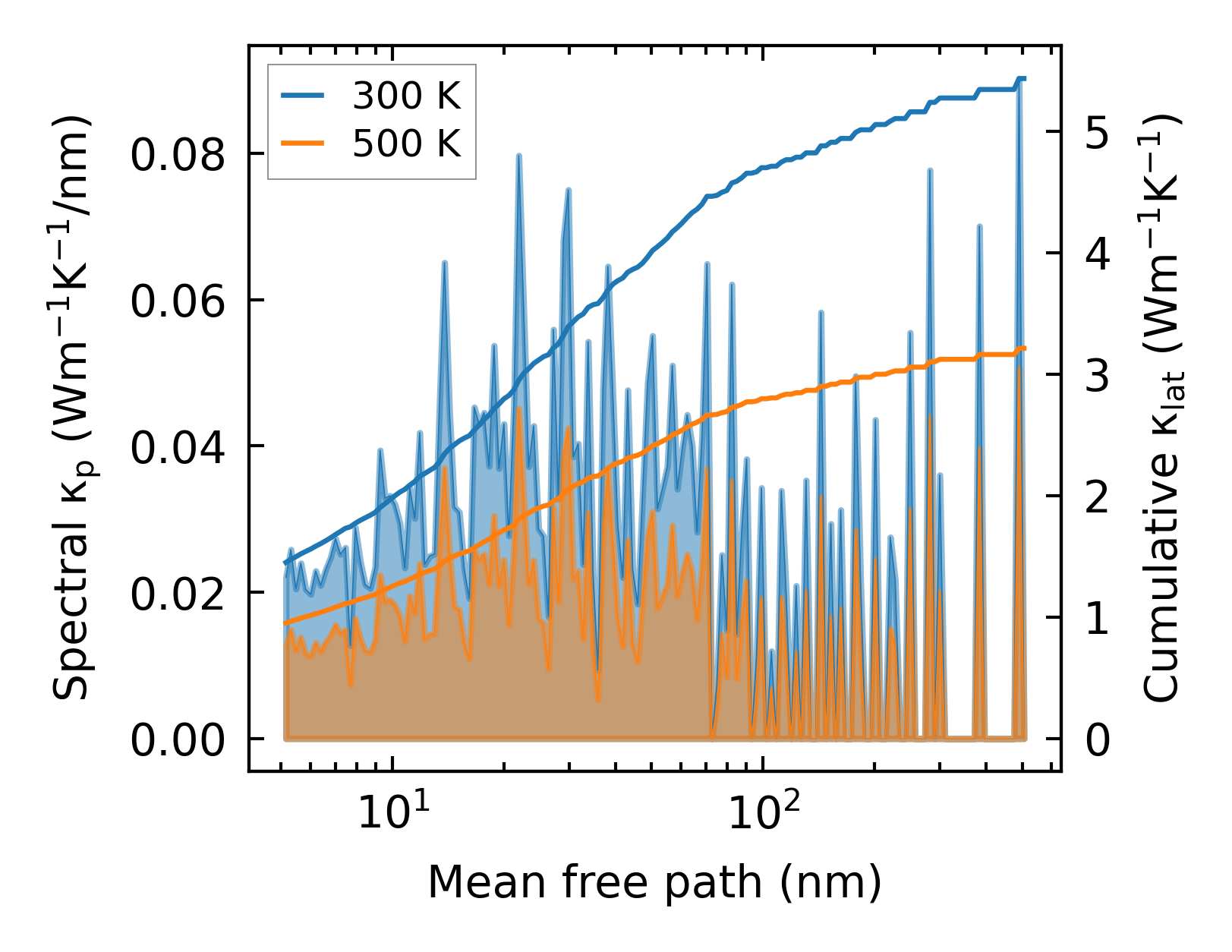

../../_images/fig_cumu_mfp367.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

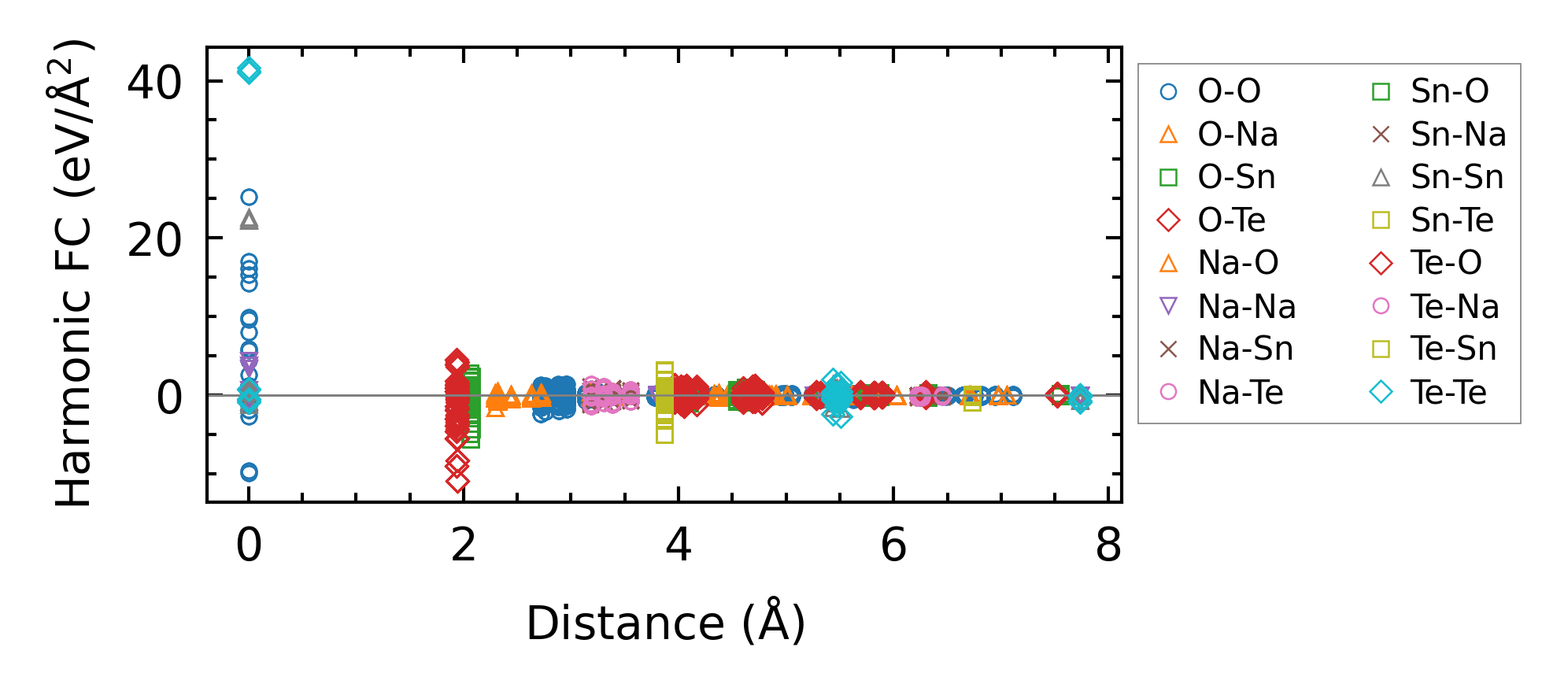

../../_images/fig_fc2464.png — (a) Force constants w.r.t atomic distance

Summary

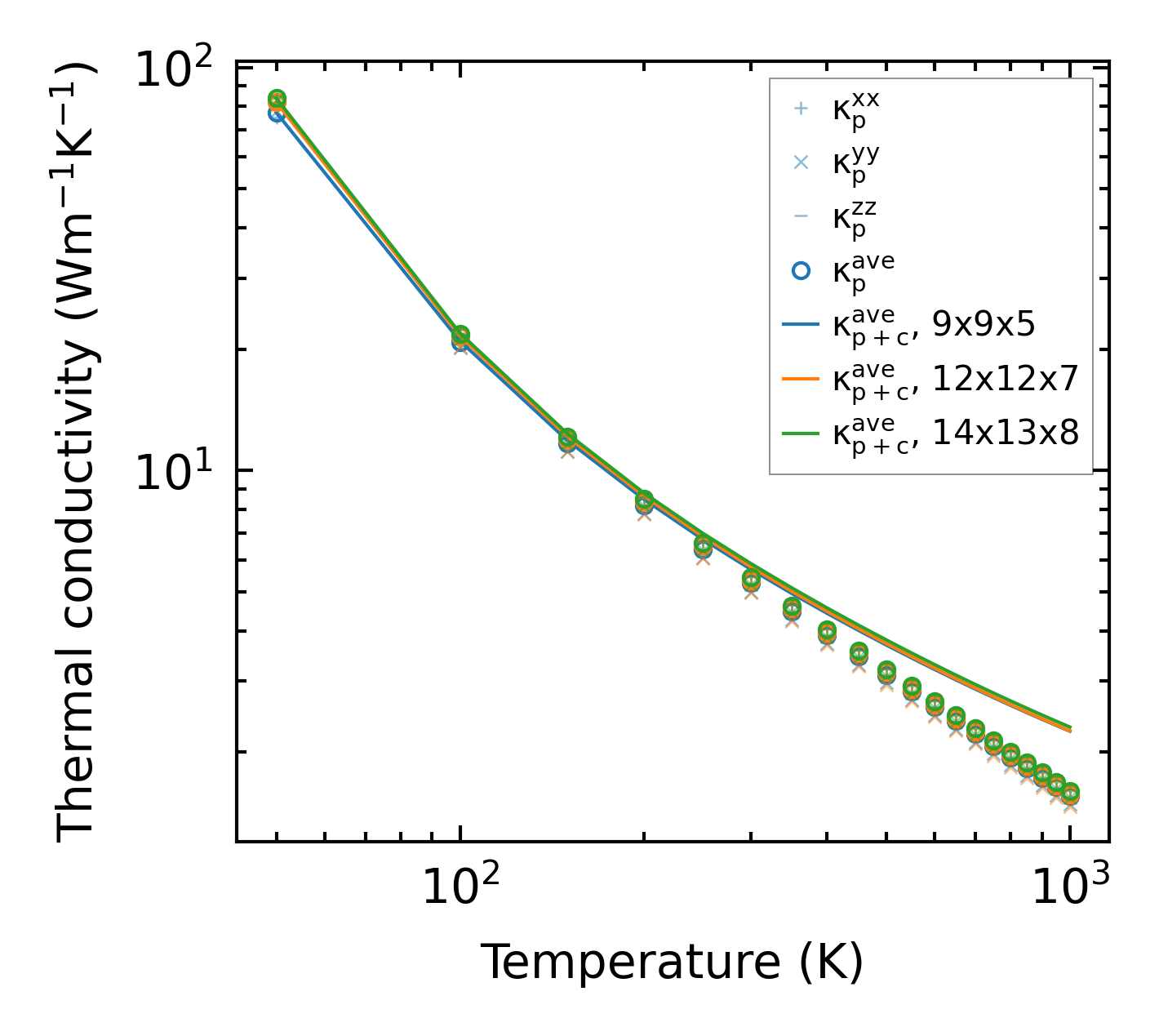

../../_images/fig_kappa717.png — (a) Temperature-dependent lattice thermal conductivity

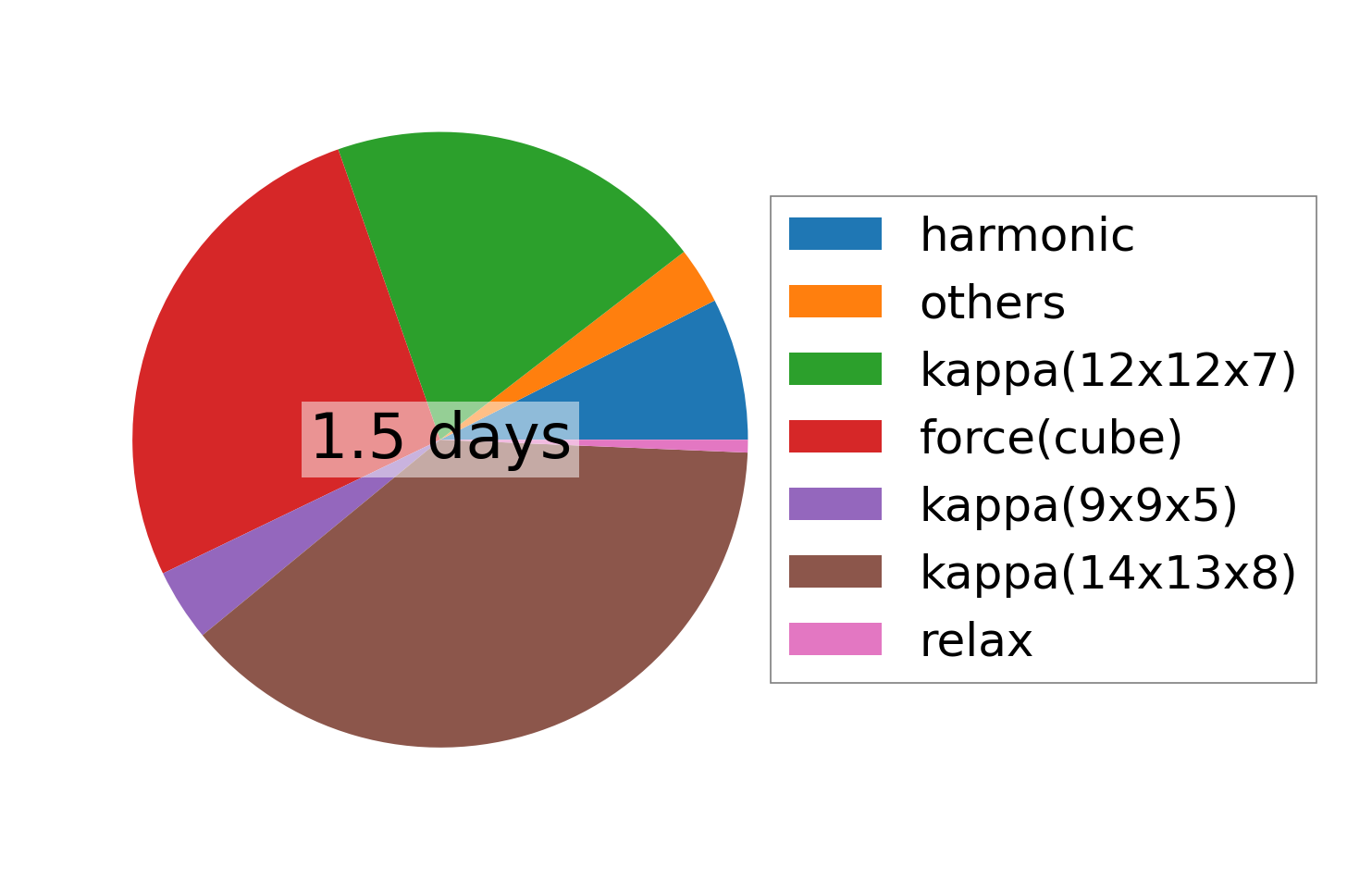

../../_images/fig_times809.png — (b) Computation time
