mp-10837-2/Na2MgInF7/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-10837-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr666.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo666.png — (b) Thermodynamic properties

Grüneisen parameters

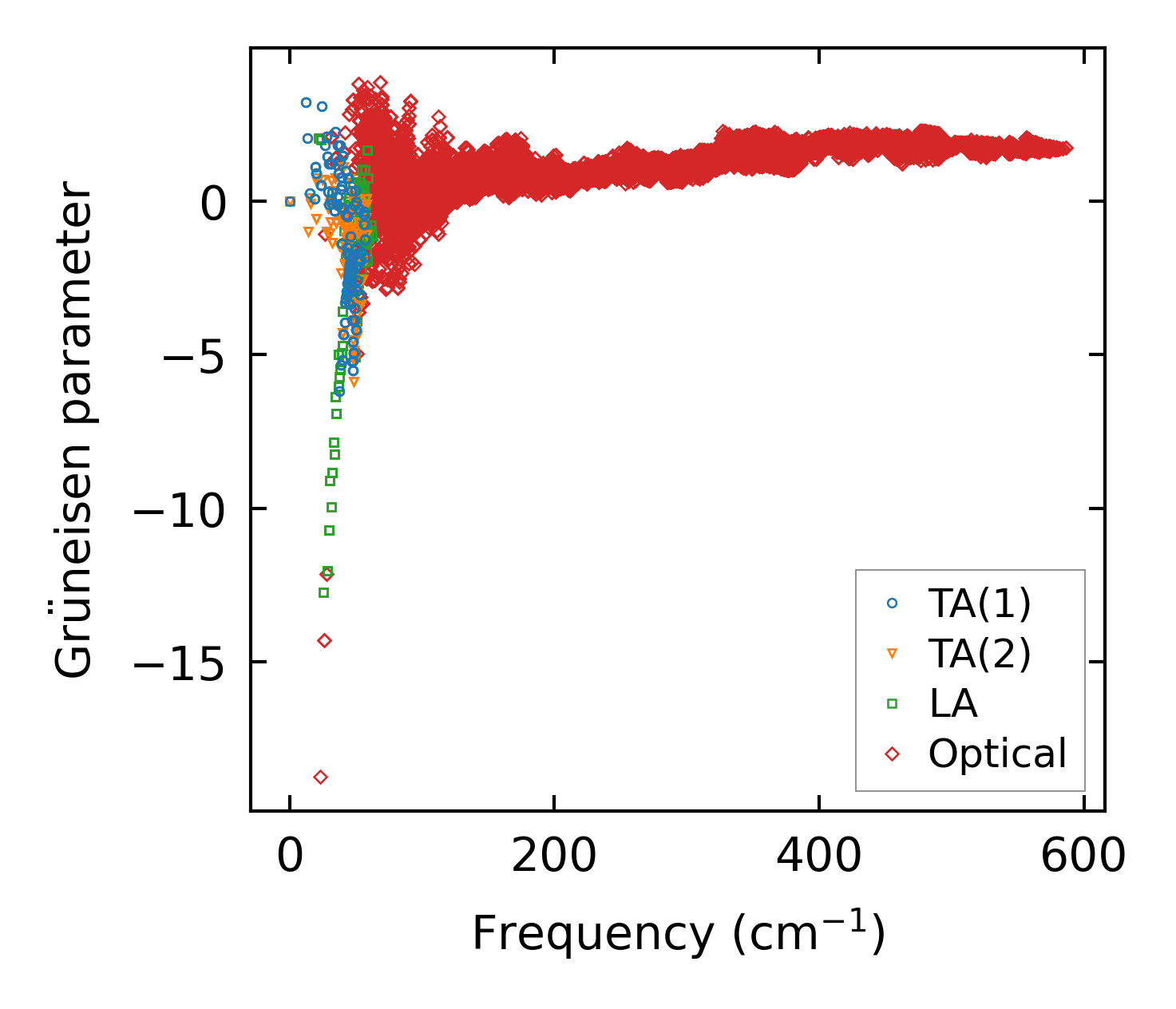

../../_images/fig_gru_all440.png — (a) Grüneisen parameters

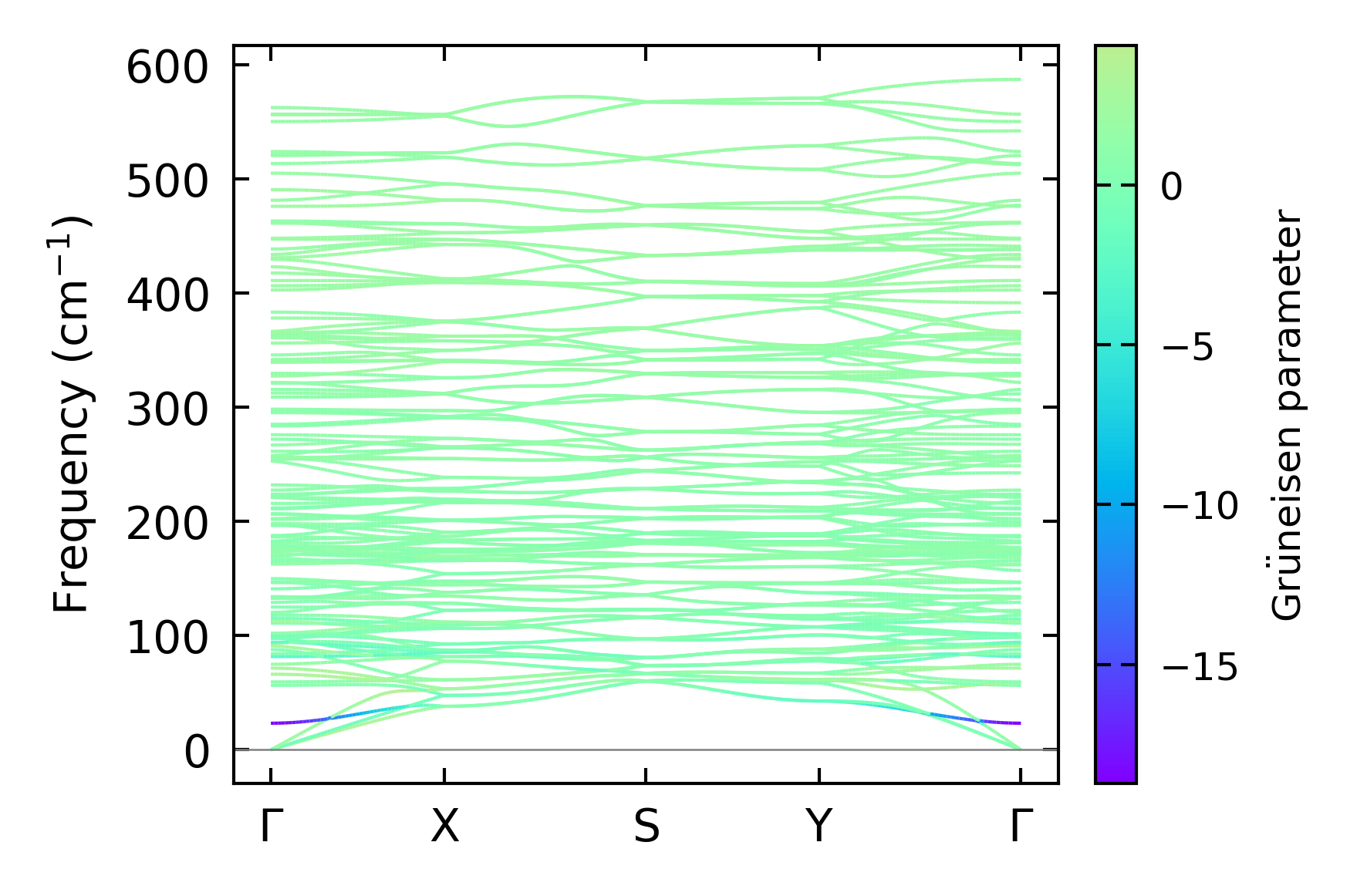

../../_images/fig_gruneisen440.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x9x9, supercell: 1x2x1

../../_images/fig_kappa856.png — (a) Temperature-dependent lattice thermal conductivity

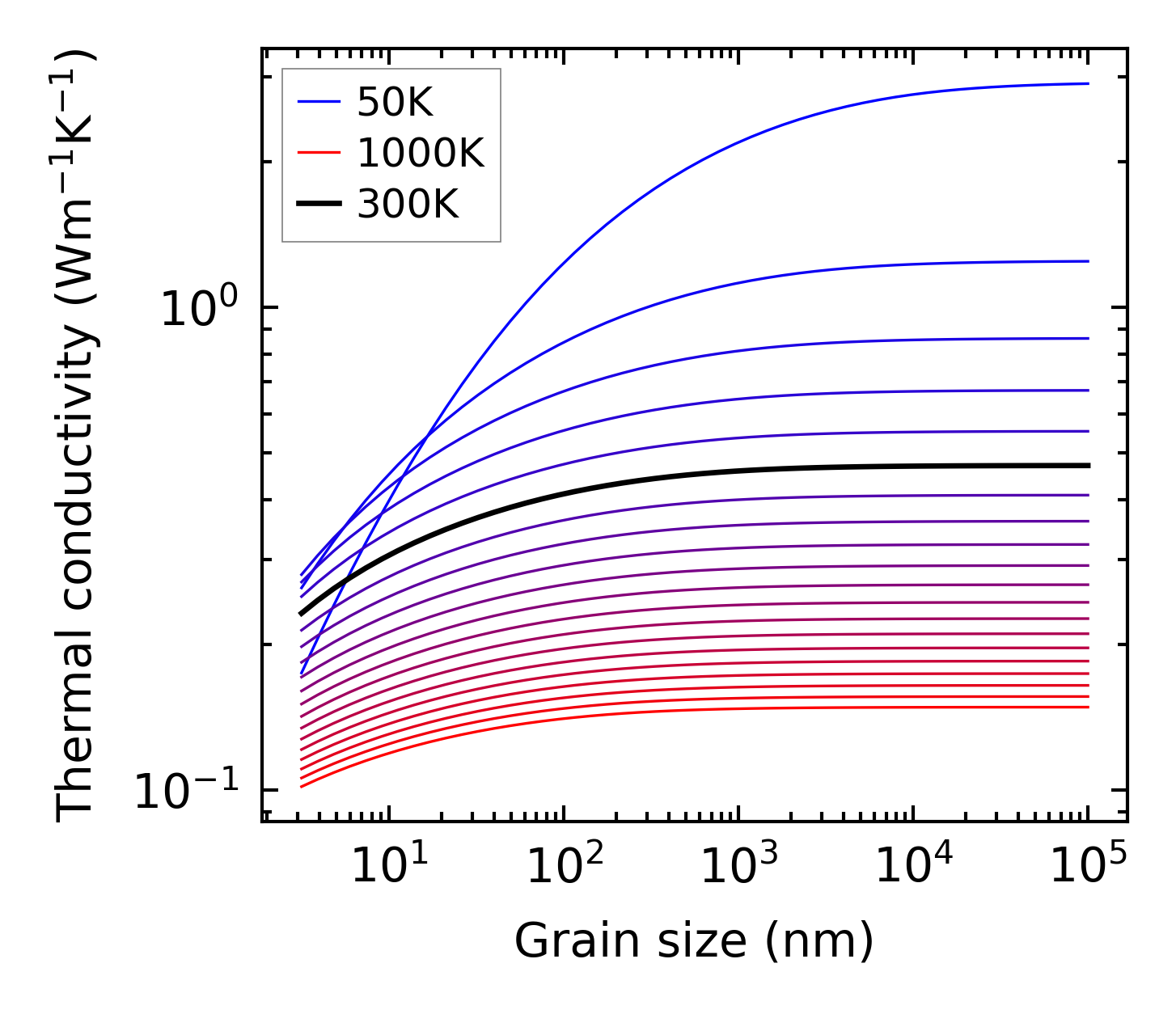

../../_images/fig_kappa_vs_grain_size447.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime438.png — (a) Phonon lifetime due to phonon-phonon scattering

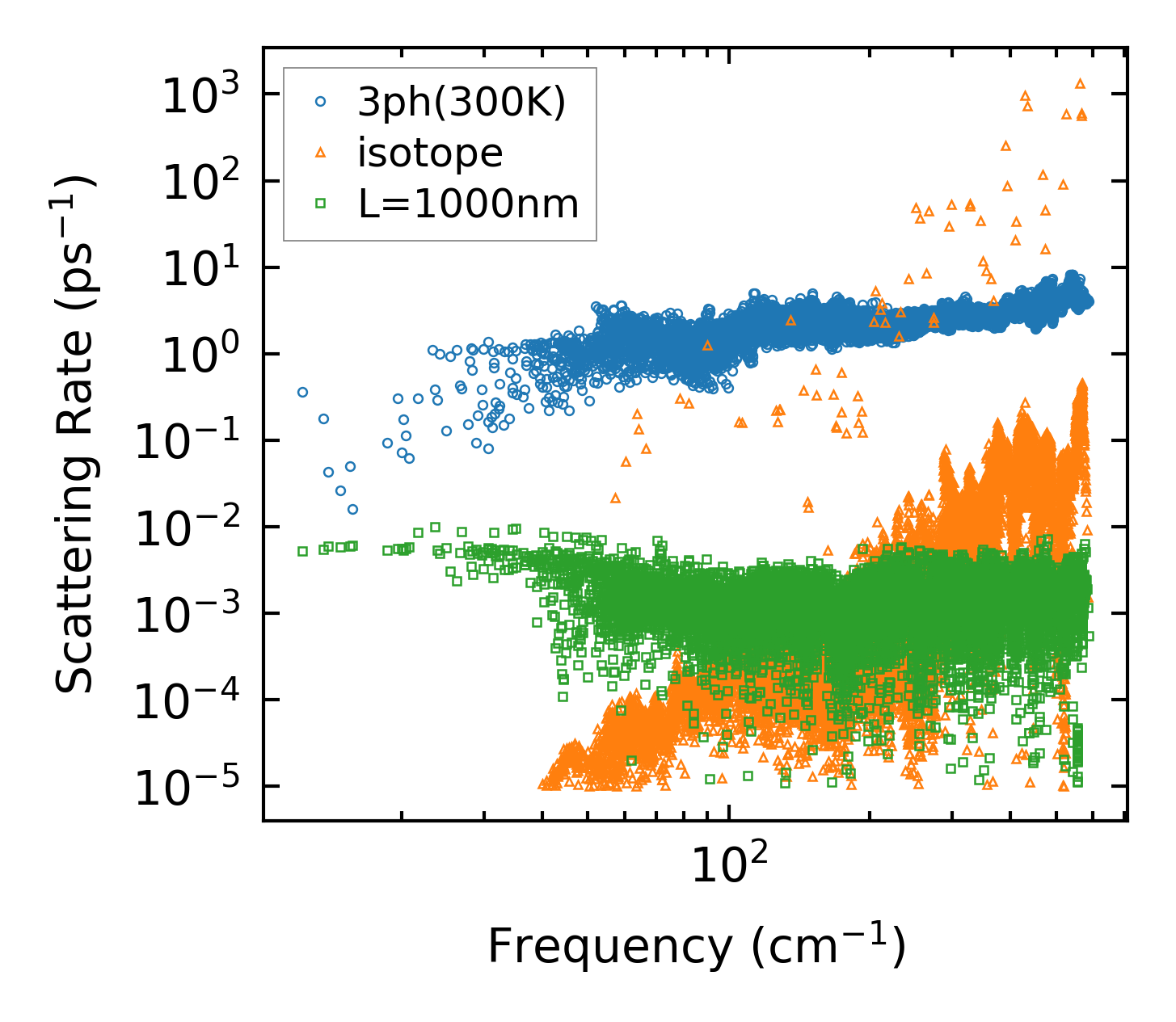

../../_images/fig_scat_rates437.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

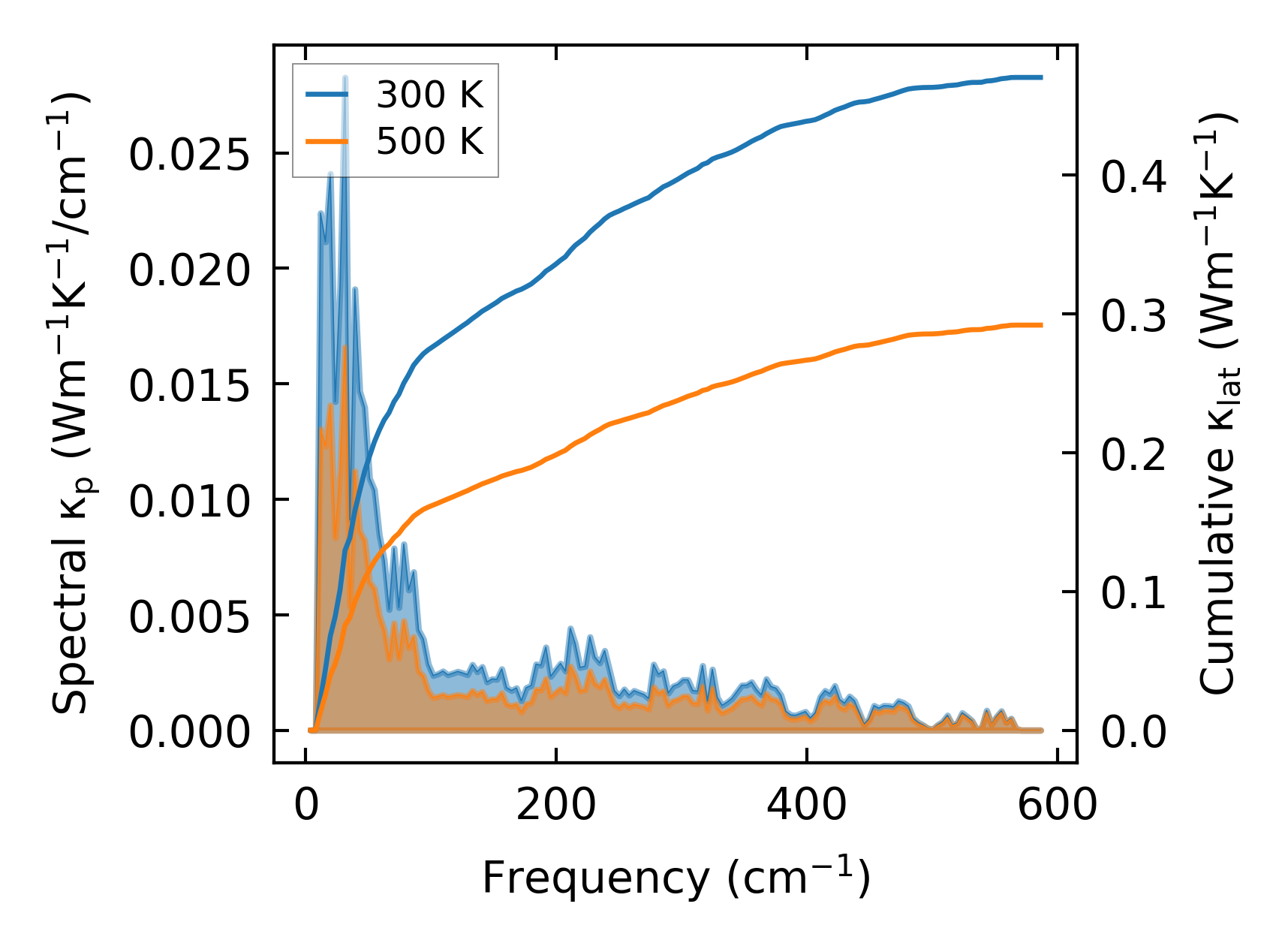

../../_images/fig_cumu_frequency438.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

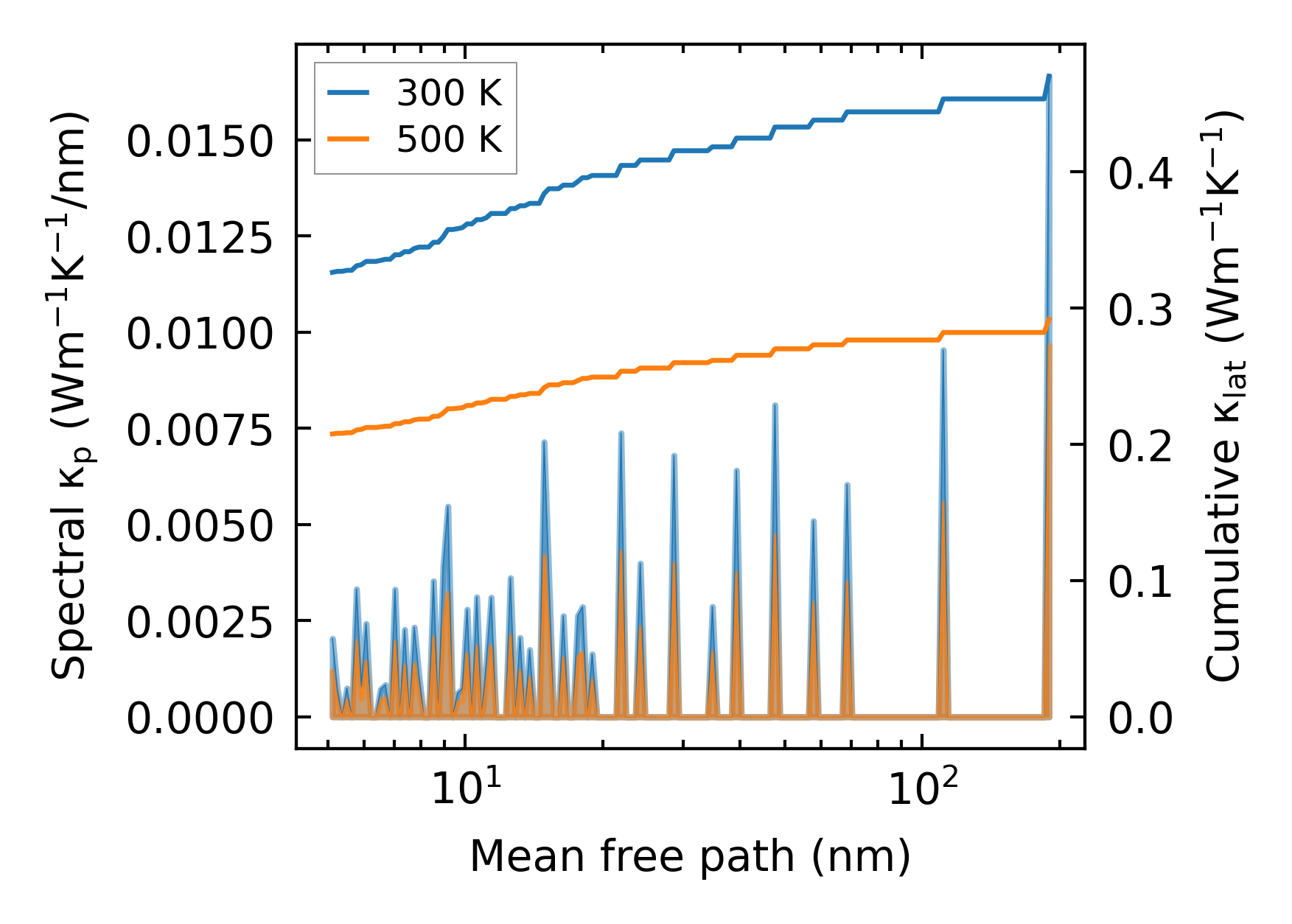

../../_images/fig_cumu_mfp438.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

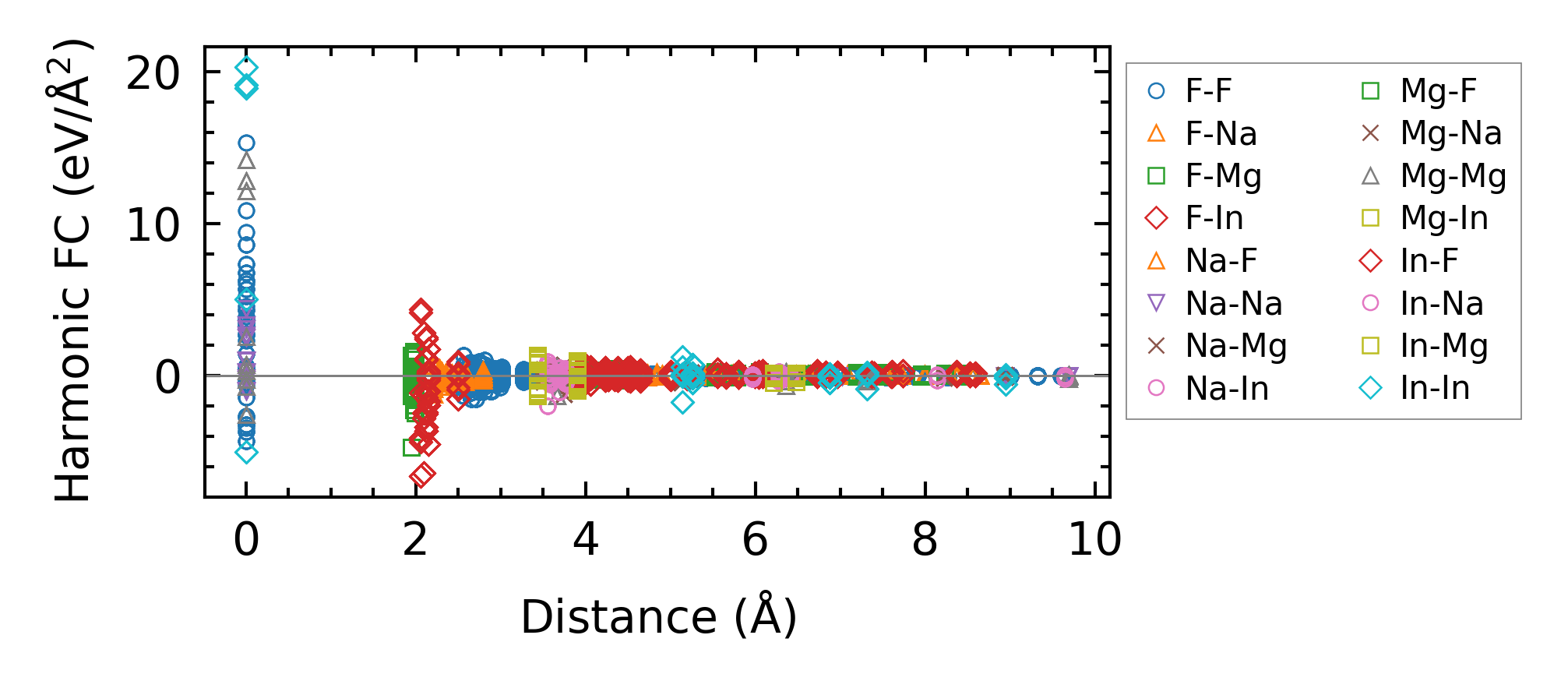

../../_images/fig_fc2577.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa857.png — (a) Temperature-dependent lattice thermal conductivity

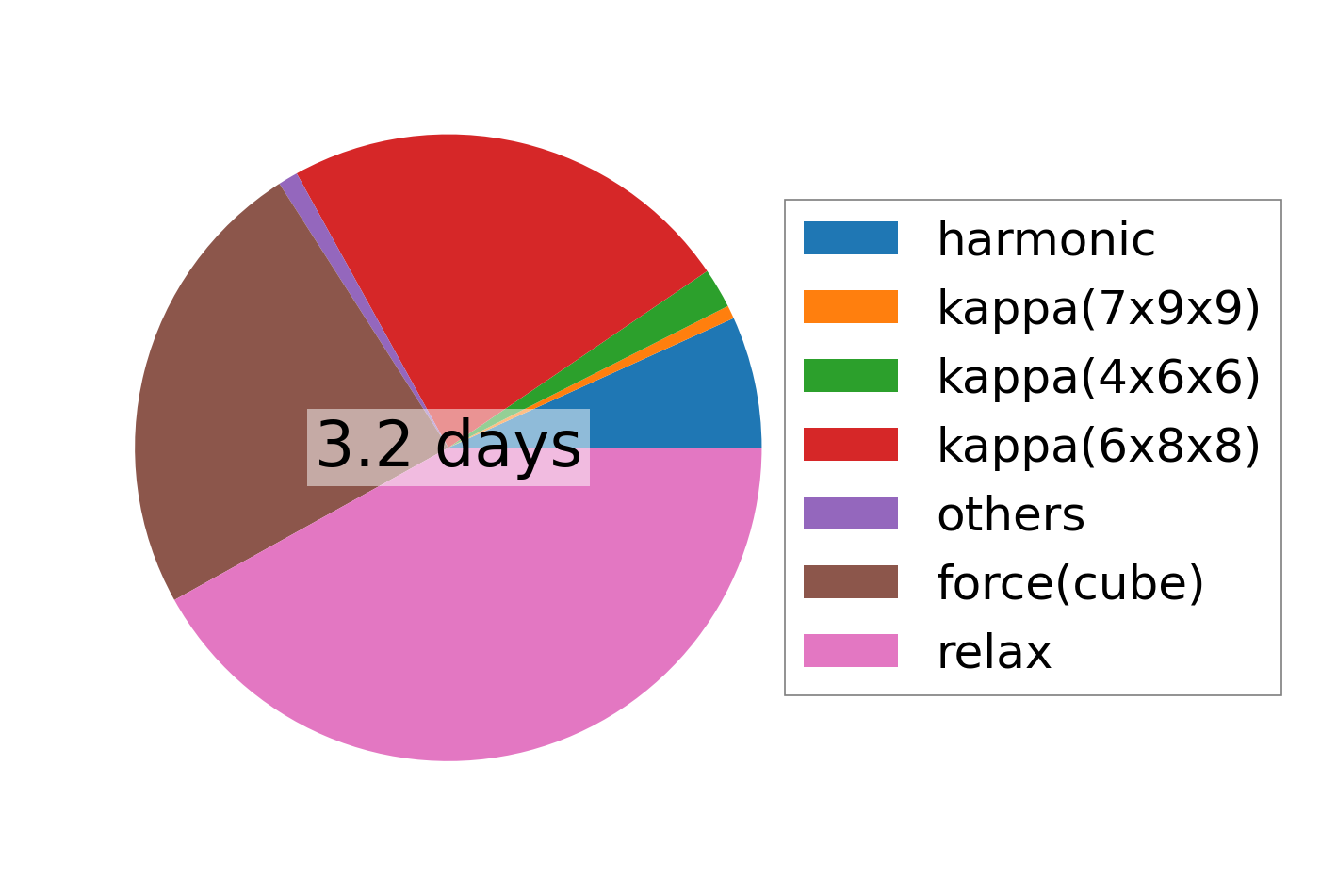

../../_images/fig_times963.png — (b) Computation time
