mp-10337/BaYAgTe3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-10337.tar.gz

Harmonic properties

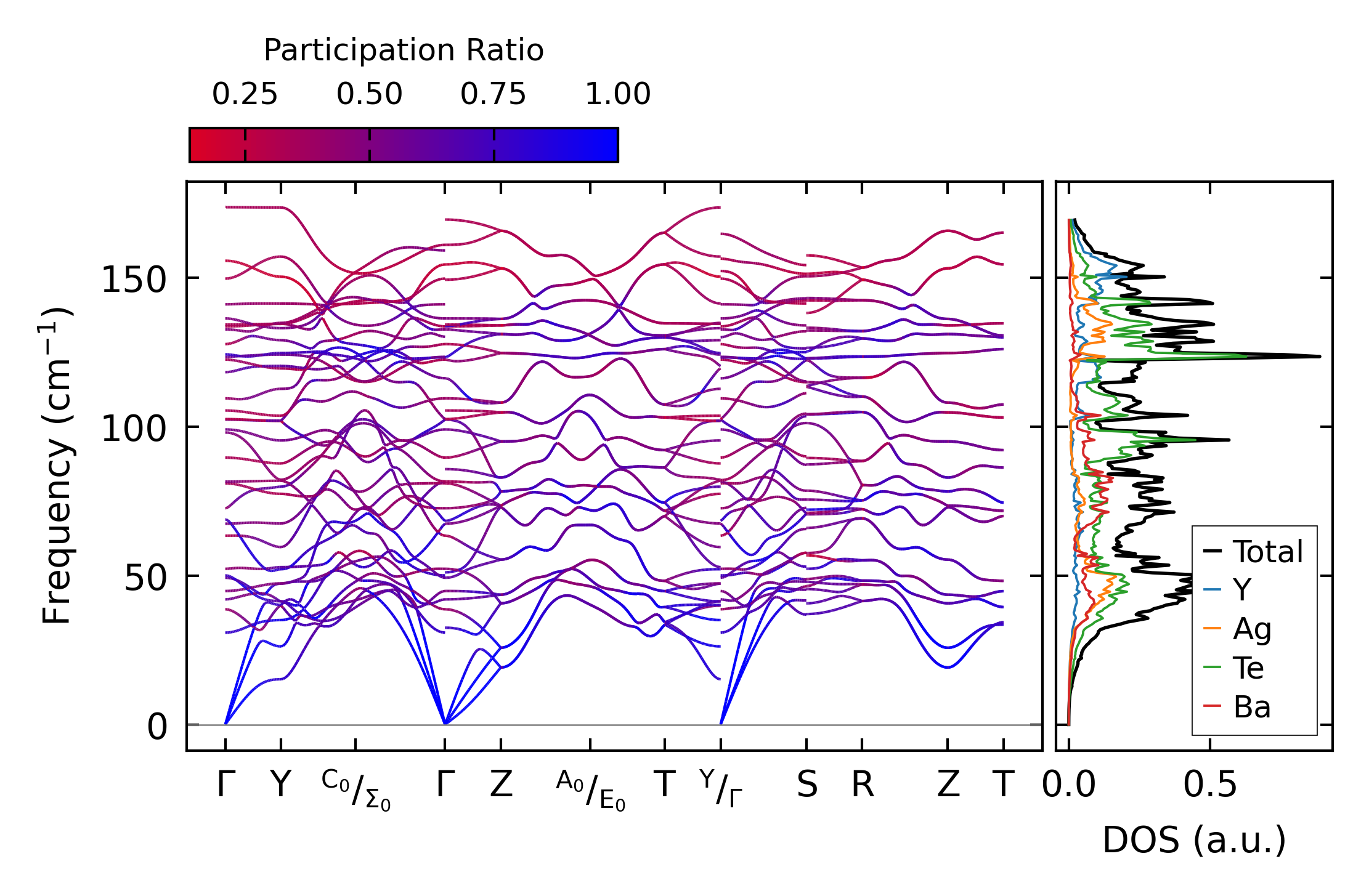

../../_images/fig_bandos_pr539.png — (a) Phonon dispersion with participation ratio and DOS

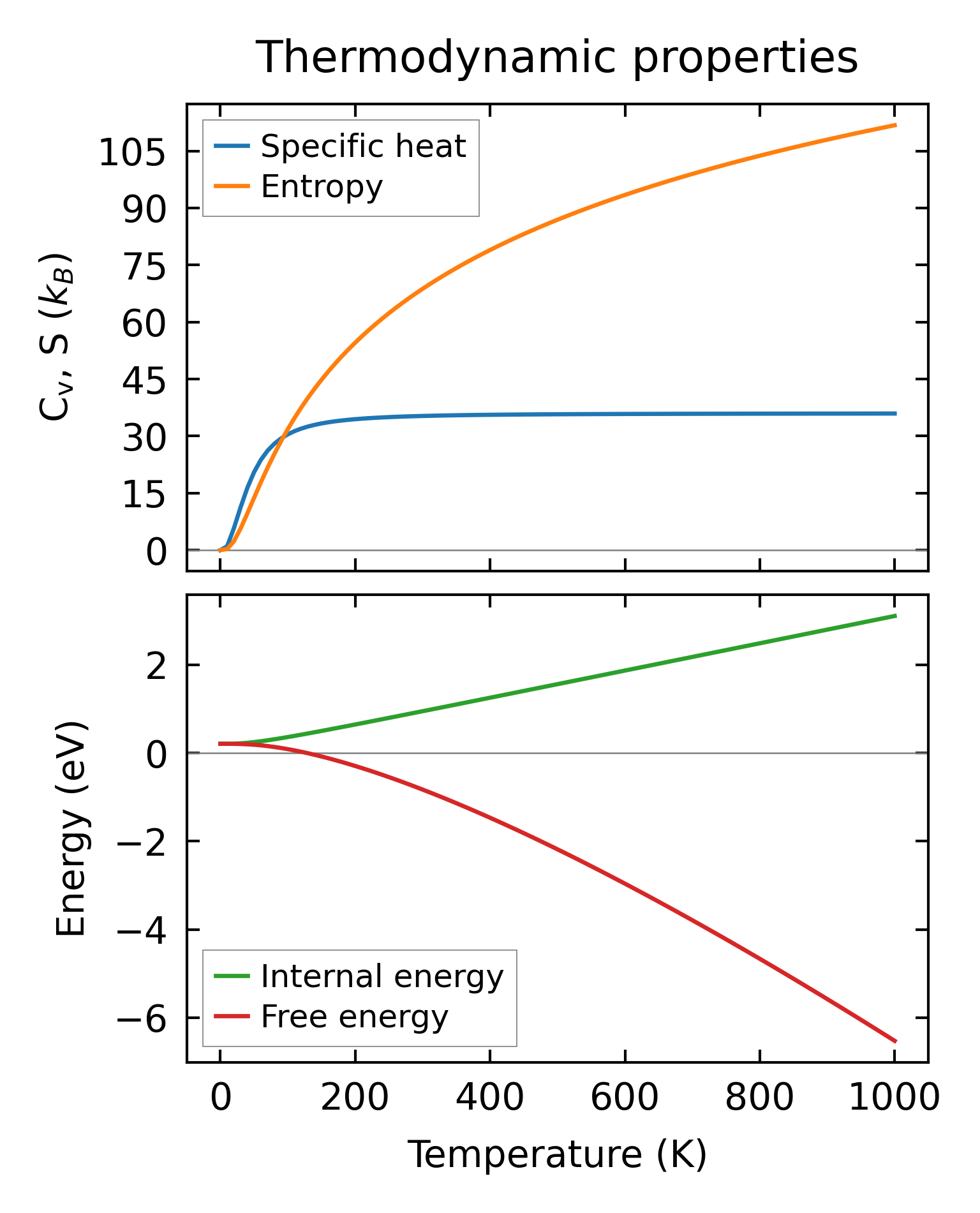

../../_images/fig_thermo539.png — (b) Thermodynamic properties

Grüneisen parameters

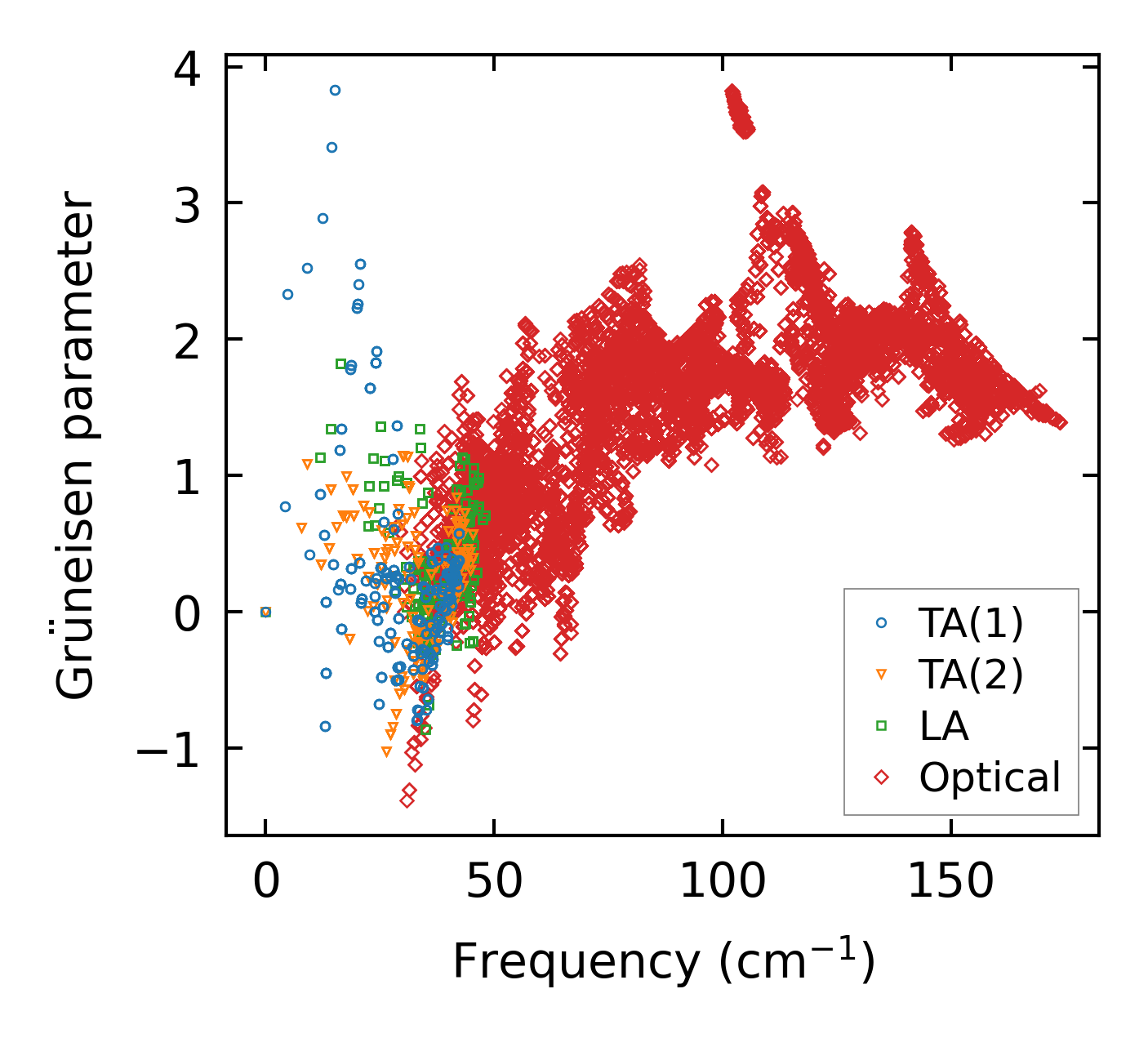

../../_images/fig_gru_all367.png — (a) Grüneisen parameters

../../_images/fig_gruneisen367.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x7, supercell: 3x1x2

../../_images/fig_kappa712.png — (a) Temperature-dependent lattice thermal conductivity

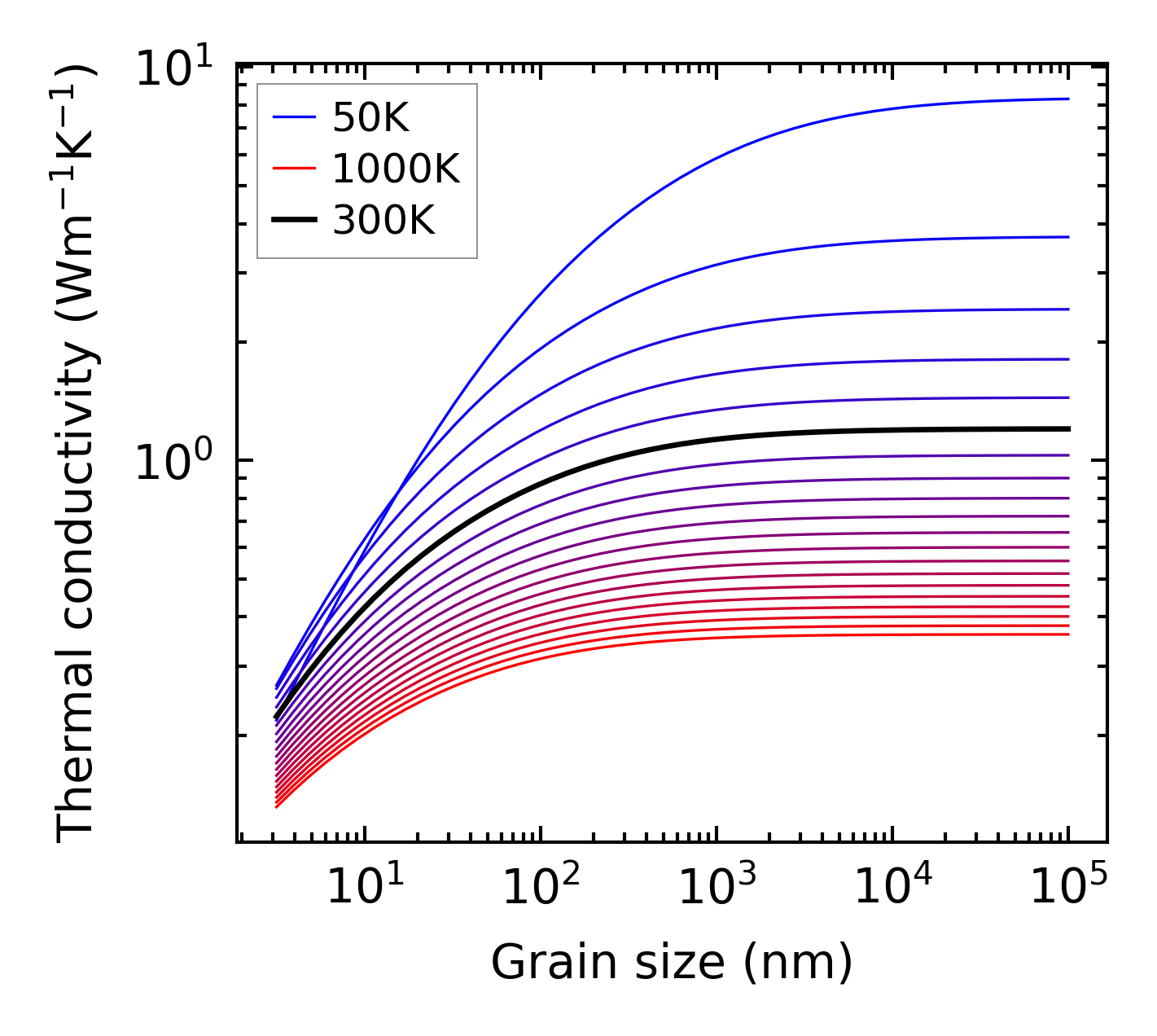

../../_images/fig_kappa_vs_grain_size371.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

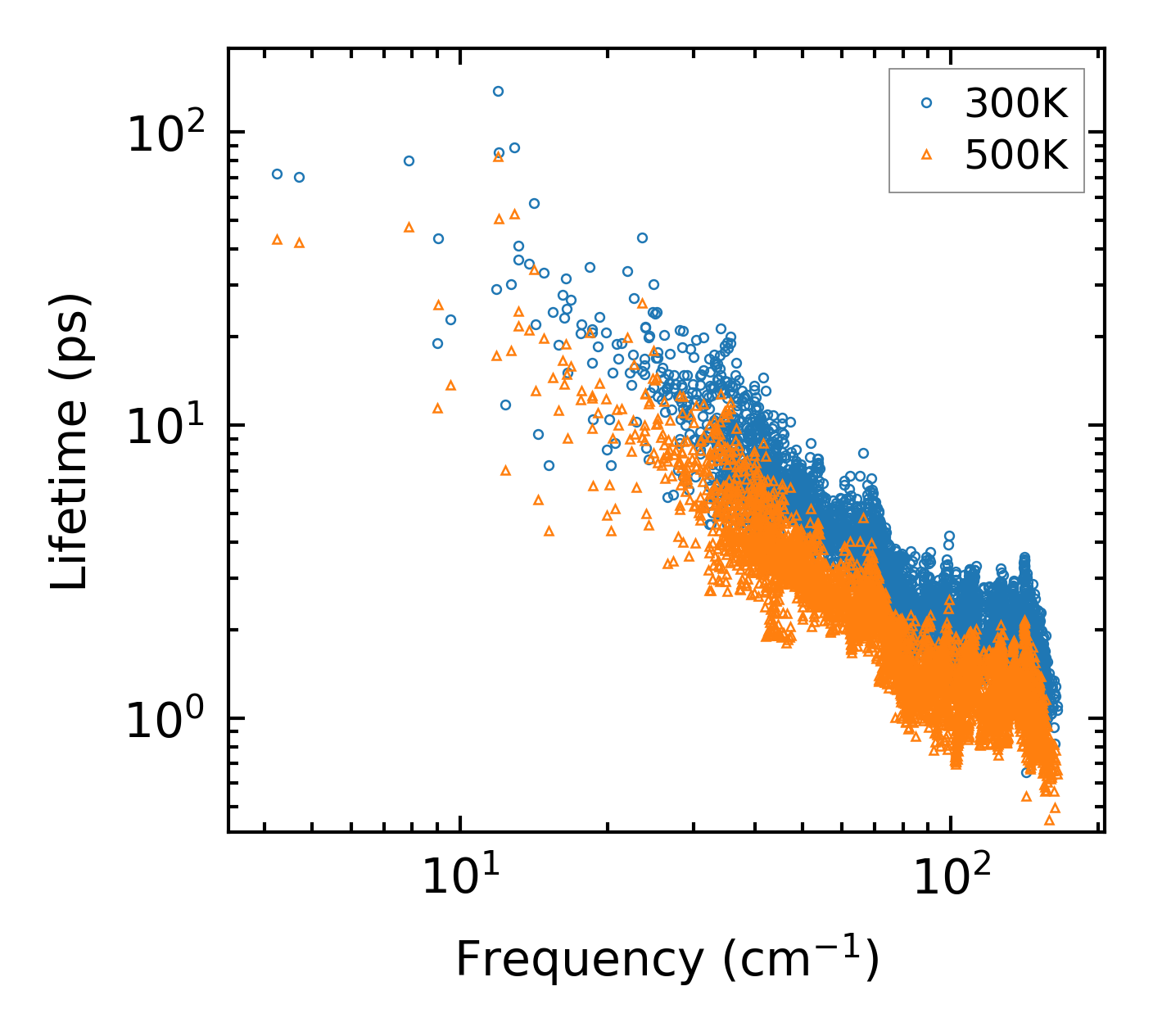

../../_images/fig_lifetime365.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates364.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency365.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

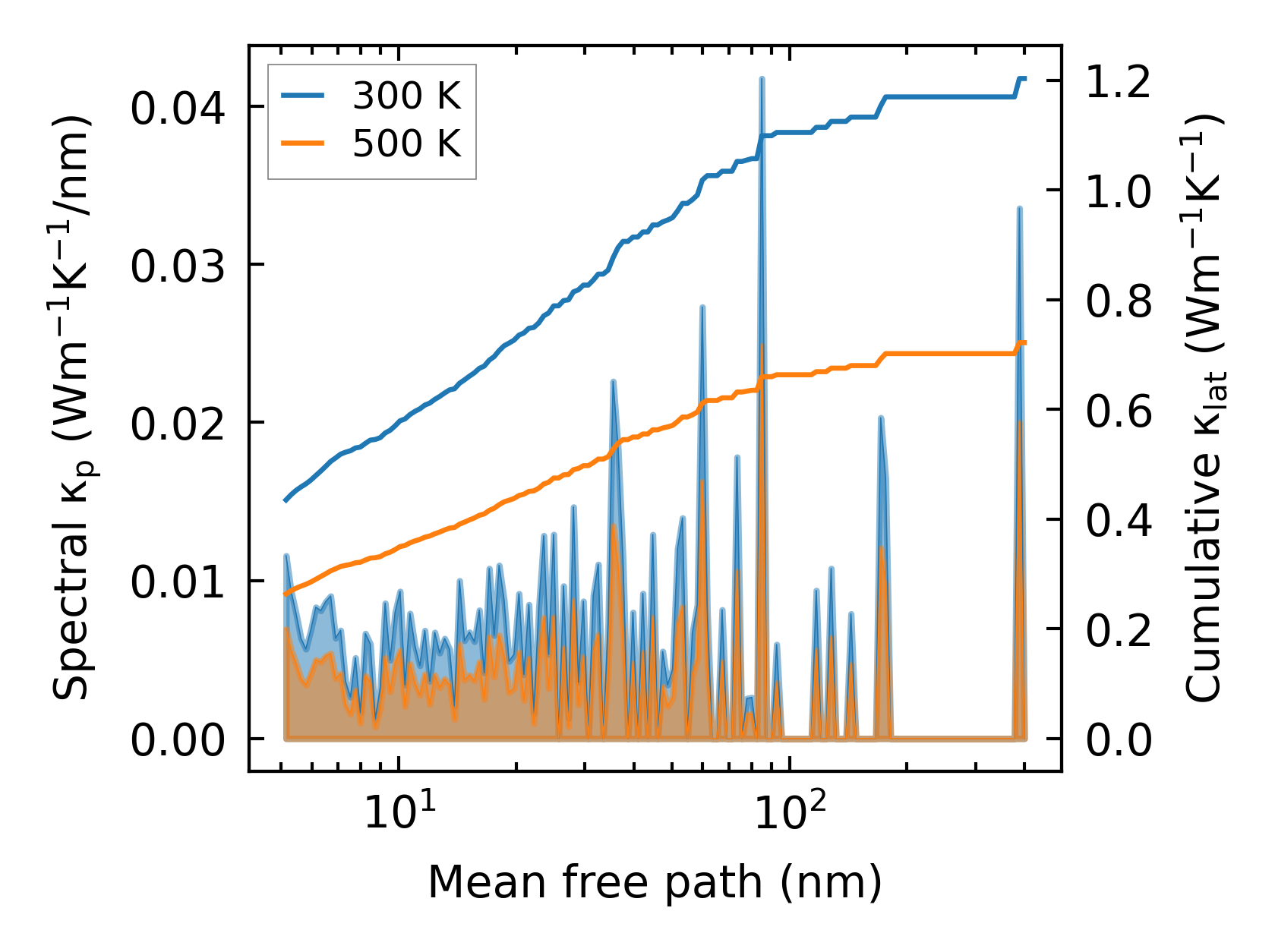

../../_images/fig_cumu_mfp365.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2459.png — (a) Force constants w.r.t atomic distance

Summary

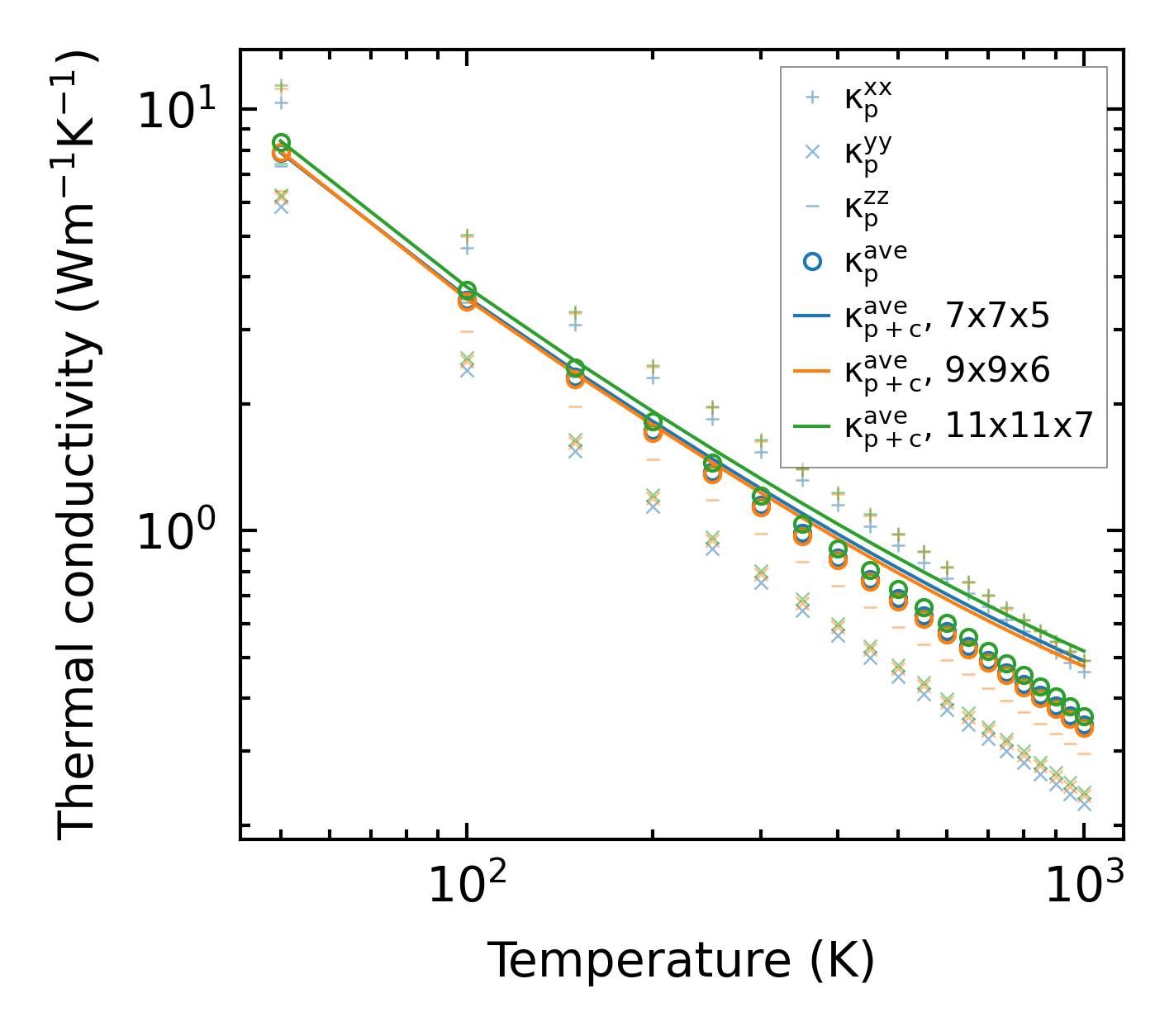

../../_images/fig_kappa713.png — (a) Temperature-dependent lattice thermal conductivity

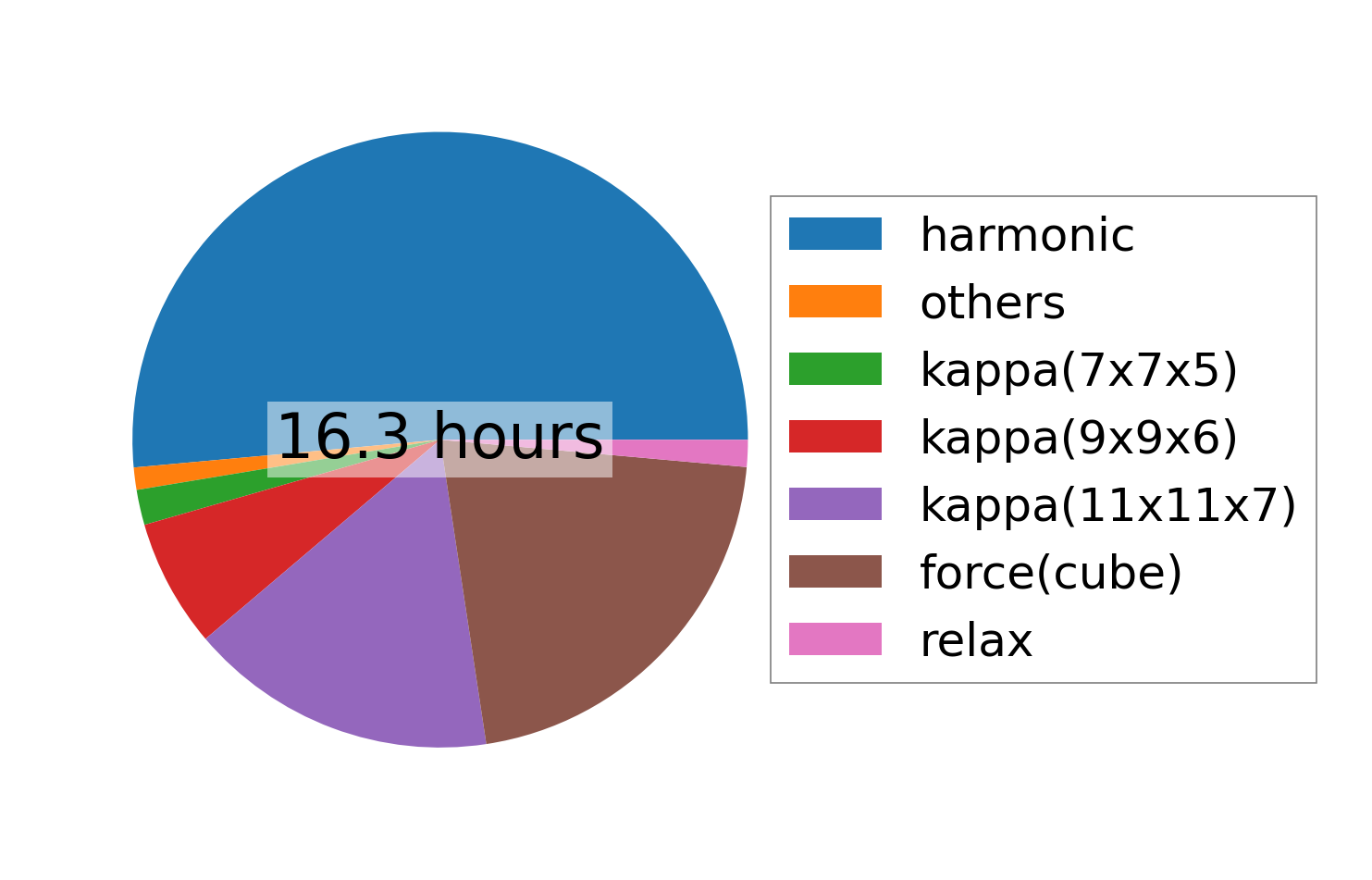

../../_images/fig_times801.png — (b) Computation time
