mp-10413/AgBC4N4/anharm

Space group: P-43m (215)
Link: Materials Project
Download: mp-10413.tar.gz

Equation of state

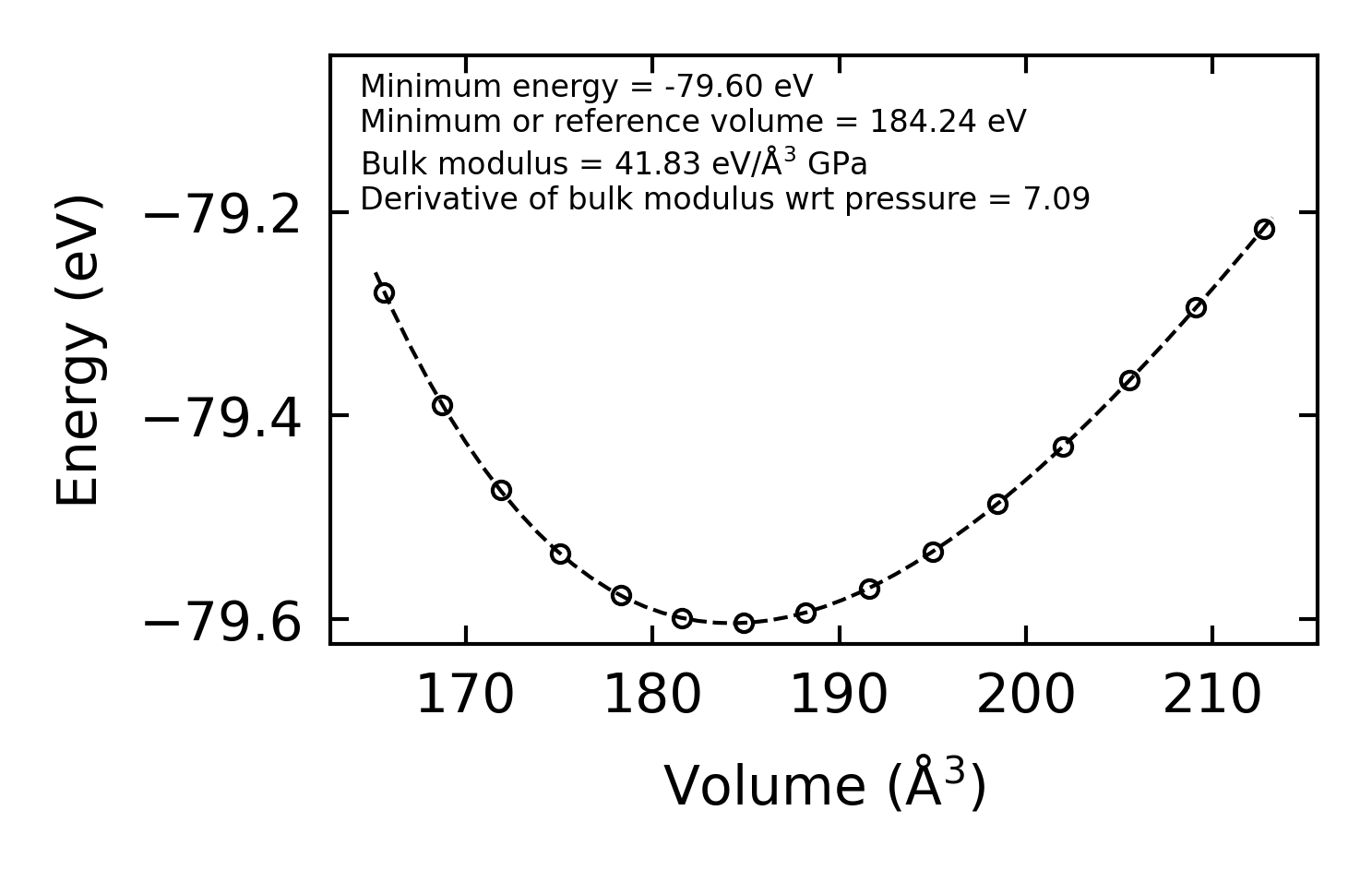

../../_images/fig_bm183.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr560.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo560.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all376.png — (a) Grüneisen parameters

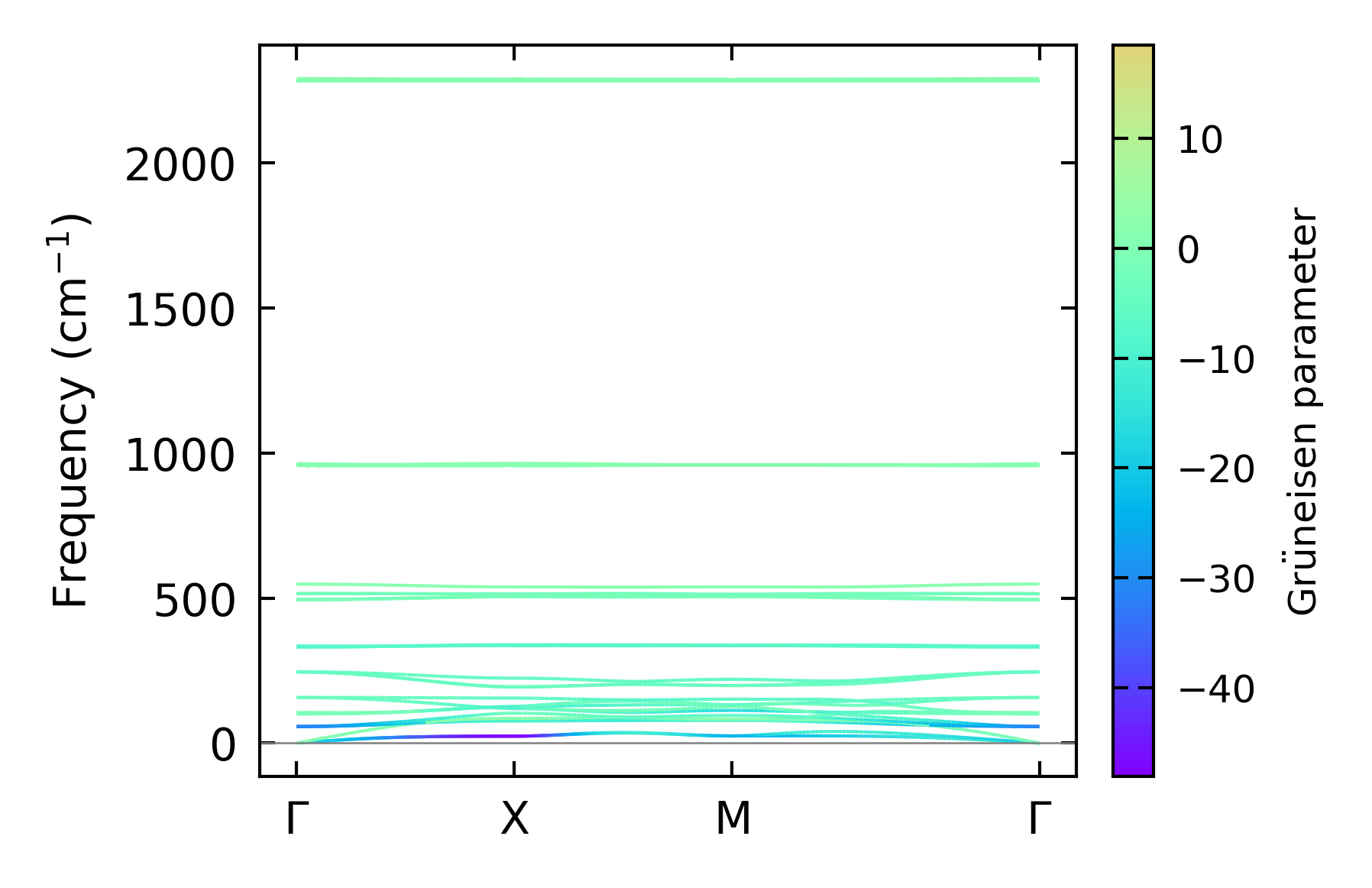

../../_images/fig_gruneisen376.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x2

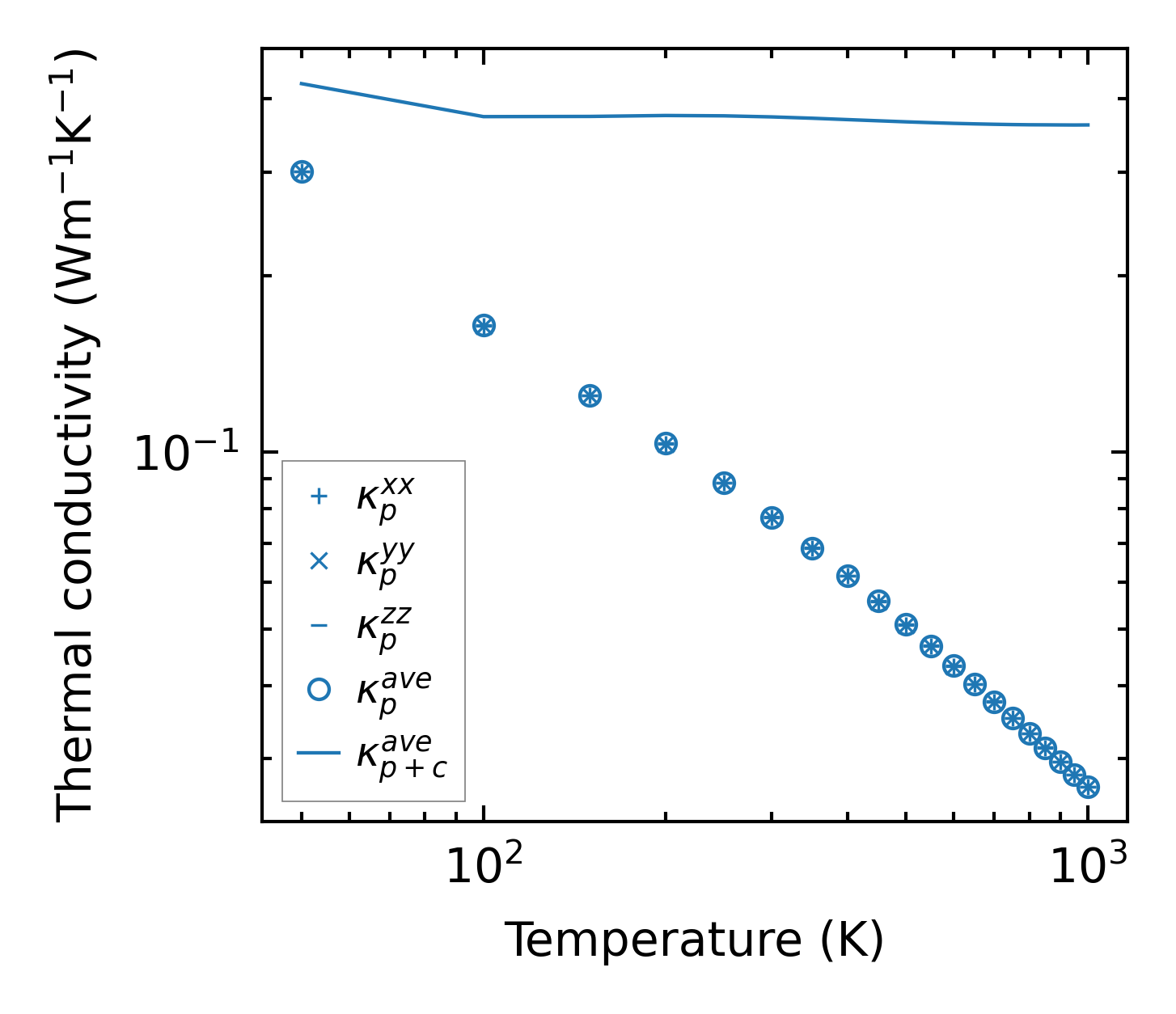

../../_images/fig_kappa729.png — (a) Temperature-dependent lattice thermal conductivity

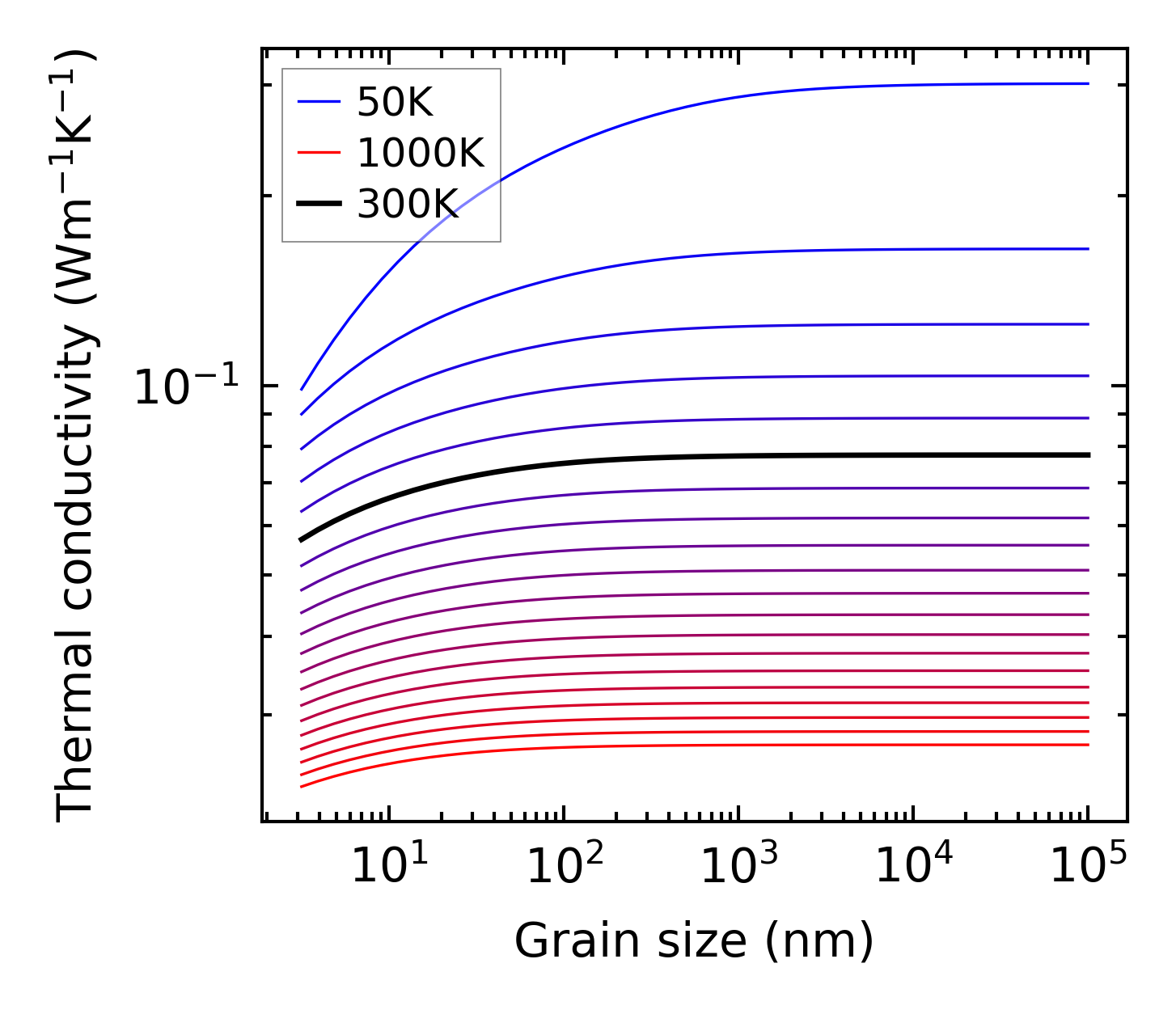

../../_images/fig_kappa_vs_grain_size380.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

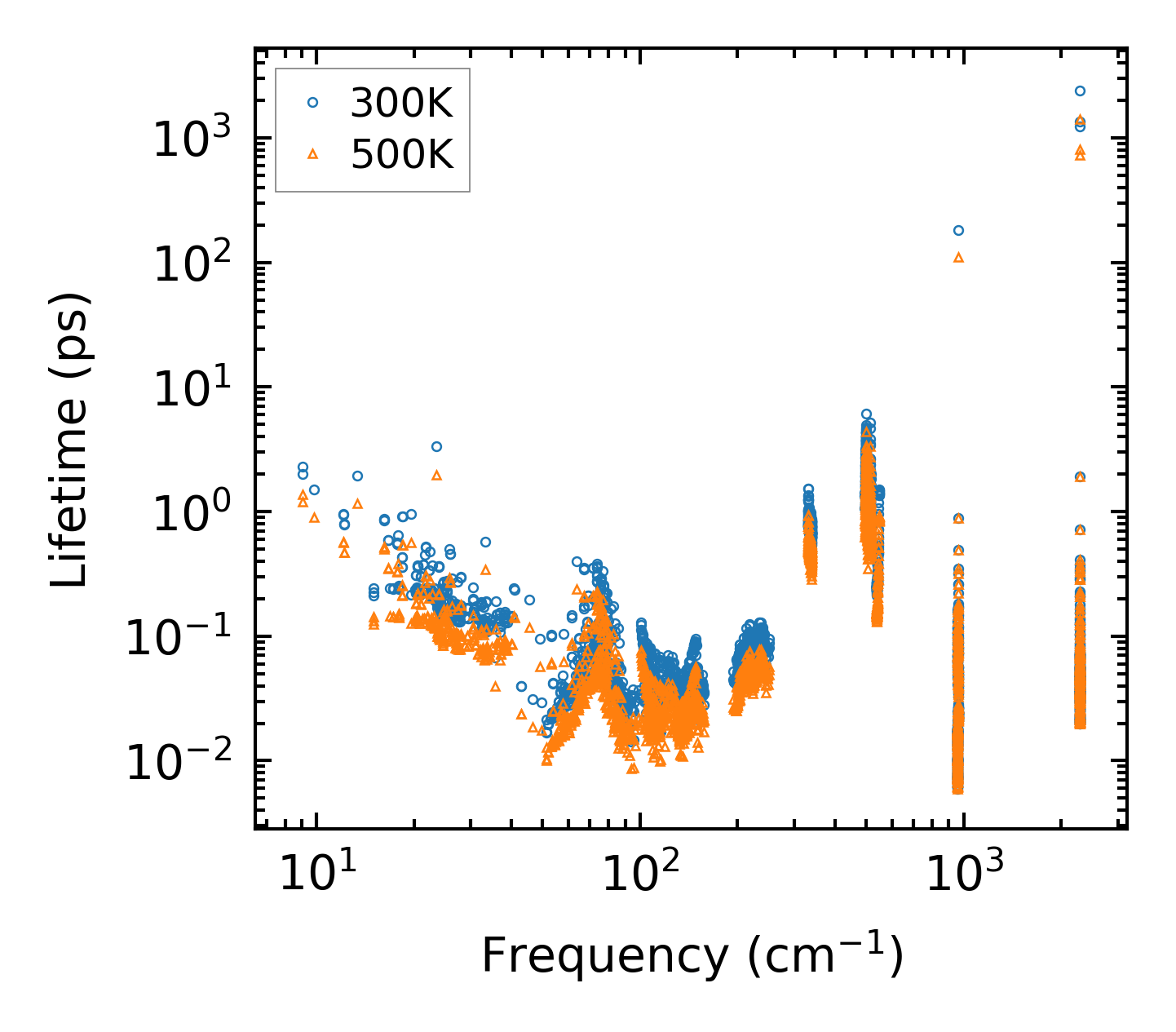

../../_images/fig_lifetime374.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates373.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

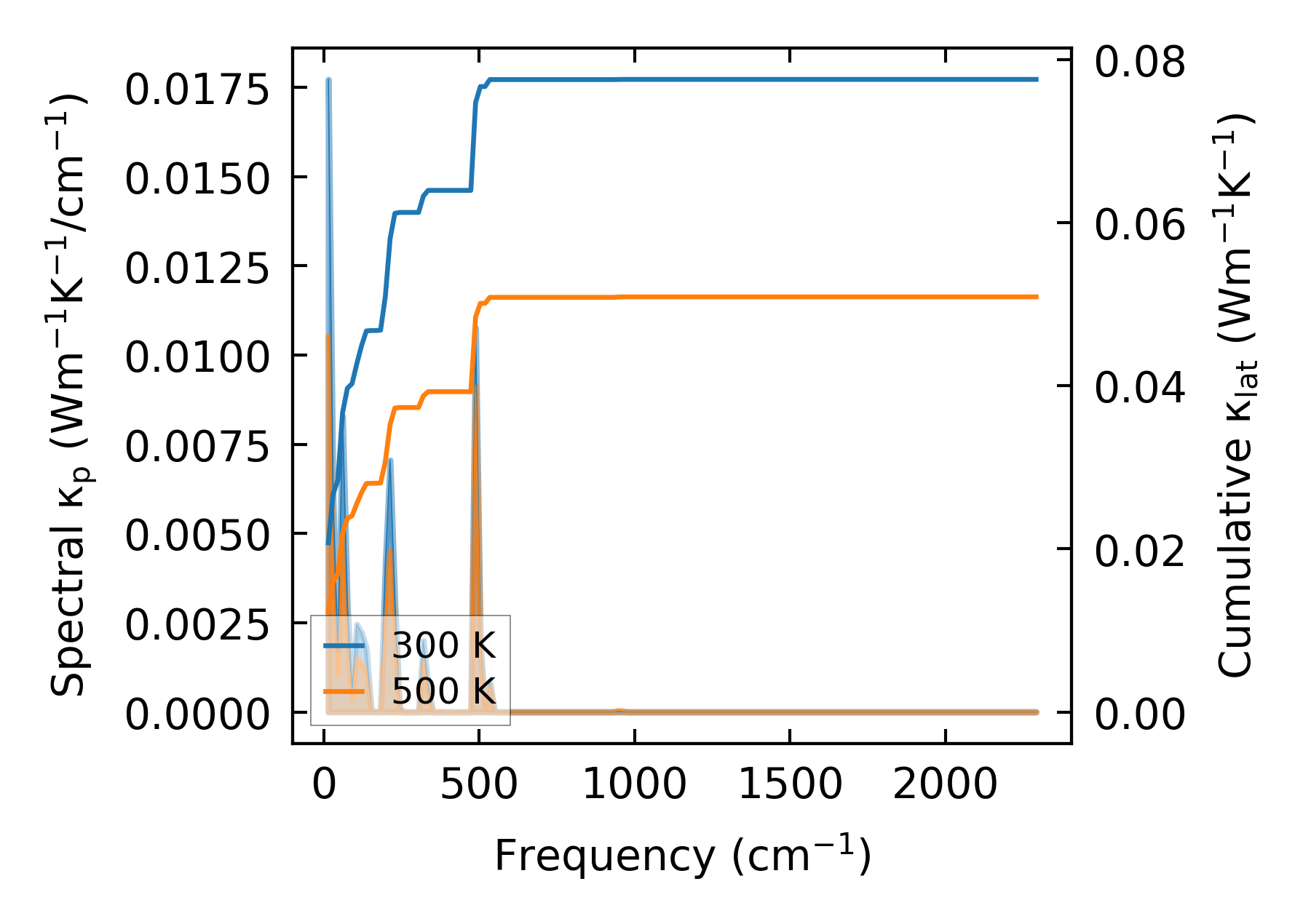

../../_images/fig_cumu_frequency374.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp374.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2480.png — (a) Force constants w.r.t atomic distance

Summary

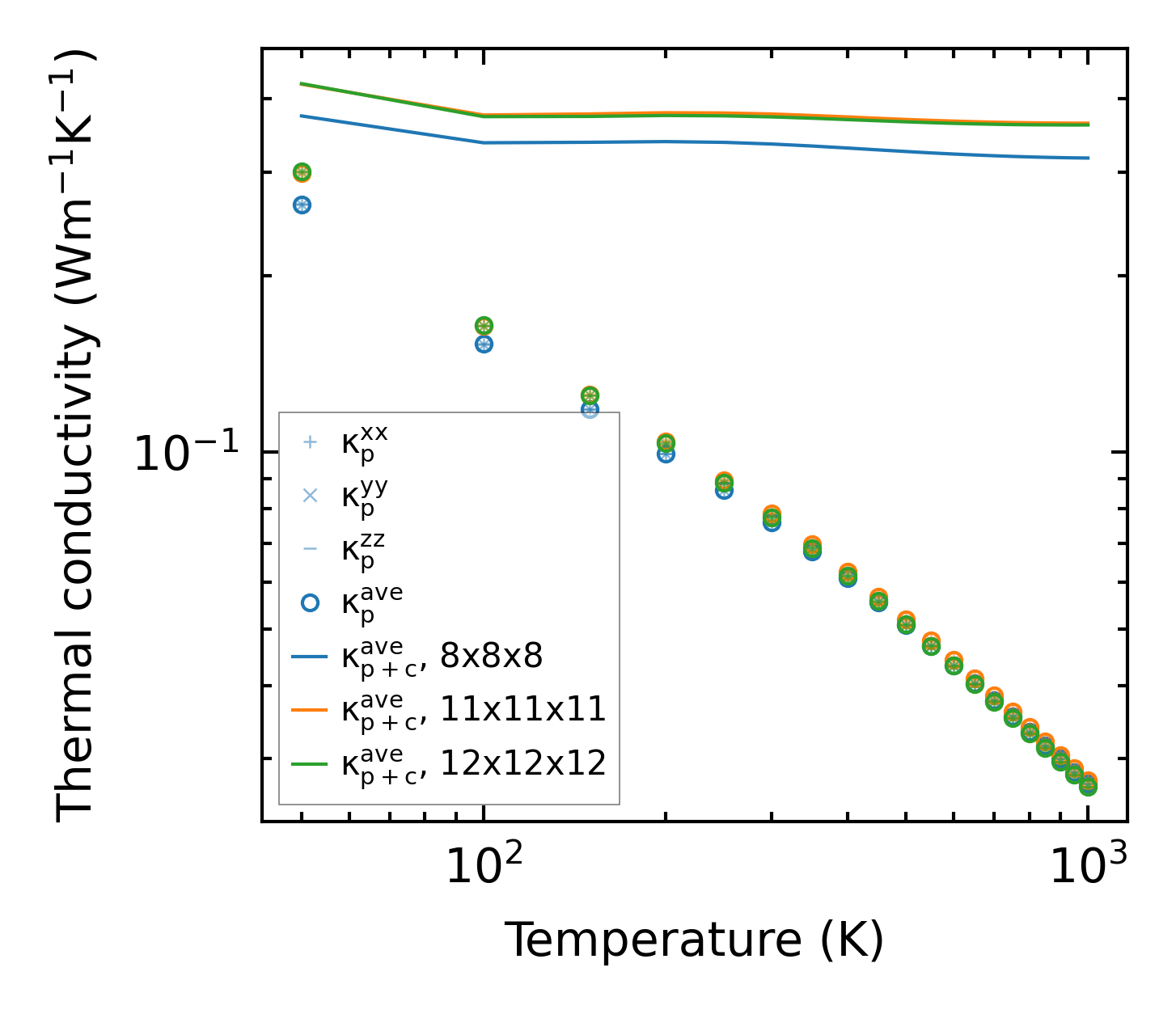

../../_images/fig_kappa730.png — (a) Temperature-dependent lattice thermal conductivity

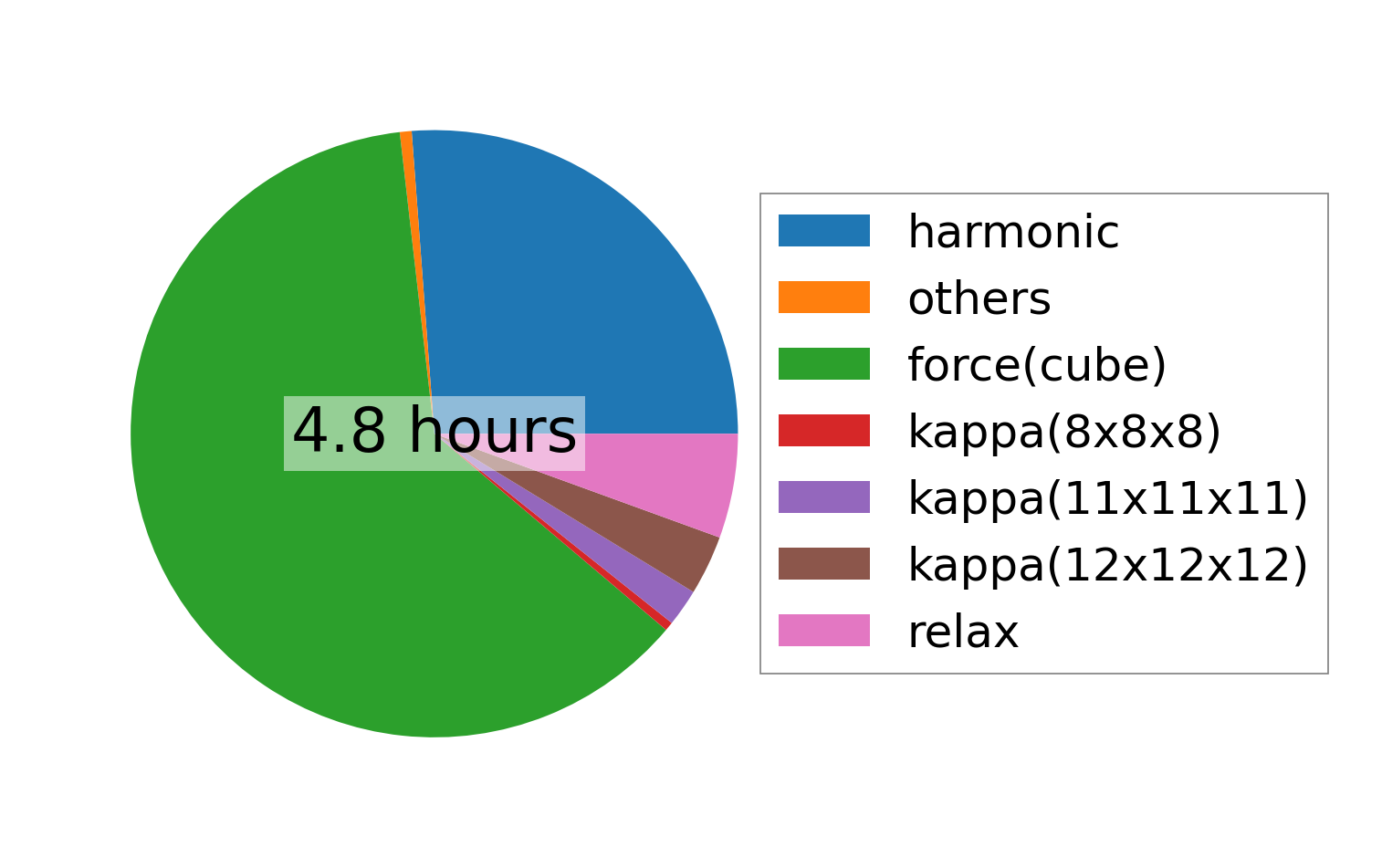

../../_images/fig_times826.png — (b) Computation time
