mp-10973/K2Ga3CuSe6/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-10973.tar.gz

Equation of state

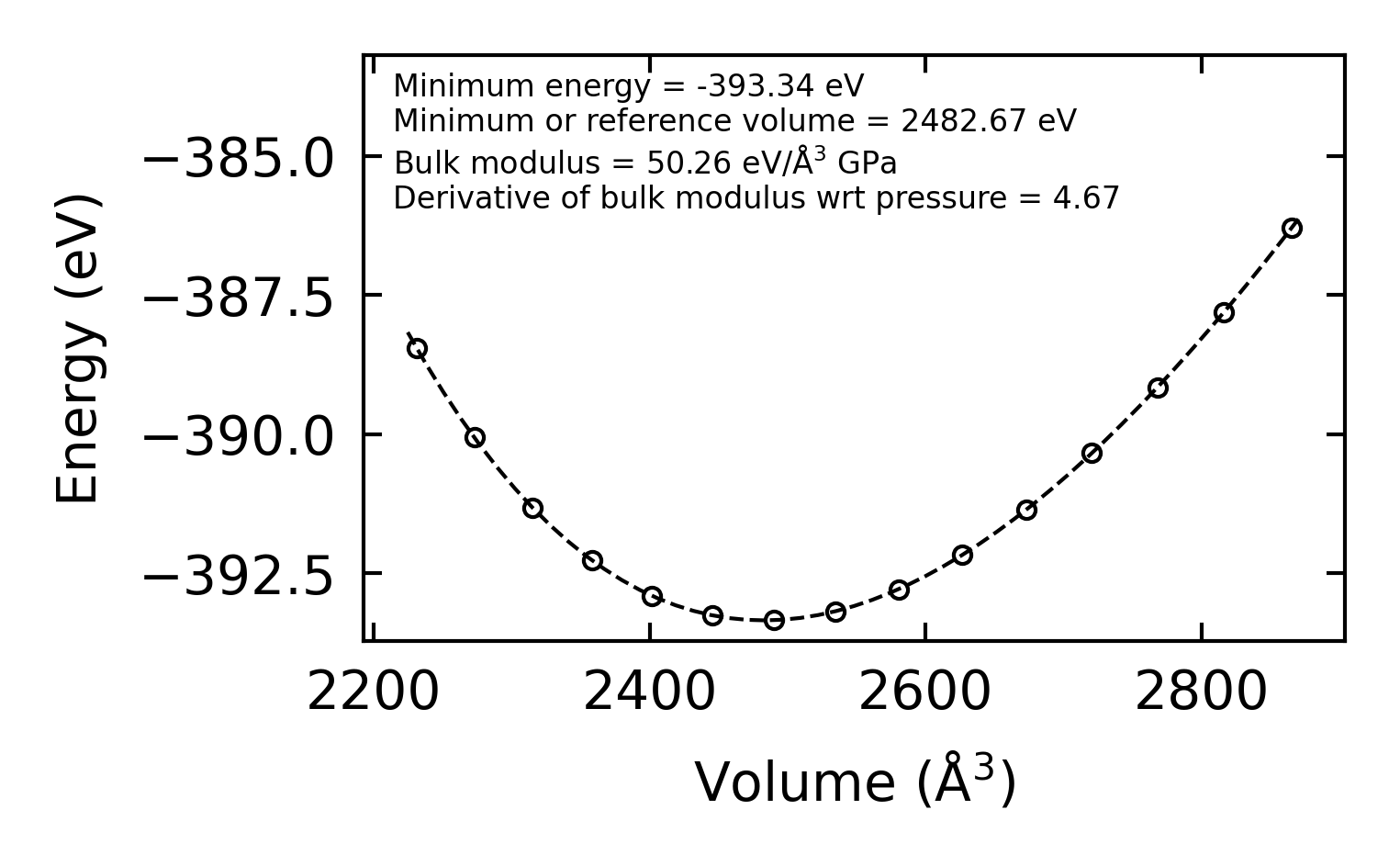

../../_images/fig_bm246.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr692.png — (a) Phonon dispersion with participation ratio and DOS

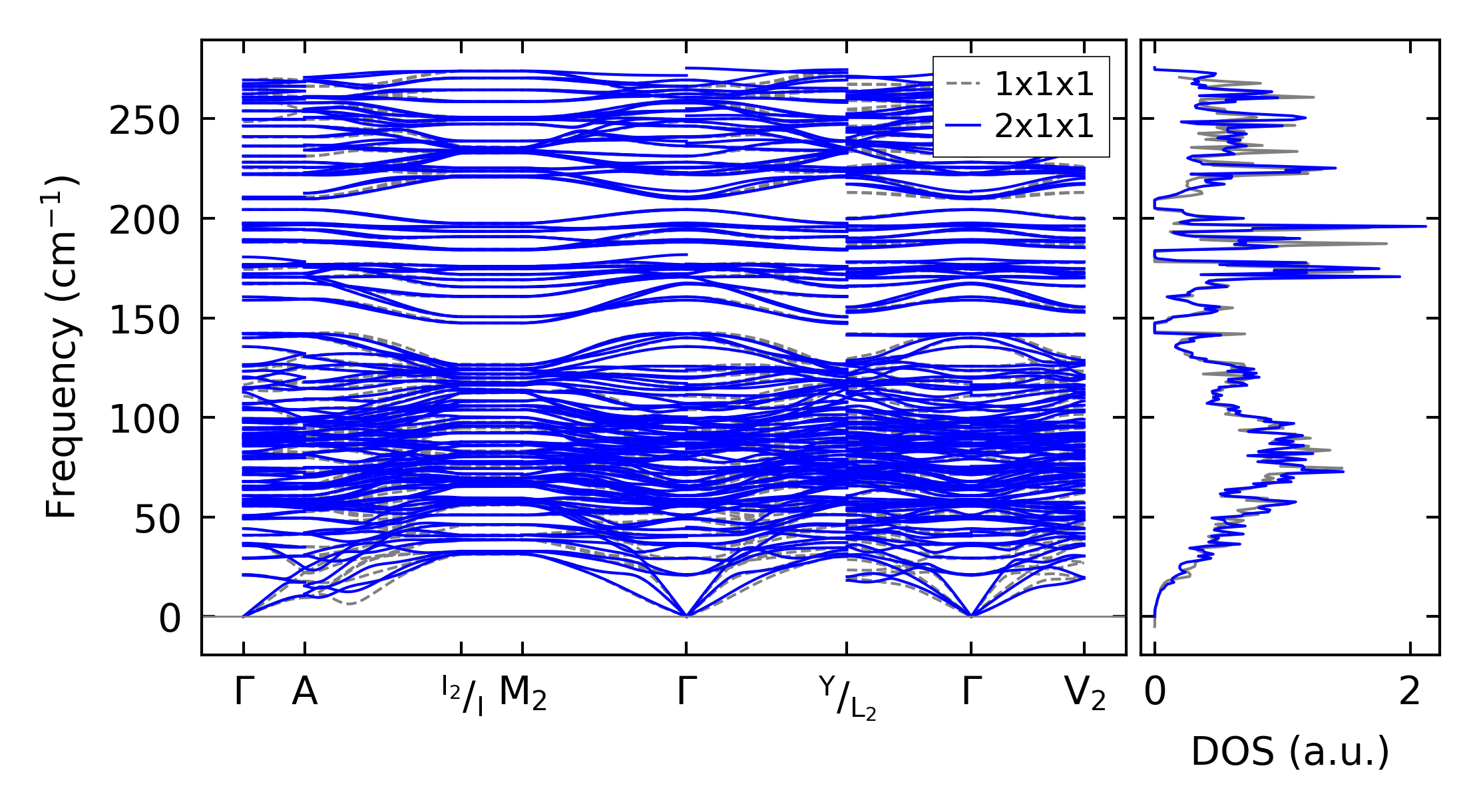

../../_images/fig_bandos574.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo692.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all460.png — (a) Grüneisen parameters

../../_images/fig_gruneisen460.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x1 — q-mesh: 9x9x3, supercell: 2x1x1

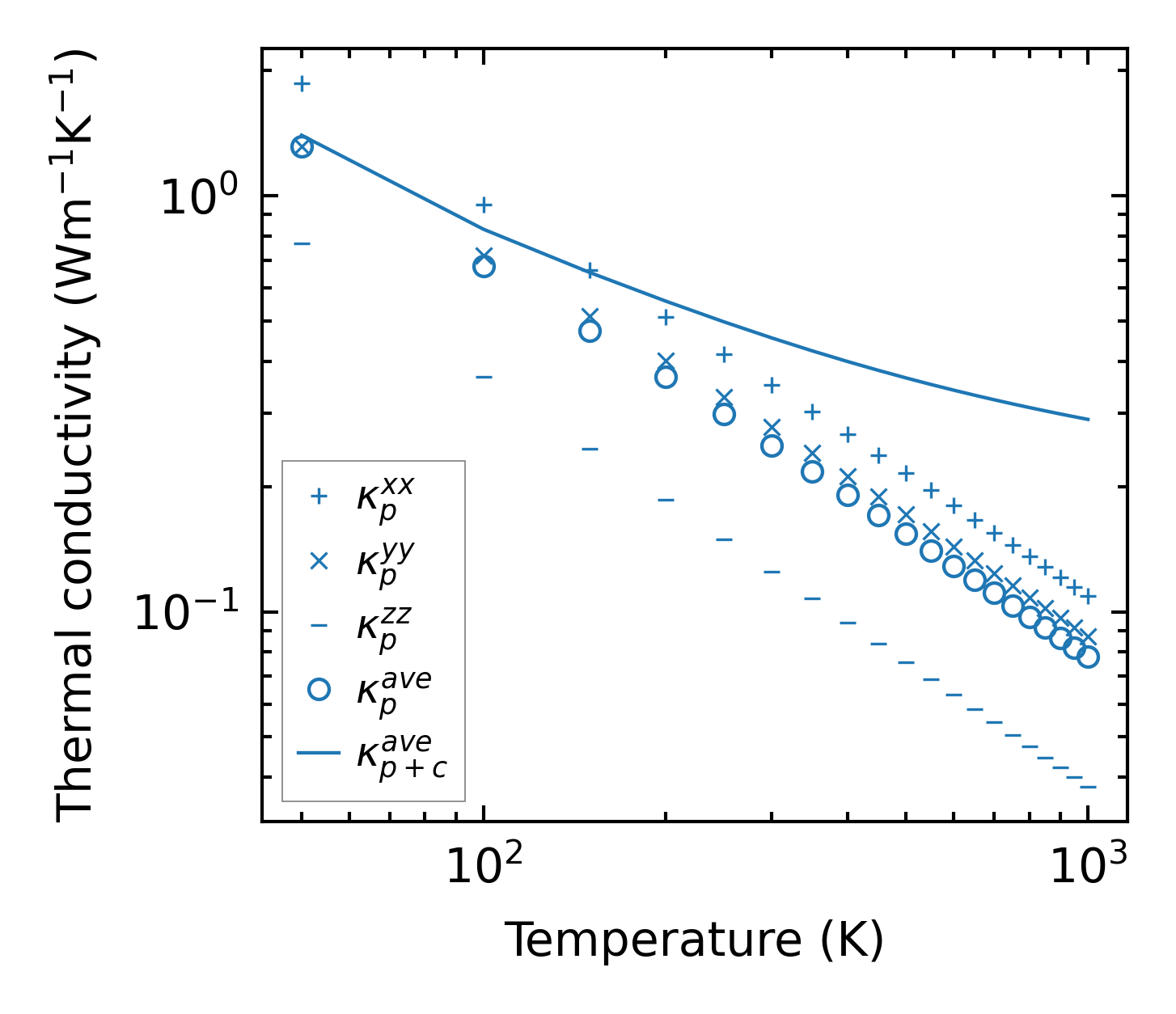

../../_images/fig_kappa894.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size467.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

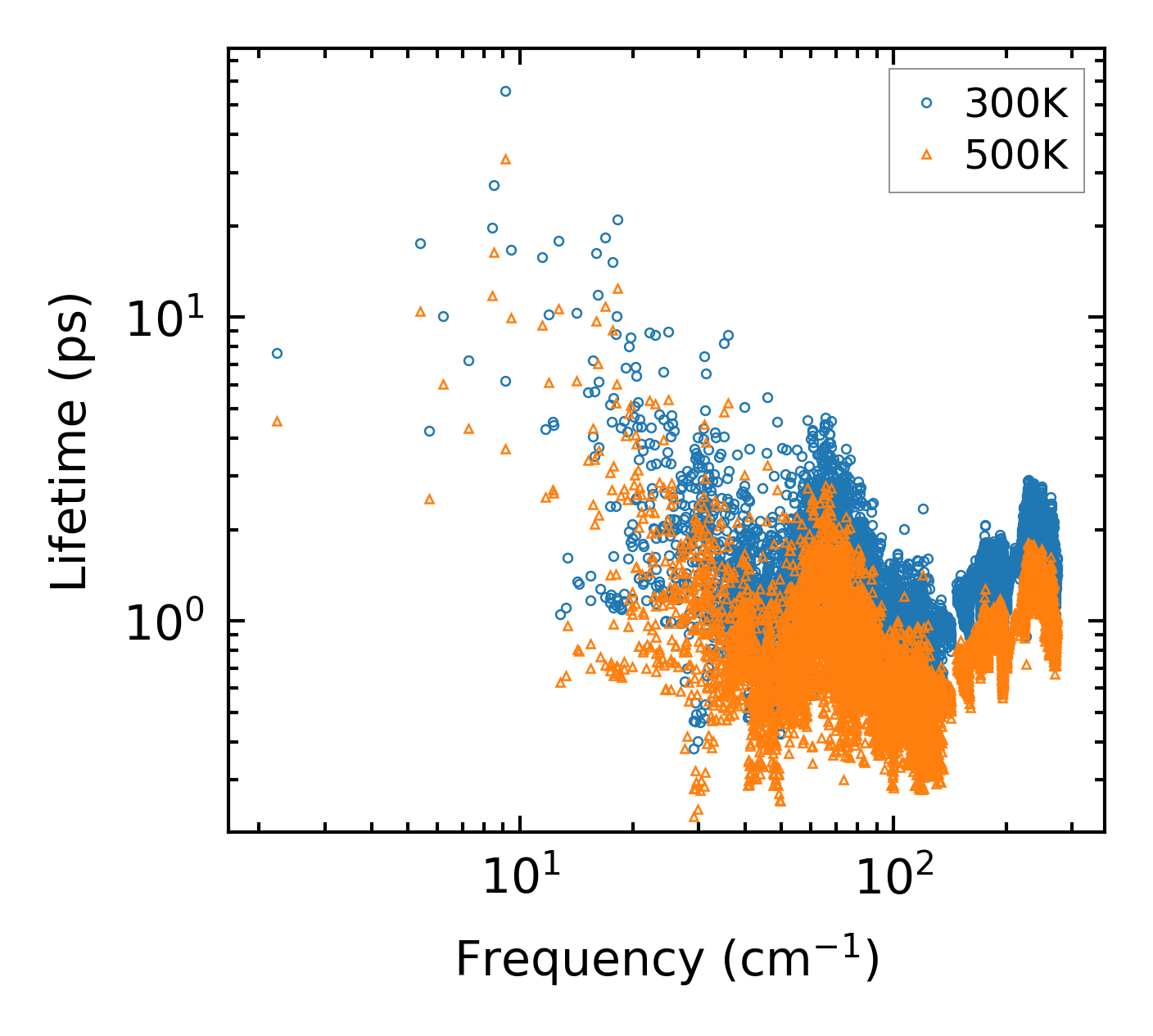

../../_images/fig_lifetime458.png — (a) Phonon lifetime due to phonon-phonon scattering

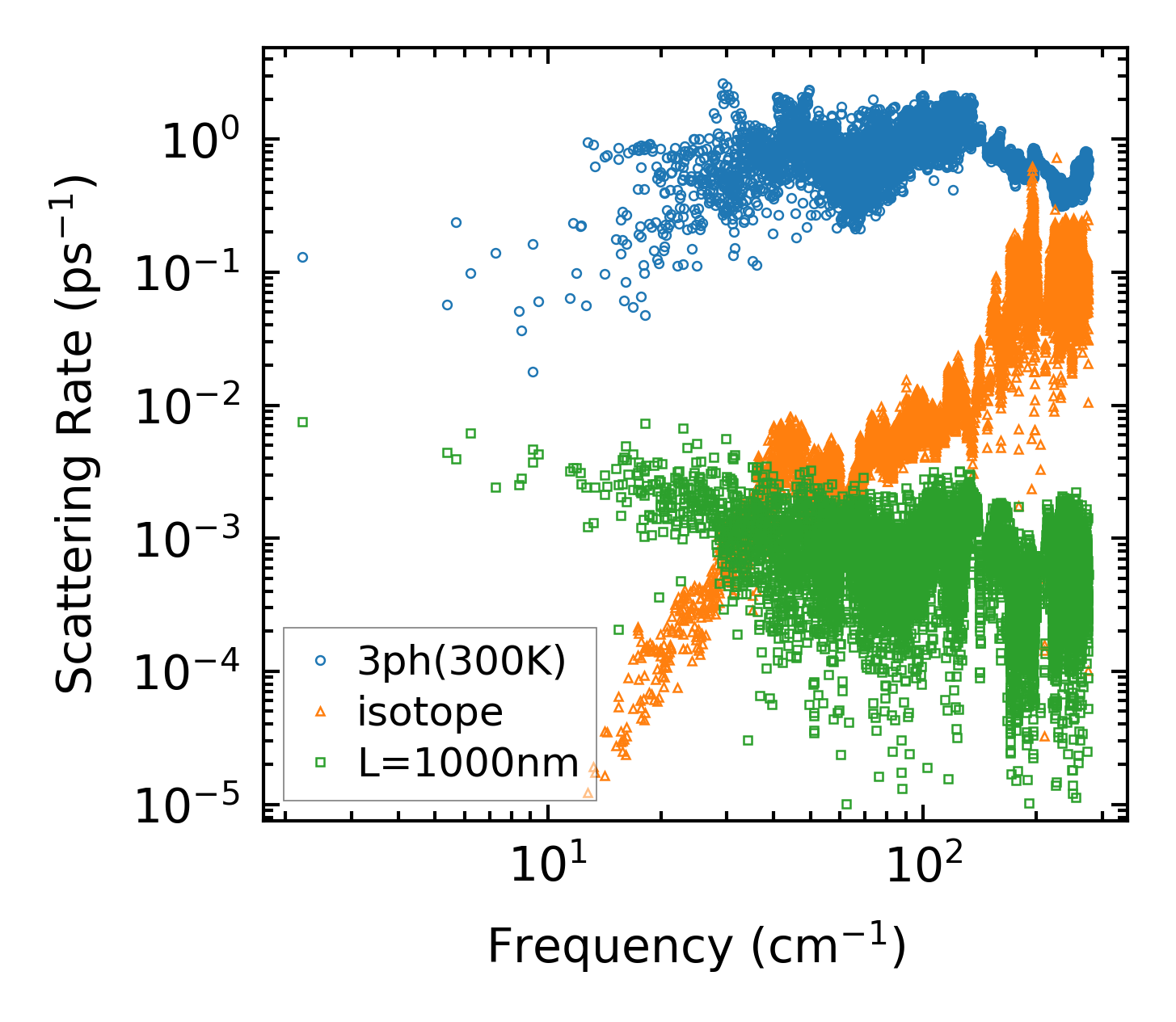

../../_images/fig_scat_rates457.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

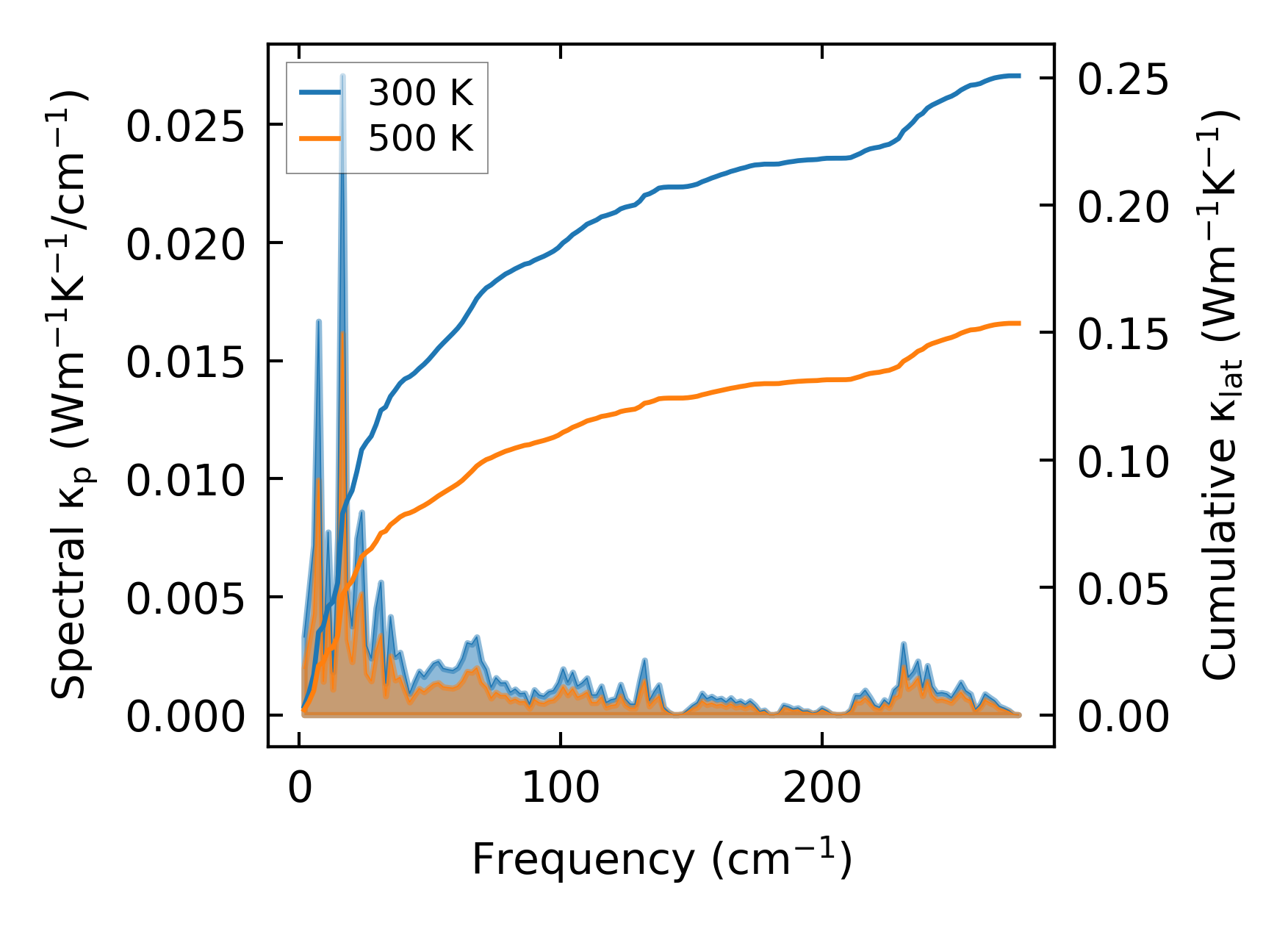

../../_images/fig_cumu_frequency458.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp458.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2603.png — (a) Force constants w.r.t atomic distance

Summary

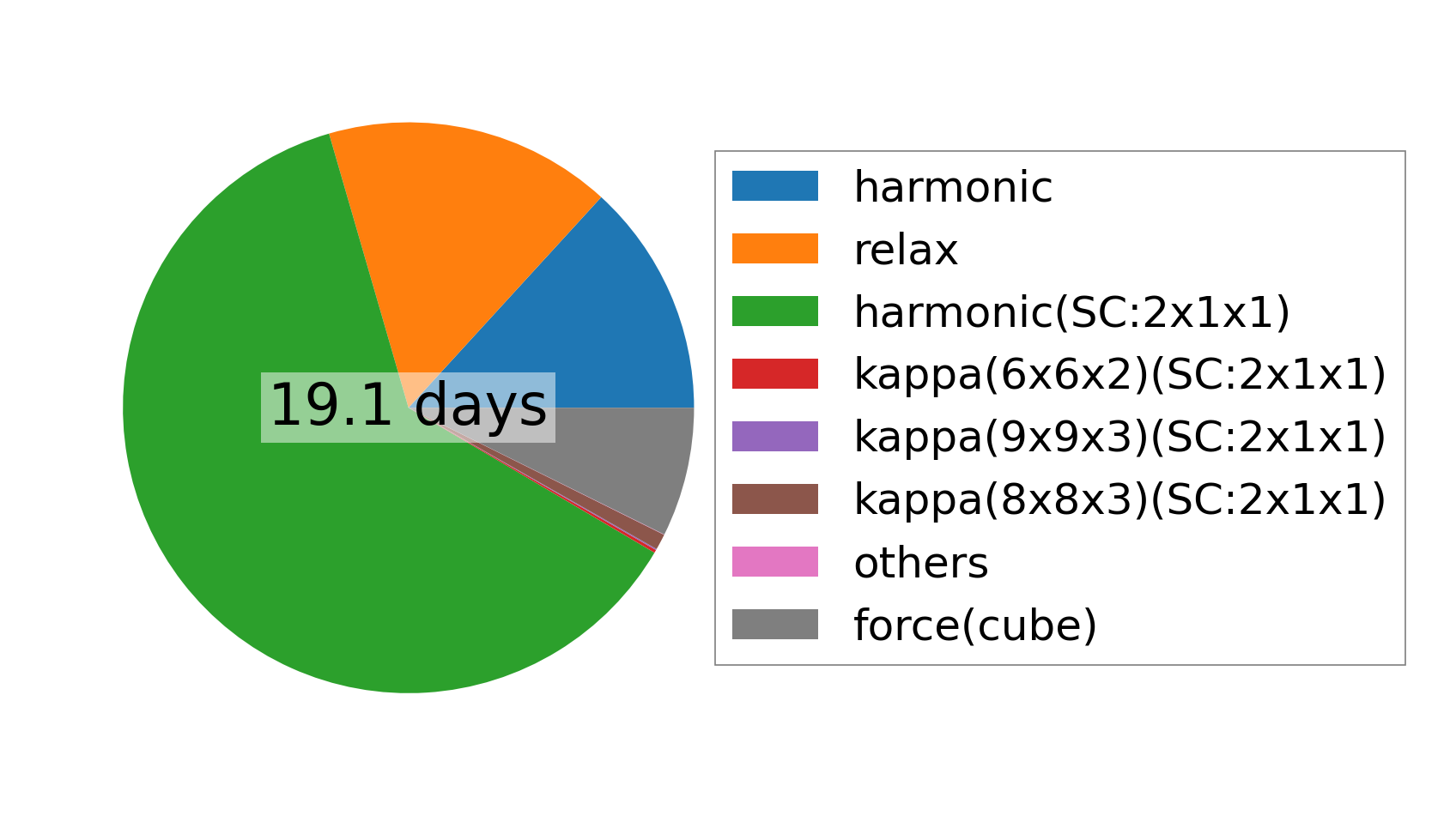

../../_images/fig_times993.png — (a) Computation time
