mp-27984/PrClO/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-27984.tar.gz

Harmonic properties

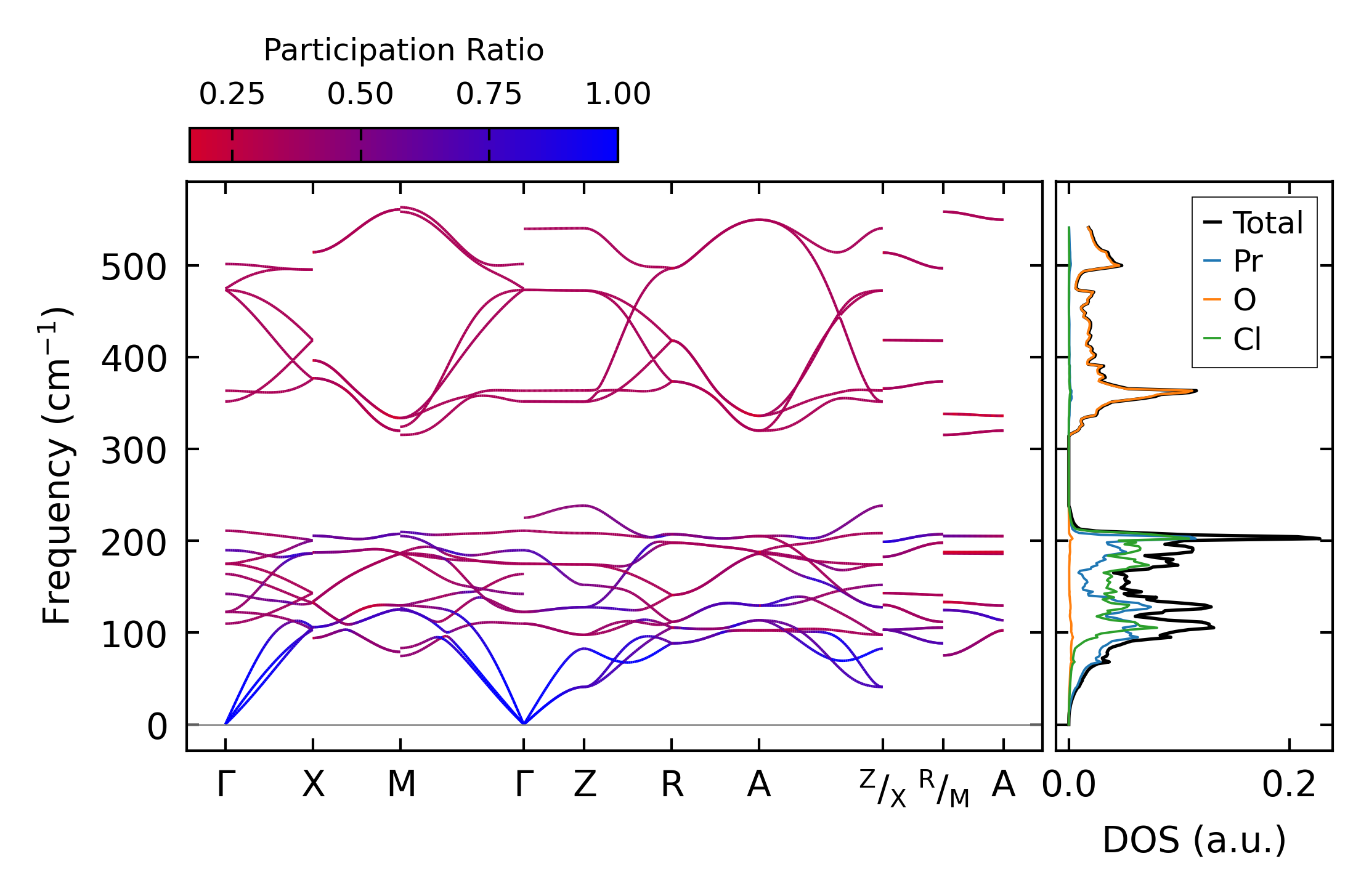

../../_images/fig_bandos_pr11985.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11985.png — (b) Thermodynamic properties

Grüneisen parameters

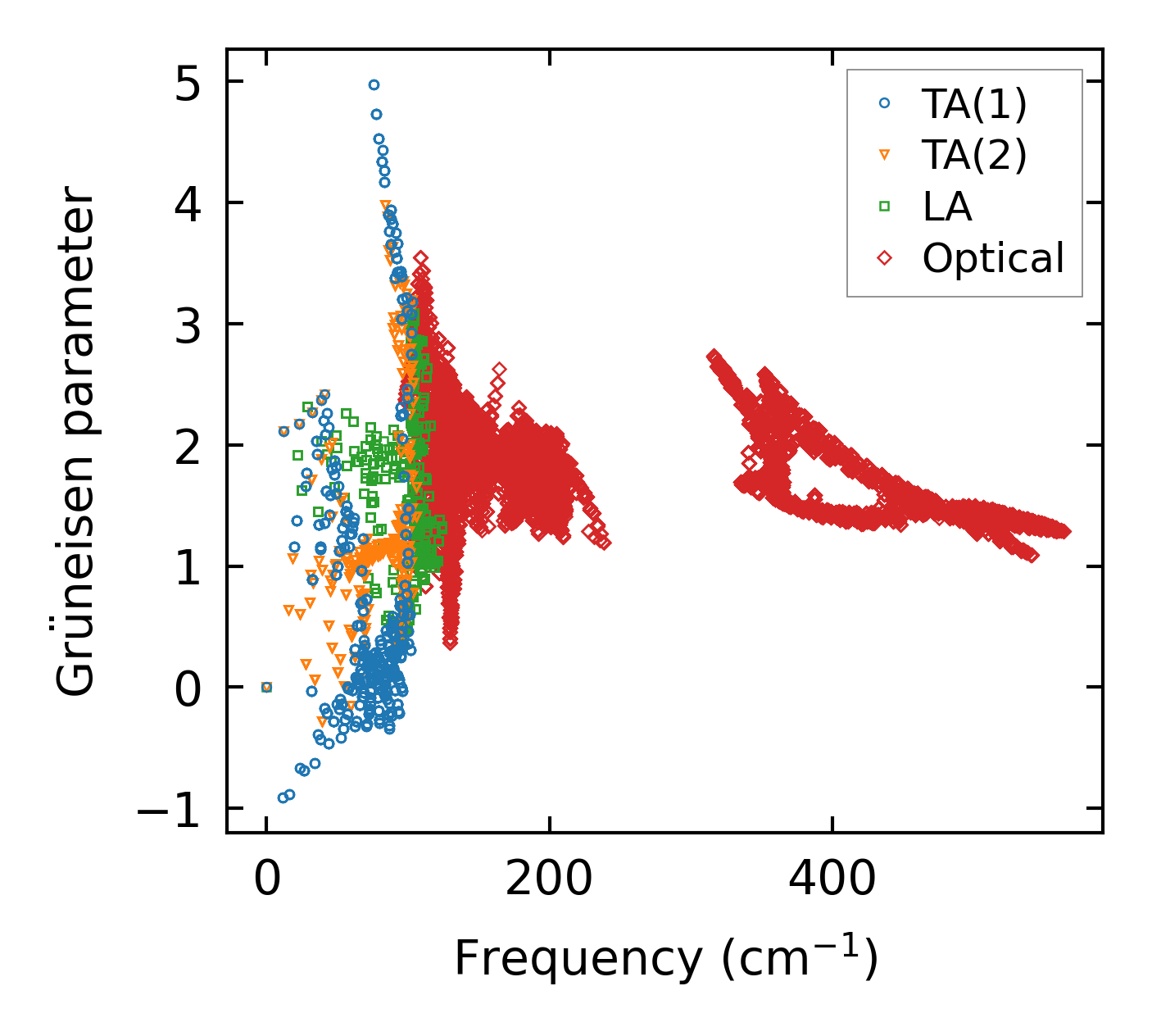

../../_images/fig_gru_all4998.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4998.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x10, supercell: 3x3x2

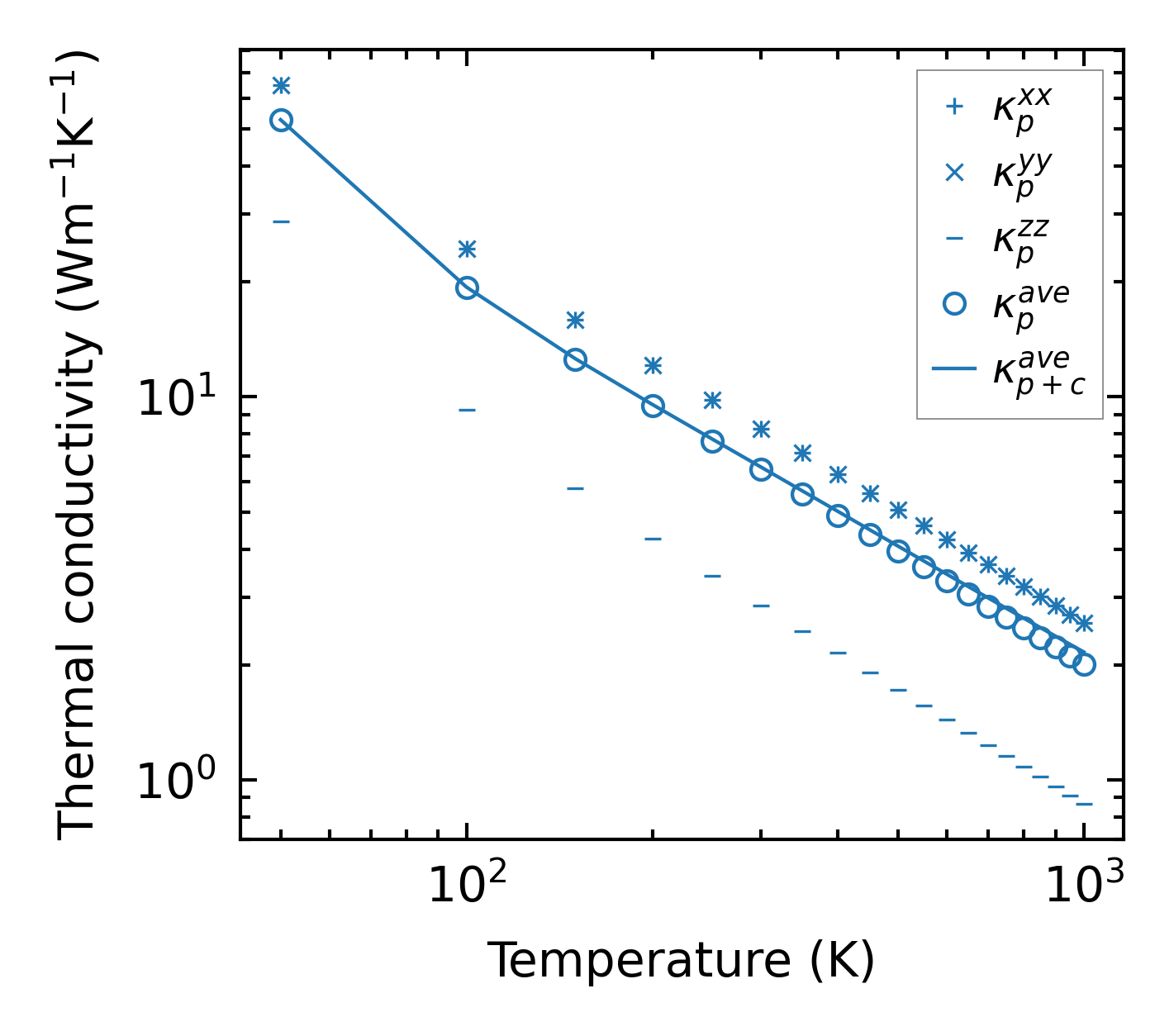

../../_images/fig_kappa9420.png — (a) Temperature-dependent lattice thermal conductivity

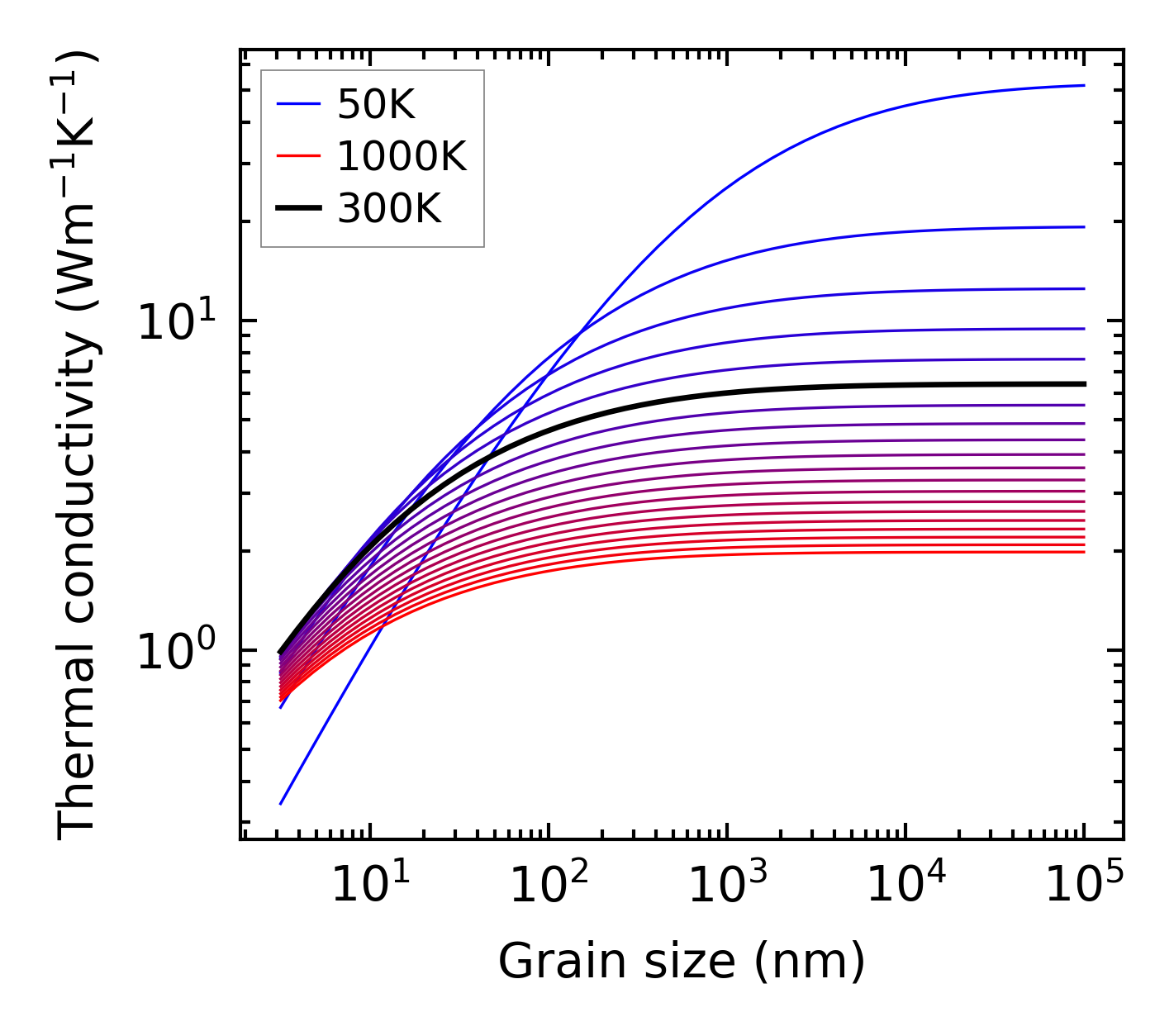

../../_images/fig_kappa_vs_grain_size5057.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

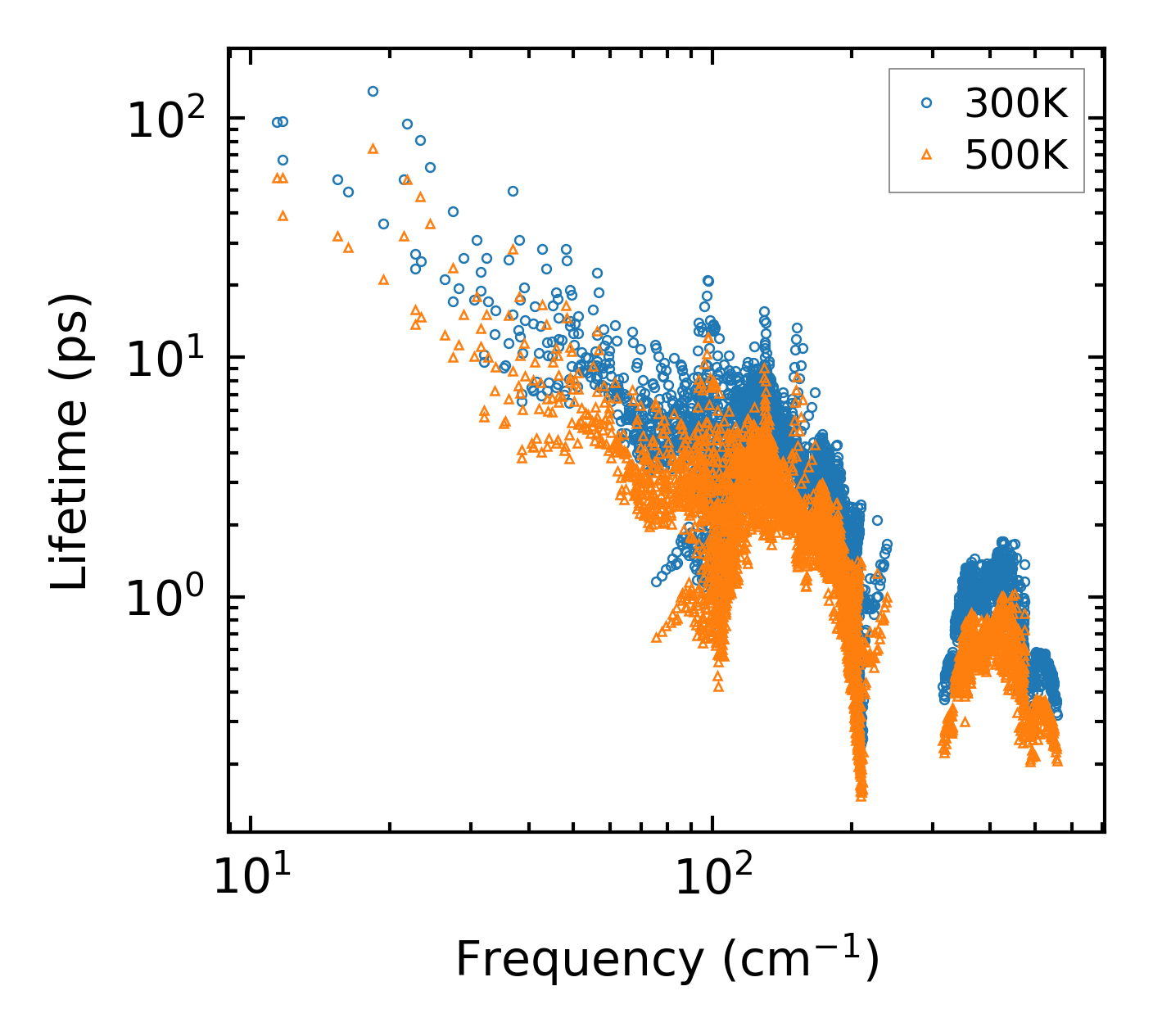

../../_images/fig_lifetime4948.png — (a) Phonon lifetime due to phonon-phonon scattering

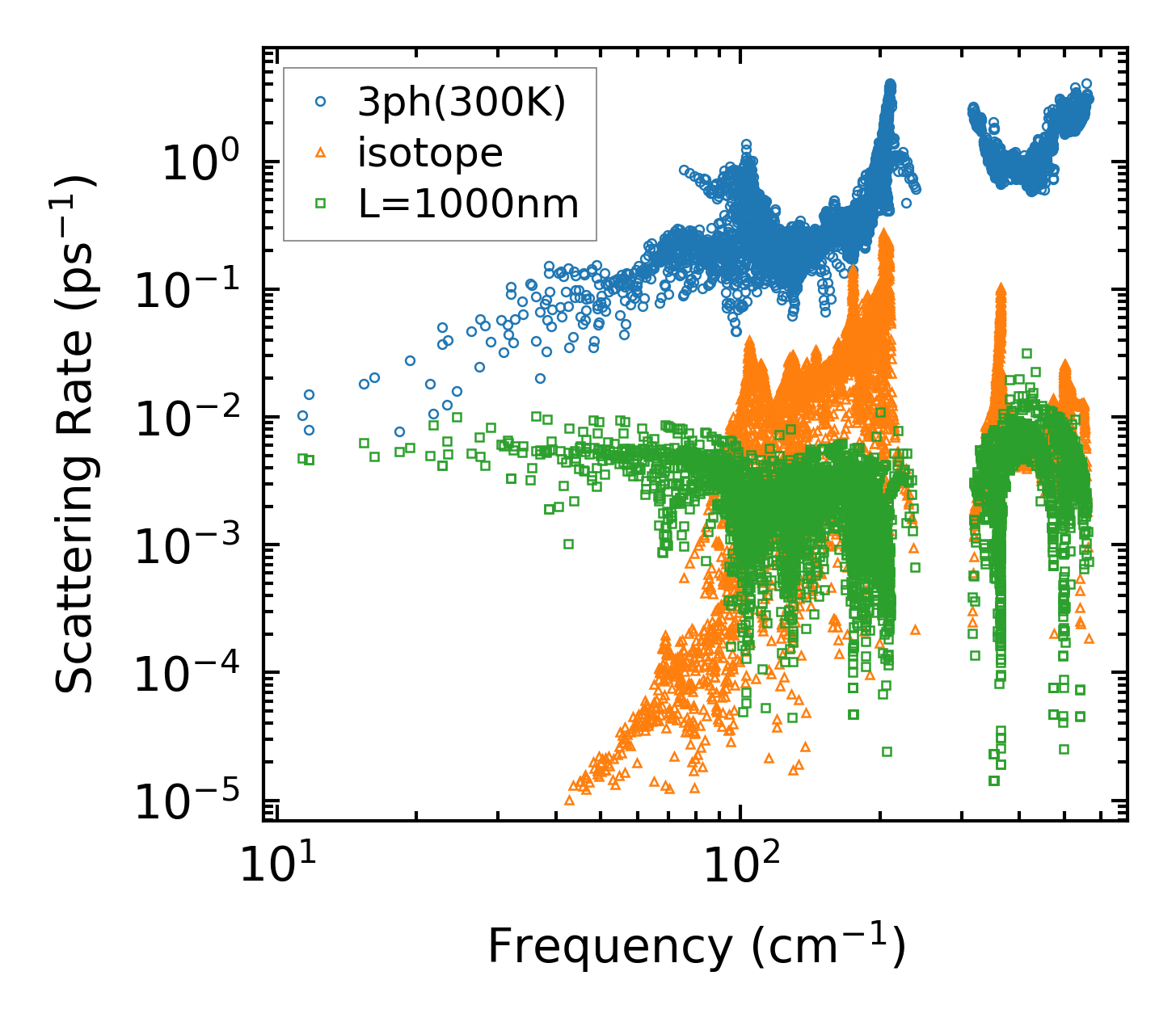

../../_images/fig_scat_rates4947.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

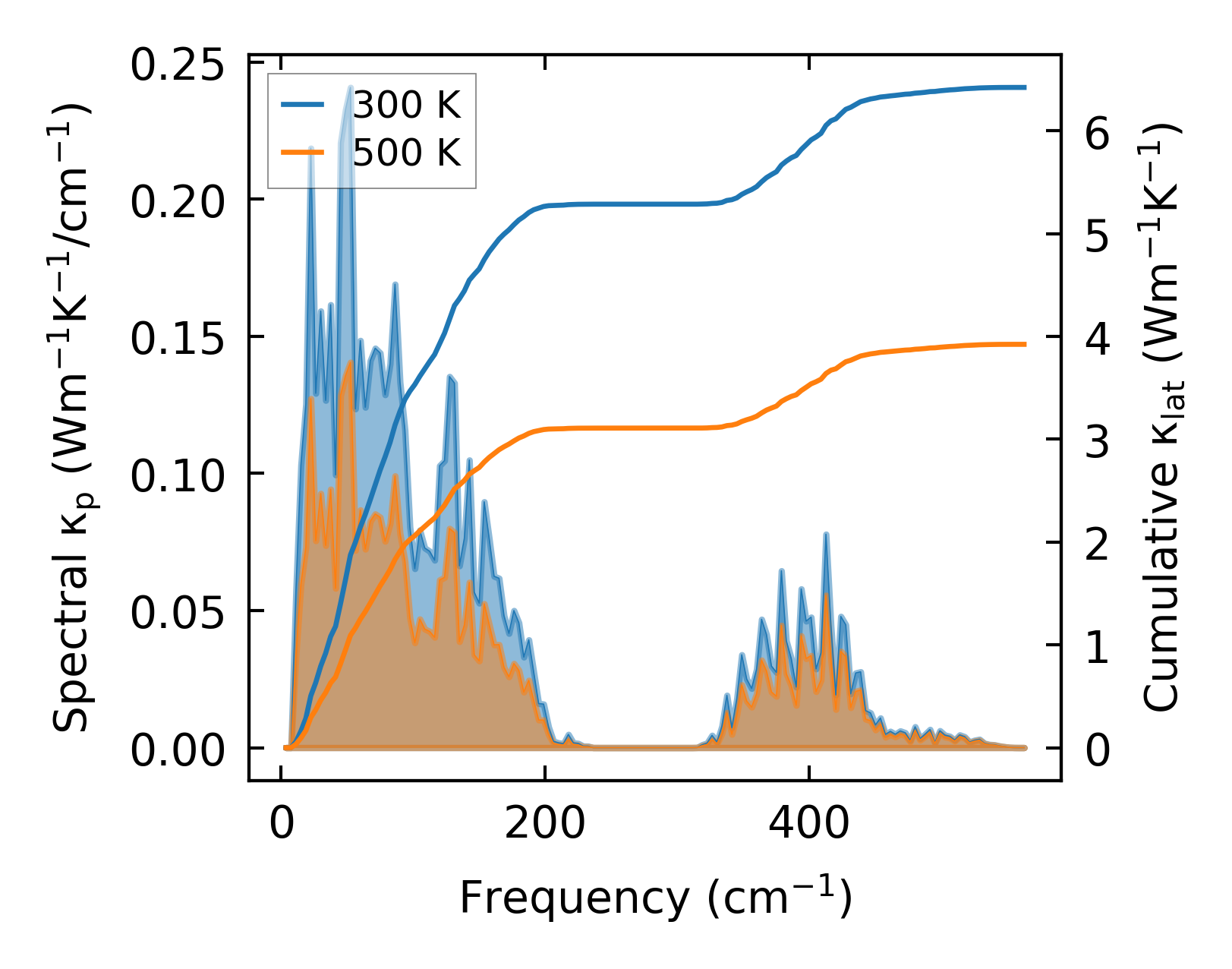

../../_images/fig_cumu_frequency4948.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4947.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

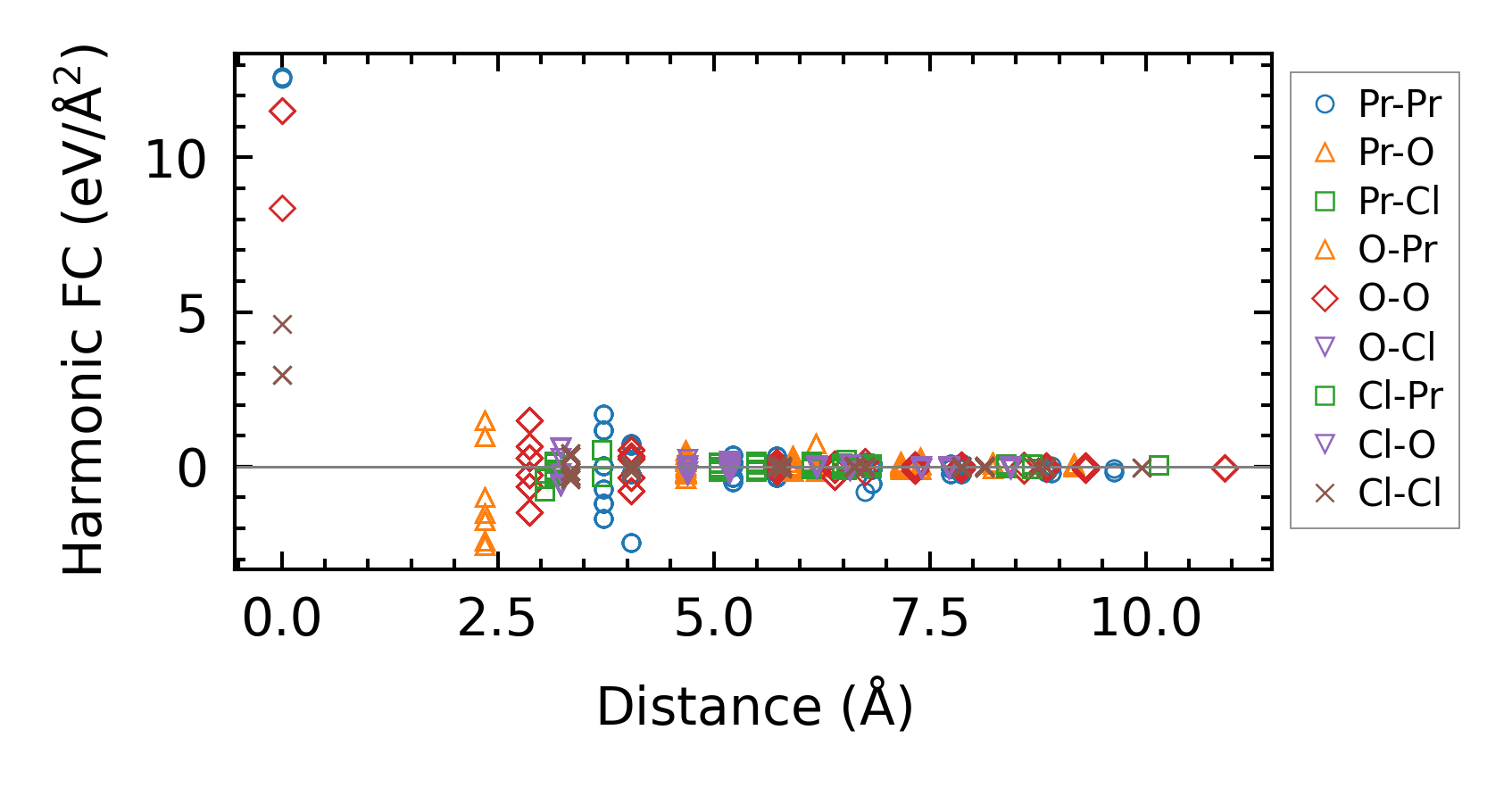

../../_images/fig_fc211688.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9421.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times20326.png — (b) Computation time
