mp-27865/KMgCl3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-27865.tar.gz

Harmonic properties

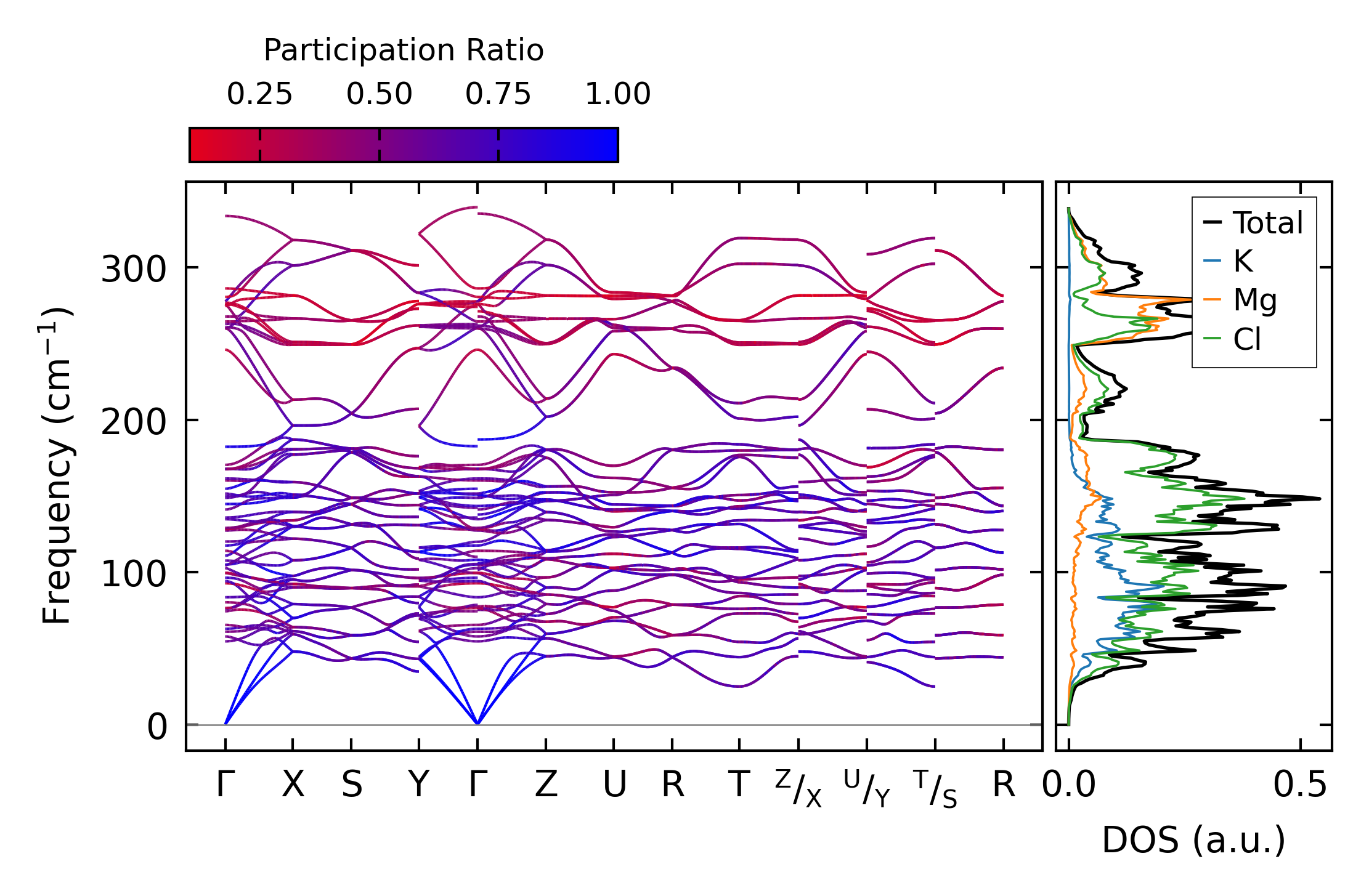

../../_images/fig_bandos_pr11942.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11942.png — (b) Thermodynamic properties

Grüneisen parameters

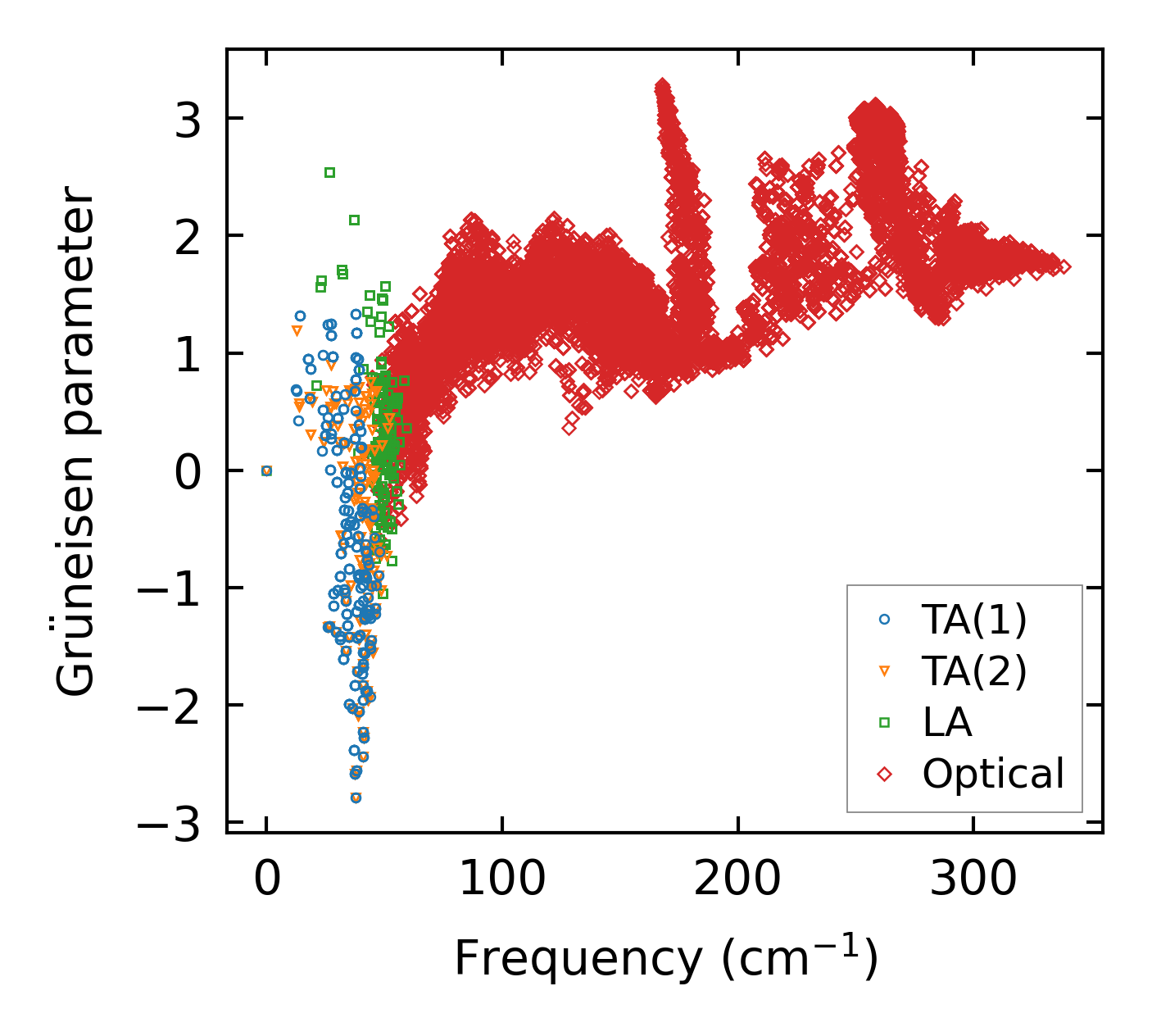

../../_images/fig_gru_all4978.png — (a) Grüneisen parameters

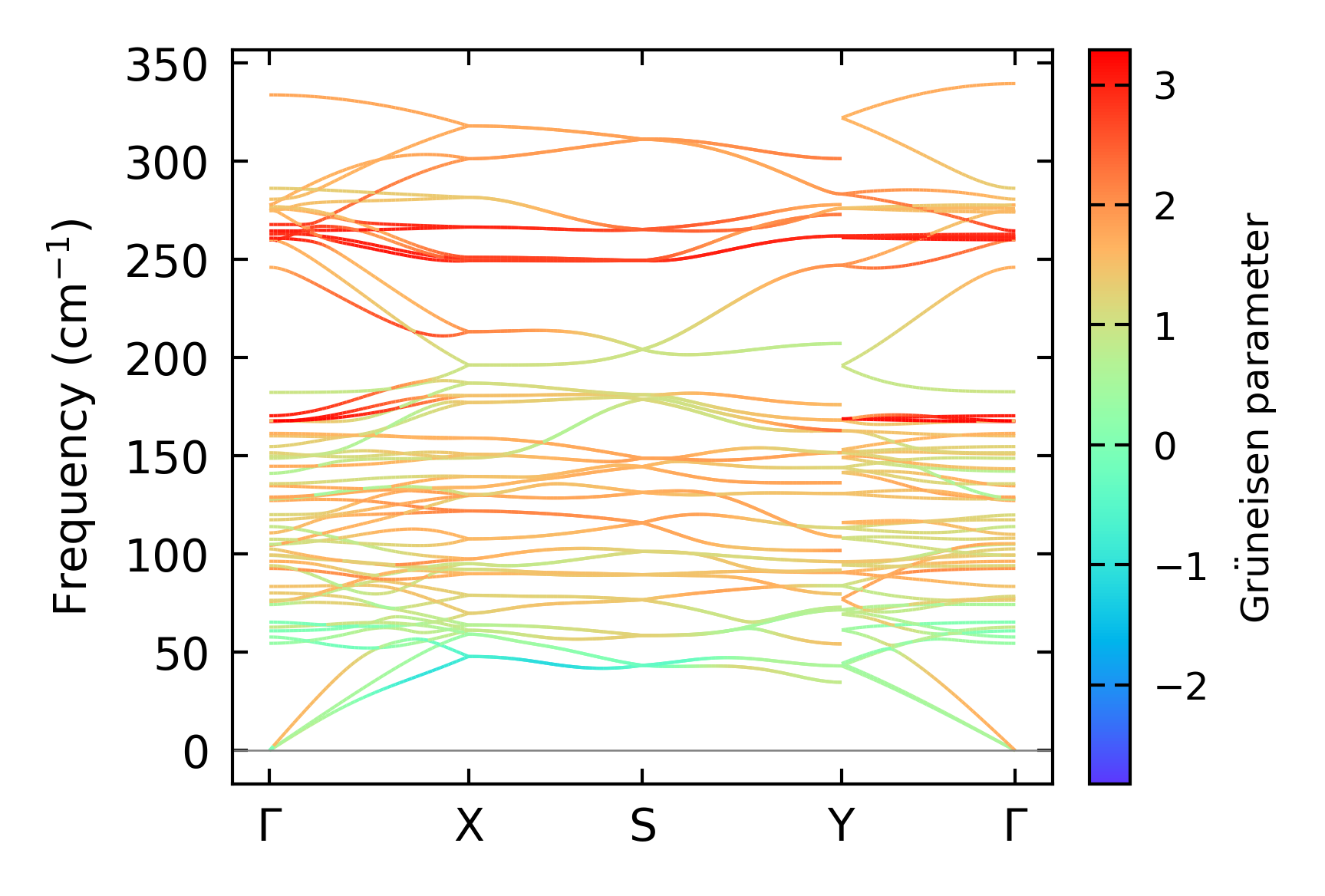

../../_images/fig_gruneisen4978.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x7x10, supercell: 2x1x2

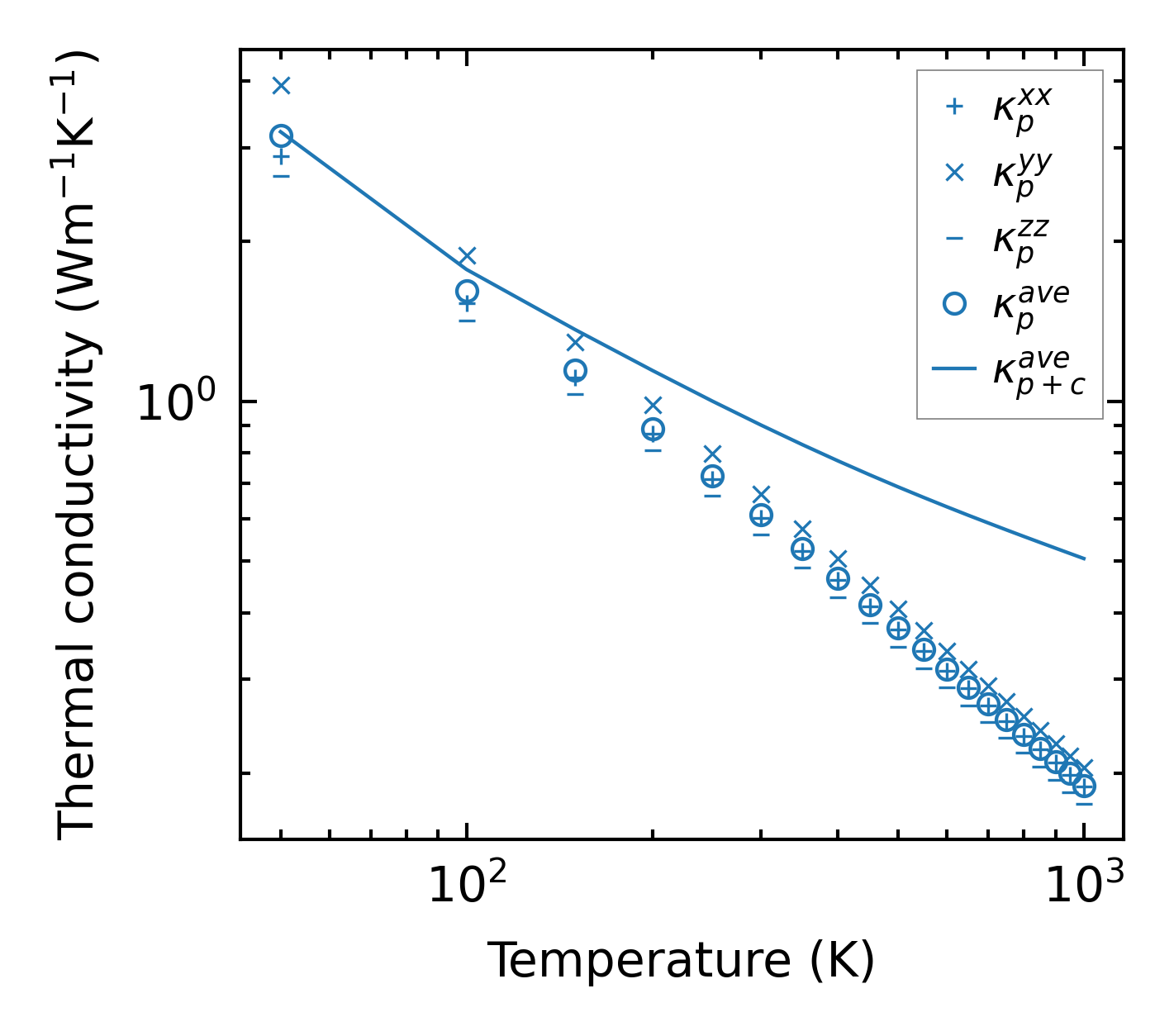

../../_images/fig_kappa9383.png — (a) Temperature-dependent lattice thermal conductivity

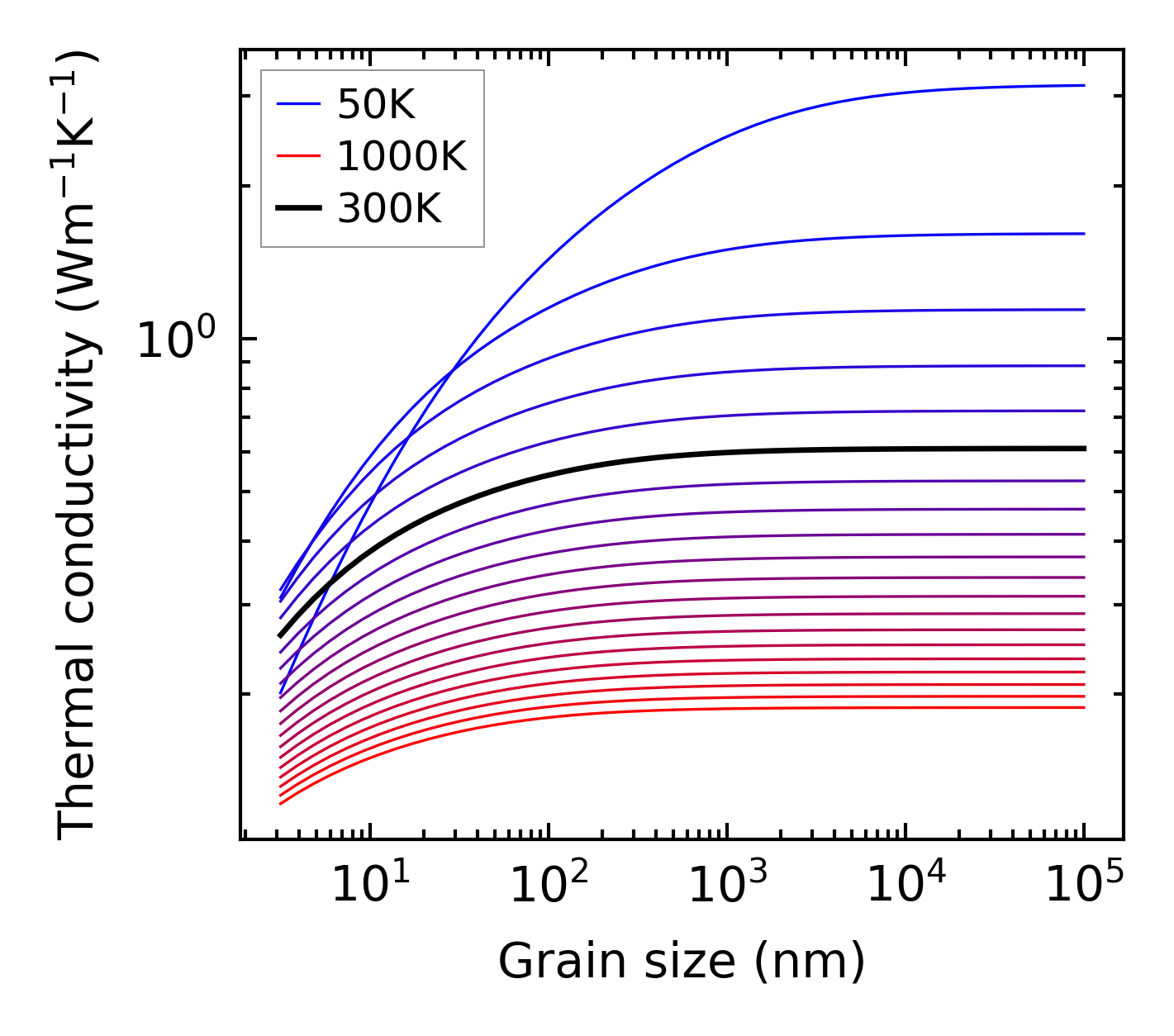

../../_images/fig_kappa_vs_grain_size5037.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

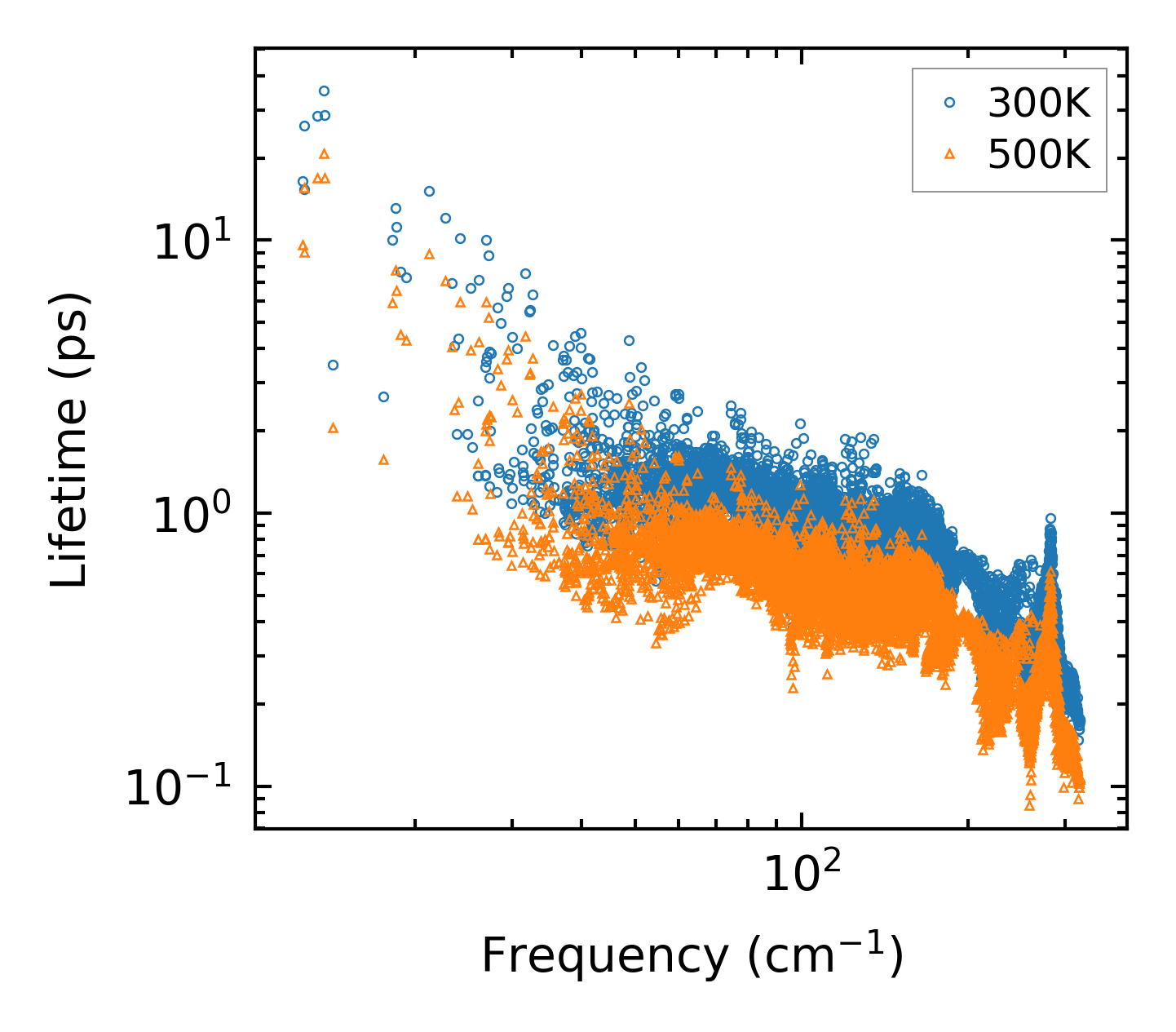

../../_images/fig_lifetime4928.png — (a) Phonon lifetime due to phonon-phonon scattering

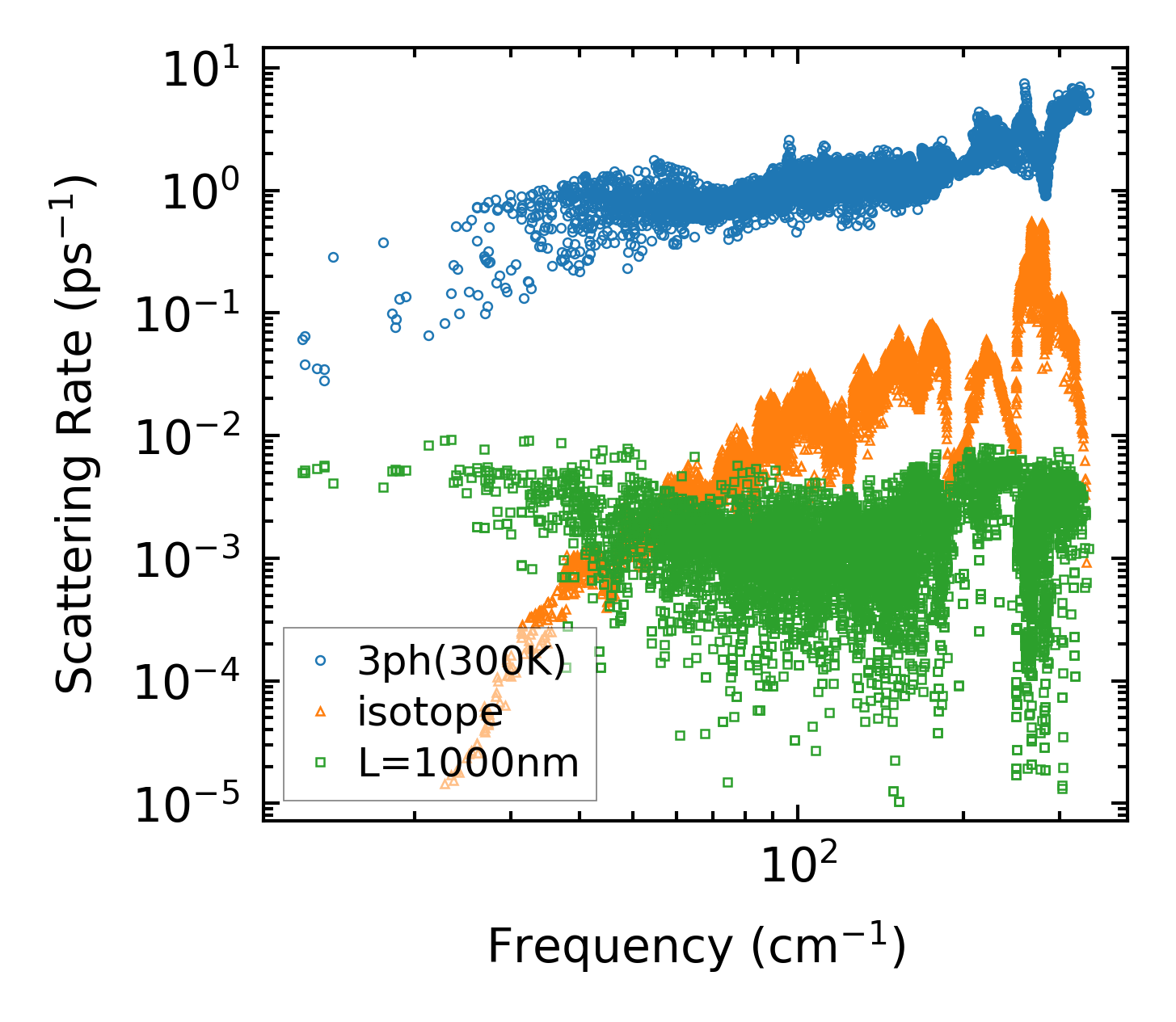

../../_images/fig_scat_rates4927.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

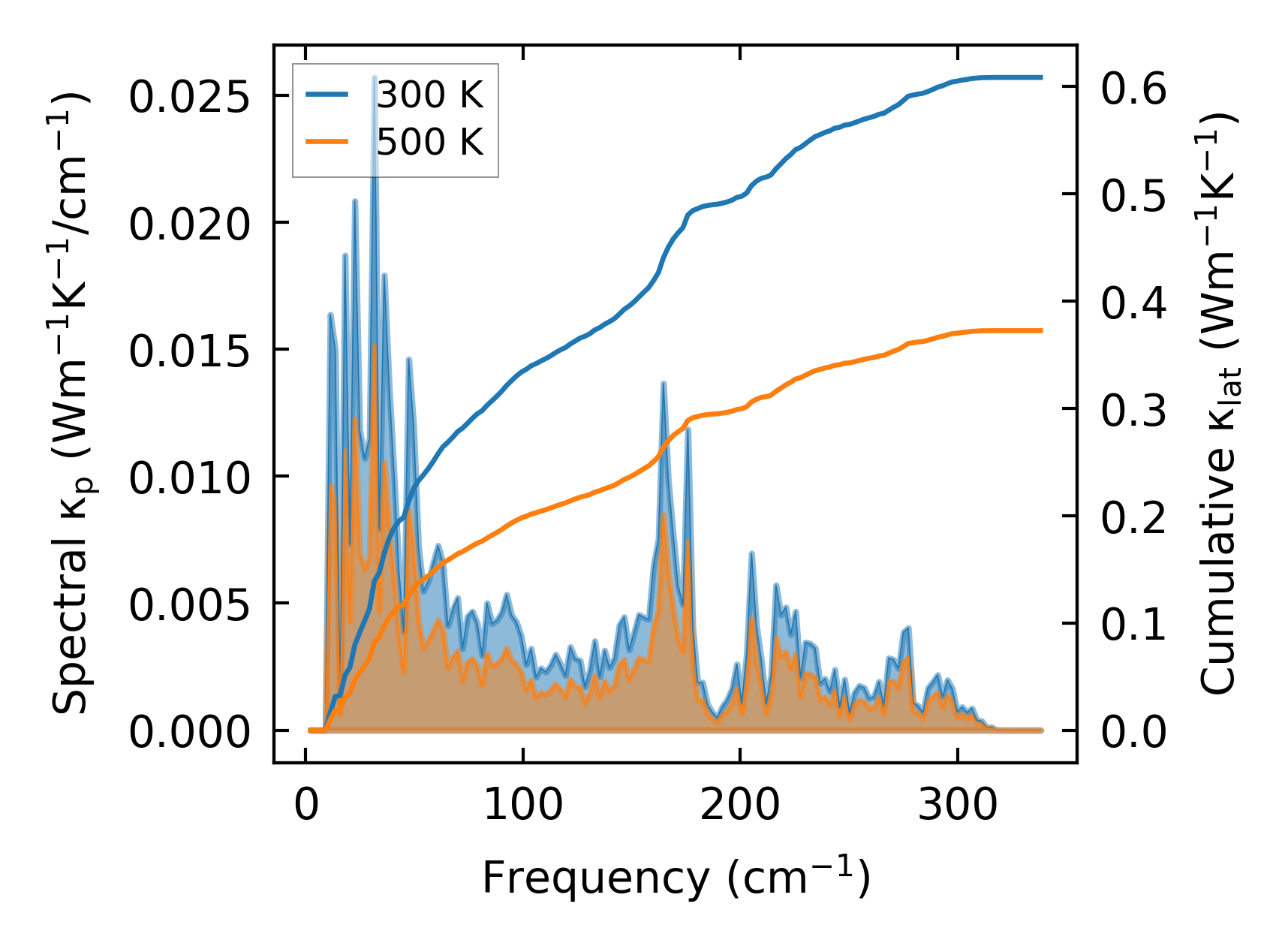

../../_images/fig_cumu_frequency4928.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

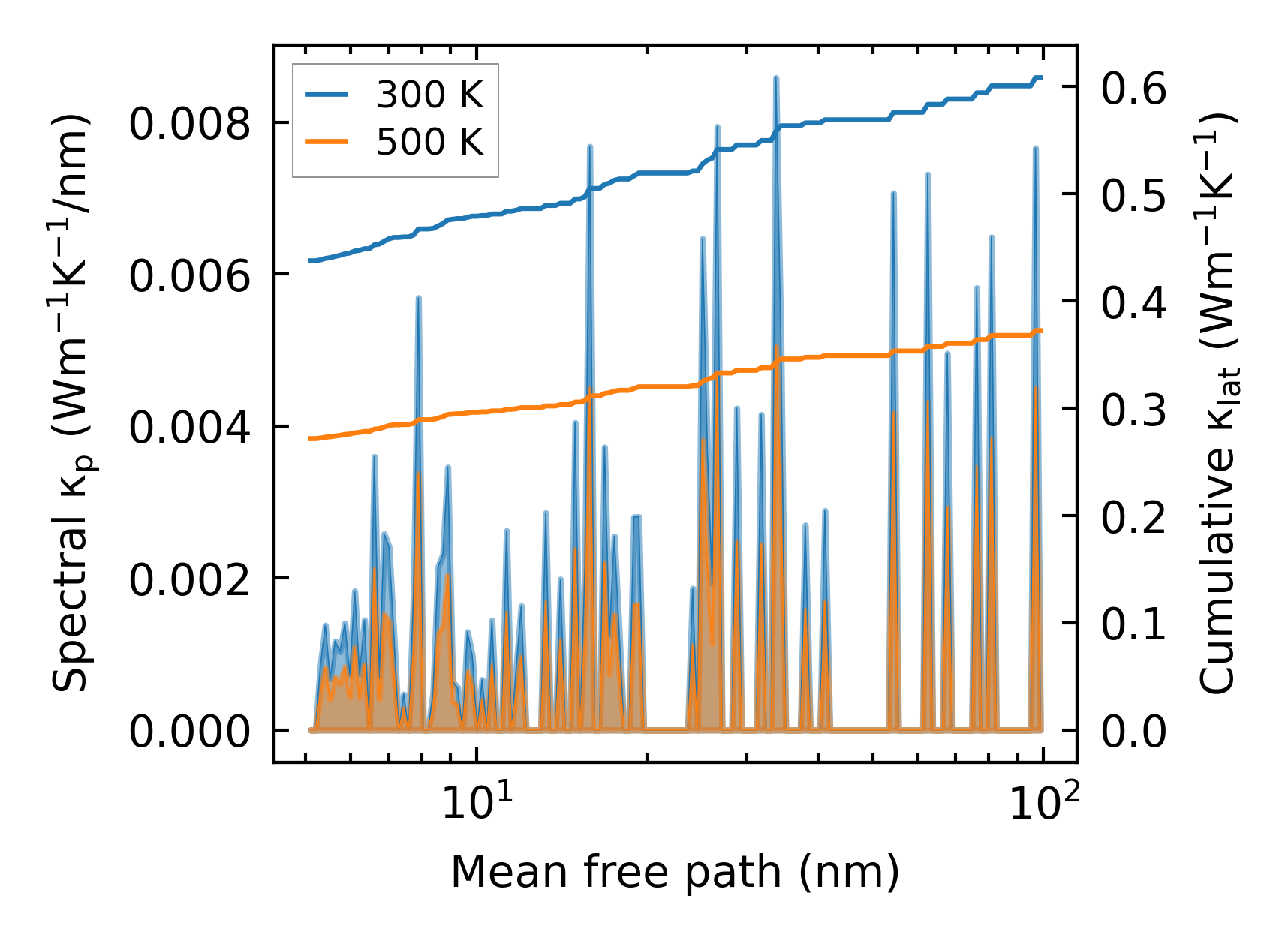

../../_images/fig_cumu_mfp4927.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

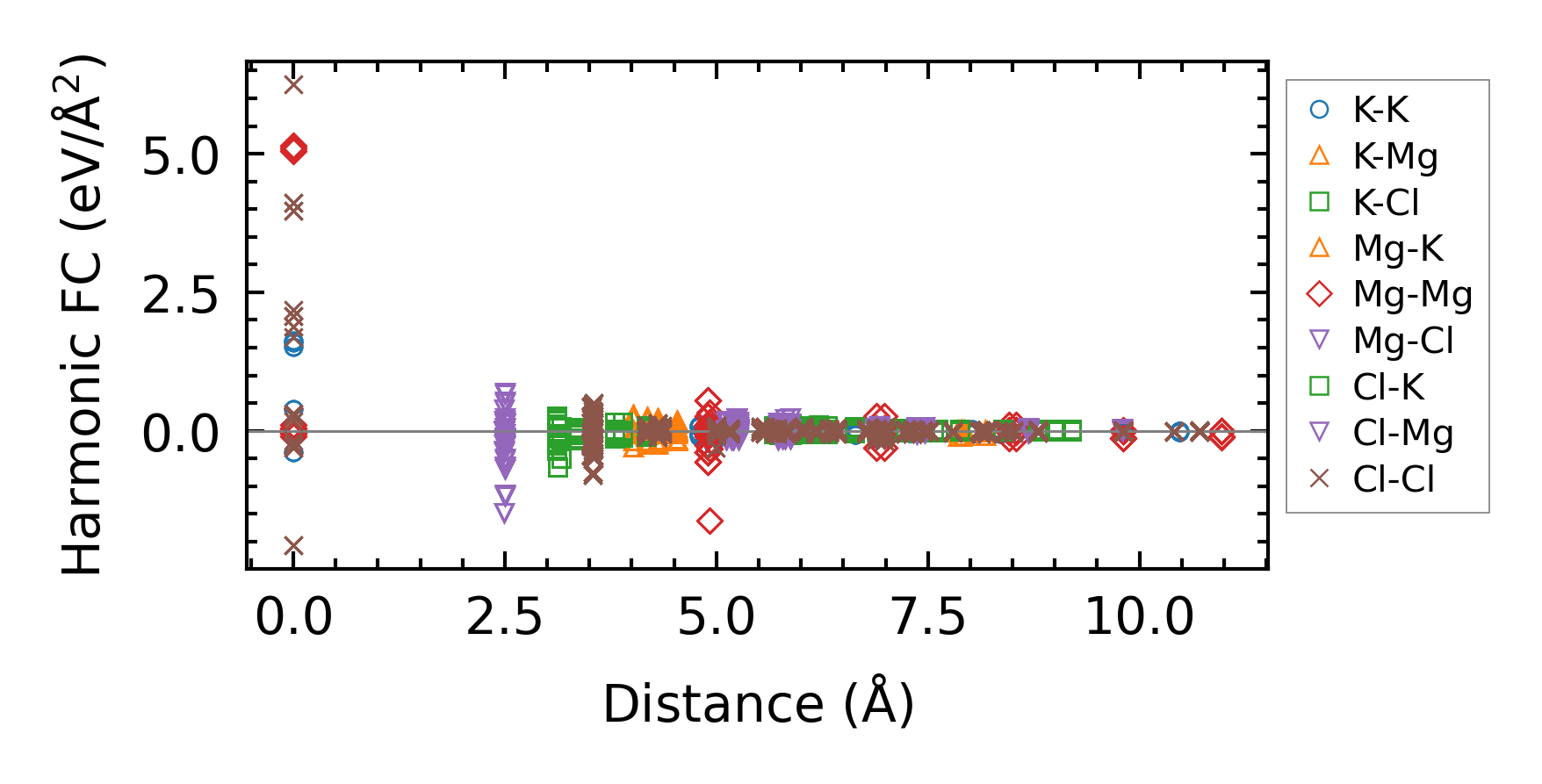

../../_images/fig_fc211647.png — (a) Force constants w.r.t atomic distance

Summary

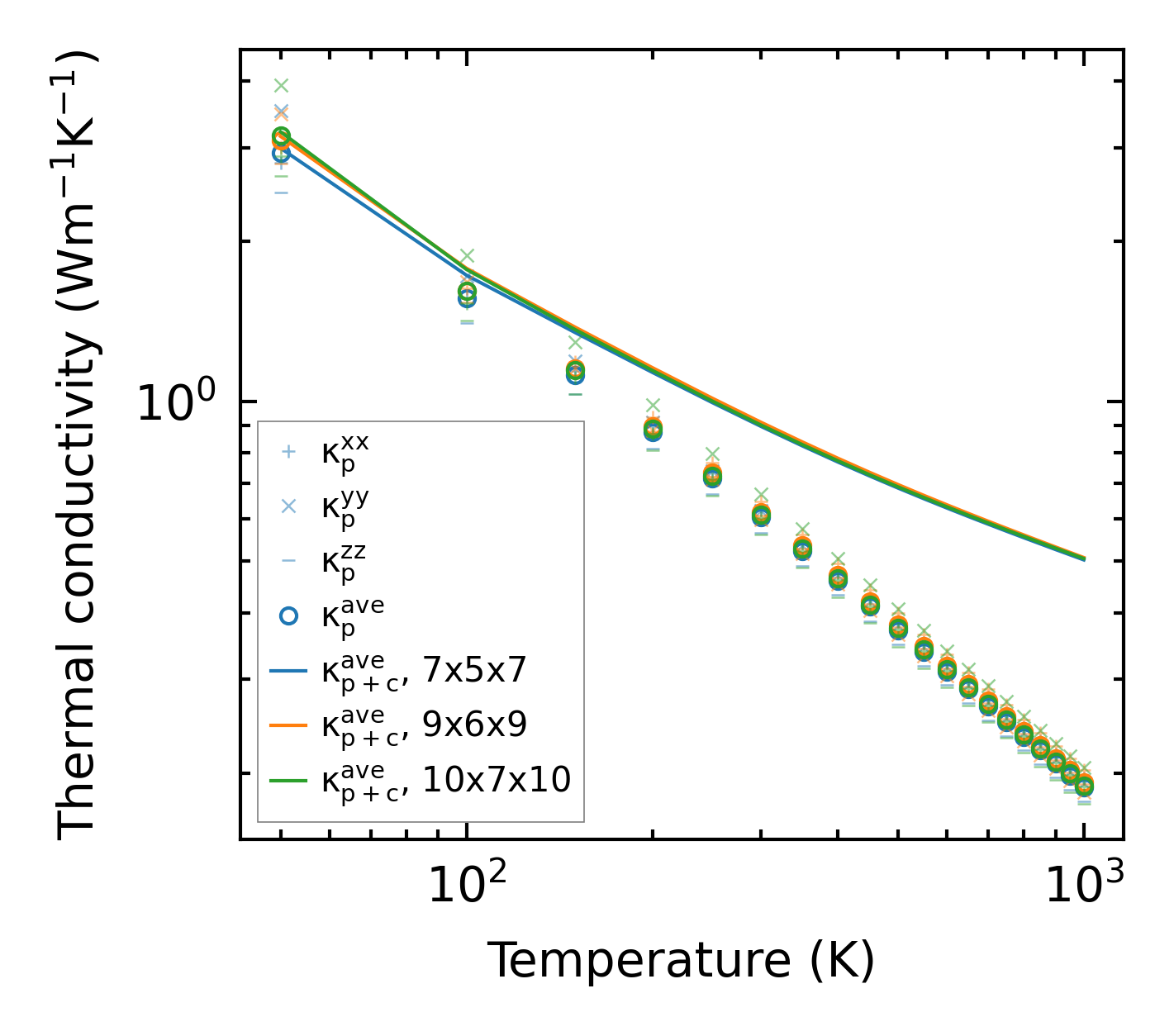

../../_images/fig_kappa9384.png — (a) Temperature-dependent lattice thermal conductivity

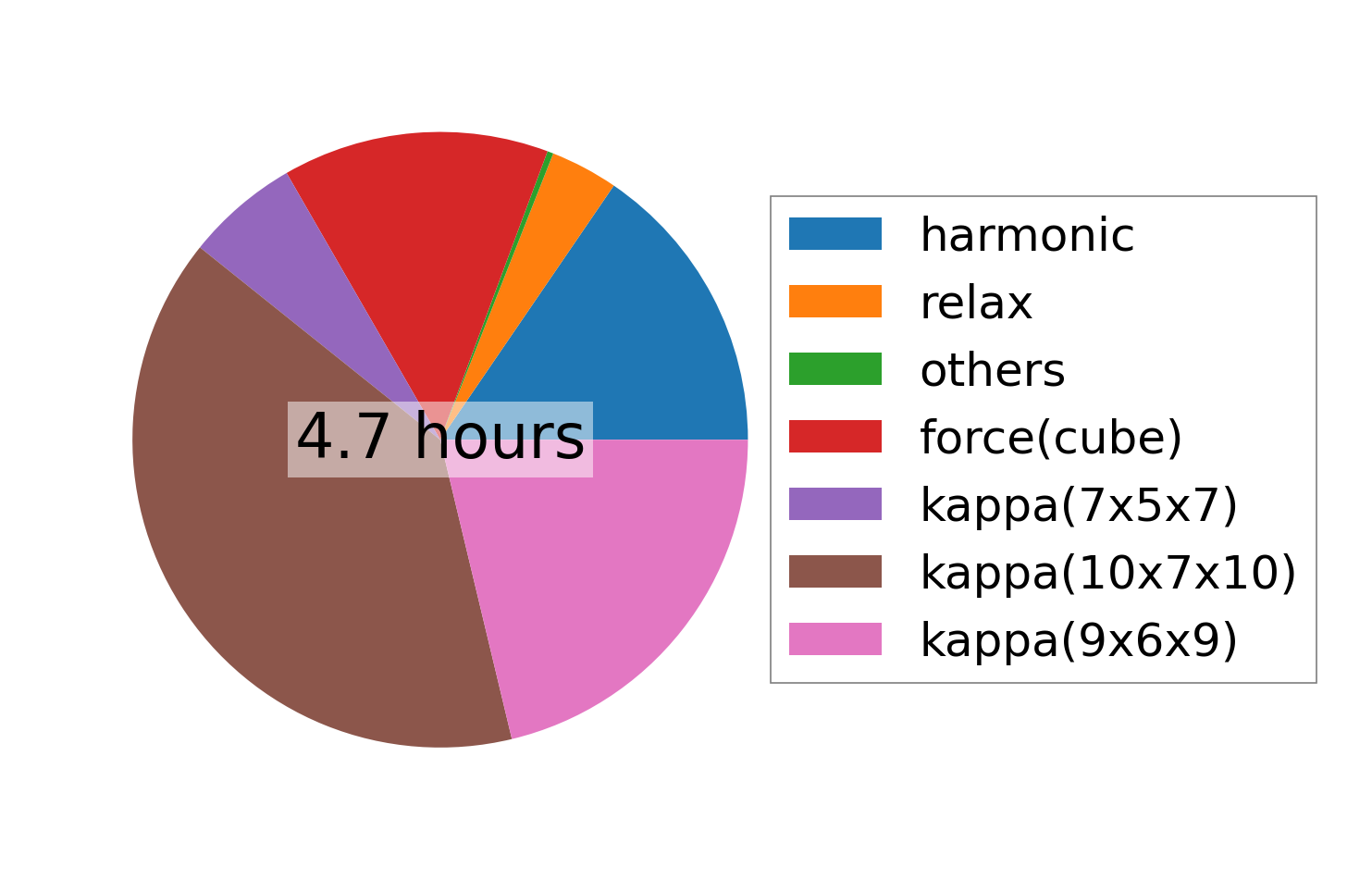

../../_images/fig_times20254.png — (b) Computation time
