mp-27975/NdBr3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-27975.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11982.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11982.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4995.png — (a) Grüneisen parameters

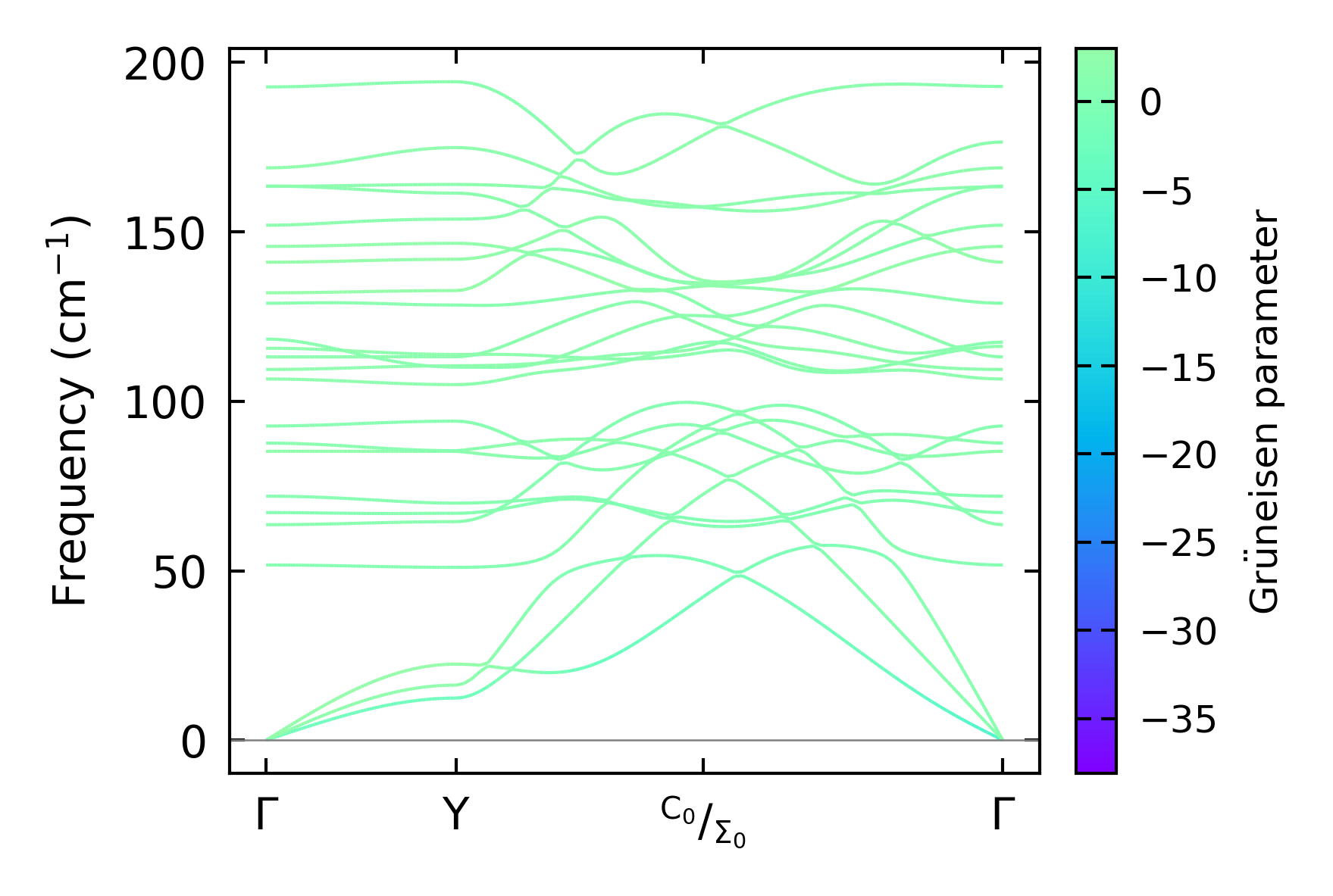

../../_images/fig_gruneisen4995.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x9, supercell: 4x1x2

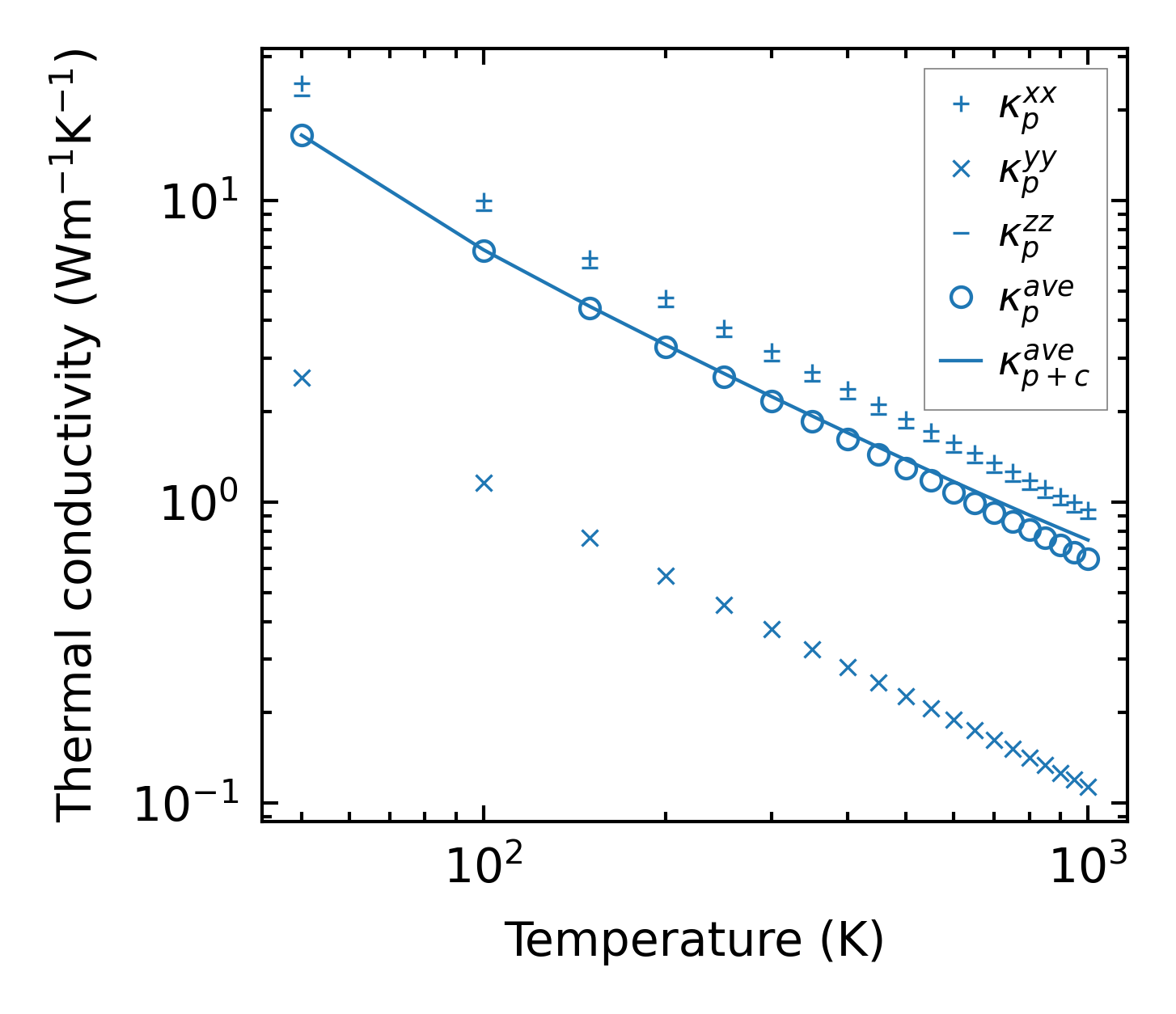

../../_images/fig_kappa9414.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5054.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

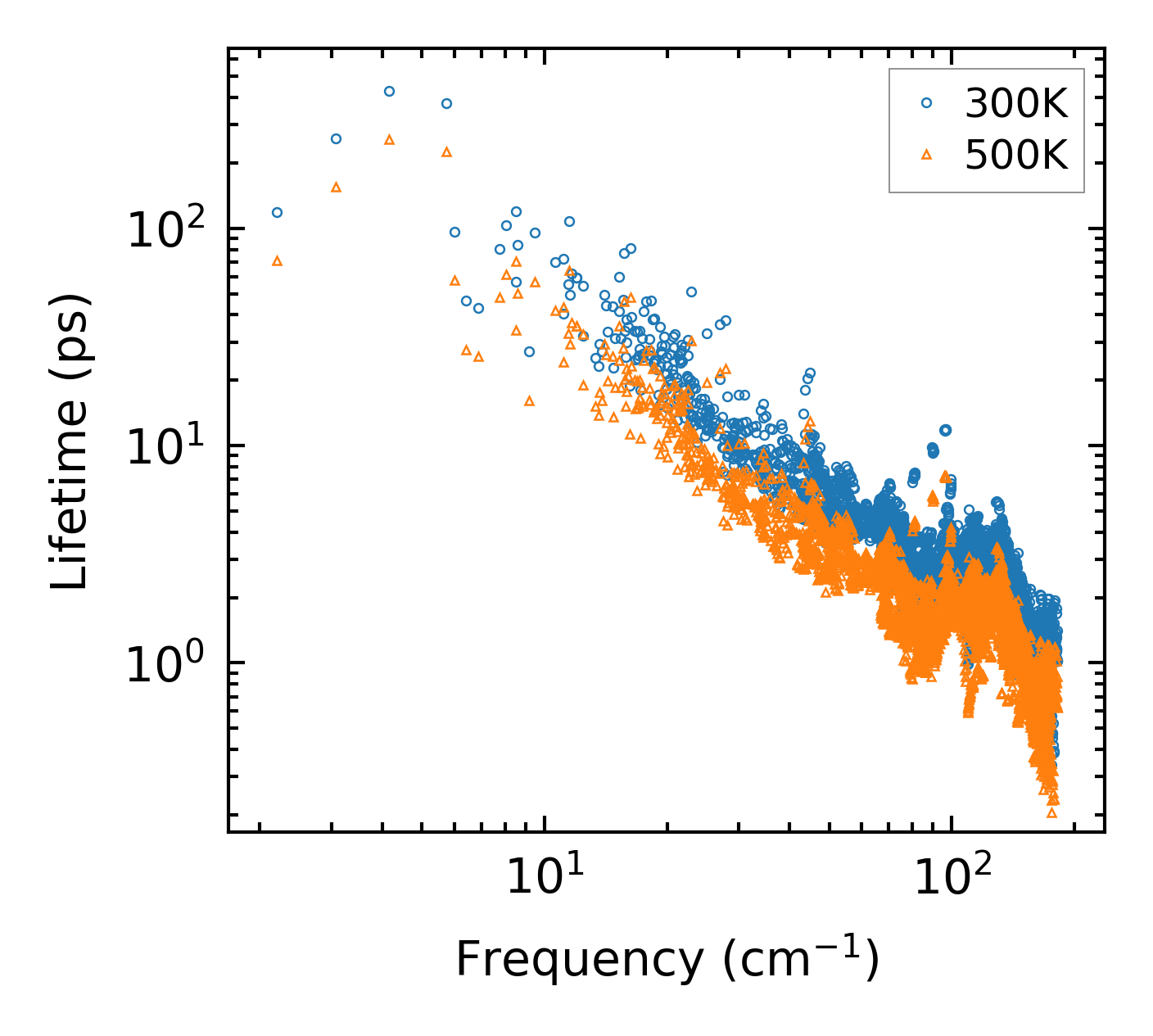

../../_images/fig_lifetime4945.png — (a) Phonon lifetime due to phonon-phonon scattering

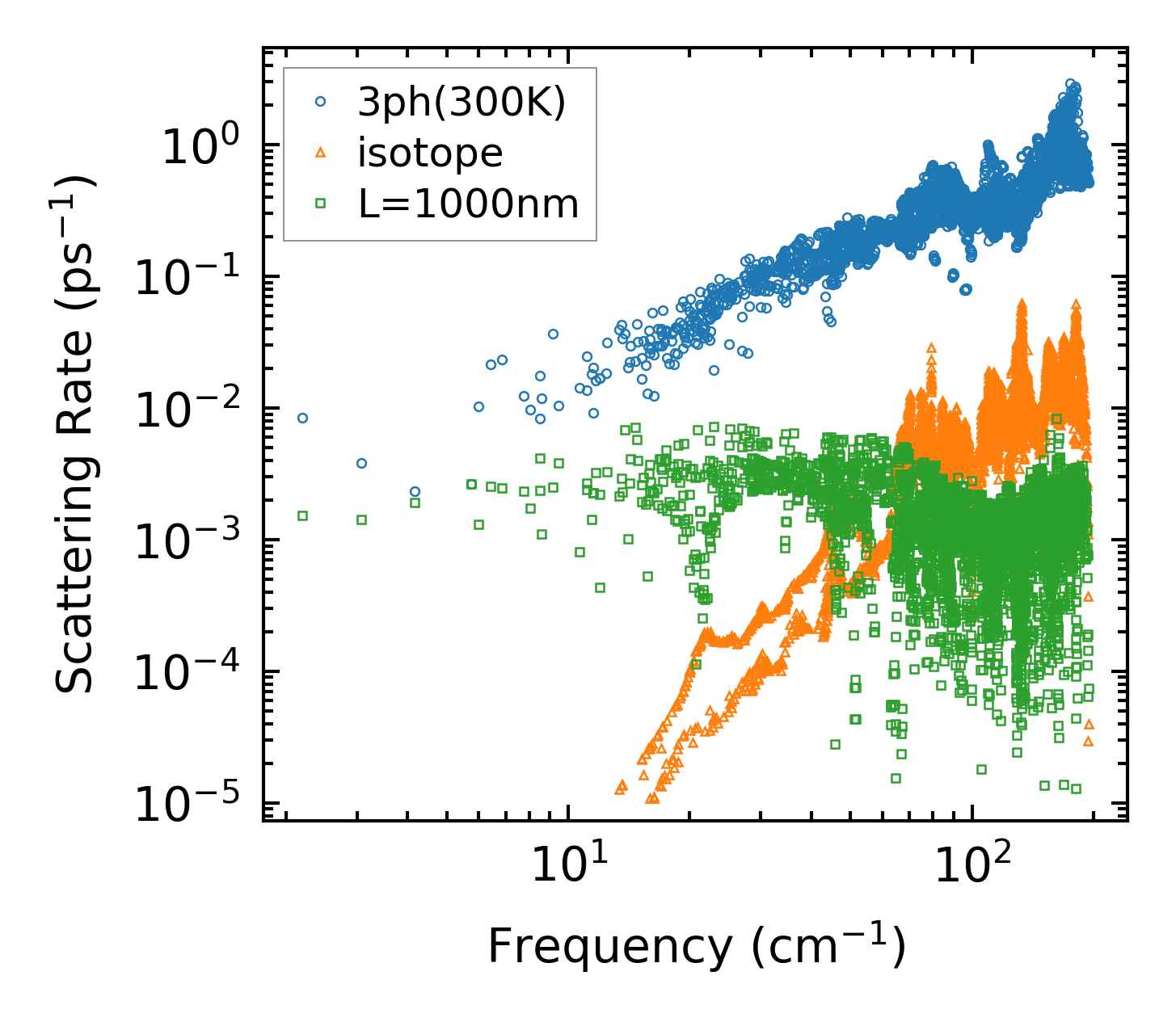

../../_images/fig_scat_rates4944.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

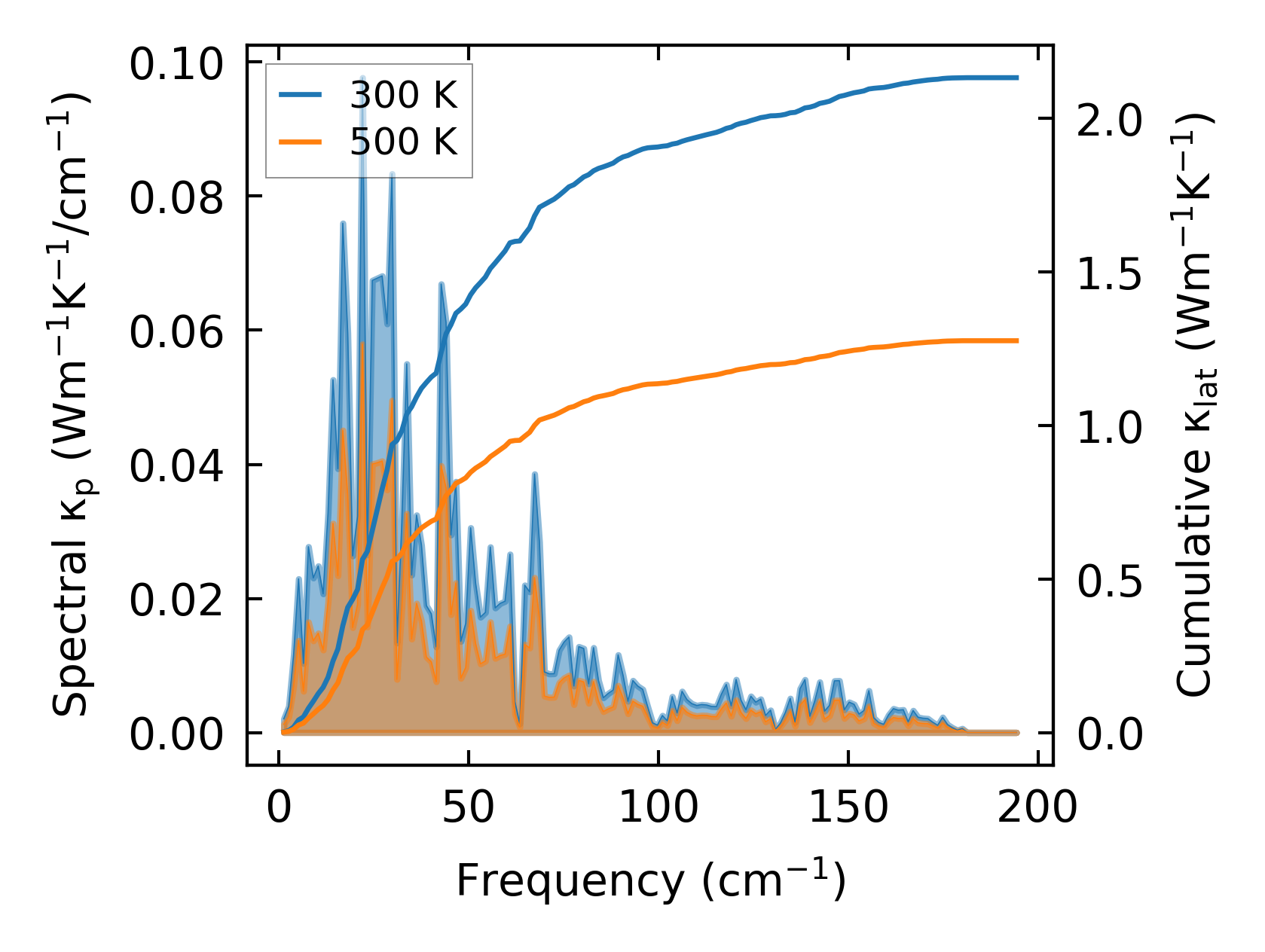

../../_images/fig_cumu_frequency4945.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4944.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

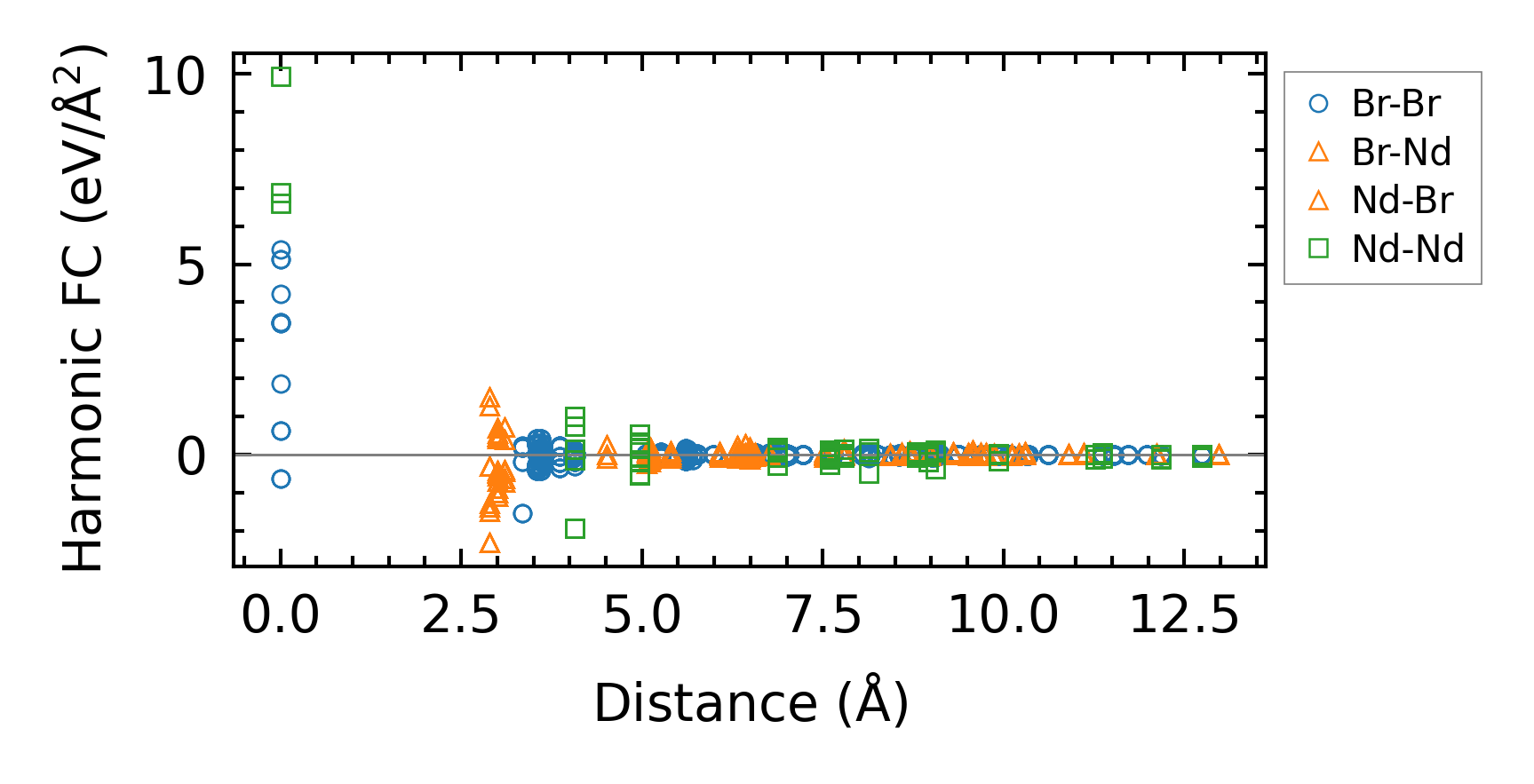

../../_images/fig_fc211685.png — (a) Force constants w.r.t atomic distance

Summary

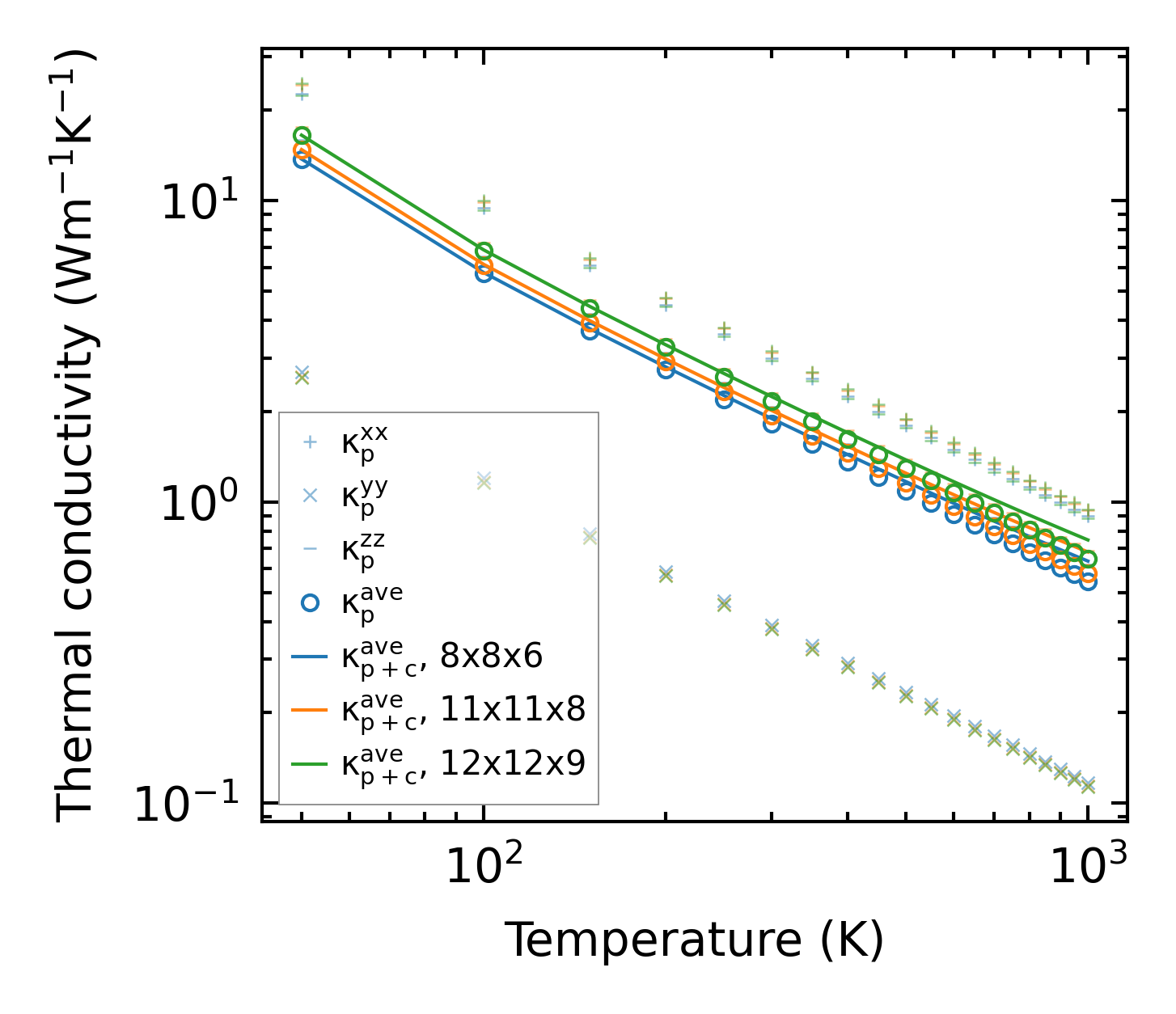

../../_images/fig_kappa9415.png — (a) Temperature-dependent lattice thermal conductivity

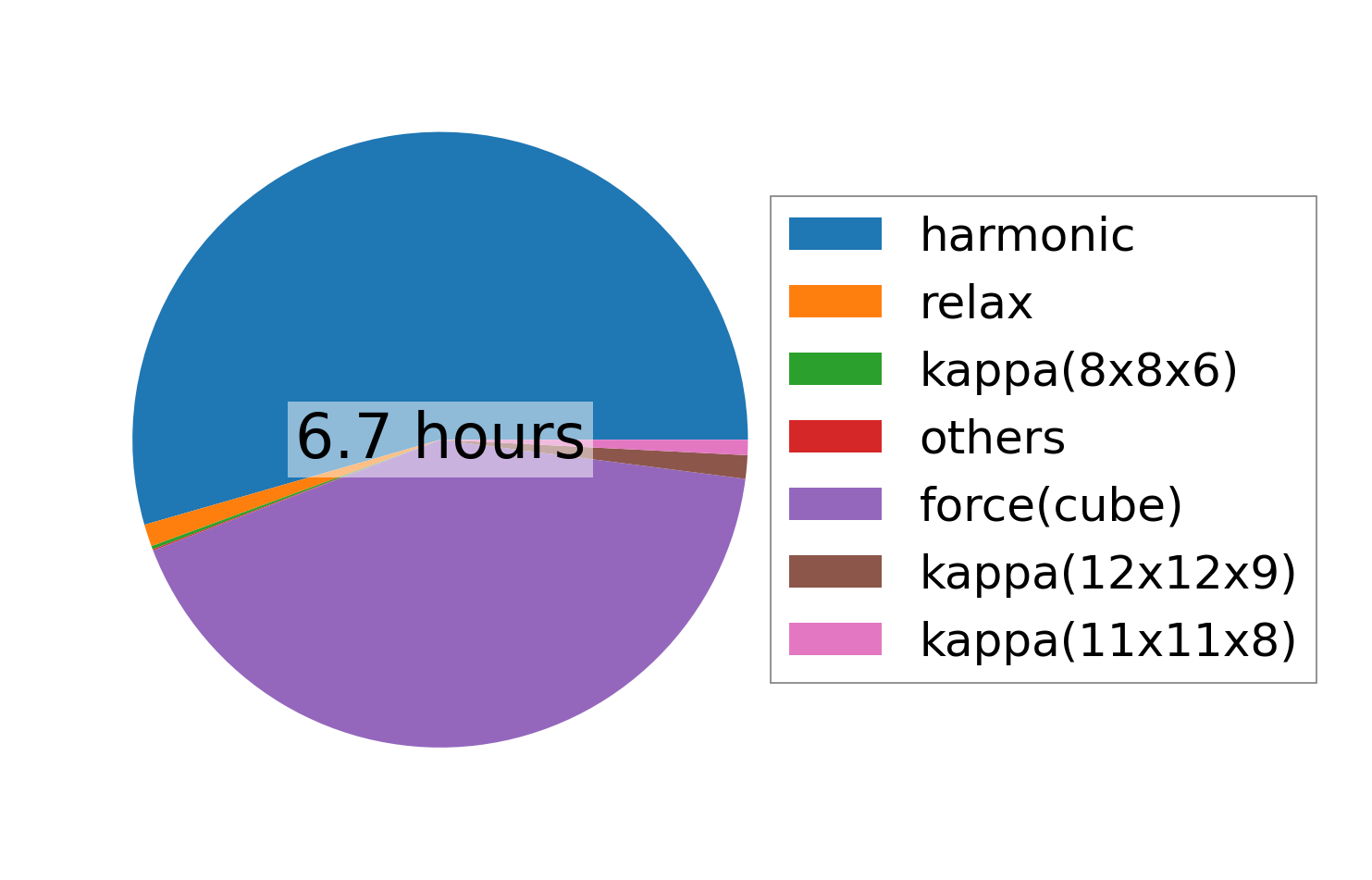

../../_images/fig_times20321.png — (b) Computation time
