mp-27863-2/AlClO/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-27863-2.tar.gz

Equation of state

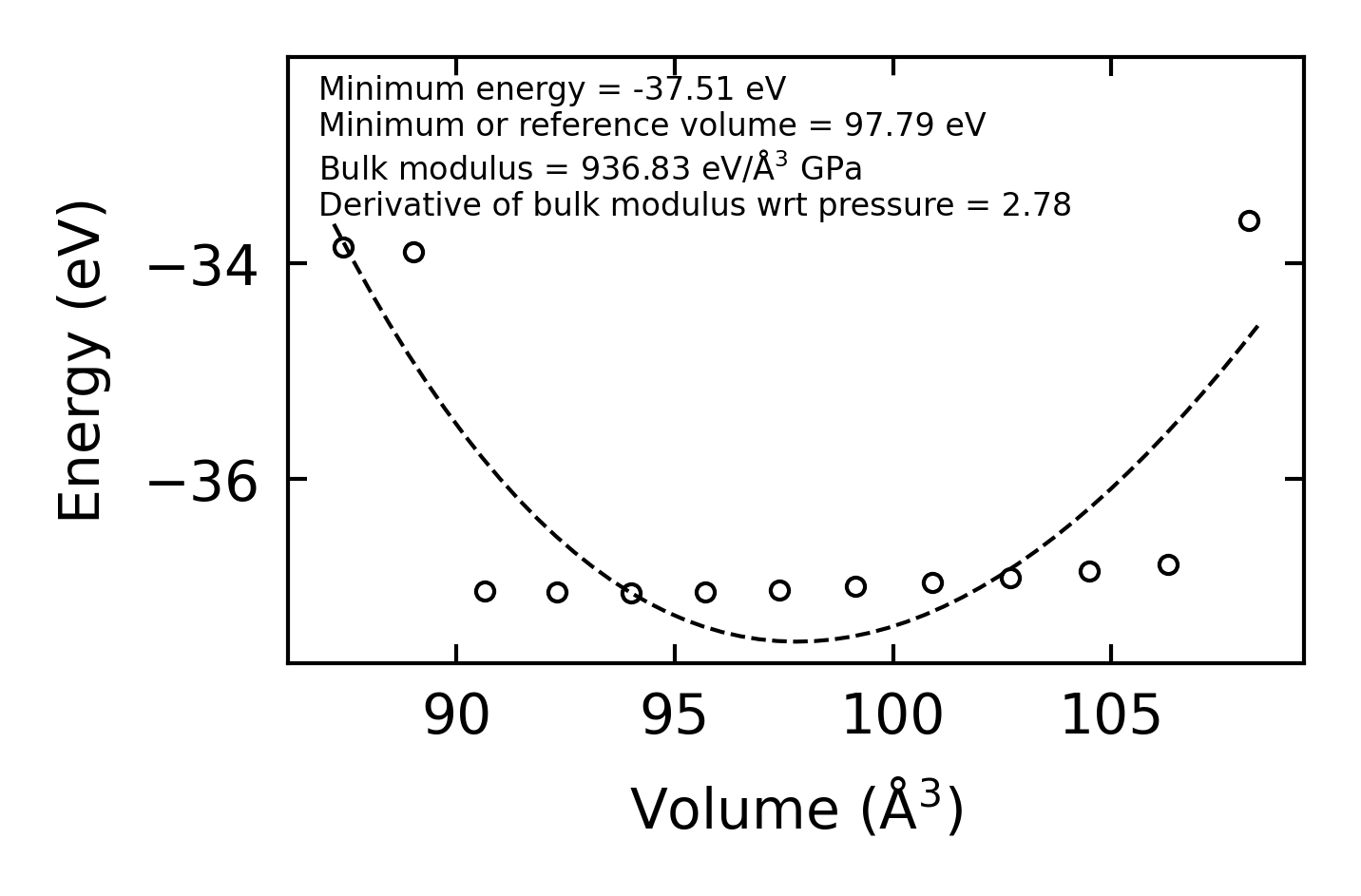

../../_images/fig_bm5832.png — (a) Equation of state

Harmonic properties

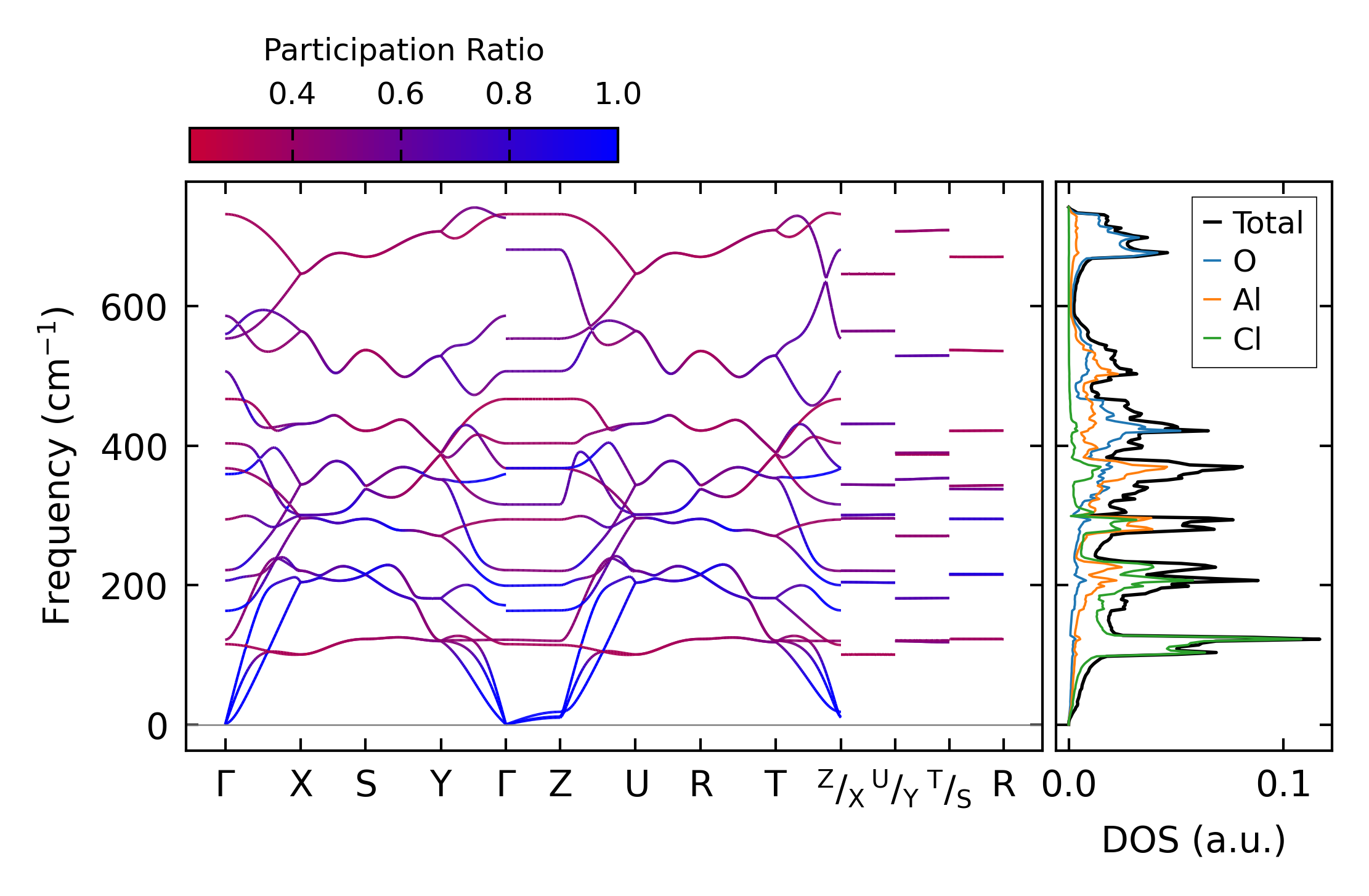

../../_images/fig_bandos_pr11941.png — (a) Phonon dispersion with participation ratio and DOS

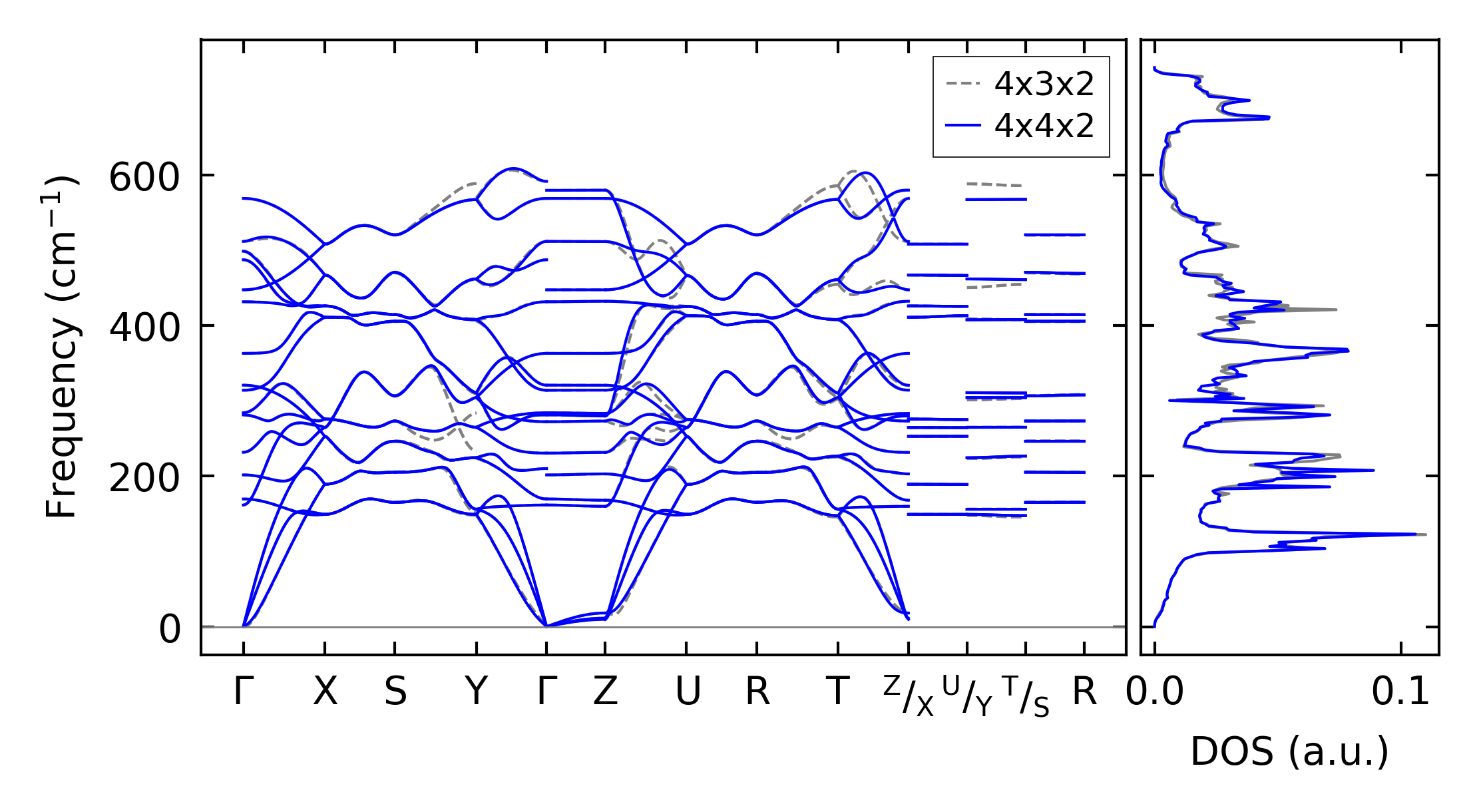

../../_images/fig_bandos15985.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11941.png — (c) Thermodynamic properties

Grüneisen parameters

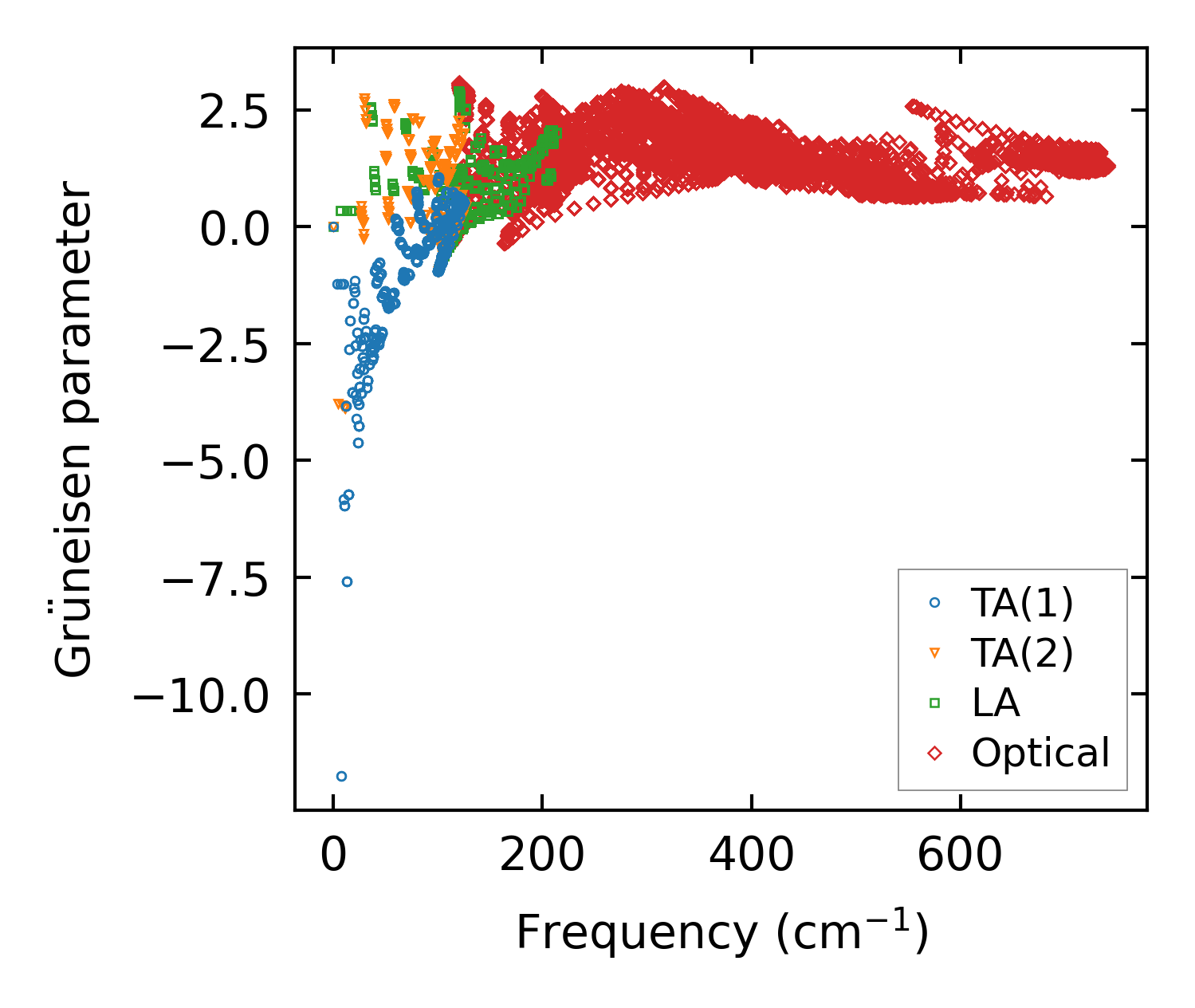

../../_images/fig_gru_all4977.png — (a) Grüneisen parameters

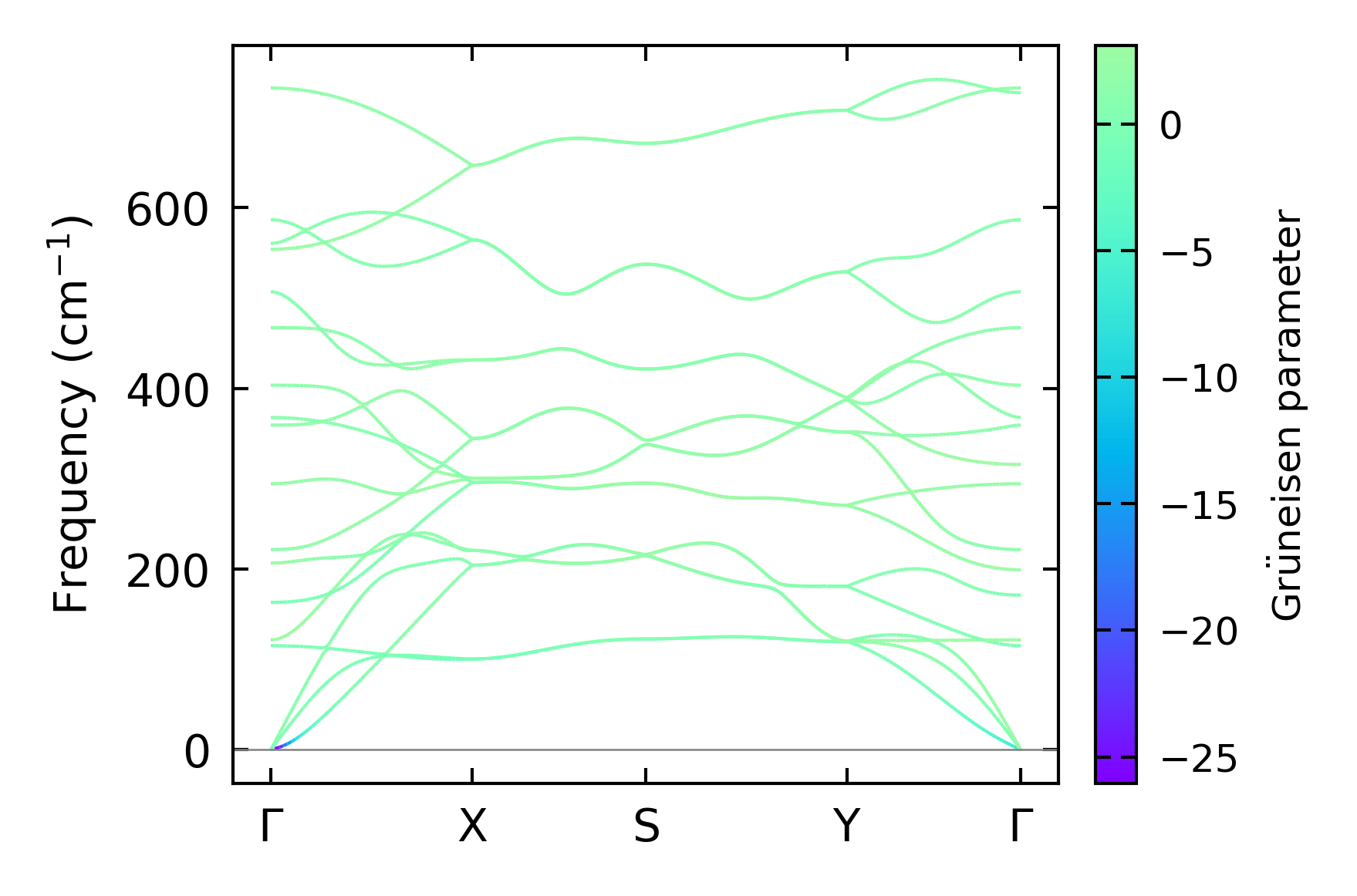

../../_images/fig_gruneisen4977.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 22x19x8, supercell: 4x3x2

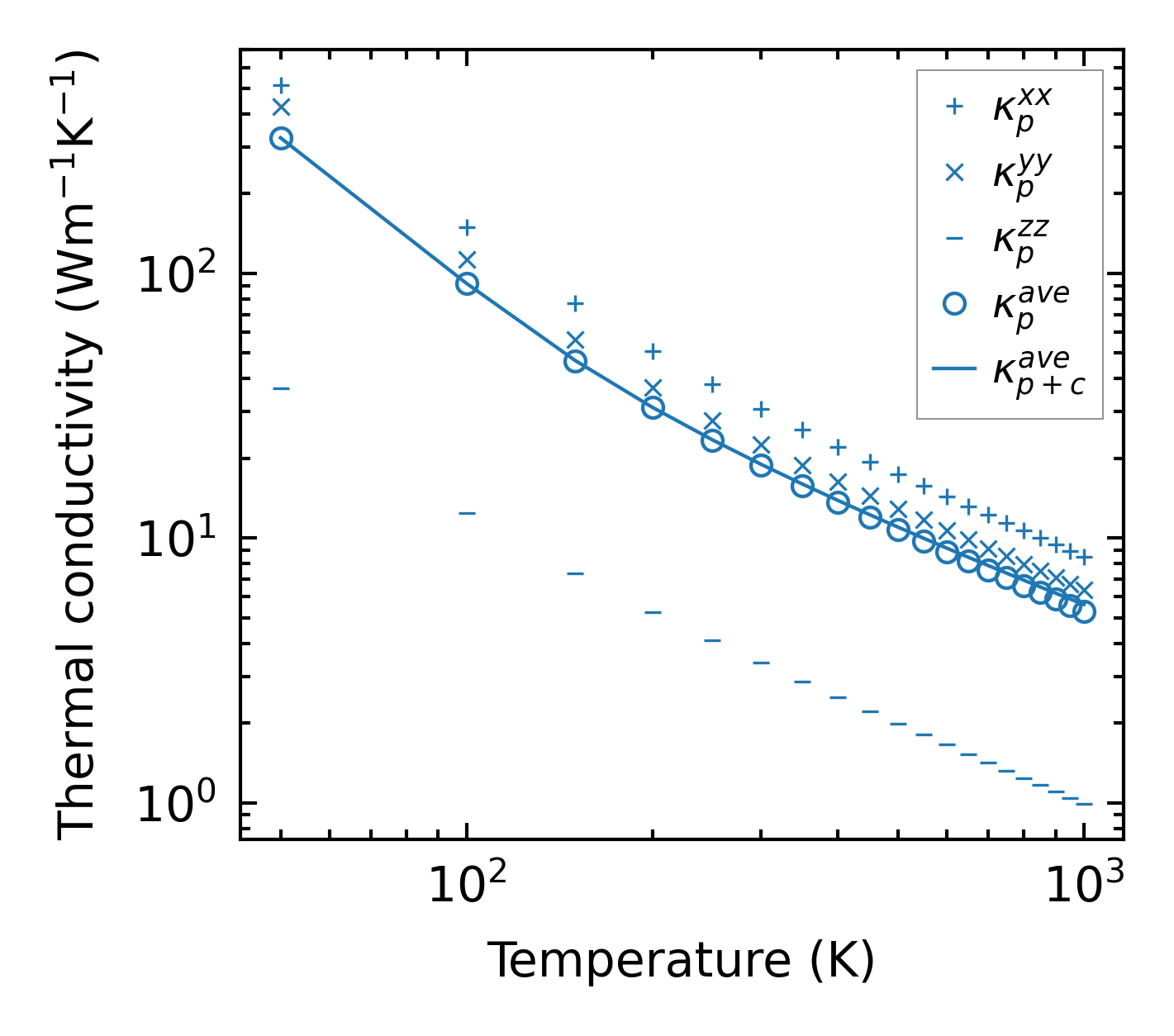

../../_images/fig_kappa9380.png — (a) Temperature-dependent lattice thermal conductivity

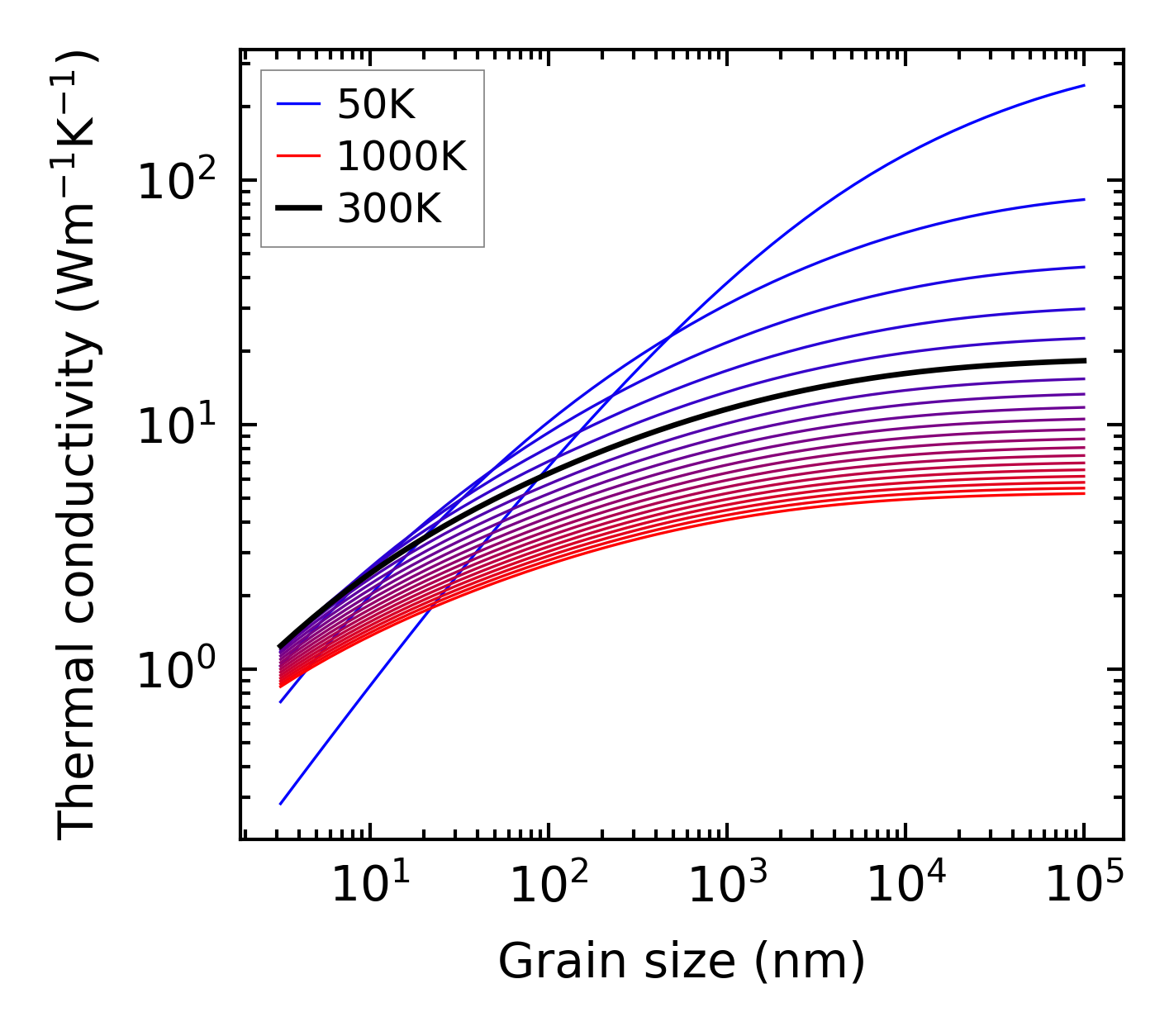

../../_images/fig_kappa_vs_grain_size5035.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 4x4x2 — q-mesh: 22x19x8, supercell: 4x4x2

../../_images/fig_kappa9381.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5036.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

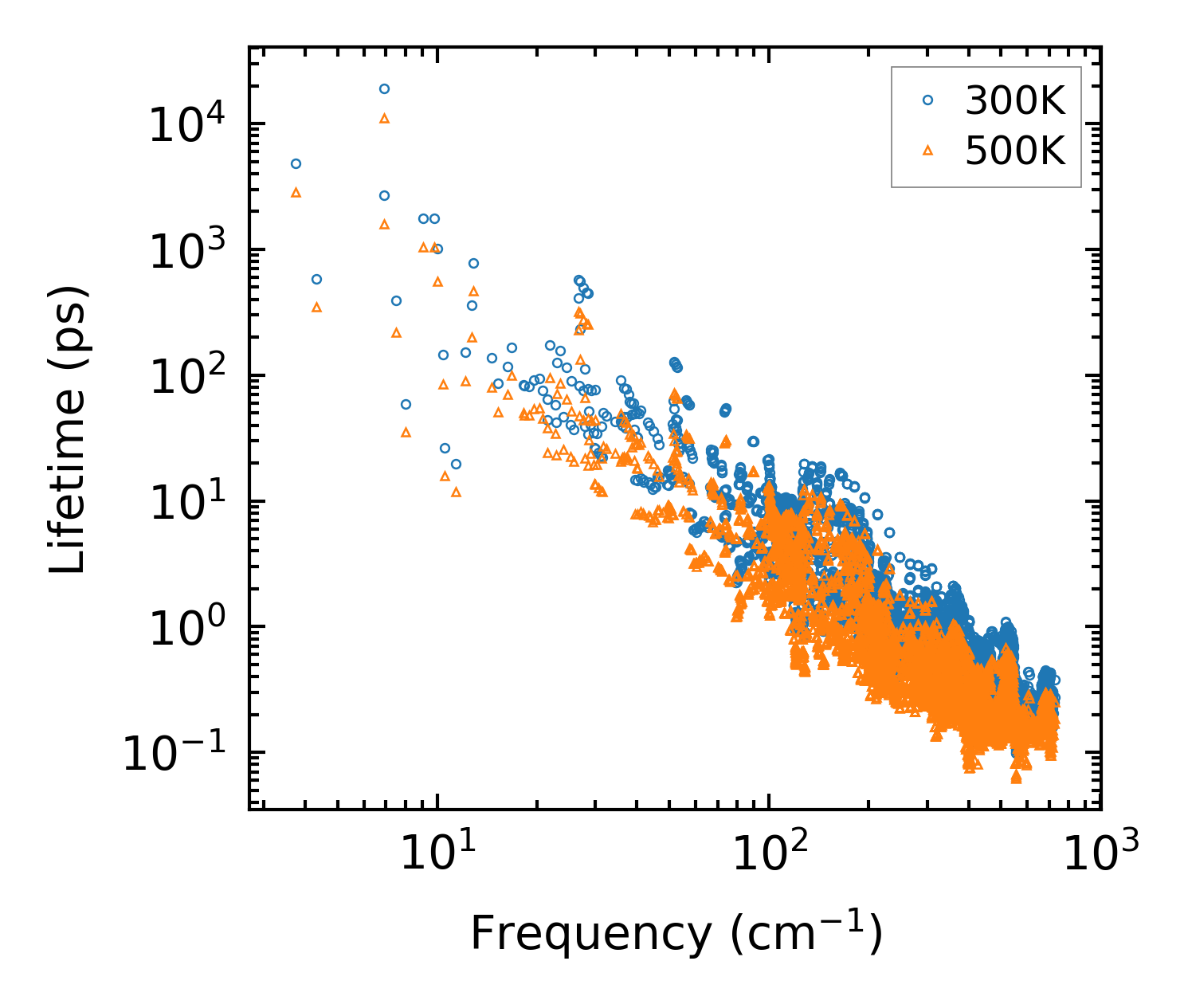

../../_images/fig_lifetime4927.png — (a) Phonon lifetime due to phonon-phonon scattering

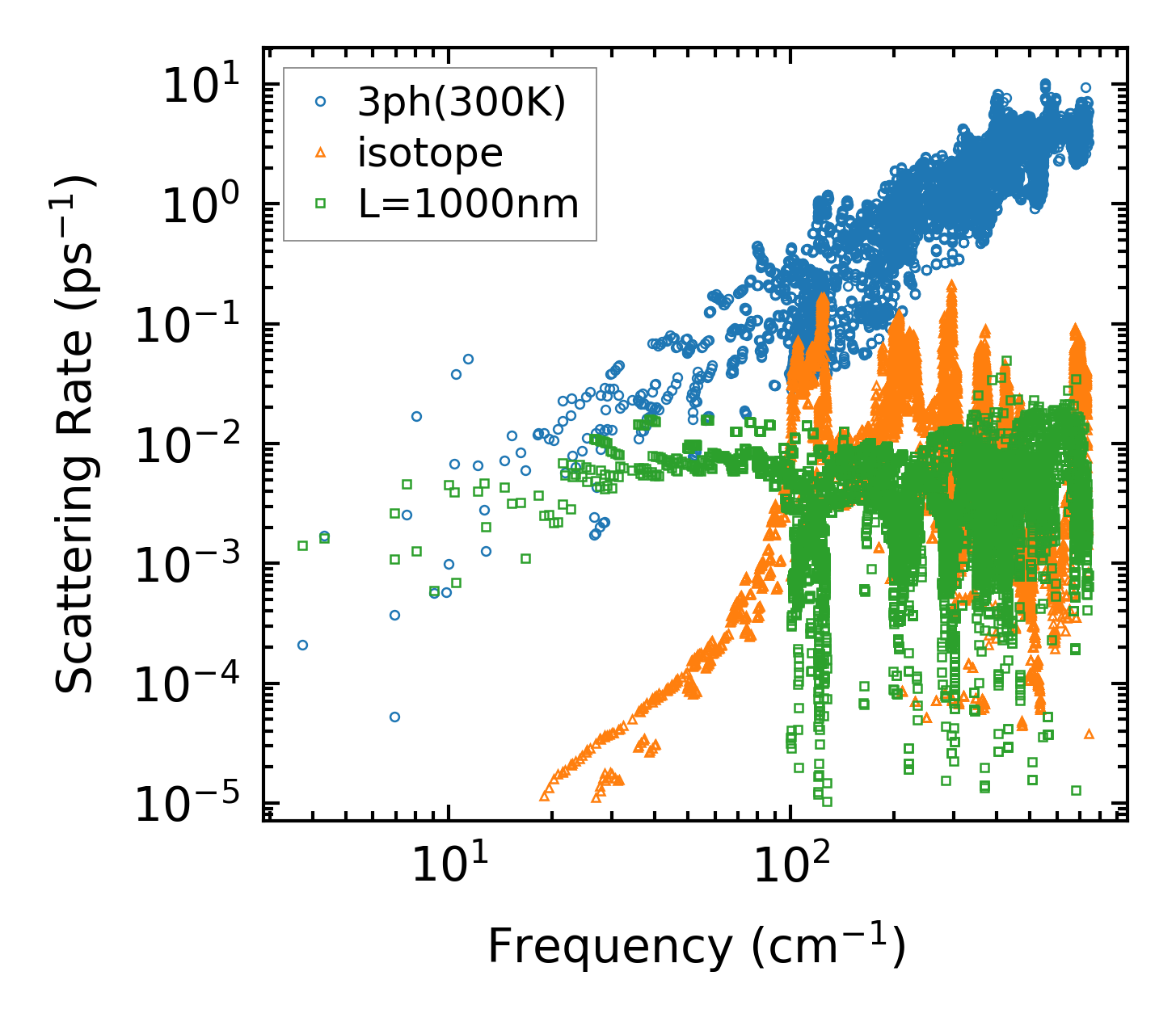

../../_images/fig_scat_rates4926.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

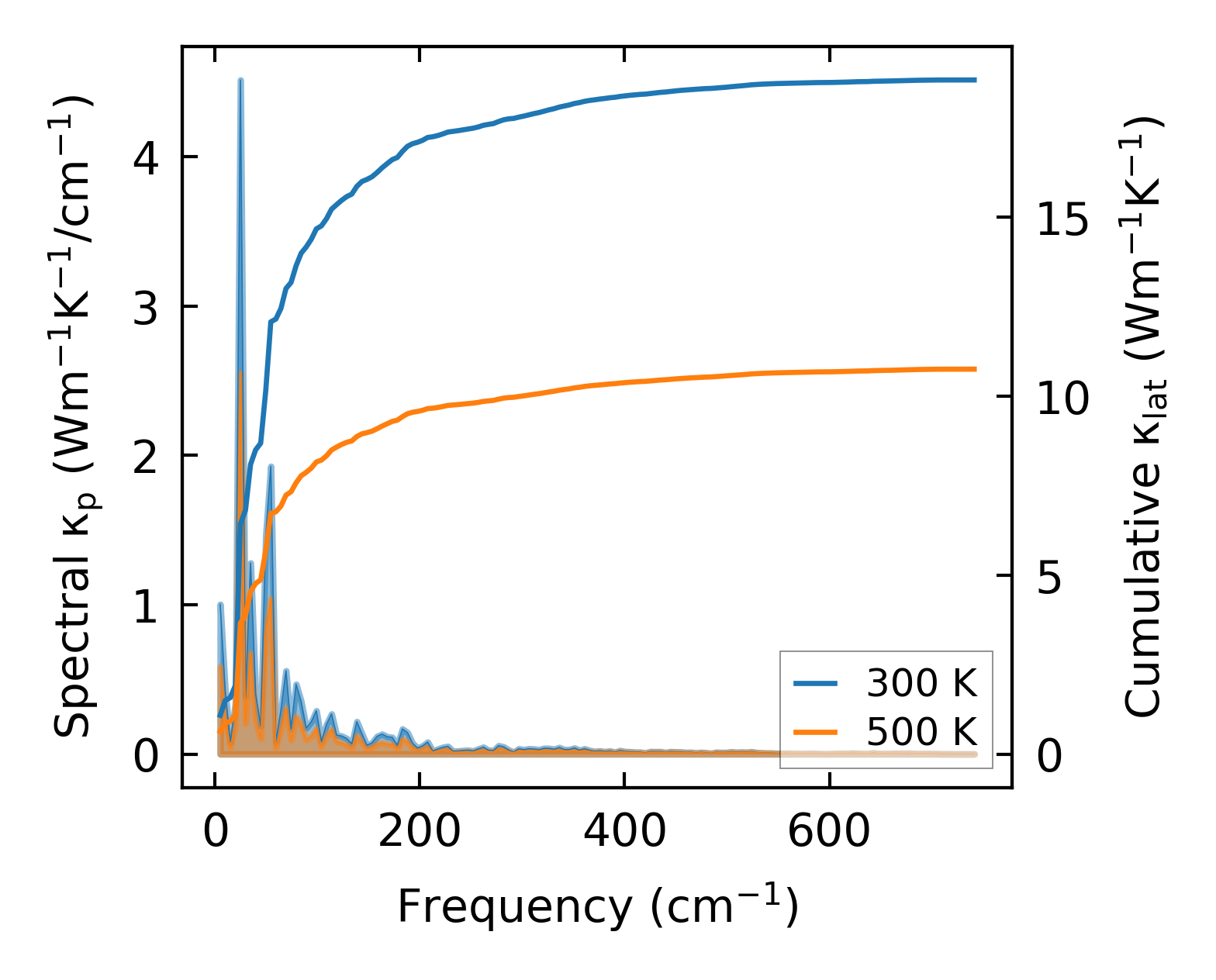

../../_images/fig_cumu_frequency4927.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

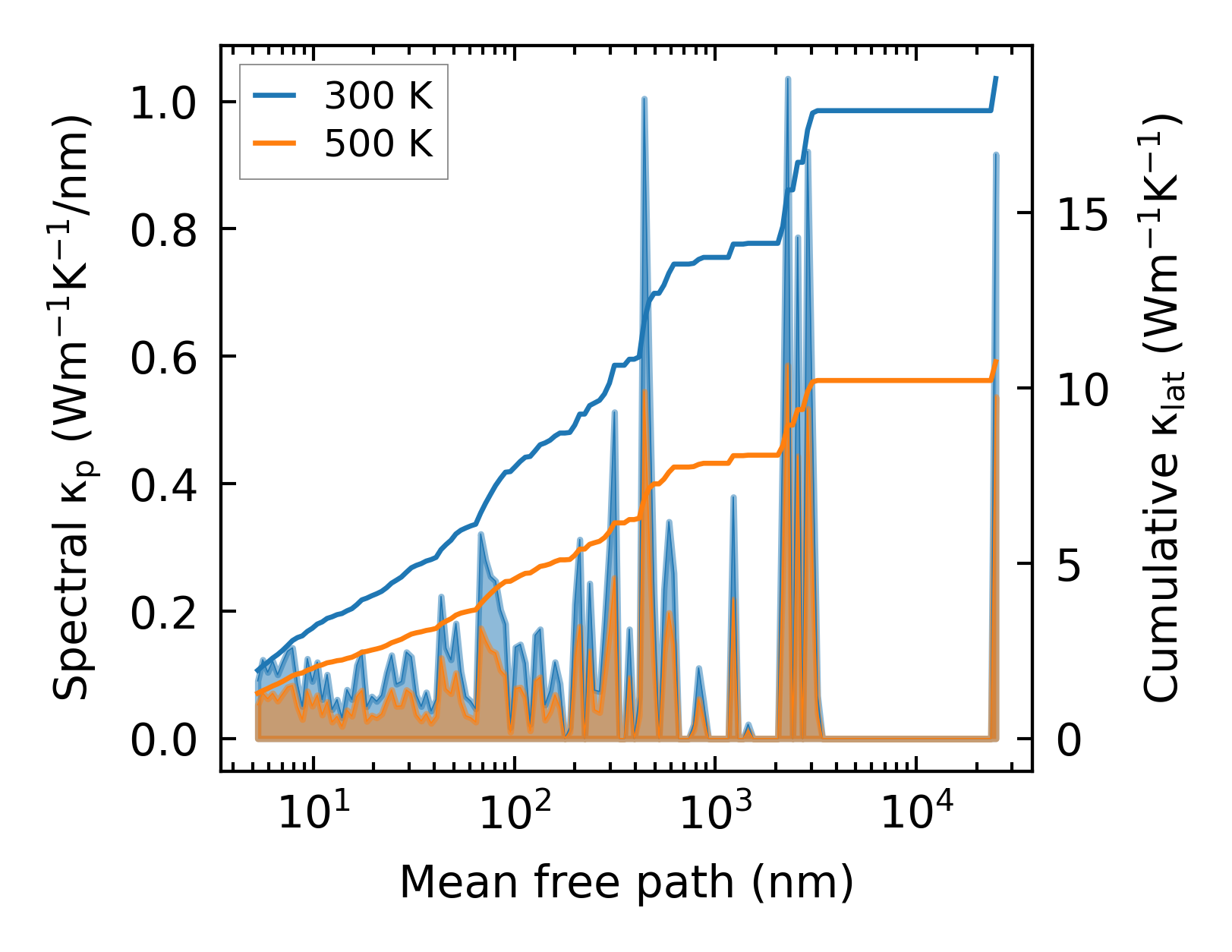

../../_images/fig_cumu_mfp4926.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

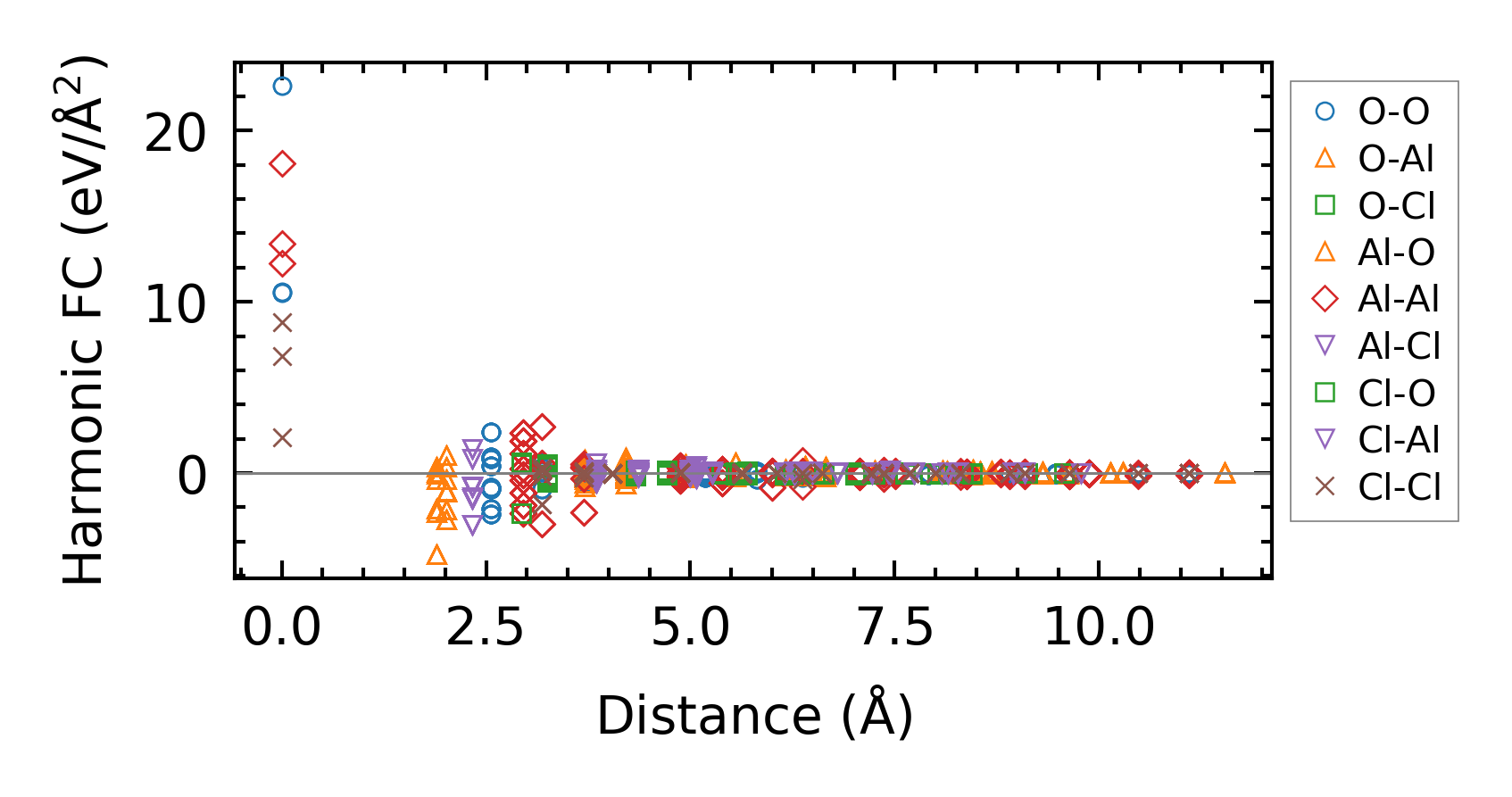

../../_images/fig_fc211646.png — (a) Force constants w.r.t atomic distance

Summary

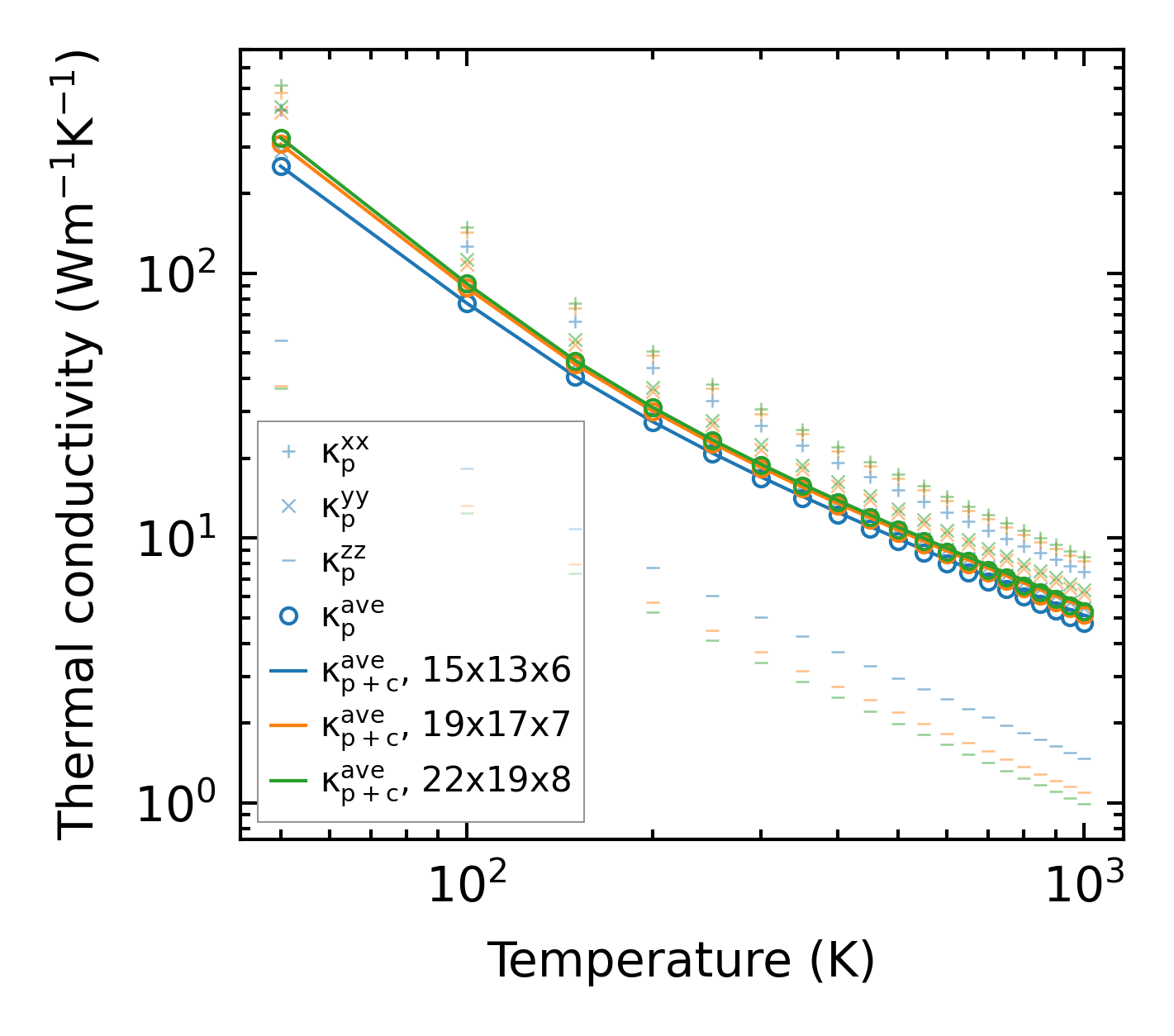

../../_images/fig_kappa9382.png — (a) Temperature-dependent lattice thermal conductivity

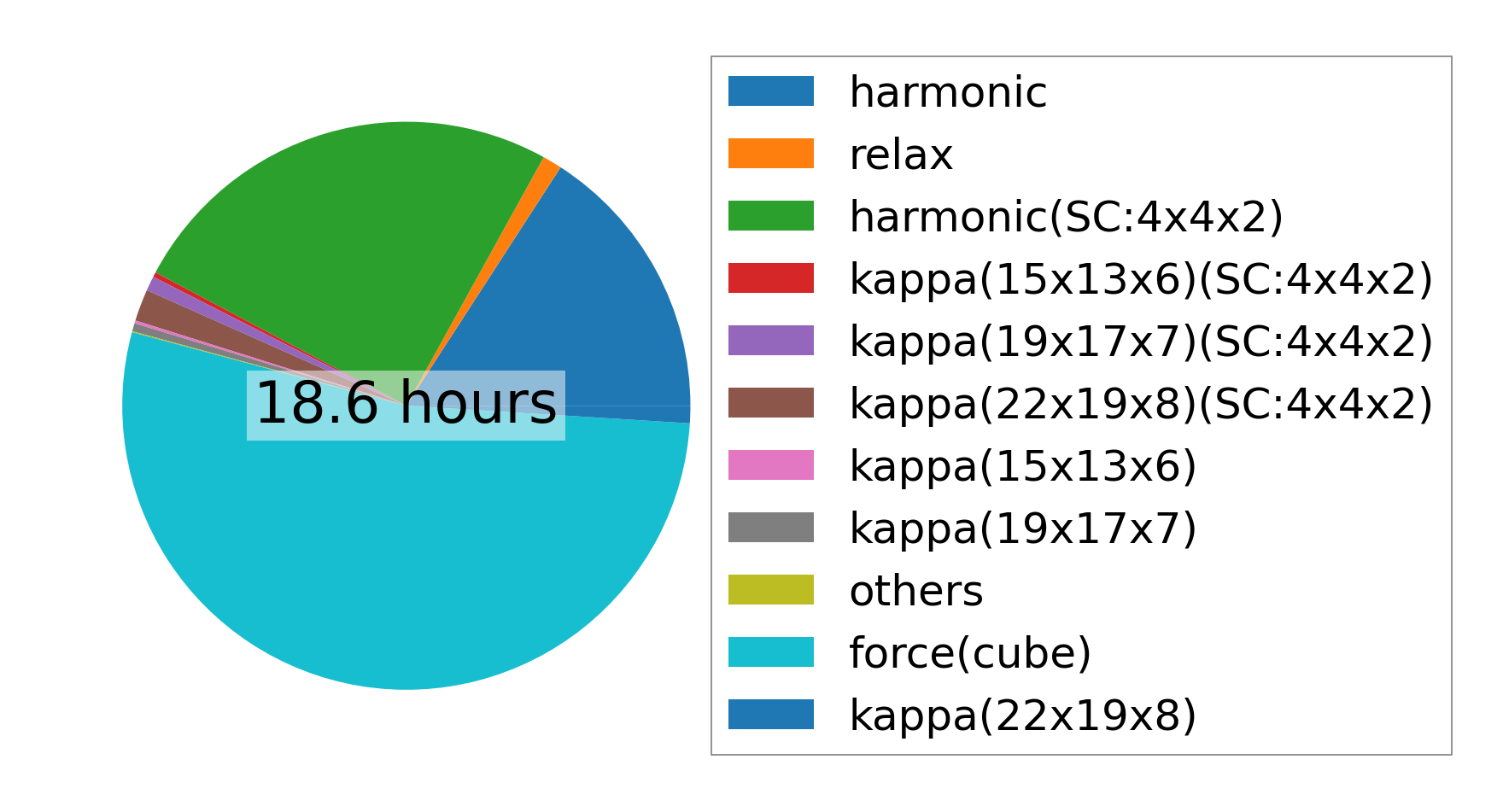

../../_images/fig_times20251.png — (b) Computation time
