mp-27666/IrCl3/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-27666.tar.gz

Equation of state

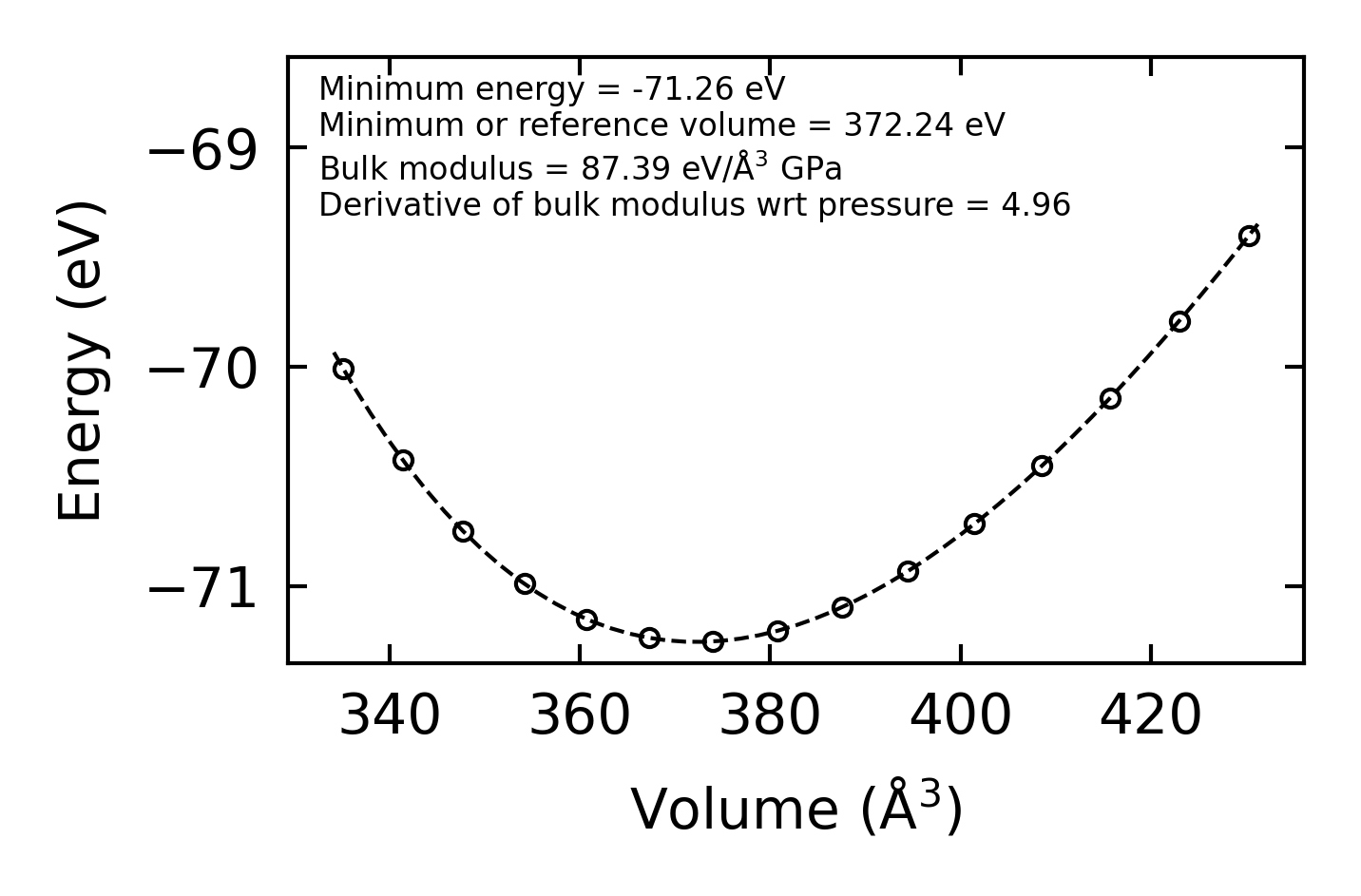

../../_images/fig_bm5981.png — (a) Equation of state

Harmonic properties

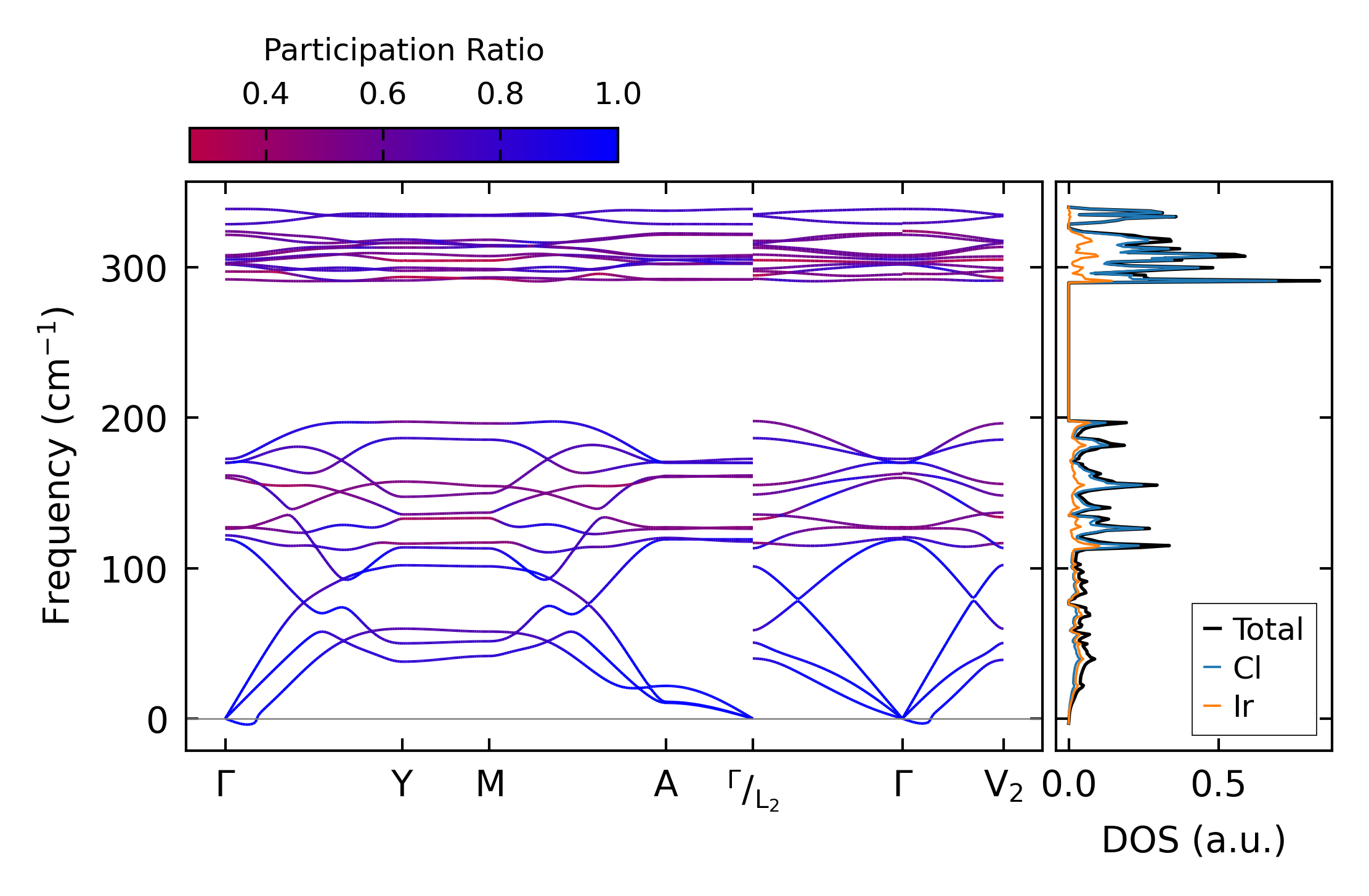

../../_images/fig_bandos_pr12178.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos16294.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12178.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5082.png — (a) Grüneisen parameters

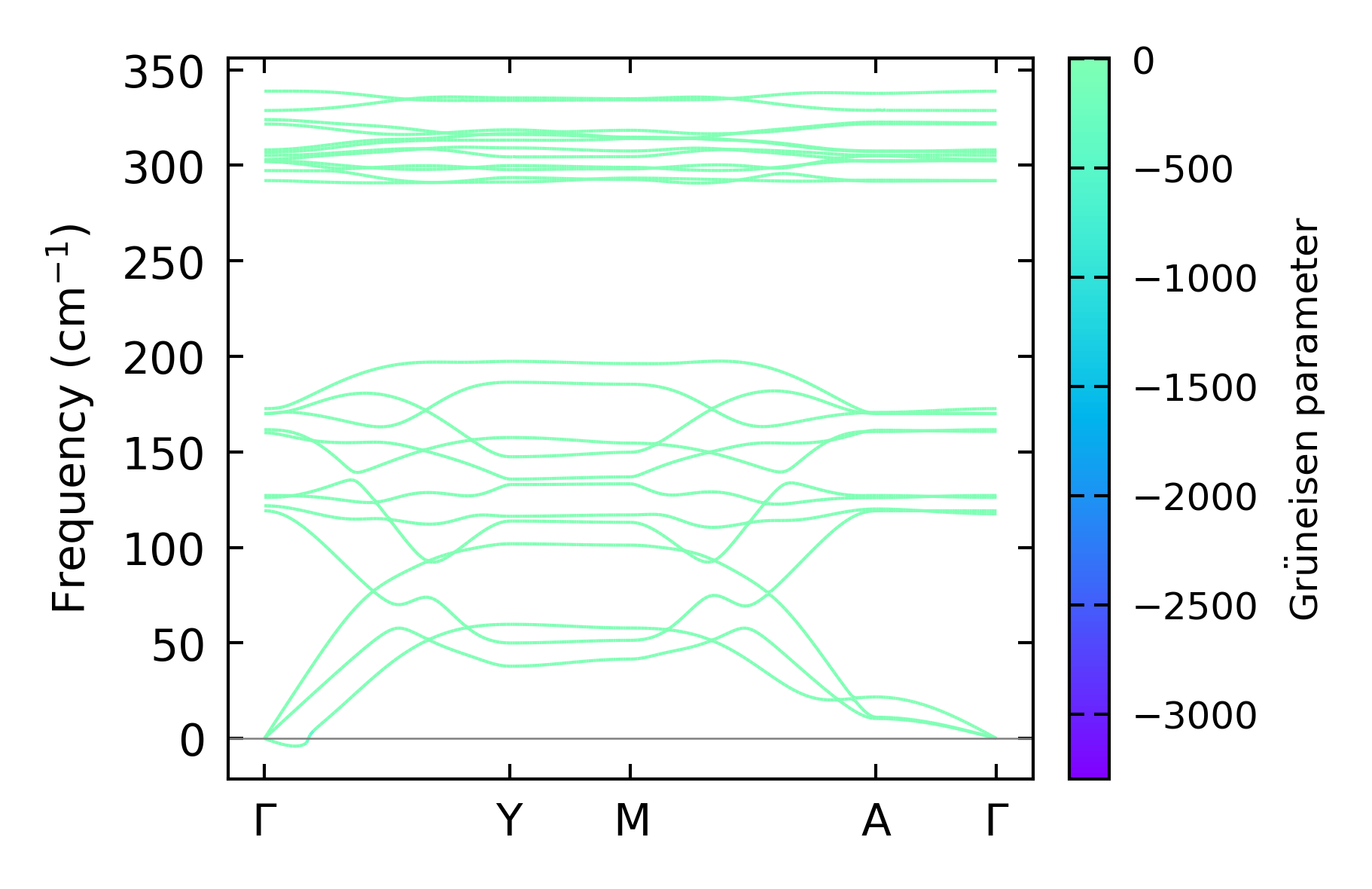

../../_images/fig_gruneisen5082.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x2x2 — q-mesh: 12x12x12, supercell: 3x2x2

../../_images/fig_kappa9566.png — (a) Temperature-dependent lattice thermal conductivity

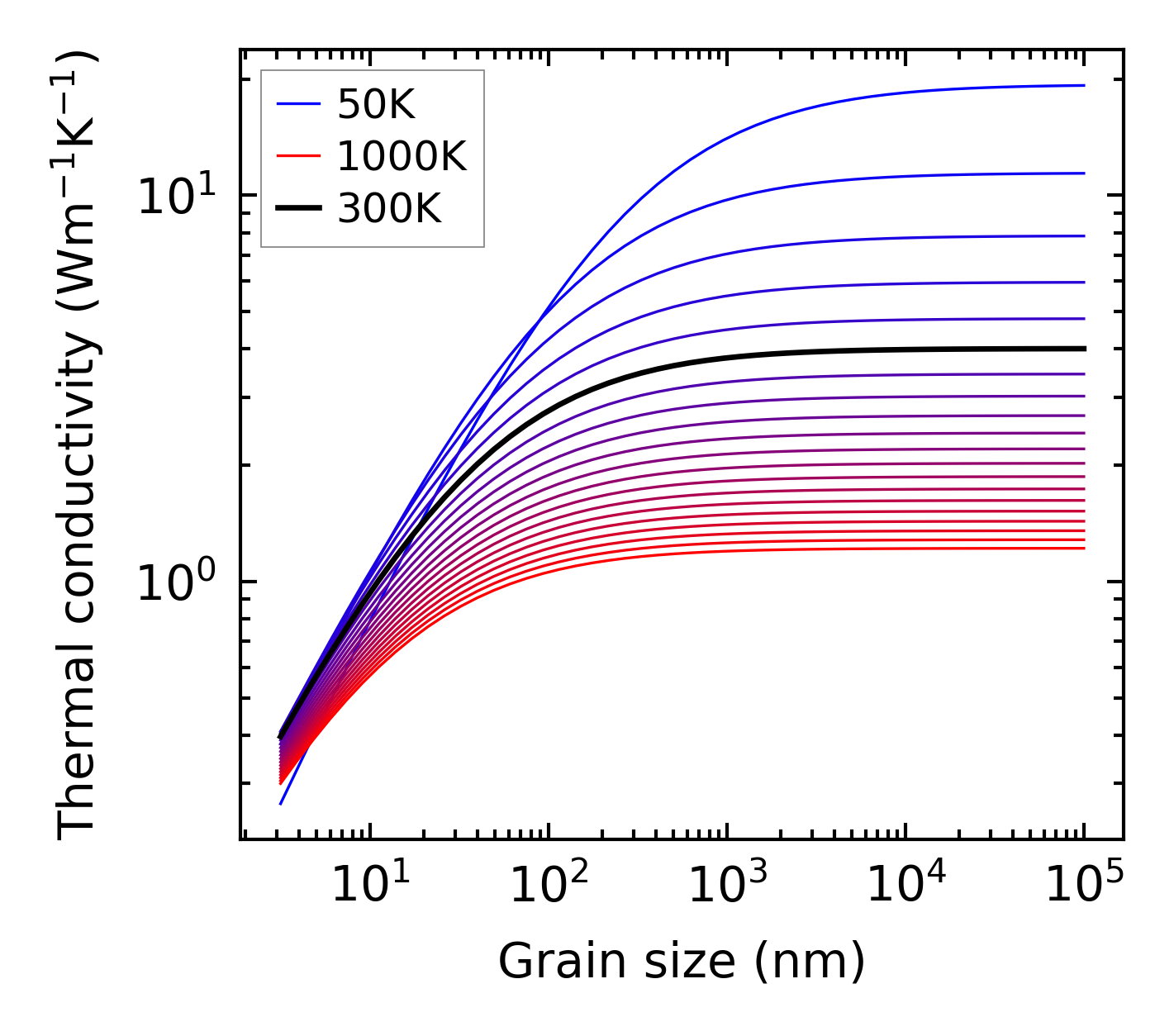

../../_images/fig_kappa_vs_grain_size5142.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

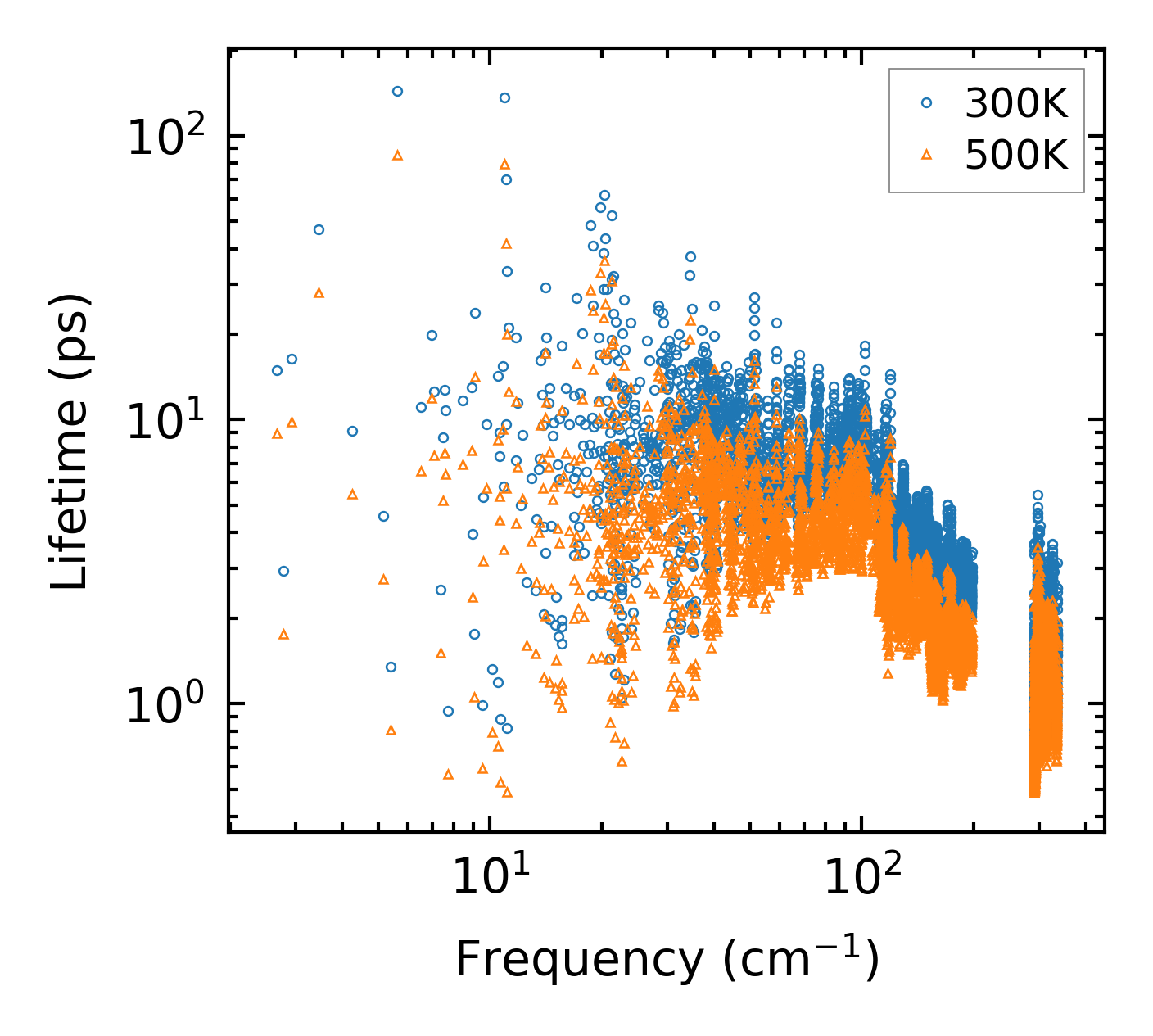

../../_images/fig_lifetime5032.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5031.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

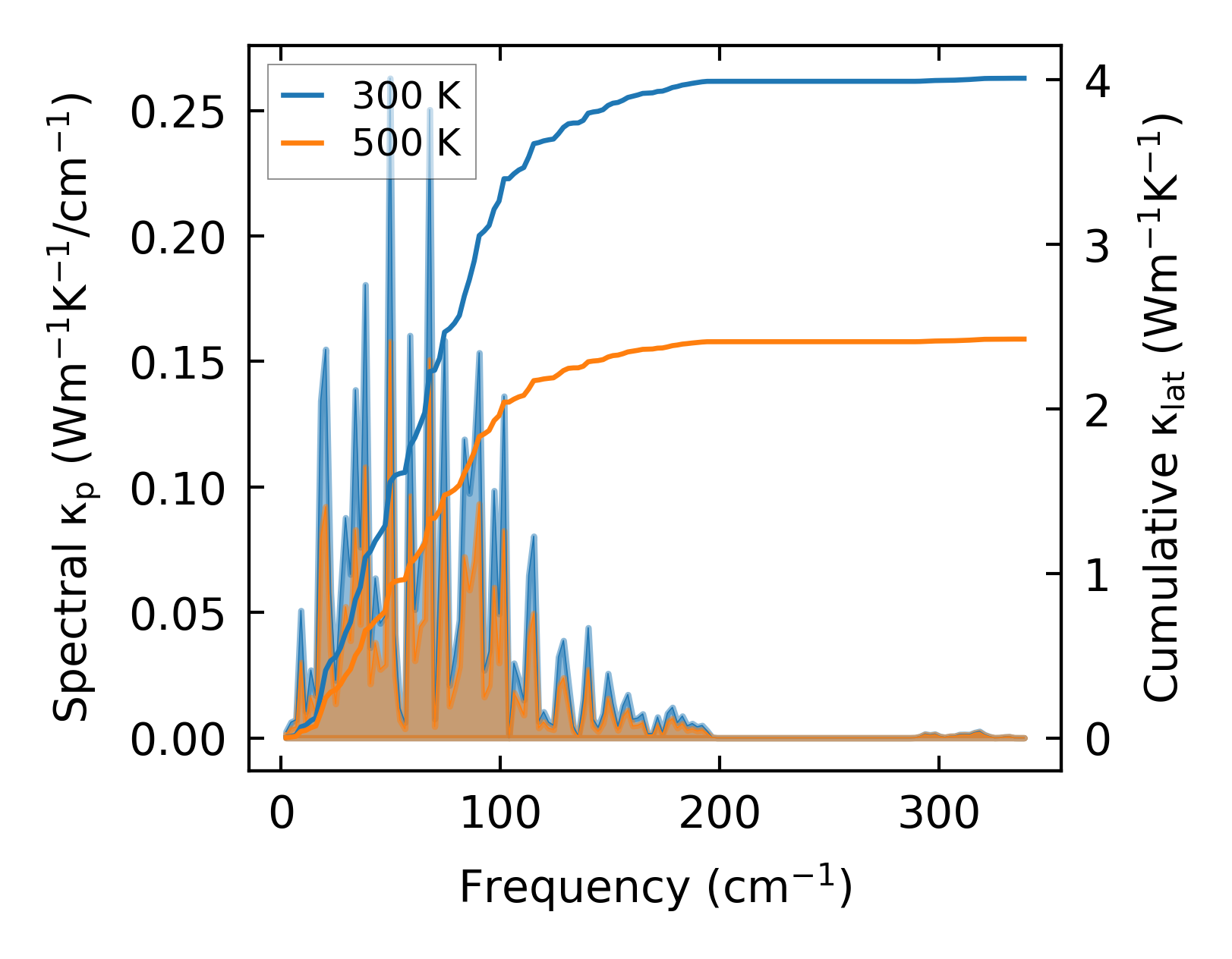

../../_images/fig_cumu_frequency5032.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5031.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

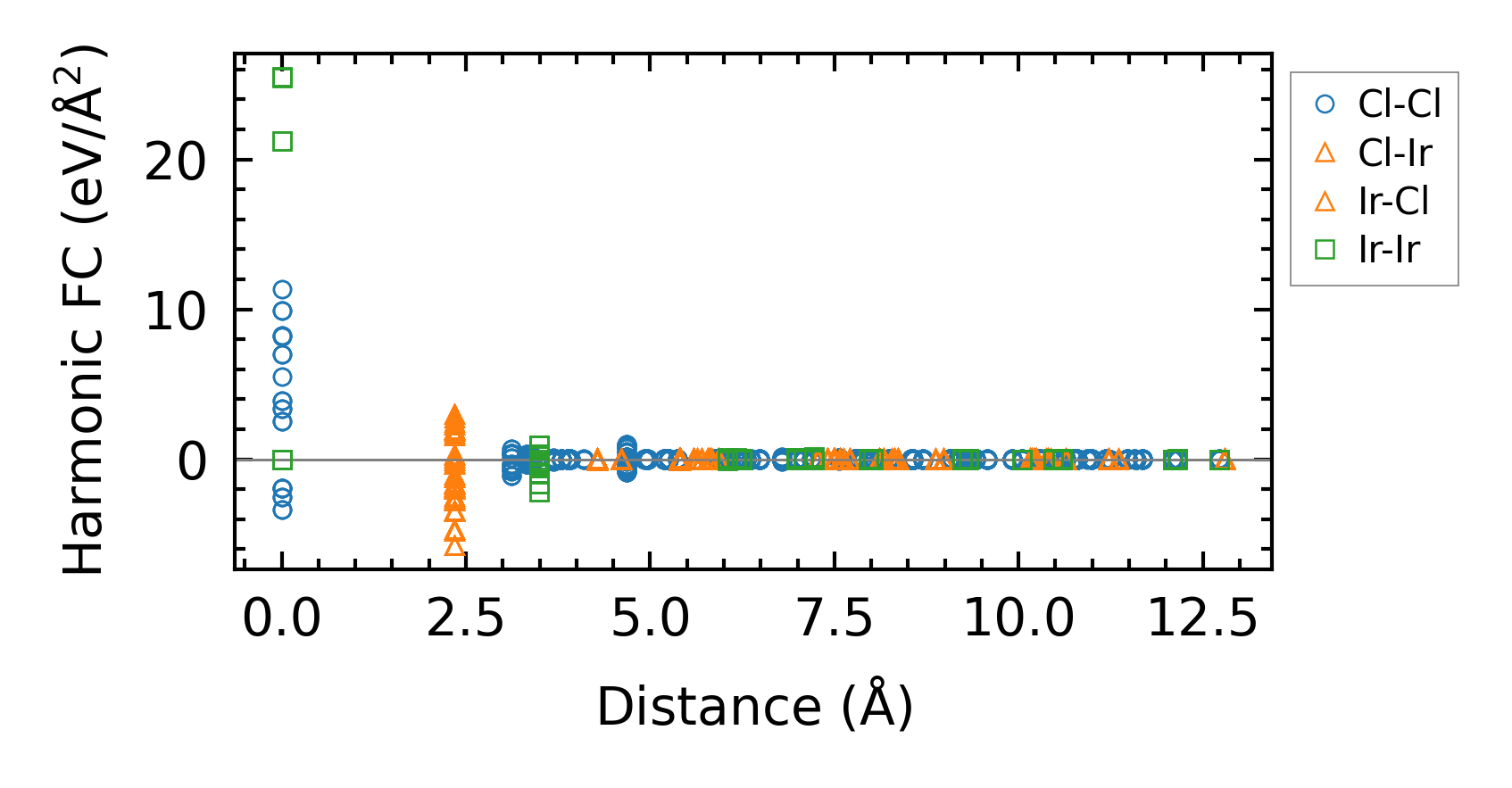

../../_images/fig_fc211878.png — (a) Force constants w.r.t atomic distance

Summary

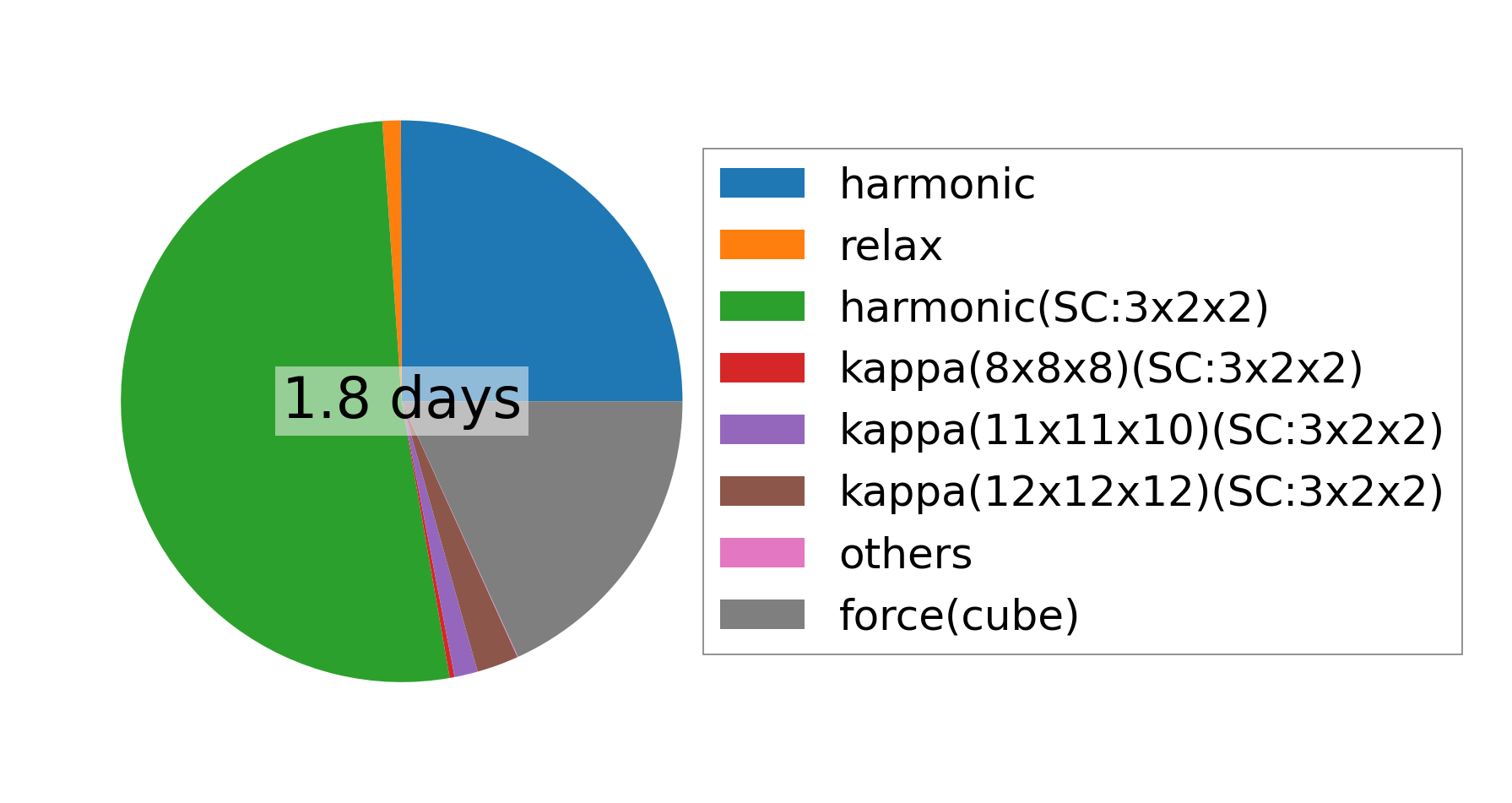

../../_images/fig_times20636.png — (a) Computation time
