mp-27697-2/ThI4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-27697-2.tar.gz

Equation of state

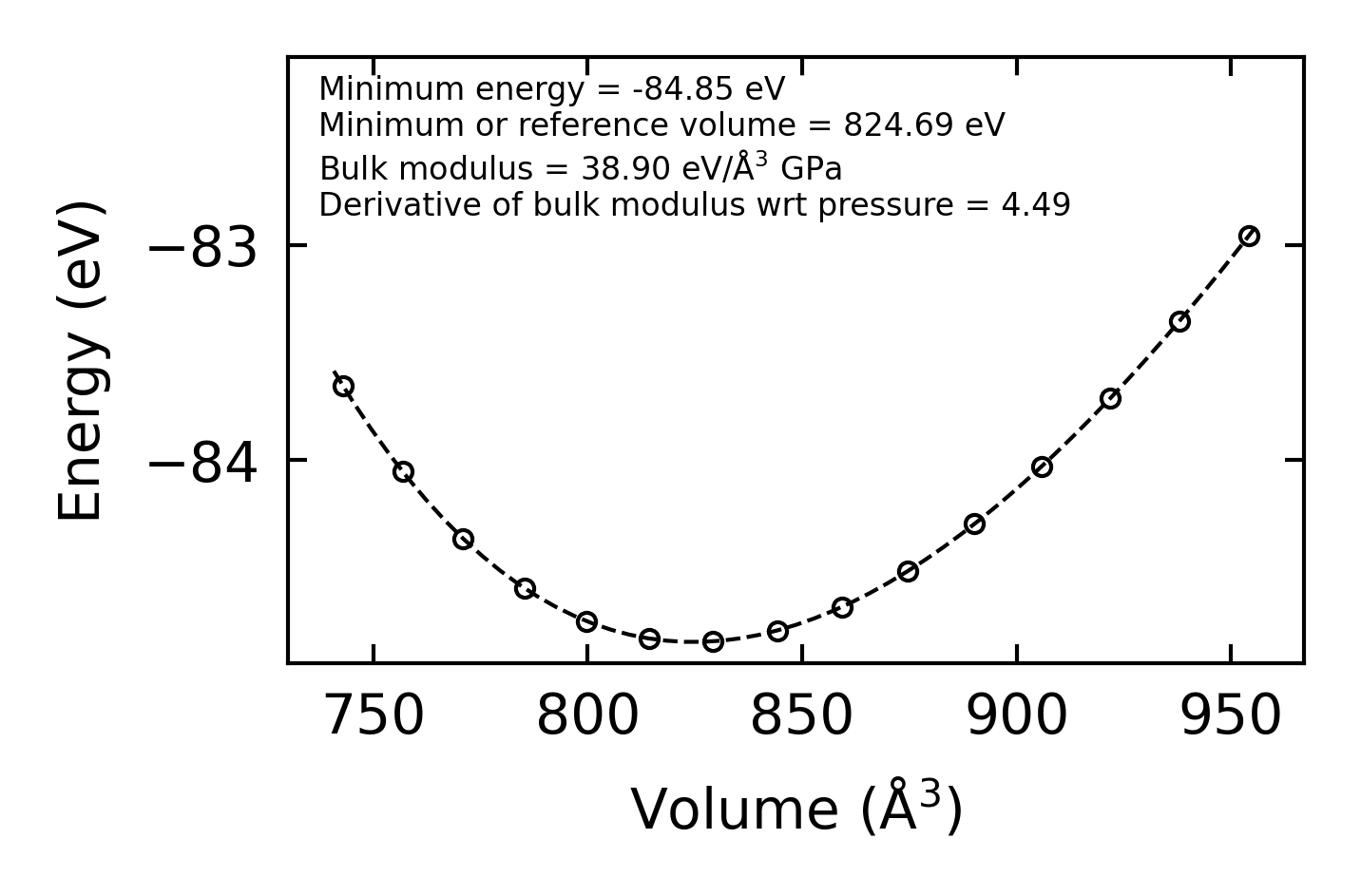

../../_images/fig_bm5988.png — (a) Equation of state

Harmonic properties

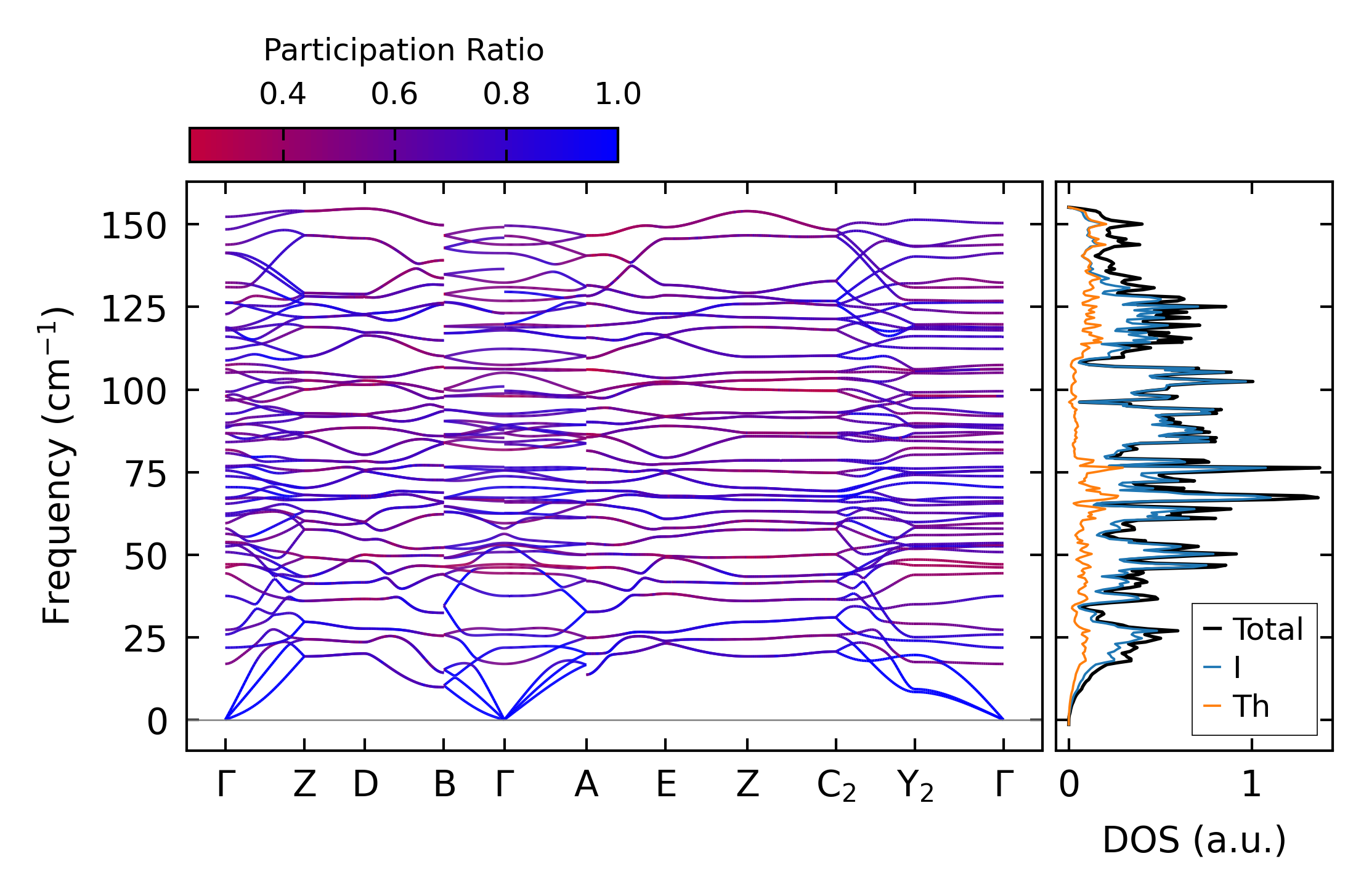

../../_images/fig_bandos_pr12190.png — (a) Phonon dispersion with participation ratio and DOS

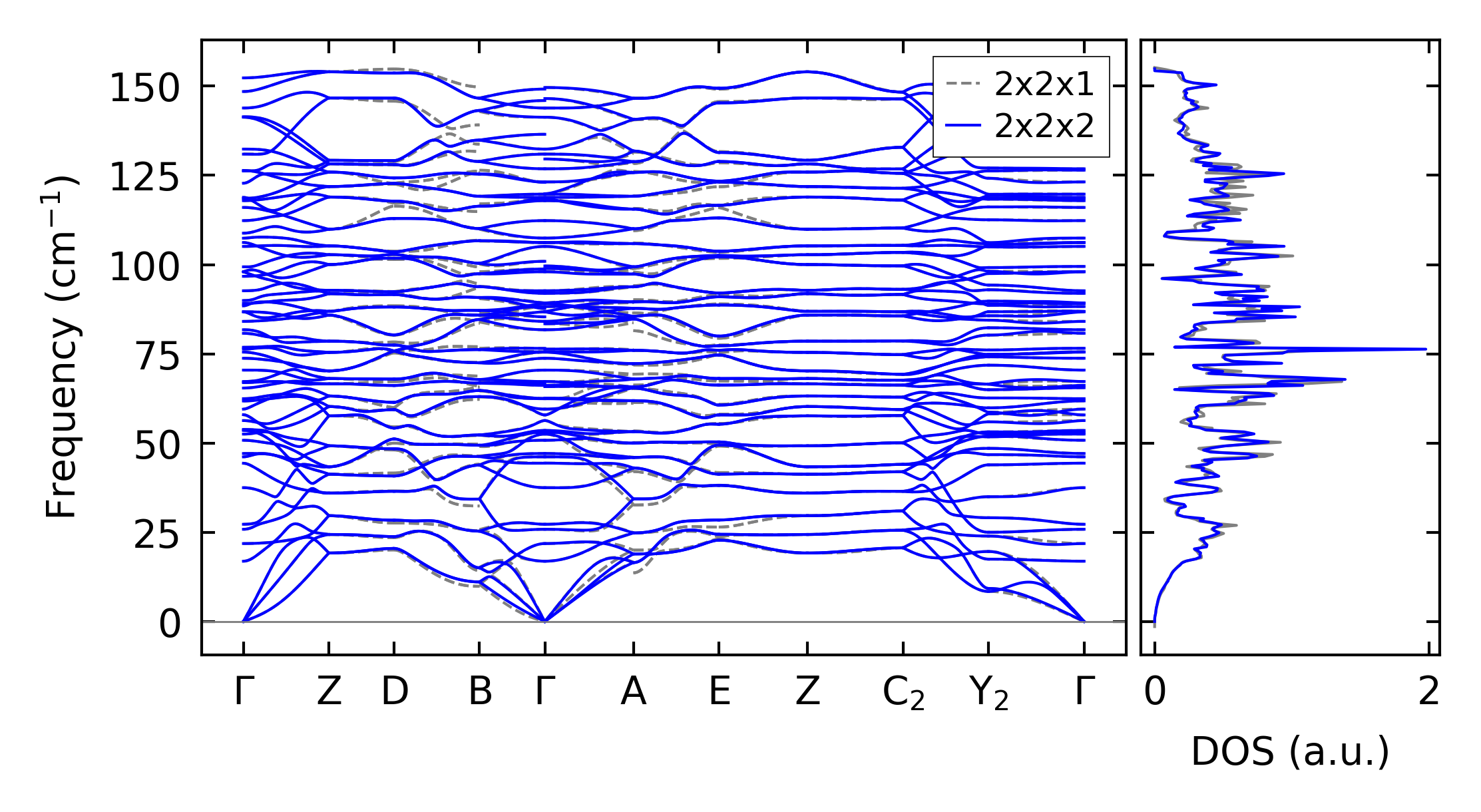

../../_images/fig_bandos16313.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12190.png — (c) Thermodynamic properties

Grüneisen parameters

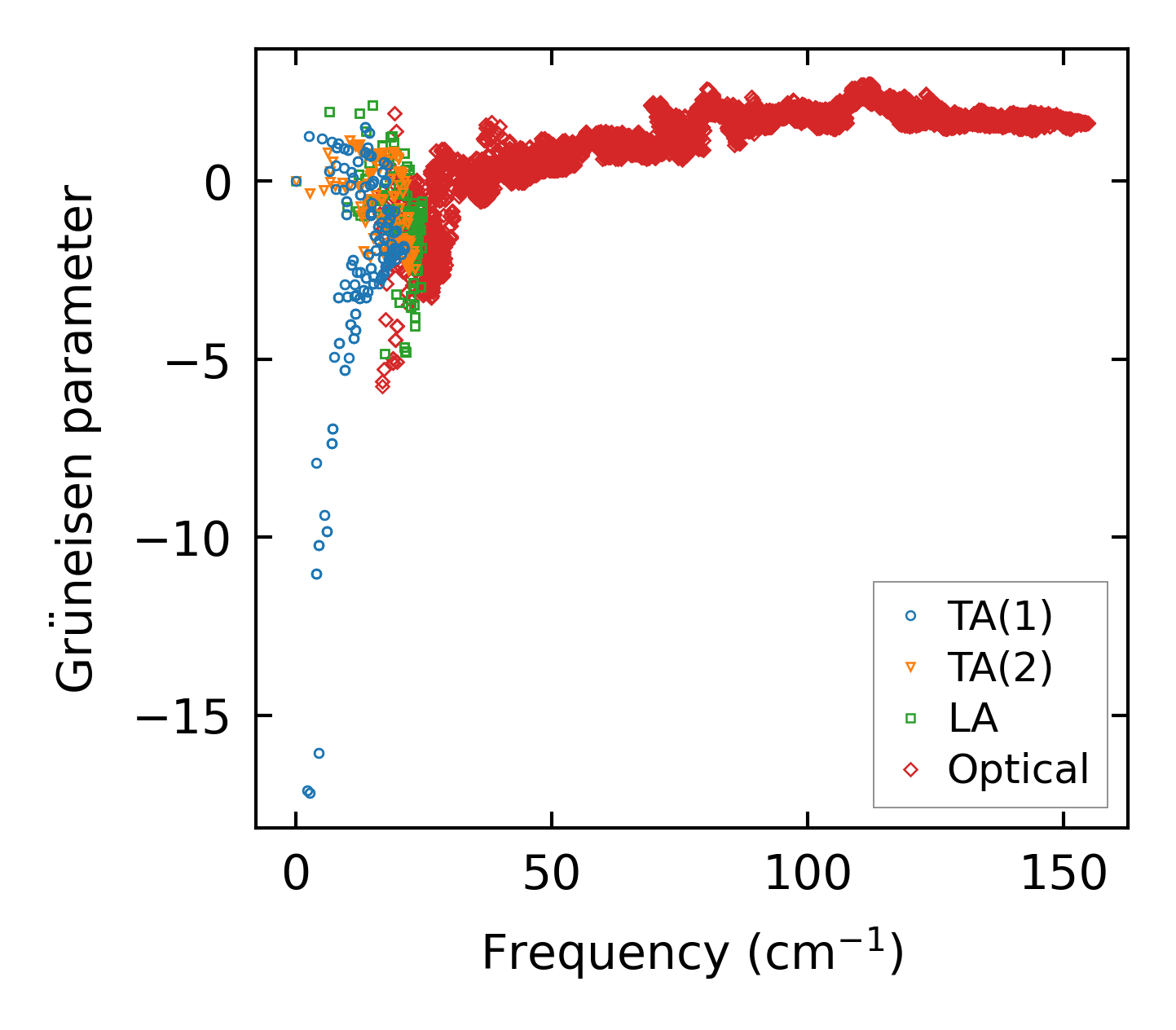

../../_images/fig_gru_all5088.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5088.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 9x9x5, supercell: 2x2x2

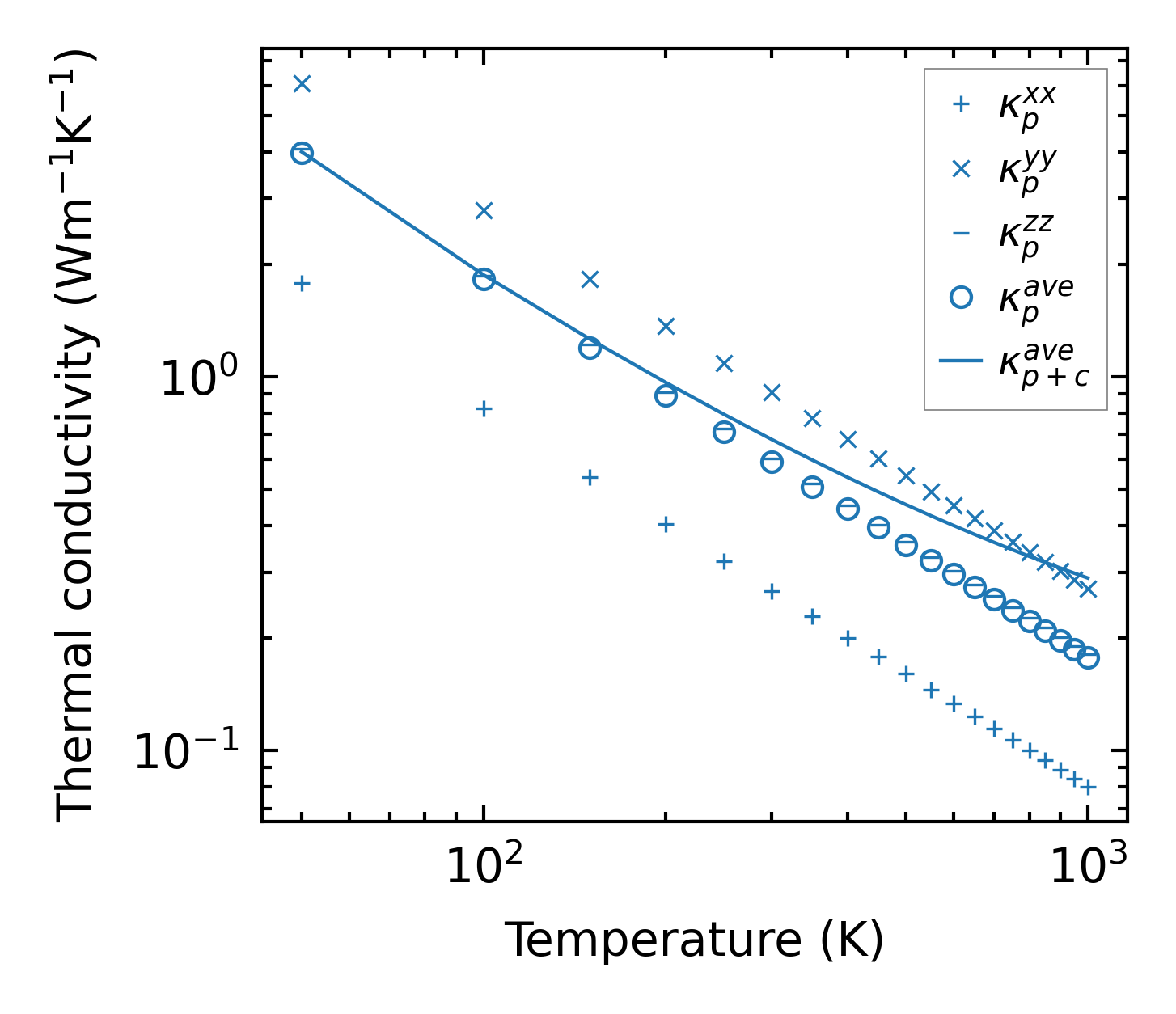

../../_images/fig_kappa9576.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5148.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

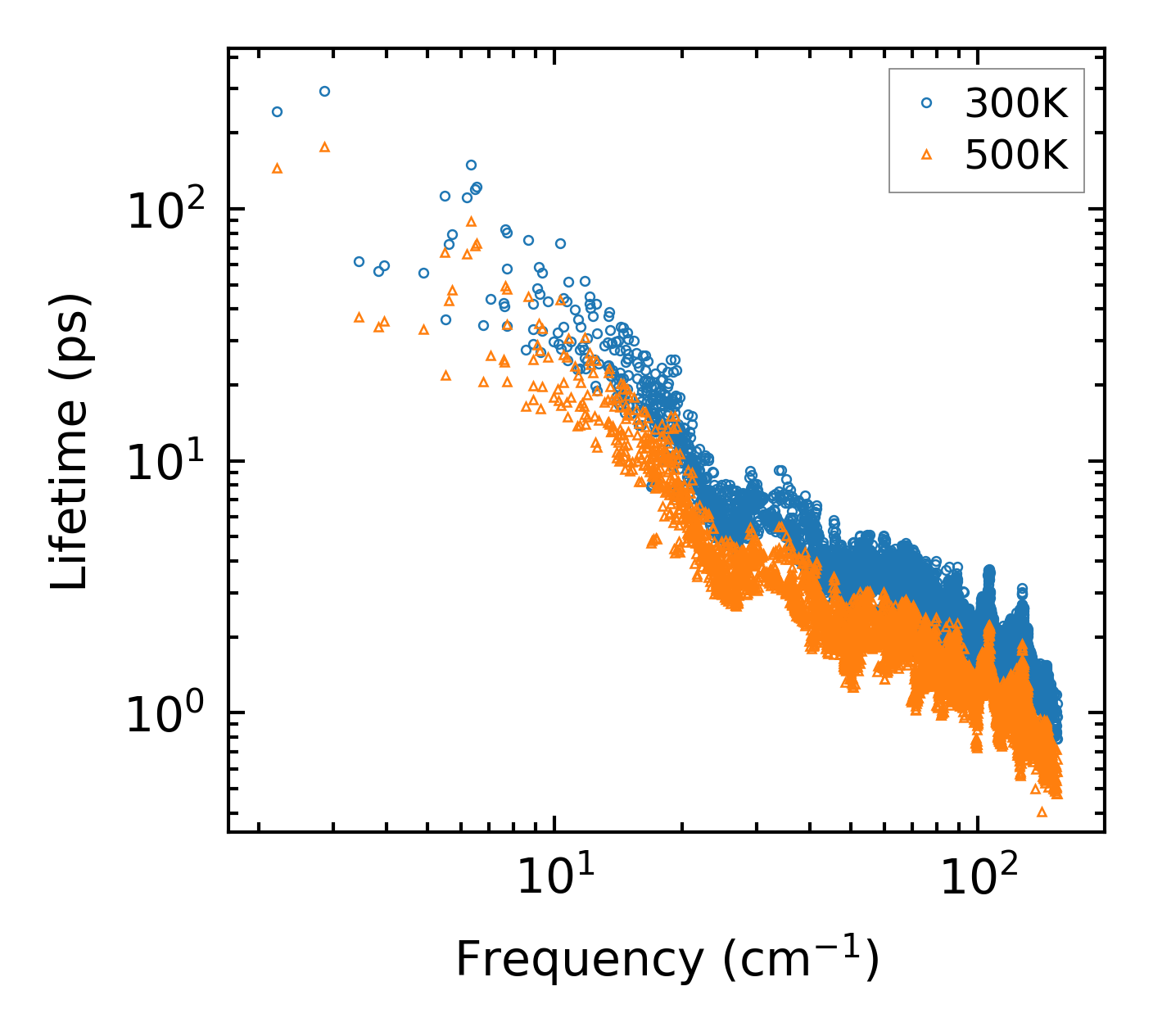

../../_images/fig_lifetime5038.png — (a) Phonon lifetime due to phonon-phonon scattering

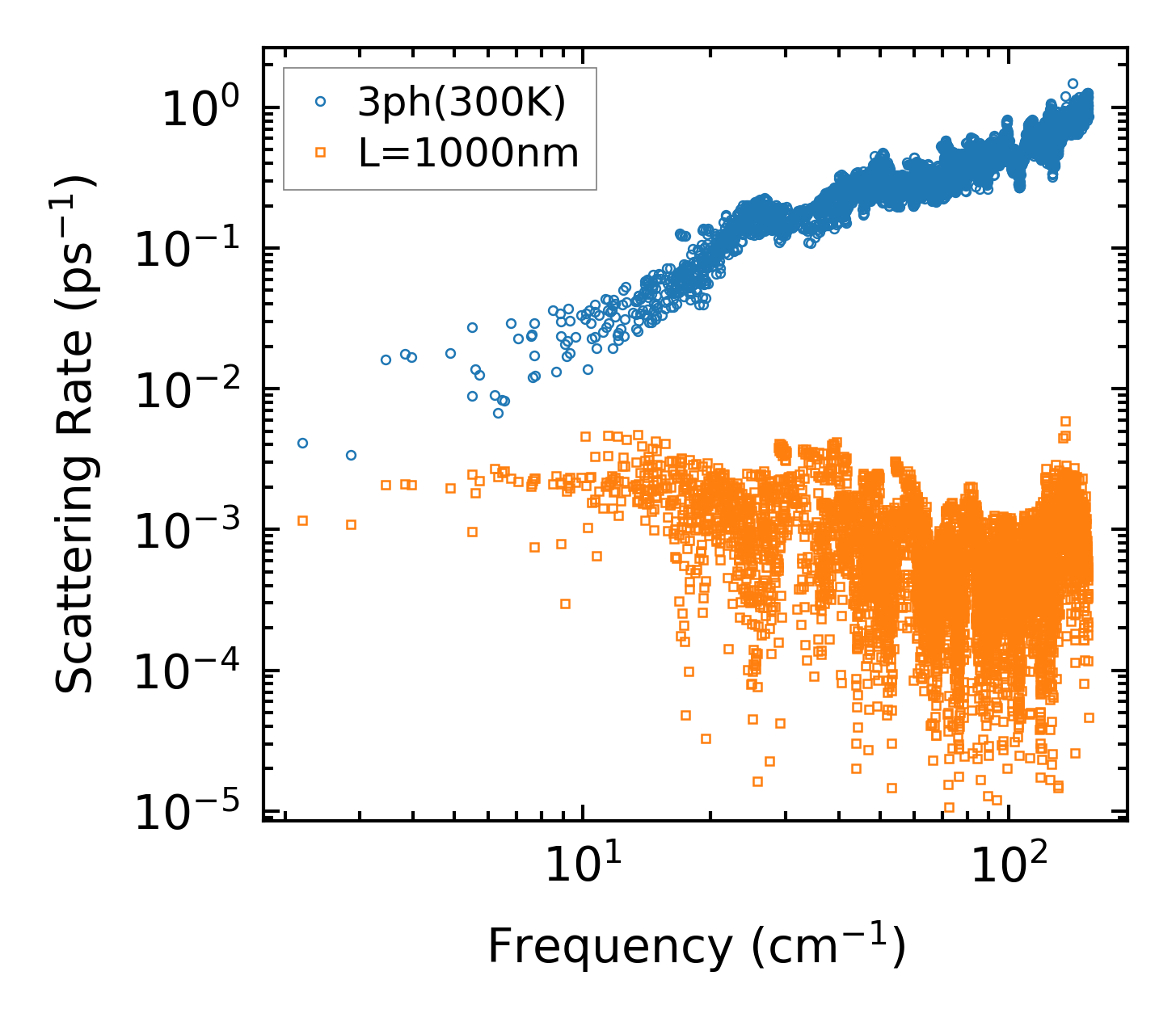

../../_images/fig_scat_rates5037.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5038.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5037.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

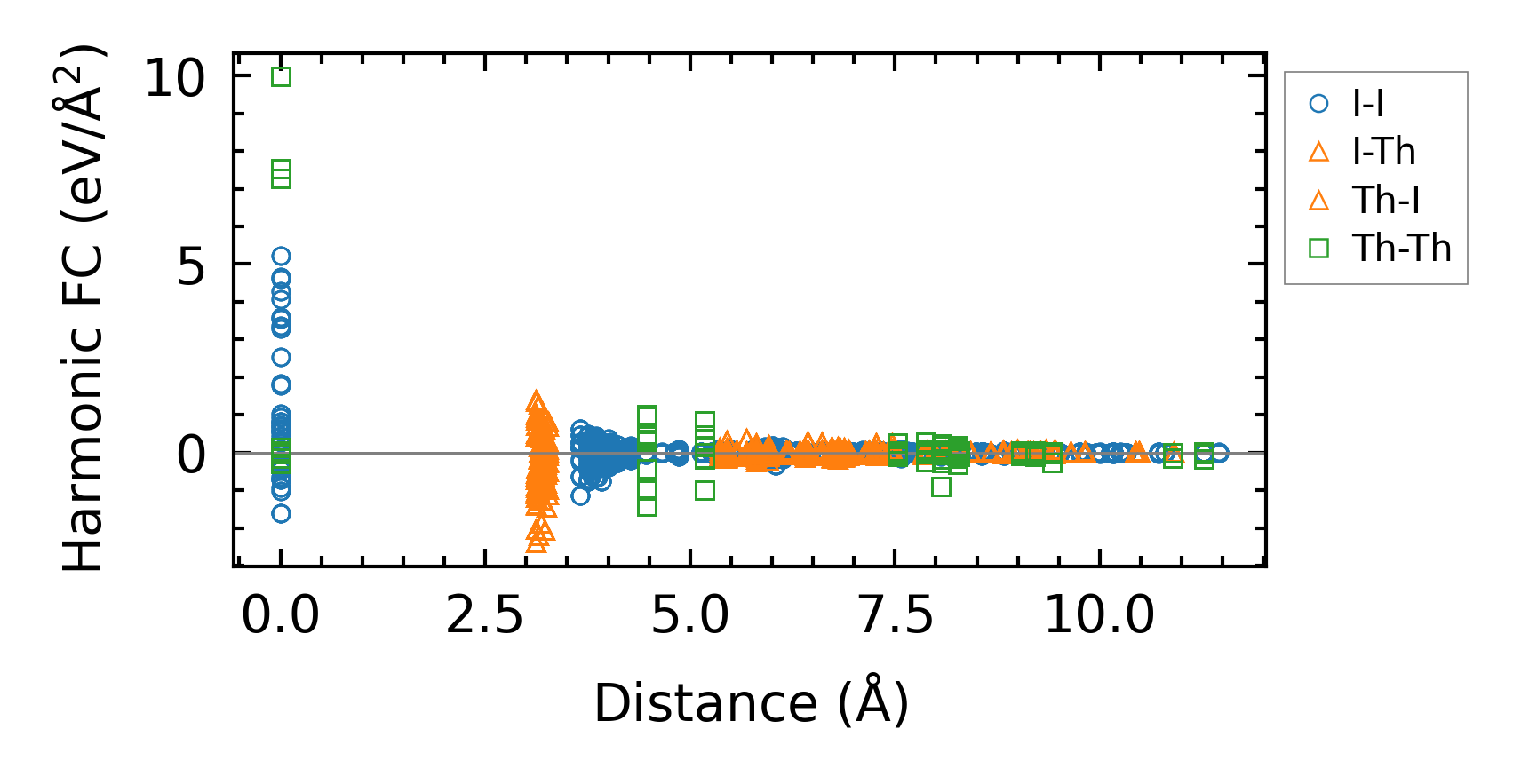

../../_images/fig_fc211890.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times20659.png — (a) Computation time
