mp-27352-2/SrAg6O4/anharm

Space group: Pnna (52)
Link: Materials Project
Download: mp-27352-2.tar.gz

Equation of state

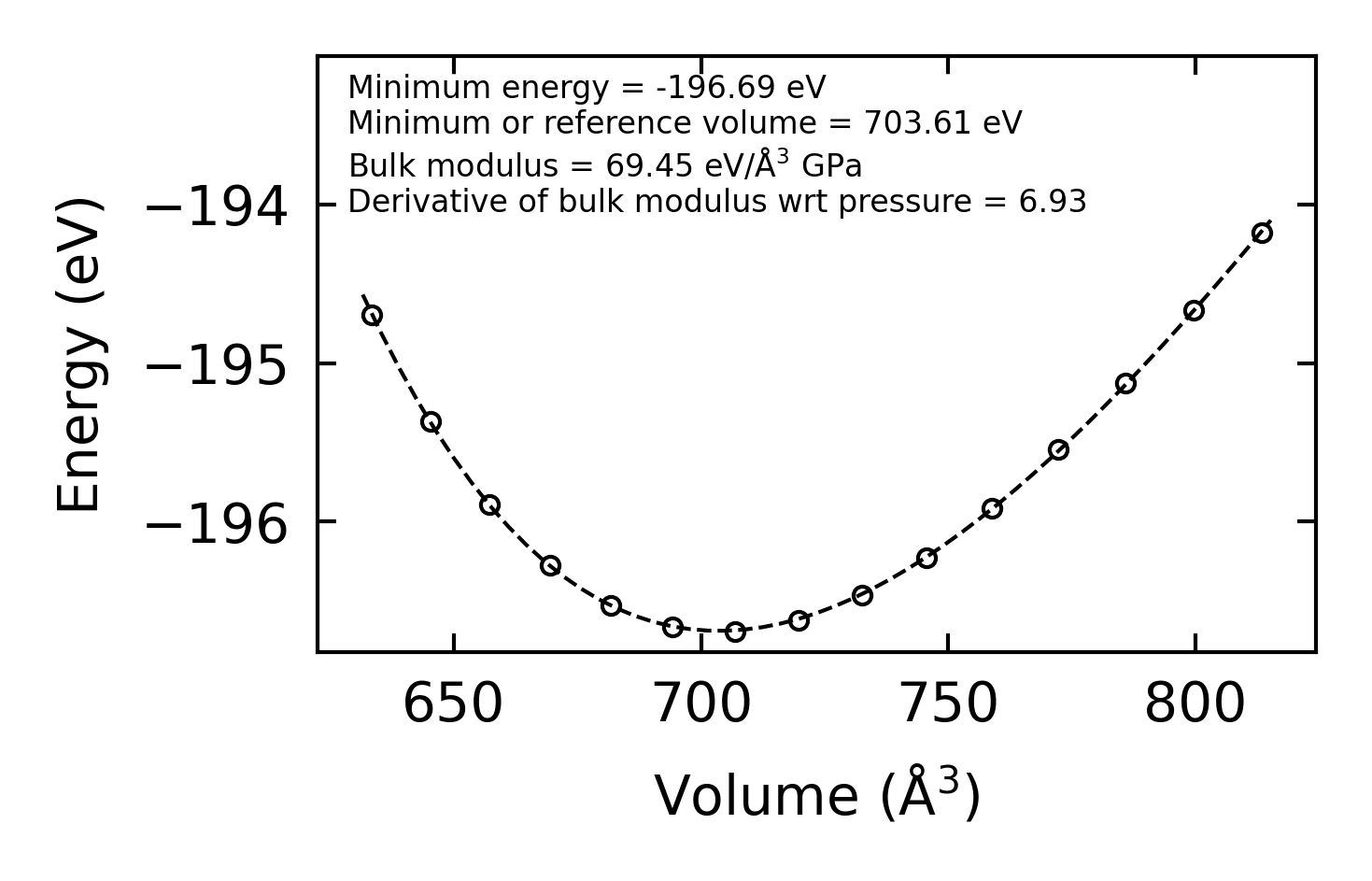

../../_images/fig_bm5892.png — (a) Equation of state

Harmonic properties

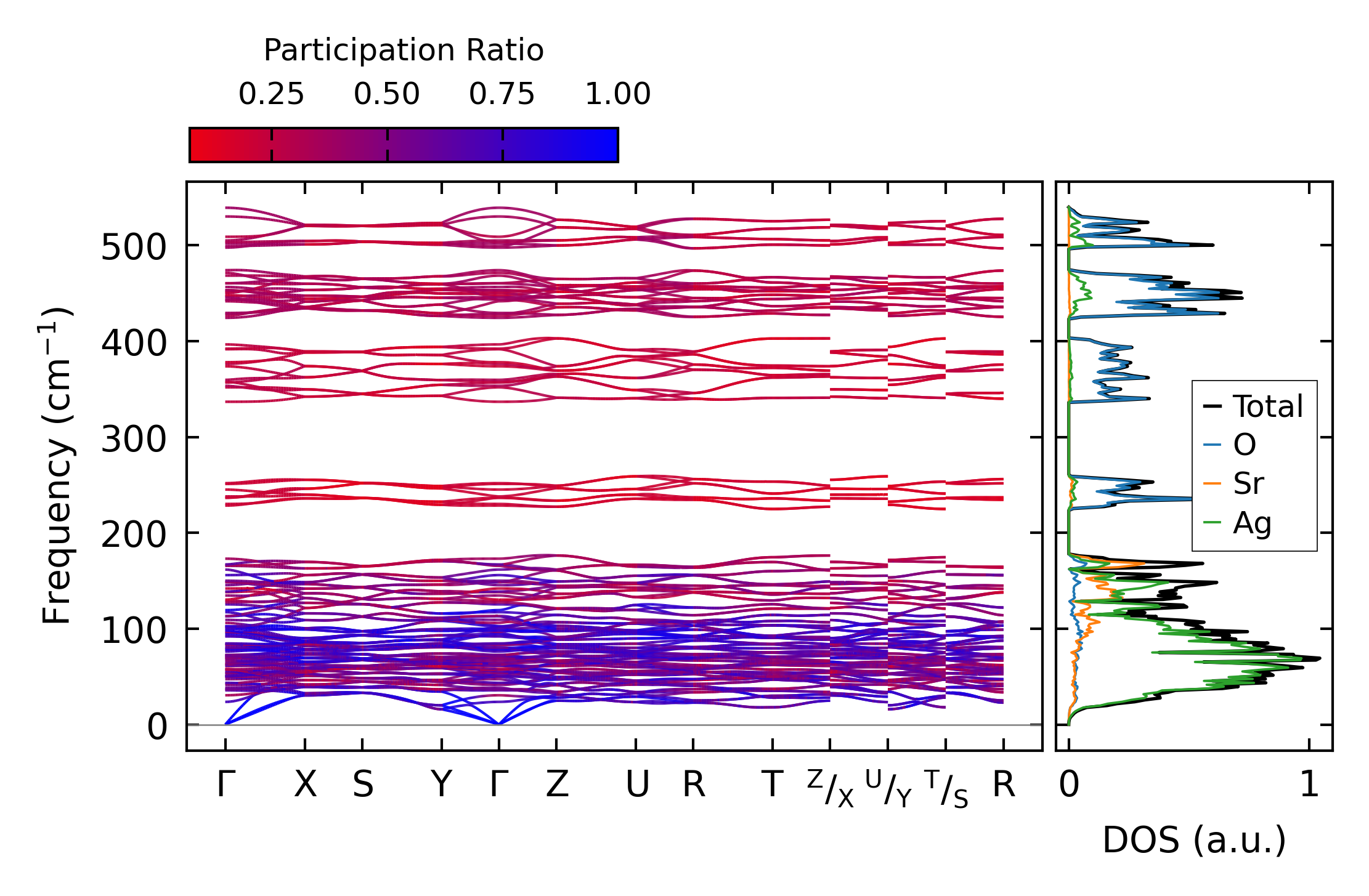

../../_images/fig_bandos_pr12046.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12046.png — (b) Thermodynamic properties

Grüneisen parameters

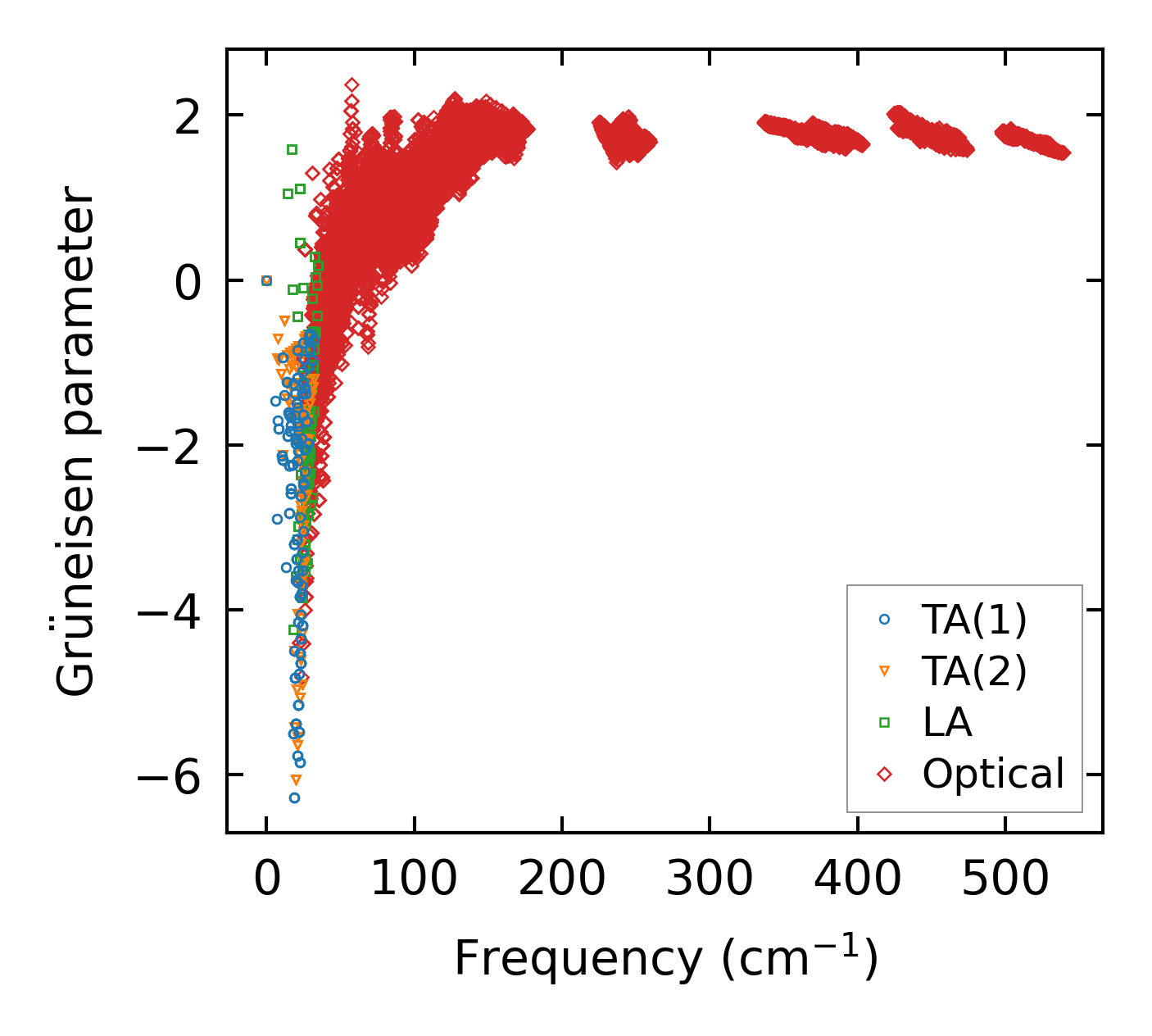

../../_images/fig_gru_all5021.png — (a) Grüneisen parameters

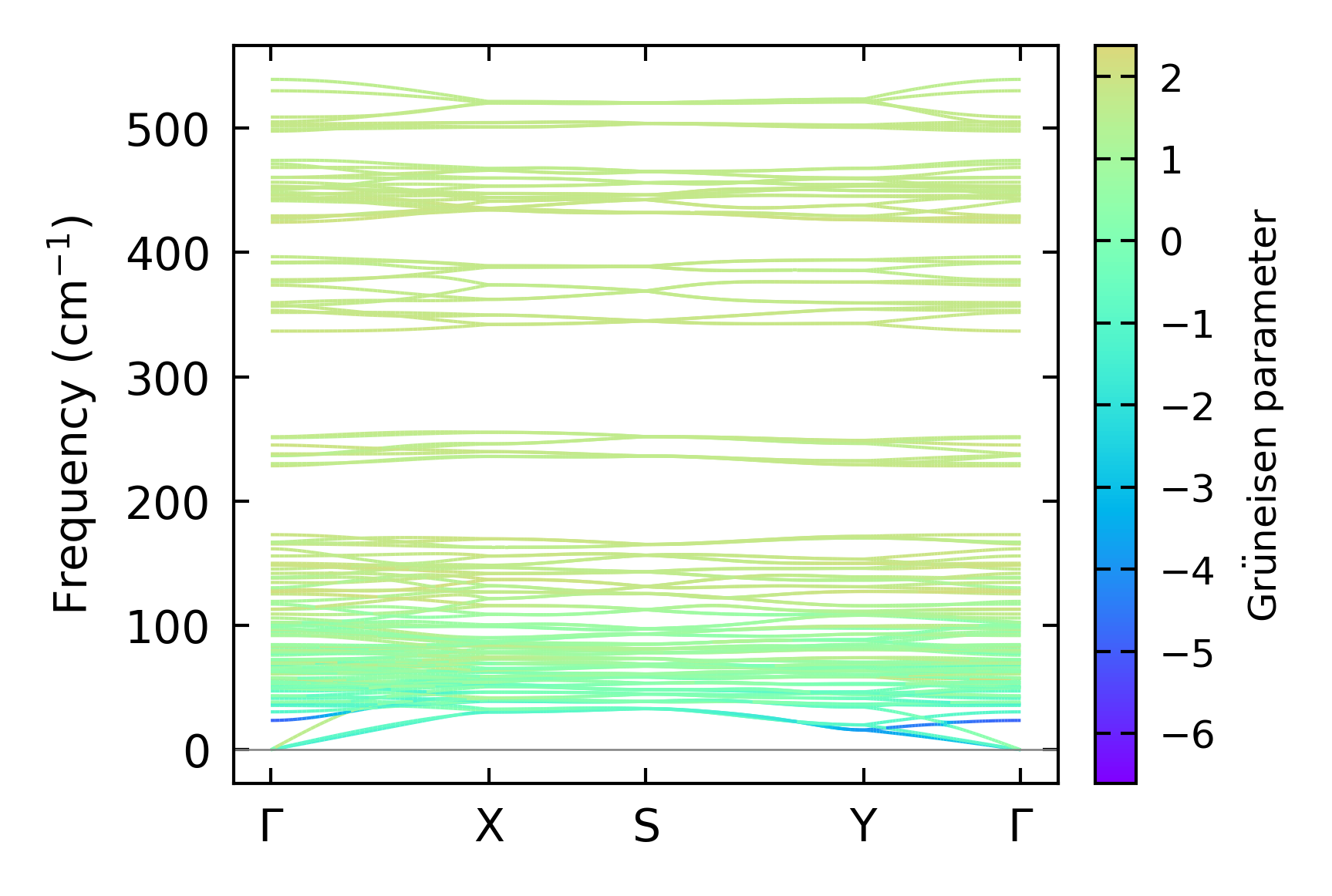

../../_images/fig_gruneisen5021.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x5x8, supercell: 2x1x1

../../_images/fig_kappa9462.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5080.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4971.png — (a) Phonon lifetime due to phonon-phonon scattering

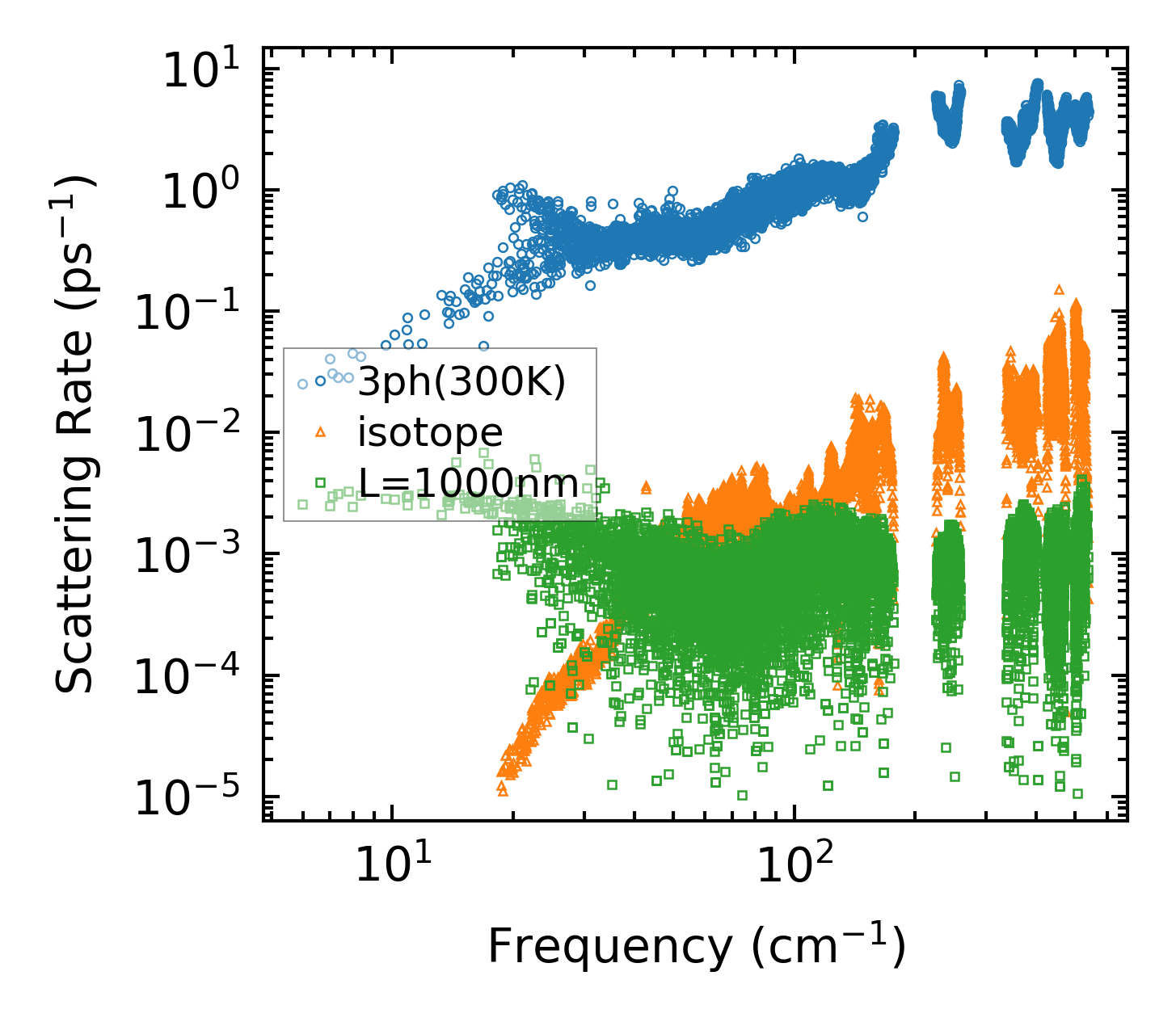

../../_images/fig_scat_rates4970.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4971.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4970.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

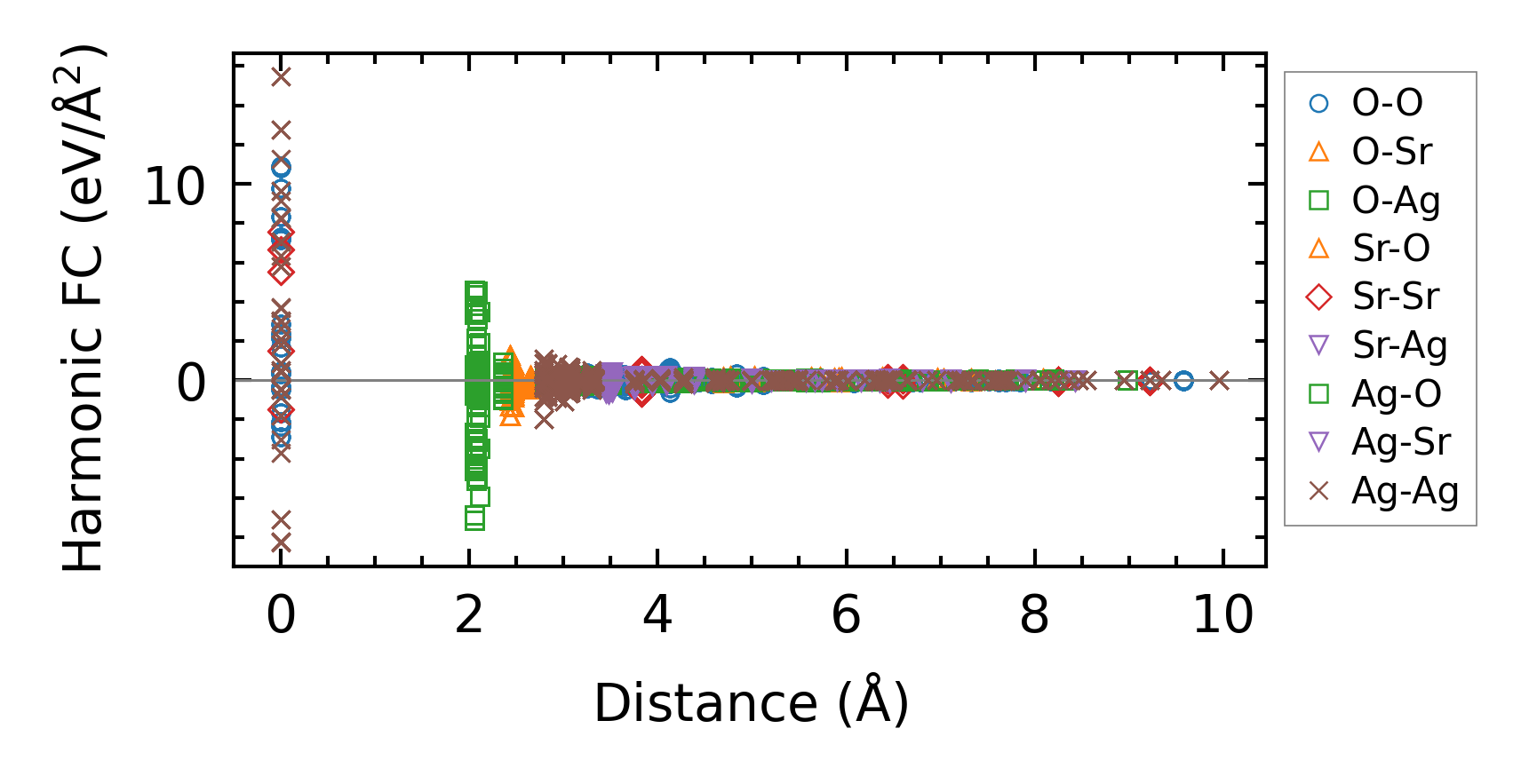

../../_images/fig_fc211748.png — (a) Force constants w.r.t atomic distance

Summary

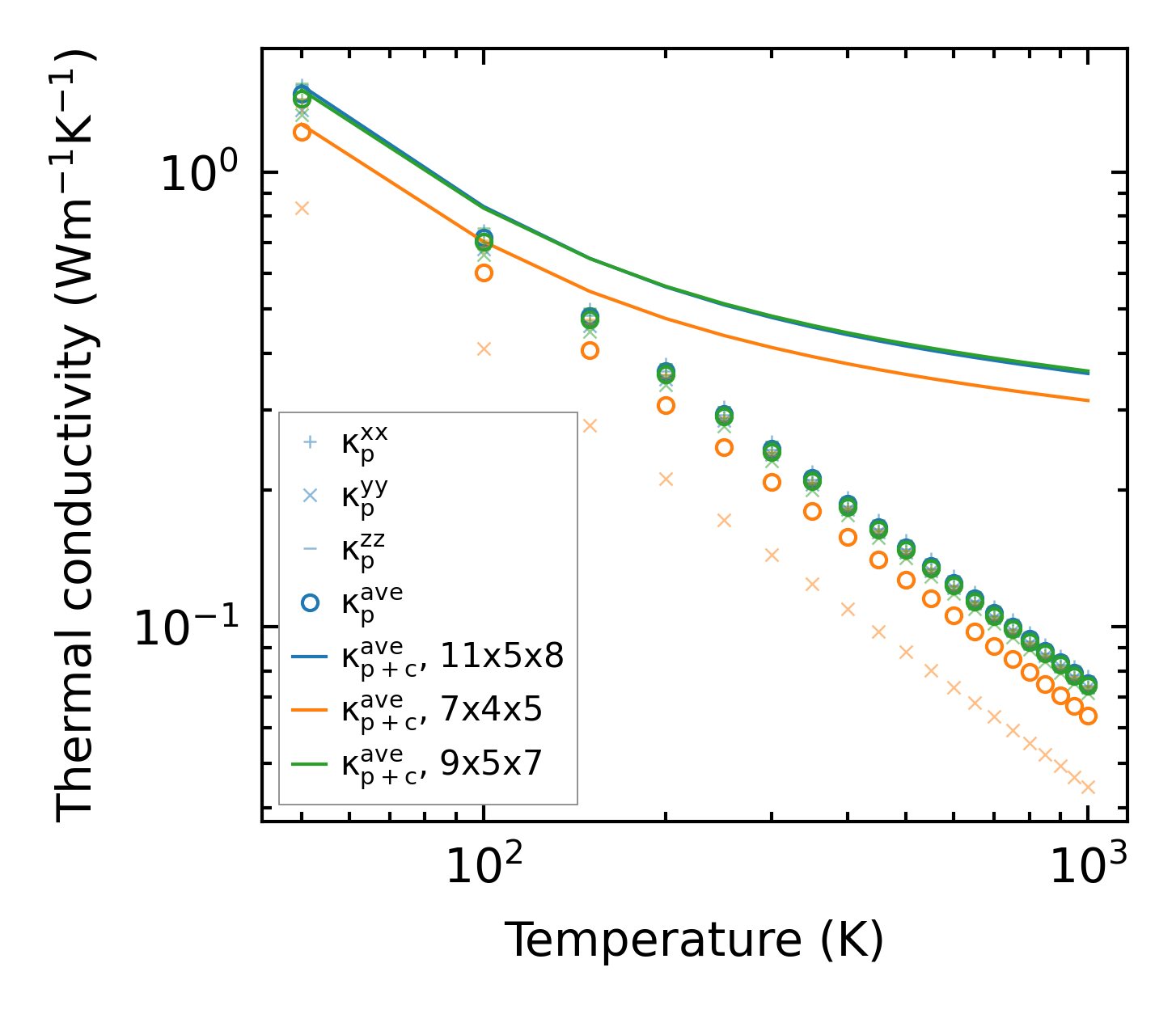

../../_images/fig_kappa9463.png — (a) Temperature-dependent lattice thermal conductivity

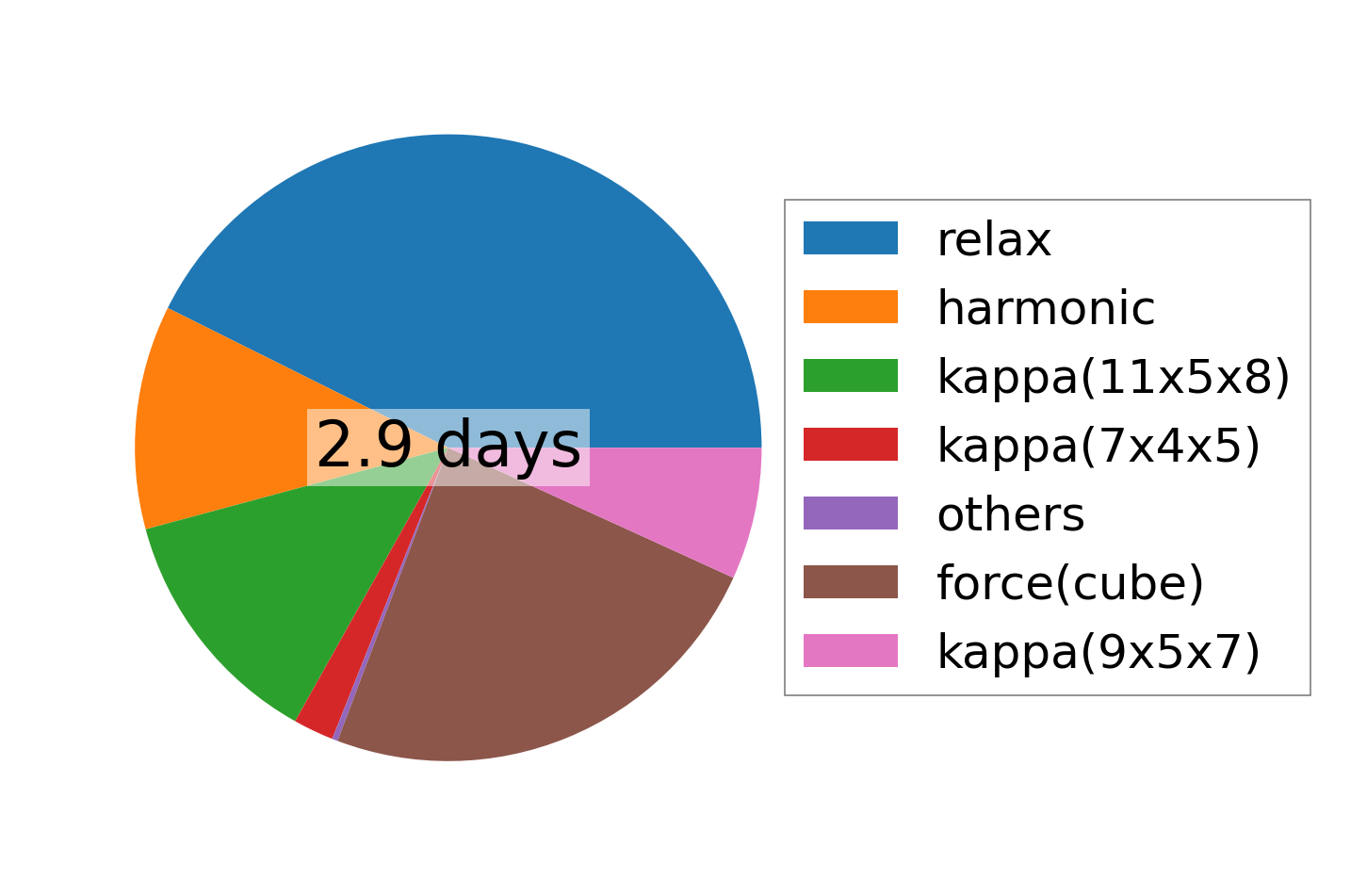

../../_images/fig_times20420.png — (b) Computation time
