mp-27397/IrBr3/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-27397.tar.gz

Equation of state

../../_images/fig_bm5910.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr12073.png — (a) Phonon dispersion with participation ratio and DOS

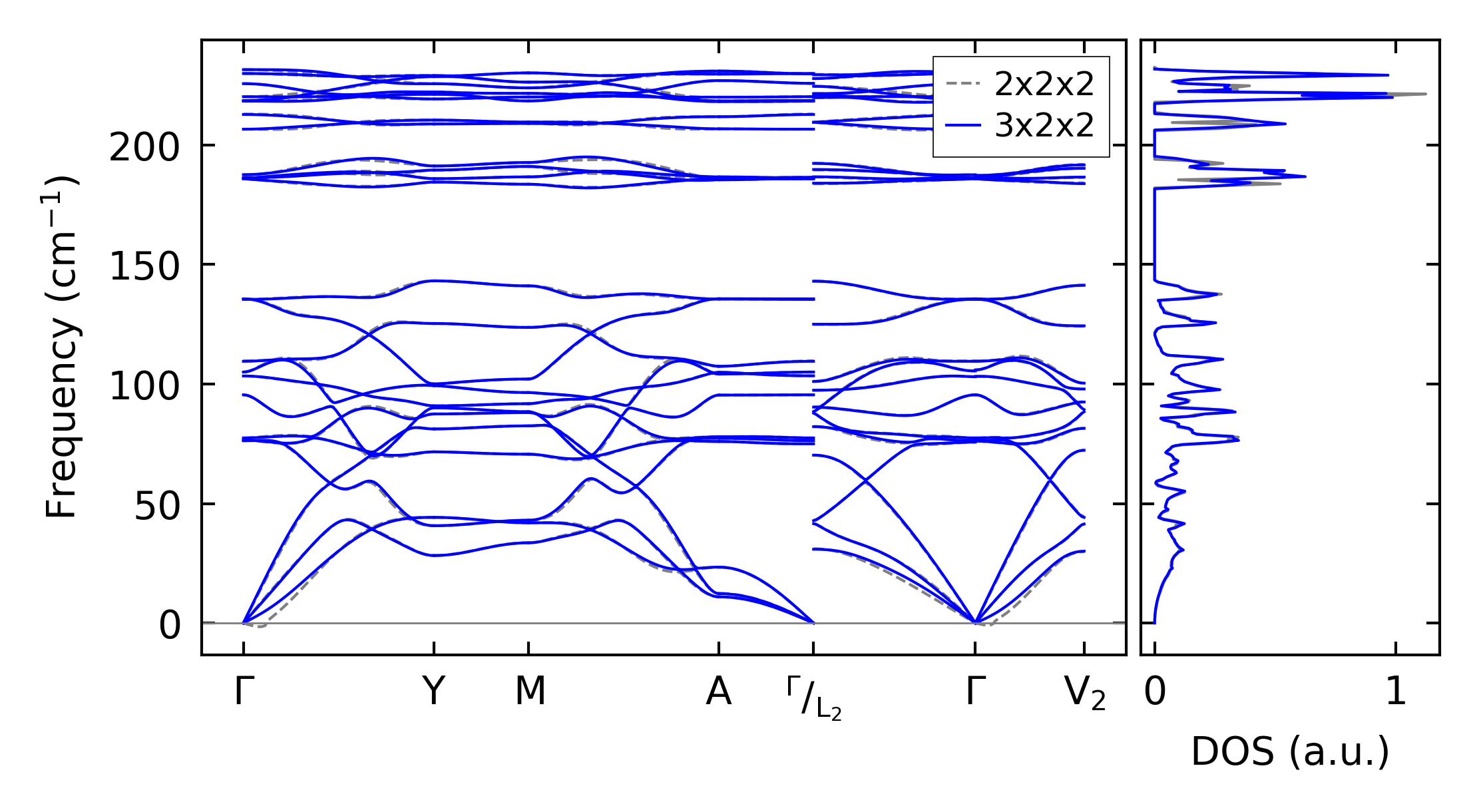

../../_images/fig_bandos16150.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12073.png — (c) Thermodynamic properties

Grüneisen parameters

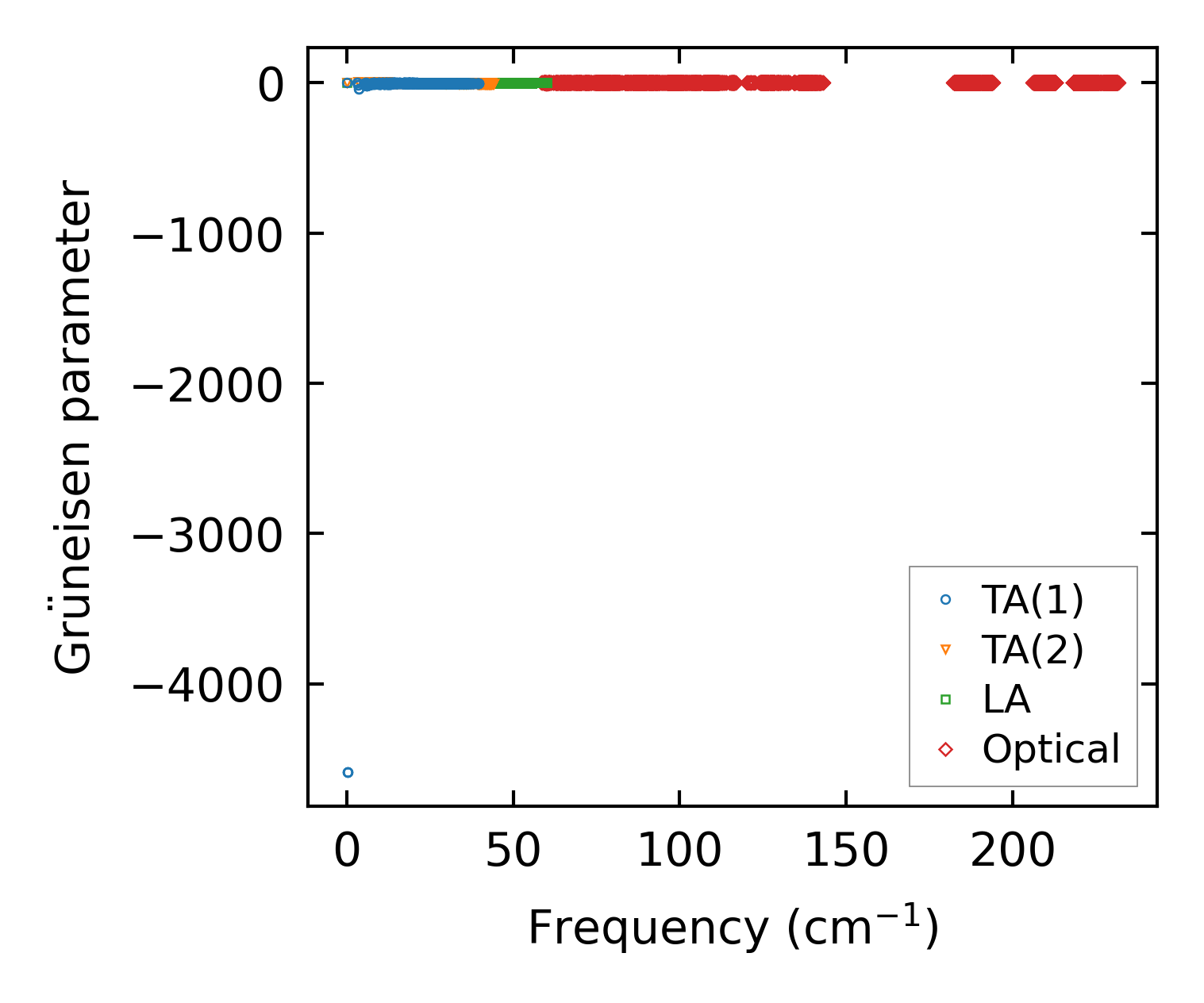

../../_images/fig_gru_all5033.png — (a) Grüneisen parameters

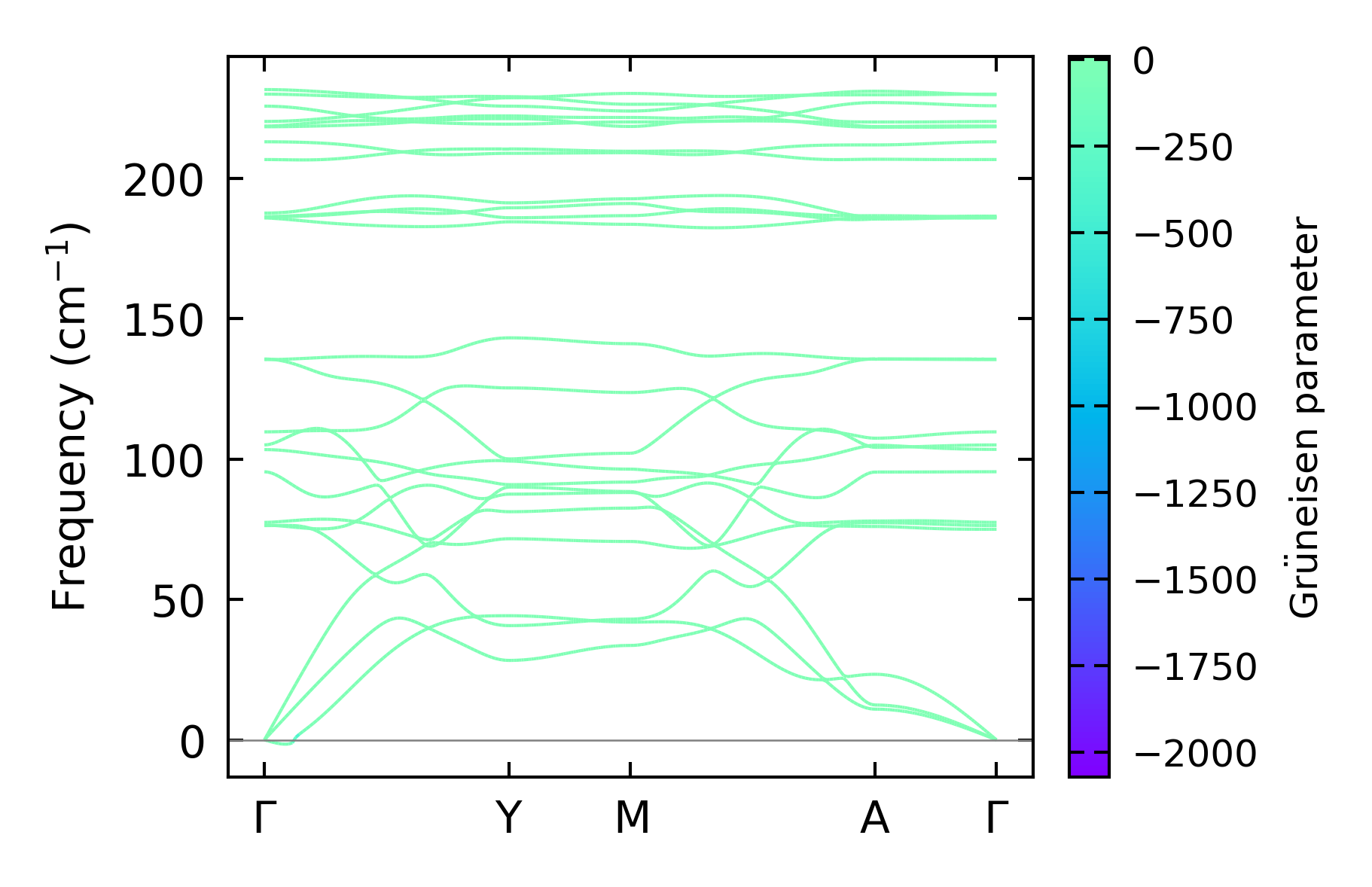

../../_images/fig_gruneisen5033.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x2x2 — q-mesh: 12x12x11, supercell: 3x2x2

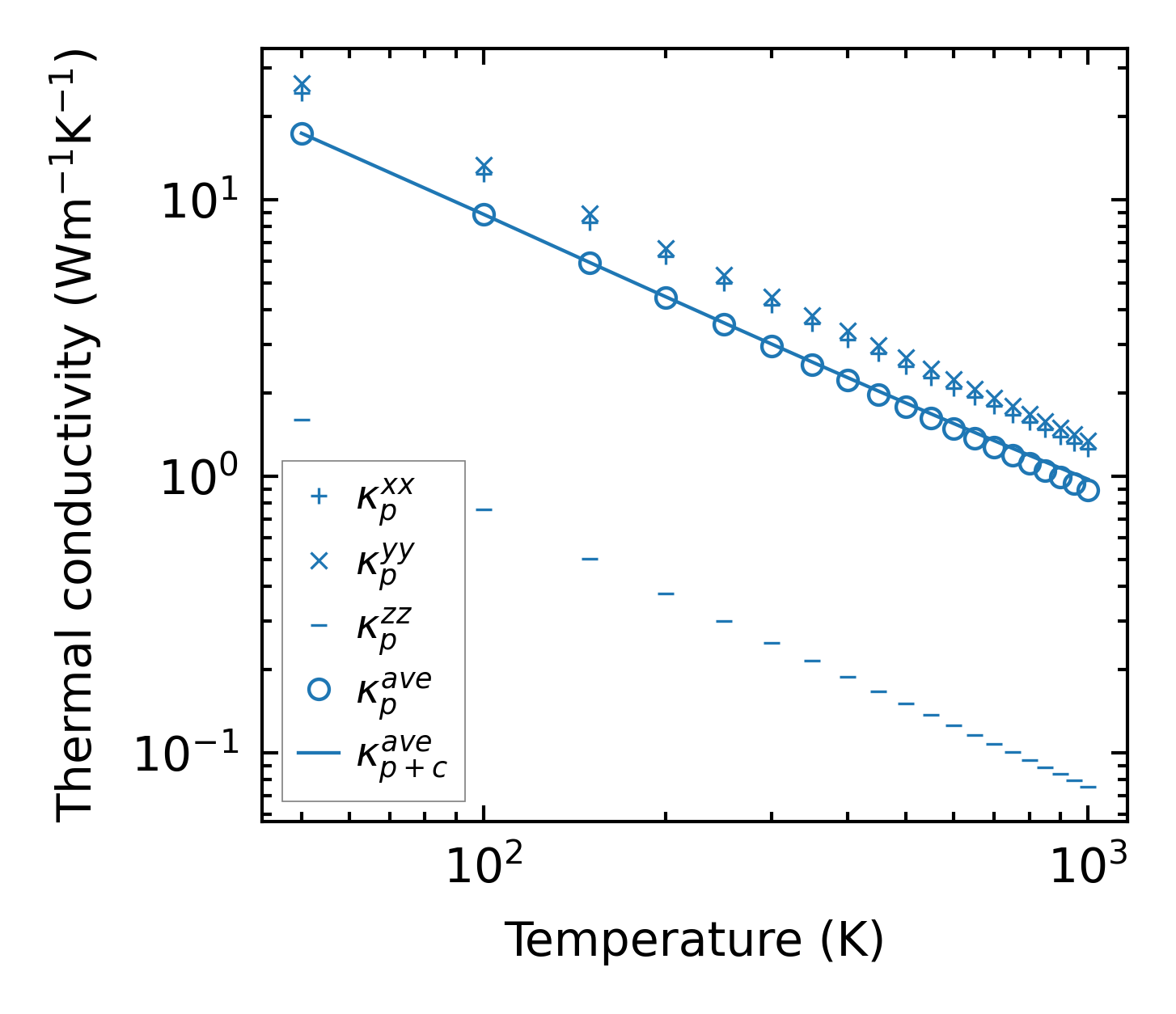

../../_images/fig_kappa9481.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5092.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4983.png — (a) Phonon lifetime due to phonon-phonon scattering

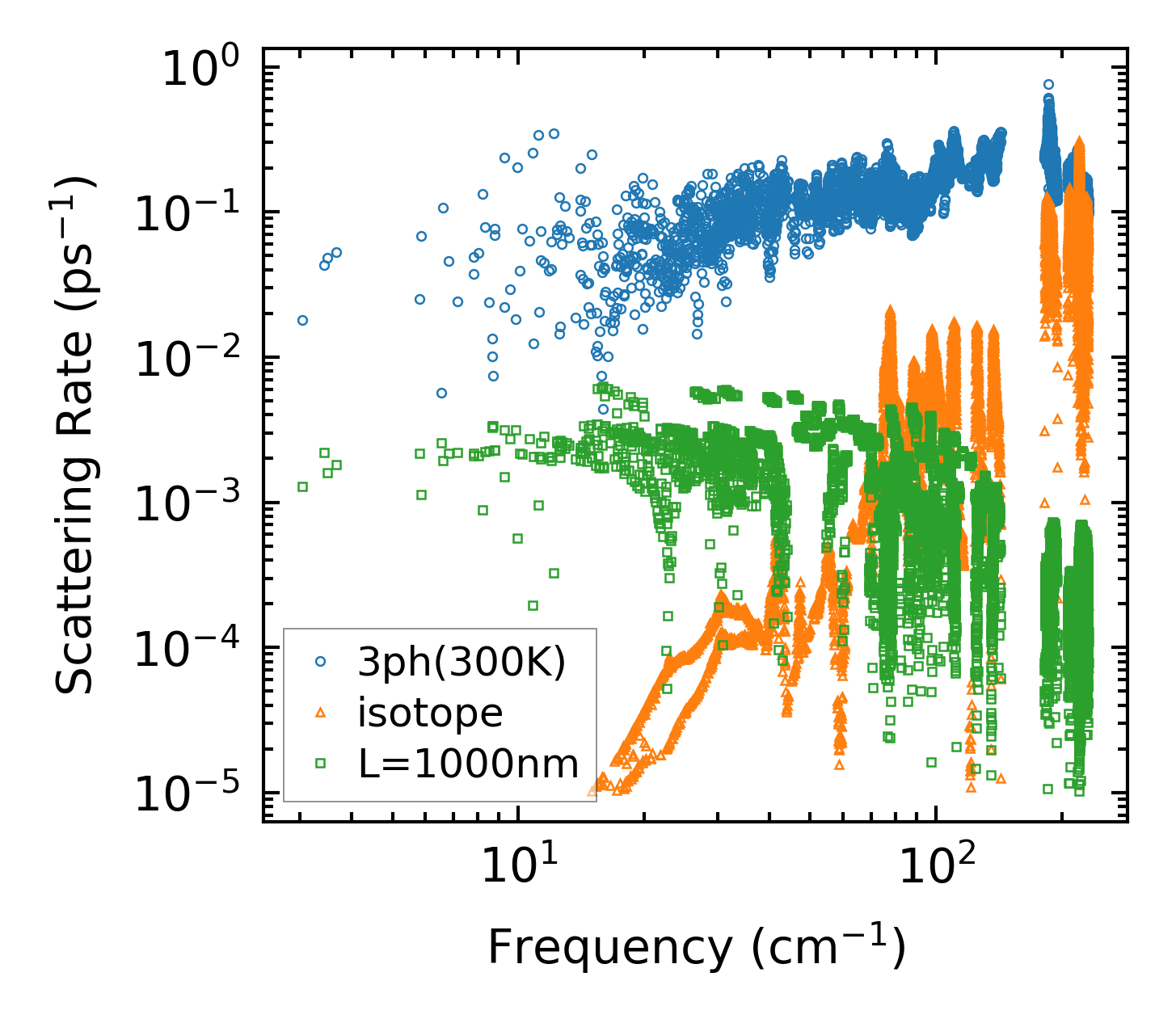

../../_images/fig_scat_rates4982.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

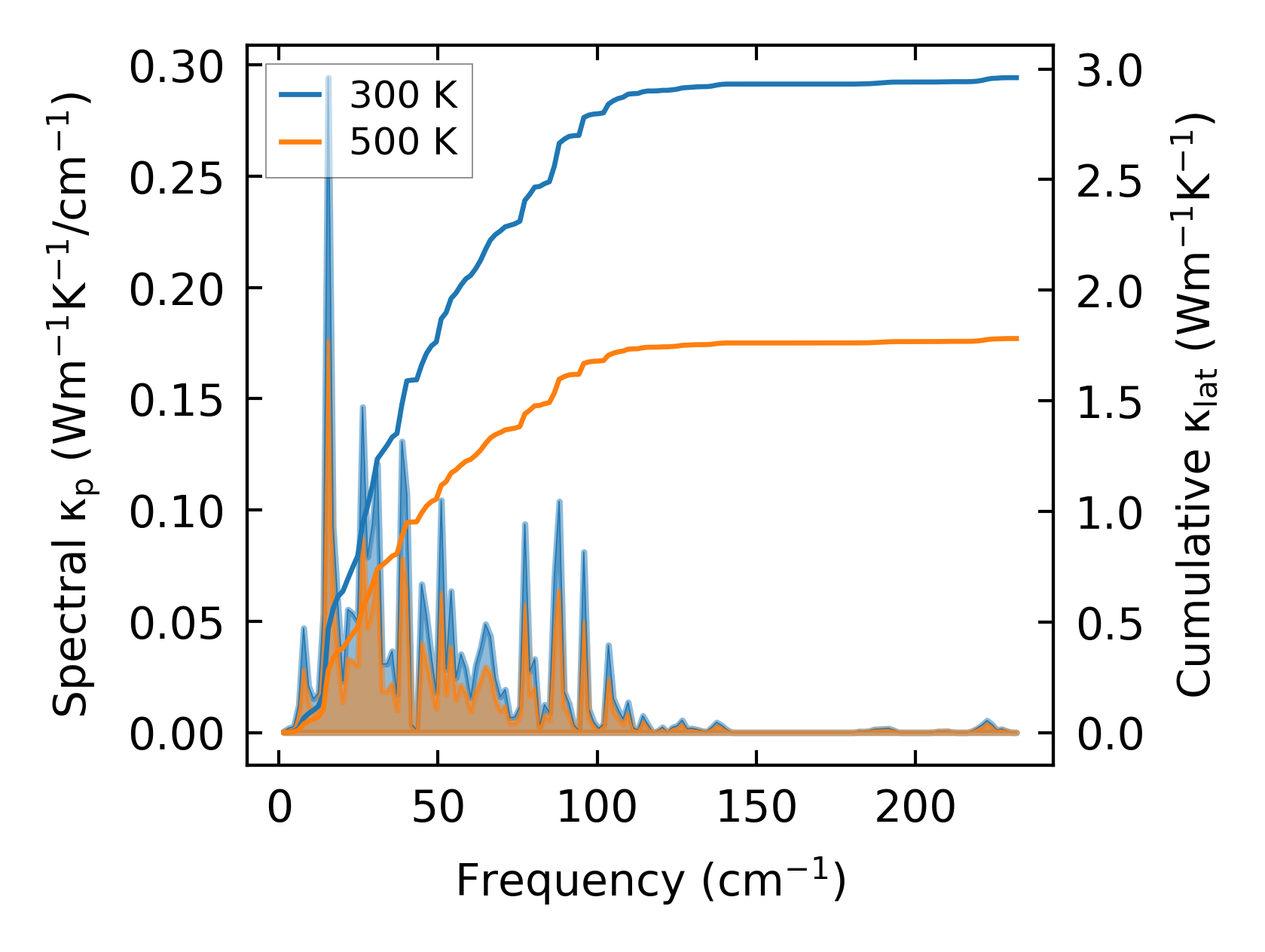

../../_images/fig_cumu_frequency4983.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

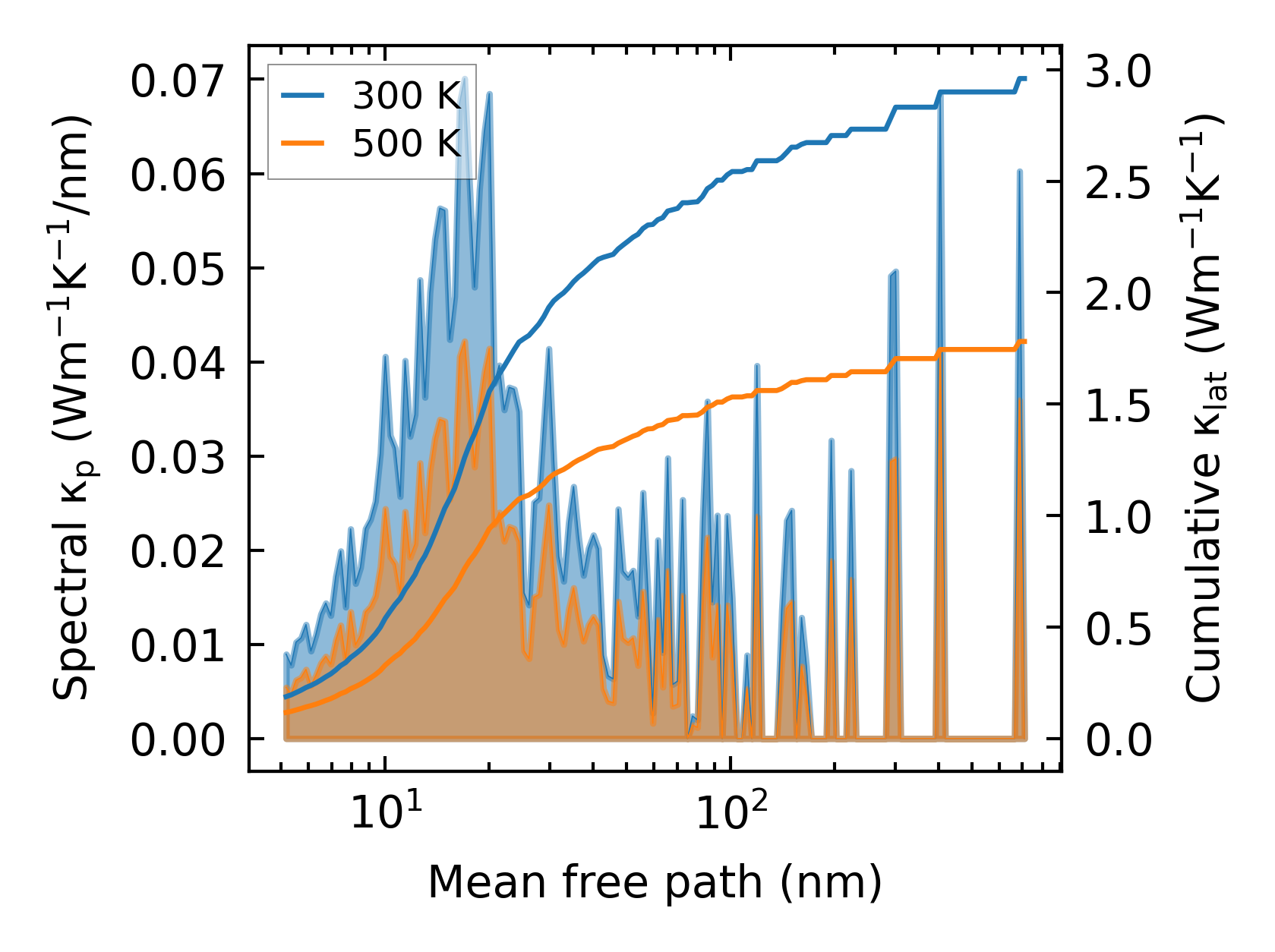

../../_images/fig_cumu_mfp4982.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211775.png — (a) Force constants w.r.t atomic distance

Summary

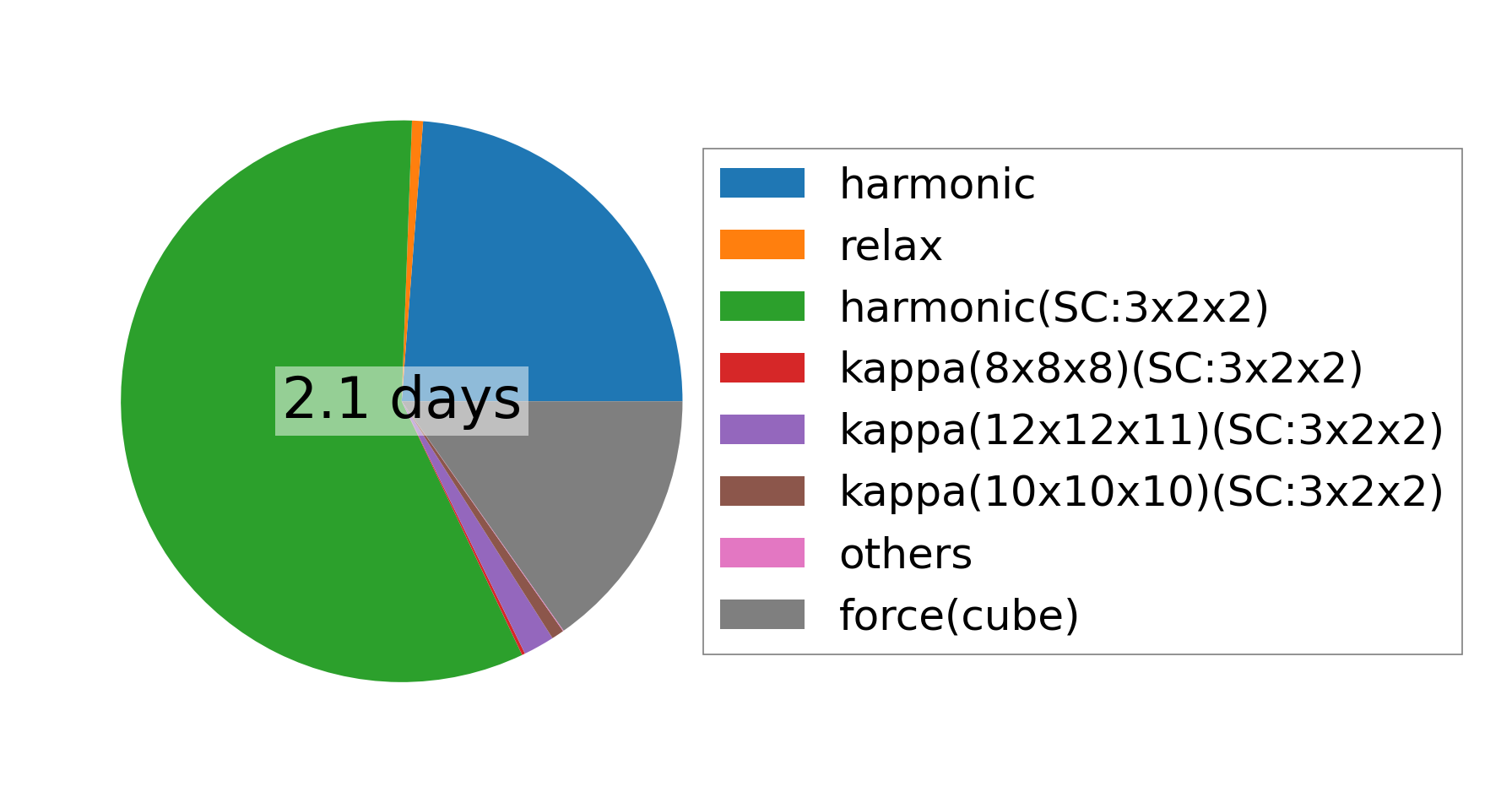

../../_images/fig_times20459.png — (a) Computation time
