mp-27381-2/CsSnI3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-27381-2.tar.gz

Equation of state

../../_images/fig_bm5905.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr12064.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos16139.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12064.png — (c) Thermodynamic properties

Grüneisen parameters

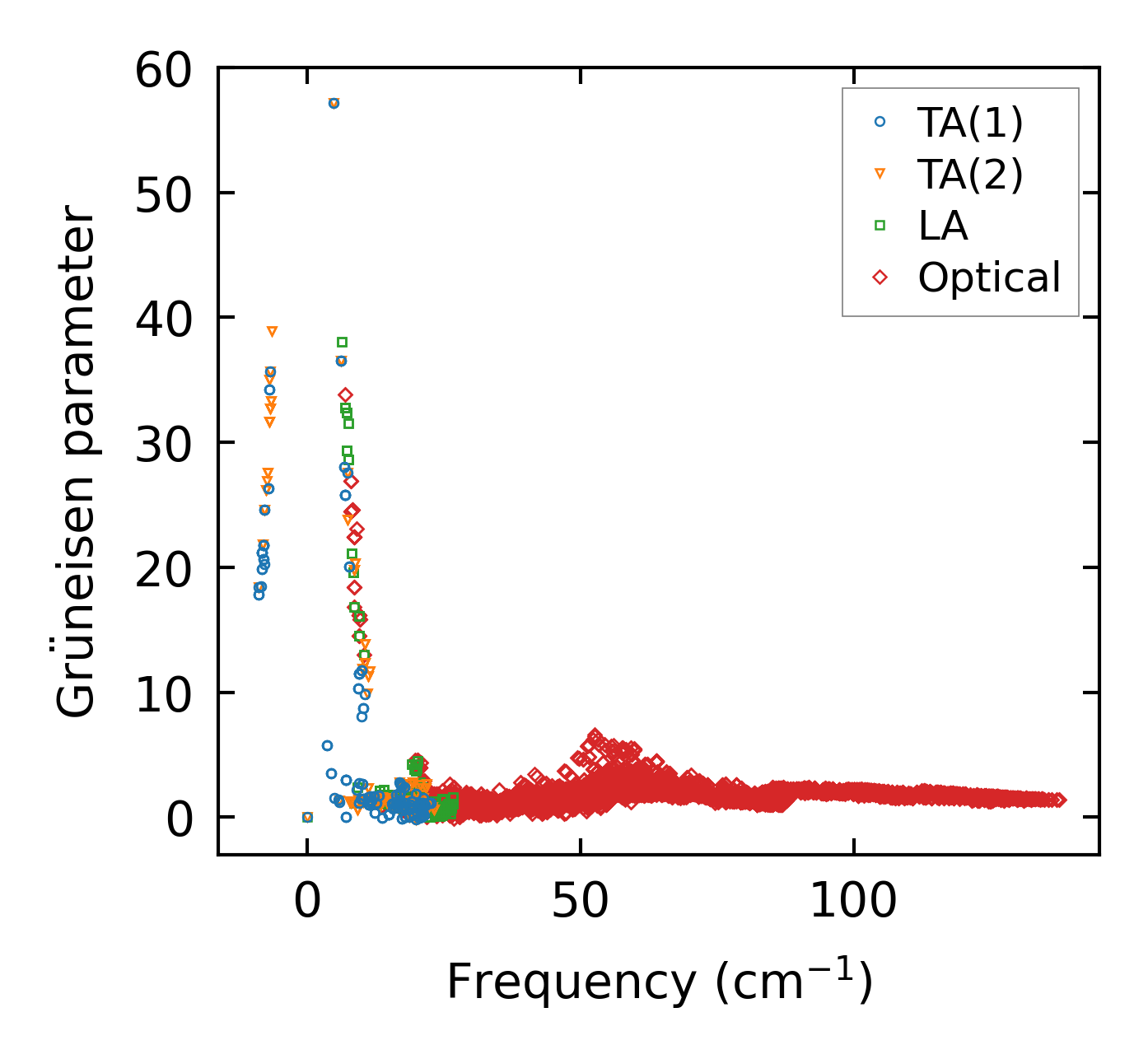

../../_images/fig_gru_all5030.png — (a) Grüneisen parameters

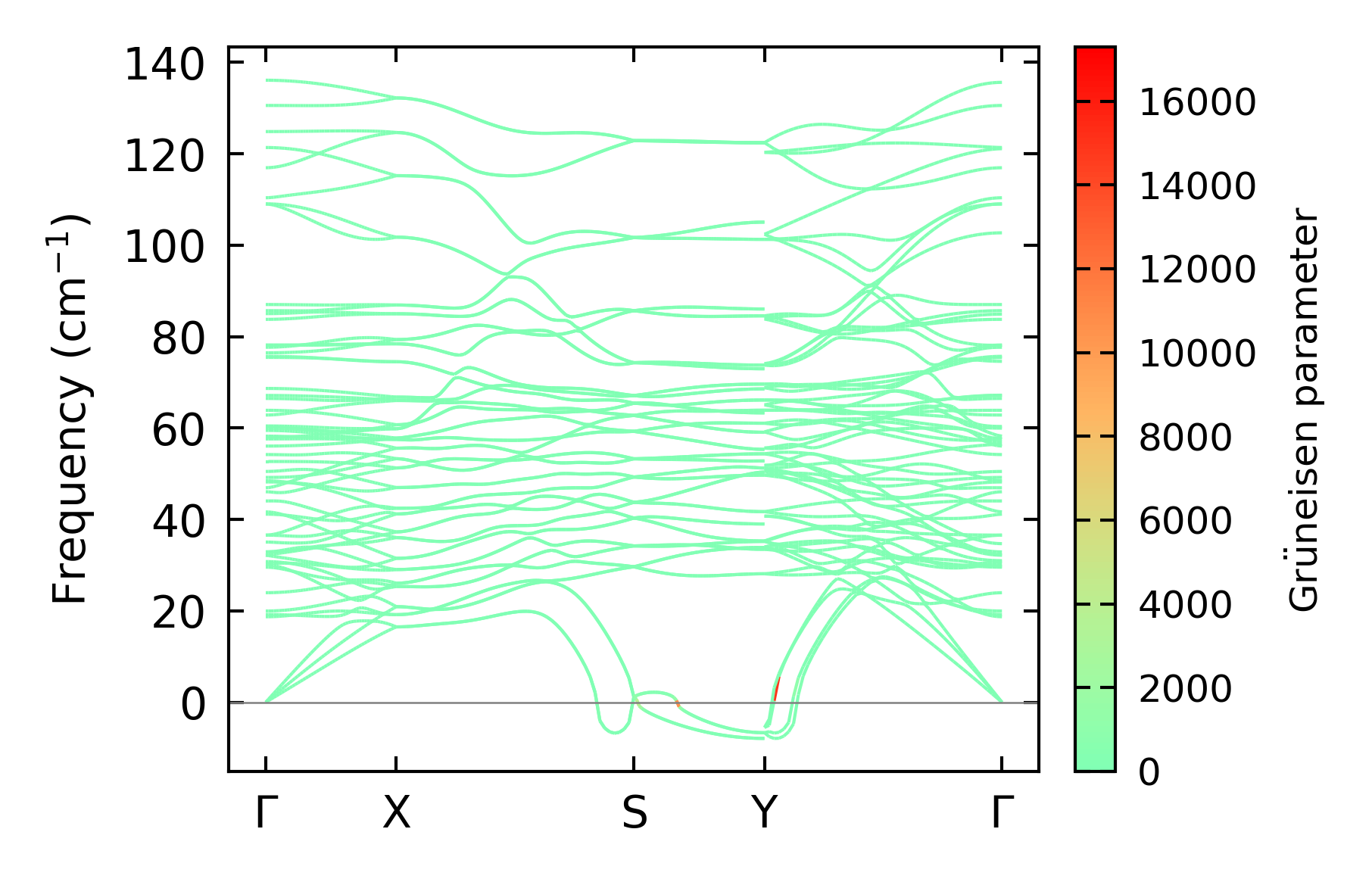

../../_images/fig_gruneisen5030.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x4x1 — q-mesh: 6x15x4, supercell: 2x4x1

../../_images/fig_kappa9477.png — (a) Temperature-dependent lattice thermal conductivity

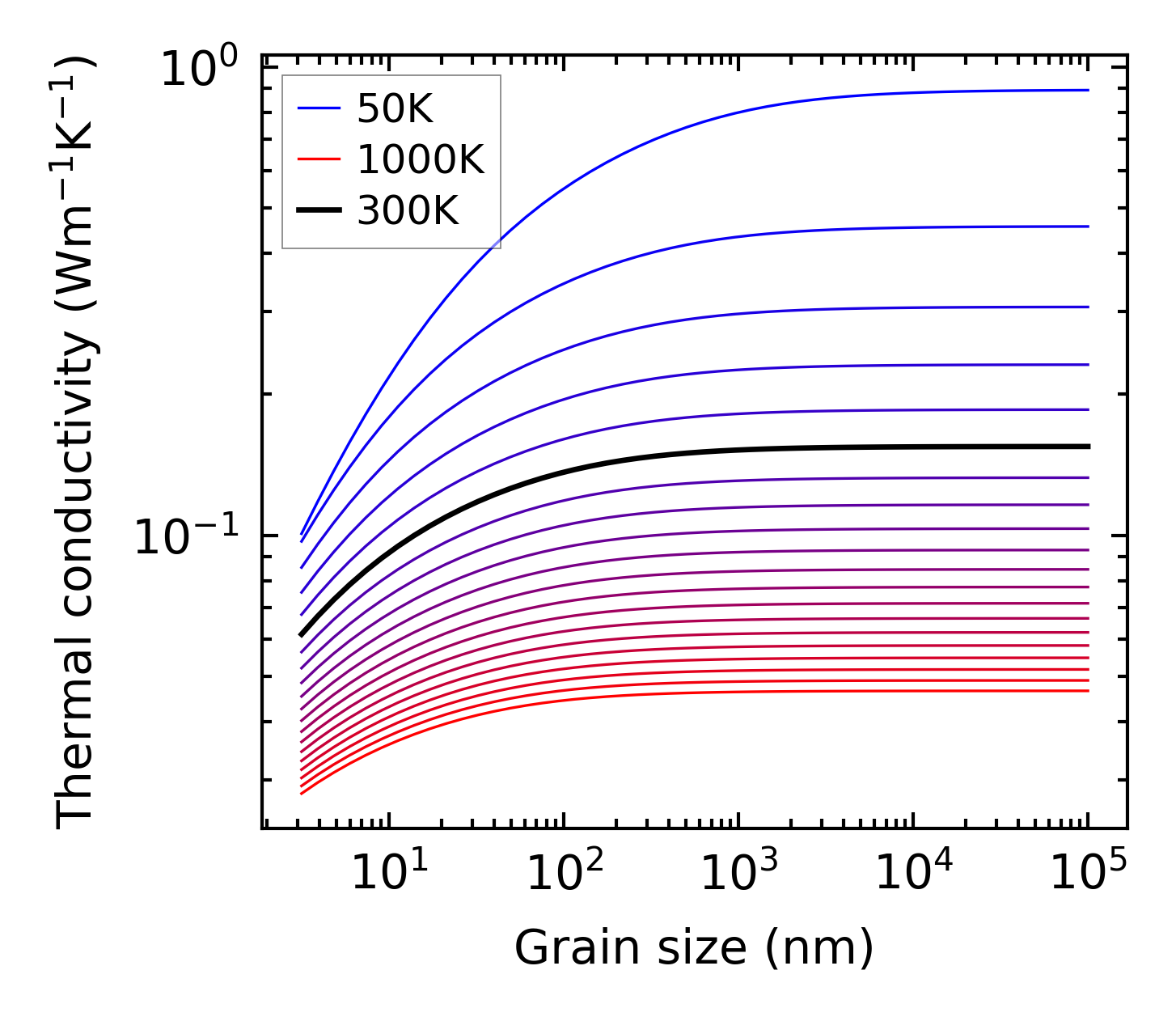

../../_images/fig_kappa_vs_grain_size5089.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4980.png — (a) Phonon lifetime due to phonon-phonon scattering

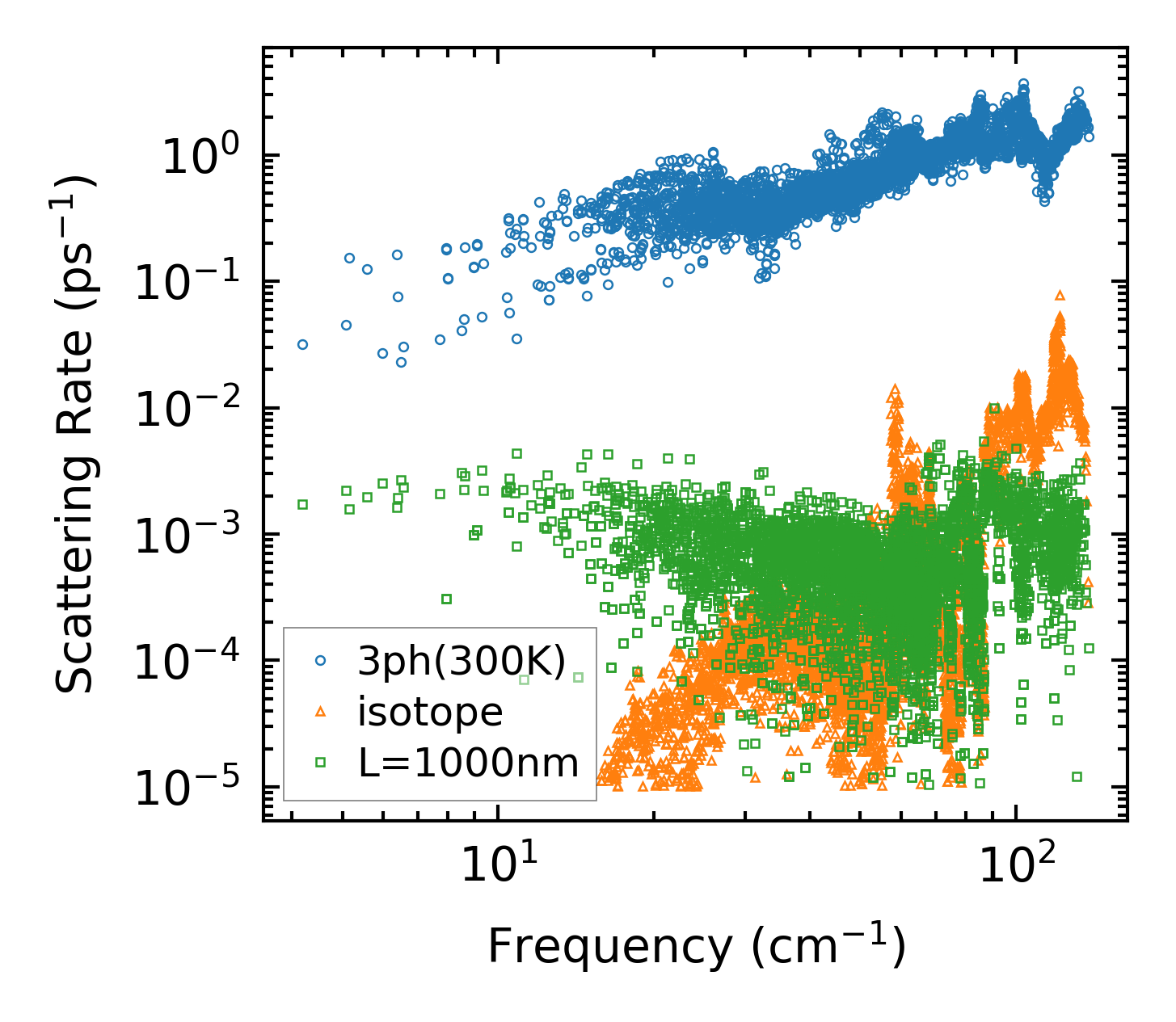

../../_images/fig_scat_rates4979.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

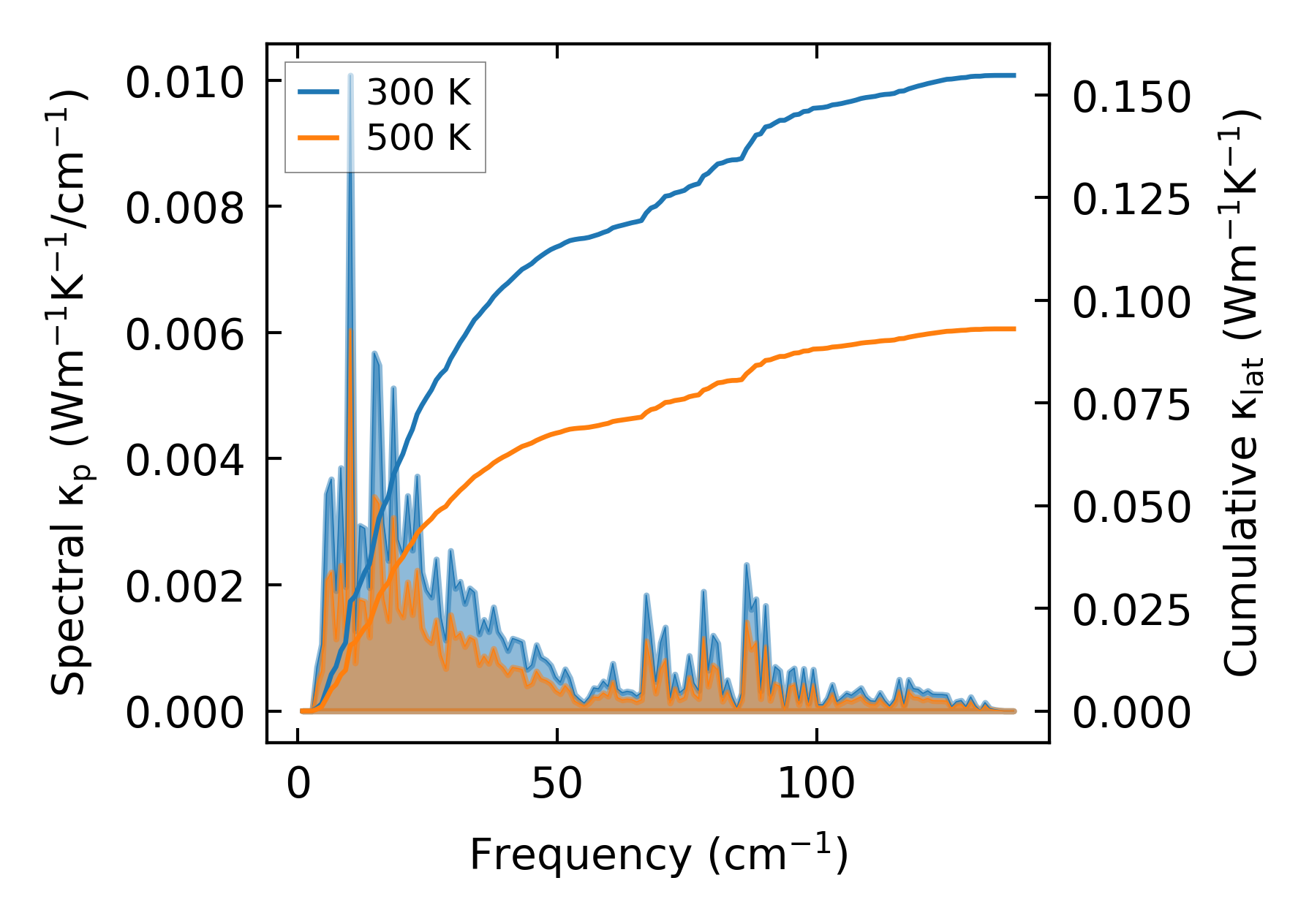

../../_images/fig_cumu_frequency4980.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

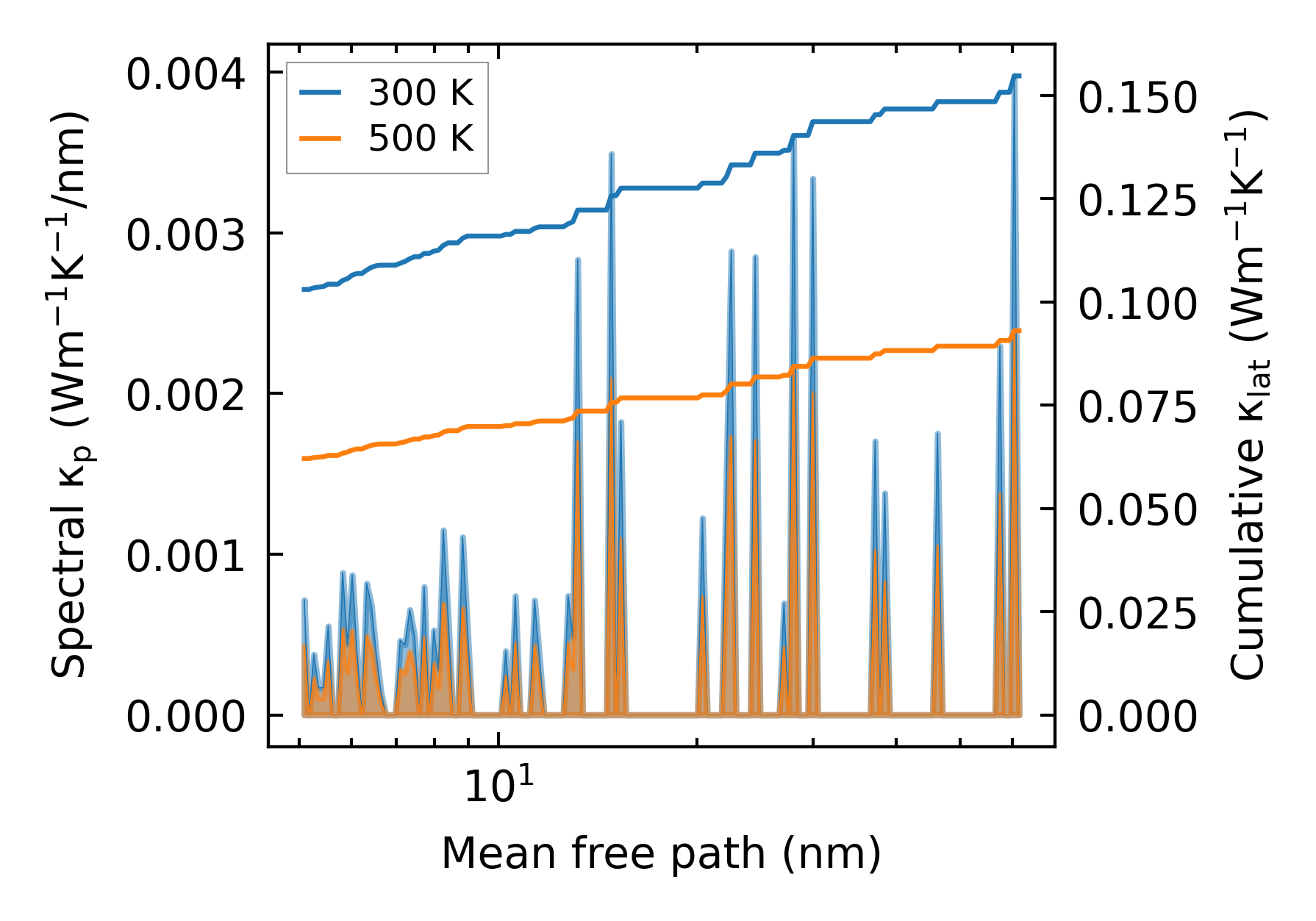

../../_images/fig_cumu_mfp4979.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

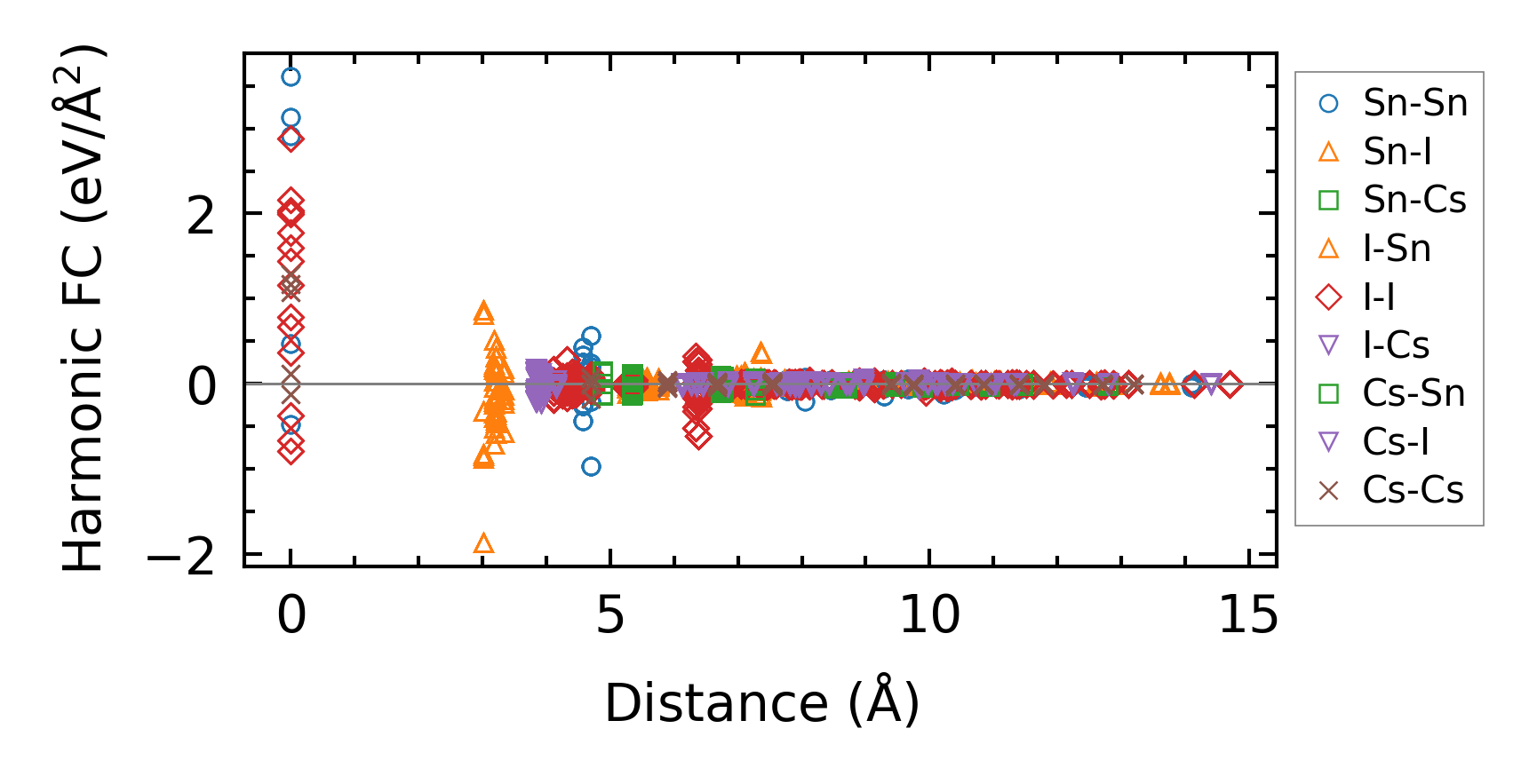

../../_images/fig_fc211766.png — (a) Force constants w.r.t atomic distance

Summary

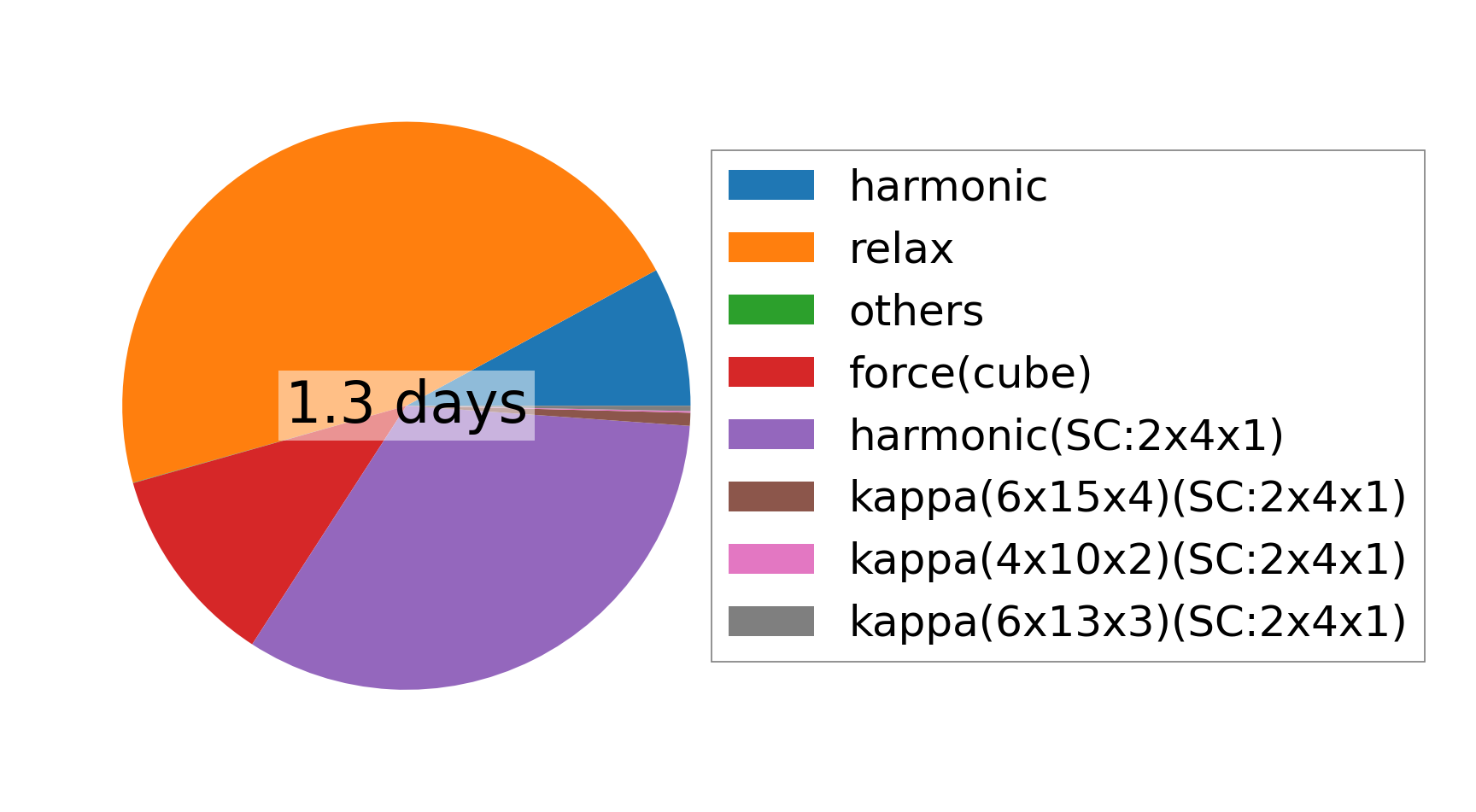

../../_images/fig_times20447.png — (a) Computation time
