mp-27594-2/As4Pb9S15/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-27594-2.tar.gz

Equation of state

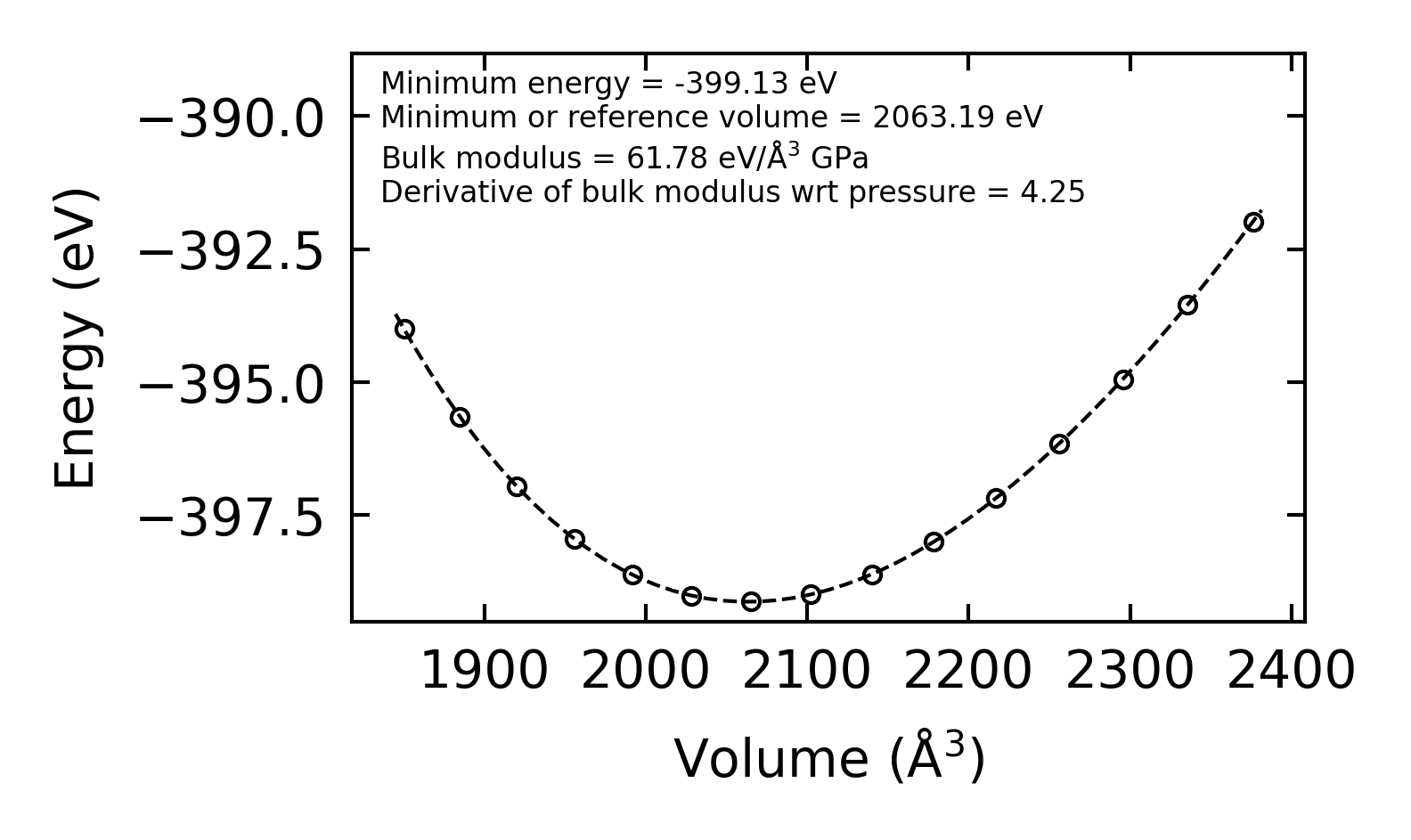

../../_images/fig_bm5966.png — (a) Equation of state

Harmonic properties

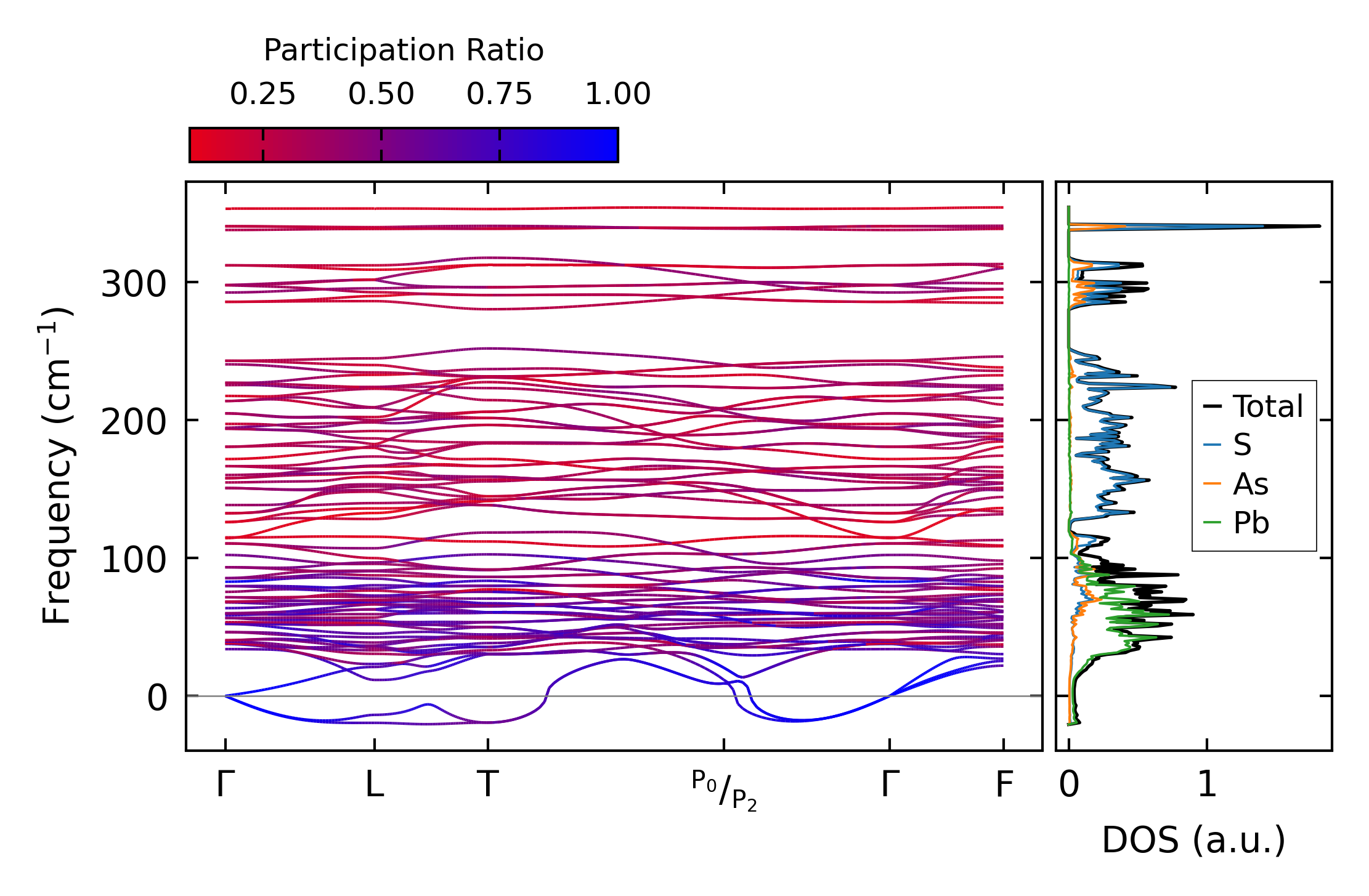

../../_images/fig_bandos_pr12156.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos16265.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12156.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5072.png — (a) Grüneisen parameters

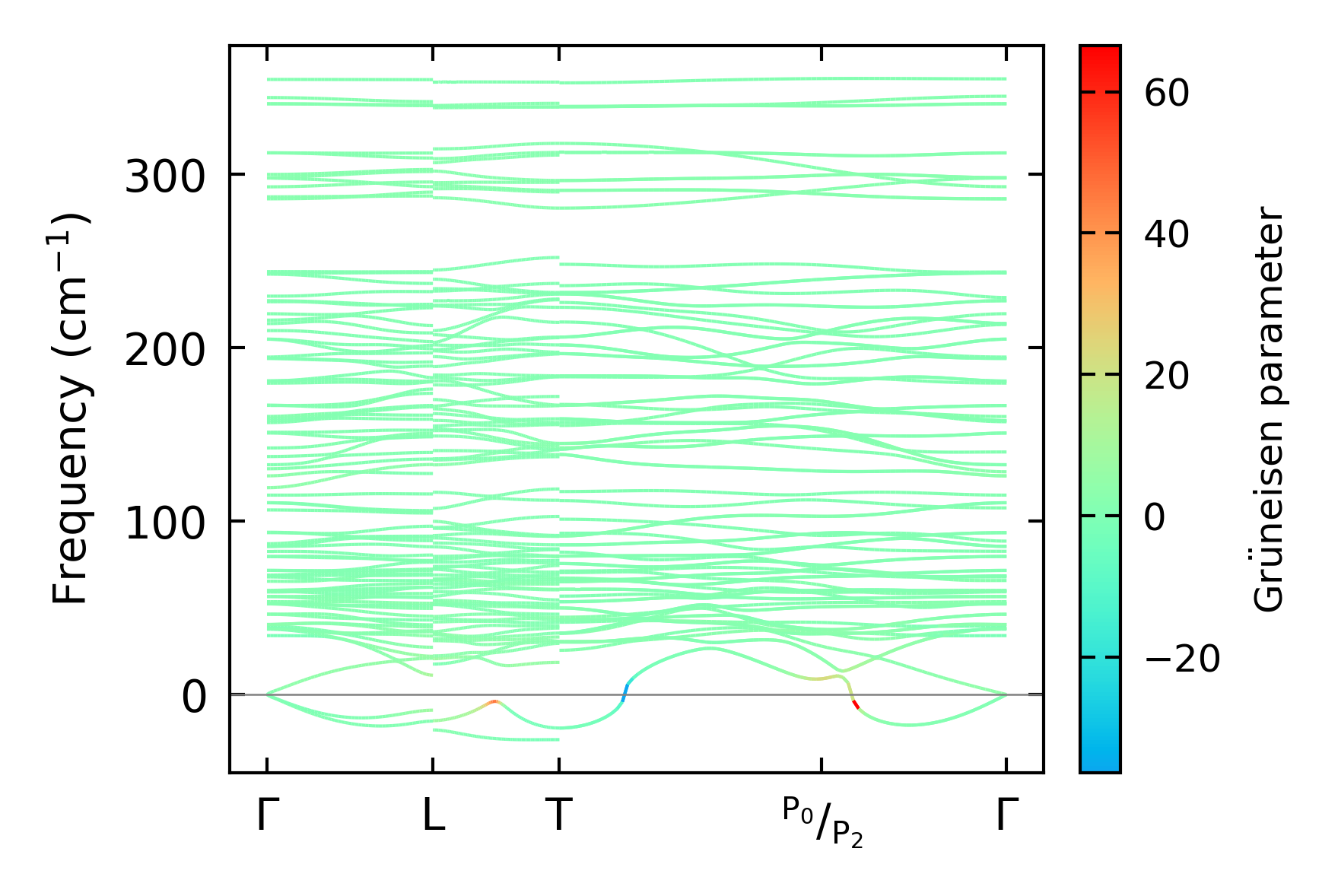

../../_images/fig_gruneisen5072.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x1x2 — q-mesh: 8x8x8, supercell: 1x1x2

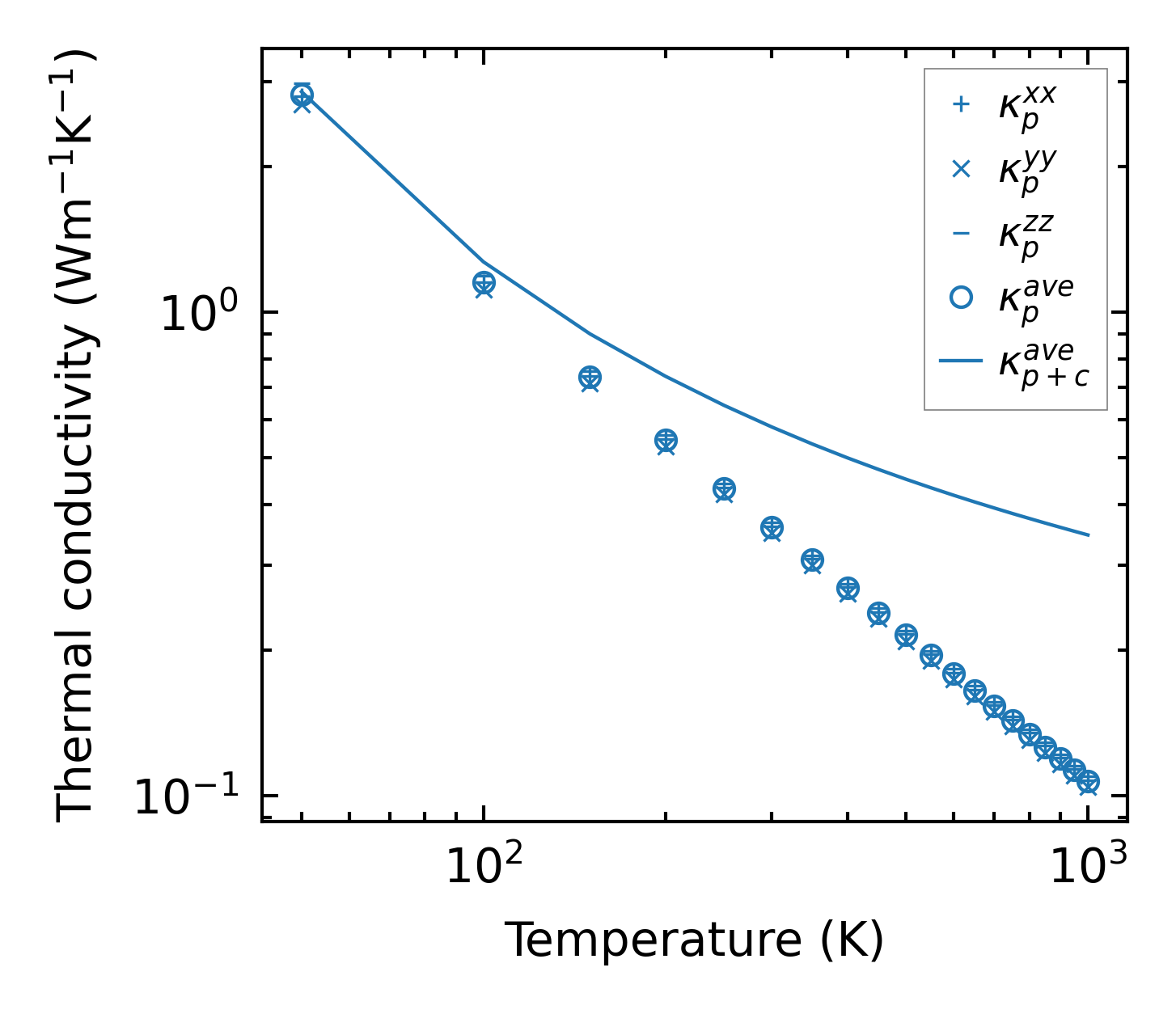

../../_images/fig_kappa9547.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5132.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

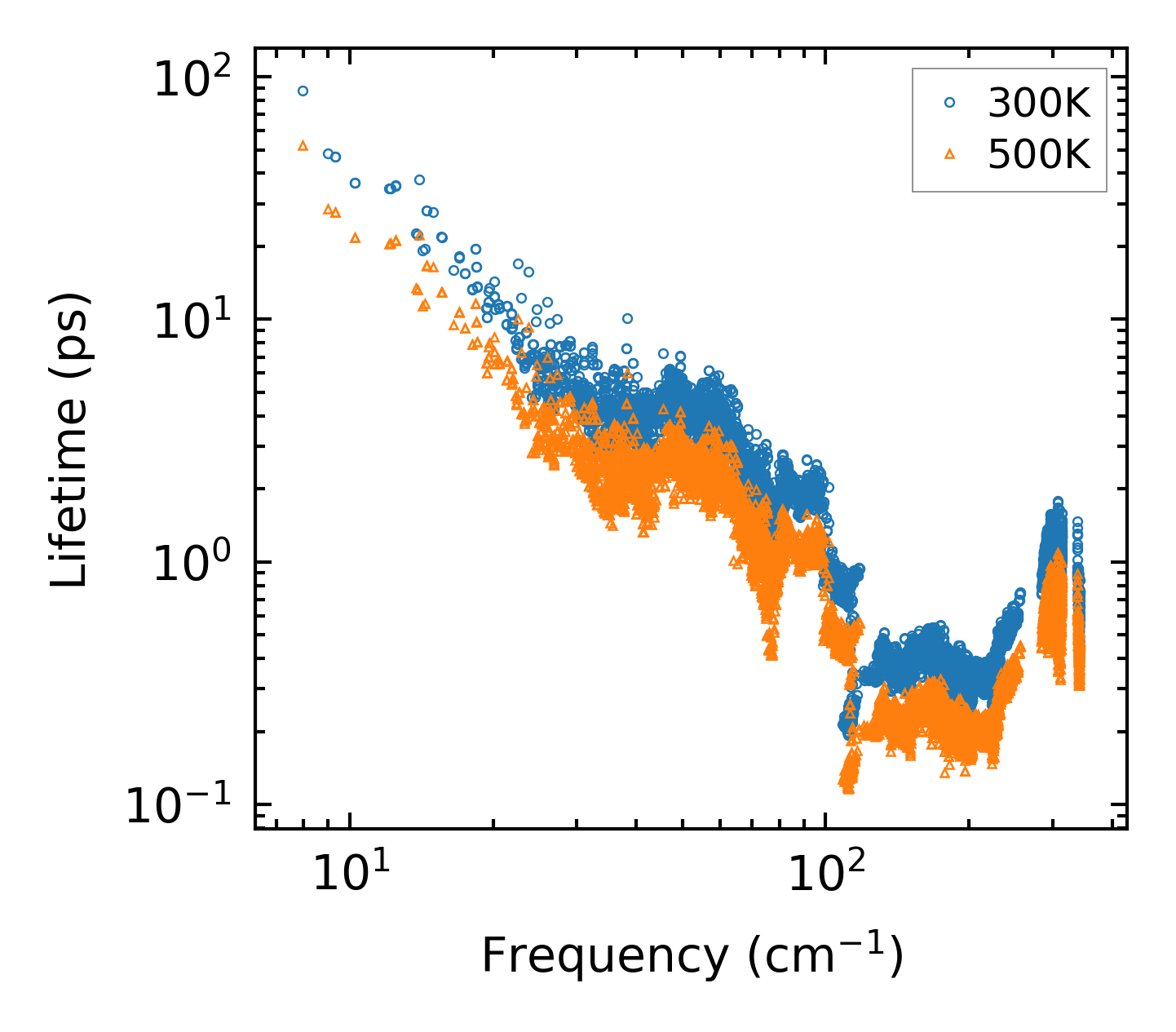

../../_images/fig_lifetime5022.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5021.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5022.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

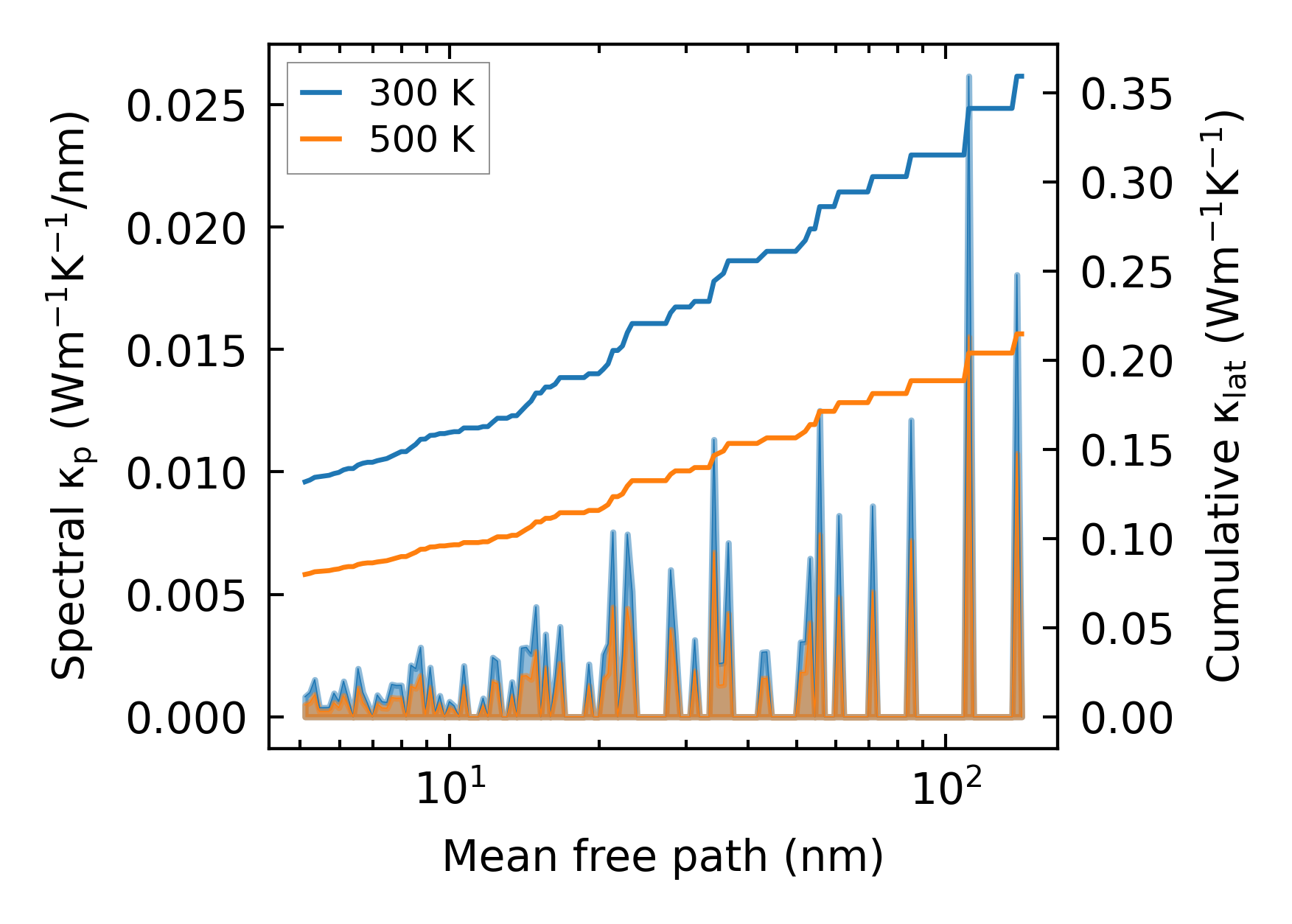

../../_images/fig_cumu_mfp5021.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

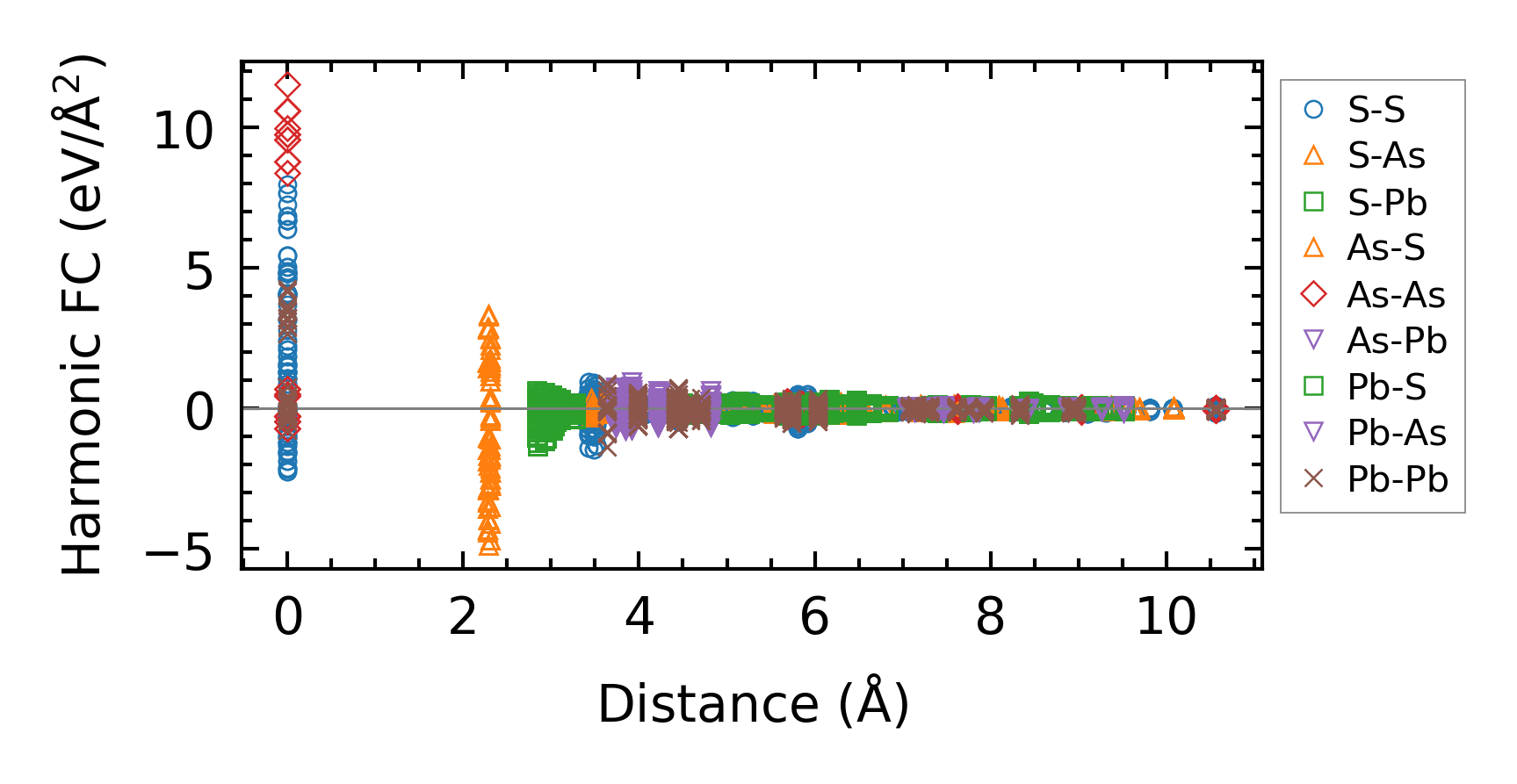

../../_images/fig_fc211857.png — (a) Force constants w.r.t atomic distance

Summary

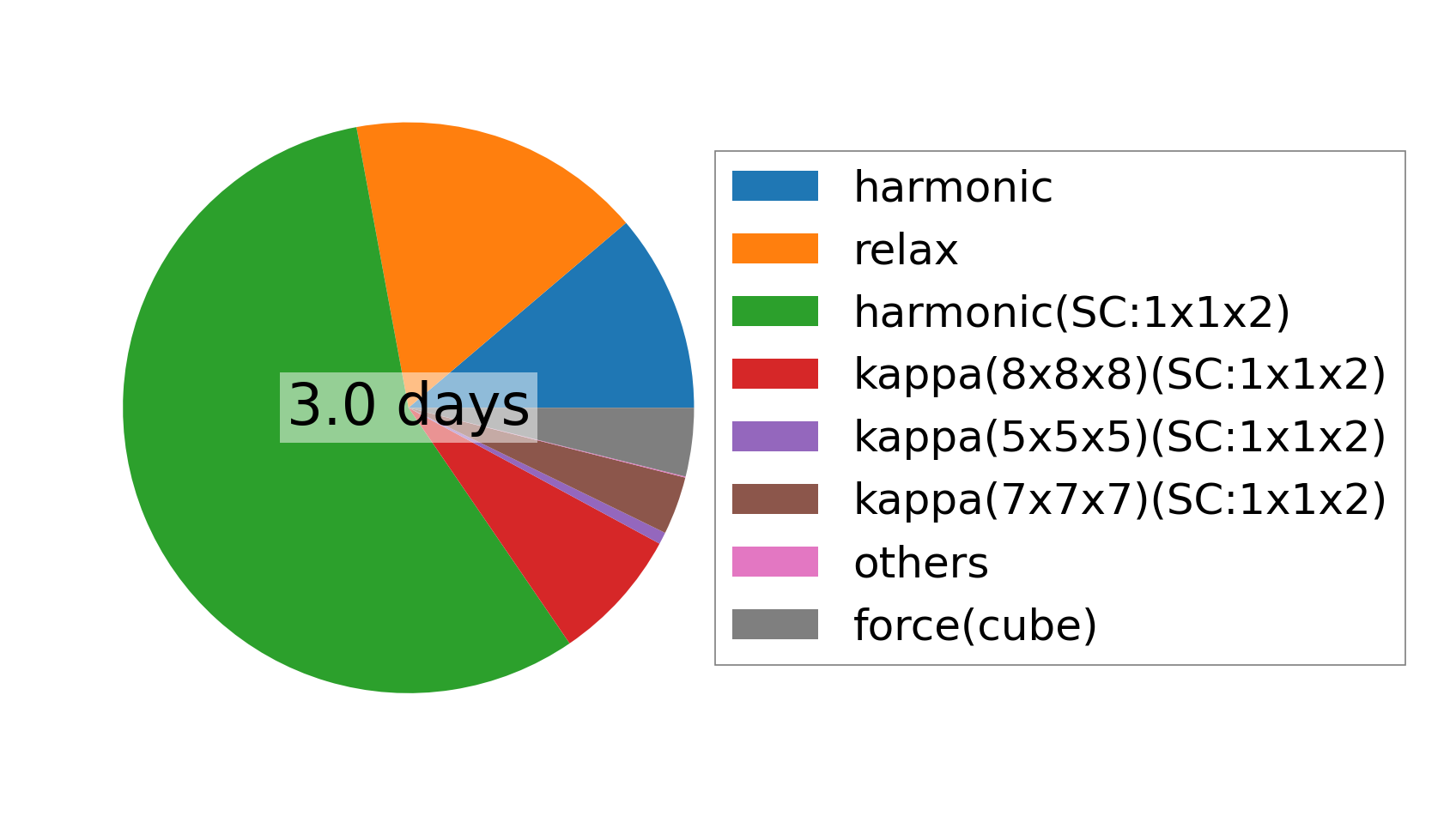

../../_images/fig_times20598.png — (a) Computation time
