mp-27736-2/Re2P5/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-27736-2.tar.gz

Harmonic properties

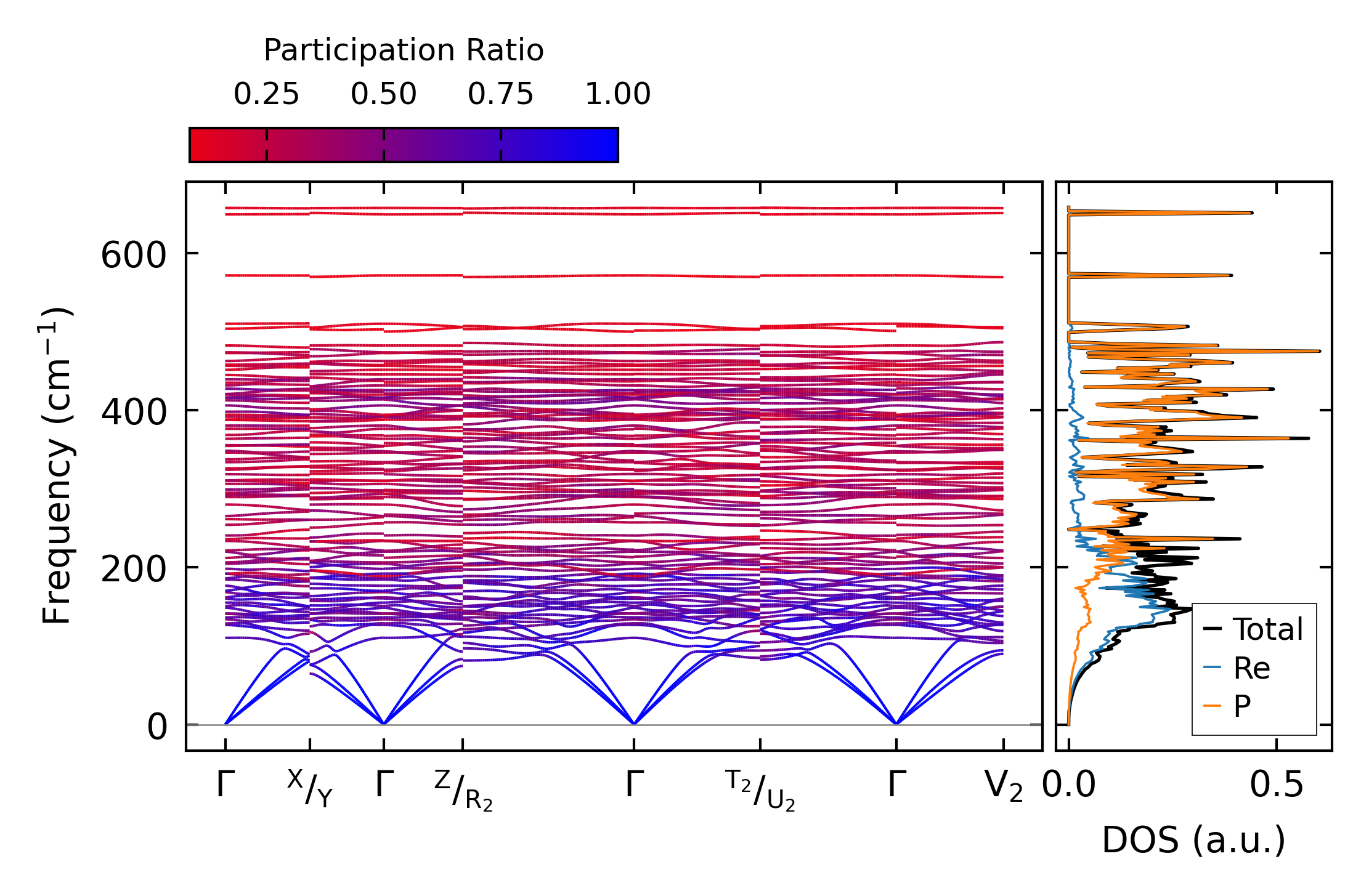

../../_images/fig_bandos_pr11877.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11877.png — (b) Thermodynamic properties

Grüneisen parameters

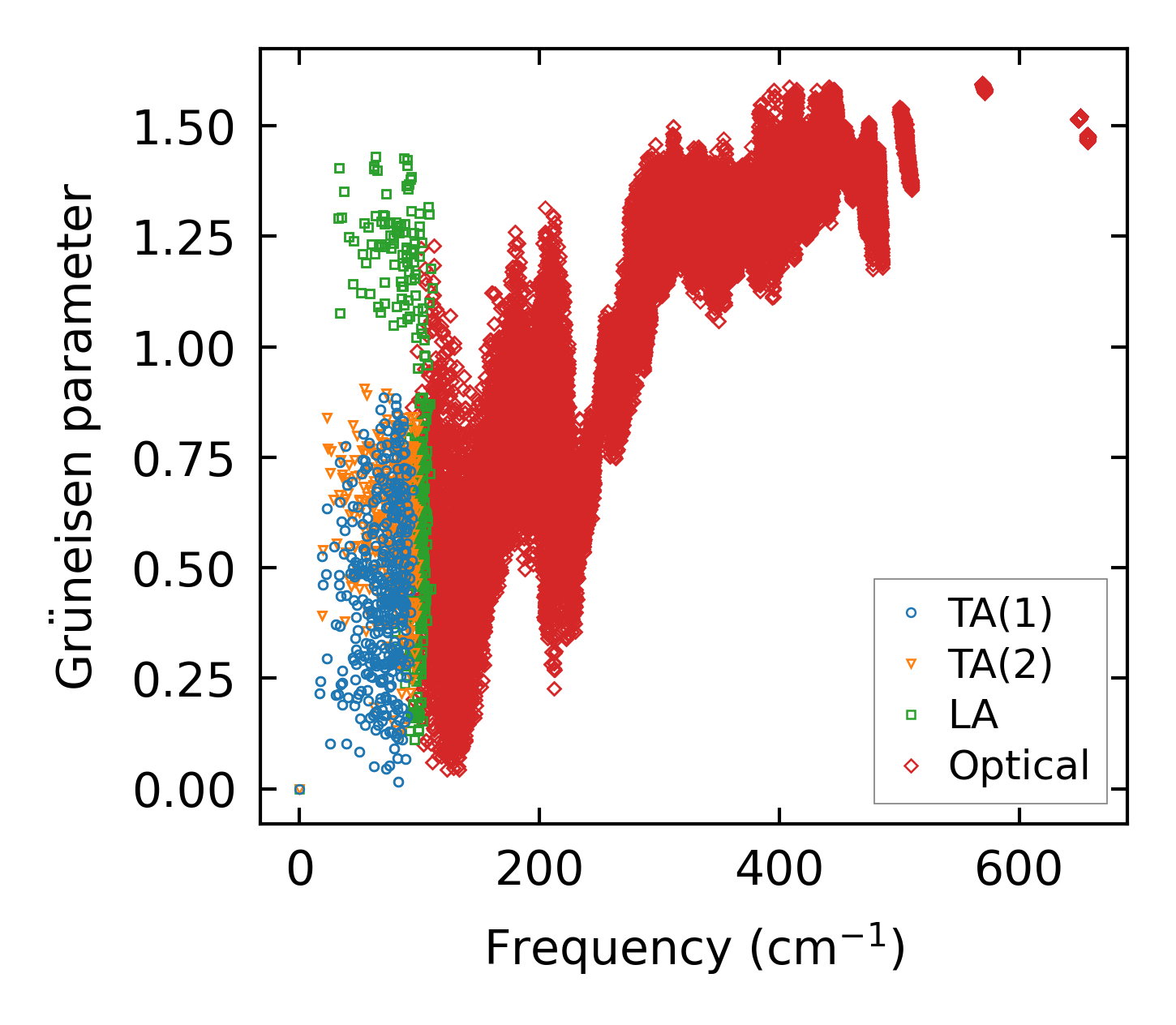

../../_images/fig_gru_all4948.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4948.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x9x9, supercell: 2x2x1

../../_images/fig_kappa9326.png — (a) Temperature-dependent lattice thermal conductivity

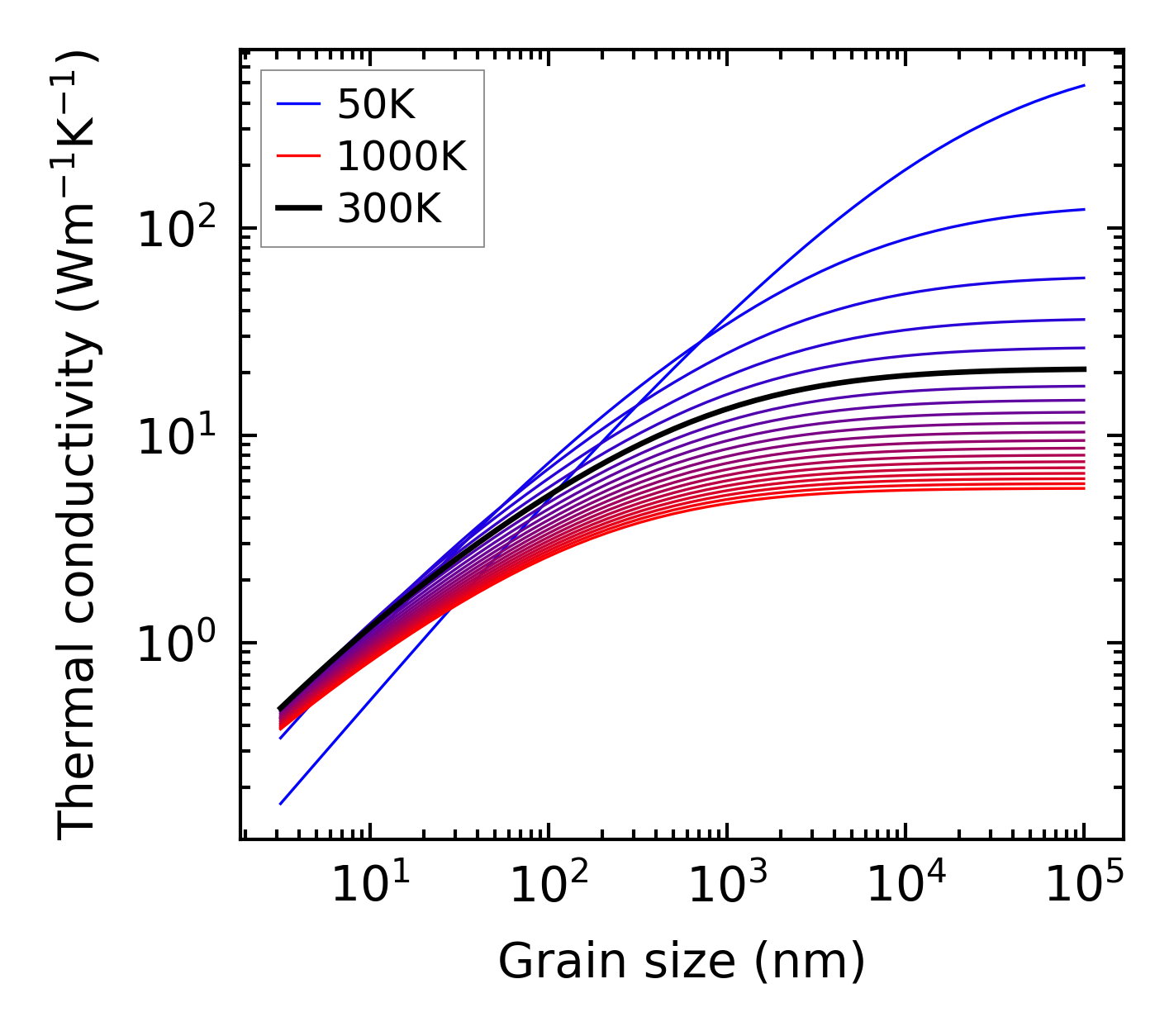

../../_images/fig_kappa_vs_grain_size5006.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

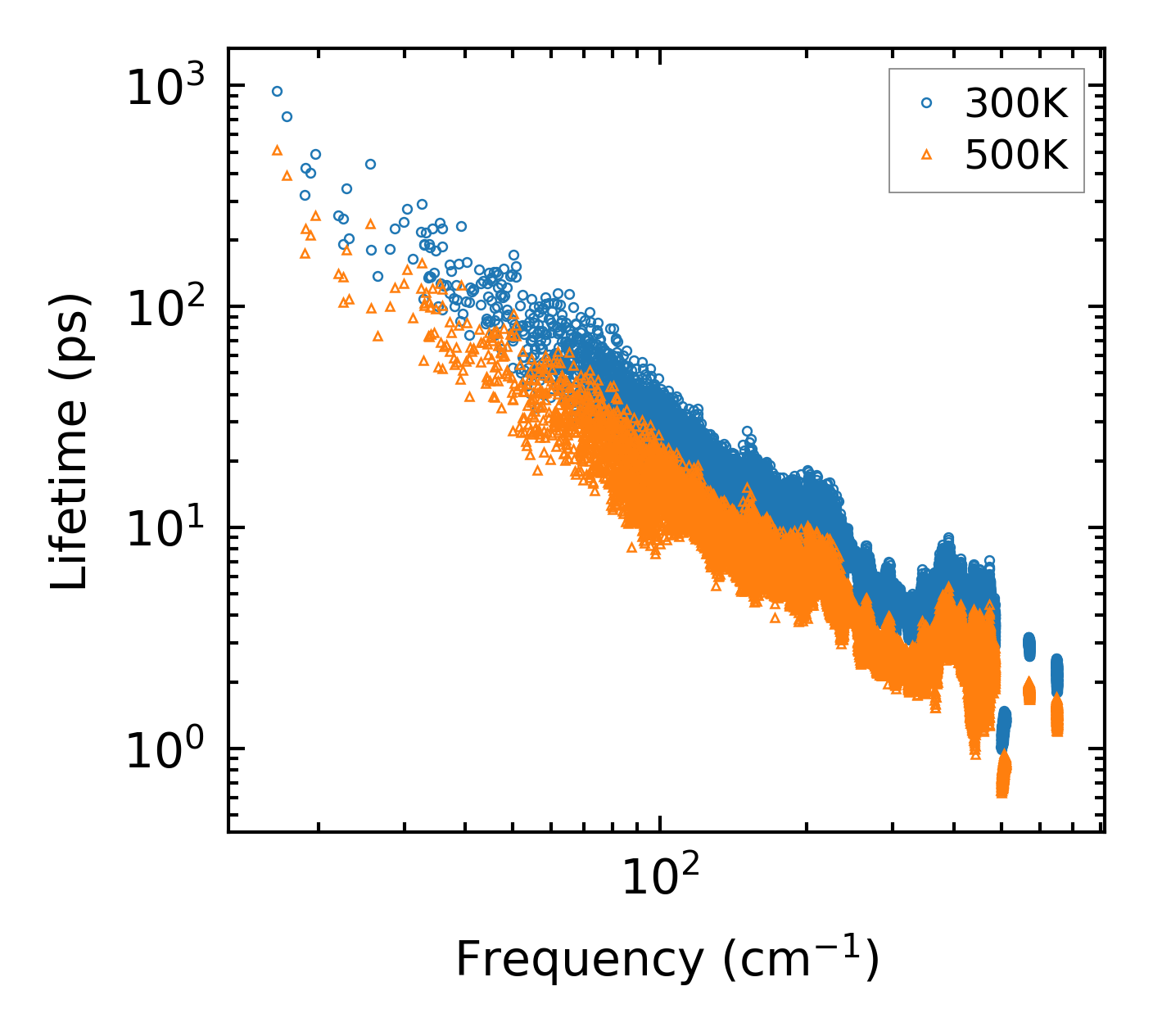

../../_images/fig_lifetime4898.png — (a) Phonon lifetime due to phonon-phonon scattering

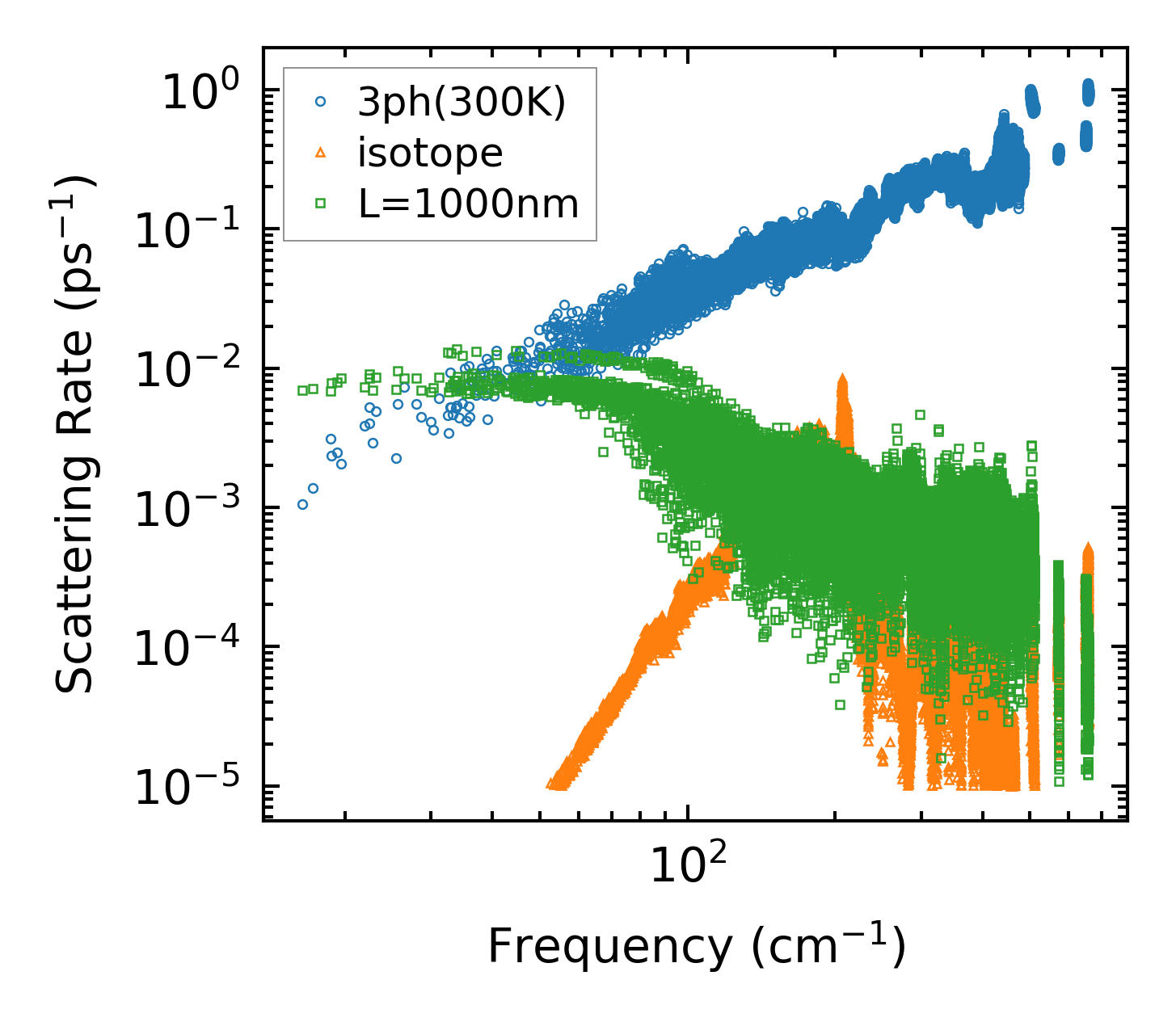

../../_images/fig_scat_rates4897.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

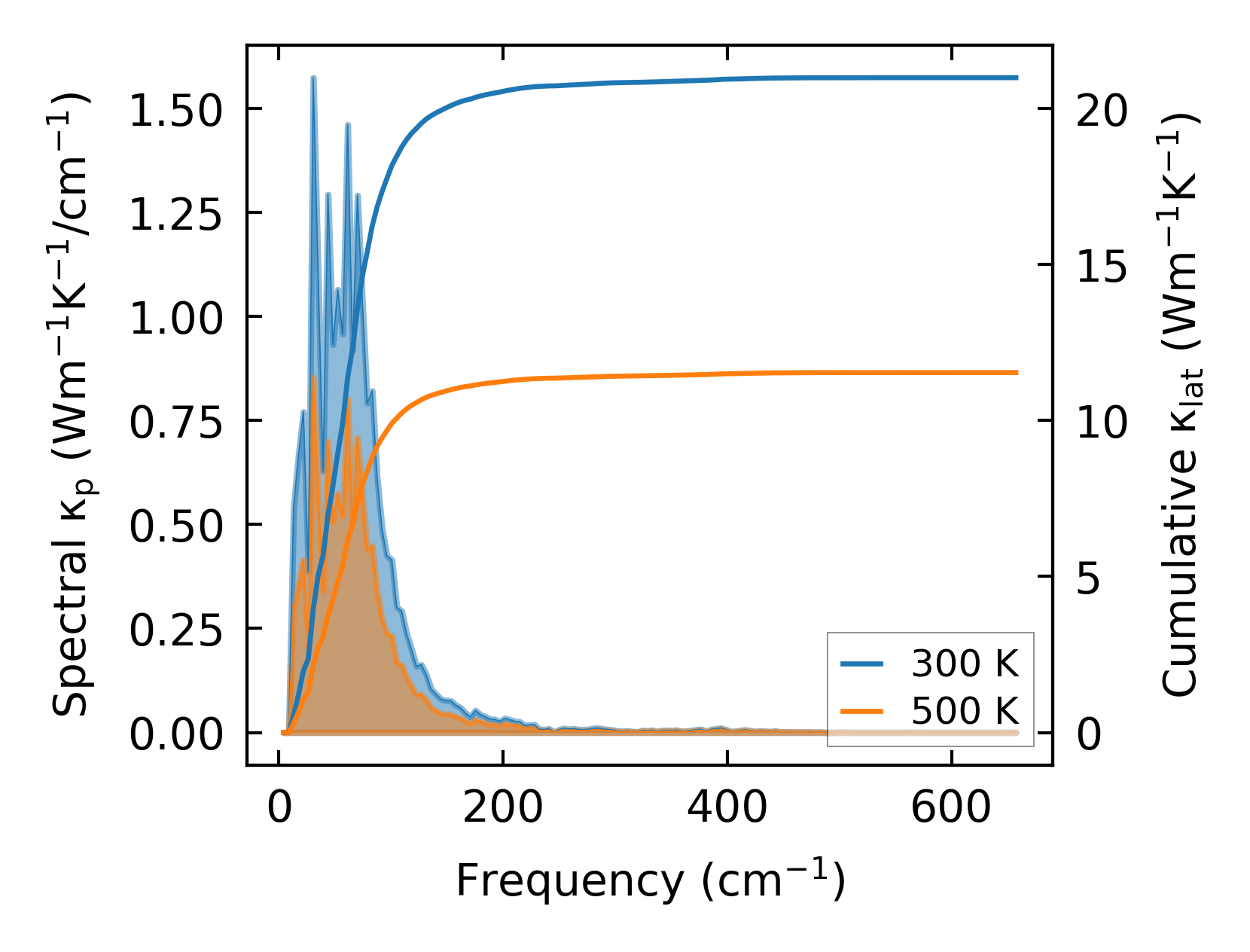

../../_images/fig_cumu_frequency4898.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4897.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211588.png — (a) Force constants w.r.t atomic distance

Summary

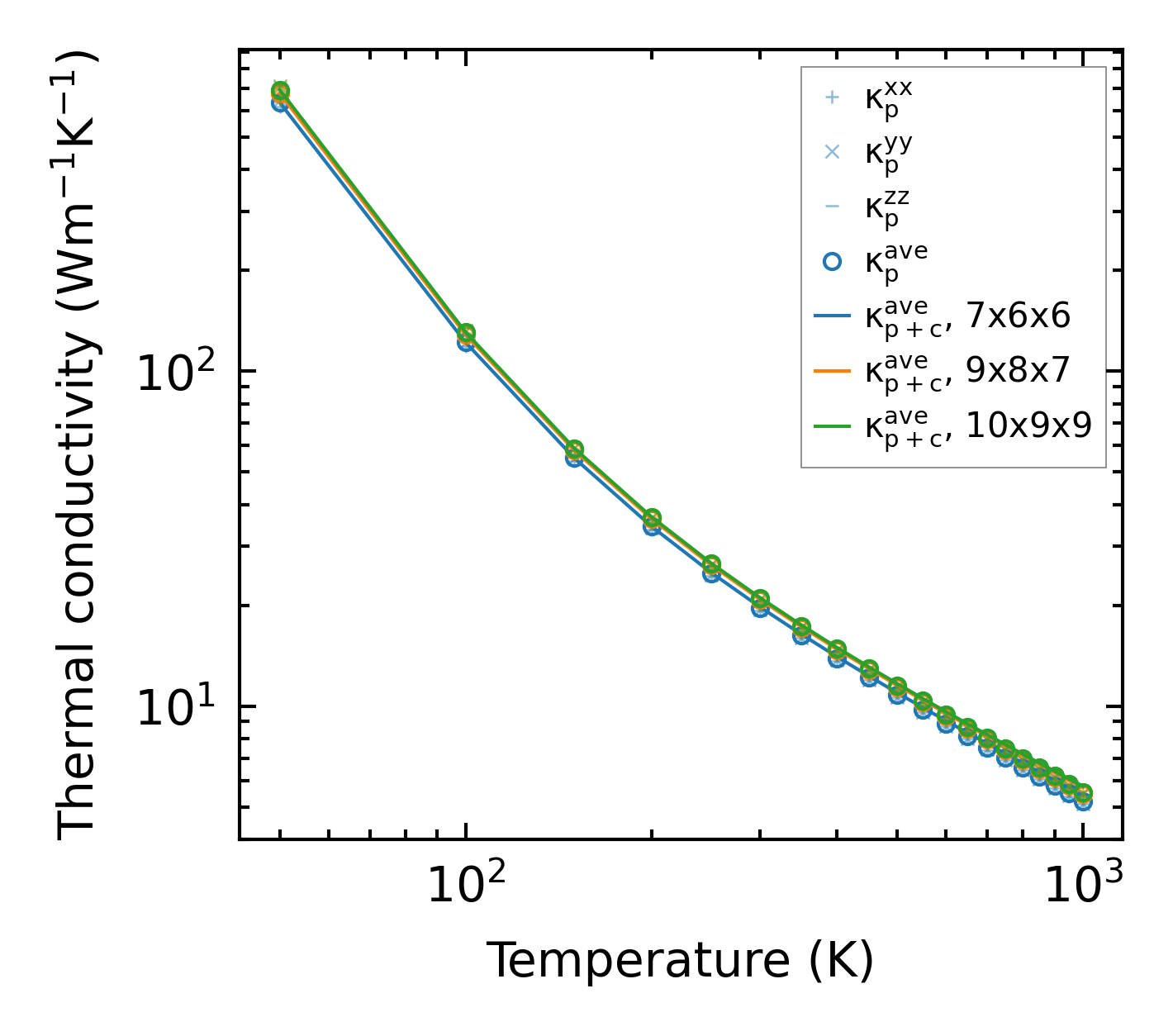

../../_images/fig_kappa9327.png — (a) Temperature-dependent lattice thermal conductivity

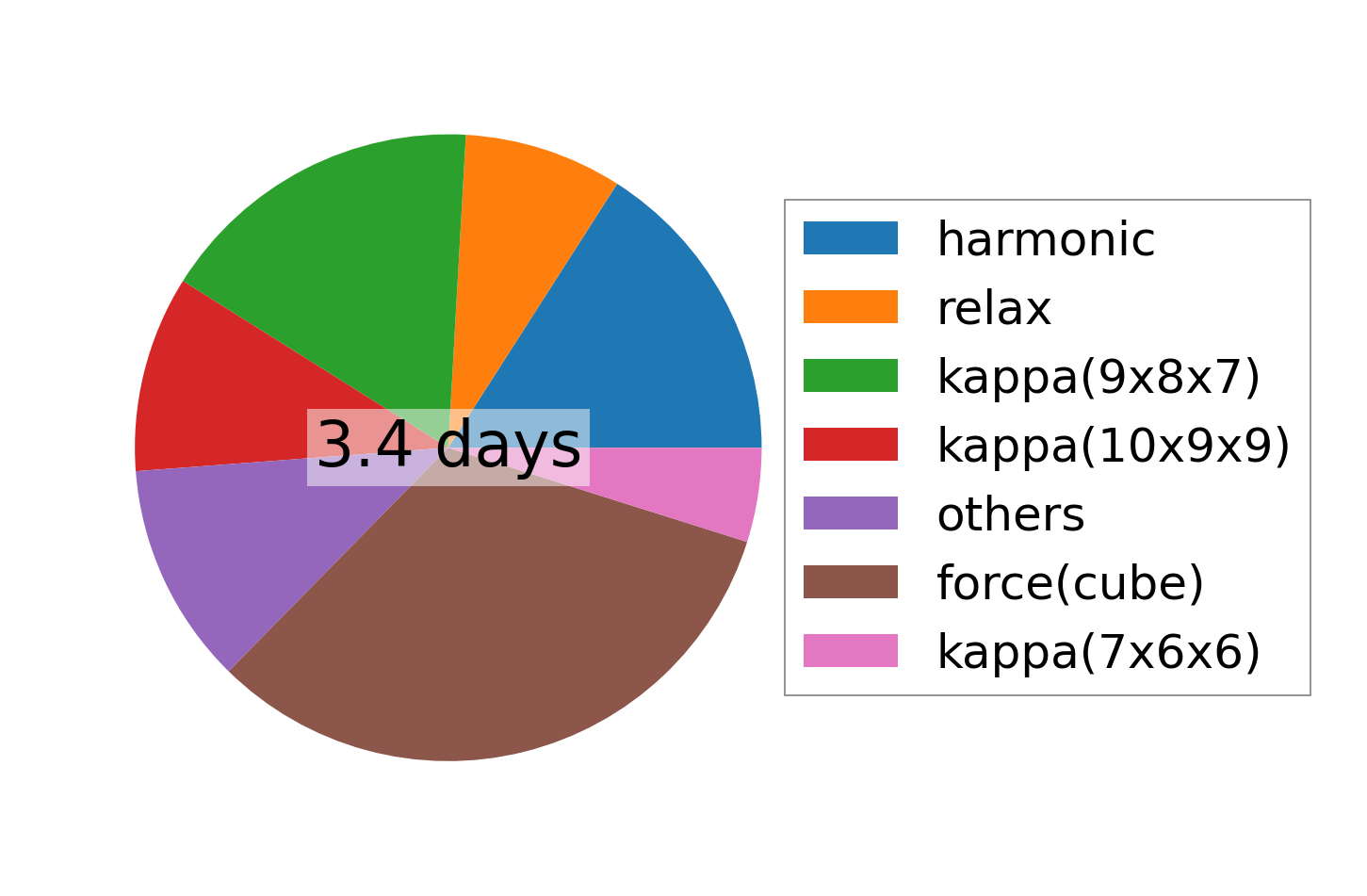

../../_images/fig_times20157.png — (b) Computation time
