mp-27401/NaIO4/anharm

Space group: I4_1/a (88)
Link: Materials Project
Download: mp-27401.tar.gz

Harmonic properties

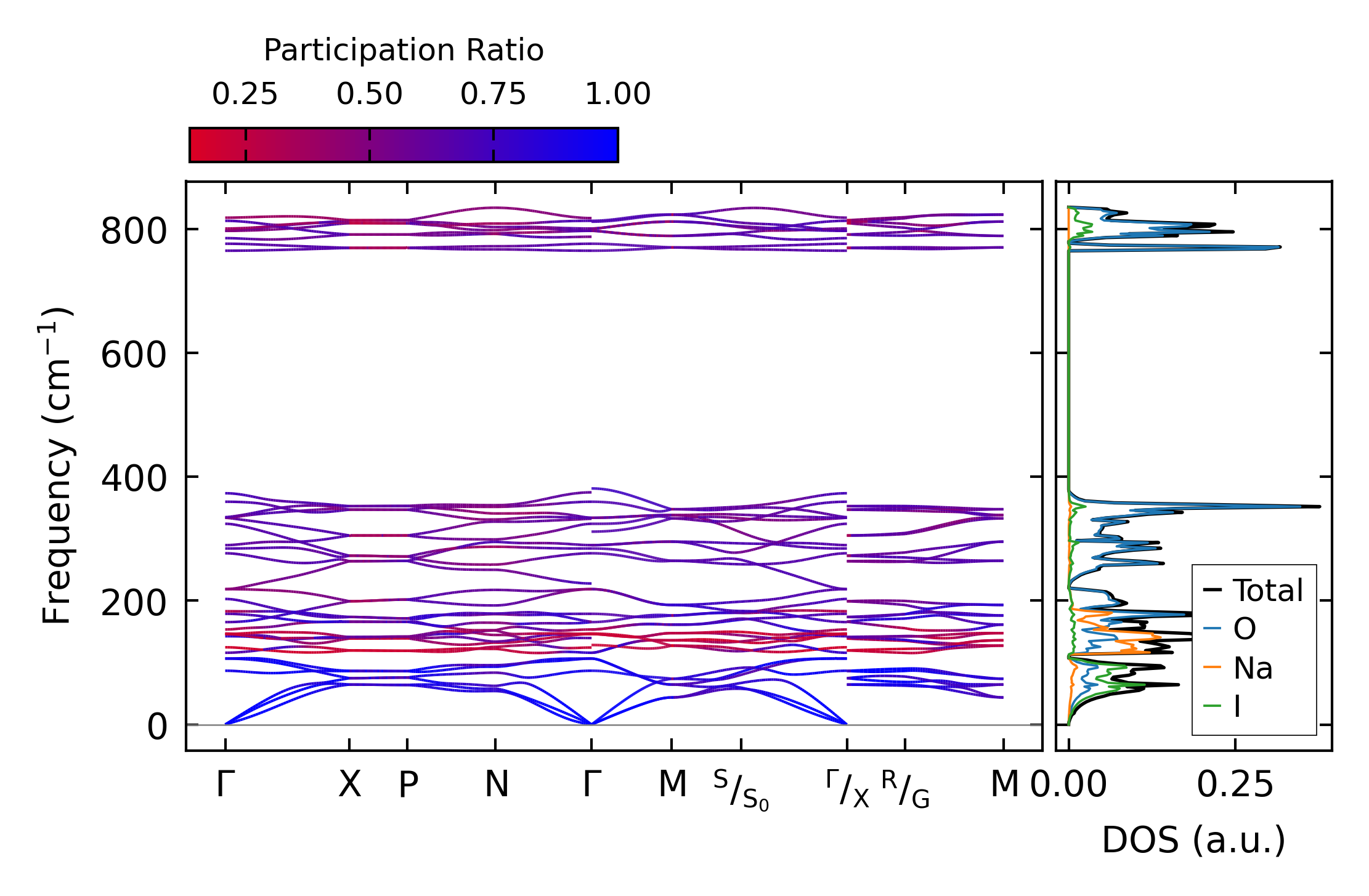

../../_images/fig_bandos_pr12077.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12077.png — (b) Thermodynamic properties

Grüneisen parameters

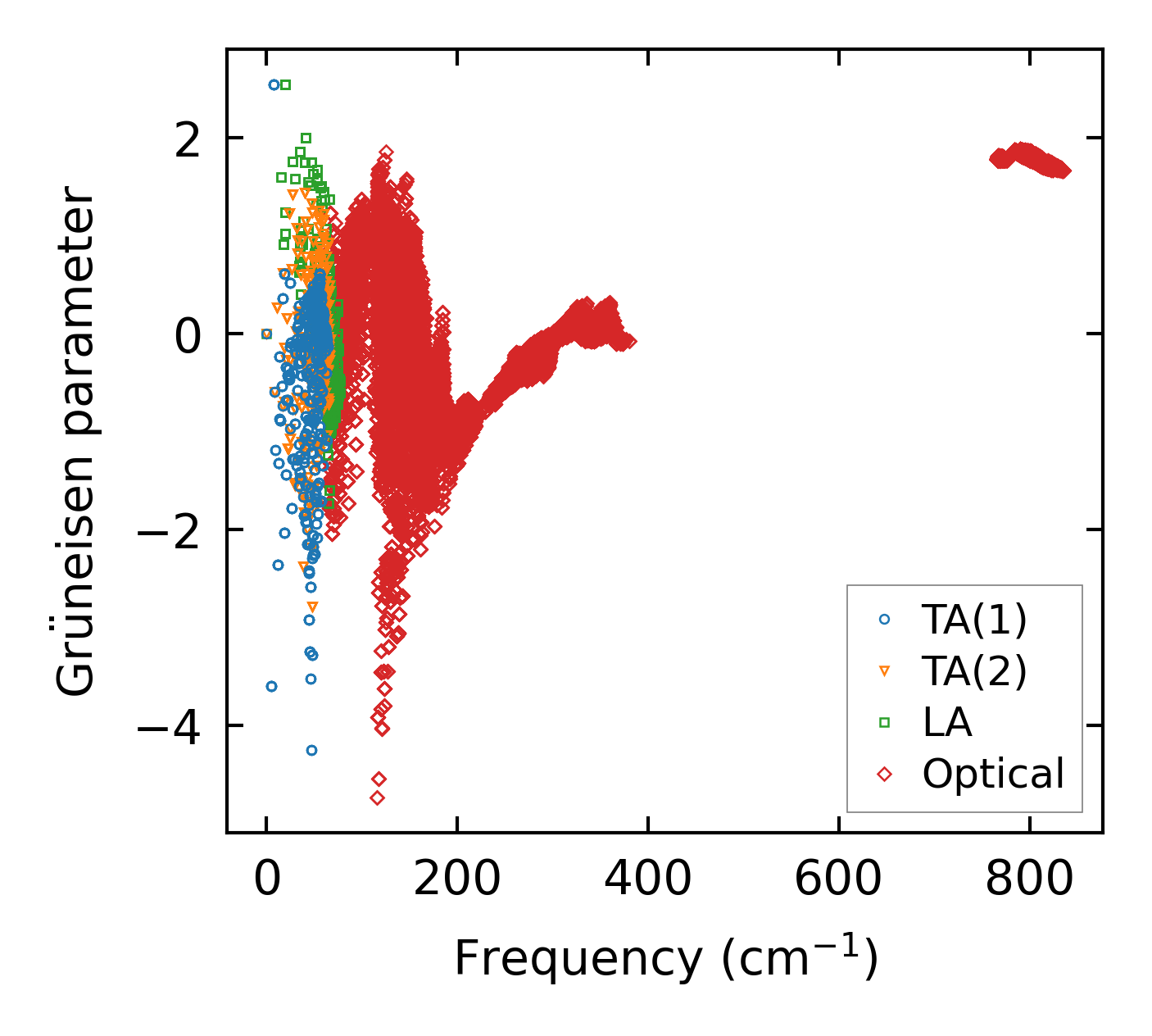

../../_images/fig_gru_all5036.png — (a) Grüneisen parameters

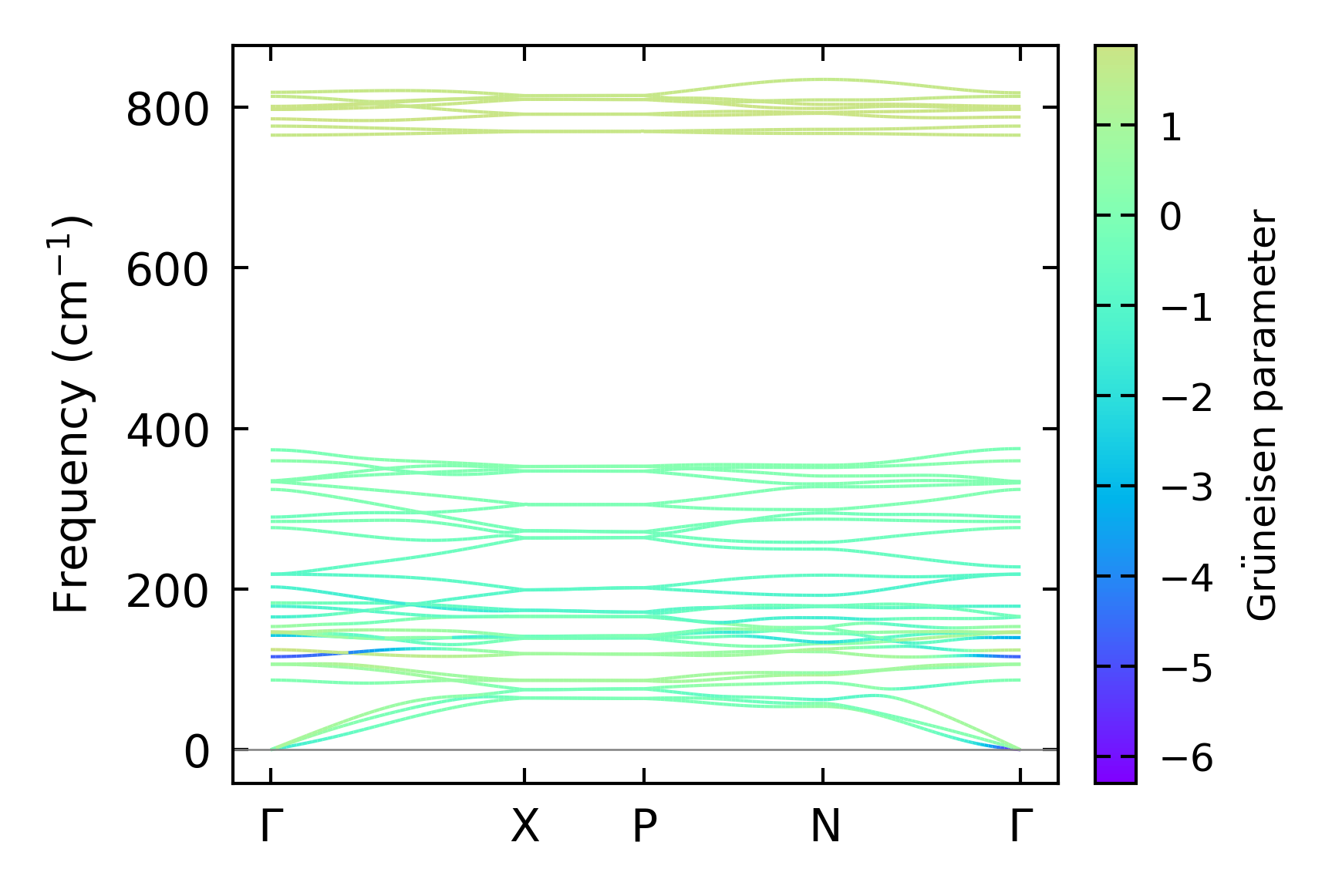

../../_images/fig_gruneisen5036.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x2x1

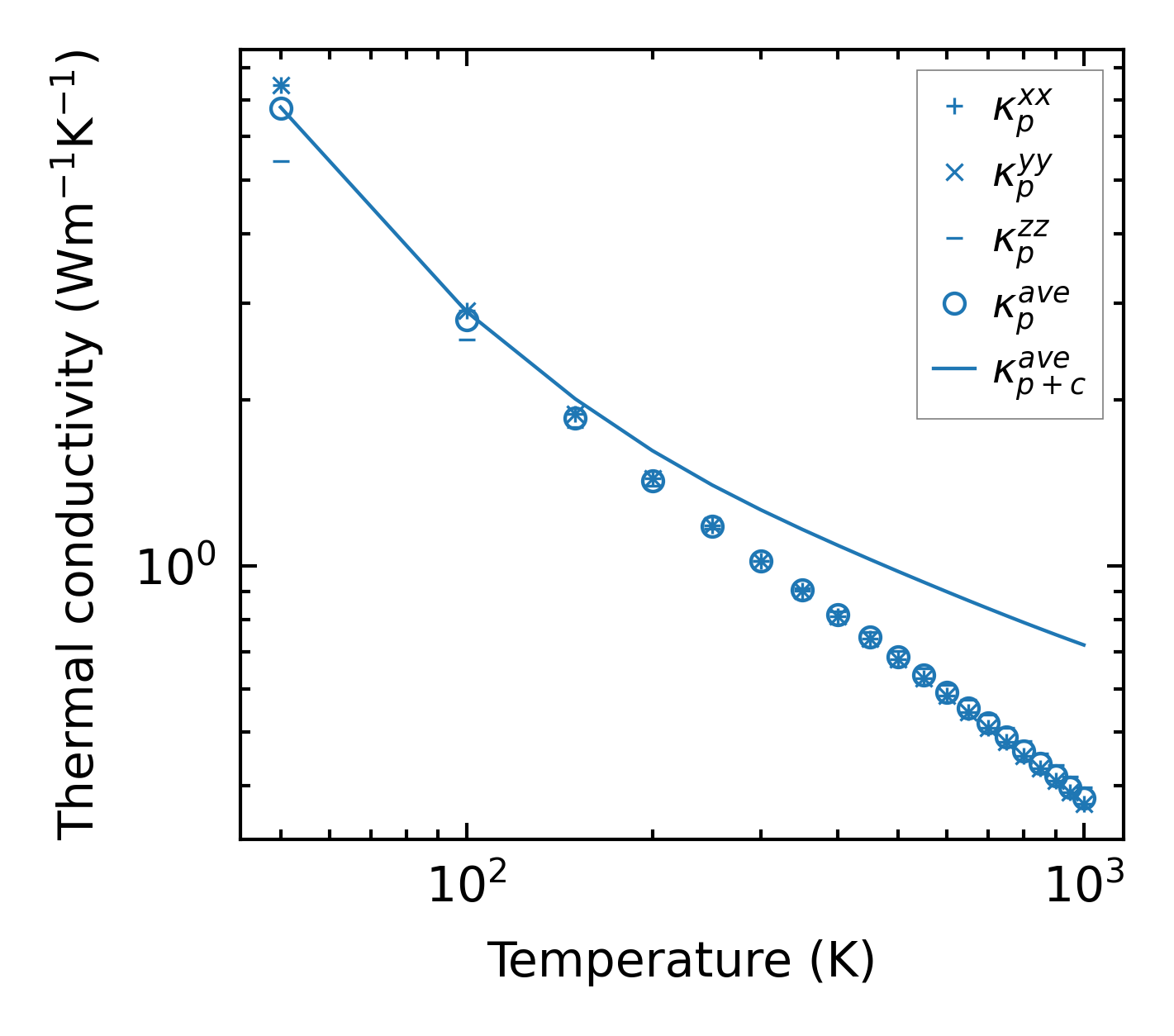

../../_images/fig_kappa9485.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5095.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

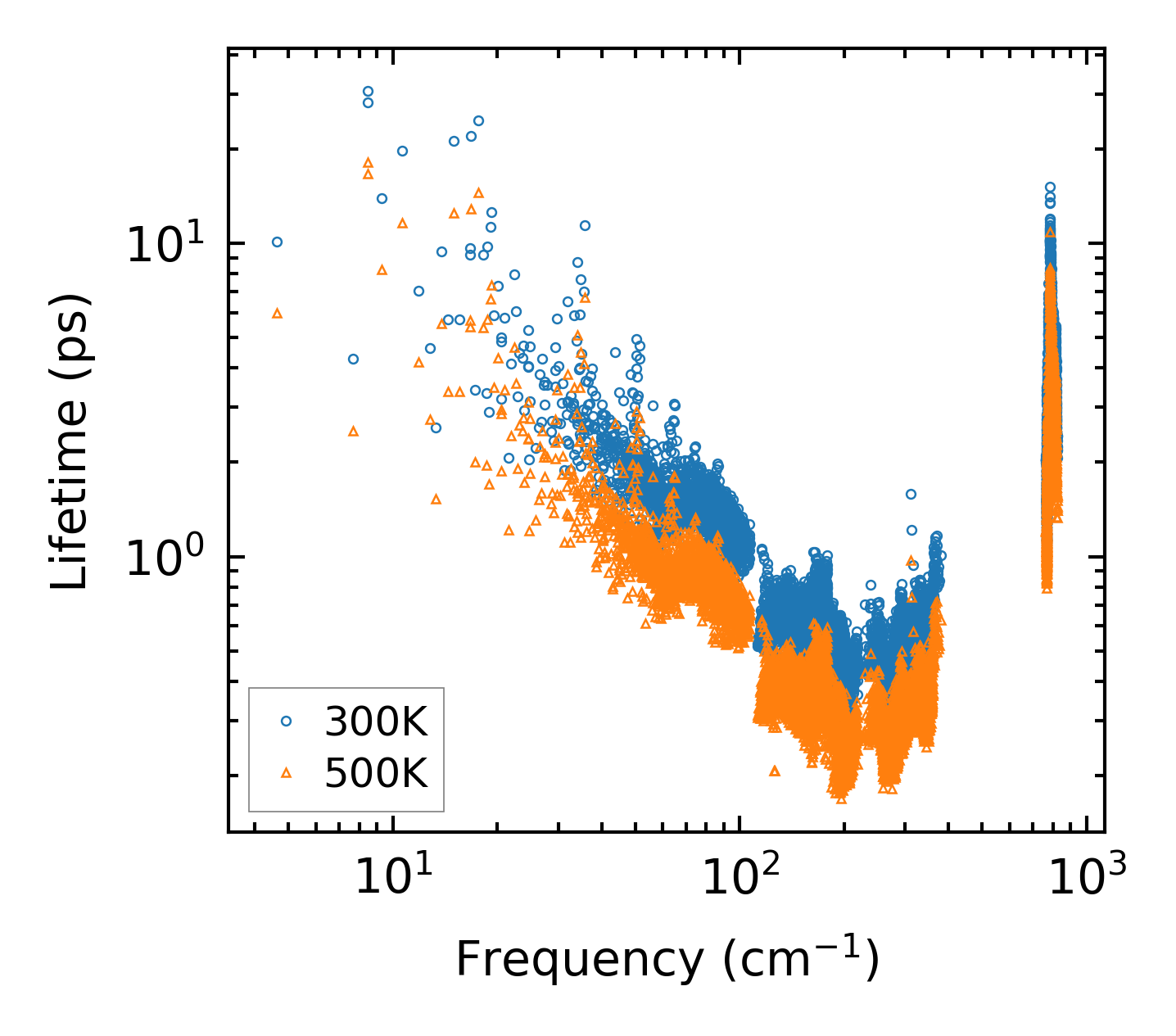

../../_images/fig_lifetime4986.png — (a) Phonon lifetime due to phonon-phonon scattering

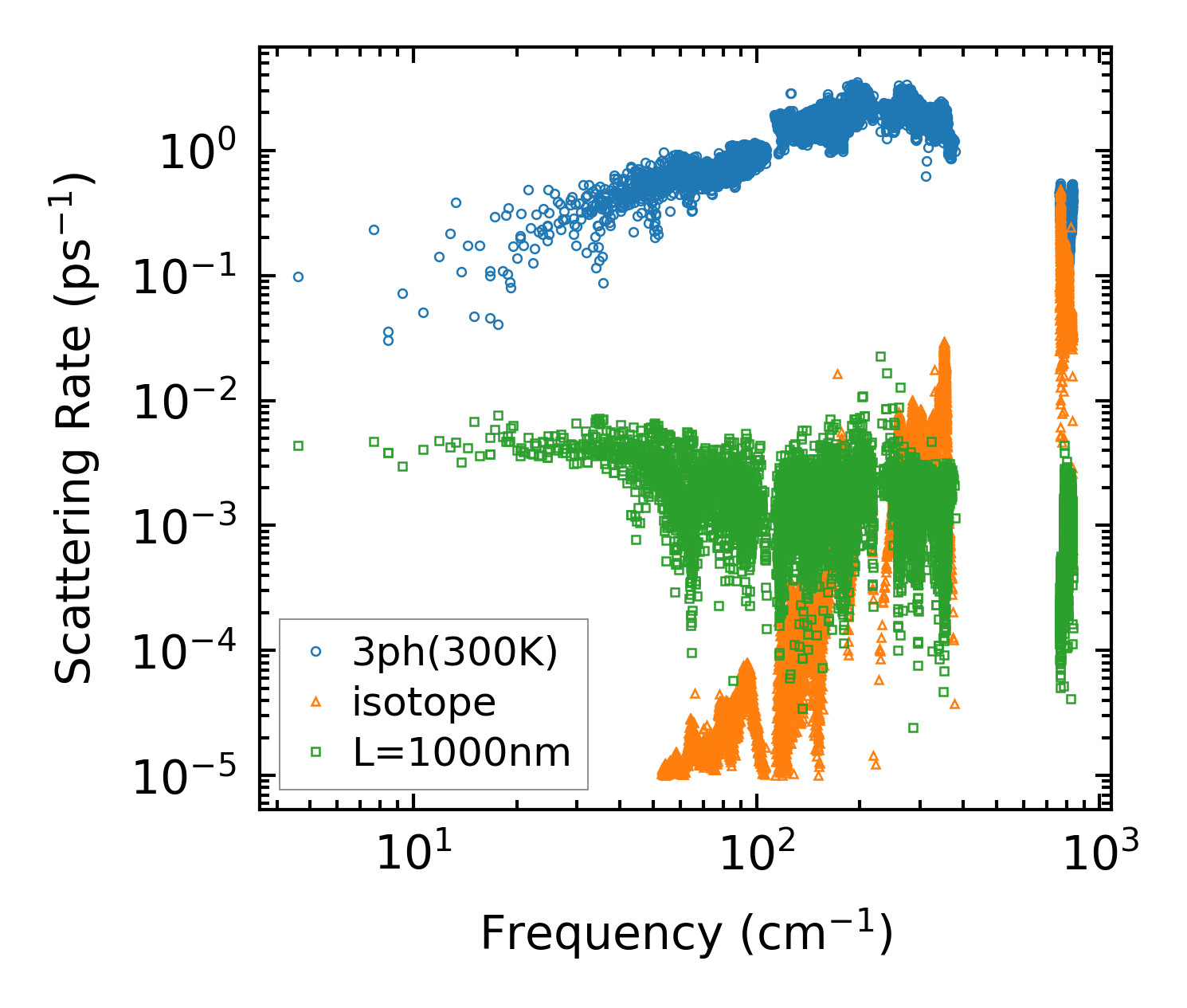

../../_images/fig_scat_rates4985.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4986.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

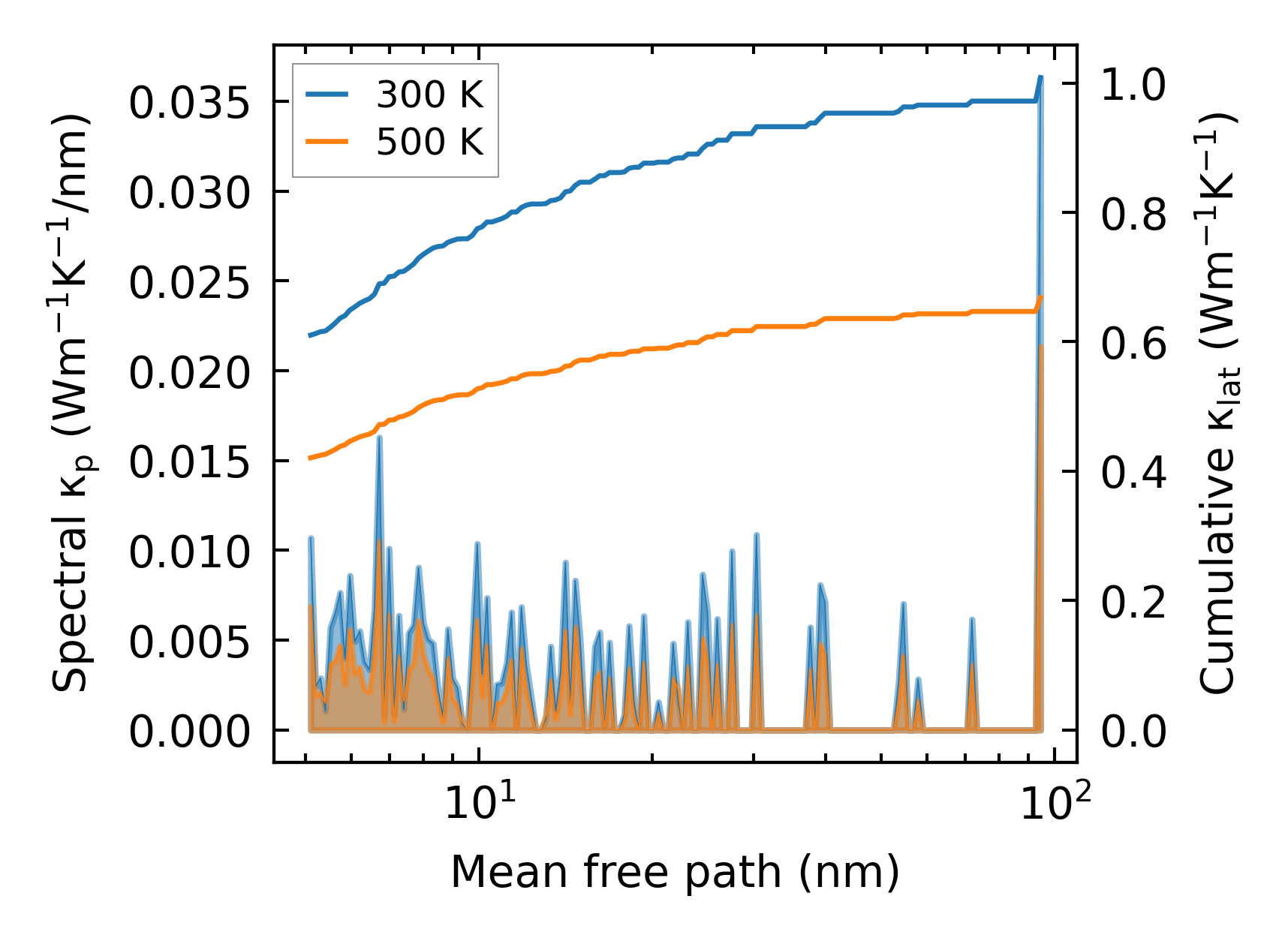

../../_images/fig_cumu_mfp4985.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

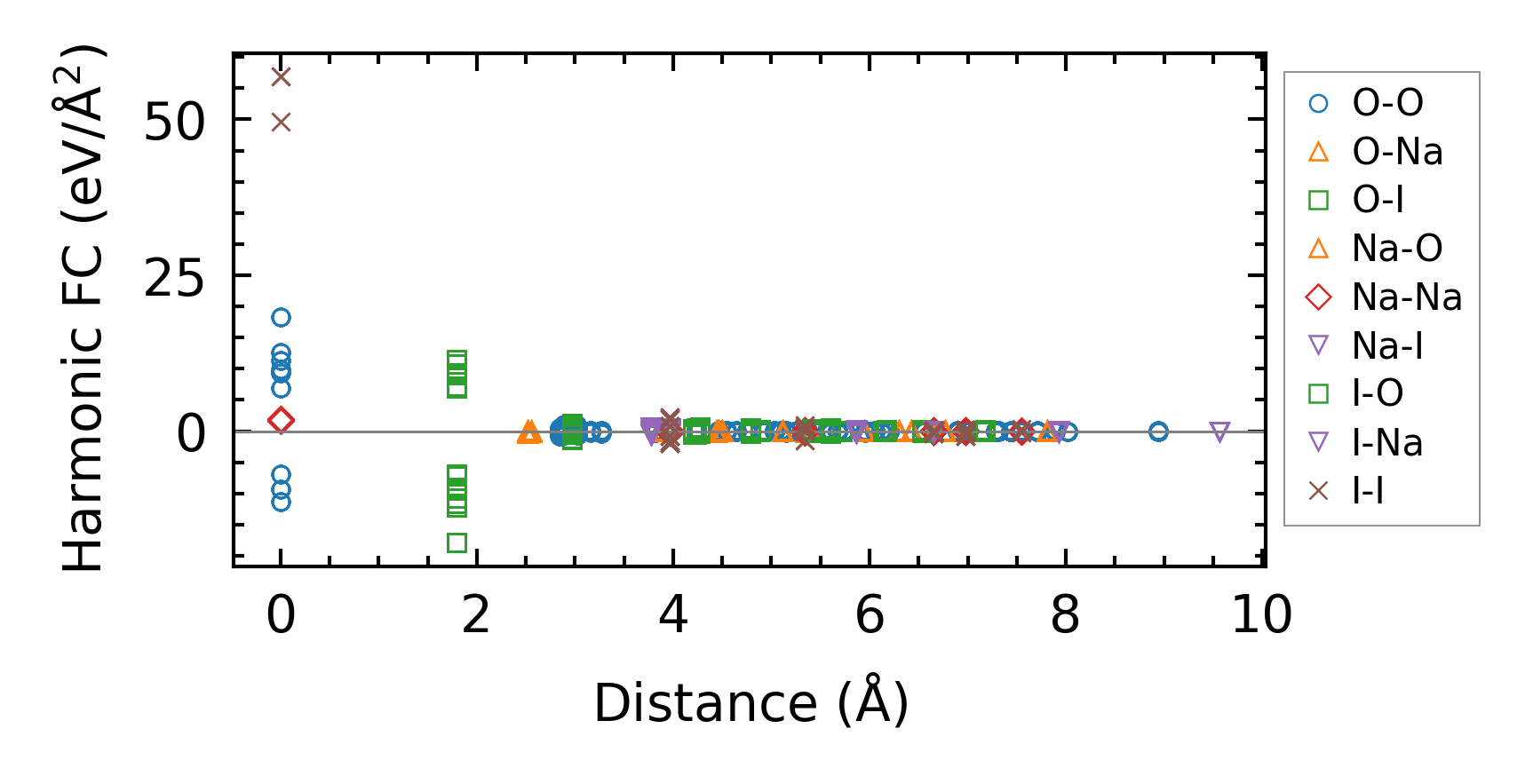

../../_images/fig_fc211779.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9486.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times20464.png — (b) Computation time
