mp-27857/PdBr2/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-27857.tar.gz

Harmonic properties

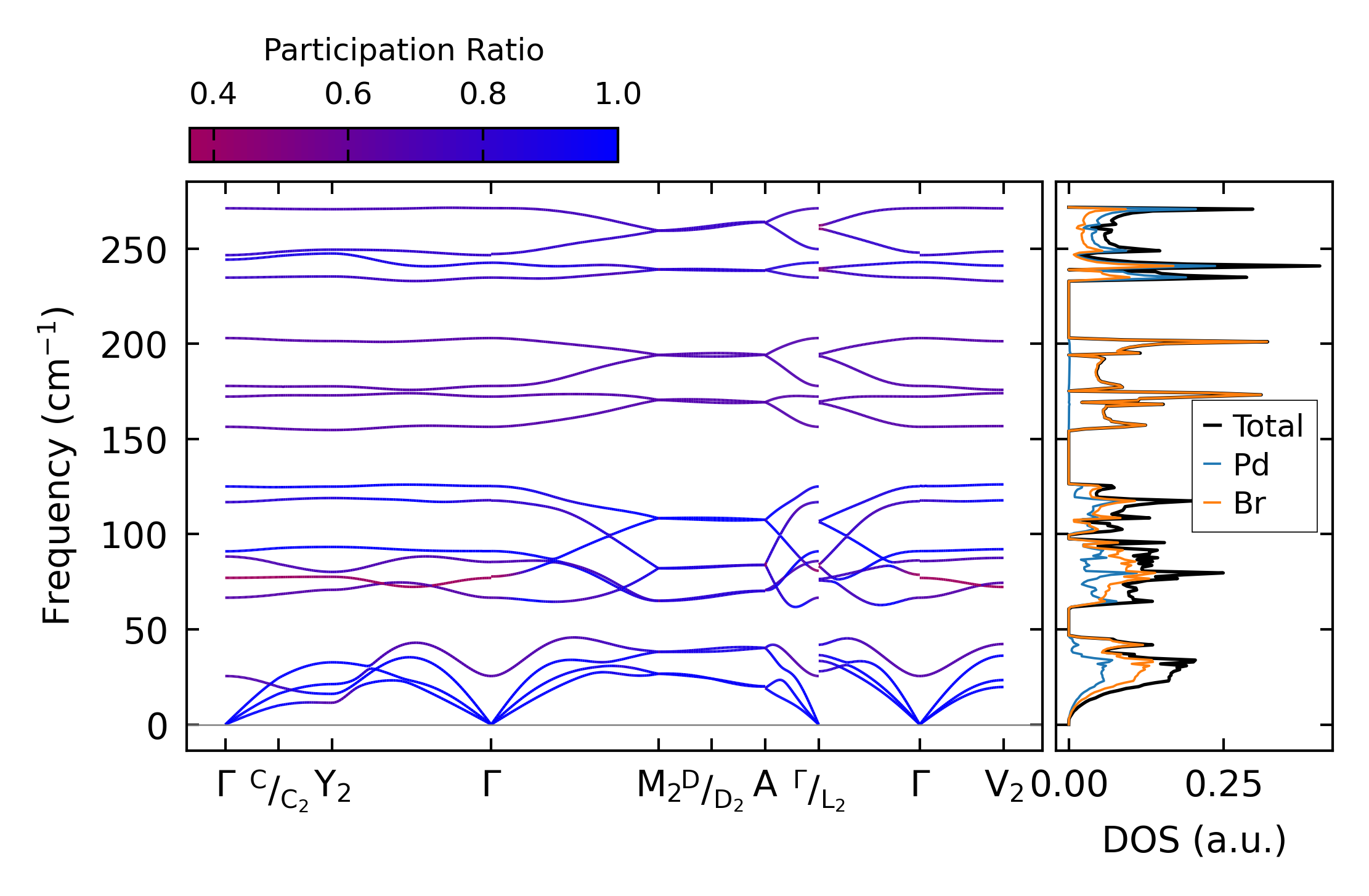

../../_images/fig_bandos_pr11936.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11936.png — (b) Thermodynamic properties

Grüneisen parameters

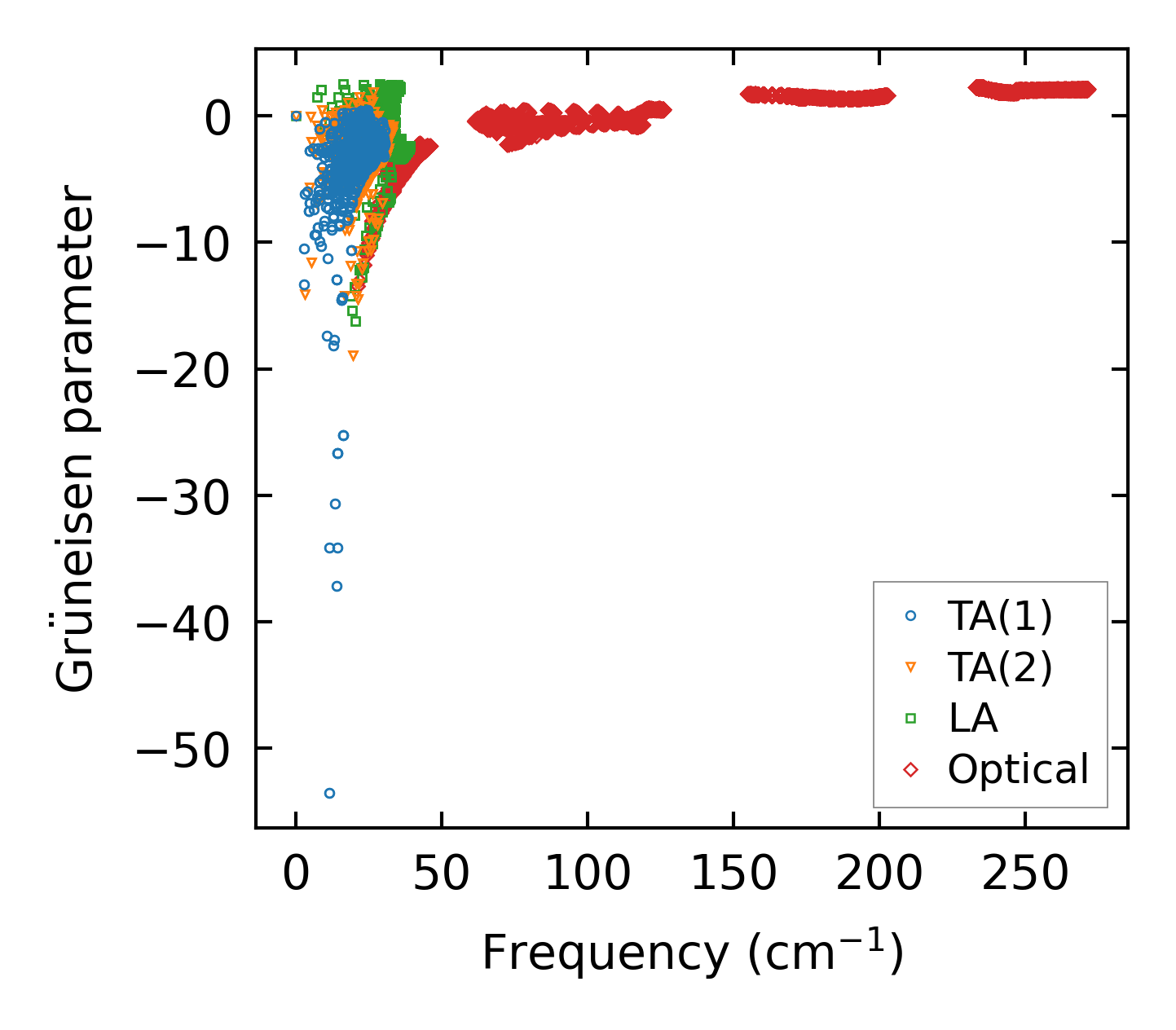

../../_images/fig_gru_all4975.png — (a) Grüneisen parameters

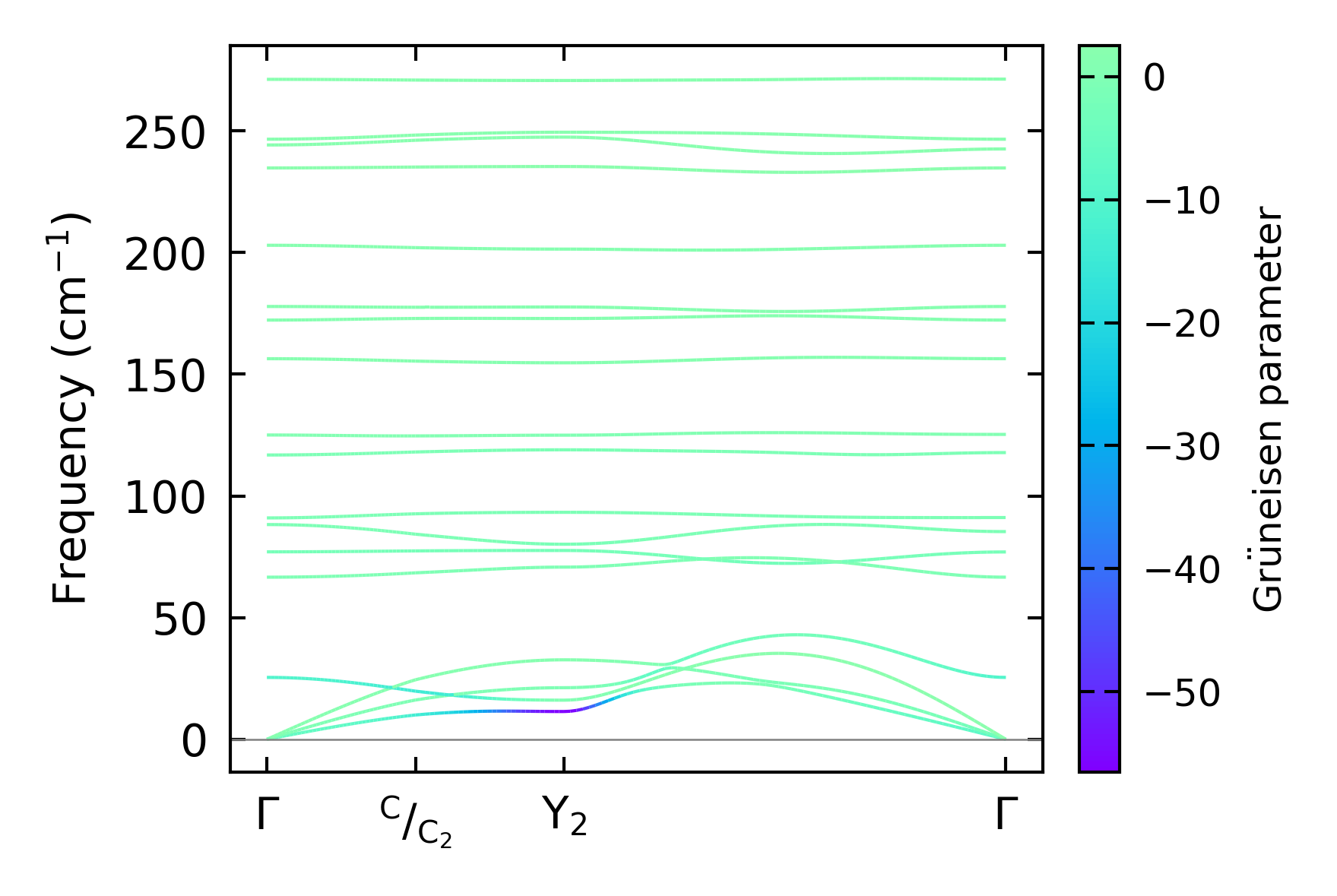

../../_images/fig_gruneisen4975.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x4x3

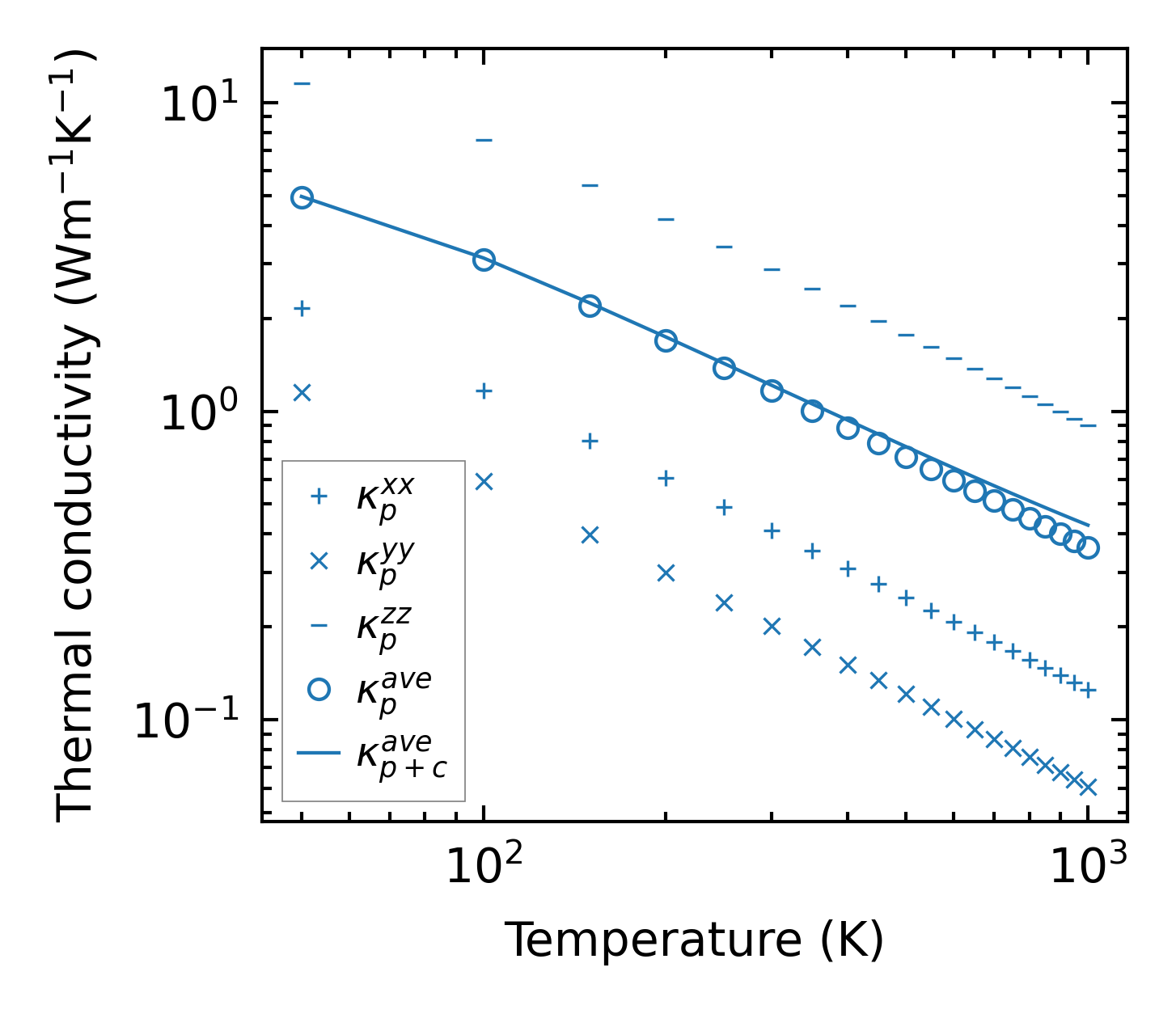

../../_images/fig_kappa9376.png — (a) Temperature-dependent lattice thermal conductivity

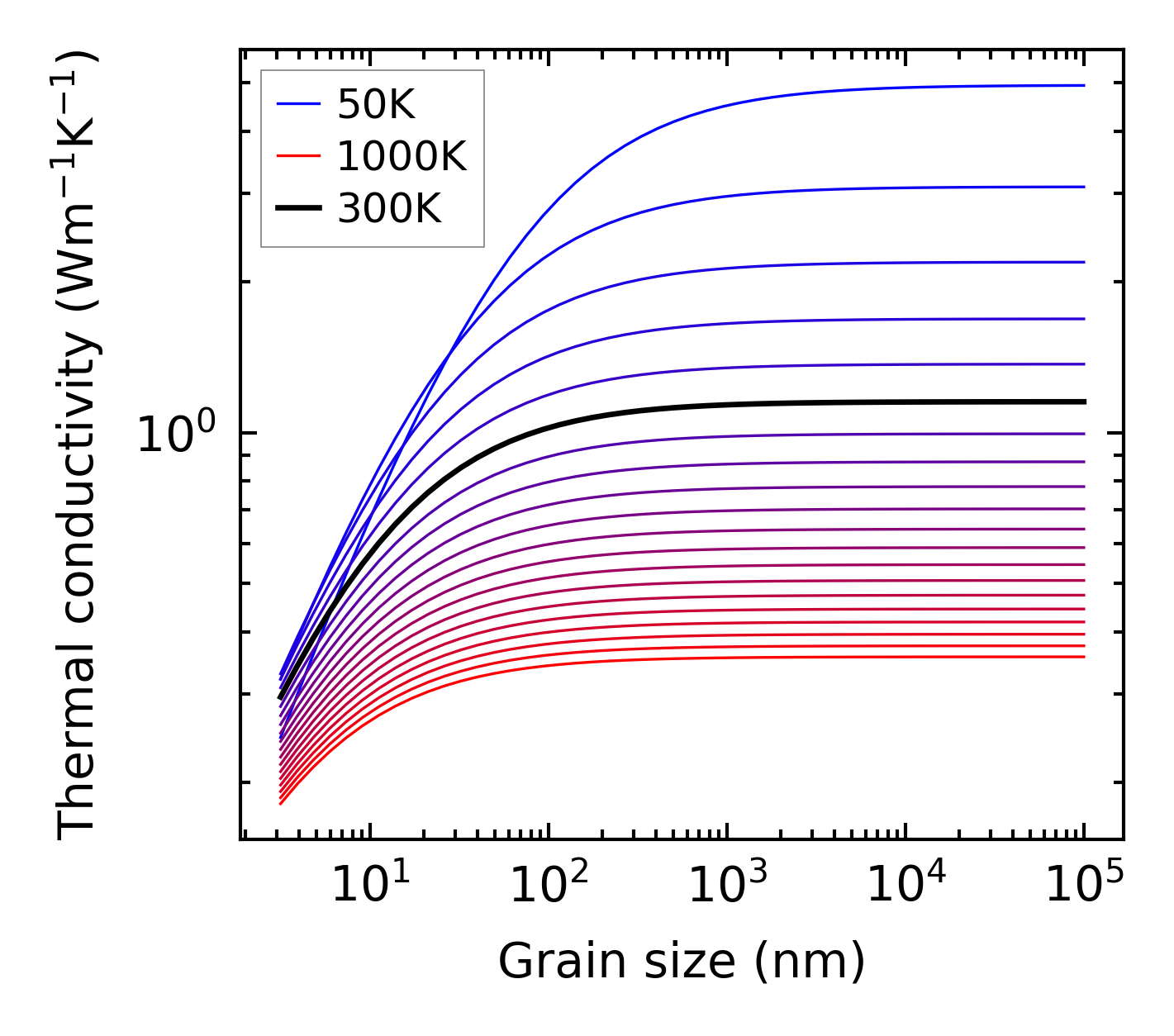

../../_images/fig_kappa_vs_grain_size5033.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

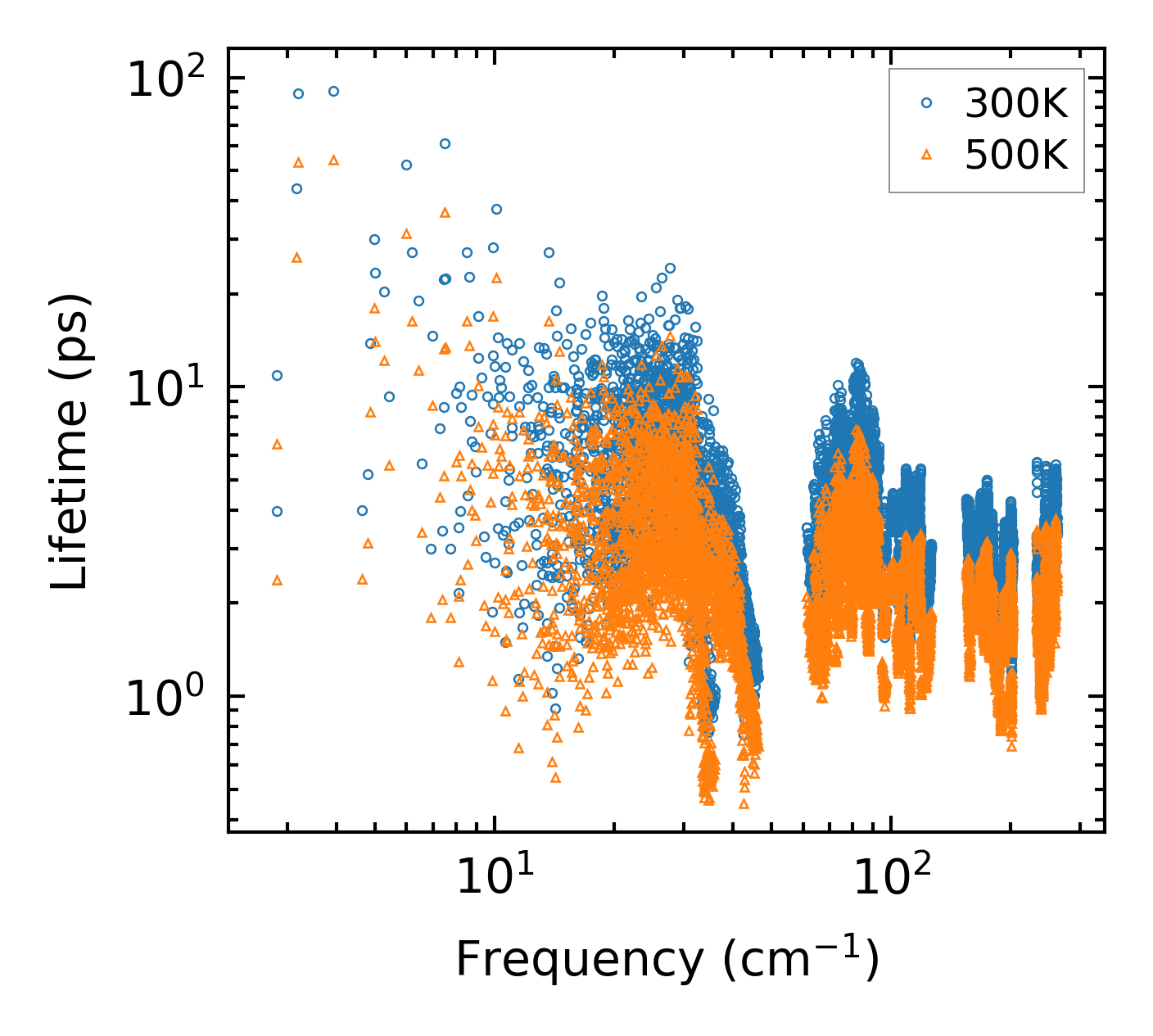

../../_images/fig_lifetime4925.png — (a) Phonon lifetime due to phonon-phonon scattering

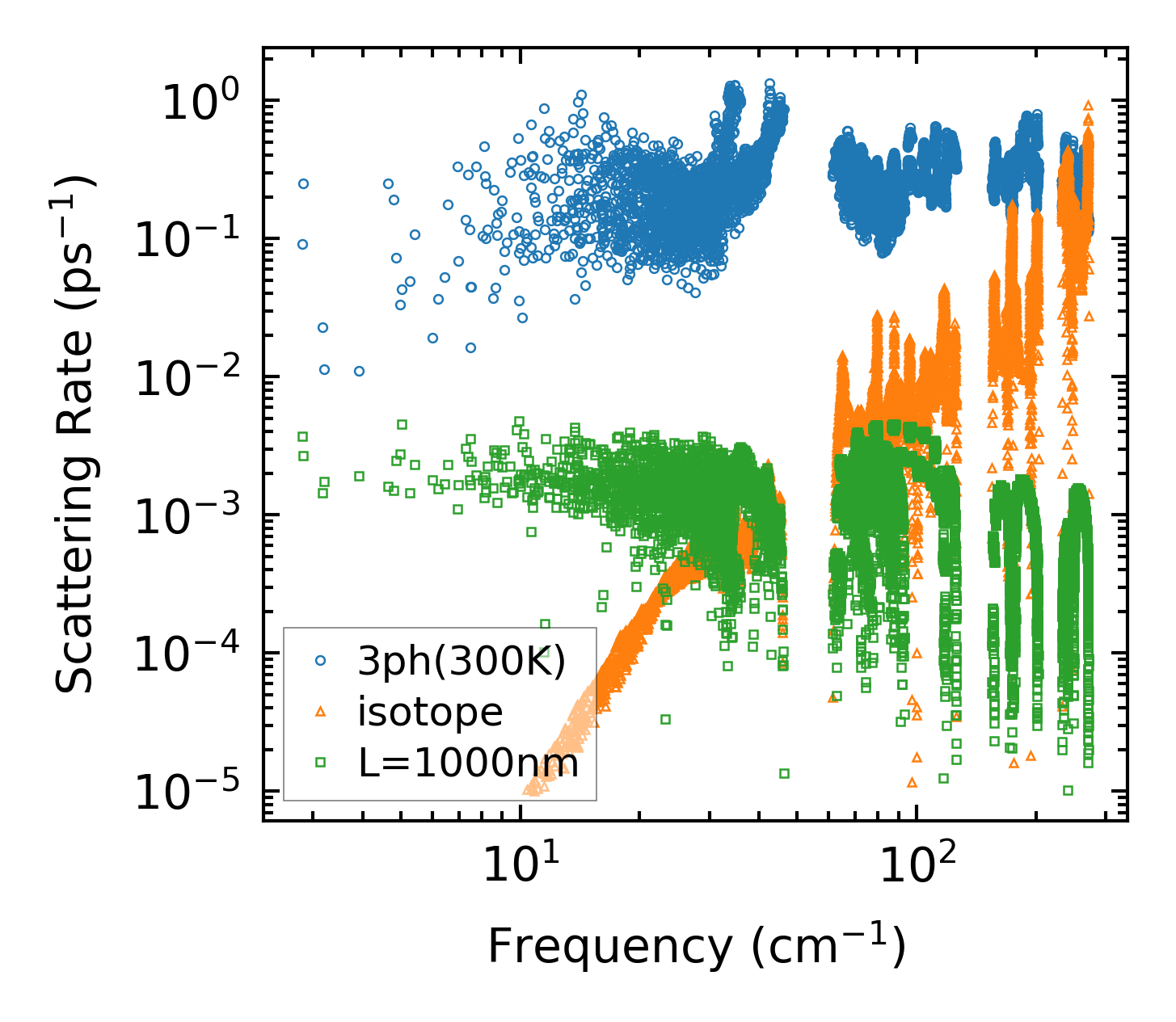

../../_images/fig_scat_rates4924.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

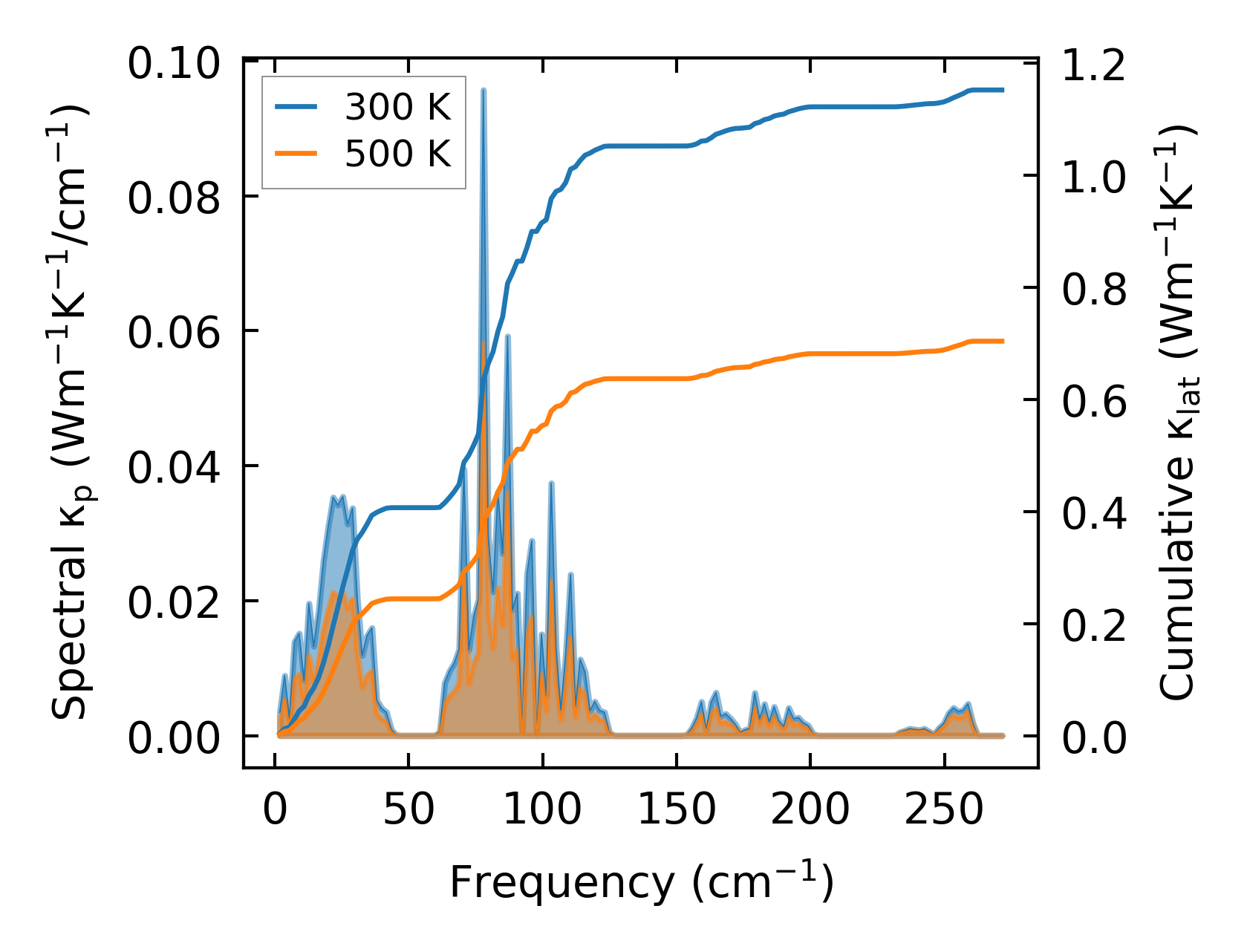

../../_images/fig_cumu_frequency4925.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

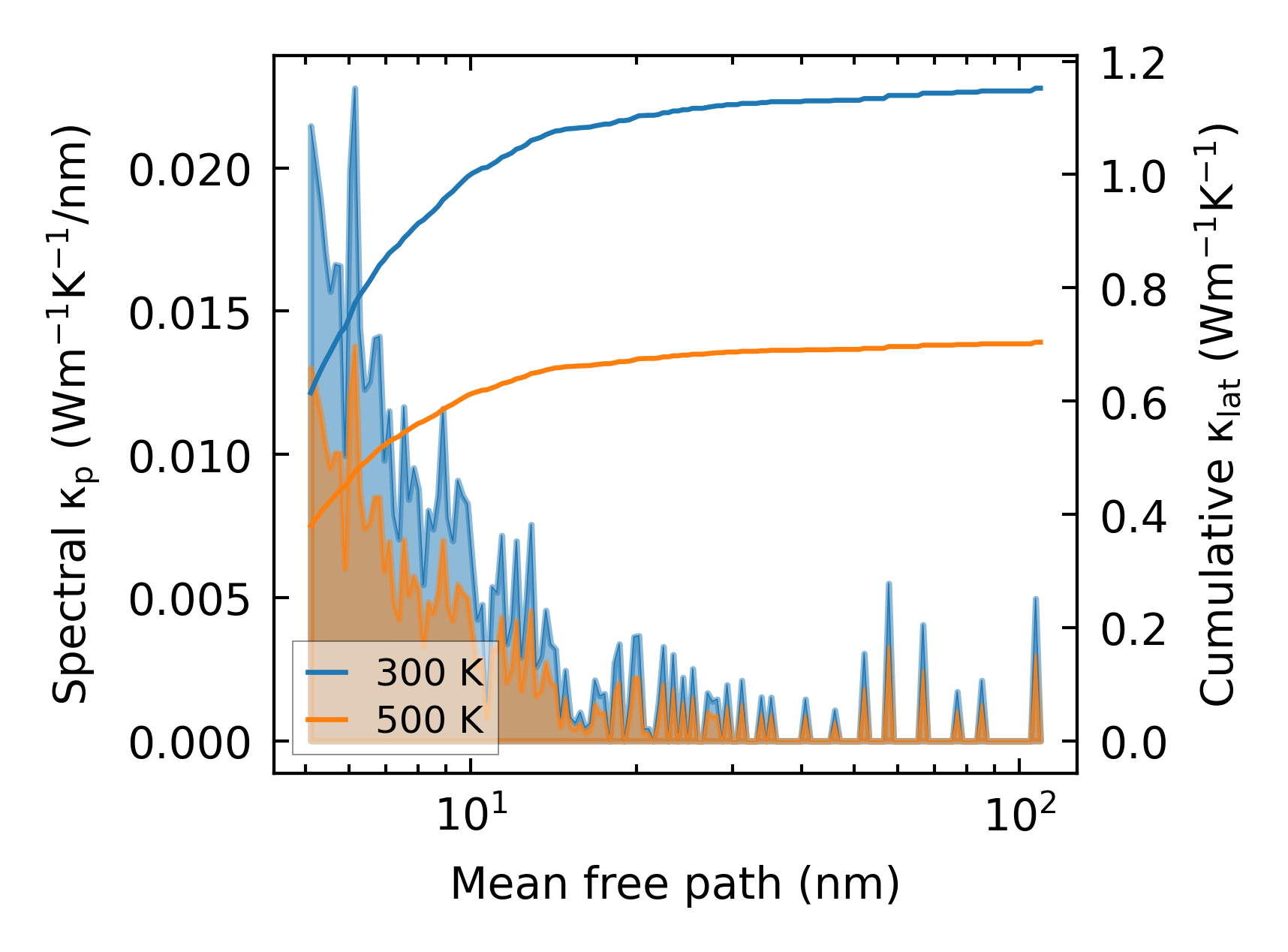

../../_images/fig_cumu_mfp4924.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211641.png — (a) Force constants w.r.t atomic distance

Summary

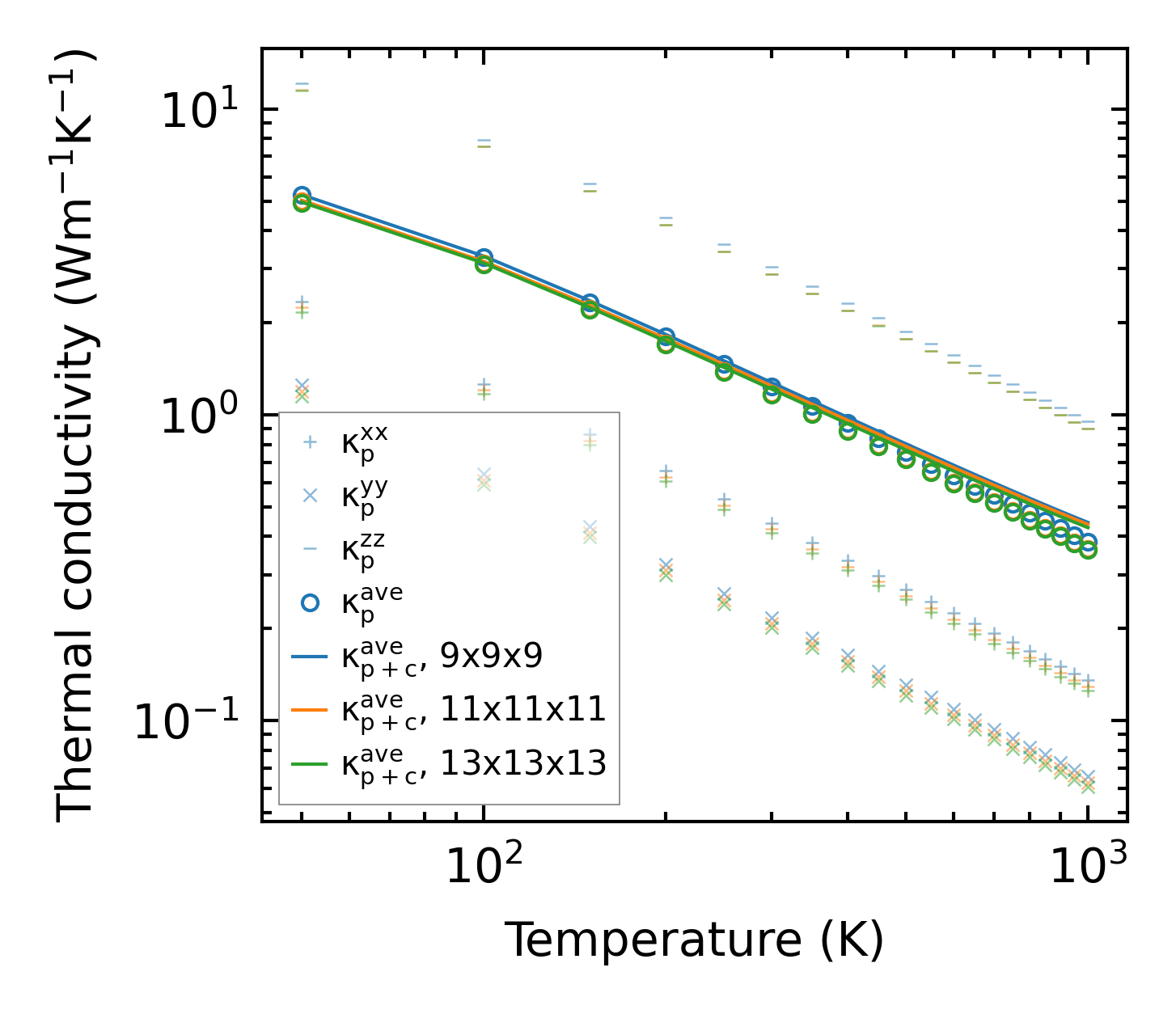

../../_images/fig_kappa9377.png — (a) Temperature-dependent lattice thermal conductivity

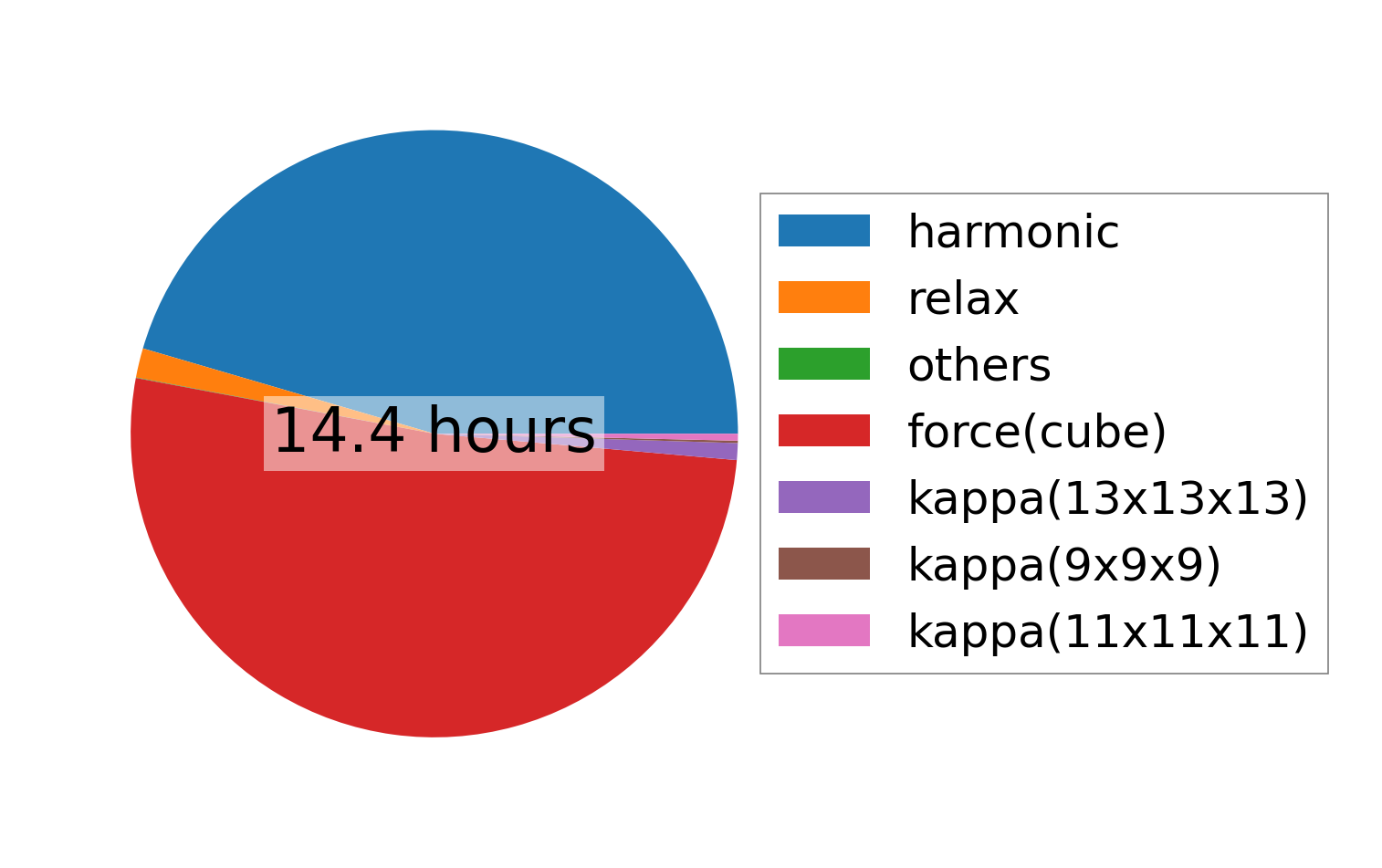

../../_images/fig_times20246.png — (b) Computation time
