mp-27767/Li6Si2O7/anharm

Space group: P-42_1m (113)
Link: Materials Project
Download: mp-27767.tar.gz

Equation of state

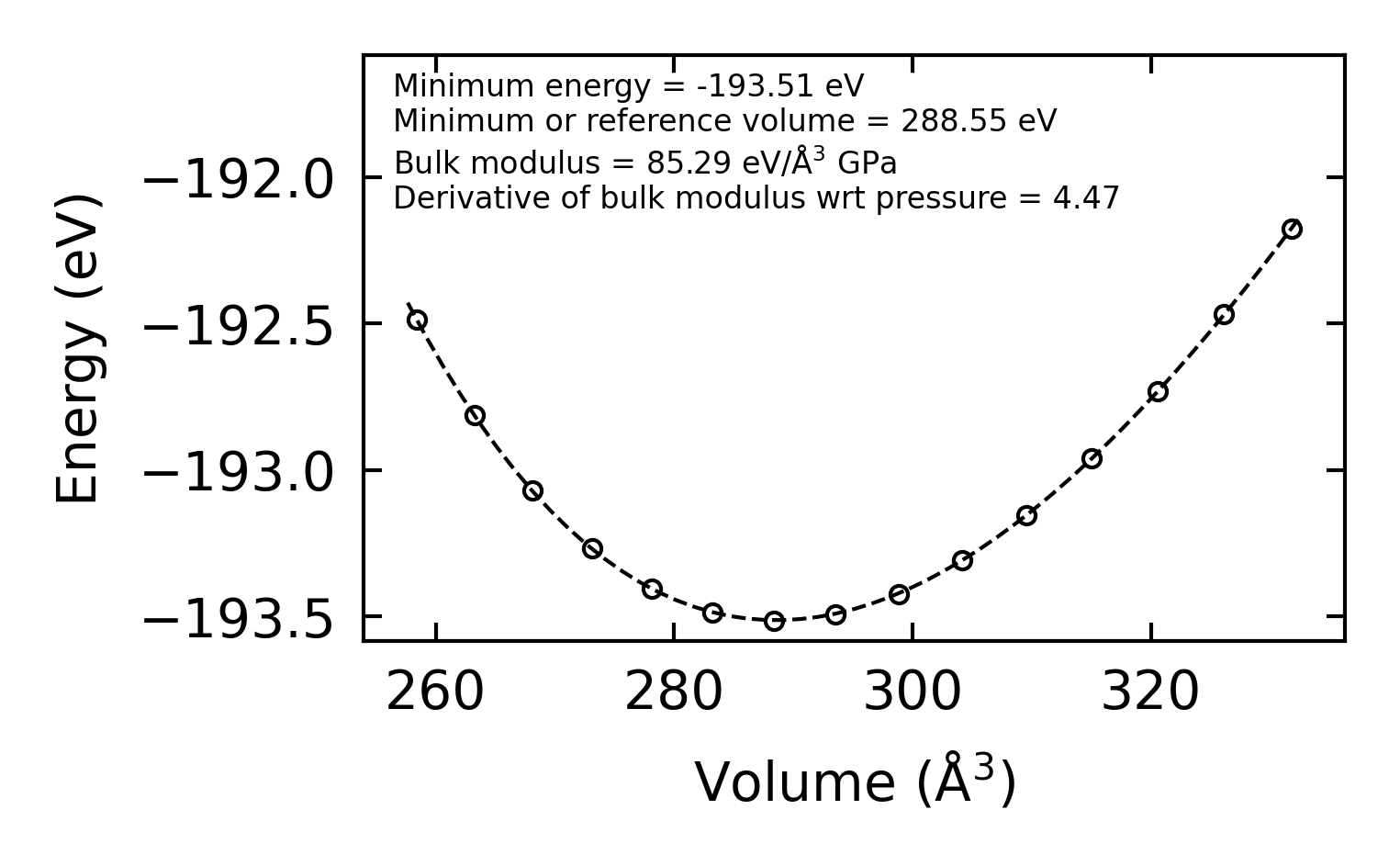

../../_images/fig_bm5801.png — (a) Equation of state

Harmonic properties

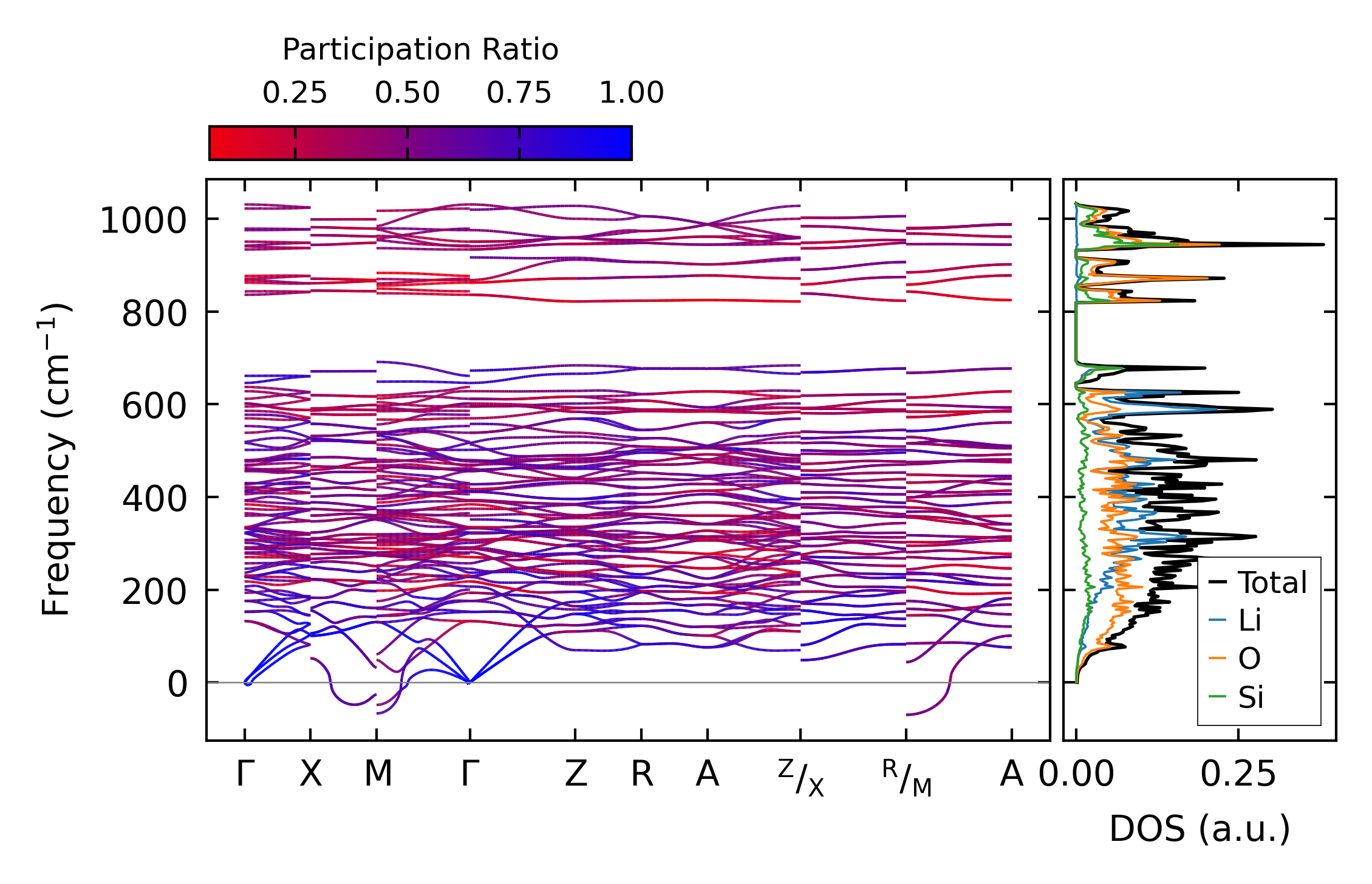

../../_images/fig_bandos_pr11888.png — (a) Phonon dispersion with participation ratio and DOS

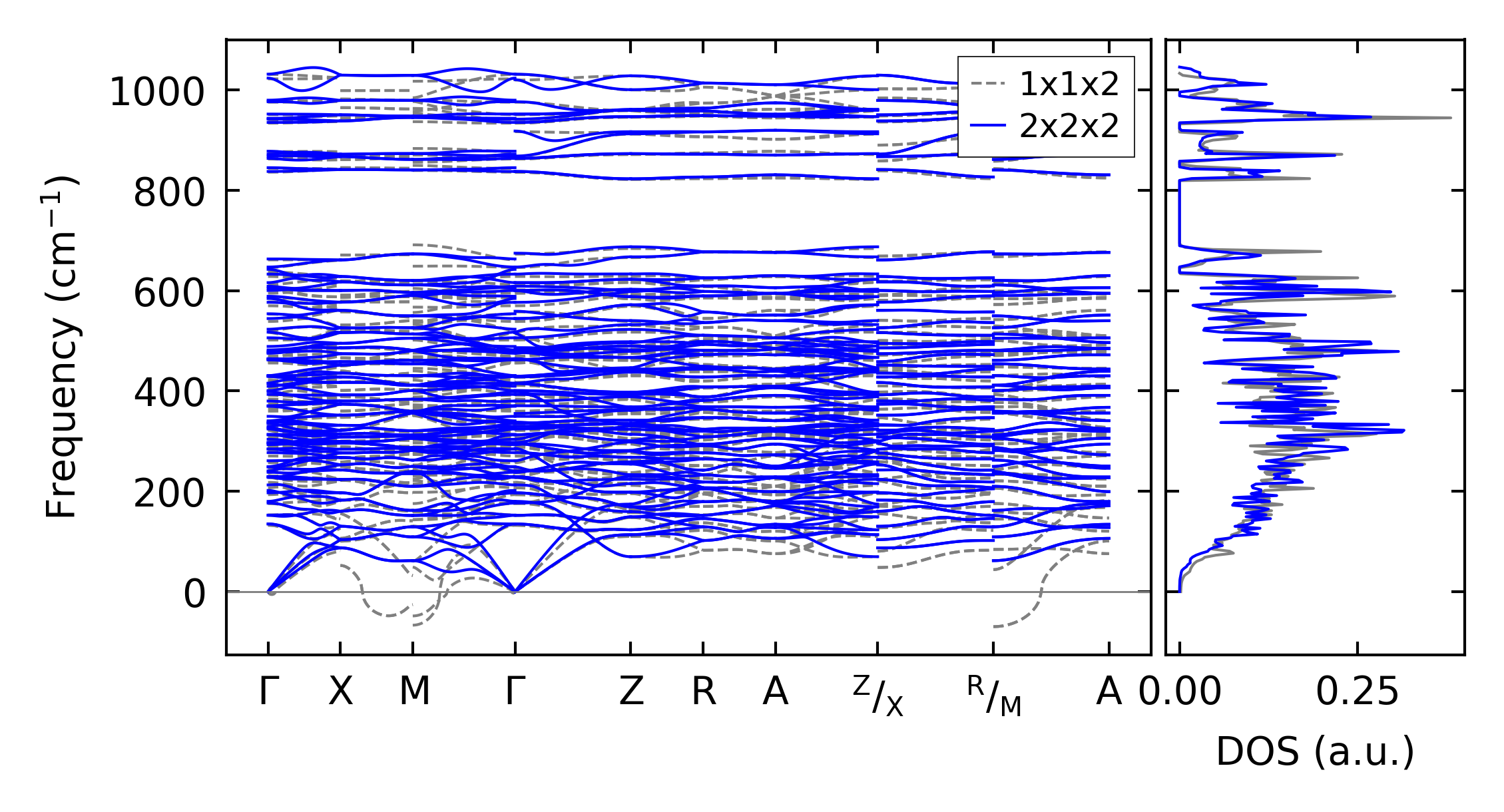

../../_images/fig_bandos15926.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11888.png — (c) Thermodynamic properties

Grüneisen parameters

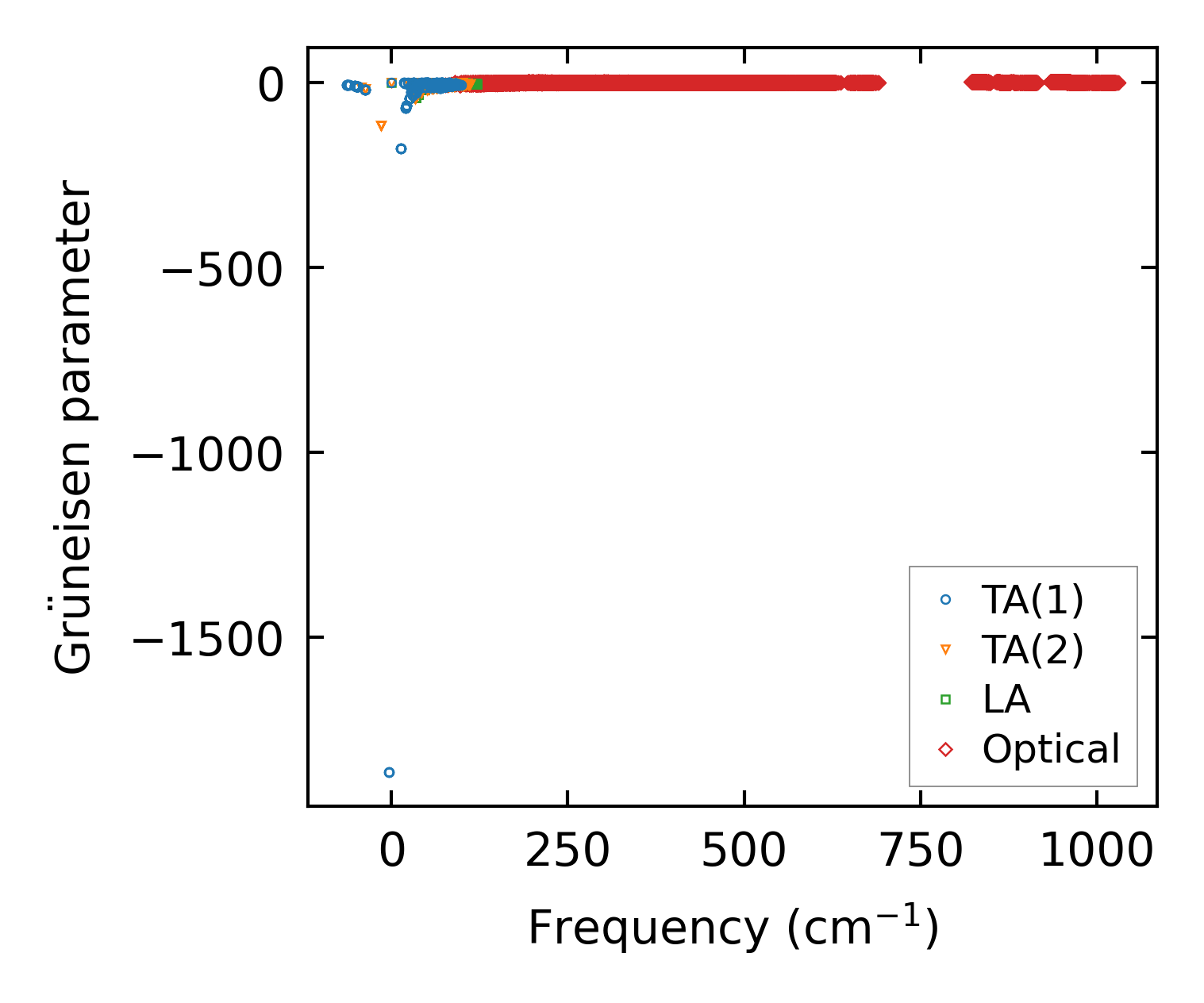

../../_images/fig_gru_all4954.png — (a) Grüneisen parameters

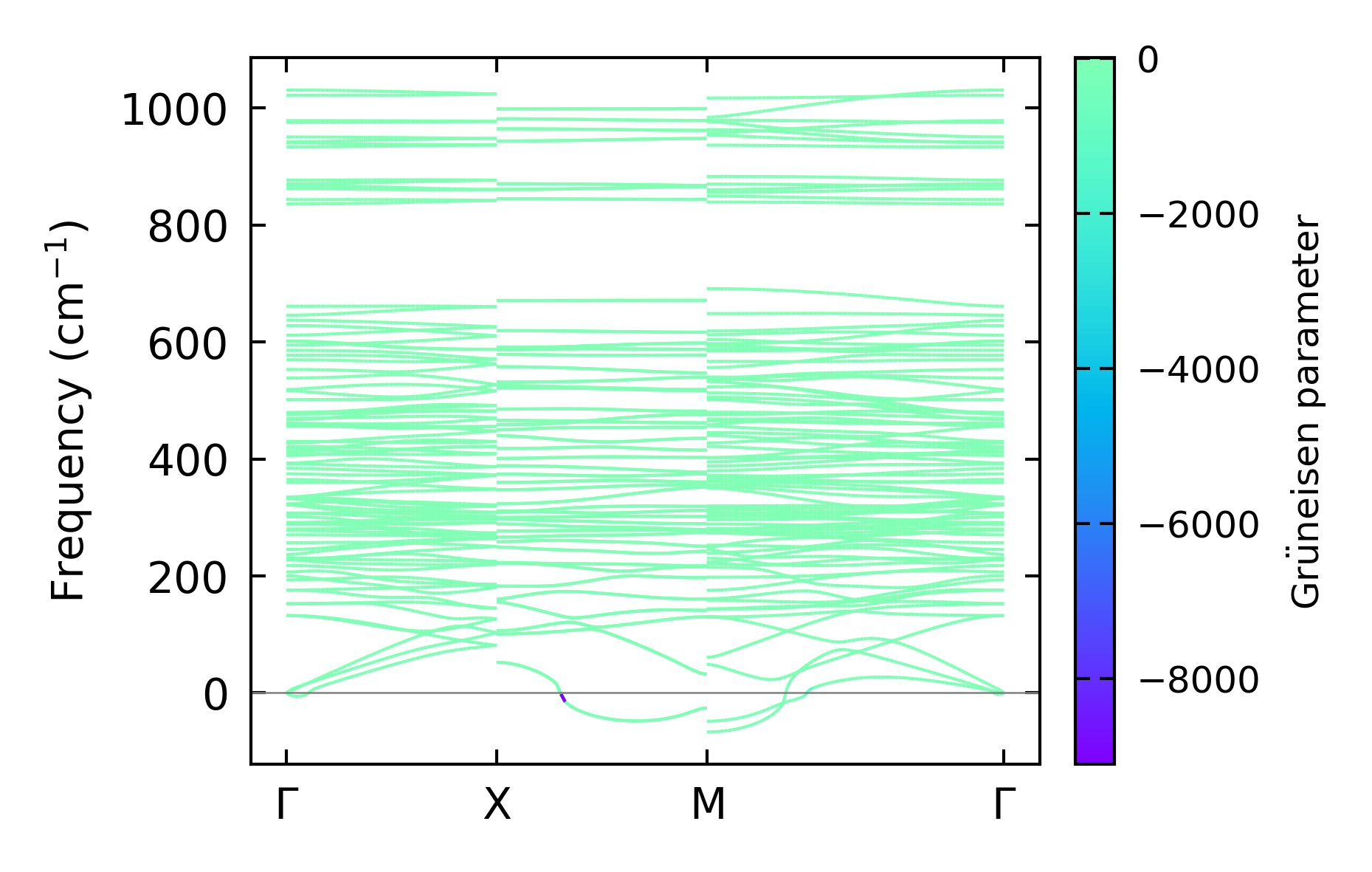

../../_images/fig_gruneisen4954.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 9x9x14, supercell: 2x2x2

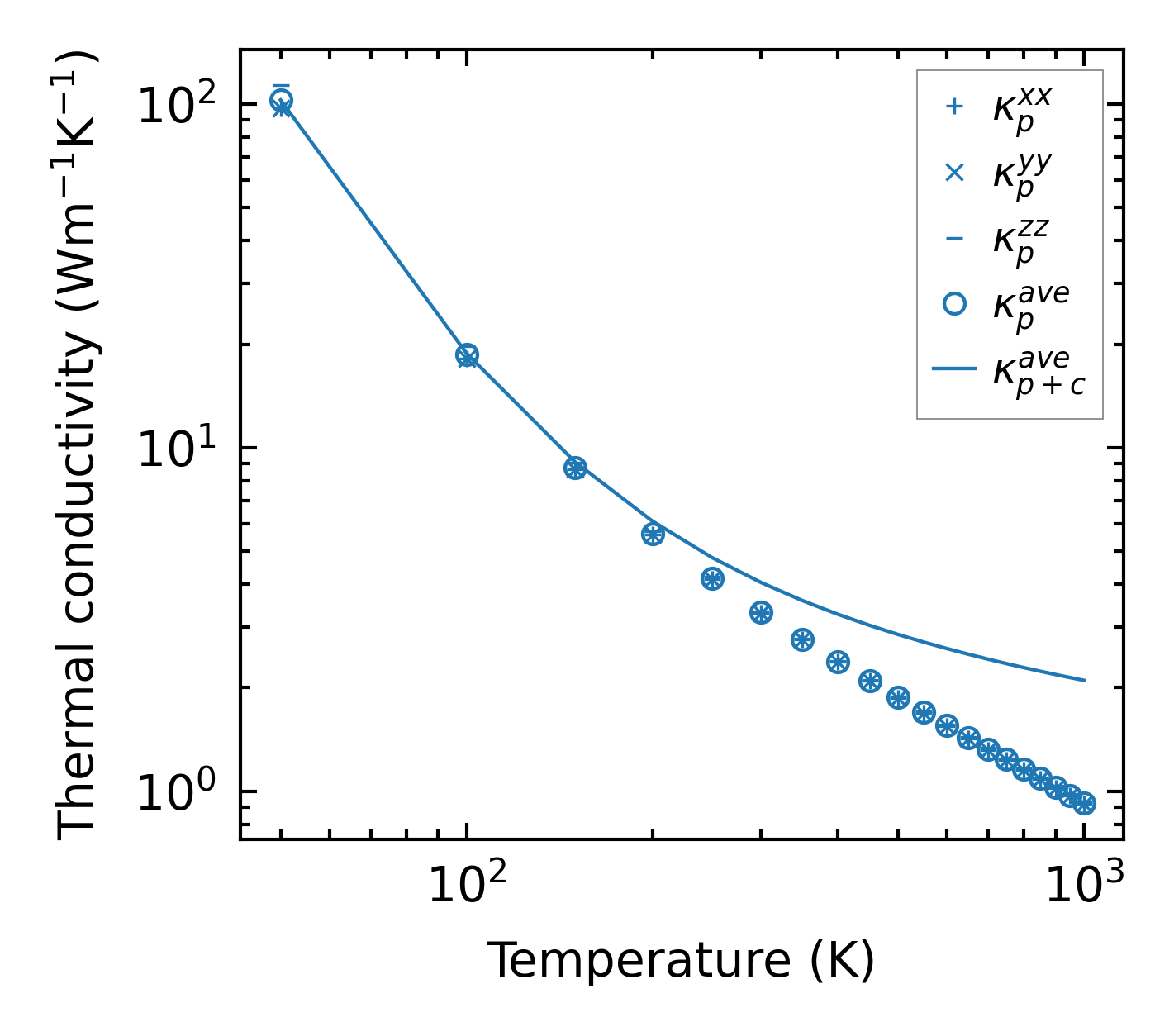

../../_images/fig_kappa9338.png — (a) Temperature-dependent lattice thermal conductivity

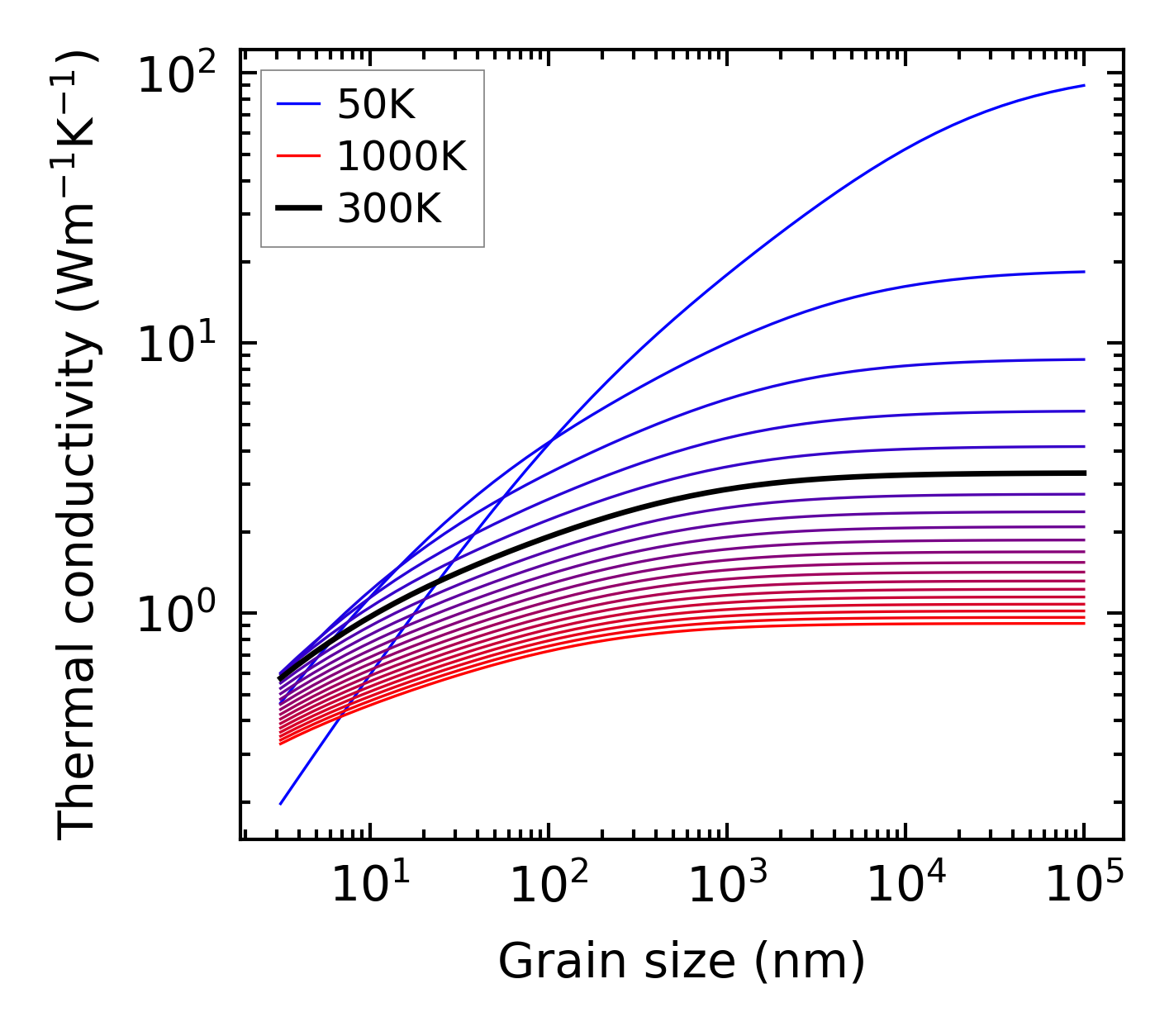

../../_images/fig_kappa_vs_grain_size5012.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

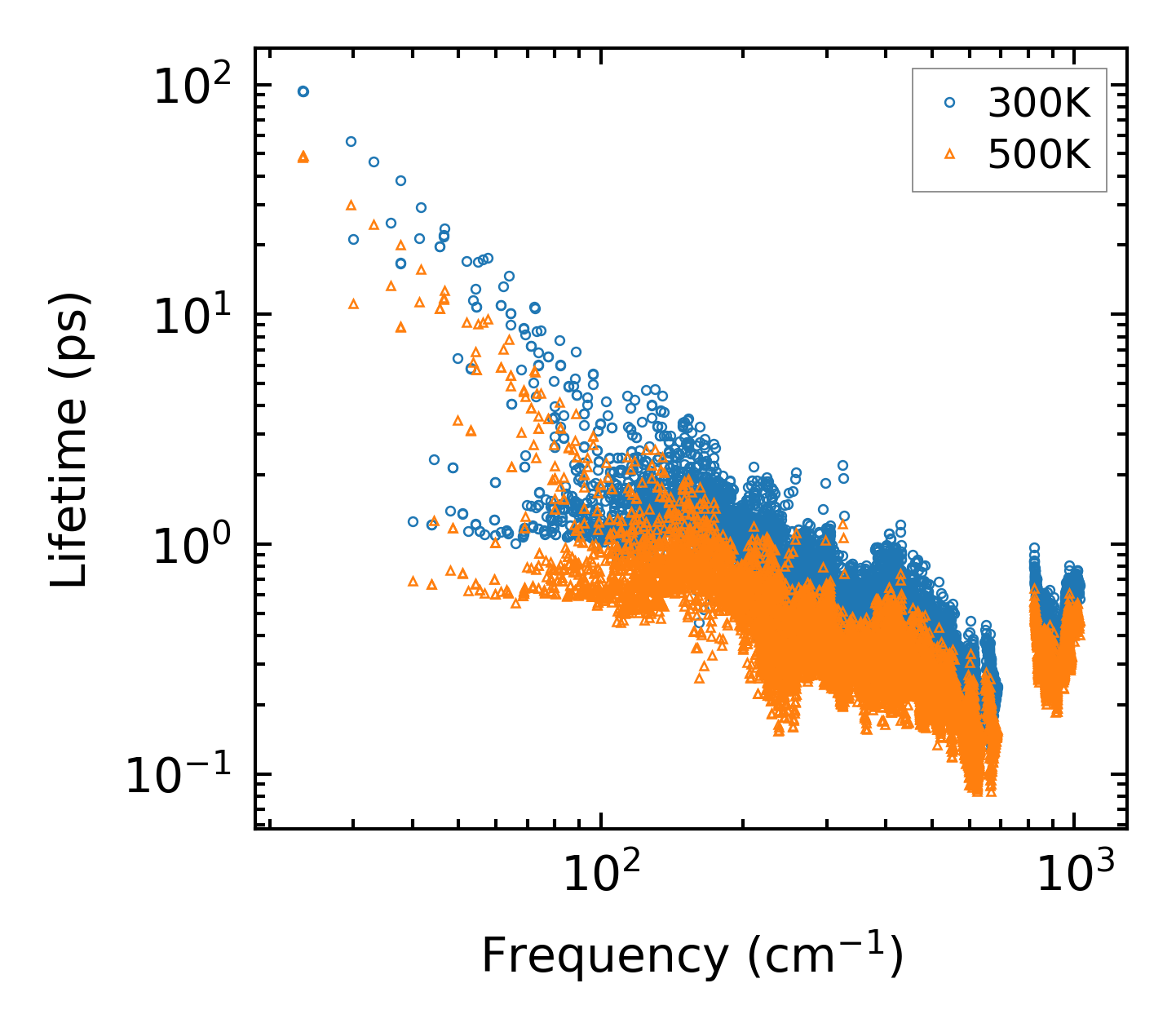

../../_images/fig_lifetime4904.png — (a) Phonon lifetime due to phonon-phonon scattering

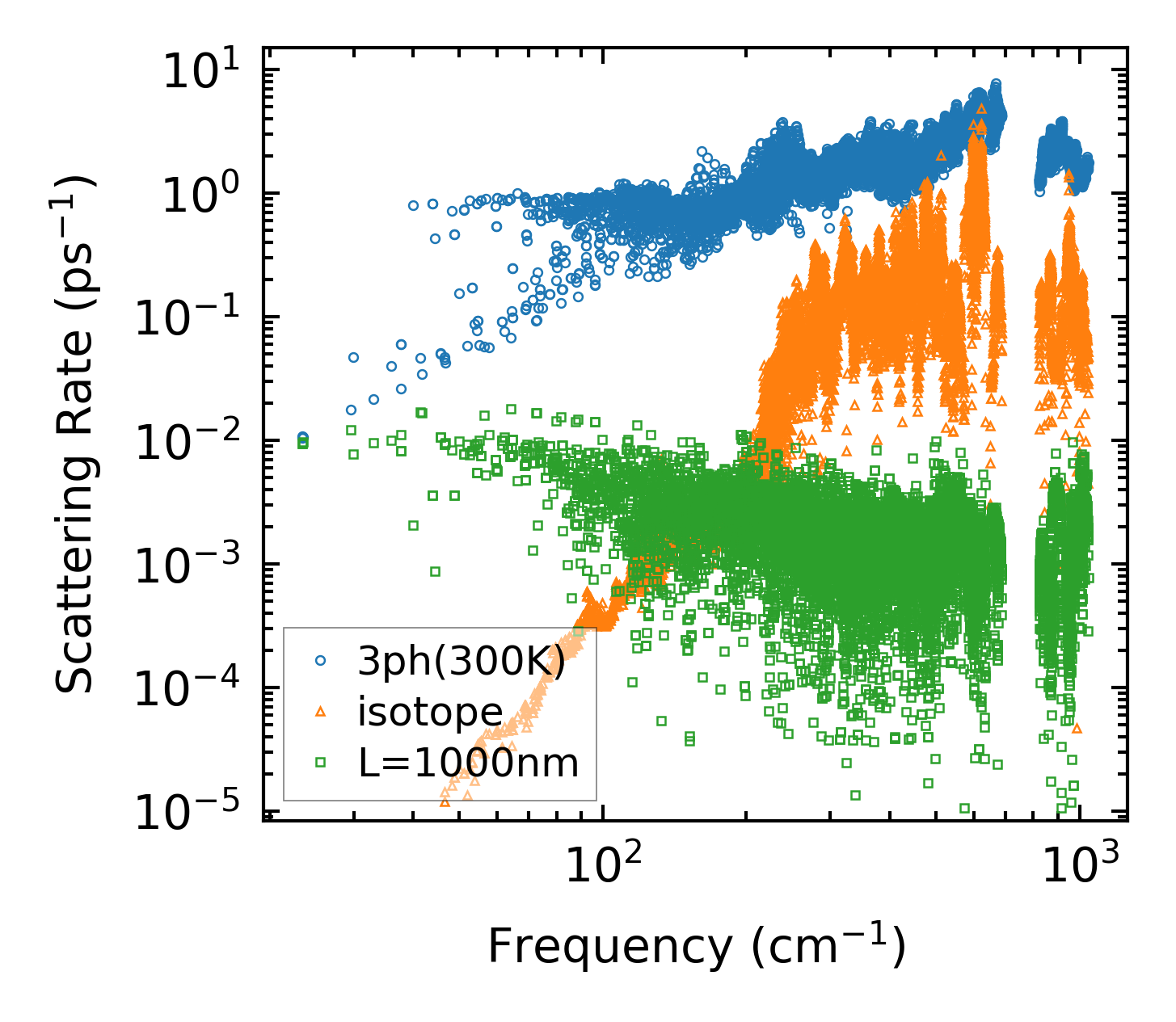

../../_images/fig_scat_rates4903.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

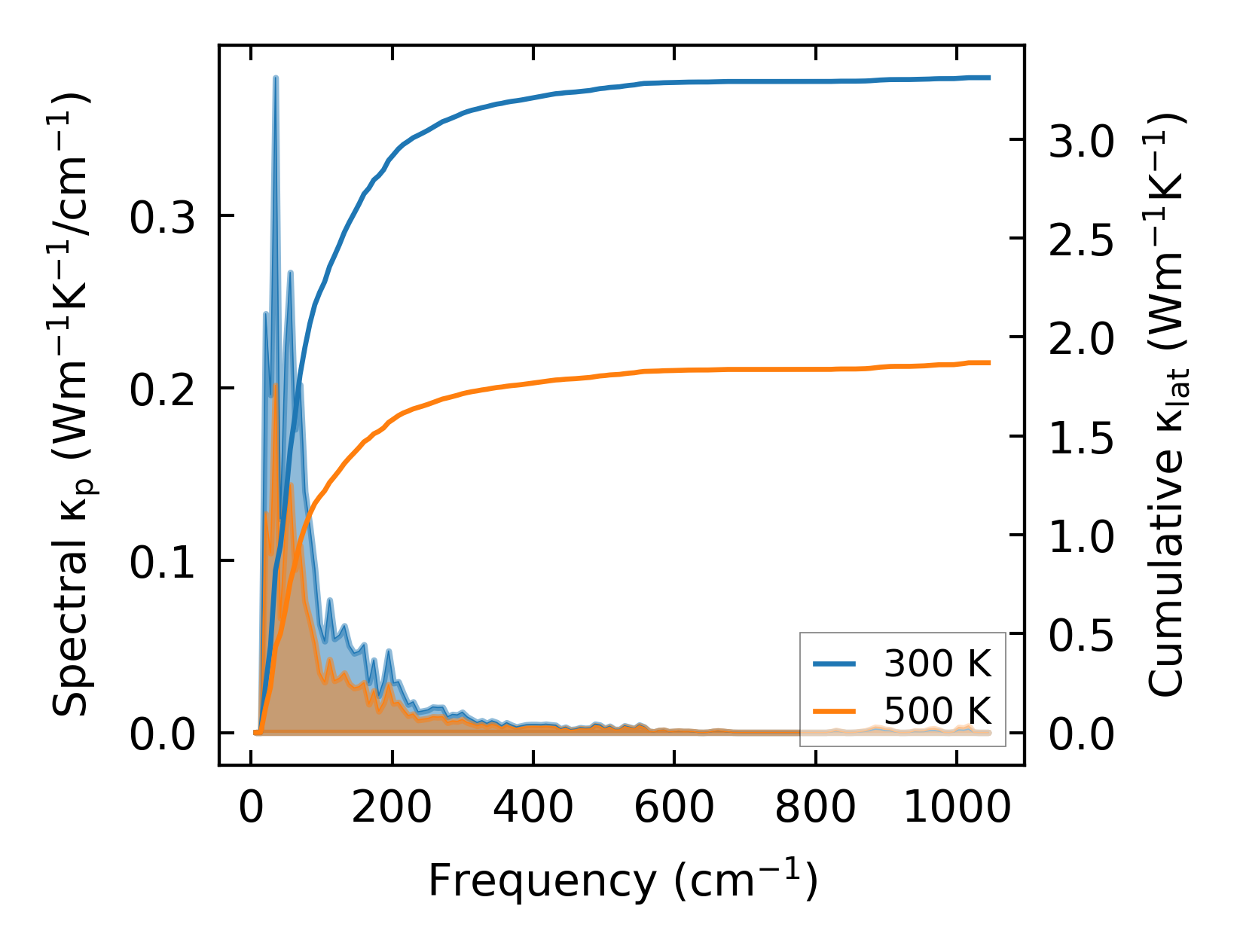

../../_images/fig_cumu_frequency4904.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

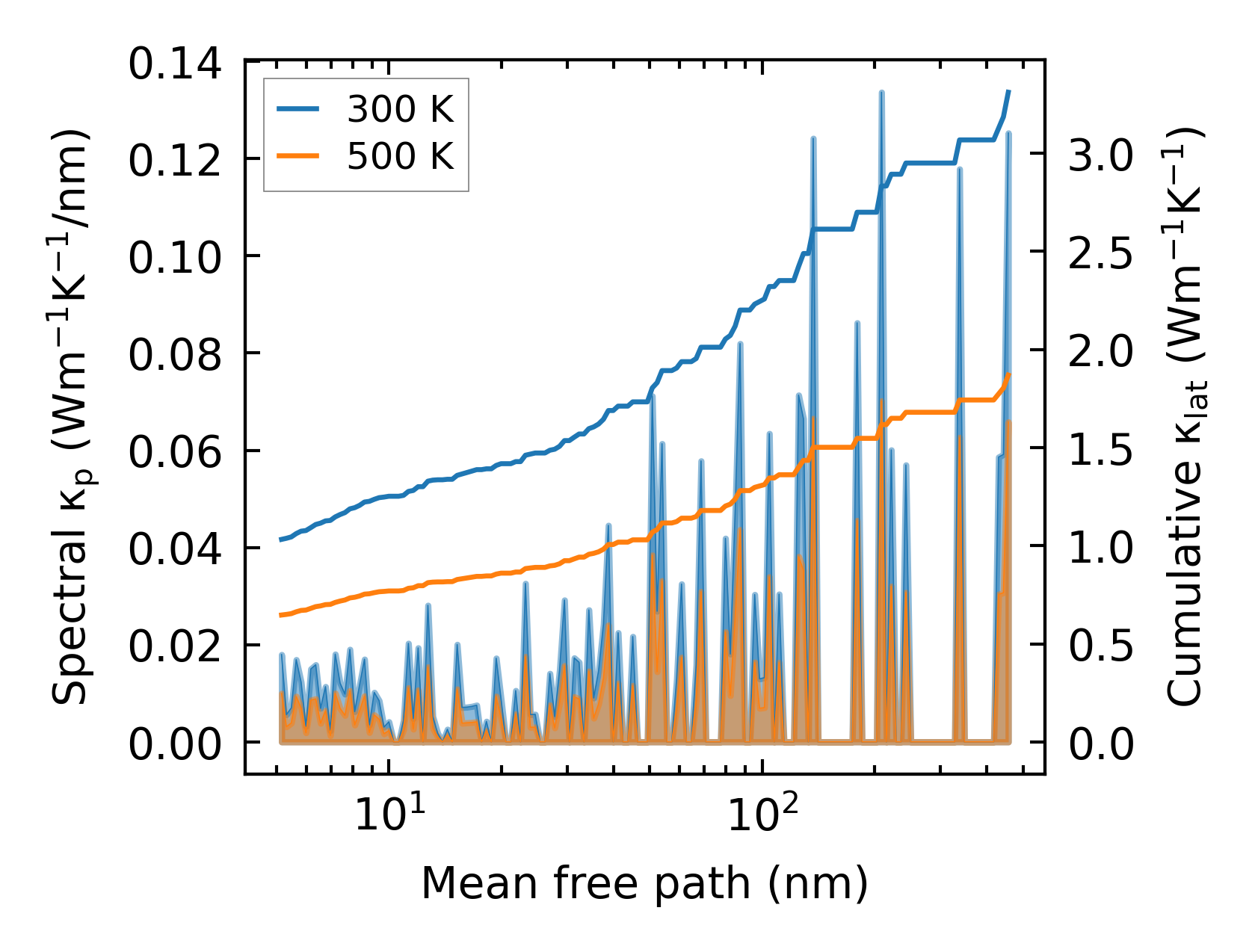

../../_images/fig_cumu_mfp4903.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211599.png — (a) Force constants w.r.t atomic distance

Summary

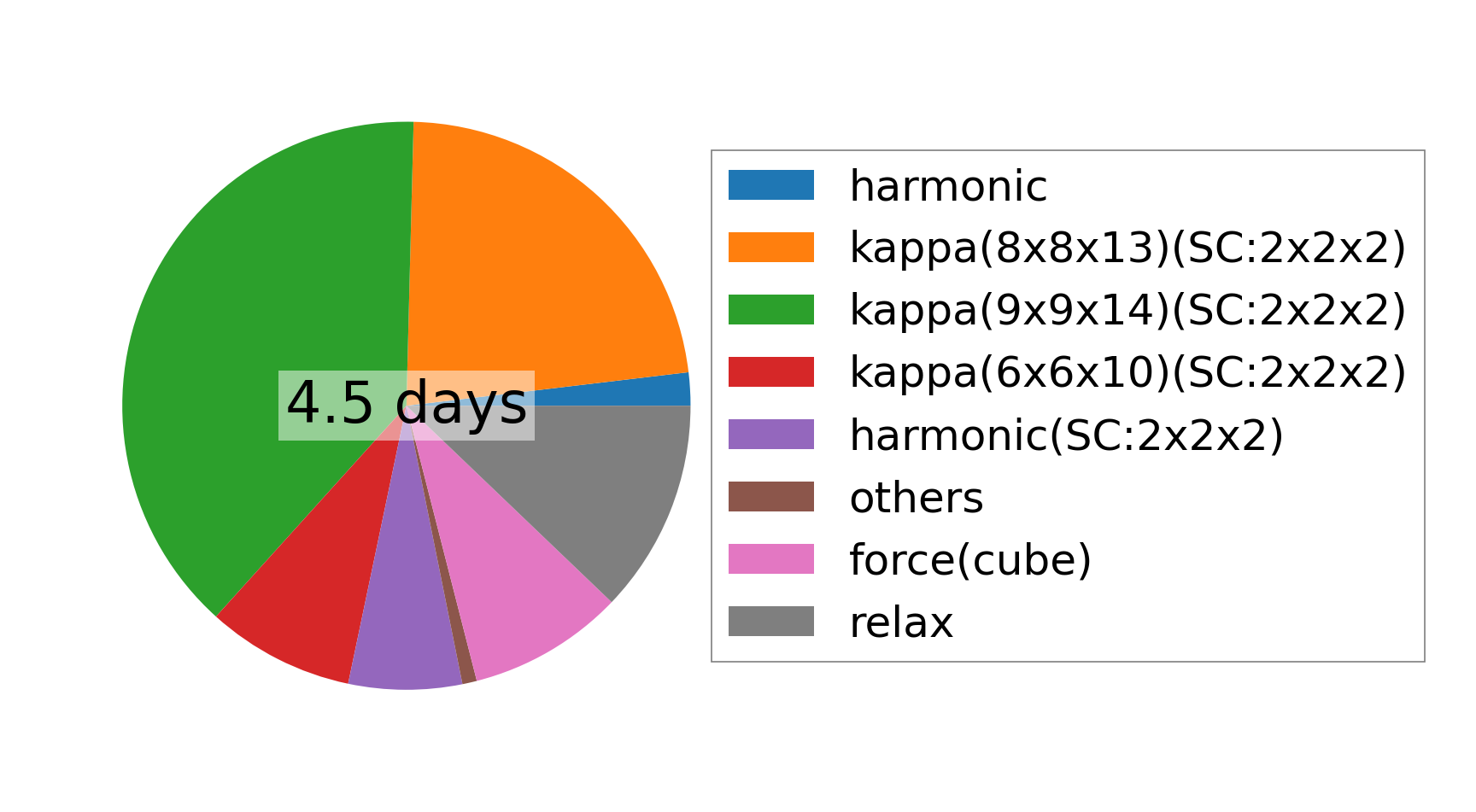

../../_images/fig_times20173.png — (a) Computation time
