mp-5996/Na2Ti2Si2O9/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-5996.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9787.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9787.png — (b) Thermodynamic properties

Grüneisen parameters

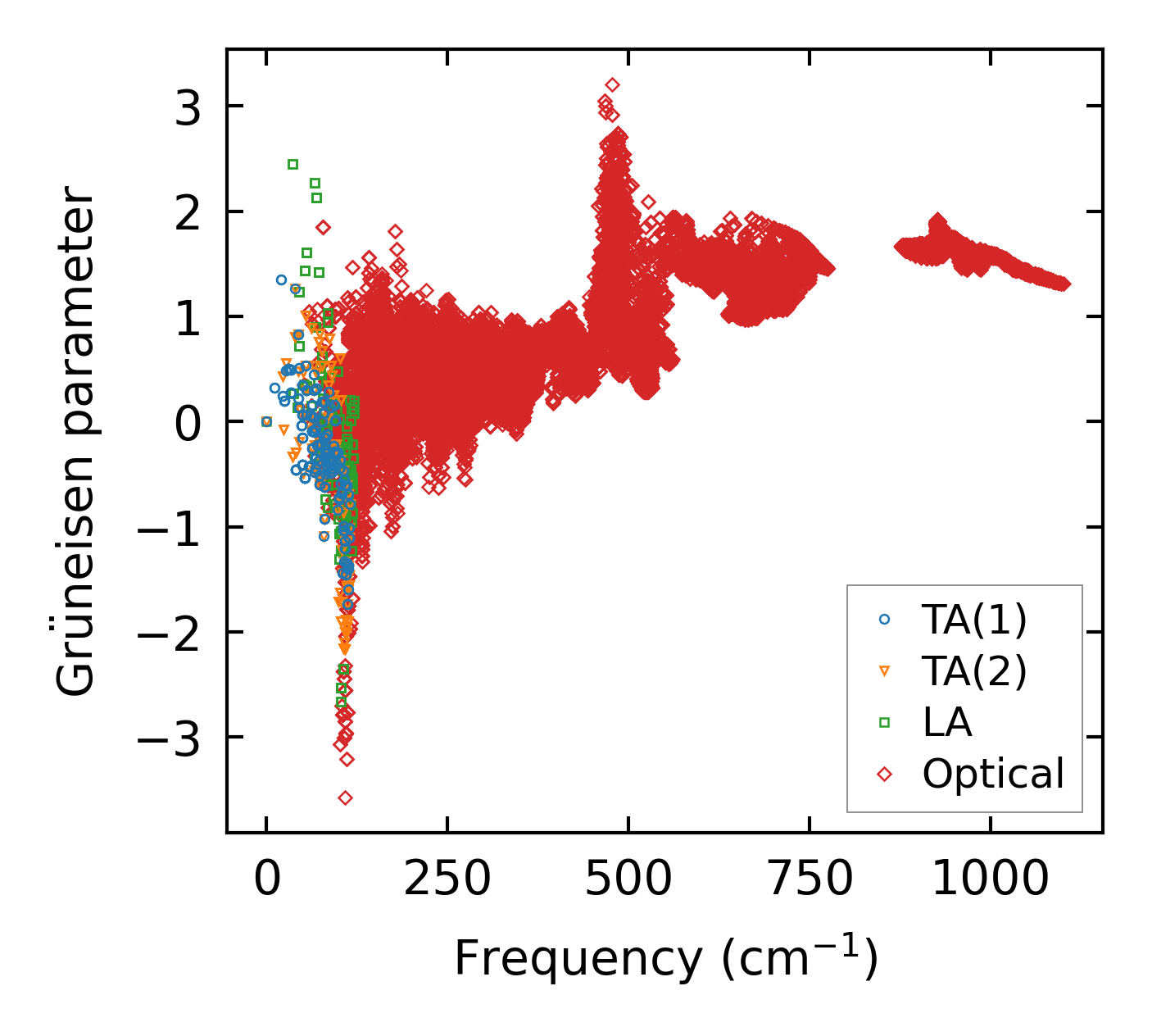

../../_images/fig_gru_all3918.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3918.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x13x4, supercell: 1x2x1

../../_images/fig_kappa7389.png — (a) Temperature-dependent lattice thermal conductivity

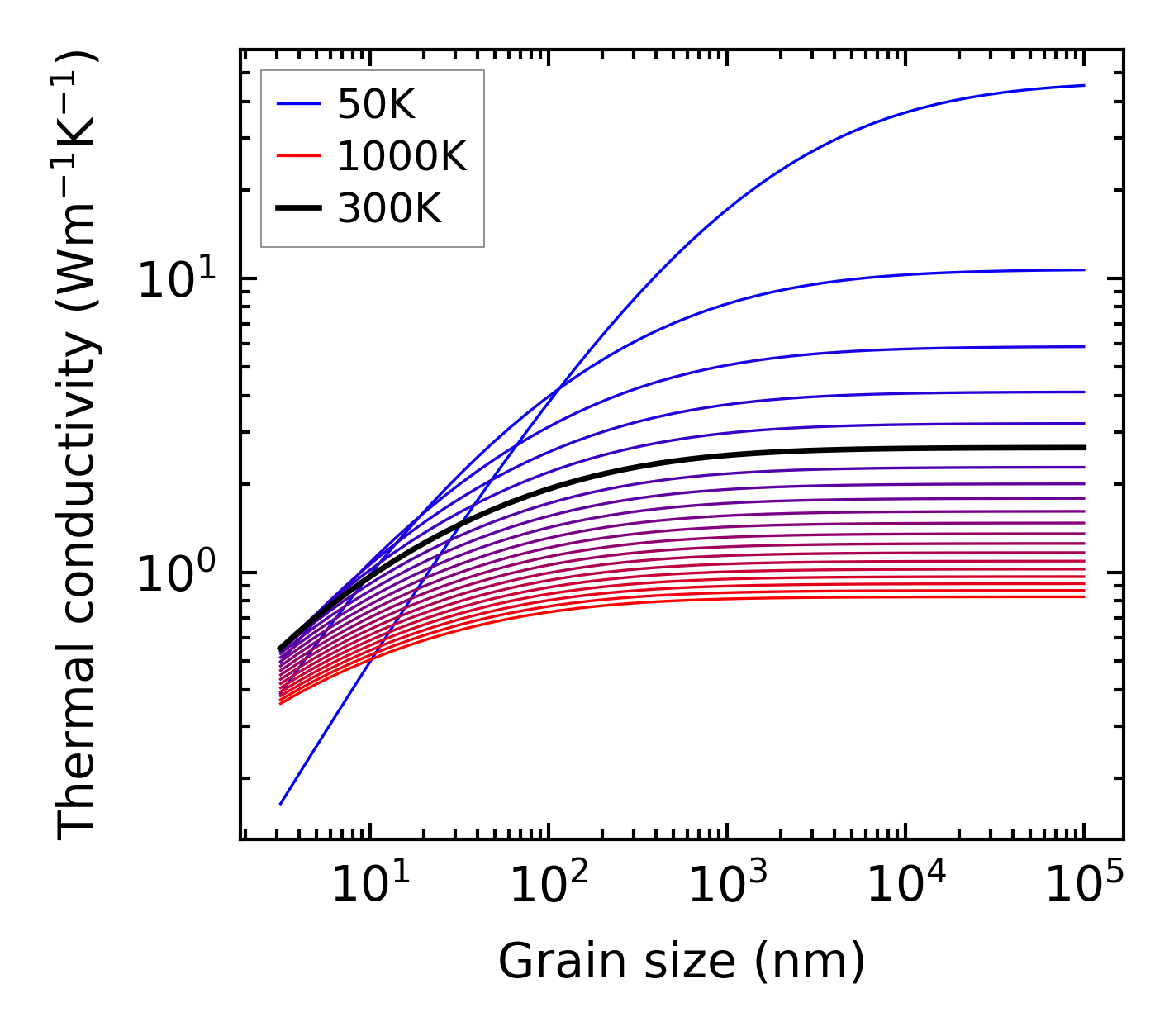

../../_images/fig_kappa_vs_grain_size3969.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3881.png — (a) Phonon lifetime due to phonon-phonon scattering

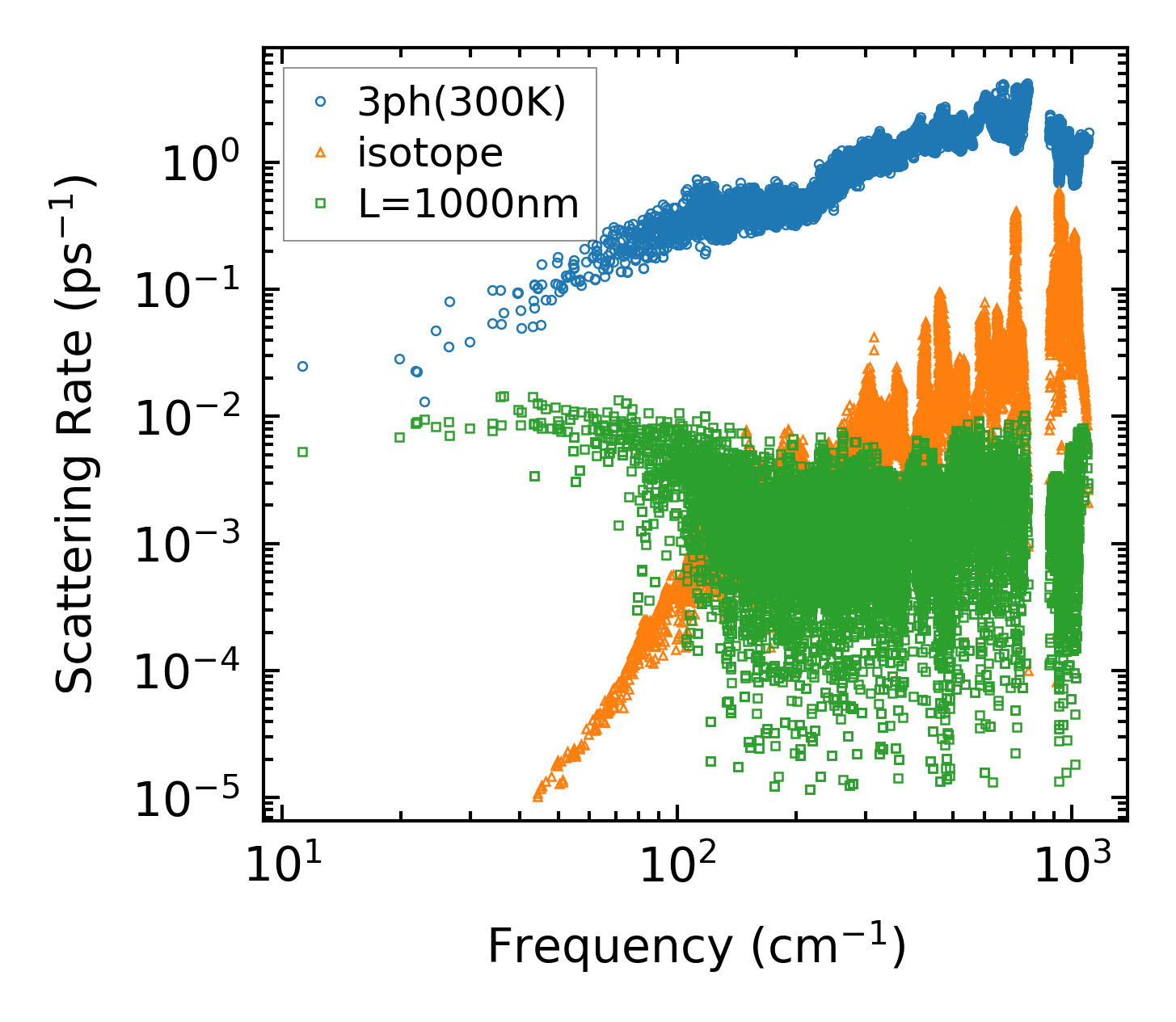

../../_images/fig_scat_rates3880.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

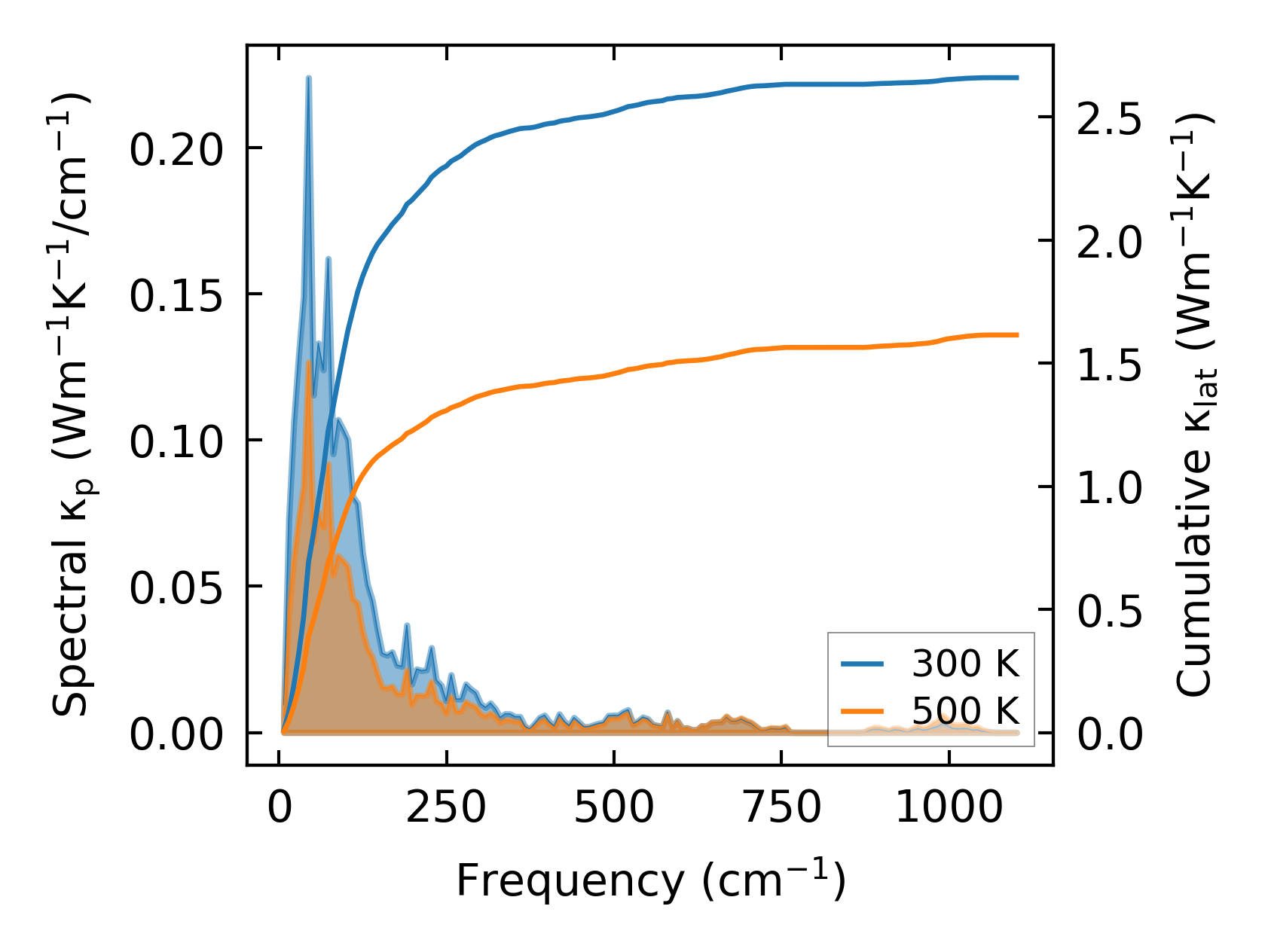

../../_images/fig_cumu_frequency3881.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

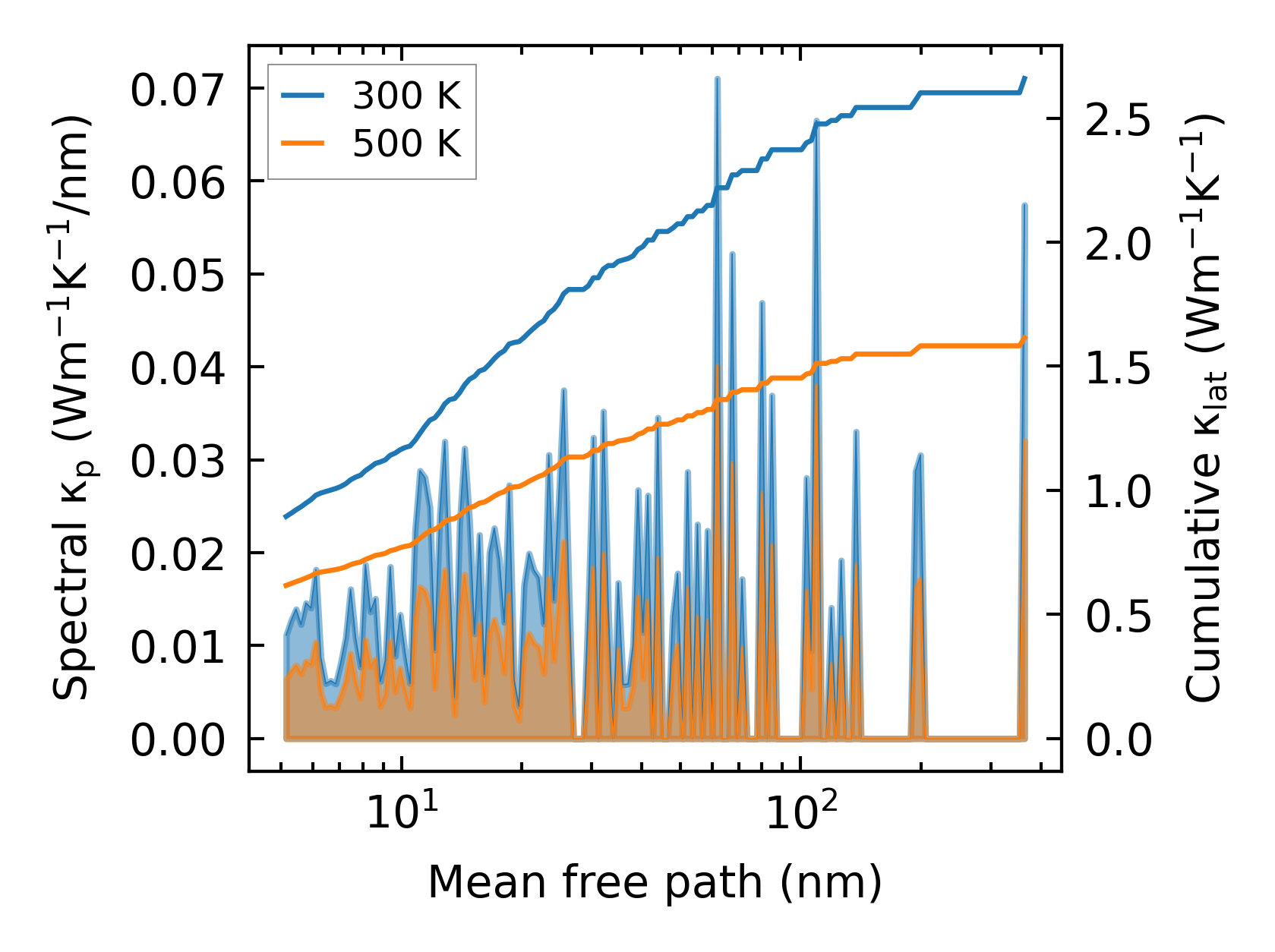

../../_images/fig_cumu_mfp3880.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

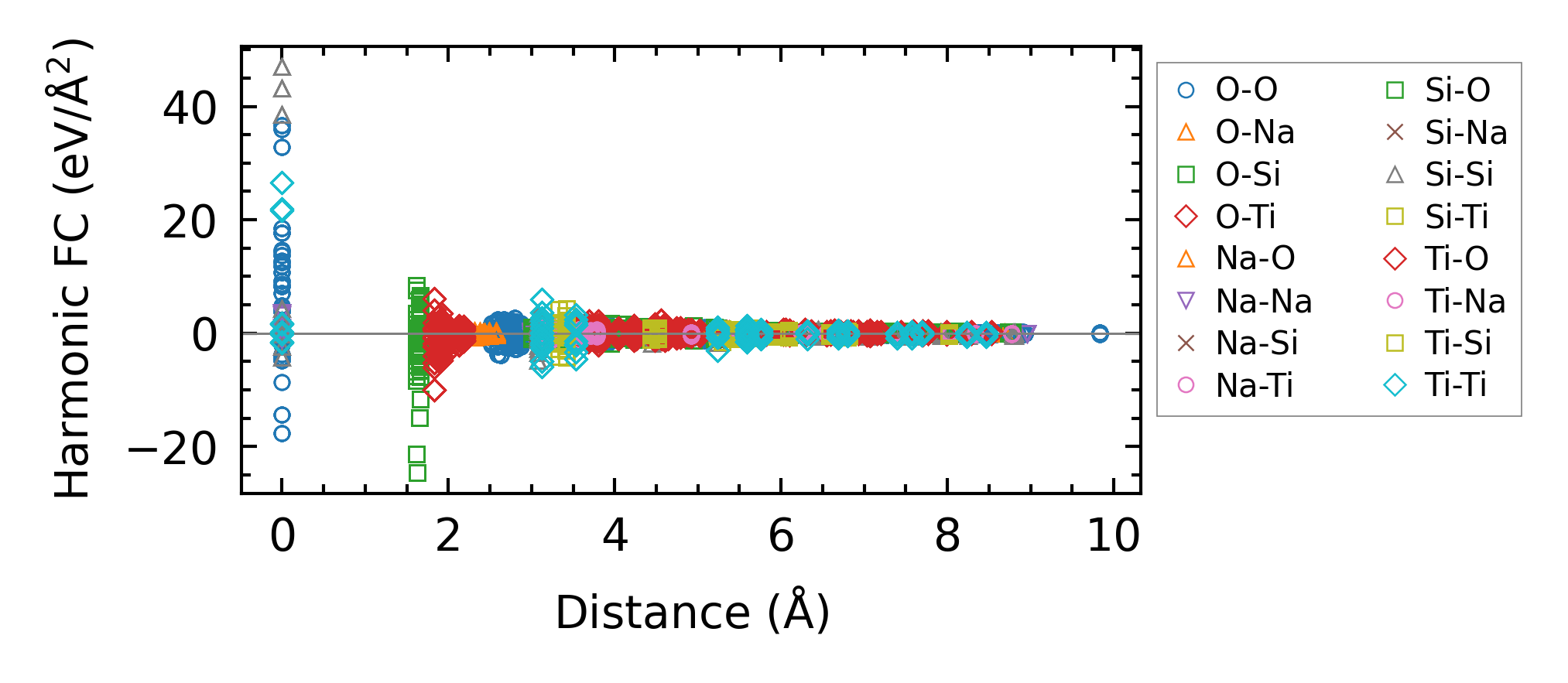

../../_images/fig_fc29543.png — (a) Force constants w.r.t atomic distance

Summary

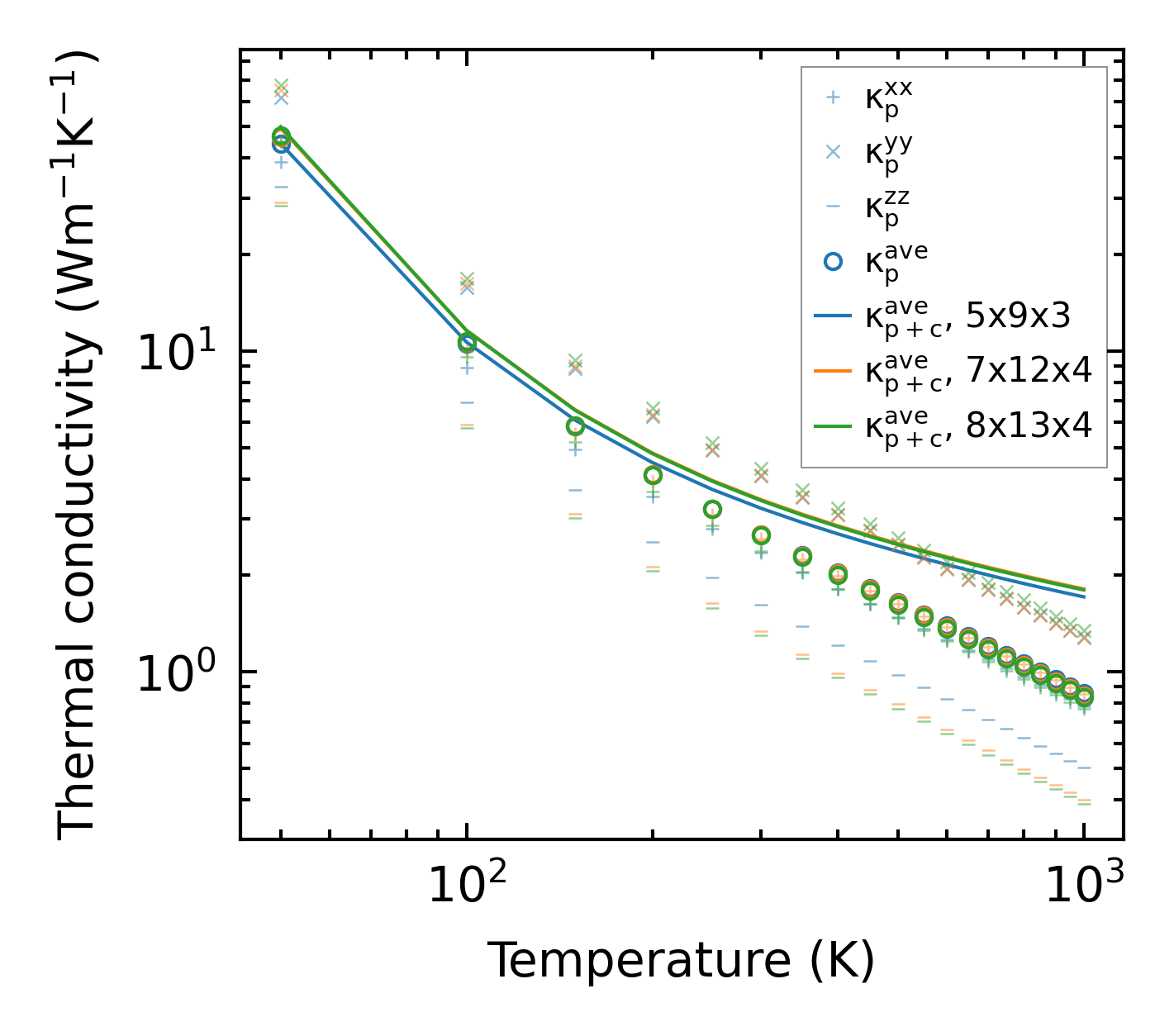

../../_images/fig_kappa7390.png — (a) Temperature-dependent lattice thermal conductivity

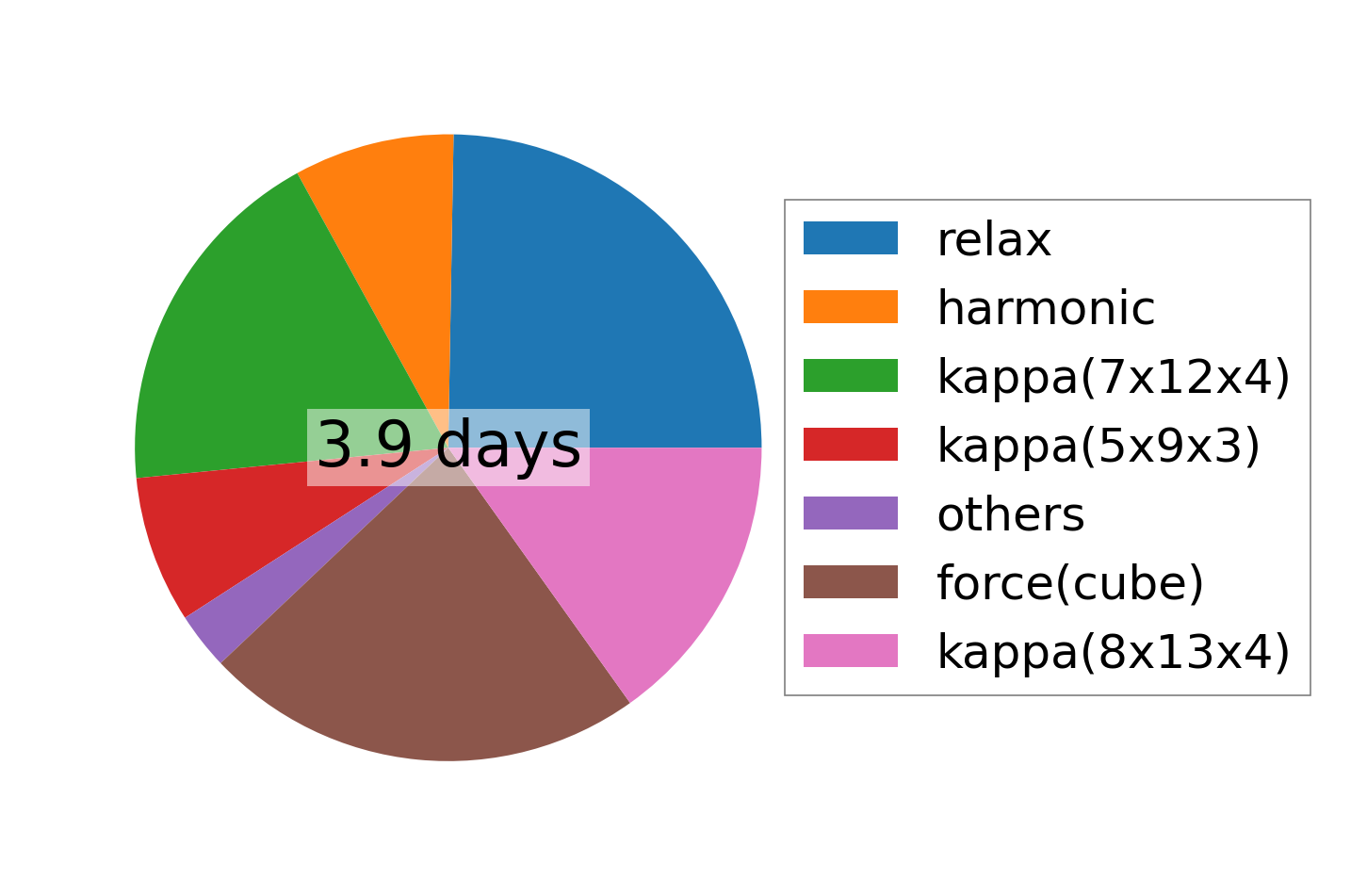

../../_images/fig_times17007.png — (b) Computation time
