mp-5504/BaCO3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-5504.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9995.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9995.png — (b) Thermodynamic properties

Grüneisen parameters

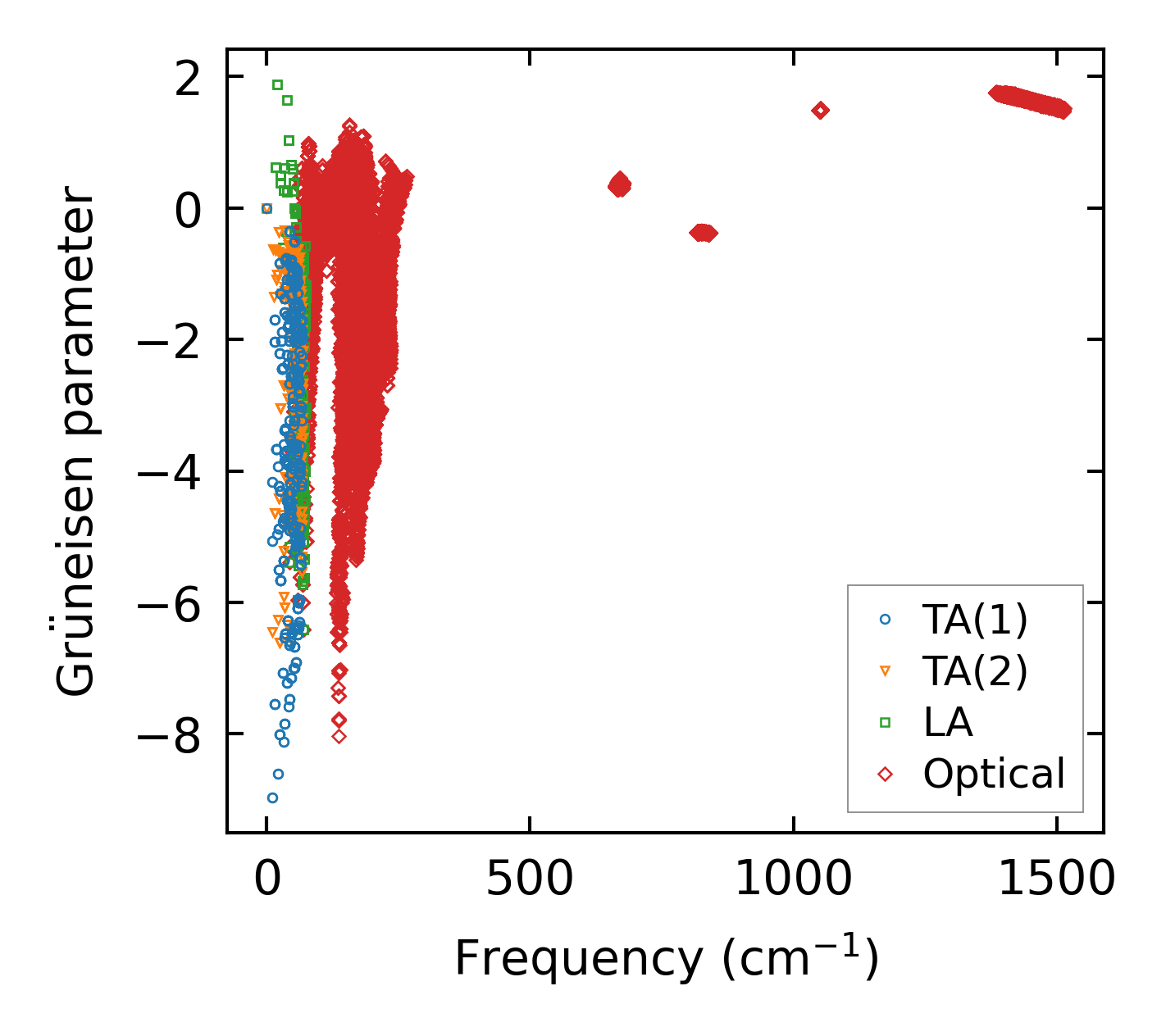

../../_images/fig_gru_all4006.png — (a) Grüneisen parameters

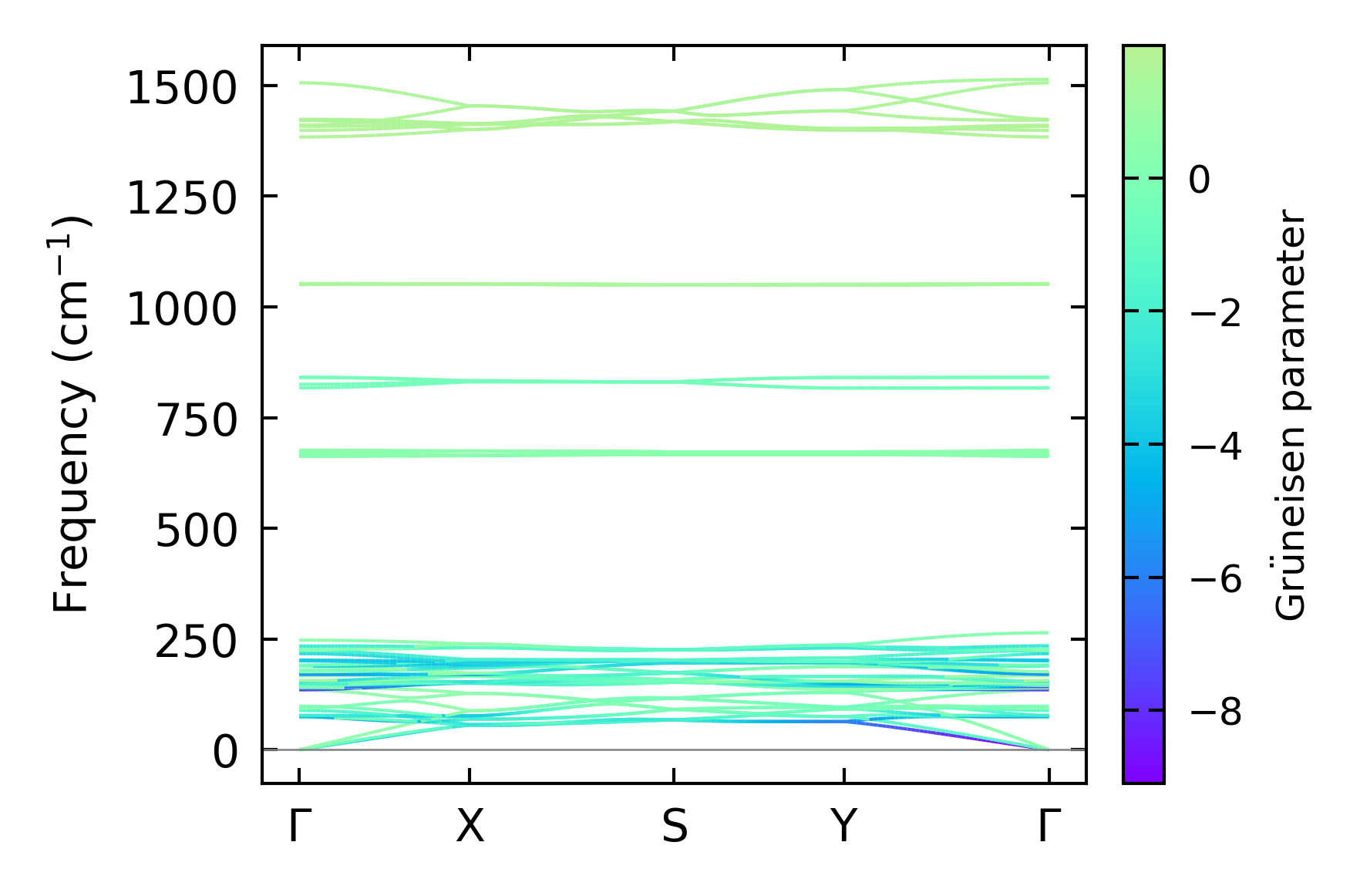

../../_images/fig_gruneisen4006.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x13x8, supercell: 2x2x1

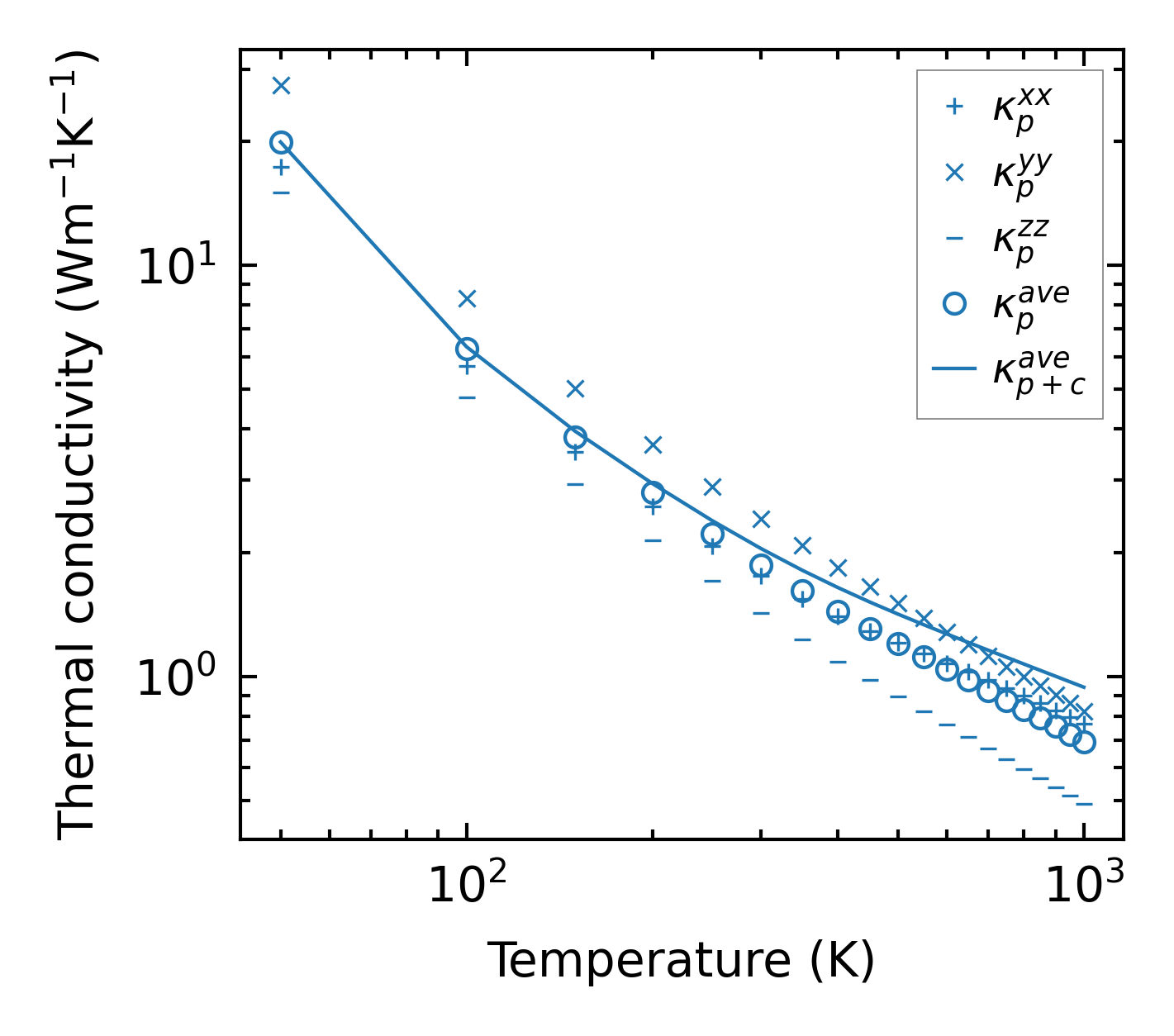

../../_images/fig_kappa7555.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4059.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

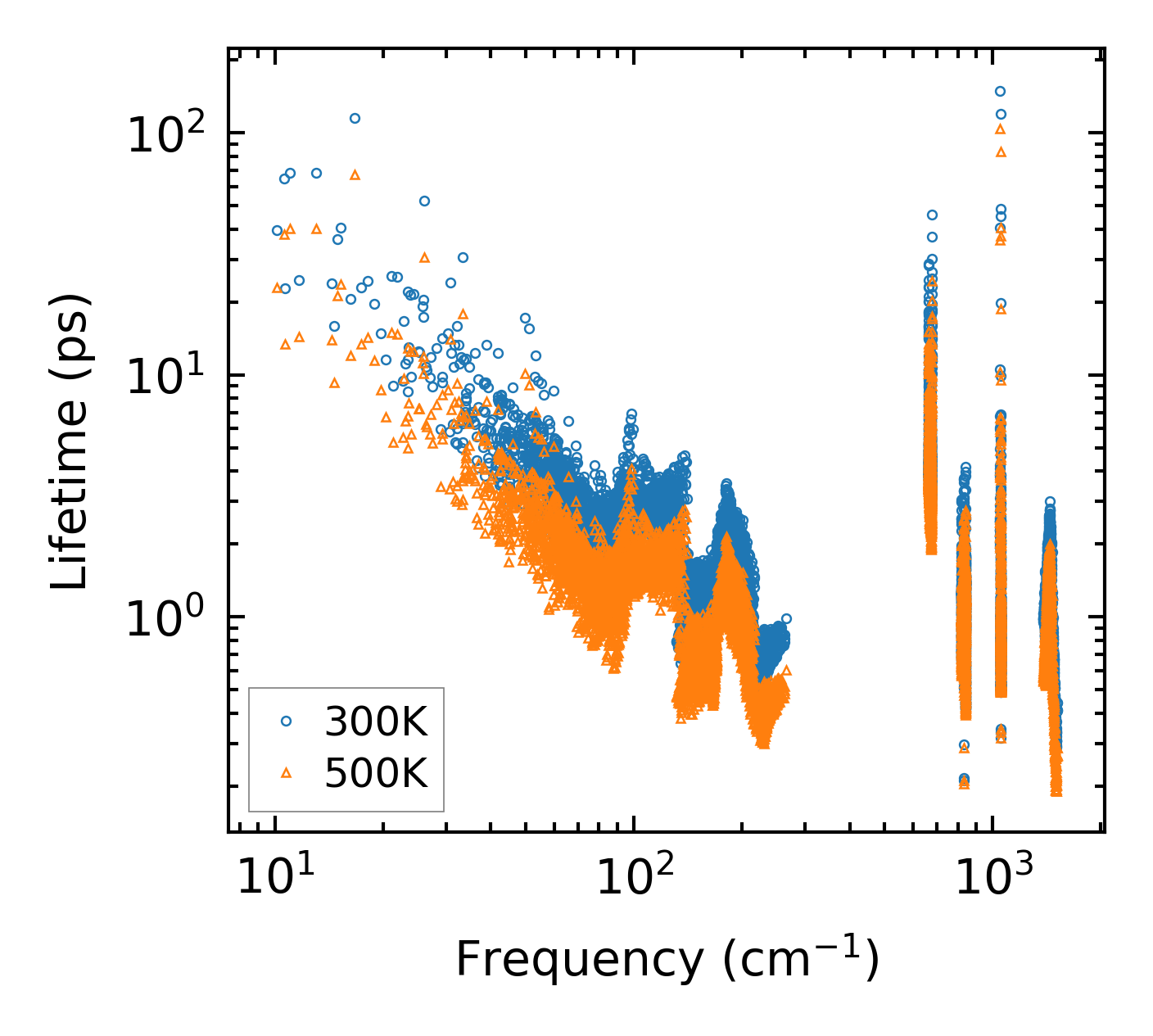

../../_images/fig_lifetime3968.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3967.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

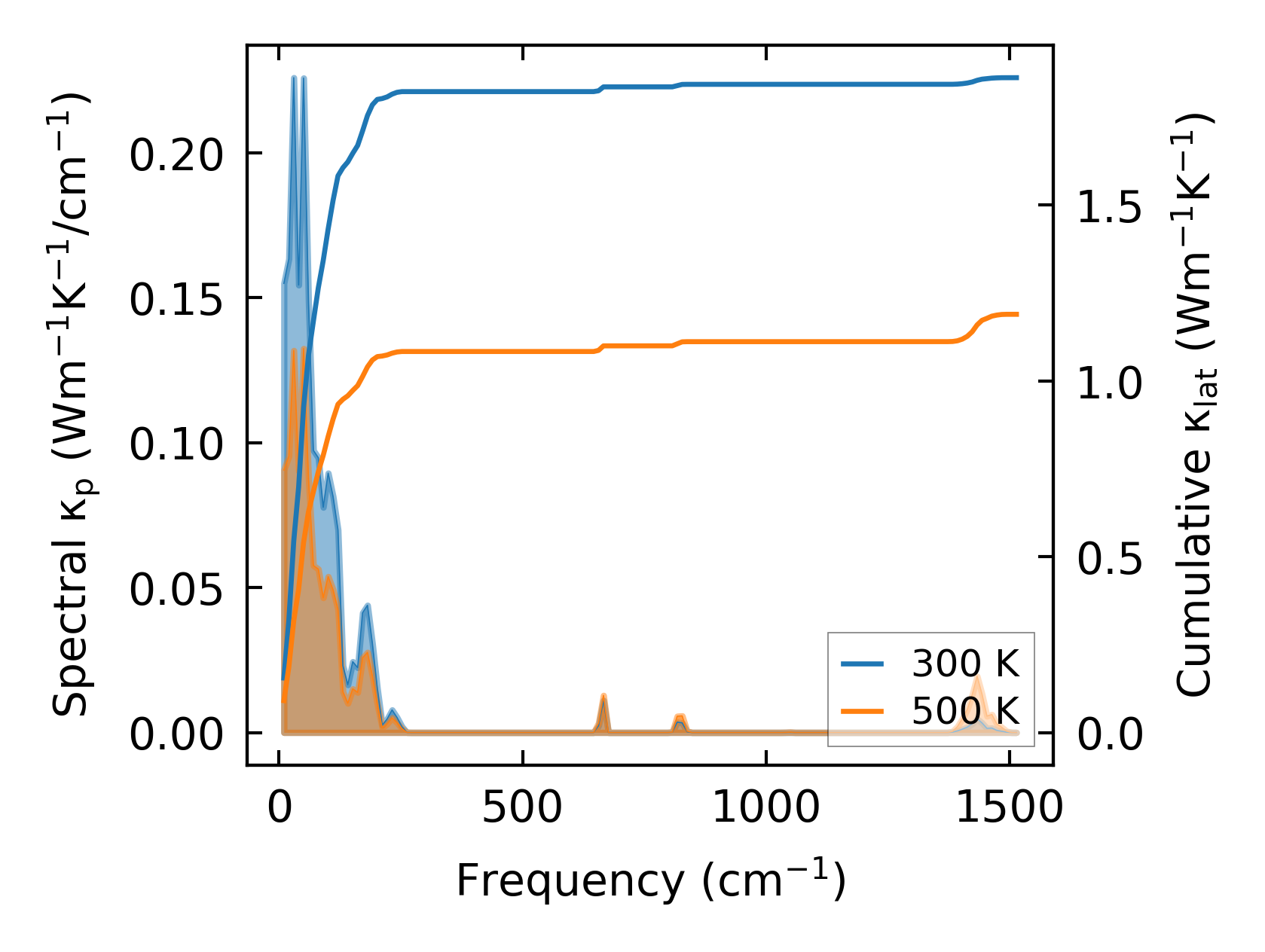

../../_images/fig_cumu_frequency3968.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

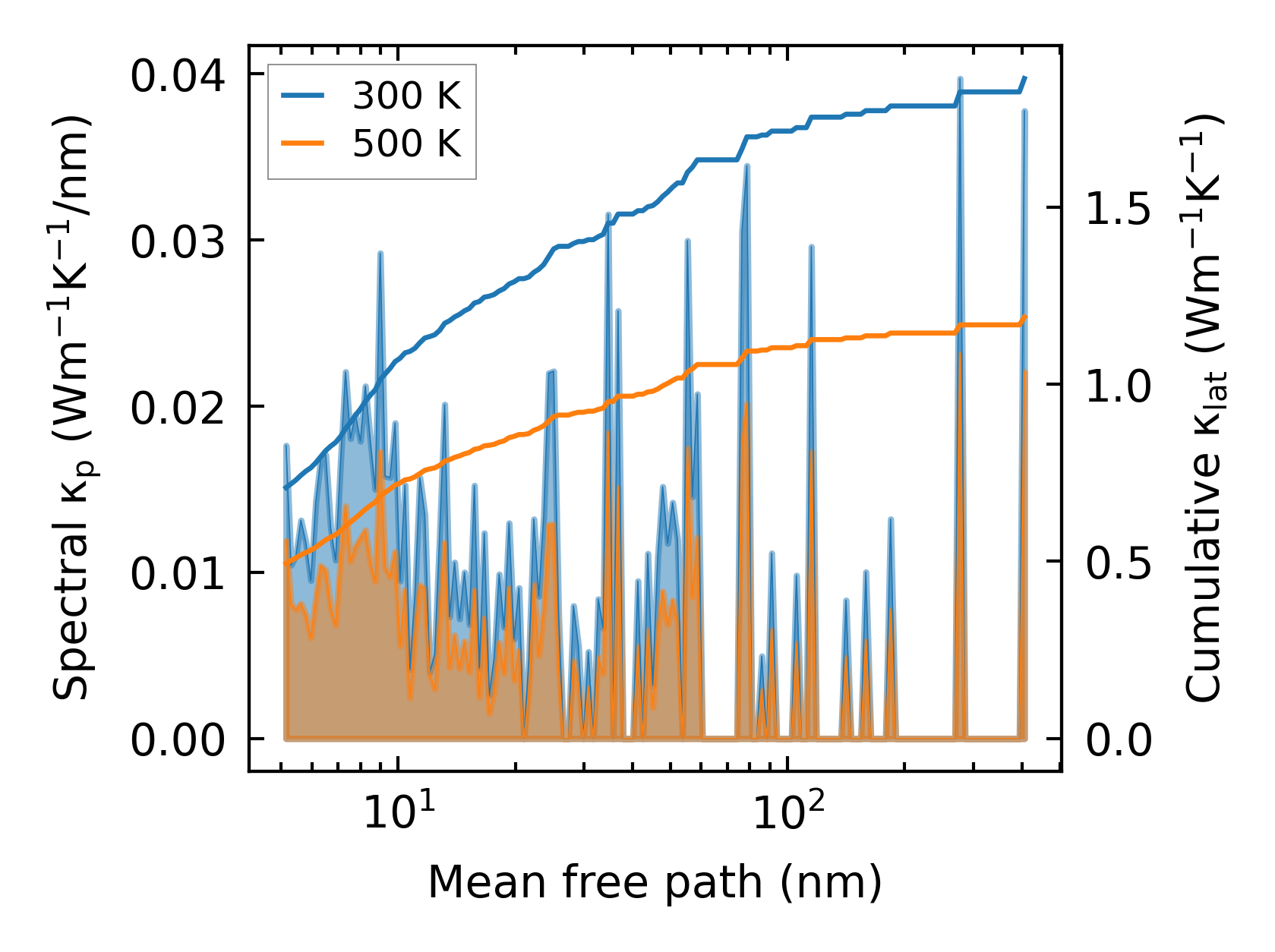

../../_images/fig_cumu_mfp3967.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

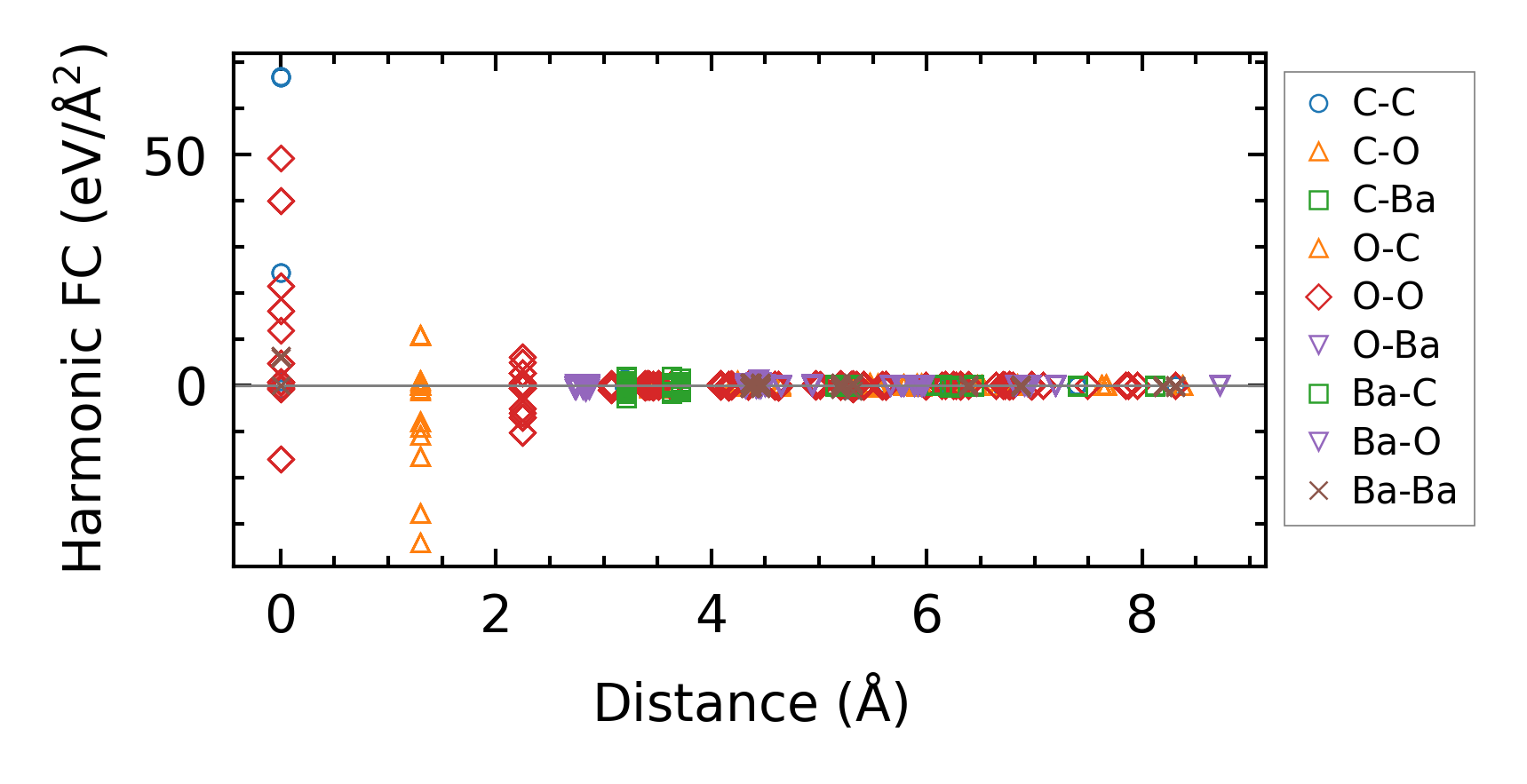

../../_images/fig_fc29748.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7556.png — (a) Temperature-dependent lattice thermal conductivity

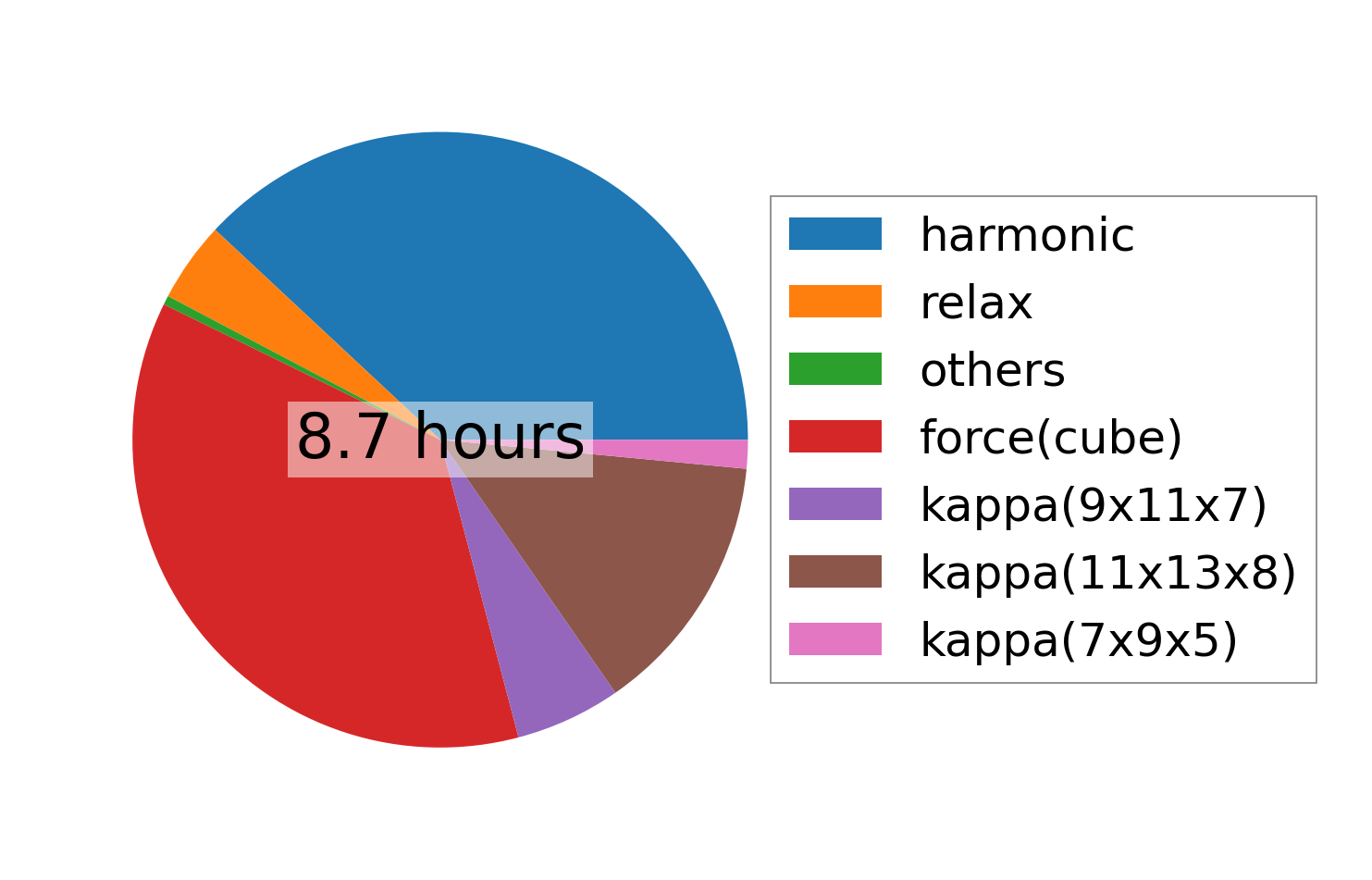

../../_images/fig_times17356.png — (b) Computation time
