mp-5061/Li5ReO6/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-5061.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10247.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10247.png — (b) Thermodynamic properties

Grüneisen parameters

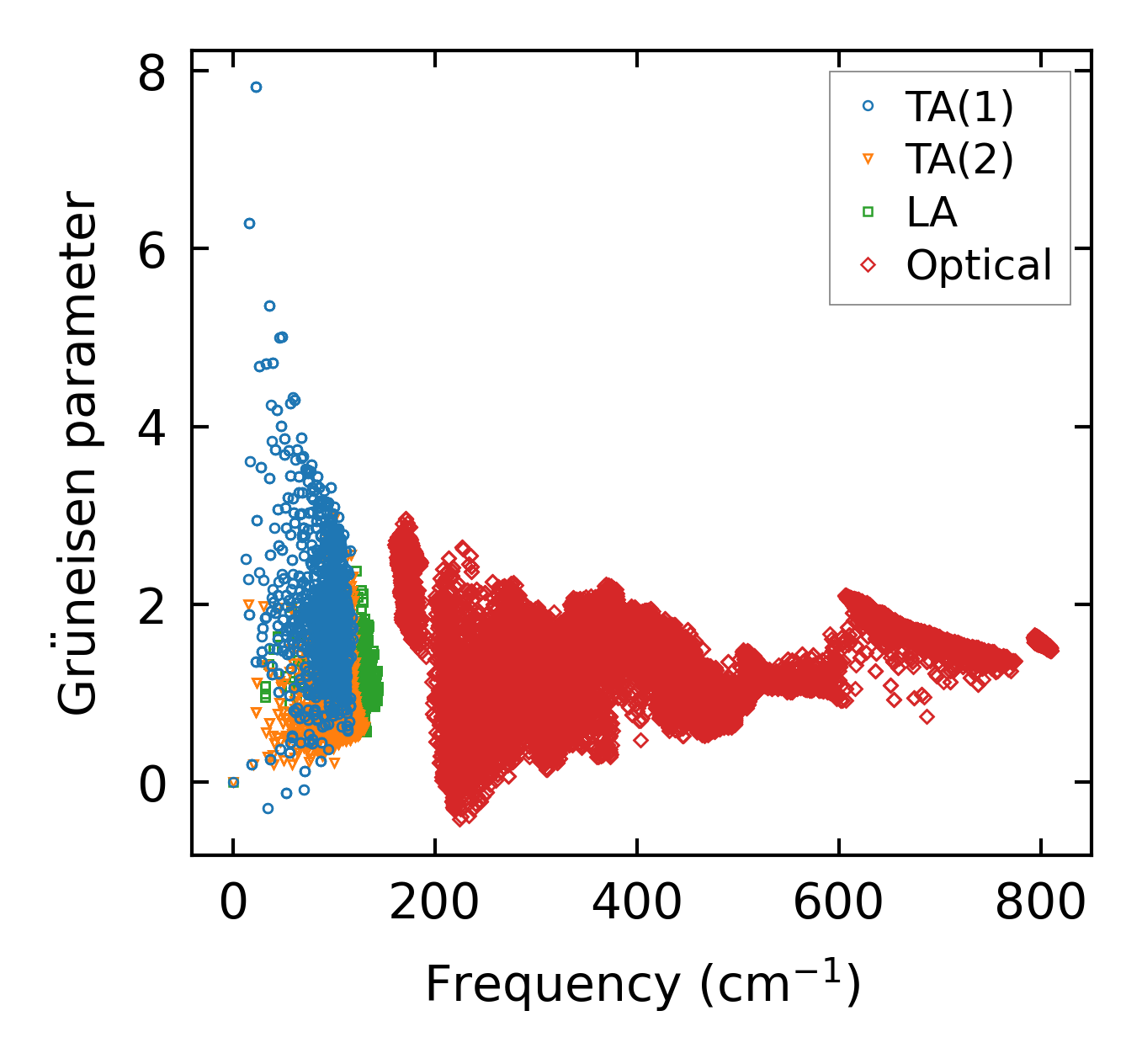

../../_images/fig_gru_all4134.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4134.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x1x2

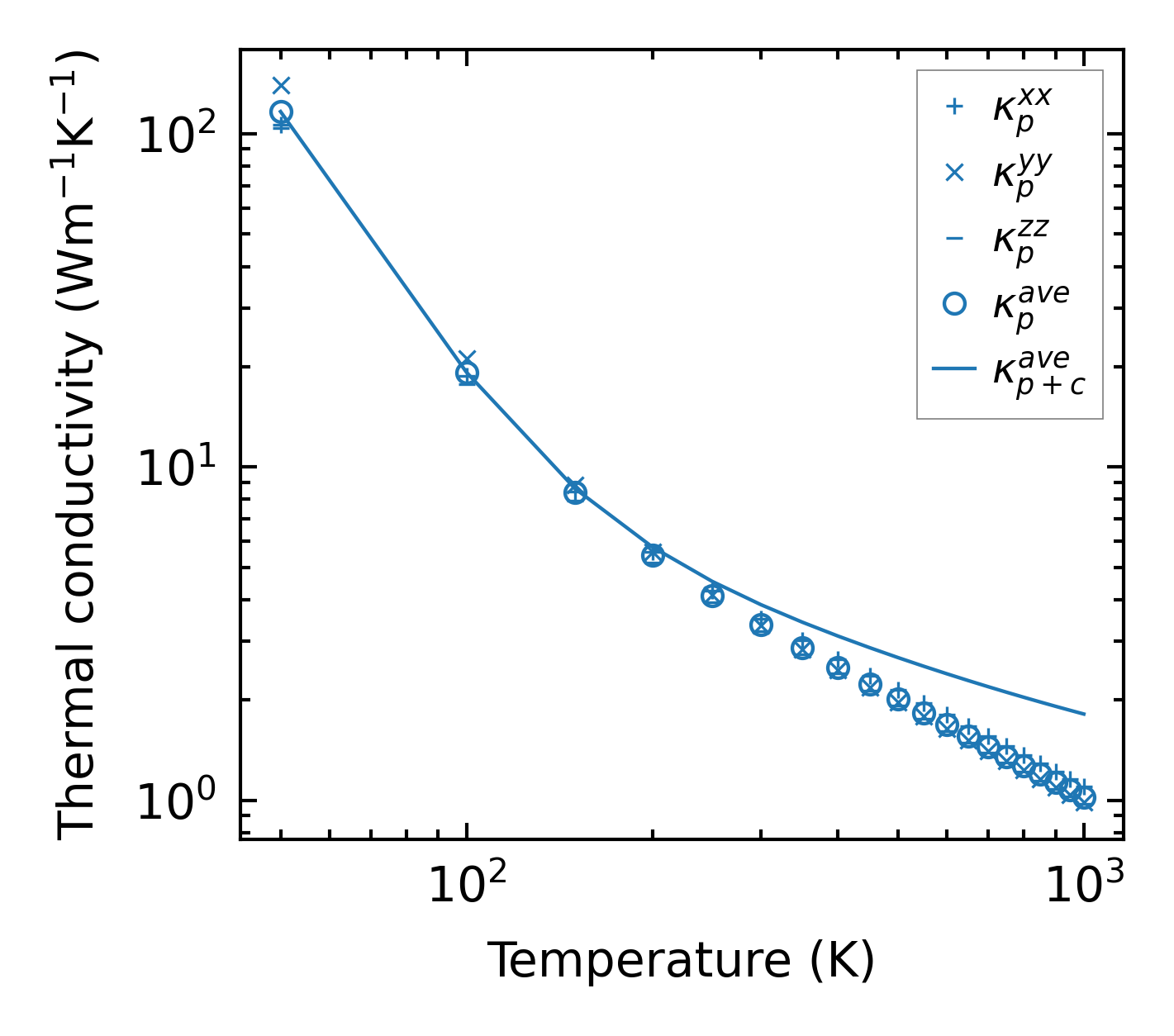

../../_images/fig_kappa7794.png — (a) Temperature-dependent lattice thermal conductivity

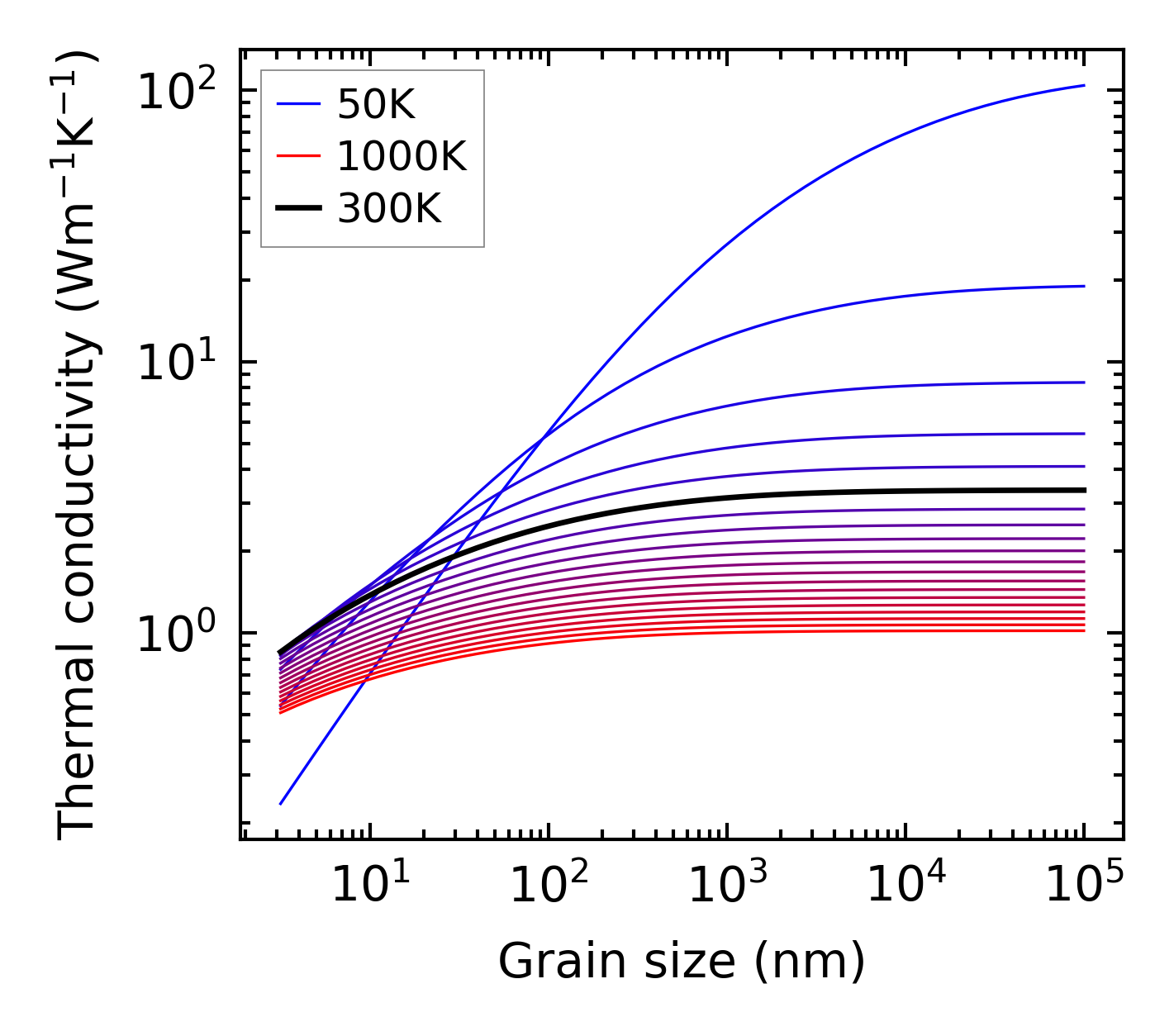

../../_images/fig_kappa_vs_grain_size4189.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

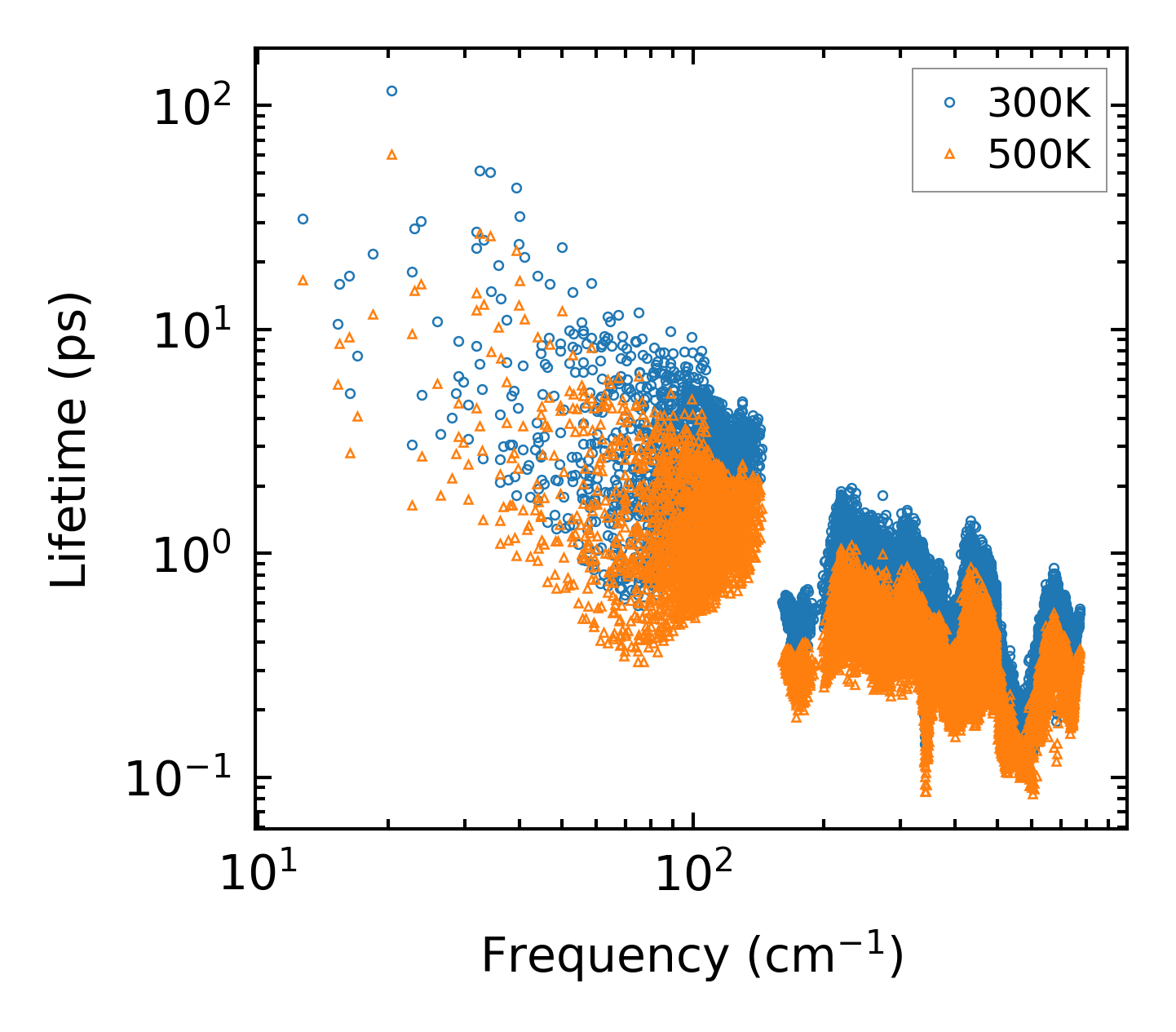

../../_images/fig_lifetime4096.png — (a) Phonon lifetime due to phonon-phonon scattering

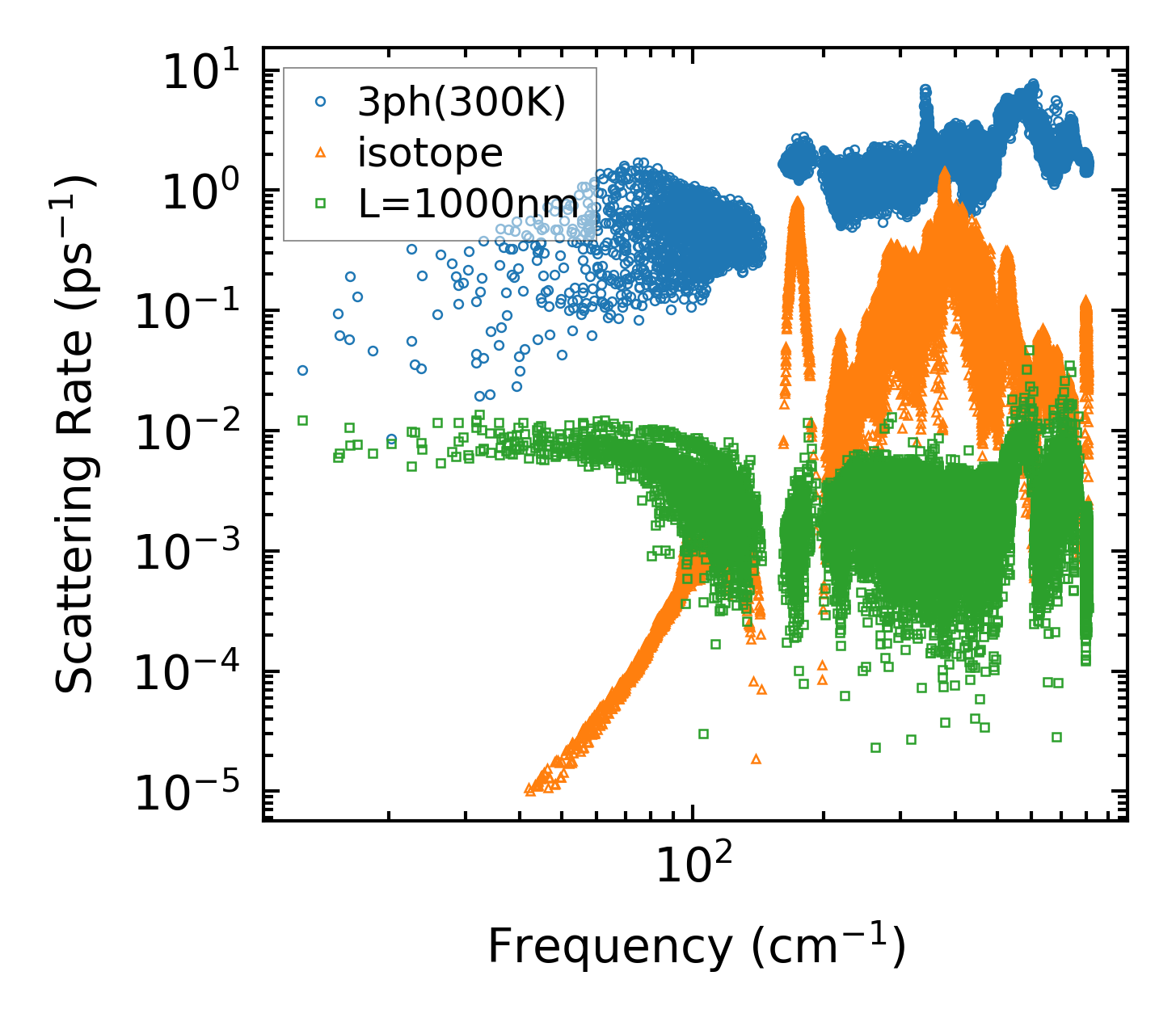

../../_images/fig_scat_rates4095.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4096.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

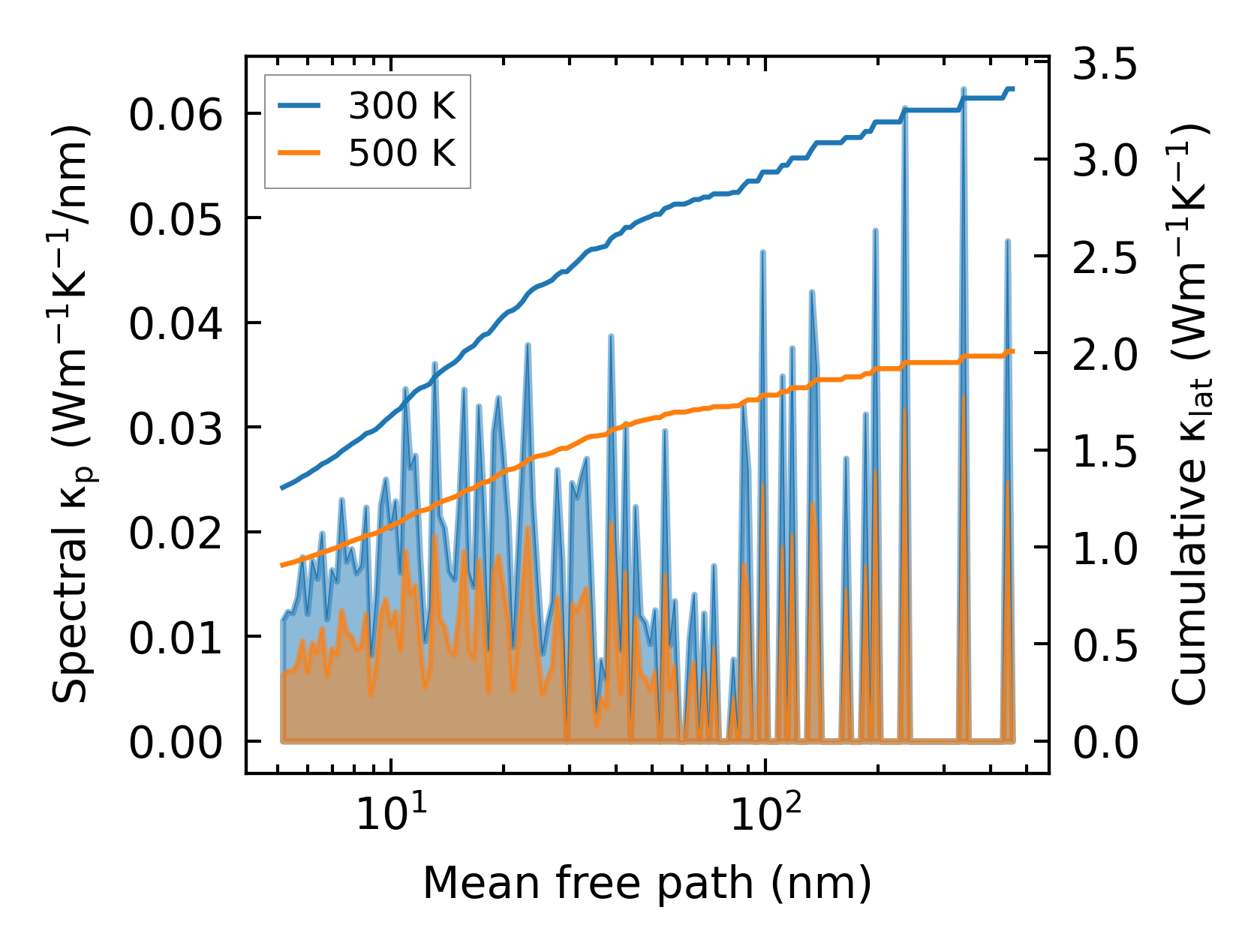

../../_images/fig_cumu_mfp4095.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

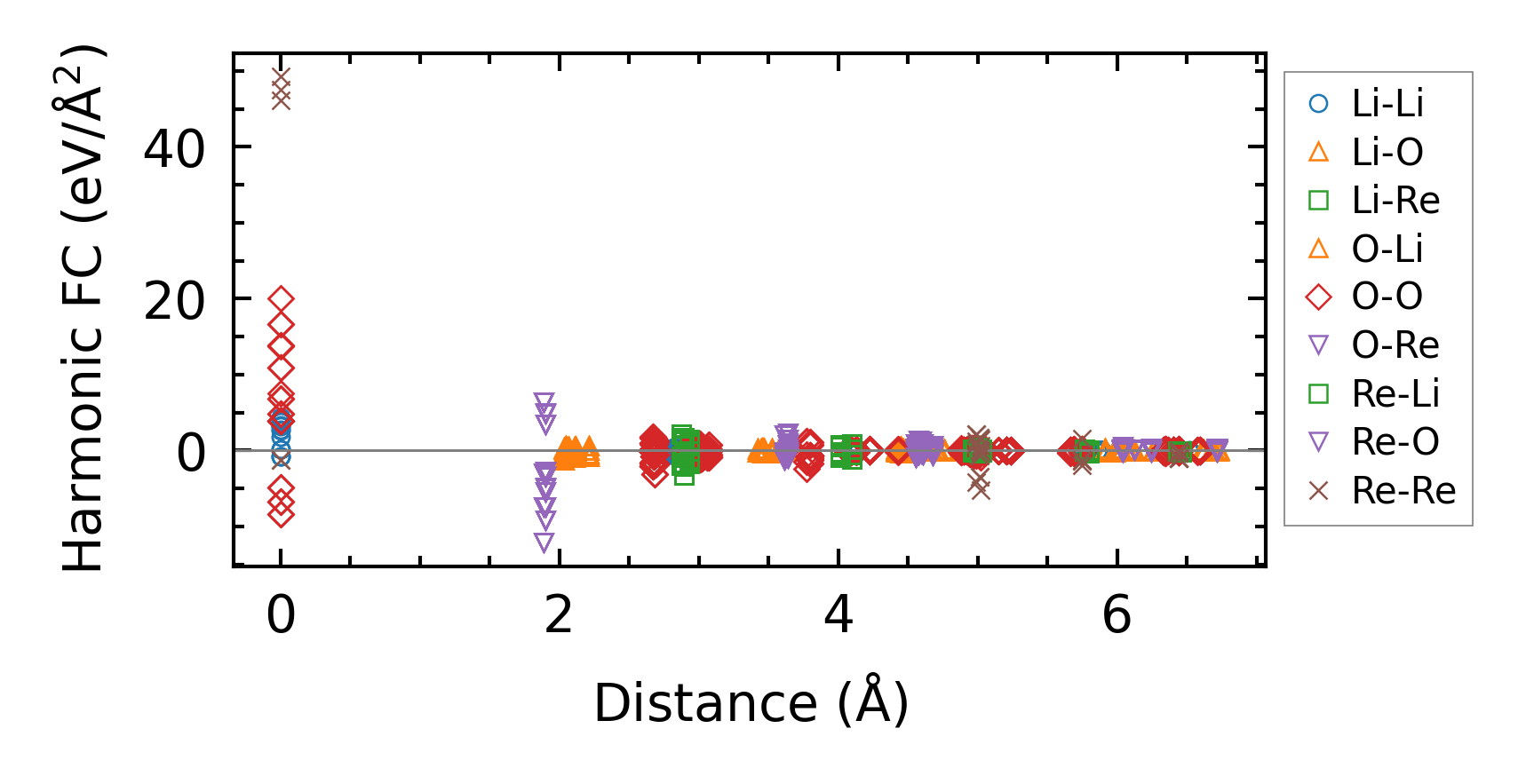

../../_images/fig_fc29998.png — (a) Force constants w.r.t atomic distance

Summary

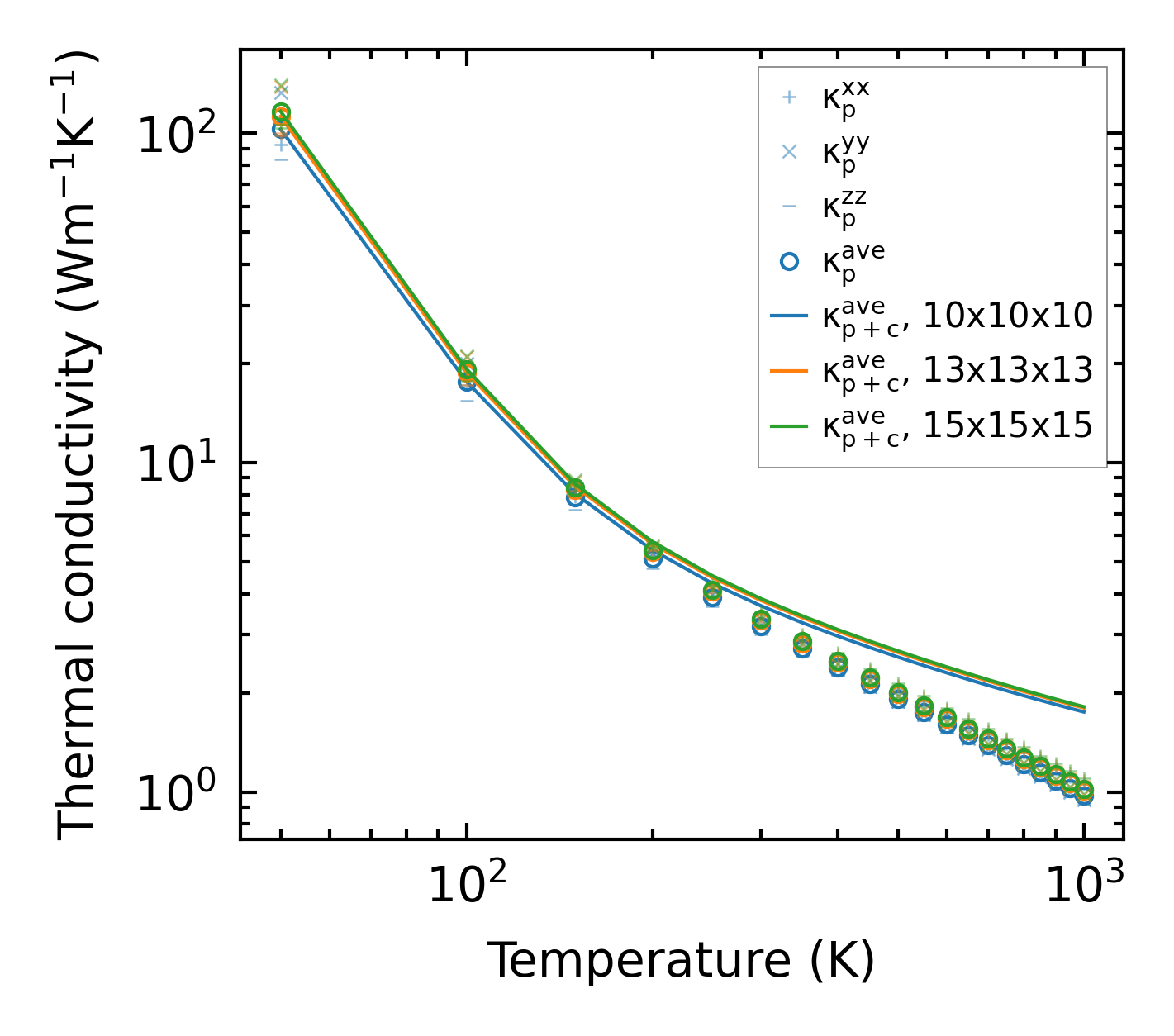

../../_images/fig_kappa7795.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17716.png — (b) Computation time
