mp-5122/Na3AlP2/anharm

Space group: Ibam (72)
Link: Materials Project
Download: mp-5122.tar.gz

Harmonic properties

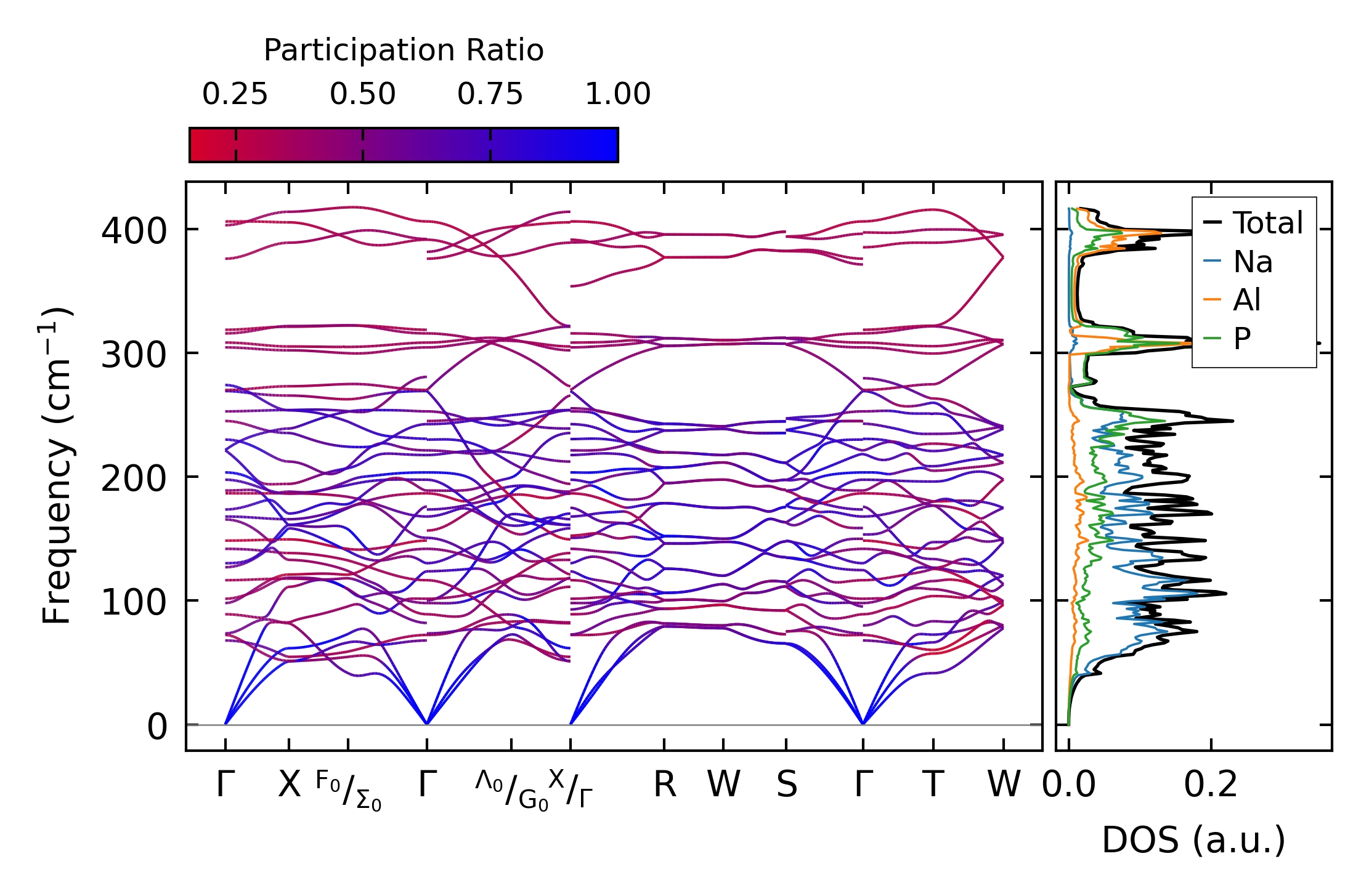

../../_images/fig_bandos_pr10263.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10263.png — (b) Thermodynamic properties

Grüneisen parameters

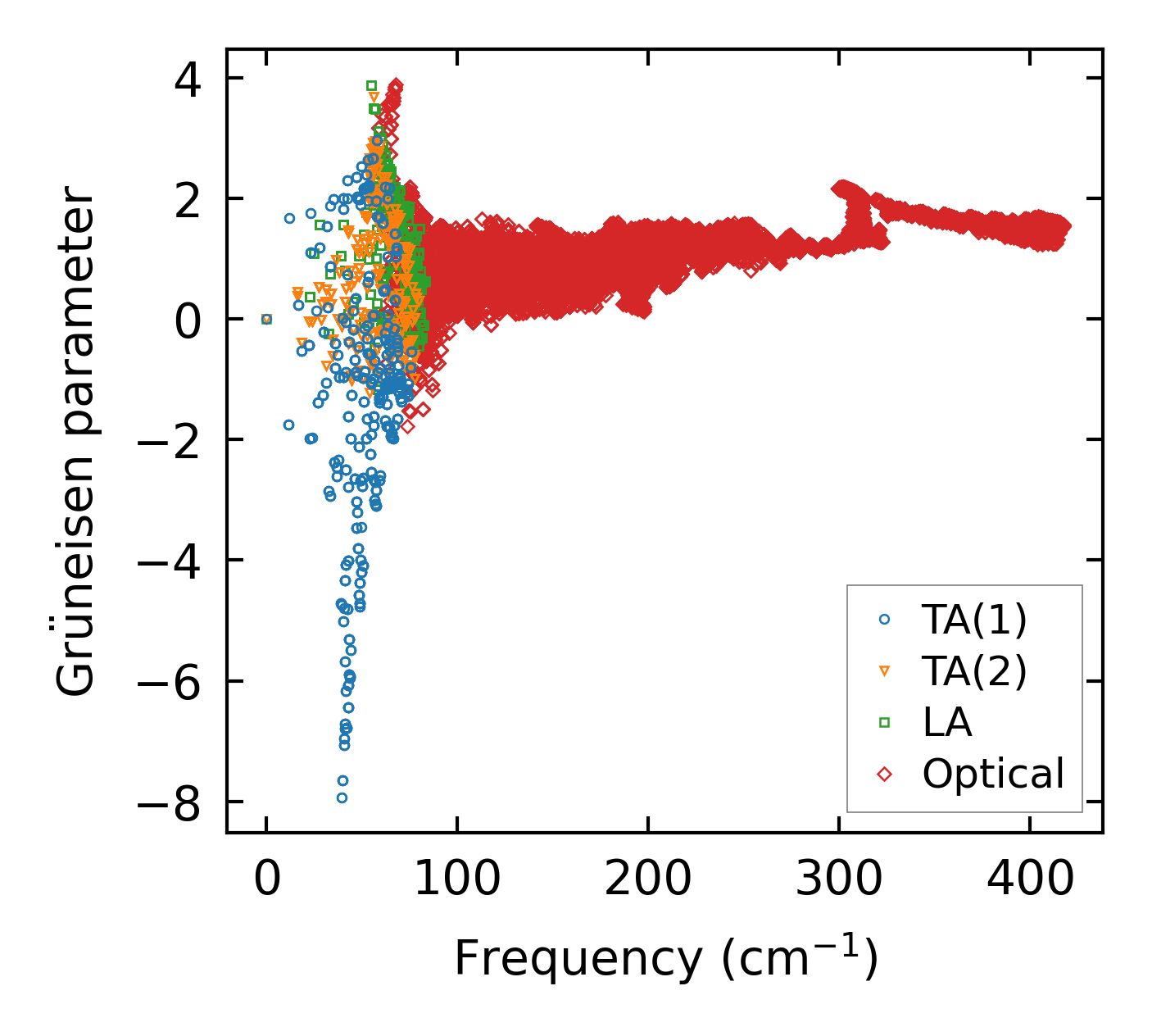

../../_images/fig_gru_all4143.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4143.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 2x1x3

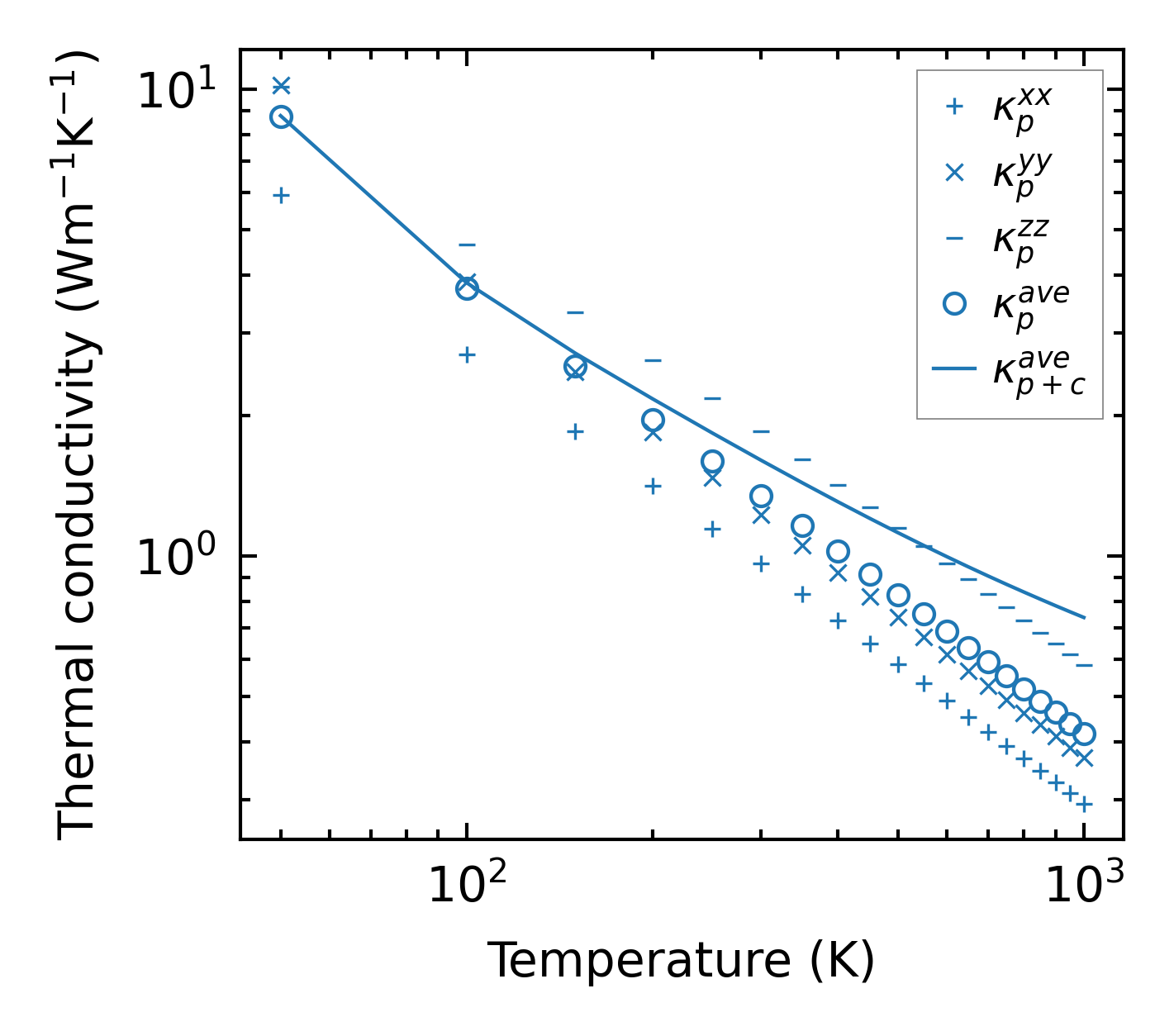

../../_images/fig_kappa7812.png — (a) Temperature-dependent lattice thermal conductivity

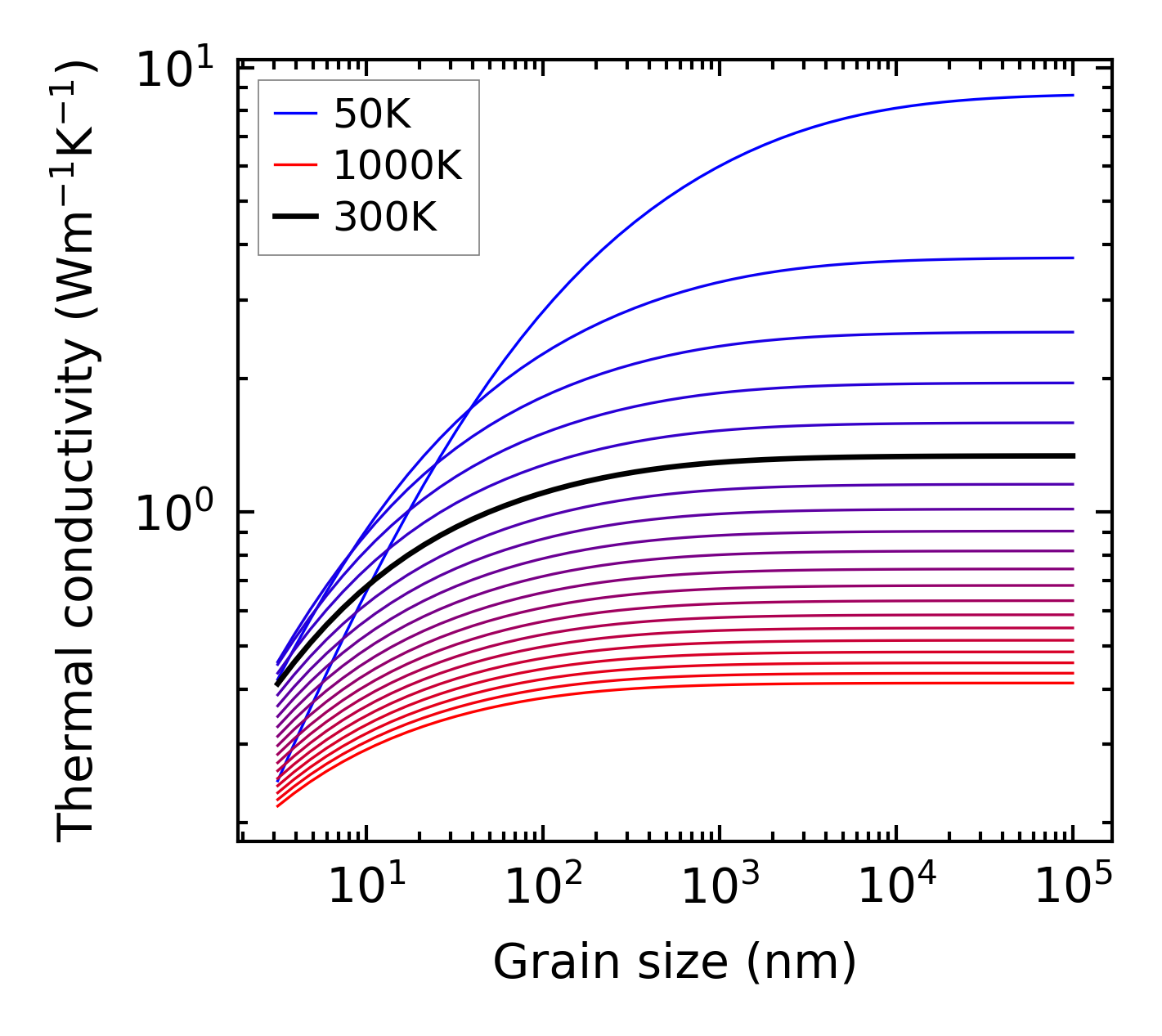

../../_images/fig_kappa_vs_grain_size4198.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4105.png — (a) Phonon lifetime due to phonon-phonon scattering

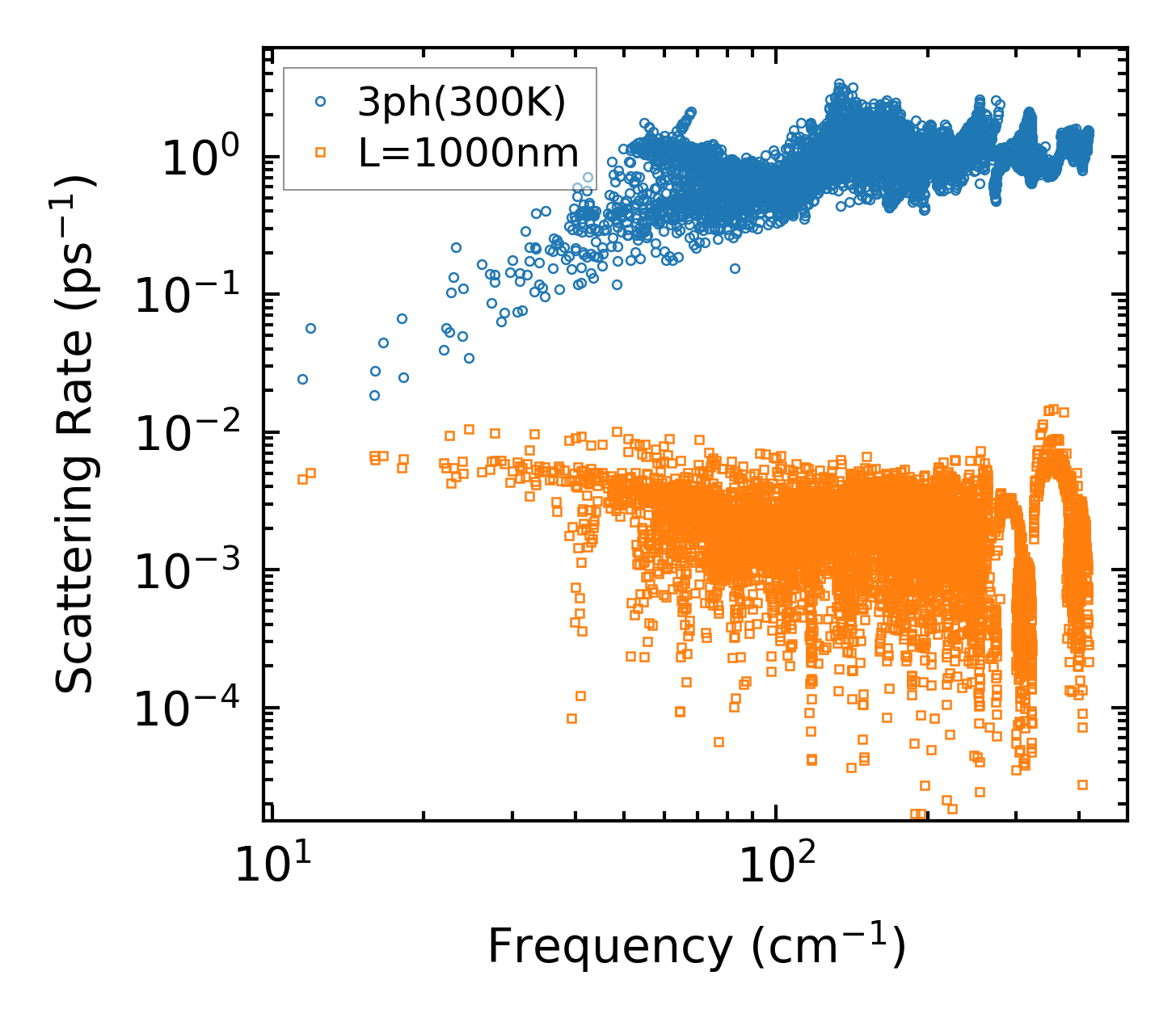

../../_images/fig_scat_rates4104.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

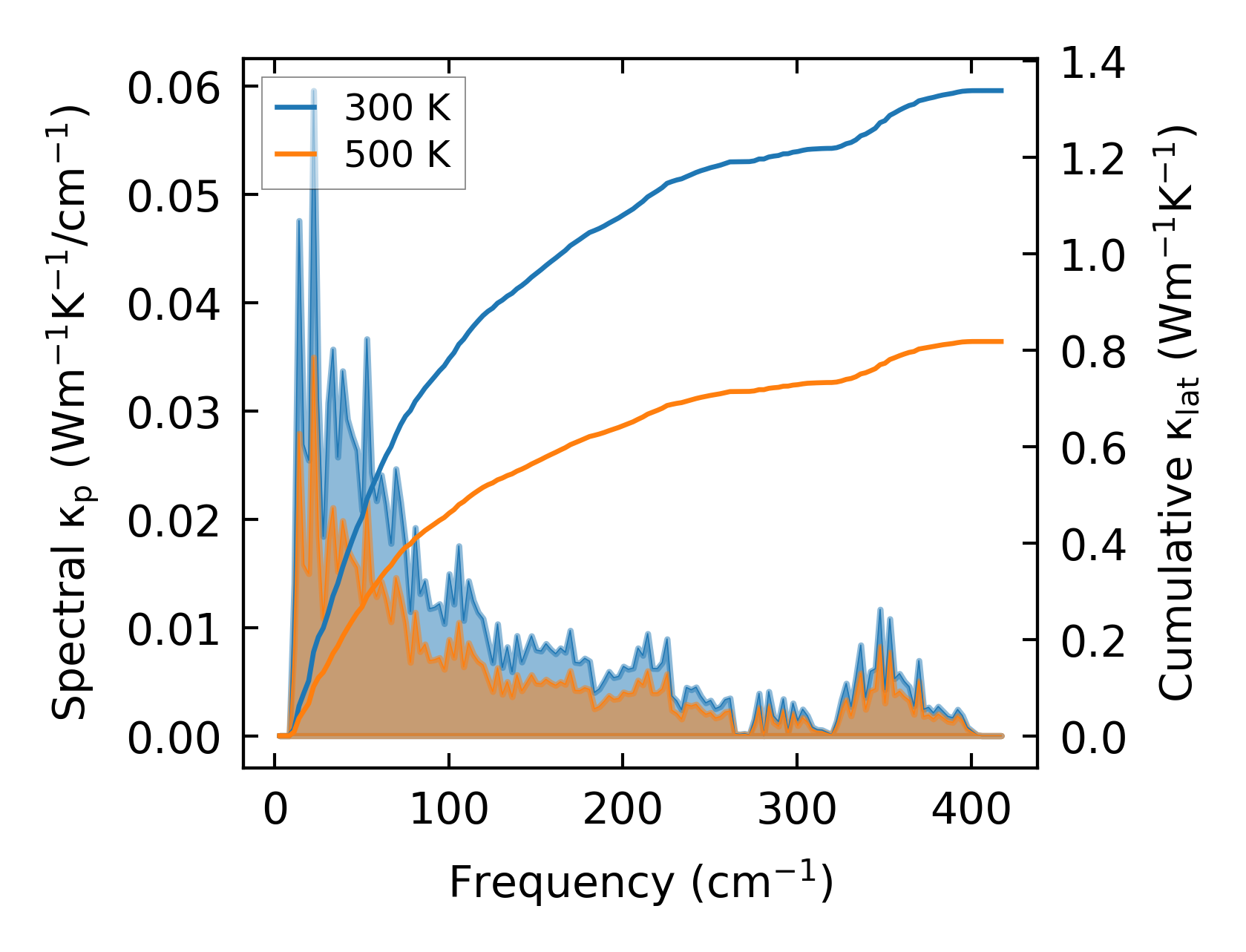

../../_images/fig_cumu_frequency4105.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4104.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

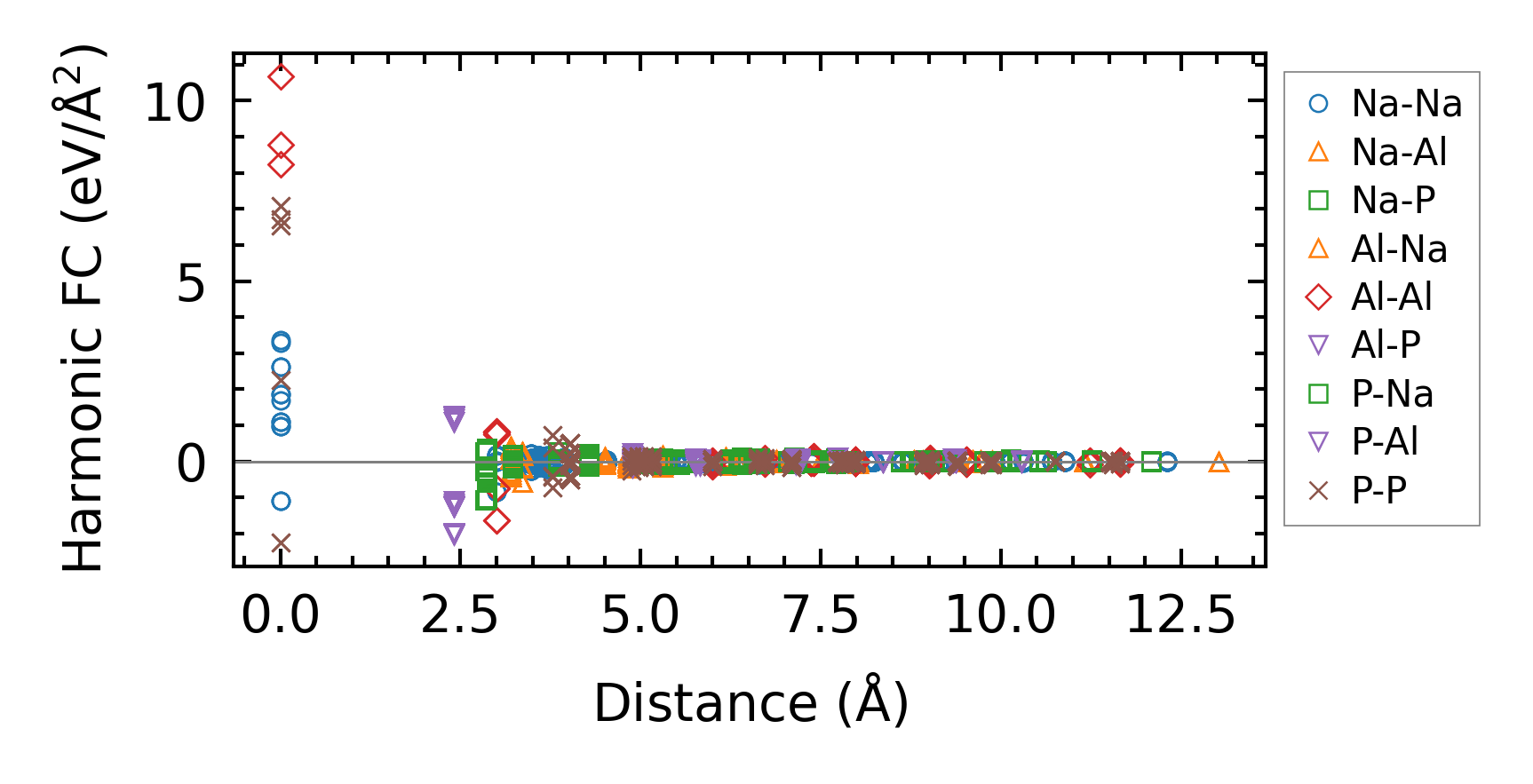

../../_images/fig_fc210013.png — (a) Force constants w.r.t atomic distance

Summary

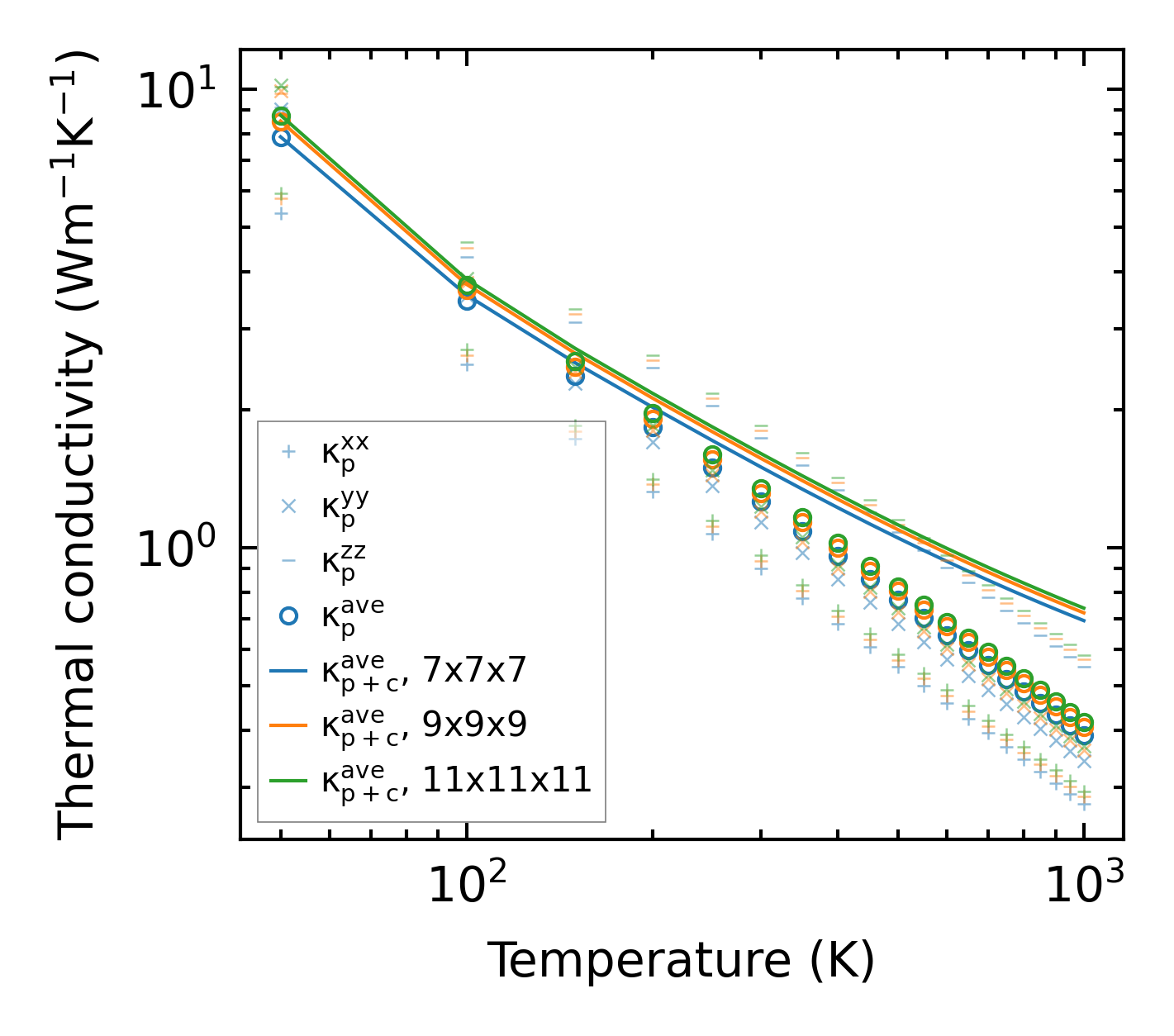

../../_images/fig_kappa7813.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17735.png — (b) Computation time
