mp-5532/Sr2TiO4/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-5532.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10000.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10000.png — (b) Thermodynamic properties

Grüneisen parameters

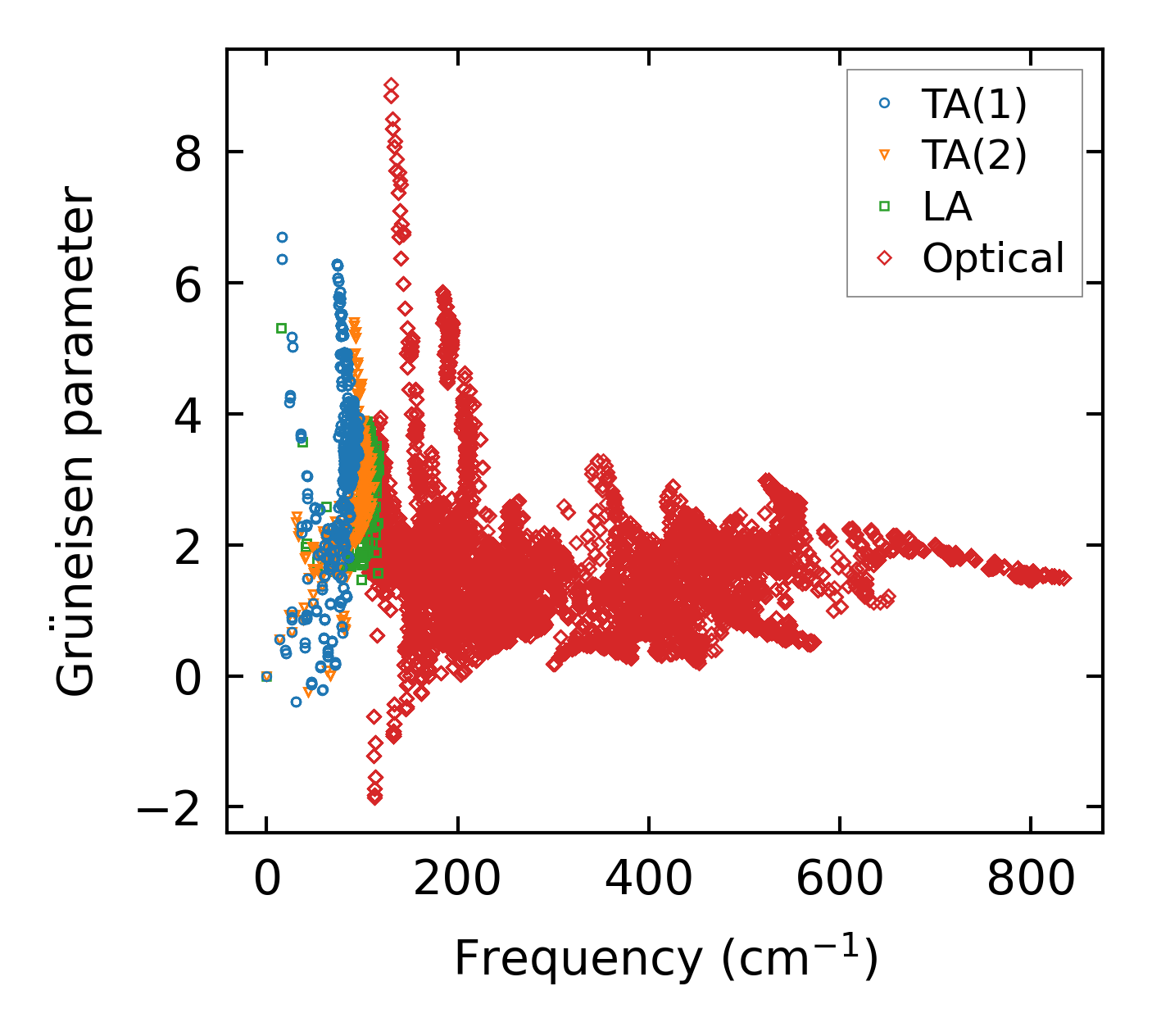

../../_images/fig_gru_all4008.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4008.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 3x3x1

../../_images/fig_kappa7558.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4061.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

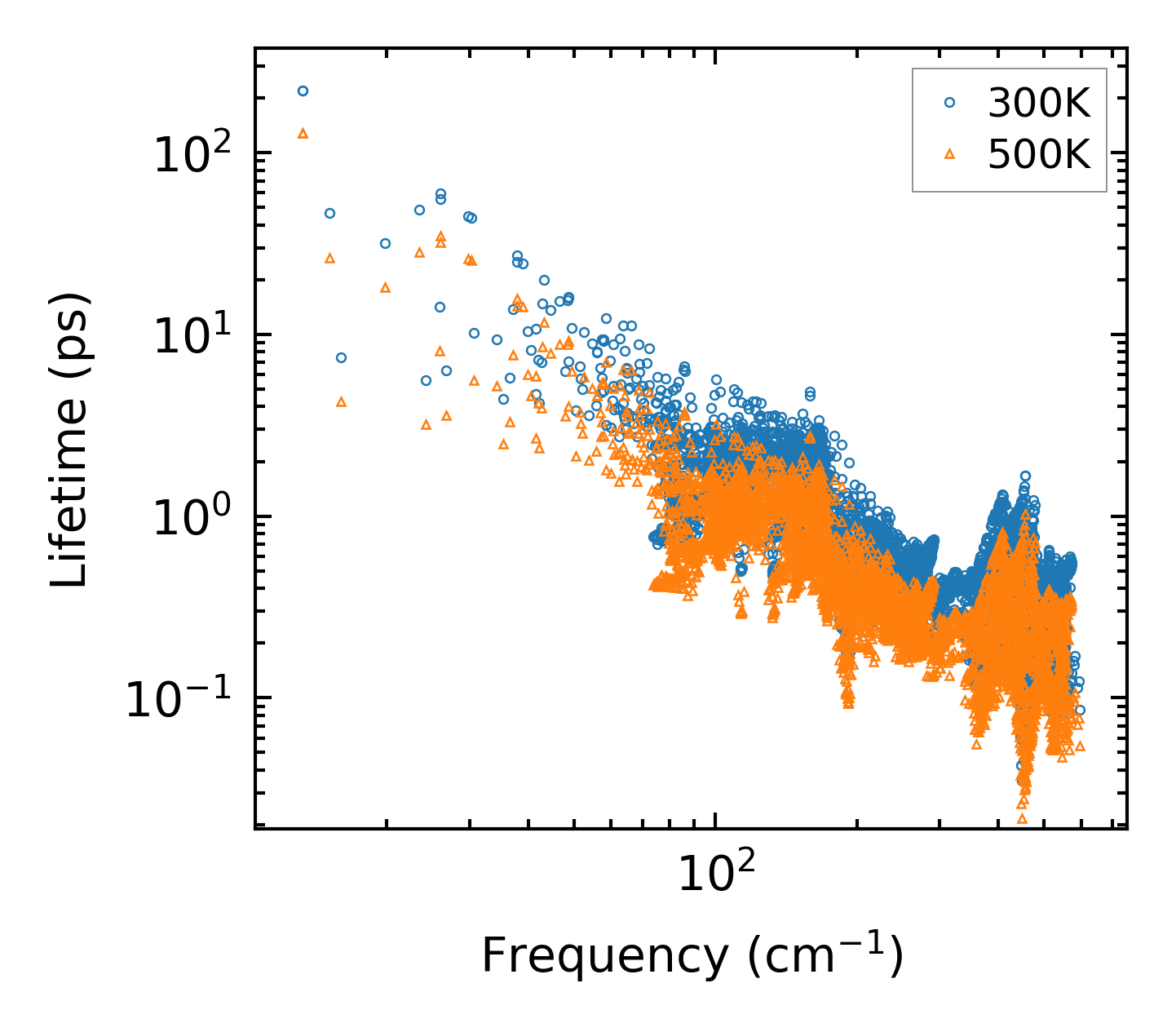

../../_images/fig_lifetime3970.png — (a) Phonon lifetime due to phonon-phonon scattering

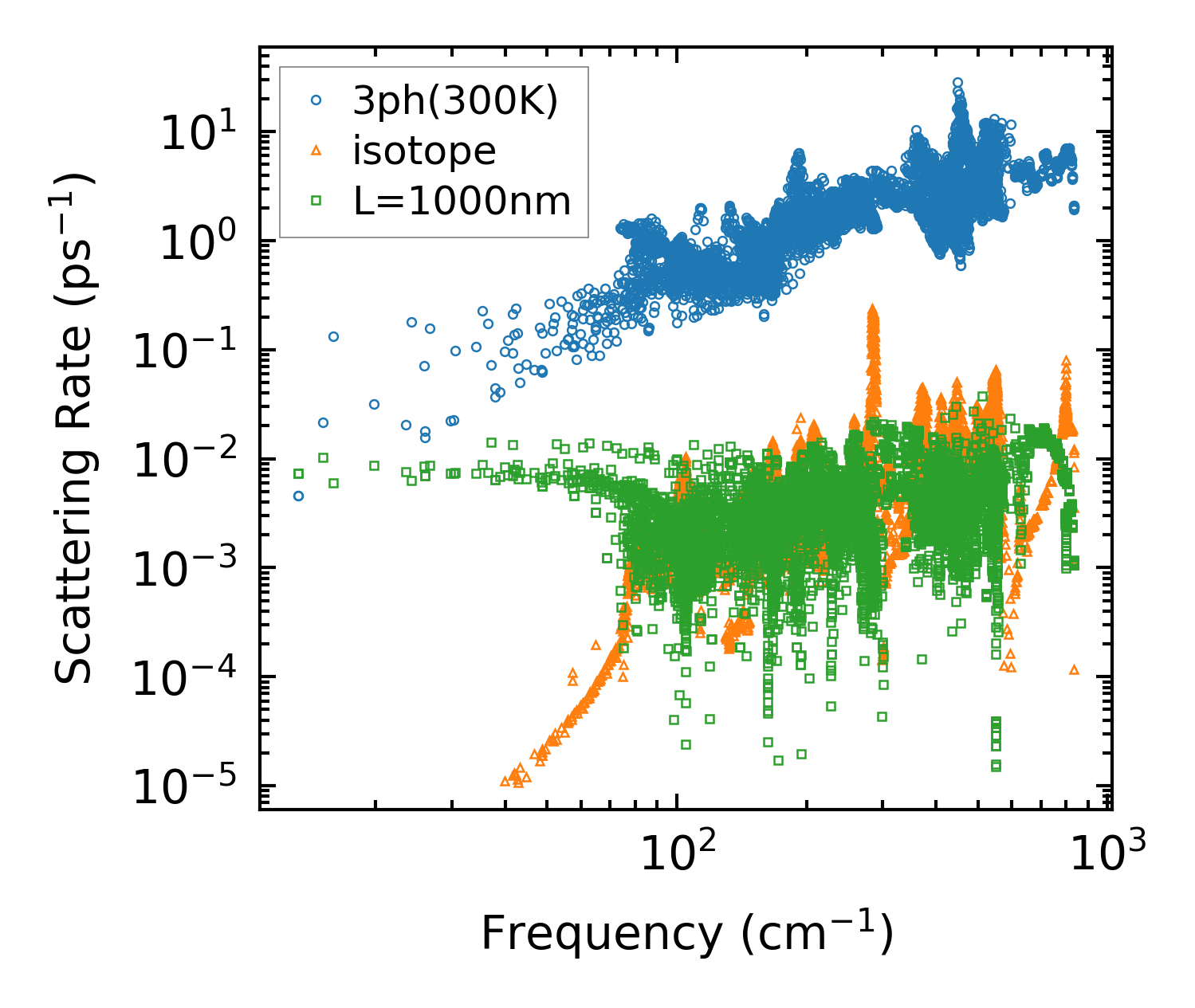

../../_images/fig_scat_rates3969.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

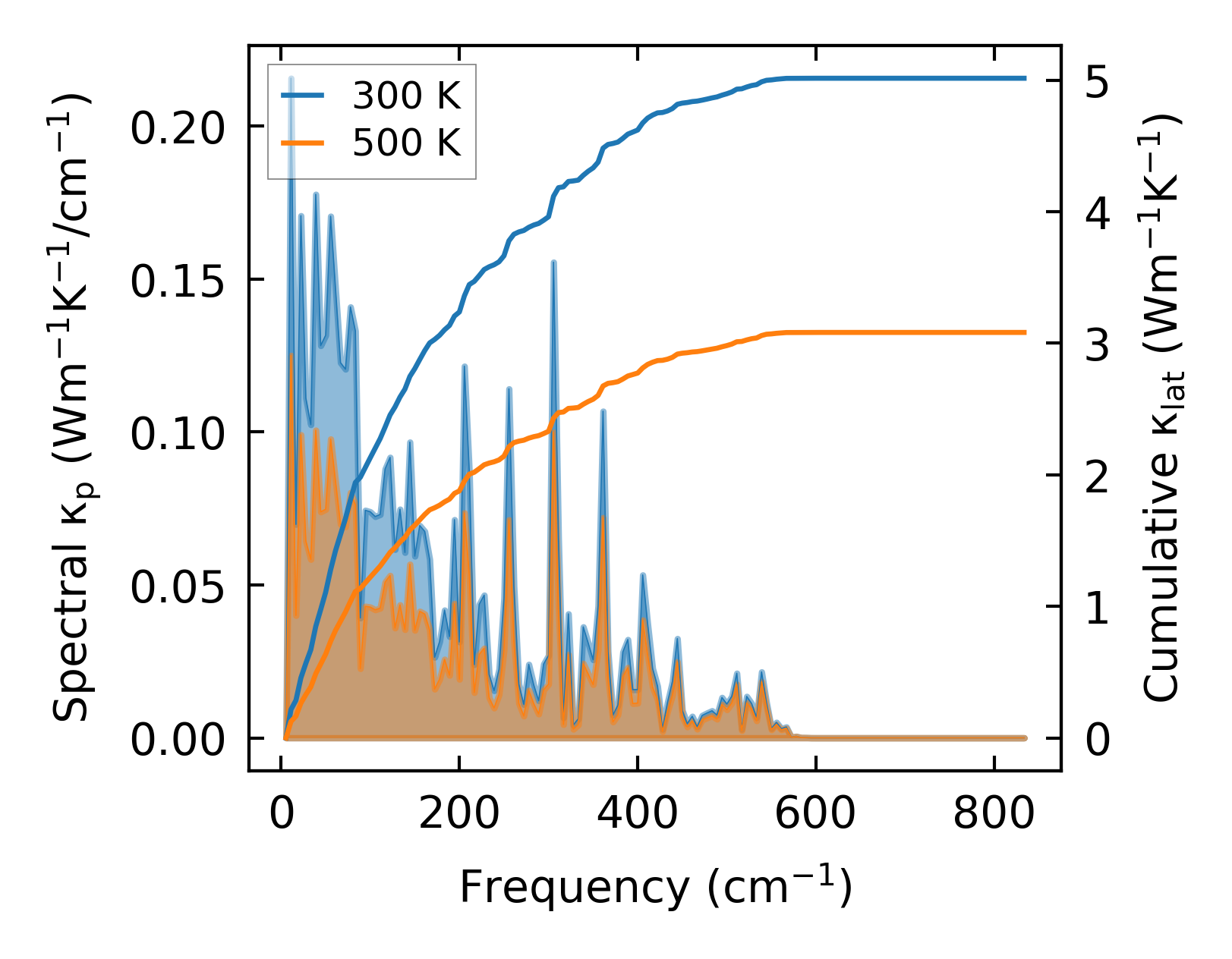

../../_images/fig_cumu_frequency3970.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

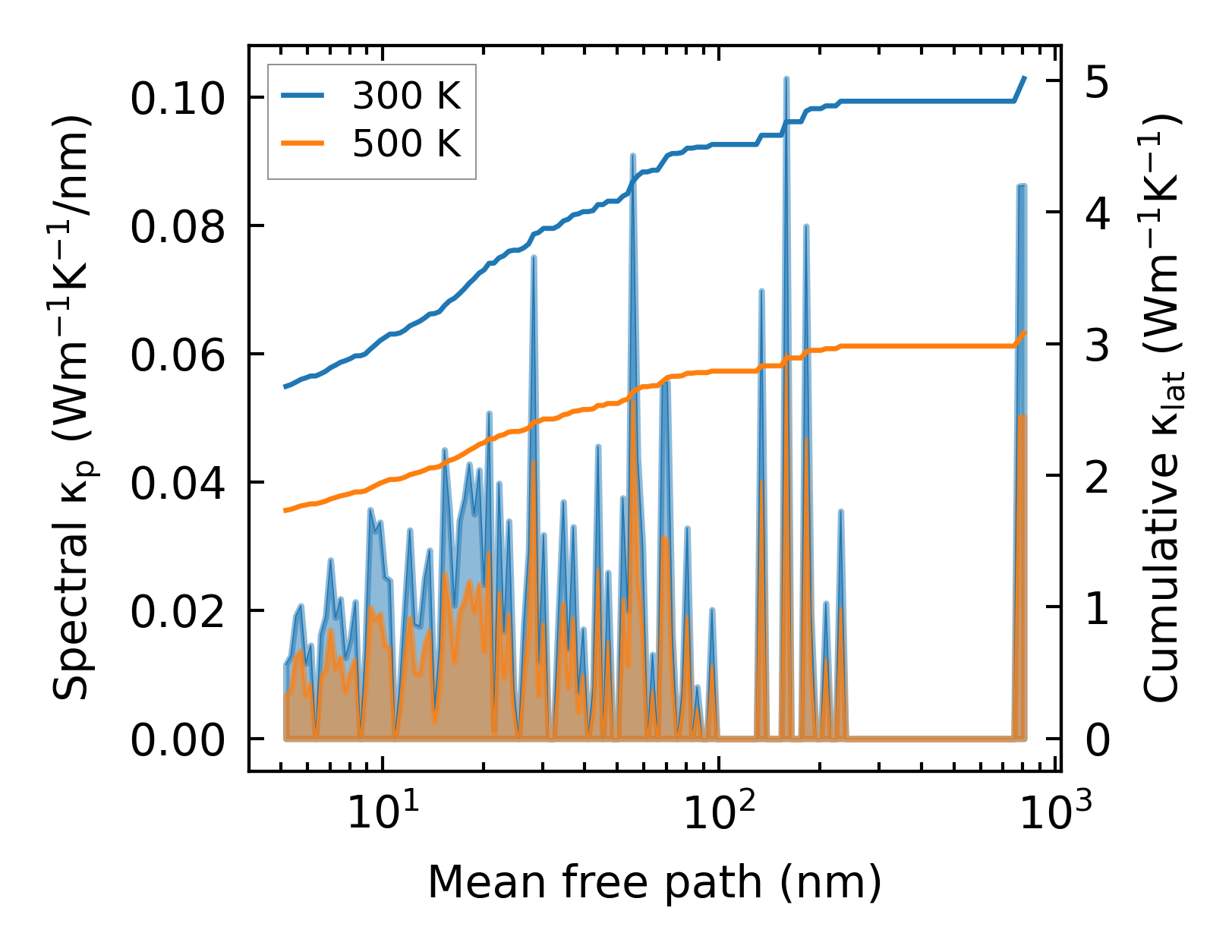

../../_images/fig_cumu_mfp3969.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

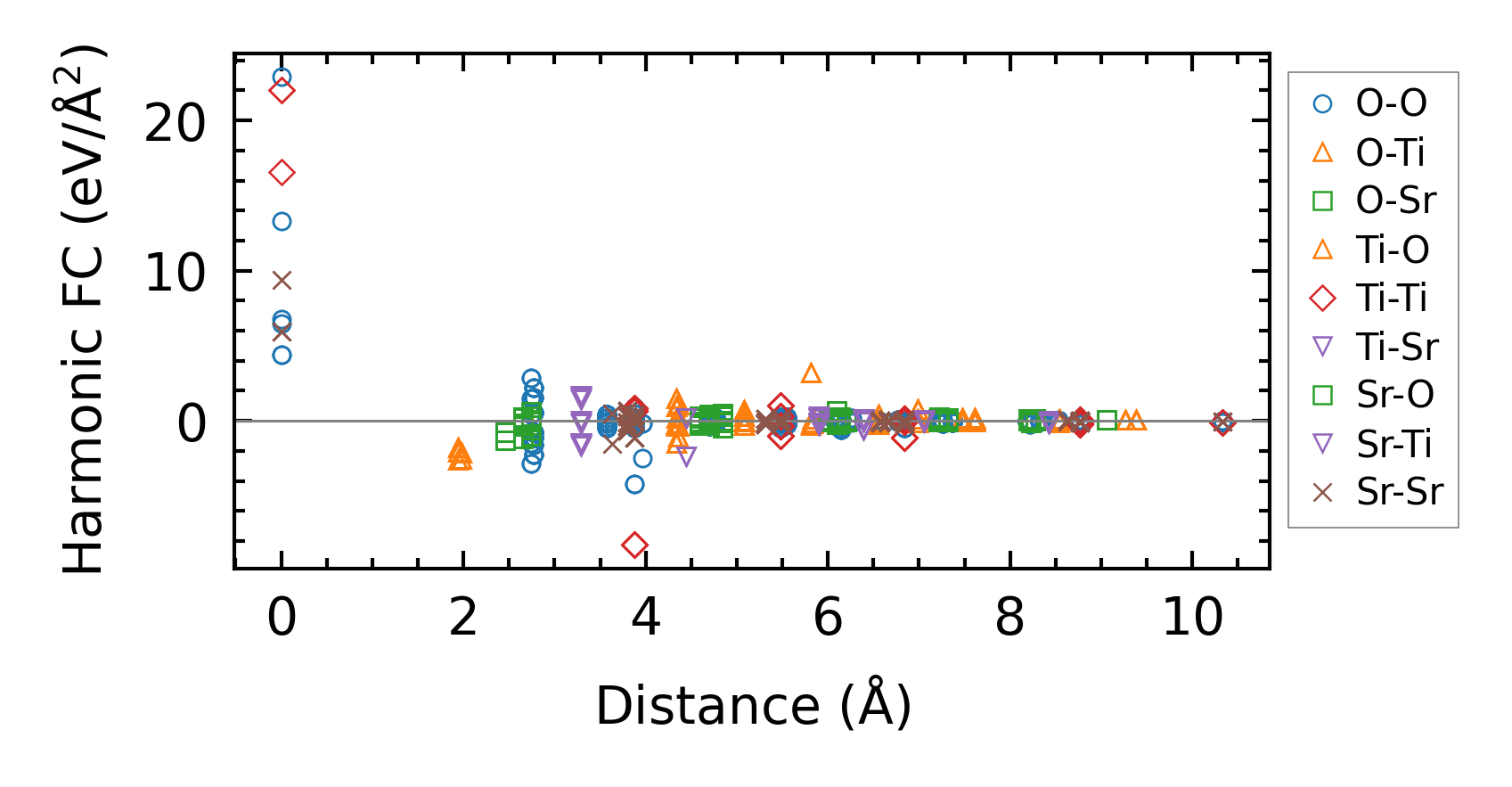

../../_images/fig_fc29753.png — (a) Force constants w.r.t atomic distance

Summary

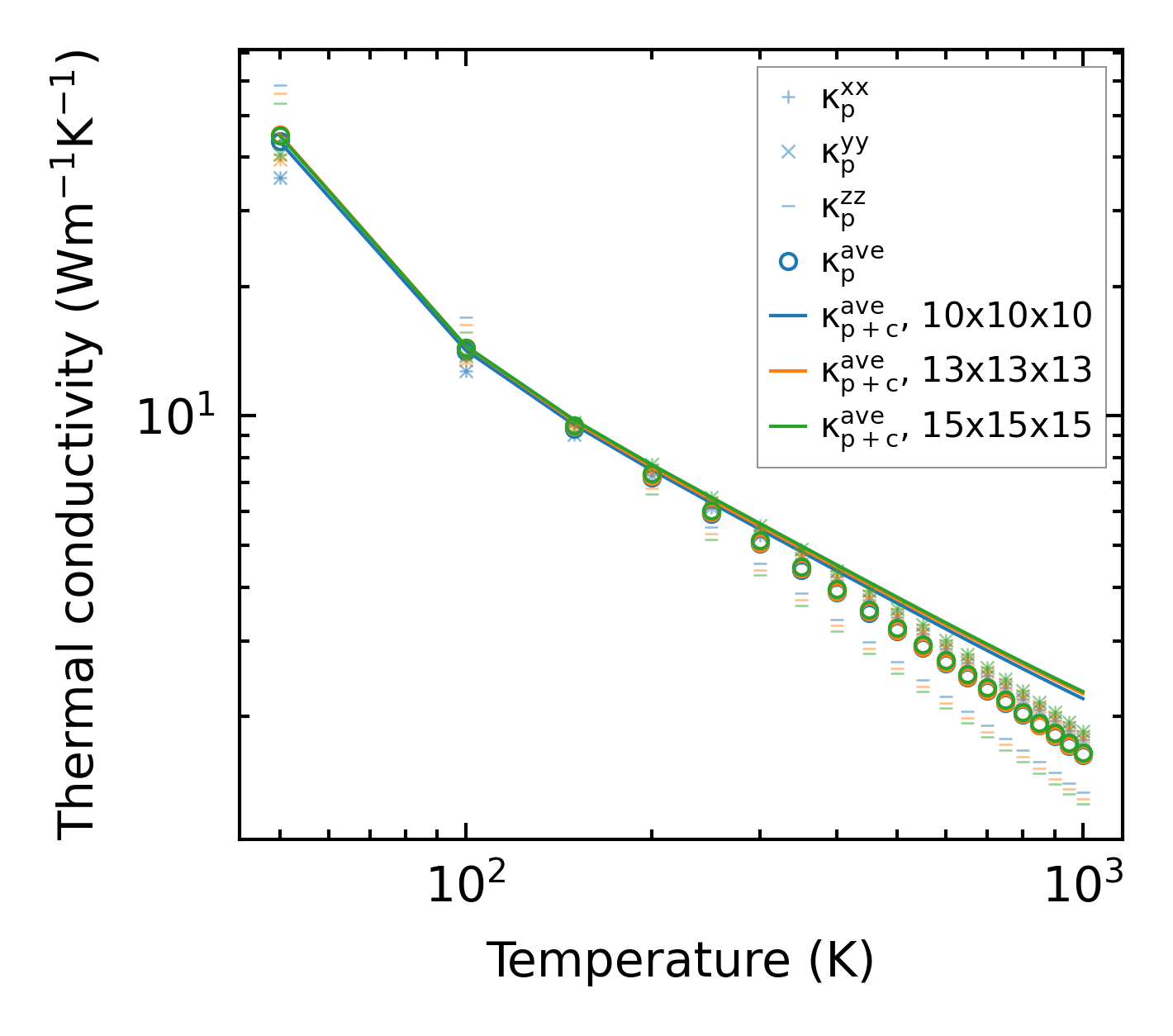

../../_images/fig_kappa7559.png — (a) Temperature-dependent lattice thermal conductivity

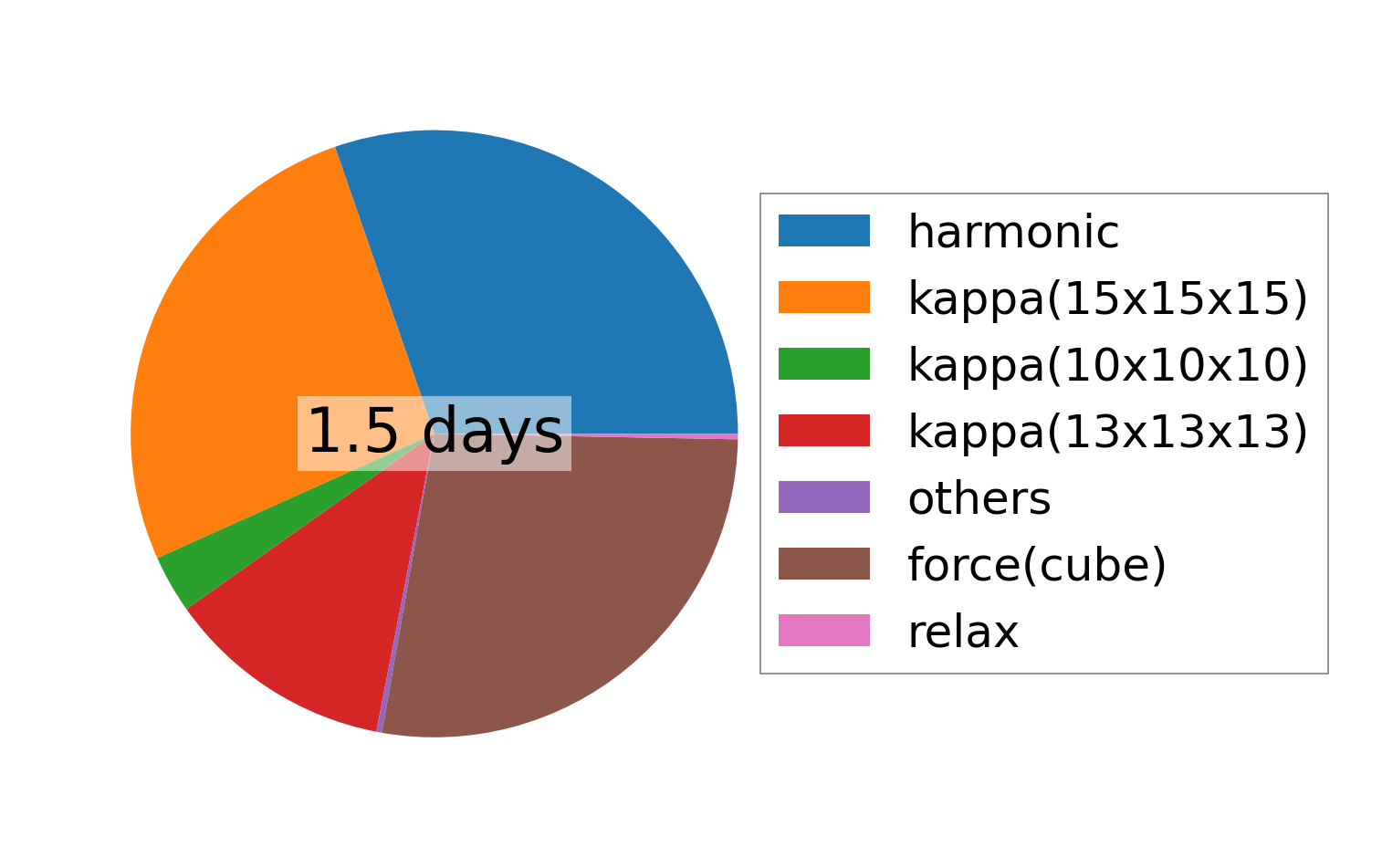

../../_images/fig_times17366.png — (b) Computation time
